Introduction
Congratulations on choosing Robosapien™V2, the next
generation of Robosapien™ technology and personality.
Now with even more advanced dynamic motion, interactive
sensors, new program functions, speech capabilities, and
a unique personality.
The Multi-functional, thinking, feeling robot with
attitude has arrived!
Robosapien V2’s package contains: 1 x Robosapien V2
1 x Controller
1 x Green Bowling Ball
3 x Red Bowling Pins
01

Robosapien™Overview
General
Q: Why do his controls seem to be reversed?
A: Robosapien™V2 is controlled from the remote like you
would direct an actor on a stage. When you are
facing him, your left is his right, which makes him easier to
work and program from the front.
Q: Can I use Ni-Cad batteries in my Robosapien V2?
A: No, they are not recommended.
Q: Is there an easy way I can look up all his Remote
Control functions?
A: Here’s a handy and concise Robosapien V2 Remote Quick
Reference Table (found on page 03). Print, cut and tape
to the top of your Robosapien V2 remote control until you
can do all his functions automatically.
02
ROBOSAPIEN V2 CHEAT SHEET
LEGEND:
BLUE indicates DIRECT ACTIONS
RED indicates OPERATION COMMANDS
PINK indicates PROGRAM COMMANDS
BLACK indicates SPECIAL FUNCTIONS
GREEN indicates SPEECH AND DEMO FUNCTIONS

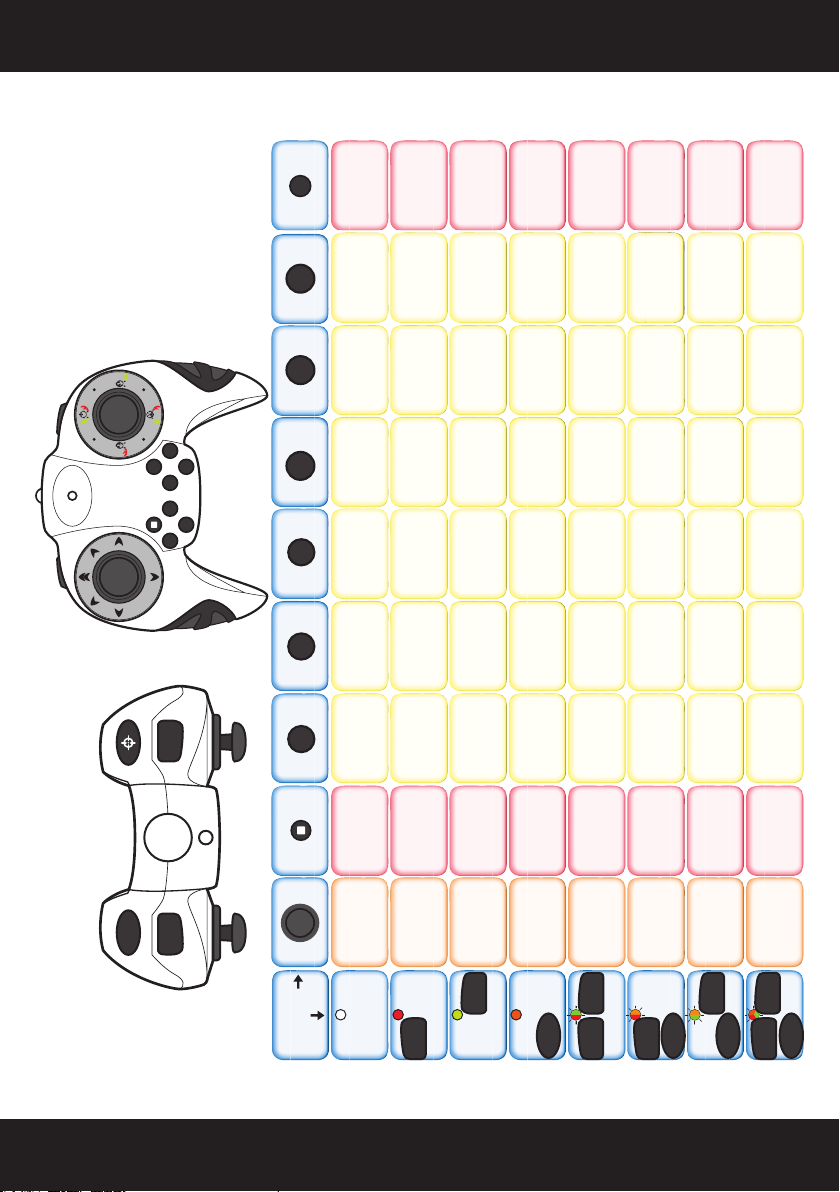

Remote Quick Reference Table
03
ROBOSAPIEN™V2 CHEAT SHEET
%
a c
b
x z
y
4)*'5
4)*'5
4)*'5
6OTIJGUFE
1SFTT
5PHFUIFS
3FTFU
4UPQ
4MFFQ
8BLF6Q
(FU6Q
$MFBS
1SPHSBN
#VMMEP[FS
'PSXBSE
3JHIU"SN
5ISPX
-FGU"SN
5ISPX
4PVOE
1SPHSBN
7JTJPO
1SPHSBN
.BJO
1SPHSBN
'FUDI
#VMMEP[FS
#BDLXBSE
1PXFS
%PXO
3PCPTBQJFOÎ7
*OUFSBDUJPO
3PCPSBQUPSÎ
*OUFSBDUJPO
3PCPQFUÎ
*OUFSBDUJPO
7JTJPO
4ZTUFNT
0O0GG
1PTJUJPOBM
1SPHSBN
&OUSZ
3JHIU
"SN-PX
1JDLVQ
3JHIU
"SN)JHI
1JDLVQ
-FGU
"SN-PX
1JDLVQ
-FGU
"SN)JHI
1JDLVQ
4PVOE
4ZTUFNT
0O0GG
3JHIU
,JDL
3JHIU
1VTI
3JHIU
$IPQ
3PBS
-BVHI *OTVMU 3JHIU"SN
%SPQ
%JPEF
%
.PWFNFOU
%FNP
%BODF
%FNP
-JF%PXO
4JUVQ
-JF%PXO
(FU6Q
0PQT
)JHI
)FZ#BCZ
#VSQ
%POU
1SFTT
-FGU
1VTI
1MBO
$BMN%PXO
.BOVBM
$PMPS
.PEF
*OEPPS:FMMPX
(VBSE
.PEF
-FGU"SN
(JWF
3JHIU"SN
(JWF
(BJU
$IBOHF
2VJDL3FTFU
3JHIU
"SN(SBC
-FGU
"SN(SBC
1PTJUJPOBM
1SPHSBN
1MBZ
-FGU
$IPQ
%BOHFS
.BOVBM
$PMPS
.PEF
%BZMJHIU
1FSGPSN
1SPHSBN
-FGU"SN
%SPQ
)VH
.BOVBM
DPMPS
.PEF
*OEPPS8IJUF
4QBSF
$IBOHF
$MFBS
&OUSZ
-FGU"SN
3PMM
3JHIU"SN
3PMM
'SFF
3PBN
-FGU
,JDL
3JHIU
"SN
)FBEBOE
6QQFS
#PEZ
)FBE
0OMZ
)FBEBOE
6QQFS
#PEZ
6QQFS
#PEZ
0OMZ
-FGU
"SN
)JQT
8BJTU5JMU
#PUI
"SNT
3
4)*'5 4)*'5 4)*'5 4)*'5
4)*'5 4)*'5 4)*'5 4)*'5
4)*'5 4)*'5 4)*'5 4)*'5
abcy
xz

Q: How can I keep Robosapien™V2 awake for long periods?
A: If he is kept in front of an object so his eyes blink slowly
(a white wall about 4 1/2 feet/ 1 1/2 meters away works well), he
will stare at it for over 2 days before his brain batteries
finally die.
During this time he will pay attention to anybody who walks by, but
won’t entertain you or go to sleep.
Q: He keeps watching me and reacting to sounds! How can I
control his actions?
A: Press the “b” button to deactivate his vision systems, and the
“a” button to deactivate his sound response. He’ll now
respond only to touch and remote control buttons.
Q: Where can I store his remote control when he’s sleeping?
A:
General cont’d
04
%
A C
B
X Z
Y

Controller overview
Walking
05
Q: What’s the difference between the various walking gaits?
A: In addition to 6 turning moves (walk-turns and turn-in-place)
your Robosapien™V2 has 5 different walking gaits. These can
be selected by pressing the GAIT CHANGE button “y” when he’s
walking forward from a single “left-joystick” press.
GAIT 1: (press left joystick once) Walks forward, sways at the
hip.
GAIT 2: (press left joystick twice) Double pace. First few steps in
place to gain momentum.
GAIT 3: (one “y” press) Same pace, twists hands at the wrist,
alternately.
GAIT 4: (two “y” presses) Swings arms alternately, hands turned
sideways.
GAIT 5: (three “y” presses) Sways twisting and bending at the hip,
hands palm down.
Q: How do I keep my robot from stumbling on carpet?
A: From a STOP, press his LEFT joystick FORWARD twice. This
will get him into a high-stepping gait which will help him over
shag, forward or backward. If he does fall over on his back
though, just press SHIFT3-STOP to get him back up again.
Q: How do I keep my robot from falling when he turns in place on
carpet?
A: When his batteries are fresh, he will sometimes topple when
left to turn continuously on carpet. Turn him only as far as
needed, then stop or change to forward walk command.

Battery Details and Operations Overview
Walking Cont’d
06
Q: My robot isn’t walking well. What can I do?
A: Though tested before shipping, your Robosapien™V2 may suffer
stresses during use that may affect his ability to walk properly.
To insure best walking operation, please check the following...
1 - We recommend using your robot only on smooth surfaces
without cracks, grooves, or obstacles (i.e., wood, vinyl or
laminate flooring). Uneven or rough surfaces such as ceramic
tile or carpet will cause him trouble. Though he can walk on
carpet, (even shag in “high step” walking mode), he may have
trouble navigating on it.
2 - Make sure that the batteries in his feet are all the same type.
Different batteries have different weights which can cause
imbalance, and he’ll walk in circles or fall.
3 - Use only Alkaline batteries, which are the correct weight and
output the correct amount of power for proper Robosapien V2
operation. Carbon batteries are too light in weight and low in
power.
4 - Make sure that your robot’s feet and footpads are free of
dirt or sticky substances. Also make sure his waist mechanism is
not being restricted or tied down in any way.
5 - Avoid dropping or knocking your robot over. This will stress
his mechanism and can possibly change his performance.
6 - Do not force your robot’s legs in any direction or bend any
motor past its limit.

Basic Operation
Walking Cont’d
07
If your robot is still not walking correctly, here are some simple
solutions.
SOLUTION FOR NOT WALKING STRAIGHT:
If a footpad becomes deeply scratched or worn, it will bind on
floors or carpet and interfere with proper walking.
SOLUTION: If the robot tends to walk to the LEFT, put regular
shiny scotch tape over the BACK INSIDE HEEL FOOTPAD of the
RIGHT FOOT.
SOLUTION: If the robot tends to walk to the RIGHT, put scotch tape
over the BACK INSIDE HEEL FOOTPAD of the LEFT FOOT.
(You can also reduce the friction of the footpad by covering it with
a thin, smooth layer of superglue – but you must be extremely
careful to avoid getting glue anywhere else on the robot.)
SOLUTION FOR FALLING ON CARPET:
If your robot falls down on carpet when walking (especially when
his batteries are fresh), there are several simple tricks to correct
his balance.
1 - Put slippery packing tape (the type found in double-sided tape)
across the FRONT INSIDE FOOTPADS. Making these footpads
more slippery will reduce falling and speed turning (covering
this footpad with a thin, smooth layer of superglue also works).
2 - Using a cross-head screwdriver, unscrew your robot’s footpads
and change the inside ones for the outside ones. This will make
him more stable on carpet surfaces.
Be sure the HIGH footpads are now on the OUTSIDE, while the
SHORT footpads are now on the INSIDE. (refer to illustration on
page 8.)

Walking
walking Cont’d
08

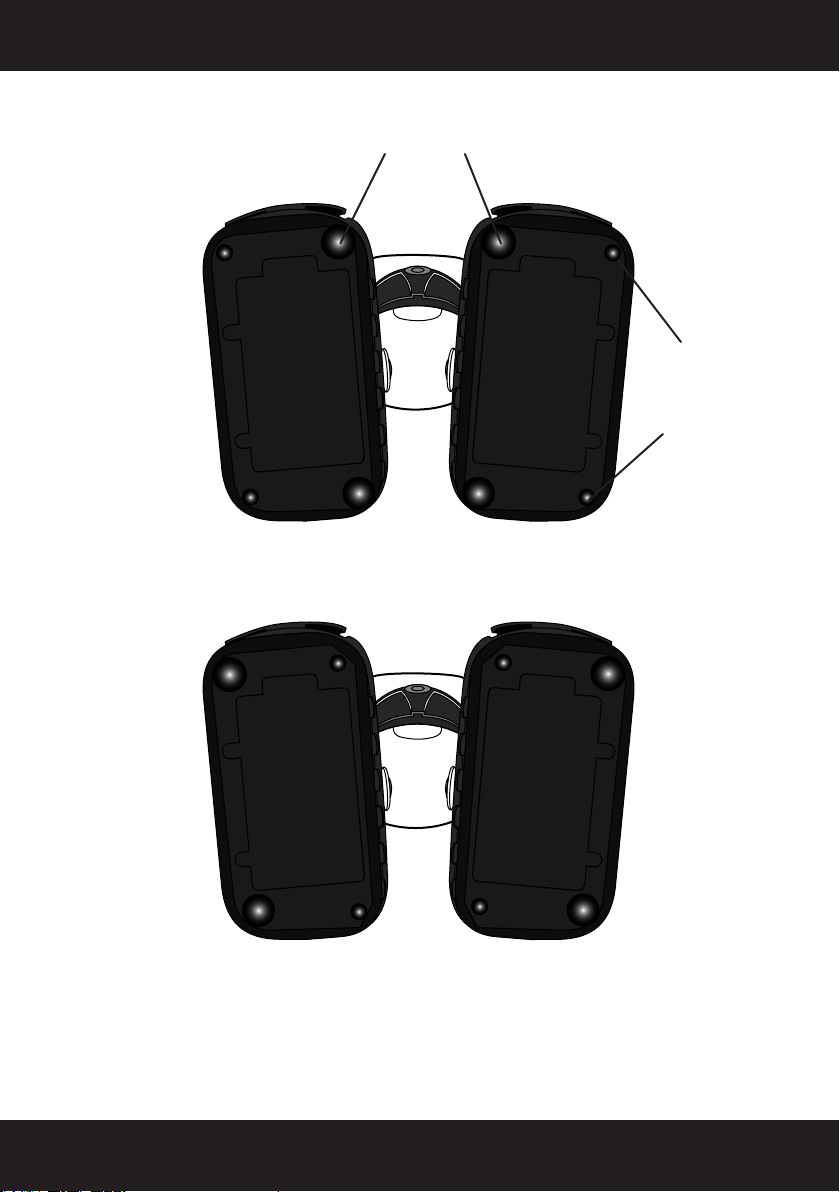

Inside Large Footpads
Outside Small
Footpads
6h$v
,2
5-
6h$v
,2
5-
6h$v
,2
5-
6h$v
,2
5-
6h$v
,2
5-
6h$v
,2
5-
6h$v
,2
5-
6h$v
,2
5-
6h$v
,2
5-
6h$v
,2
5-
6h$v
,2
5-
6h$v
,2
5-
Before Switching the Footpads
After Switching the Footpads

Q: My robot keeps staring at strange objects around the room.
What is he looking at?
A: He “sees” using Infra Red (I/R) light, a light too “red” for
humans to see. However, many appliances, computer screens,
TVs, and dimmed lighting emit I/R light which your robot can be
attracted to, so he’ll just naturally turn to have a look.
If your robot seems to be “distracted” by objects in the
surrounding environment and isn’t performing the commands you
request, try moving him to another area, or pressing the “b”
button on his controller to disable his vision abilities.
Q: My robot only sees me intermittently. What’s wrong?
A: If your robot hears something loud, his vision turns off
until he figures out where the sound is coming from (about three
seconds unless he hears another sound). His eyes will turn off
and then blink at one second intervals during this mode to let
you know he’s in listen mode.
If you’re testing your Robosapien™V2’s vision in a noisy place, be
sure to press the “a” button to disable his hearing. He’ll now
pay much better attention to you.
Q: Sometimes he doesn’t recognize things placed in front of him.
What’s wrong?
A: One of the robot’s secrets is that he “sees” with his ears, not
with his eyes. Therefore, when you show him something, it has to
be big enough to be “seen” by the eye “cone” of both ears;
otherwise he’ll just say “what is that?” and regard it as a
regular object. (Refer to Illustration on page 10.)
Vision
09

When you show your Robosapien™V2 something, be sure the object
(or your hand holding the object) is big enough to cover the width
of his face so he “flinches”. He also needs a second or two
(depending on how bright the room is) to recognize the object.
Q. My robot has trouble identifying his green ball.
A. When showing him different colors to identify, make sure you
“flinch” him between each color. You can do this by waving the
object in front of his face. If he doesn’t flinch immediately,
press the stop button and try again. If he still has trouble
recognizing the object’s color, try showing him a larger object
of the same color. For example, if you want him to identify his
red bowling pin, try showing him 2 pins next to each other which
will increase the surface area for him to “see”.
Vision Cont’d
10

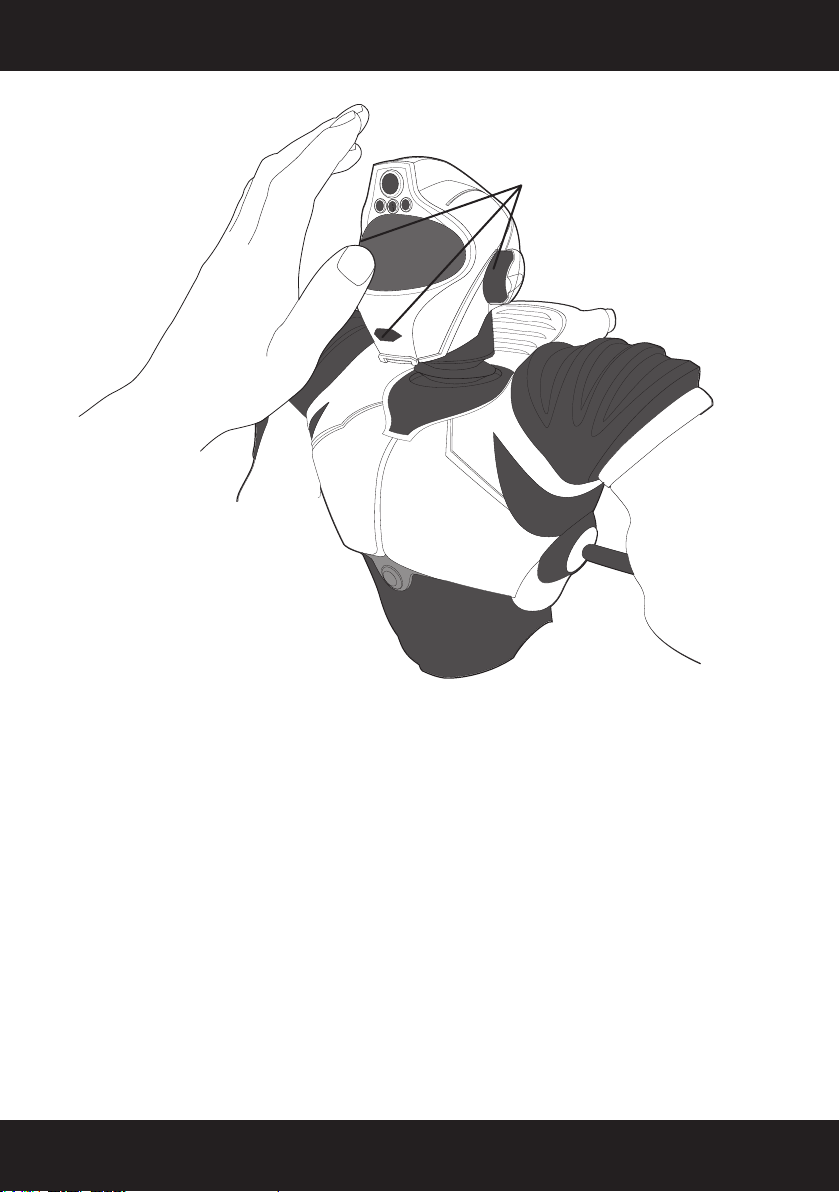

Cover these
sensors to make
him flinch.

Vision Cont’d
11
Q: My Robot thinks I am blue. What do I do?
A: If your robot thinks you are “blue” for some reason, then the
problem is the white balance setting in his color camera eye. His
default mode is “indoor yellow light” like the warm light you
commonly get from indoor light bulbs.
As with a camera, you may have to adjust what he sees for “indoor”,
“outdoor”, or “sun-on-beach”.
If you’re outside under SUNLIGHT,
press SHIFT1-SHIFT2-SHIFT3-”x”
If you’re inside under FLUORECENT LIGHTS,
press SHIFT1-SHIFT2-SHIFT3-”z”
In different light settings, his perception of colors may change. For
example, under indoor white fluorescent lights (when in “indoor
yellow light” mode), human hands appear blue, yellow tennis balls
appear green, and oranges appear red.
Please check your Robosapien™V2 instruction manual, page 25, for
further color camera information.

Personality Bodycons
Q: How can I reduce the volume on my robot?
A: A bit of tape over the speaker grill at the back of his neck will
greatly reduce his volume (though he will sound like he’s talking
through a telephone). Or stick a 1.5” x 2” “Post-It” over the
speaker grill, which will reduce the volume without muffling the
speech too much.
Sound
12
Q: What is the difference between each pick up and drop
function?
A: Your robot is capable of over 20 different pickups with his full
sized hands. These pickups can be combined together for a
variety of programmed actions.
For example the following program allows the robot to ask for
something and then return it to the person who gave it to him.
All buttons in each step must be pressed simultaneously.
SHIFT1 + SHIFT2 + “a” - Enter sound program mode
SHIFT1 + SHIFT2 + STOP - Clear memory
SHIFT2 + “x” - Gimme with left hand
SHIFT1 + SHIFT3 + “a” - Laugh
SHIFT1 + SHIFT3 + “x” - left hand place
SHIFT1 + SHIFT2 + “x” - Exit program mode
Press STOP
Program continues on next page...
Hands and Pick Ups

Hands and Pick Ups Cont’d
13
SHIFT1 + SHIFT2 + “b” - Enter Vision Program Mode
SHIFT1 + SHIFT2 + STOP - Clear memory
SHIFT1 + “x” - Gimme with left hand
SHIFT1 + SHIFT3 + “x” - Danger
SHIFT1 + SHIFT3 + “c” - right hand place
SHIFT1 + SHIFT2 + “x” - Exit program mode
Press STOP
SHIFT1 + SHIFT2 + “y” - Enter Guard Mode.
Robosapien™V2 will now ask for something when he hears or sees
things, and then pass it back to the owner. For some reason, this is
very popular with children.
Q: What are the best objects for my robot to pick up?
A: Empty soda and beer cans. By placing an empty soda or beer can
one can-width in front of his toe, he can pick it up high (SHIFT1-
”c”), or low (SHIFT1-”b”), or have you give it to him (SHIFT1-”x”).
Other things he’s good at picking up are empty milk cartons and
water bottles, crumpled paper and paper towels, medicine bottles
and 4 inch toy figurines.

Q: Can he pick up full cans?
A: Only clean, empty cans are recommended otherwise it gets a
bit messy when he waves them around.
However he can pick up objects weighing up to 1/4 pound (120
grams), about the weight of a small remote control or a partially
filled, small bottle of water. Please be sure the can/bottle is
securely closed to avoid spilling any liquids on your robot or his
surroundings.
Q: What about tall water bottles?
A: He can pick them up only when laid down on their side, one
bottle-width in front of his toe.
Q: Why does he pick up so far in front of himself?
A: So that he doesn’t kick the object out of his reach before
trying to pick it up.
FOR INFORMATION ON THIS AND OTHER WOWWEE PRODUCTS,
PLEASE VISIT OUR WEBSITE, http://www.wowwee.com
hands and Pick Ups Cont’d
14
