X-Rite Ci62L+RTL User manual

Ci62L+RTL
Spectrophotometer
User Guide

CI62L+RTL SPECTROPHOTOMETER
1
Consult this documentation in all cases where the Attention symbol appears.
This symbol is used to inform you of any potential HAZARD or actions that may require
your attention.
CE Declaration
Hereby, X-Rite, Incorporated, declares that this Ci6X Series is in compliance with the
essential requirements and other relevant provisions of Directive(s) 2014/35/EU (LVD)
and 2014/30/EU (EMC).
Bluetooth equipped devices additional comply with R & TTE 1999/5/EC.
Federal Communications Commission Notice
NOTE: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Industry Canada Compliance Statement
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Equipment Information
Use of this equipment in a manner other than that specified by X-Rite, Incorporated may
compromise design integrity and become unsafe.
WARNING: This instrument is not for use in explosive environments.
Do not look directly into the measurement optics when the instrument is on.
Transportation: This product contains a lithium-ion battery. Should you need to ship this device,
you may wish to consult published guidance documents by one or more of these organizations for
advice on how to comply with the regulations: IATA, ICOA, IMDG & PHMSA. The battery contained
in the Ci6X series device is 107g in weight, 7.4V, 2.4 Ah, and complies with the UN 38.3 tests in
effect the year it was originally shipped.
Instructions for disposal: Please dispose of Waste Electrical and Electronic Equipment (WEEE) at
designated collection points for the recycling of such equipment.

CI62L+RTL SPECTROPHOTOMETER
2
If your device is equipped with a Bluetooth wireless transmitter, it contains the
following module.
Microchip RN42
Microchip Technology Inc.
2355 West Chandler Blvd.
Chandler, Arizona 85224
TEL: [phone]
Module meets the following standards:
EN 300328 V1.8.1 (2012)
EN 301489-1 V1.9.2 (2011)
EN 301489-17 V2.2.1 (2012)
EN 60950-1:2006 ITE General Requirement
EN 62479 (2010)+A11:2009+A1:2010+A12:2011
2200
FCC Regulatory Information
This equipment has been tested and found to comply with the limits pursuant to Part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and radiates radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio / TV technician for help.
FCC RF Radiation Exposure Statement:
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.
End users must follow the specific operating instructions for satisfying RF exposure compliance. This
transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
FCC-ID: T9JRN42
IC: 6514A-RN42

CI62L+RTL SPECTROPHOTOMETER
3
Proprietary Notice
The information contained in this manual is copyrighted information proprietary to X-Rite,
Incorporated.
Publication of this information does not imply any rights to reproduce or use it for purposes other
than installing, operating, or maintaining this instrument described herein. No part of this manual
may be reproduced, transcribed or translated into any language or computer language in any
form or by any means: electronic, magnetic, mechanical, optical, manual, or otherwise; without
the prior written permission of an authorized officer of X-Rite, Incorporated.
Patents: www.xrite.com/ip
“© 2017, X-Rite, Incorporated. All rights reserved”
X-Rite® is a registered trademark of X-Rite, Incorporated. All other logos, brand names, and product names mentioned are the properties
of their respective holders.
Warranty Information
X-Rite warrants this Product against defects in material and workmanship for a period of twelve
(12) months from the date of shipment from X-Rite’s facility, unless mandatory law provides for
longer periods. During such time, X-Rite will either replace or repair at its discretion defective
parts free of charge.
X-Rite’s warranties herein do not cover failure of warranted goods resulting from: (i) damage
after shipment, accident, abuse, misuse, neglect, alteration or any other use not in accordance
with X-Rite’s recommendations, accompanying documentation, published specifications, and
standard industry practice; (ii) using the device in an operating environment outside the
recommended specifications or failure to follow the maintenance procedures in X-Rite’s
accompanying documentation or published specifications; (iii) repair or service by anyone other
than X-Rite or its authorized representatives; (iv) the failure of the warranted goods caused by
use of any parts or consumables not manufactured, distributed, or approved by X-Rite; (v) any
attachments or modifications to the warranted goods that are not manufactured, distributed or
approved by X-Rite. Consumable parts and Product cleaning are also not covered by the
warranty.
X-Rite‘s sole and exclusive obligation for breach of the above warranties shall be the repair or
replacement of any part, without charge, which within the warranty period is proven to X-Rite‘s
reasonable satisfaction to have been defective. Repairs or replacement by X-Rite shall not revive
an otherwise expired warranty, nor shall the same extend the duration of a warranty.
Customer shall be responsible for packaging and shipping the defective product to the service
center designated by X-Rite. X-Rite shall pay for the return of the product to Customer if the
shipment is to a location within the region in which the X-Rite service center is located. Customer
shall be responsible for paying all shipping charges, duties, taxes, and any other charges for
products returned to any other locations. Proof of purchase in the form of a bill of sale or
receipted invoice which is evidence that the unit is within the Warranty period must be presented
to obtain warranty service. Do not try to dismantle the Product. Unauthorized dismantling of the
equipment will void all warranty claims. Contact the X-Rite Support or the nearest X-Rite Service
Center, if you believe that the unit does not work anymore or does not work correctly.
THESE WARRANTIES ARE GIVEN SOLELY TO BUYER AND ARE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR APPLICATION,

CI62L+RTL SPECTROPHOTOMETER
4
AND NON-INFRINGEMENT. NO EMPLOYEE OR AGENT OF X-RITE, OTHER THAN AN OFFICER OF X-
RITE, IS AUTHORIZED TO MAKE ANY WARRANTY IN ADDITION TO THE FOREGOING.
IN NO EVENT WILL X-RITE BE LIABLE FOR ANY OF BUYER’S MANUFACTURING COSTS,
OVERHEAD, LOST PROFITS, GOODWILL, OTHER EXPENSES OR ANY INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF ANY WARRANTY, BREACH
OF CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY OTHER LEGAL THEORY. IN ANY EVENT OF
LIABILITY, X-RITE’S MAXIMUM LIABILITY HEREUNDER WILL NOT EXCEED THE PRICE OF THE
GOODS OR SERVICES FURNISHED BY X-RITE GIVING RISE TO THE CLAIM.

CI62L+RTL SPECTROPHOTOMETER
5
Table of Contents
Introduction and Setup 7
Packaging 7
Attaching the Safety Strap 8
Powering On and Off 9
Locking the Navigation Control 9
Power Save Modes 10
Charging the Battery Pack 10

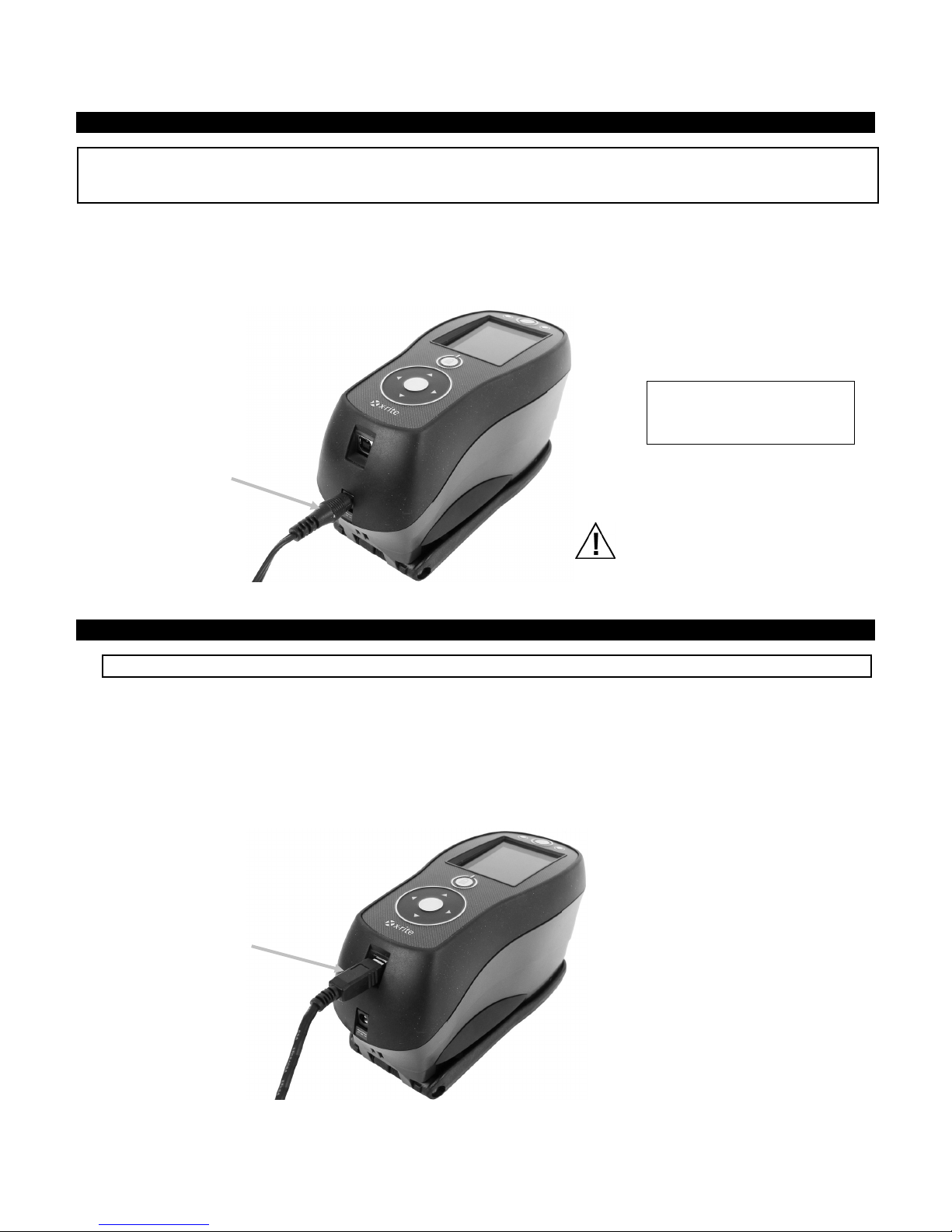

Connecting the AC Adapter 11
Connecting the USB Cable 11
User Interface 12
Instrument Controls 12
Navigation Control (up, down, left, right and center) 12
Measure Button 12
LED Indicators 12

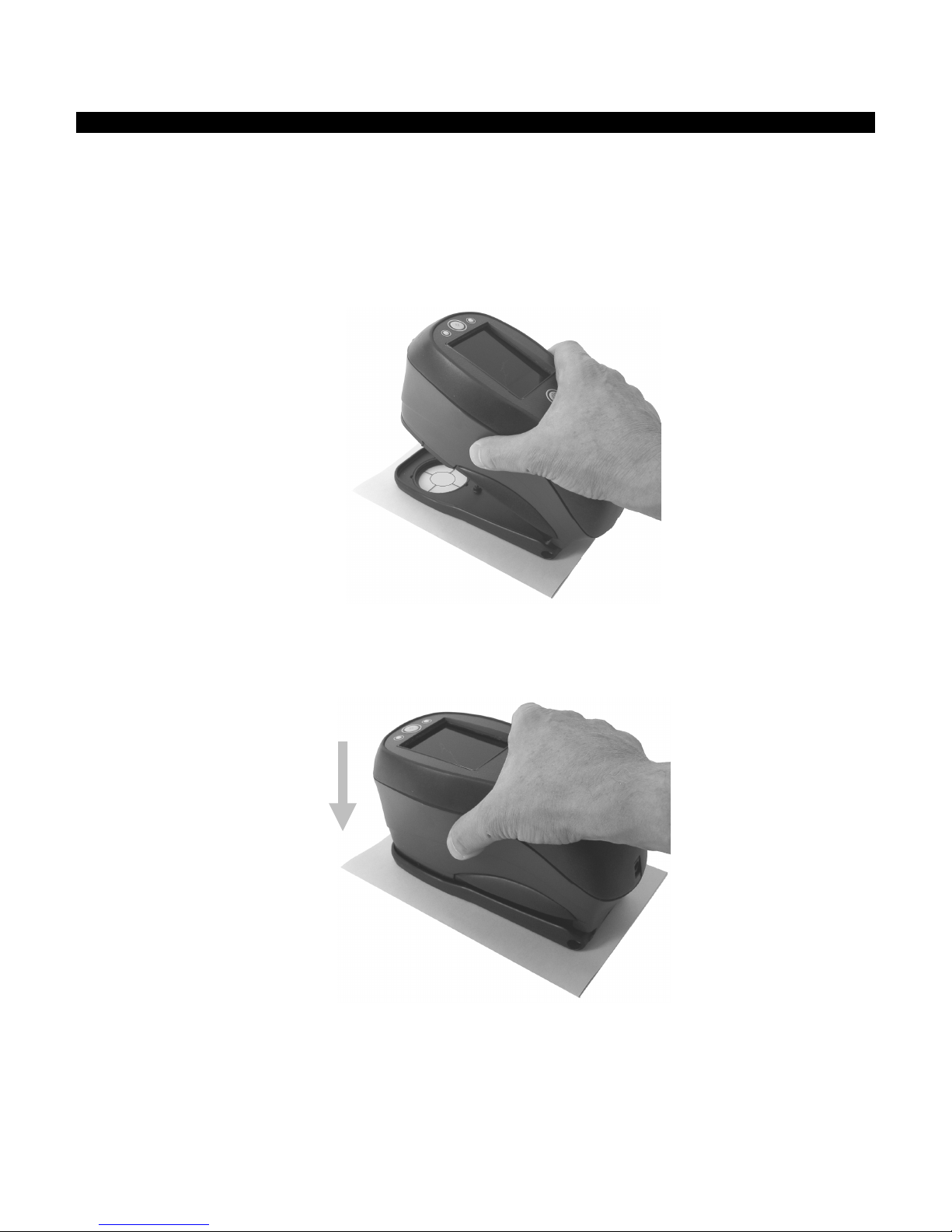

General Sample Measurement 13
Main Screen Menu 14
Measure Mode 14
Calibration Mode 14
Configuration Mode 14
Display Screen Layout 14
Header Bar 15
Main Column 15
View Column 15
Content Area 15
Progress Column 15
Configuration Mode 16
Entering Configuration Mode 16
Measurement Trigger 17
Averaging 17
Language 17
Instrument Orientation 17
Date Format 18
Instrument Date/Time 18
Delete All Samples or Standards 18
Restore Factory Settings 18
Calibration Mode 19
Calibration Notes 19
White and Black Calibration Procedure 19
Compare Mode 22
Compare Mode Icons 22
Compare Measurement 22
Measuring a Different Standard 24
Saving a Standard 25
QA Mode 26
QA Mode Icons 26
QA Measurement 26
Advanced Features 29
Standards 29

CI62L+RTL SPECTROPHOTOMETER
6
Deleting a Standard 29
Editing Standard Name 29
Editing Standard Tolerances 30
Projects 32
Selecting a Project 32
Creating a Project 32
Adding Standards to a Project 33
Deleting Projects, Standards, and Samples 34
Locking a Project 34
Editing Project Name 34
Appendices 36
Service Information 36
Cleaning the Instrument 37
General Cleaning 37
Cleaning the Optics 37
Cleaning the Calibration Reference 38
Replacing the Battery Pack 40
Troubleshooting 41
Screen Messages 41
Technical Specifications 42
Green Tile Color Check 43

CI62L+RTL SPECTROPHOTOMETER
7
INTRODUCTION AND SETUP
The spectrophotometer is a compact, rugged and reliable color measurement instrument that
reports spectral data.
This manual covers the installation, operation and maintenance of the instrument. Specific
instructions for using the instrument with your software application can be found in the software
documentation.
Key features of the instrument are:
•Hi-resolution 240 x 320, 18-bit color display
•Navigation control for easy screen selections, measure button, and power on/off
Packaging
Your instrument packaging should contain all the items listed below. If any of these items are
missing or damaged, contact X-Rite or your Authorized Representative.
•Ci62L+RTL instrument
•Carrying case
•USB interface cable
•AC adapter (X-Rite P/N SE30-277) and line cord
•Calibration reference

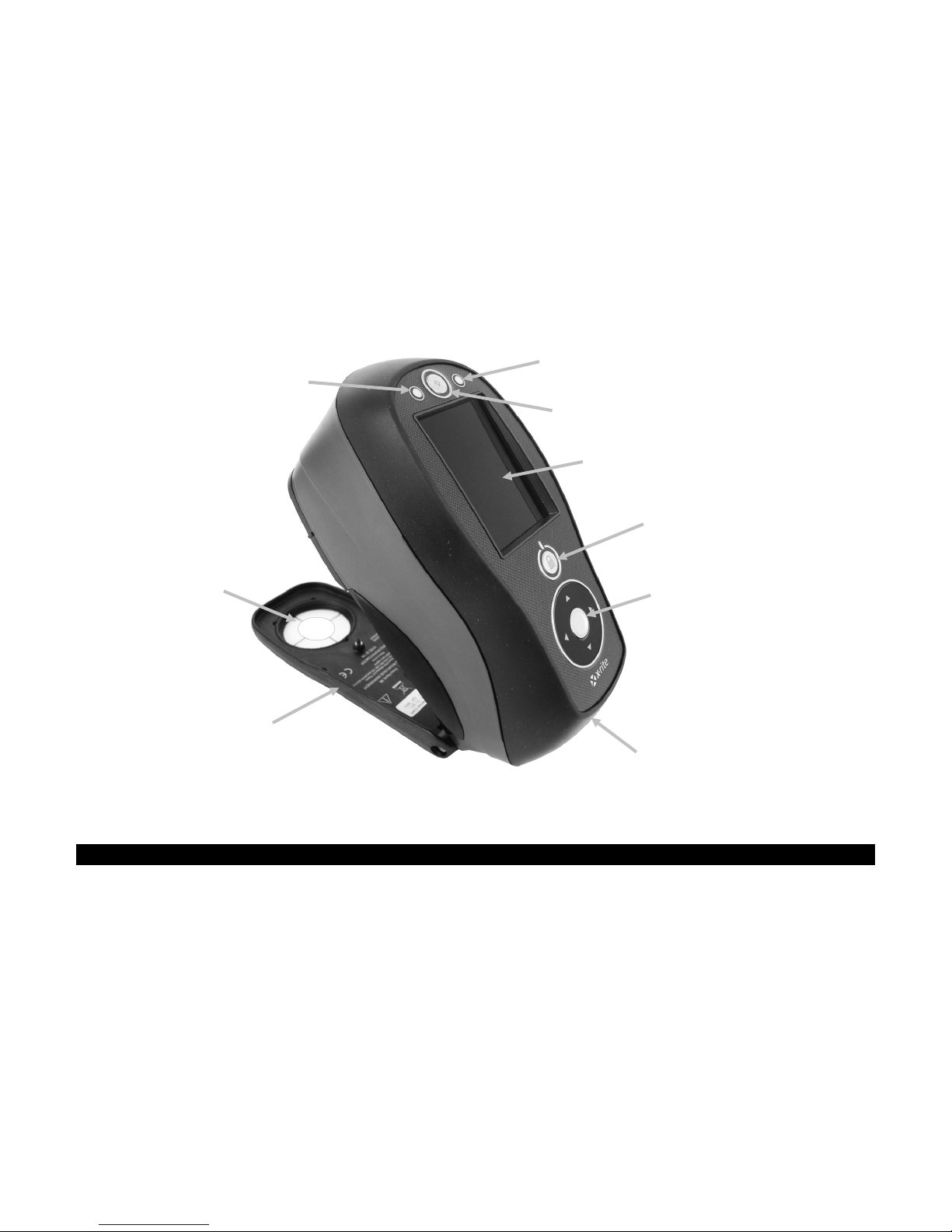

On/off power and navigation
control lock button
Measurement status indicator
Select button and navigation control
(up, down, left, and right)
USB and AC
adapter inputs
•Documentation and registration
material
•
Safety strap
Shoe
Target window
LCD color display
Measurement status indicator
Measurement button

CI62L+RTL SPECTROPHOTOMETER
8

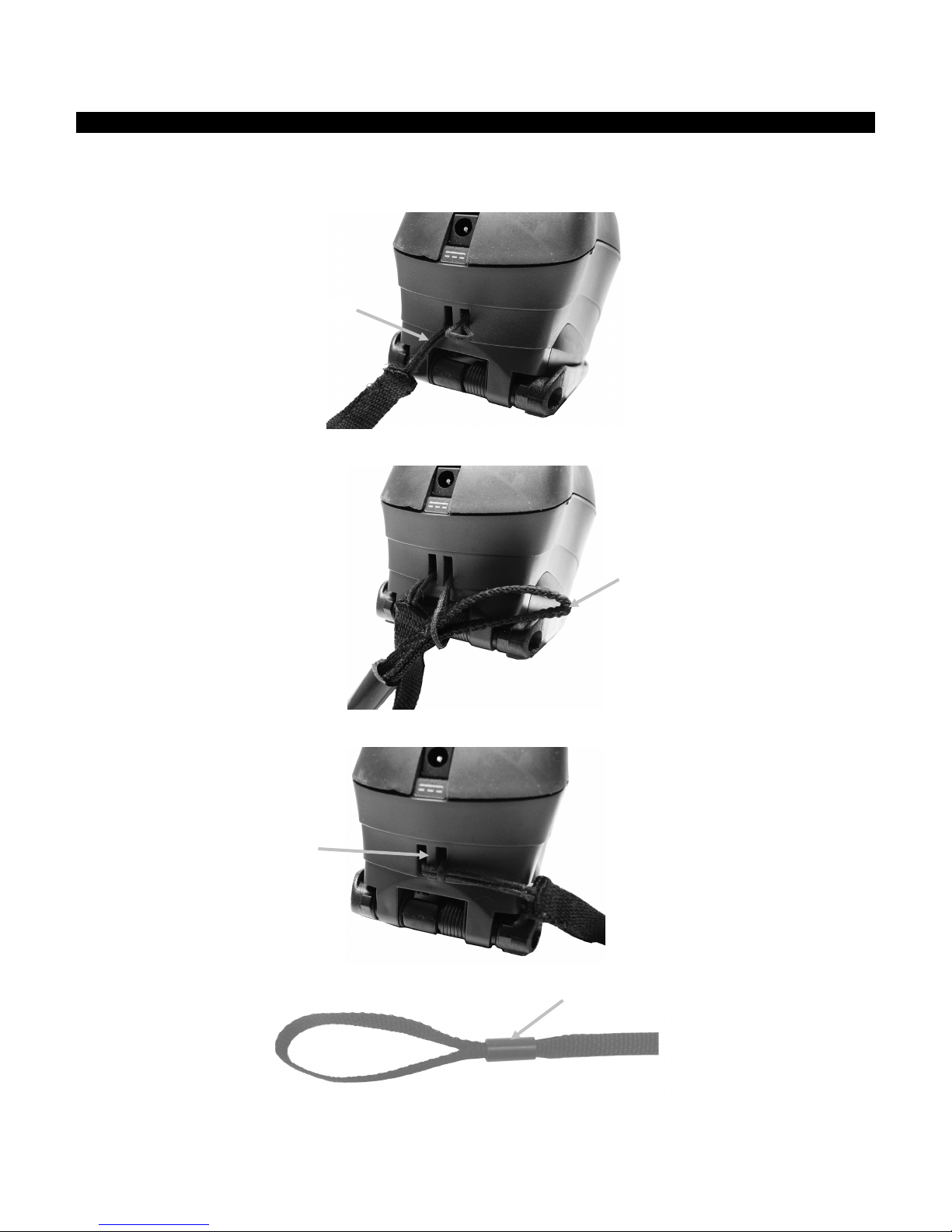

Attaching the Safety Strap
A safety strap is included with your instrument. The strap attaches to the back of the instrument
and around your wrist. The strap should not be used to carry the instrument.
1. Feed the small looped end of the strap around the post at the back of the instrument.
2. Insert the wrist strap end through the small loop.
3. Pull on the wrist strap to secure to the strap post.
4. Use the slide to tighten the strap around your wrist.
Small loop
Wrist strap
Strap post
Tighten slide

CI62L+RTL SPECTROPHOTOMETER
9
Powering On and Off
The power button is used to initiate the instrument from a power off state. Simply press and hold
the button for three seconds to turn on the instrument. If the instrument does not power up after
pressing the power button, the batteries may require charging. Refer to About the Battery Pack.
When first powered up, the instrument goes through a diagnostics test and displays a splash
screen before the main menu screen appears.
Splash Screen Main Menu
Locking the Navigation Control
The power button is also used to lock the navigation control. This is useful to avoid inadvertent
contact with the control when taking measurements.
Pressing the power button toggles the navigation control to “locked” and “unlocked.
A padlock icon appears in the header bar of the display to indicate the status of the control.
Locked Control Unlocked Control
Power button
Powering Off
The instrument can be
manually powered off by
pressing and hol
ding the
power button for three
seconds.

CI62L+RTL SPECTROPHOTOMETER
10
Power Save Modes
The instrument utilizes two power save modes to conserve battery life during nonuse times.
Standby Mode: The instrument is ready to measure, however the display is not on. A button
press, measurement, power connection (if not connected), or USB connection will wake up the
instrument.
Off Mode: The power button must be pressed to wake up the instrument before a measurement
can be taken. Plugging in the AC adapter will also wake up the instrument from power off mode.
Off mode does not occur when the AC adapter is attached to the instrument.
Charging the Battery Pack
General
The battery pack for your new instrument comes in a low to medium charge state and should be
charged before use (up to 4 hours for full charge).
A charged battery pack may eventually lose partial charge if not used for an extended amount of
time. You should charge the battery from time to time and store in a cool environment when not
in use to maintain battery performance.
Lifespan Expectations
Lithium-ion batteries typically decay to 80% capacity after 400 charge cycles (see chart below). A
charge cycle can be defined as several partial charges equaling 100%. Partial charge and
discharge cycles will help maintain the life of the battery. It is best to avoid full discharge and
charge cycles. After roughly 400 charge cycles are reached, the amount of measurements you
can expect to achieve from one full charge is reduced. At this point, you may wish to replace the
battery pack.
Disposal
Dispose the battery pack in a designated disposal location for recycling.
Cycle Life Characteristics
Cycles
1.0 C Discharge
C/2 Discharge
1.25 A CC/CV Charge, 4.2 V, 3 hrs.
Capacity (Ah)

CI62L+RTL SPECTROPHOTOMETER
11
Connecting the AC Adapter
NOTE: The instrument can operate from the AC adapter only. The battery pack does not need to be
installed. The AC adapter (X-Rite P/N SE30-277) overrides any charge condition of the battery pack in the
instrument. Measurements can be taken even with a very low battery condition when using the AC adapter.
1. Verify the voltage indicated on the AC adapter complies with the AC line voltage in your area.
2. Insert the small plug from the AC adapter into the input connector on the instrument.
3. Plug the detachable line cord in the AC adapter and plug the line cord into the wall receptacle.
Connecting the USB Cable
IMPORTANT: You must install the software before connecting the instrument to your computer.
1. Install the software application if not already installed. Refer to the software documentation
for additional information.
2. Turn the instrument on and plug the square end of the USB cable into the back of the
instrument.
3. Plug the USB cable into an available port on your computer. The instrument should
acknowledge USB presence by displaying the USB icon in the header bar of the screen.
AC adapter
connector
AC Adapter Ratings
Input: 100-240V 50-60 Hz
Output: 12VDC @ 2.5A
Operational hazard exists if an
AC adapter other than X-Rite
SE30-277 is used.
USB connector

CI62L+RTL SPECTROPHOTOMETER
12
USER INTERFACE
Instrument Controls
The instrument controls are used to navigate the screen, select options, and perform
measurements.
Navigation Control (up, down, left, right and center)
The navigation control moves the focus of the highlight around the
screen. Tapping on the left side moves the focus to the next
available item to the left. Tapping on the right side moves the focus
to the next available item to the right. The up and down sides
perform the same function, only in an up and down direction.
Tapping on the center of the control selects the item that has focus,
such as a mode or option.
NOTE: If at any time the navigation control become non-
responsive, turning the instrument off and then back on will reset
their operation.
Measure Button
The Measure button is located at the front of the instrument. The
button can be configured to initiate a measurement or be used in
conjunction with the read switch.
LED Indicators
Multi-color LEDs located at the front of the instrument provide visual feedback on the status of a
measurement. The LEDs will turn off after 5 seconds.
•Green: Indicates a successful measurement has taken place. Flashing green LEDs indicates
that the instrument is at an idle state waiting for a measurement.
•Amber: Indicates a measurement is in progress.
•Red: Indicates a measurement error has occurred.
You can also use the
navigation control to
rapidly scroll through a list
by touching the control
between the arrows and
circle left or right.
Down control
Right control
Select control
Left control
Up control
Measure button
LED indicator
LED indicator

CI62L+RTL SPECTROPHOTOMETER
13
General Sample Measurement
The instrument can take measures from just about any clean, dry surface that is reasonably flat.
The instrument shoe should be able to rest flat and steady on the sample area. If the item to be
measured is smaller than the shoe, you may want to make a platform—at the same height as the
item—for the rest of the instrument’s shoe to sit on.
Procedure:
1. Clear the sample surface of any dirt, dust, or moisture.
2. Position the target window over the sample to measure. If possible, place the entire
instrument on the sample.
3. Press the instrument firmly to the shoe and hold steady until the display indicates that the
measurement is complete.
4. Release the instrument and view the measurement results.
An unsuccessful measurement will be indicated by an error message. See the Troubleshooting
section for more details.

CI62L+RTL SPECTROPHOTOMETER
14
Main Screen Menu
When the instrument is powered-up, the main (top level) screen appears after the diagnostics
test is complete. The main screen consists of the header bar and operation modes. The operation
modes are selected by using the navigation buttons located to the side of the display screen.
Measure Mode
The measure mode is the main mode of operation. Use the Measure mode to take and analyze
measurements, and select measurement options. Refer to the Measurement Mode section for
information.
Calibration Mode
The calibration mode is used to perform white reference and black trap calibrations. Refer to the
Calibration Mode section for information.
Configuration Mode
The configuration mode is used to set and edit the instruments configuration options. The
configuration options should be set before you use your instrument for the first time. Refer to the
Compare Mode and QA Mode sections for information.
Display Screen Layout
The display screen is divided into five main areas.
Measure mode
Calibration mode
Header bar
Main column
View column
Content area
Progress column
Configuration mode

CI62L+RTL SPECTROPHOTOMETER
15
Header Bar
The header bar at the top displays various icons showing the current instrument setup and
condition. Refer below for a description of each.
•Controls Lock: Displays a locked or unlocked icon for the instrument controls.
Refer to Locking the Navigation Control earlier in this manual for an explanation.
•Measurement Trigger Method: Displays the measurement method currently selected
for the instrument.
Indicates the instrument must be pressed to the shoe to activate the read
switch to take a measurement.
Indicates the measure button on the top of the instrument must be pressed
to take a measurement.
Indicates a software command is required to initiate a measurement. No
read switch or measure button are used.
Indicates that both the read switch and measure button are required to
take a measurement.
•USB Connection: The USB icon appears when the instrument is plugged into the USB
port on the computer.
•Battery Gauge: Depicts the current condition of the battery pack.
Indicates the battery pack is fully charged.
Indicates the battery pack has a sufficient charge for a substantial number
of measurements.
Indicates the battery pack is low, but measurements are still possible.
Battery pack should be charged soon.
Indicates the battery pack is very low and only a few measurements
remain. Battery pack should be charged immediately.
Indicates the AC adapter is plugged in and the battery pack is charging
(battery indication segments cycle). The battery indicator will stop cycling
and display three segments when the battery pack is fully charged.
Indicates that battery pack is removed and the instrument is operating
from the AC adapter only.
Main Column
The main column is used to access the main instrument screen and configuration mode.
View Column
The view column lists options that may be available for the selected mode. The highlighted option
is the one that is currently displaying in the content area.
Content Area
The content area displays the data, steps, and information.
Progress Column
The progress column displays controls supporting the currently active content area, such as step
sequences, etc.

CI62L+RTL SPECTROPHOTOMETER
16
CONFIGURATION MODE
Configuration mode is used to adjust and view the instrument’s settings. Each configuration
option is explained in detail on the following pages.
Entering Configuration Mode
1. From the Main screen, use the Navigation control to move the highlight focus to the
Configuration icon.
2. Tap the Select button to access the main configuration screen. The screen displays the
instrument information (model, serial number, firmware and certification date).
3. From the Configuration screen, use the Up or Down navigation buttons to move the highlight
focus to the desired configuration icon in the Options column.
NOTE: The arrow icon (or ) at the end of the Options column indicates that additional
options are available. Move the highlight focus to the arrow icon to advance to the additional
options.
4. Tap the Right navigation button to enter the option settings area.
5. For Option Selections:
Use the Up or Down navigation buttons to move the highlight focus to the desired setting and
tap the Select button to change your setting. An arrow () appears next to the selected
setting.
For Value Selections:
Tap the Select button to activate the parameter and use the Up or Down navigation buttons
to select the value. Tap the Select button to save the value.
6. Tap the Left navigation button to return to the Options column.
Configuration mode icon
Options column
Instrument information
screen
Available
settings
Value
selection

CI62L+RTL SPECTROPHOTOMETER
17
Exiting Configuration Mode
After configuring options, use the Left navigation button to move the highlight focus to the Main
screen icon in the Main column and tap the Select button to exit.
NOTE: If a setting has a checkmark save icon it must be selected before exiting or any changes
that were made will be lost.
Measurement Trigger
This option is used to determine which inputs are used to trigger a measurement on the
instrument. The available settings are Software Only, Pressure (default), Button, and Pressure
and Button.
Software Only: No button or read switch is required to take a measurement. This setting would
be selected when software input is used to trigger a measurement.
Pressure:Shoe closing is required to take a measurement.
Button: Measure button is required to take a measurement.
Pressure and Button: Both the read switch and measure button are required to a take a
measurement.
Averaging
This option is used to set the number of measurements required for calculating a single
measurement. Measurements are taken at different locations on a sample to achieve average
measurement values. The available settings are 1 to 99 (default is 3).
Language
This option is used to set the language that is displayed on the instrument. The available
settings are English (default), German, French, Spanish, Italian, Portuguese, Chinese Simplified,
Chinese Traditional, Korean, and Japanese.
Instrument Orientation
This option is used to change the display direction to accommodate both right and left
handed users. The available settings are Right Handed (default) and Left Handed.
Main screen icon

CI62L+RTL SPECTROPHOTOMETER
18
Date Format
This option is used to adjust the date format the instrument uses. The available settings
are: MM/DD/YYYY (default), DD/MM/YYYY, DD.MM.YYYY, YYYY/MM/DD, and YYYY-MM-DD.
NOTE: The date format automatically changes to the correct format for the selected language. If
desired, you can change the format after selecting the language.
Instrument Date/Time
This option is used to set the instrument date and time.
1. Use the Right/Left and Up/Down buttons the select the month, day, year, hour, or
minute option.
2. Tap the Select button to access the parameter.
3. Use the Up or Down navigation buttons to edit the parameter and then tap the Select
button.
4. Repeat steps 1 through 3 until the date and time are set.
5. Tap the Right navigation button and highlight the checkmark icon in the Progress
Column.
6. Tap the Select button to save the date and time.
Delete All Samples or Standards
This option is used to delete all samples or standards stored in the instrument. To delete all
samples or standards, tap the Right side of the navigation control and select the desired delete
option. Tap the Right side of the navigation control to move highlight focus to the checkmark
icon in the Progress column. Tap the Select control to delete.
Restore Factory Settings
This option is used to restore the instrument’s configuration settings back to their original
factory settings. All jobs, projects, standards and samples will also be deleted.
To restore the factory settings, tap the Right side of the navigation control to move highlight
focus to the checkmark icon in the Progress column. Tap the Select control.
