X-stream clean Spotless xcmadd User manual

OPERATION GUIDE

1.5-Gallons Li-Ion Battery Powered Backpack Spray Mop

MODEL NUMBER: XCMADD

SPOTLESS

TABLE

OF CONTENTS

4WARNINGS

.........................................................................................................

5SAFETY

.........................................................................................................

8REGISTER YOUR SPRAY MOP

.........................................................................................................

10 WHAT’S IN THE BOX

.........................................................................................................

9SPRAY MOP CAPABILITIES

.........................................................................................................

12 ASSEMBLY & SPRAYING

.........................................................................................................

18 BATTERY CHARGING

.........................................................................................................

23 WARRANTY POLICY

.........................................................................................................

20 PARTS & ACCESSORIES

.........................................................................................................

22 TROUBLESHOOTING

.........................................................................................................

CLEAN WITH

CONFIDENCE™

ATTENTION

WARNING

• Never use this spray mop with liquids such as gasoline, ethanol, methanol, acid, caustic, or any other ammable, pressure, heat, or gas producing chemicals.

• Always read and follow chemical manufacturer’s instructions before use with this spray mop as some chemicals may be hazardous when used with this power tool.

• Never leave chemicals or solutions sitting in your spray mop after using.

• After using spray mop with chemicals, it is important to rinse the tank and ush with fresh water for 3-5 minutes to ensure residual chemicals in the gun, tank, pump, and hose are

cleaned out

• Read and follow all instructions and cautions on label of products used in this spray mop.

• Do not store your spray mop in extremely high temperatures. Heat can lead to the build-up of pressure within the spray mop, resulting in a possible explosion.

• Do not try to make modications to the spray mop. Always use X-Stream Clean® branded replacement parts from the manufacturer.

• Do not use batteries that are wet or have been damaged.

• Inspect the spray mop for damage or loose connections before each use.

• Keep spray mop and all chemicals out of the reach of children.

• Remove chemicals and thoroughly clean the spray mop after each use. Failure to clean the spray mop may cause contamination of subsequent applications, will cause

premature spray wear, and void the warranty.

NOTES

• The spray mop may have residual water in it when rst opened. This is due to quality testing every spray mop undergoes before leaving our factory.

• THIS SPRAY MOP IS DESIGNED TO OPERATE WITH ONLY X-Stream Clean®BRANDED BATTERIES. ANY OTHER BATTERIES COULD CAUSE SERIOUS HARM OR INJURY

TO THE OPERATOR AND SERIOUS DAMAGE TO THE SPRAY MOP.

WARNING

This product contains chemicals, including lead, known to the state of California to cause birth defects and other reproductive harm. This product is designed to apply chemicals that may

be harmful and could cause serious personal injury if inhaled or brought into contact with the user.

When using chemicals, always wear protective

clothing,

Do not dispose of Lithium-ion batteries with household

waste; recycle where proper facilities exist.

SAFETY

& PRECAUTION

SAFETY

• Use the spray mop and accessories in accordance with these instructions, taking into consideration the working conditions and the work to be performed. Use of this spray mop for

applications that it was not intended for could result in a hazardous situation.

• Keep handles and lift points dry, clean and free from oil and grease. Slippery handles and lift points do not allow for safe handling and control of the spray mop.

• Risk of re or explosion: Never use this spray mop with liquids such as gasoline, ethanol, methanol, or any other ammable or gas producing chemicals. Do not use around sparks,

ame or smoke.

• Failure to adhere to these instructions may cause the chemicals to ignite, resulting in potential injury and damage to property.

• To reduce the risk of re, personal injury, and product damage from a short circuit, never immerse the spray mop, battery, or charger in uids. Do not place or store spray mop where

it could fall or be pulled into a tub or sink. Corrosive or conductive uids, such as seawater, certain industrial chemicals, and bleach or bleach containing products, etc., can cause

a short circuit.

• Electric shock hazard: Never spray toward electrical outlets.

• Spray area must be well ventilated to avoid hazardous fume build-up. Always refer to the product label of the chemical being used for safety instructions and proper use practices.

• Do not store chemicals in the tank. Chemicals can degrade seals and hoses. Drain and clean after each use. Failure to do so may void the warranty.

• Thoroughly inspect the interior, exterior, and all components of the spray mop before each use. Check for cracked and deteriorated hoses, leaks, clogged nozzles and missing or

damaged parts. If damaged, ensure the spray mop is repaired before use. Many accidents are caused by poor maintenance.

• Always remove the battery pack from the spray mop before performing any maintenance, storing or draining of the spray mop.

• Do not eat or smoke while handling or operating. Refer to the product label of the chemical being used for user safety practices.

• Do not use the battery compartment to store the battery.

• Always use common sense and be cautious when operating. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use if you do not

understand these operating instructions or if you feel the work is beyond your capability.

SAFETY

& PRECAUTION CONT.

Scan the QR code to view the most updated manual online!

or visit xstreamclean.com/operation-guides

OPERATING

• Do not allow familiarity with products to make you careless. Remember that a single moment of carelessness is sufcient to cause serious injury.

• Always wear eye protection with side shields when handling or operating this spray mop. Failure to do so could result in serious injury from chemical contact or ying dirt or debris.

• The Lithium-ion battery pack can be used in temperatures down to 32ºF. When operating in cold temperatures, put the battery pack in the battery compartment and use the spray mop

in a light duty application. After about a minute the battery pack will warm up and begin operating normally.

• Do not use the spray mop if the power switch is not functioning correctly. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Remove battery before making any adjustments, changing accessories, or storing the spray mop. Disconnect the spray mop from the power source by removing the battery pack.

These preventative safety measures reduce the risk of starting accidentally.

STORING

• Store out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the spray mop. Power tools are dangerous in the hands of

untrained users.

• Maintain spray mop and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect operation.

SAFETY

& PRECAUTION

WORK AREA

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate in explosive environments, such as in the presence of ammable liquids, gases or dust. Power tools can create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operating. Distractions can cause you to lose control.

ELECTRICAL

• Do not expose to rain or wet conditions. Water entering the electrical compartment of the spray mop will increase the risk of electric shock.

• Do not expose to rain; store indoors.

PERSONAL

• Stay alert, watch what you are doing and use common sense when operating. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as a respiratory mask, non-skid safety shoes, hard hat or hearing protection used for

appropriate conditions will reduce the chance of personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting the power source (battery pack), picking up, or carrying the spray mop.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the spray mop in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

• Do not let familiarity gained from frequent use of the spray mop allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a

fraction of a second.

DO NOT RETURN SPRAYER TO STORE, if you experience problems or have questions

contact our Customer Support Center, M-F 9am-5pm, EST at +1 803.339.2500, or email:

[email protected], or nd more information at xstreamclean.com/troubleshoot.

LET’S

GET

SPRAYING!

SPOTLESS™SPRAY MOP!

To take advantage of the 1-year Limited Warranty from WESSOL, LLC.

xstreamclean.com/register

Please read and follow this manual carefully to ensure that you get the

most out of your new spray mop. If you need assistance with the assembly

or operation of your spray mop, please don’t hesitate to contact WESSOL

via the support methods below:

xstreamclean.com

[email protected]

+1 803.339.2500

WHAT

YOUR SPRAY MOP IS CAPABLE OF

The X-Stream Clean®Spotless™ Cleaning & Sanitation Spray Mop is a highly efcient battery powered portable backpack

spray mop for the toughest cleaning, sanitation, and decontamination jobs.

Say hello to the battery-powered X-Stream Clean® Spotless™ Spray Mop and bid farewell to the clumsy mop bucket! Transport your cleaning solution in a clean 1.6-gallon backpack tank

and eliminate rolling around dirty, recycled bucket water. Plus take your Spotless™ spray mop wherever you need to clean with it’s light-weight portability. Drastically reduce slip-and-fall

scenarios by preventing excessive wetness on your oors by quickly cleaning spill accidents with silver-infused micro-ber pads that kill up to 99.99% bacteria and germs. Buck the bucket

with the specially designed Spotless™ spray mop to make tough mopping jobs faster and easier!

X-STREAM CLEAN®SPOTLESS™SPECIFICATIONS

Model Number XCMADD Pump Gear Pump

Battery 7.2V / 4.0Ah Lithium-Ion Pressure Up to 30 psi

Battery Charger 9.2V / 1.5A Spray Distance Up to 5 feet

Coverage per Charge Up to 8,600 ft2Tank Capacity 1.5G / 6L

Battery Cycle Life 300 cycles Spray Time Up to 2 hours

10.

WHAT’S

IN THE BOX

4. 5.

9. 8.

10.

11.

SPOTLESS™ MOP POLE HANDLE

PART NUMBER: XCRAKE

18” MICROFIBER ALUMINUM PLATE

PART NUMBER: XCAAKA

18” SILVER INFUSED MICROFIBER PAD

PART NUMBER: XCAAJW

1.5G/6L TANK

PART NUMBER: XCRAJQ

TANK LID

PART NUMBER: XCRAJS

65º QUICK-CONNECT FAN NOZZLE

PART NUMBER: XCAAJU

SPOTLESS™ GUN

PART NUMBER: XCRAJP

7.2V/4.0AH LITHIUM-ION BATTERY

PART NUMBER: XCAAJN

9.2V/1.5A BATTERY CHARGER

PART NUMBER: XCAAJM

5-FOOT COIL HOSE

PART NUMBER: XCRAJR

STRAPS

PART NUMBER: XCRAJT

1. 7.

2. 8.

3. 9.

4. 10.

5. 11.

12.

A).

Bring the ComfortStraps™ to the bottom of the tank. Secure lower strap clips to the tank

loops near the bottom of the tank.

C).

Attach the mop head to the handle connector by laying the female blue connector in the

forward position so that the lock cavity is on the right side. Insert the male black connector

with the nozzle tting facing forward, until you hear it click.

B).

Next, slide the adjustable strap through the top tank loop. Continue by sliding the strap

over and under the buckle tting. Lightly tug at the strap to make sure it’s secure. Repeat

on other side.

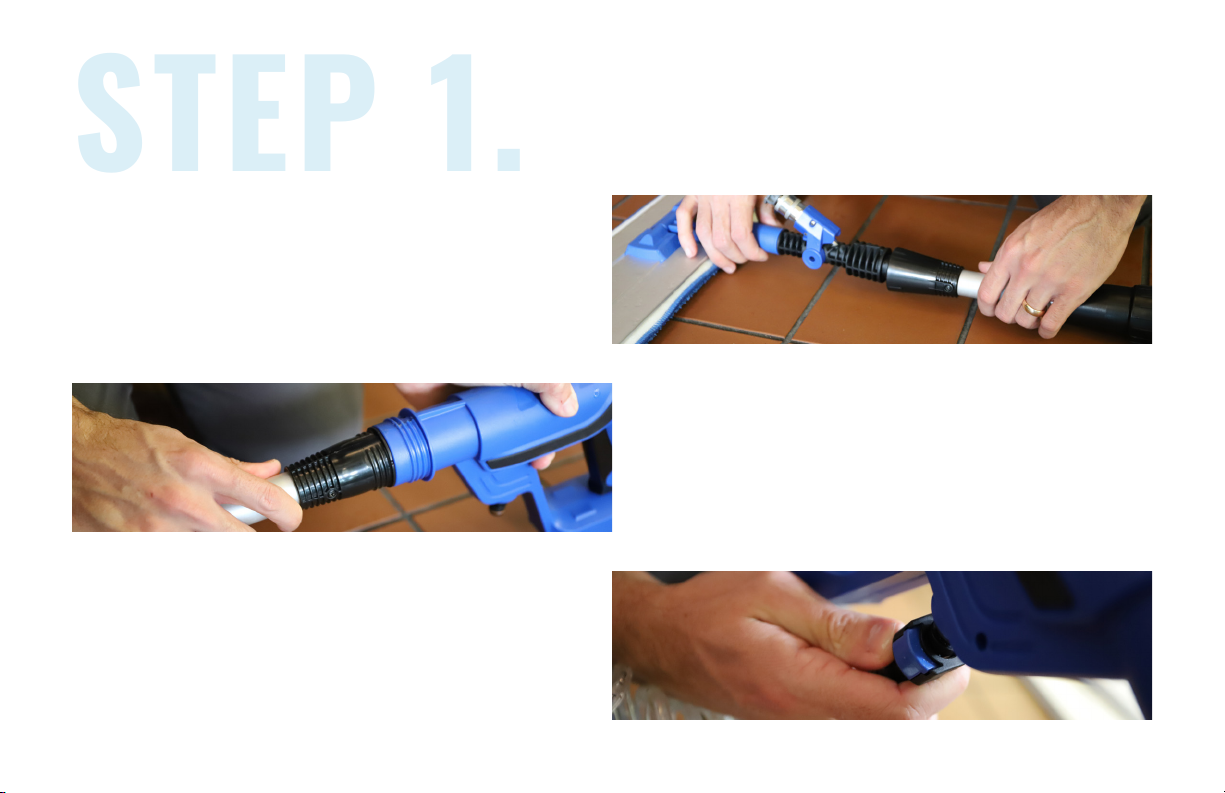

STEP 1.

13.

D).

Align the female handle with the male connector facing up. Insert fully and twist to the right

to lock in place. Follow arrow guides on the handle.

F).

Next, connect the hose to tank by pressing the blue lock on either end of the hose and

attach. Repeat process for connection to gun.

E).

Take the spray gun and attach it to the threaded tting on the opposite end of the handle. If

handle collar is attached, unscrew and slide down. Align the spray gun with the mop head

so that the nozzle tting faces the forward. Insert the gun, then slide handle collar over the

gun and tighten until secured.

STEP 1.

14.

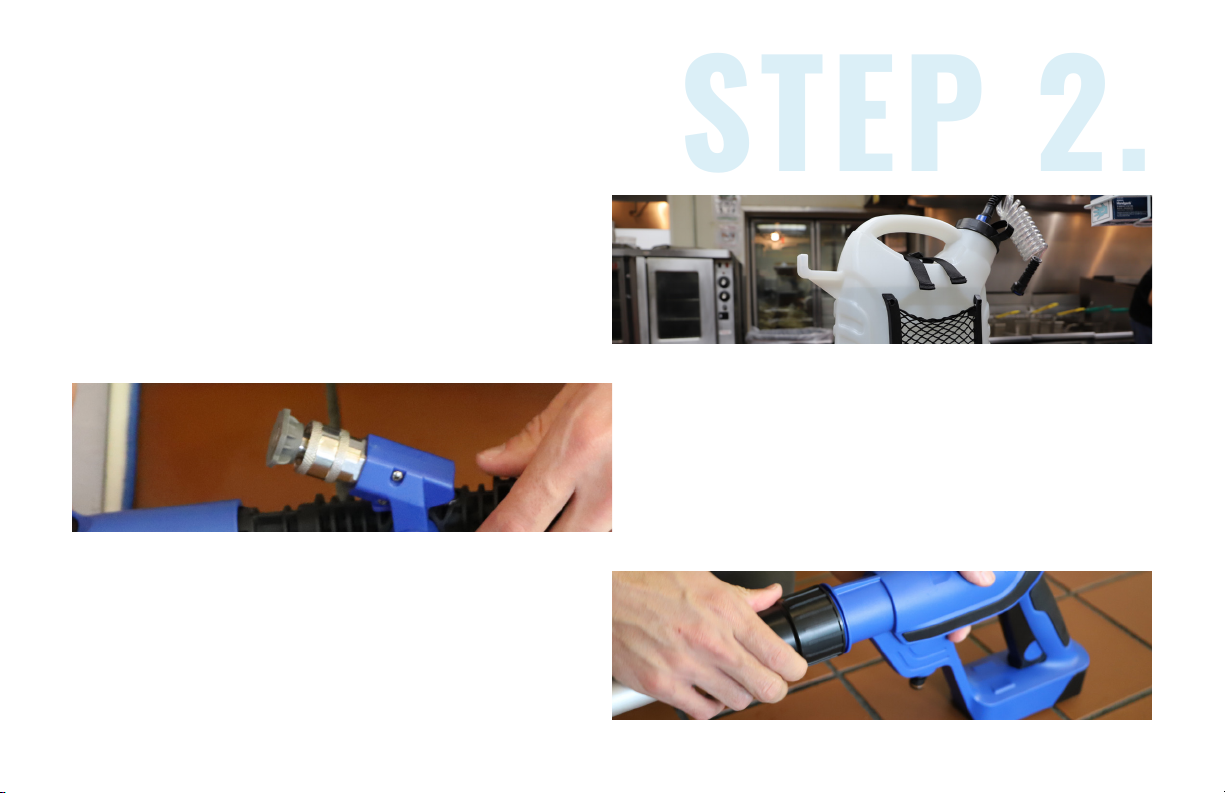

STEP 2.

PREPARING TO SPRAY

A).

Fully charge the battery before the rst operation. In a separate container, prepare the

solution you want to spray according to the manufacturer’s instructions. Open the tank and

carefully pour in the solution. Securely tighten the tank lid.

A).

Begin spraying by squeezing the spray trigger on the spray gun.

Note: Lock the gun when not spraying, by pressing the blue lock on the trigger.

B).

Insert the nozzle into the tting using the quick-connect method by pulling the female collar

back, inserting the male nozzle into the tting and push the collar back into its original

position.

15.

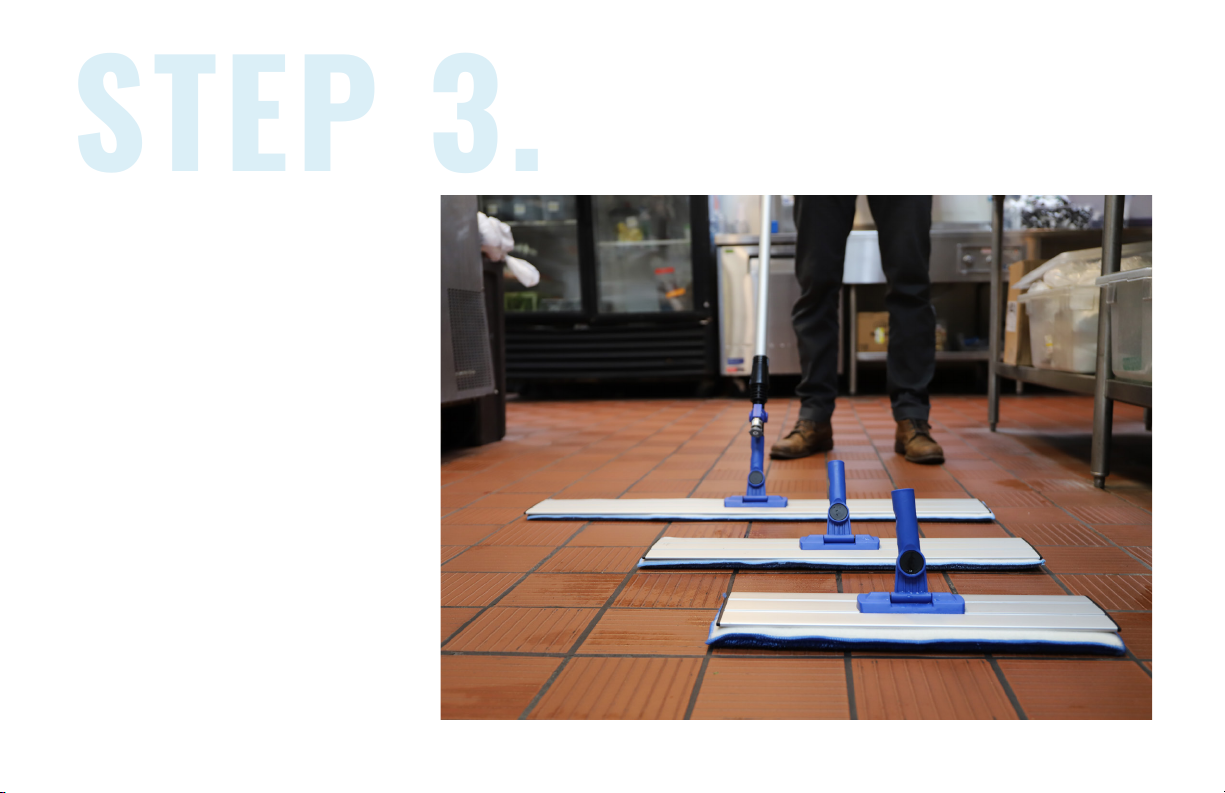

STEP 3.

HOW TO MOP

A).

Get the most efcient deep clean with your Spotless™

Spray Mop! Choose the corresponding mop head and

pad that best ts the job (18” Mop Head & Pad included).

18” - Isolated spill/spot treatment

24” - Floor cleaning

36” - Larger surface coverage

First, place the spray gun so that it’s located in the center

axis of your body and move your other hand on the handle

at a comfortable height as a pivot point. Start in the

furthest corner of the room and work your way backwards

in a gure-8 motion. By using this motion, you are able to

cover more surface area, collect larger debris, and avoid

walking over the clean surface!

Our silver-infused microber pads collect and kill up to

99.99% of microbes and bacteria!

*We recommend washing your microber pads after every job at

140ºF (Avoid fabric softeners, bleach, or alkaline products when

washing and do NOT heat your dryer, this will prolong the life of

your pads).

16.

STEP 4.

AFTER YOU FINISH MOPPING

A).

Dispose of extra liquid/chemical based on manufacturer’s instructions. Rinse out any

residual solution in the spray tank with warm, soapy water. Then spray fresh water through

the spray mop for 3 to 5 minutes to completely clear the tank, pump, gun, wand, and any

used nozzles of chemicals.

B).

Disconnect the hose from the spray gun and let the hose hang down towards the ground

in order to drain the hose of any liquid.

C).

Dry the tank and clear the nozzle of any buildup.

D).

Store the spray mop in a clean, dry, and shaded location to protect it from extreme heat

or frost.

For long-term storage, regular charging of the battery is required to maximize battery life.

Do not allow the battery to fully discharge.

Proper maintenance is crucial to ensure the extended life and performance of your spray mop. Many

spray materials can harden if left in the spray mop, causing clogs in the nozzle or hose. Gasoline should

never be used to clean out your spray mop.

17.

18.

CHARGING

THE BATTERY

These batteries have been designed to provide maximum trouble-free life. However, like all batteries, they will eventually wear out. Do not disassemble battery pack and attempt to replace

the batteries. Handling of these batteries, especially when wearing rings or jewelry, could result in serious burns.

• Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one

terminal to another. Shorting the battery terminals together may cause burns or res.

• If the battery is damaged, liquid can be ejected from the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, immediately seek

medical help.

• Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or spray mop that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

• Do not expose a battery pack or spray mop to re or excessive temperature. Exposure to re or temperatures above 265ºF (130ºC) may cause explosion.

• Follow all charging instructions and do not charge the battery pack outside the temperature range specied in the instructions. Charging improperly or in a temperature outside the

specied range may damage the battery and increase the risk of re.

STORING BATTERY PACK LONGER THAN 30 DAYS

• Store the battery pack where the temperature is below 80ºF and away from moisture.

• Store the battery pack in a 30%-50% charged condition.

• For long-term storage, regular charging of the battery is required to maximize battery life. Do not allow the battery to fully discharge.

Please read the following information carefully. User must read and understand entire manual before operating this spray mop. Improper use or failure to follow instructions could lead

to spray mop failure and possible serious injuries.

19.

CHARGING

THE BATTERY

BATTERY RECYCLING PREPARATION

• To preserve natural resources, please recycle or dispose of the batteries properly.

• This product contains Lithium-ion batteries. Local, state or federal laws may prohibit disposal of lithium-ion batteries in ordinary trash. Consult your local waste authority for information

regarding available recycling and/or disposal options.

LITHIUM-ION BATTERY PACKS

• Lithium-ion batteries deliver fade free power for their entire run time. Lithium-ion batteries will not gradually lose power due to decreasing battery charge. Instead, power from the

battery pack will drop from full to zero once the full charge has been drained form the battery. Once this happens, recharging of the battery is required. It is not necessary to drain the

battery pack completely before recharging.

BATTERY PACK PROTECTION FEATURES

• Lithium-ion battery packs are designed with features that protect the lithium-ion cells and maximize battery life. If the spray mop stops during use, release the trigger to reset and

resume operation. If the spray mop still doesn’t work, the battery needs to be recharged.

Please read the following information carefully. User must read and understand entire manual before operating this spray mop. Improper use or failure to follow instructions could lead

to spray mop failure and possible serious injuries.
