XDrum DD 650 User manual

DD 650 Digital Drum
Users Manual
Art. Nr 00056971
Version 09/2018

CAUTION
Any changes or modications in construction of this device which are not expressly approved by
the party responsible for compliance could void the user’s authority to operate the equipment.
WARNING
When using electrical products, basic safety precautions should always be followed, including the
following:
These limits are designed to provide reasonable protection against harmful interference in a resi-
dential installation. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION

direct sunlight (near a window),
high temperatures (near a heat source,
outside, or in a car during the daytime),
excessive humidity,
excessive dust,
strong vibration.
The drum contains digital circuitry and may
cause interference if placed too close to radio
or television receivers. If interference occurs,
move the drum further away from the affected
equipment.
POWER
Turn the power switch off when the drum is
not in use.
To avoid damage to the drum and other
devices to which it is connected, turn the
power switches of all related devices off
prior to connection or disconnection of
audio cables.
Turn the power off if the main cable is
damaged or the instrument is spattered with
liquid.
Do not switch the unit on and off in quick
succession, this places an undue load on
the electronic components.
Unplug the AC power cord during an
electrical storm.
Avoid plugging the AC adaptor into the
same AC outlet as appliances with high
power consumption, such as electric
heaters or ovens.
SERVICE AND MODIFICATION
This product should be serviced by qualified
service personnel when,
the power supply cord or the plug has been
damaged,
liquid has been spattered into the unit or it has
been exposed to rain,
the instrument does not appear to operate
normally or exhibits a marked change in
performance,
the instrument has been dropped or the
cabinet has been damaged.
Do not attempt to open the unit or make any
change in the circuits or parts of the unit.
HANDLING AND TRANSPORT
Never apply excessive force to the controls,
connectors, pads or other parts of the
instrument.
Always unplug cables by gripping the plug
firmly, not by pulling on the cable.
Physical shocks caused by dropping,
bumping, or placing heavy objects on the
instrument can result in scratches and/or
more serious damage.
Carefully check the amplifier volume control
before stating to play. Excessive volume can
cause permanent hearing loss.
CLEANING
Clean the unit with a dry or light-wet soft cloth.
Do not use paint thinner or petrochemical
based polishes.
LOCATION
Do not expose the drum to the following condi-
tions to avoid deformation, discoloration, or more
serious damage,
!DO NOT ATTEMPT TO OPEN THE UNIT OR MAKE ANY CHANGE IN THE CIRCUITS OR
PARTS OF THE UNIT.
TAKING CARE OF YOUR DRUM
!

CONTENTS TABLE
INSTALLATION ................................................................................................
SOUND MODULE .............................................................................................

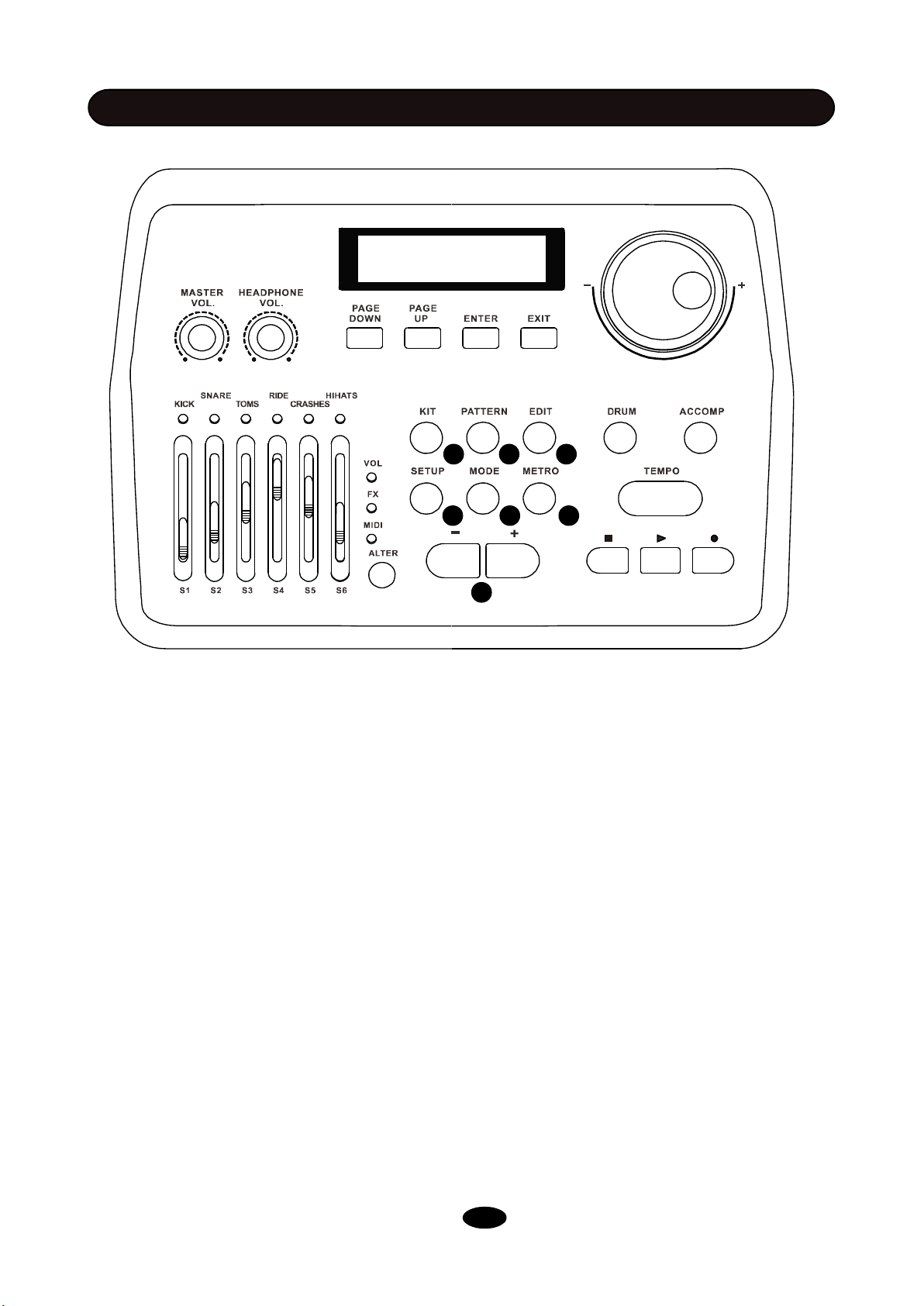

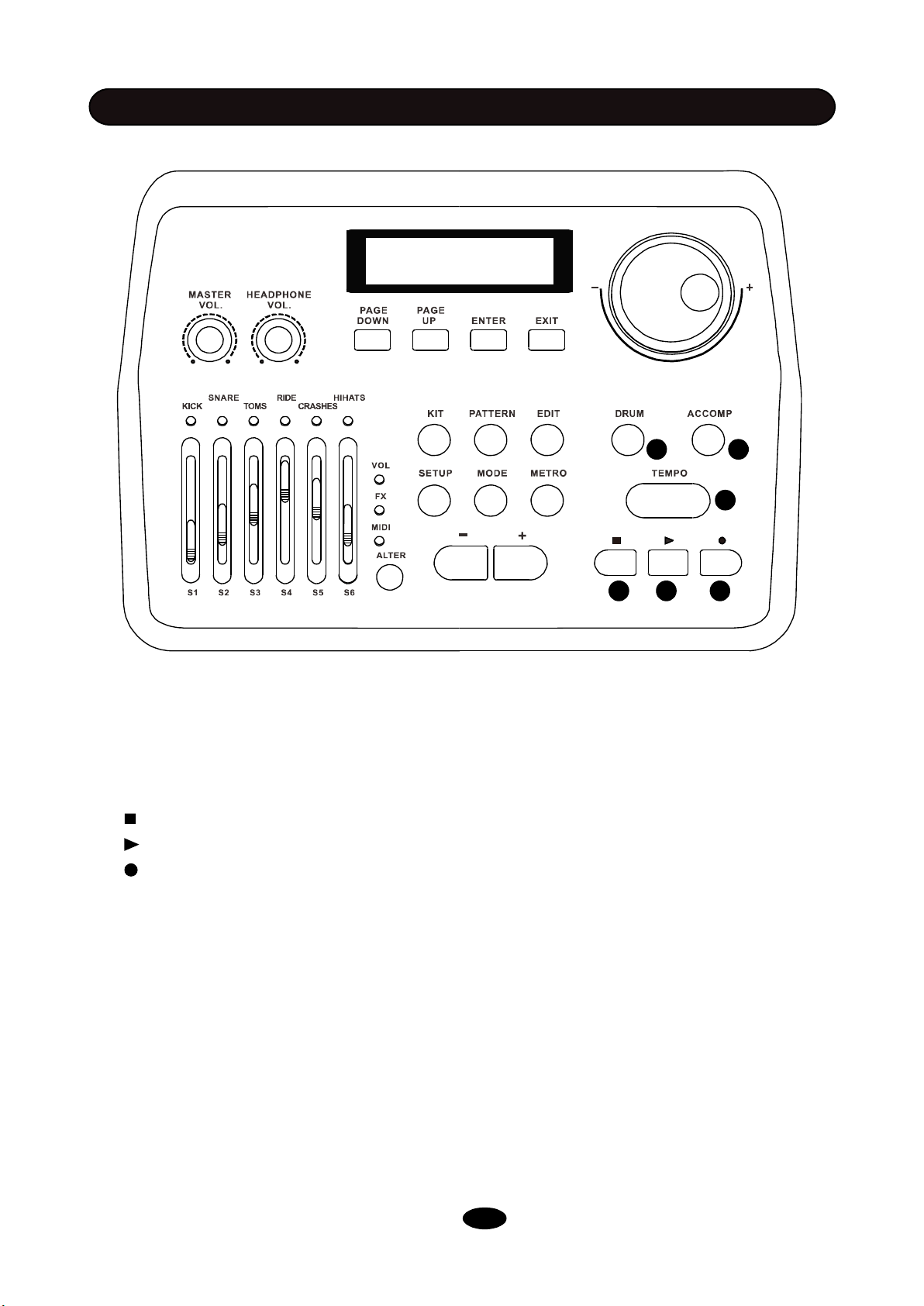

Control Panel .....................................................................................................
Connectors .........................................................................................................
BEFORE START PERFORMANCE ................................................................
BASIC OPERATION .........................................................................................
Select Kit ............................................................................................................
Record a Drum Track ........................................................................................
Use the Mixer ....................................................................................................
Restore Factory Settings ..................................................................................
SETUP ...............................................................................................................
Back Volume .....................................................................................................
Tune ...................................................................................................................
Local ..................................................................................................................
FX Set ................................................................................................................
MIDI Set .............................................................................................................
Advanced Settings ............................................................................................
Sensitivity........................................................................................................
Headroom .......................................................................................................
Sense Time .....................................................................................................
Trigger Curve ..................................................................................................
Cross Talk ......................................................................................................
Note Send .......................................................................................................
Rim Velocity ....................................................................................................
Pedal Velocity .................................................................................................
Calibration........................................................................................................
Reset .................................................................................................................
DRUM KIT EDIT ................................................................................................
Voice Type ........................................................................................................
Voice ..................................................................................................................
Volume ...............................................................................................................
Reverb ...............................................................................................................
Pitch ...................................................................................................................
Pan ....................................................................................................................
Kit List ...............................................................................................................
Pattern List ........................................................................................................
Voice List ............................................................................................................
SPECIFICATIONS .............................................................................................
1
7
7
10
PLAYIN PAD .................................................................................................... 11
12
13
13
Edit a Kit ............................................................................................................13
Play a Drum Pattern (Demo song) ...................................................................... 1 3
14
14
14
15
15
15
15
15
16
16
16
16
16
16
17
17
17
17
17
17
18
18
18
18
18
18
18
APPENDIX ....................................................................................................... 20
20
20
21
26

1
INSTALLATION
SOUND MODULE
HI-HAT
CRASH1
TOM1
TOM2
SNARE
RIDE
KICK PEDAL
KICK
TOM3
CRASH2

2
All components in the box are shown here.
Extra components after installation are for replacements.
INSTALLATION
1
④
②
①
③
⑤

3
1. Insert Cross Bar①② into Post⑤, adjust their position and make ①② in
parallel.
2. Insert Side Cross Bar③④ into Post⑤and mount Connector⑨on both ends.
3. Insert Side Post⑥into connector⑨.

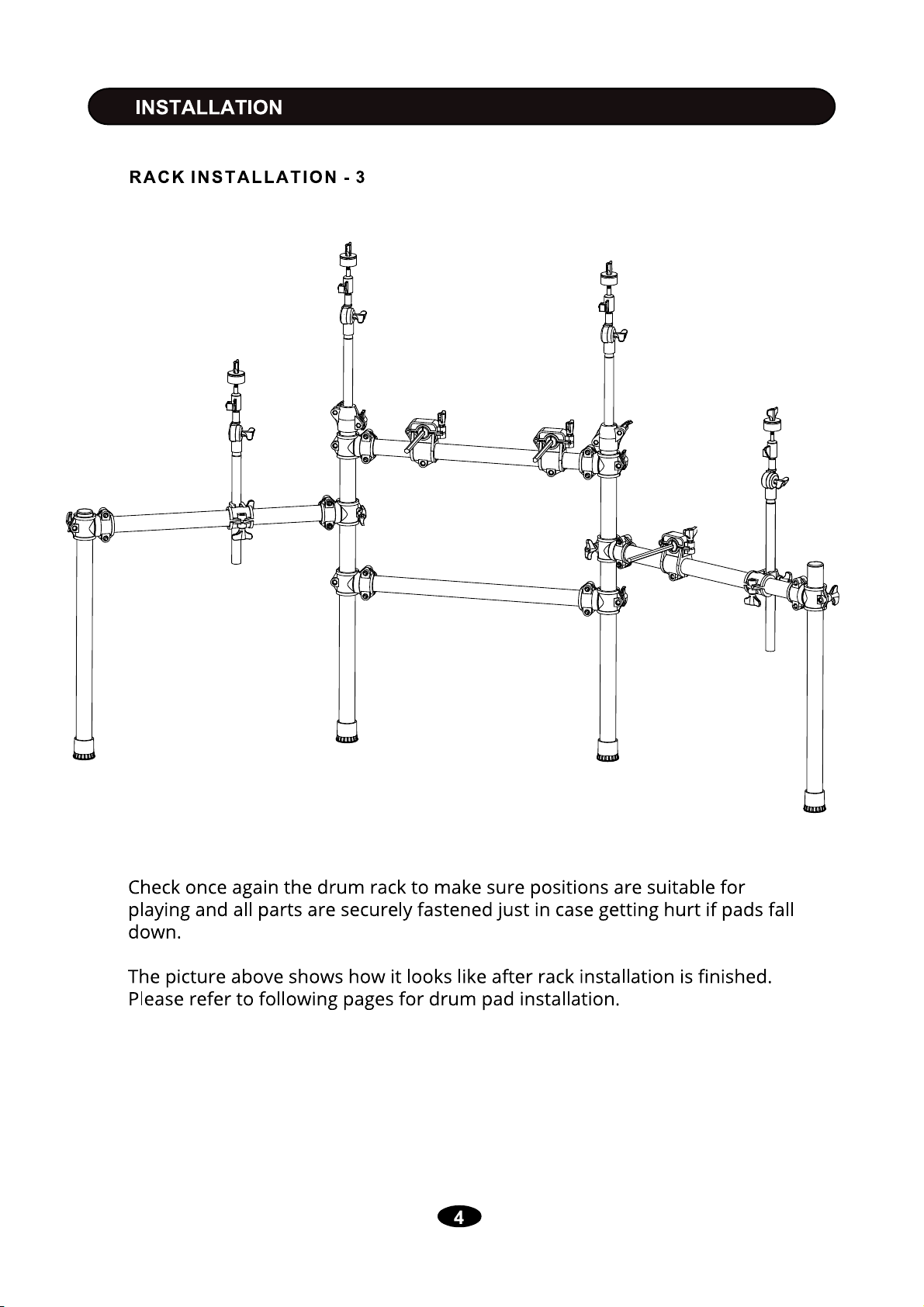

4. Make the drum rack stand firm and fasten all connectors on bars.
5. Install Cymbal Connector⑩as the picture shows.
6. Insert Crash Arm⑦to Connector⑩and Ride Arm⑧to another connector according
to the picture.
7. Insert Tom Rod⑪according to the picture, and adjust its connector to suitable
position.
INSTALLATION
②
②
③
④④④
①
①
⑤
⑤

①
①
②
②
③
④④④
⑤
⑤

5
Snare Installation
1. Open Snare Stand Legs① to suitable
position and make it stand firm.
2. Open Snare Stand Arms②, stretch it to
maximum, put the Snare upward on the stand.
The one with rubber band and white sensor spot
is the upside.
3. Tighten Snare Stand Arms② by rotating
the rotary on the bottom side
②
①
HiHat Installation
1. Open HiHat Stand Legs① to suitable position and
make it standfirm.
2. Insert Thin Rod② into screw thread on the Bottom
Stand according to dashed line here, and rotate it
clockwise to fasten it.
3. Place Hollow Rod③ outside Rod②, and insert it into
Bottom Stand.
4. Insert HiHat Cymbal Tray④ onto Thin Rod② and place
it aboveHollow Rod③
5. Adjust Hollow Rod③ to suitable height and fasten
it. Insert HiHat Cymbal onto Thin Rod②. Make sure there is
enough space between the Cymbal and Tray④, and then
fasten the screw on Cymbal.
Note: If there is not enough space between Cymbal
and Tray④, the HiHat control function will be very short in
range or even notresponding.
①
②
③
④
⑤
INSTALLATION
DRUM INSTALLATION - 1

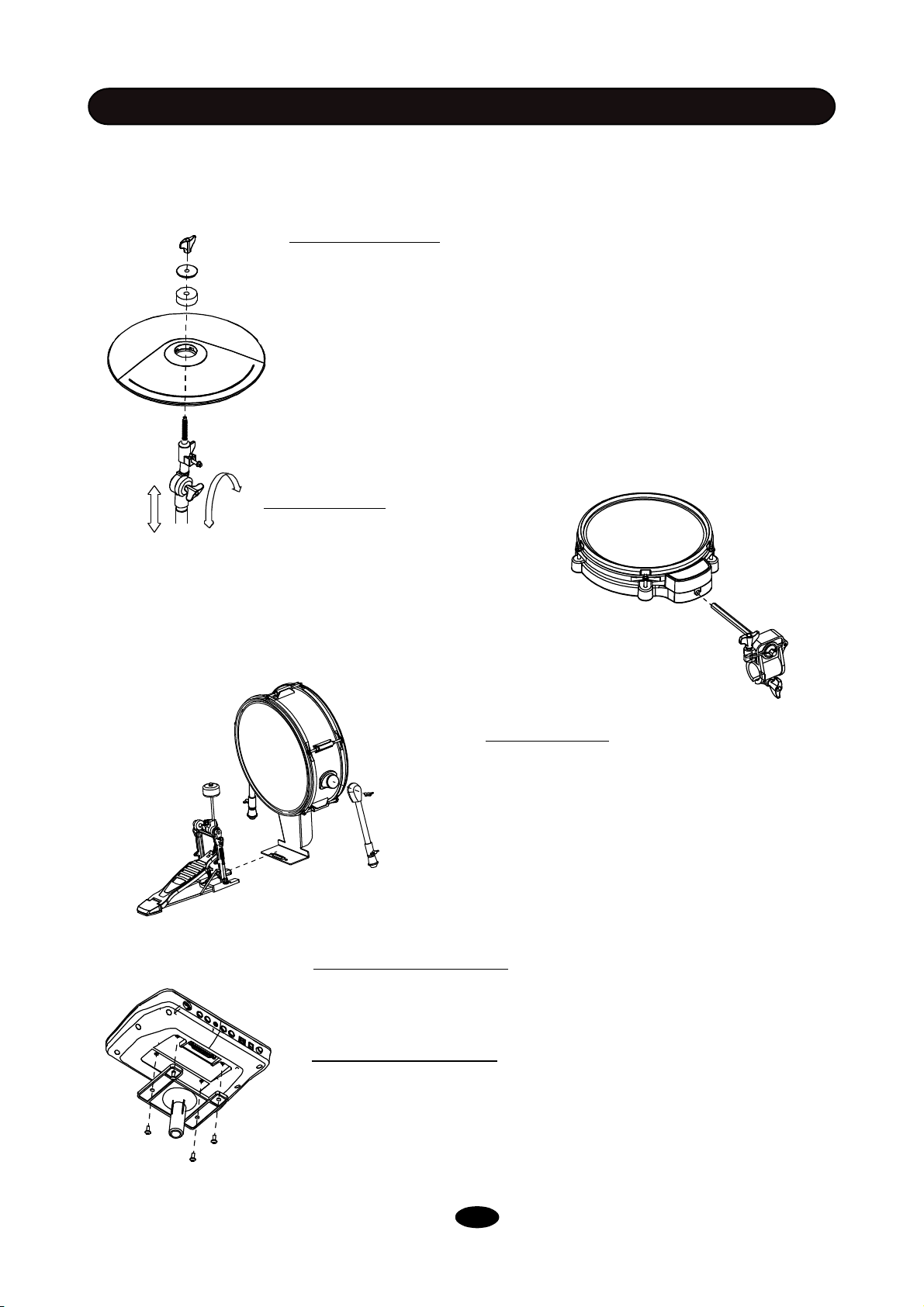

Cymbal Installation
1. Remove the Wing Nut, Washer and Felt ① from the top
of the rod.
2. Put Cymbal Pad② into the Rod③, then place back
parts removed in the step 1. Fasten the wing nut but not
too tightly. It allows the pad a little bit wobbling like real
acoustic cymbal.
6
Tom Installation
1. Loosen Pad Connector①, insert
Hex Rod②, and tighten Pad
Connector①.
2. Loosen the wing nut under Drum
Pad③, and insert it to Hex Rod②.
3. Adjust to suitable position and
fasten wing nut under Drum Pad
1. Install Kick Legs① on both sides
and then fasten the wing nut.
2. Insert Kick Pedal② to Kick Drum,
adjust the pedal to suitable position and
then fasten wing nuts on the pedal.
Kick Installation
①
②
③
①
②
1. Align holes in the sound module and the model mount then insert
screws and fasten it.
2. Insert rod of the model mount into the clamp, then tighten the wing nut.
Sound module Installation
Finalizing the Installation
After install all components, fine adjust the arm, clamps and rods to the
best position you desire.
Electronic Connection
Connect the trigger connector cable plug to the bottom of the sound
module, and then connect all cable heads according to their name tags.
INSTALLATION
DRUM INSTALLATION - 2
①
②
③
