XKGlow XK052002 User manual

XK052002&–&Tube&Strobe&Light&Kit&with&Switch&Panel&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&& &
&
Input
Voltage
Max tubes
Per Zone
LED tube
Wattage
12V DC
14 tubes
6 watt (14W strobe)
Warranty and Disclaimer
Within THREE years after the purchase date, the original buyer may return any Switch Box that has failed
due to a defect in materials or workmanship. LED tubes that have one or more LEDs fail to illuminate due to a
defect in materials or workmanship are covered with a THREE year warranty for the original buyer.
Installation of this product must be performed by a licensed professional. Should the failure of the product be
the result of damage occurring as a result of improper installation, alteration of the product or an act or omission
on the part of the consumer, this warranty is void. XKGLOW Lighting shall not be responsible for any
consequential damages which arise from the use and/or installation of the product. If the kit is installed in any
manner other than specified, XKGLOW Lighting reserves the right to deny any warranty claims at the discretion
of the technical support department. Any product return must include the original packaging, invoice number and
a statement of the alleged defect. Upon receipt of the returned product, the company will test the product for
defect. If the results of the testing do not support the warranty claim, do not reveal any defect or indicate
consumer negligence in the installation and handling of the product, then the product will be returned to you and
you will be charged a reshipping fee. If the product is returned from an address within the continental United
States, within the first 30 days after purchase, and is found to be defective, XKGLOW Lighting will exchange or
refund the original purchase expense. This offer does not extend to the cost for shipping charges on any
international packages.
Additional Disclaimer Terms
Please check your local and state laws for the proper use of this product.
• Improper installation of electrical products such as lighting may cause damage to any vehicle or device to
which the improperly handled or installed lighting is attached.
• Improperly installed product may cause electrical injury to persons.
• It is recommended that the kit should be installed by a licensed professional.
• XKGLOW assumes no liability for the installation of the product.
• Warranty or liability will not exceed the product purchase price, which shall be buyer’s sole and exclusive
remedy.
Return/Exchange Procedure
1. Email [[e-mail]] to notify us of the product issue as well as the item number and name of customer
on invoice.
2. We will send you the trouble-shooting guide to fix the issue, or to narrow down which of the component(s)
need to be replaced. If the issue still exists, we will ask you to send back the defective items to be replaced.
3. Please send the returned item as instructed, along with claims and a telephone number where you can be
reached.
4. After the returned item(s) have been accepted and inspected, we will issue a refund or replace the items
ASAP. For refunds, item(s) must be sent to XKGLOW within 14 days from date of purchase. Original shipping
charges are not refundable.
We always stand behind our products and are committed to our customers! For questions you may have,
please contact [e-mail]. We normally respond within 24 hours. (Monday-Friday).

XK052002&–&Tube&Strobe&Light&Kit&with&Switch&Panel&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&& &
&
Mounting Instructions

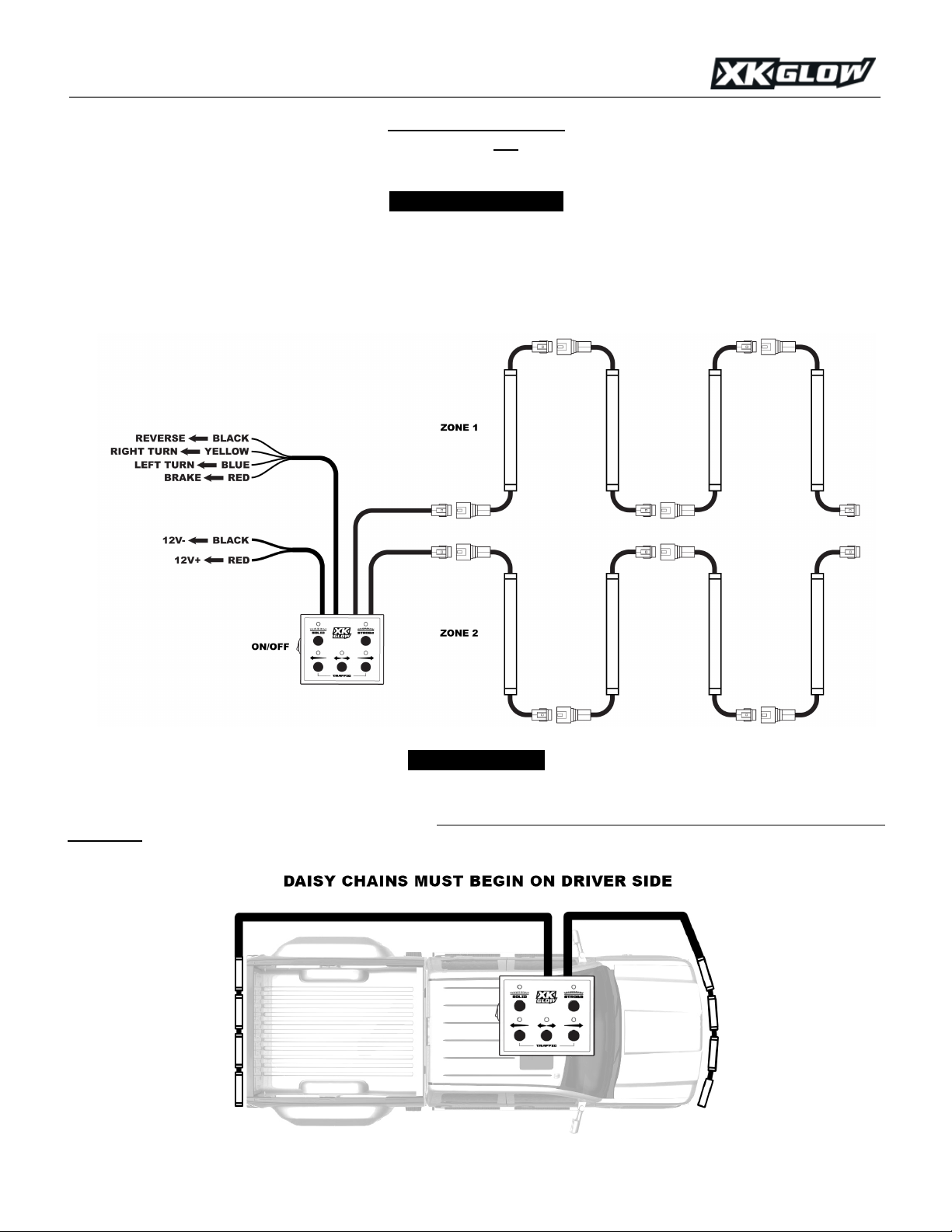

1. Test all components before mounting: As shown below, plug ALL light units together and connect them to the controllers
and the switch box. Connect the RED wire to the POSITIVE pole of 12V DC battery. Connect the BLACK wire to the
NEGATIVE pole. Turn on the switch and push the controller buttons to test the tubes.
Adjusting tube Count
By default, the Switch Box is set to control 4 tubes on each zone. If you are connecting more, you must synchronize the Switch
Box following the steps below. The Switch Box has the ability to adjust the strobe patterns to best suit the amount of tubes
utilized on any given vehicle. To adjust the tube count, hold the SOLID and STROBE buttons down at the same time for 3
seconds until the first tube on each output zone lights up solid. The red LED indicators above the SOLID and STROBE buttons
will also breath during synchronization. Press the RIGHT CHASE button to increase the tube count or the LEFT CHASE button
to decrease the tube count. Once all of the tubes are illuminated solid, press and hold the SOLID and STROBE buttons again
until the tubes flash 3 times. This means that synchronization is complete and the kit is ready for install.
Tube Orientation
The strobe system features directional chasing functions controlled via the included Switch Panel. These functions include a Right
Chase mode, Left Chase mode, Center Chase mode, and optional left or right turn signals. In order for these functions to work
properly, the tubes must be wired in the correct orientation. Each output zone from the Switch Panel must begin on the driver side of
the vehicle. If not, the chasing patterns will be opposite of what is reflected on the Switch Panel buttons. See diagram below.

XK052002&–&Tube&Strobe&Light&Kit&with&Switch&Panel&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&& &
&
Wiring
1. Install tubes:. Drill a ¾” hole where the wires need to pass through the body panel. Feed plugs and wires through the holes
and connect them toegther. Secure the tube onto the mounting location.
2. Route wiring: Mount the Switch Panel in a convenient location. Connect the RED wire to the POSITIVE pole of 12V DC
battery or a 12V source inside the cab. Connect the BLACK wire to the NEGATIVE pole or to a chassis ground bolt. Utilizing
the included extension wires, route the output wires to the first tubes on the driver side of the vehicle. Daisy chain the
remaining tubes together from driver side to passenger side.
3. Optional- Tap signal wires: The Switch Panel has 4 sensor wires exiting it; black, yellow, blue, and red. These signal wires
automatically trigger a driving function when they receive 12V. The YELLOW wire activates the right turn mode and BLUE
activates the left turn mode. Tap these wires into the positive turn signal wire for each side to utilize this feature. If you are only
using strobe lights on the rear of the vehicle, you can take advantage of the brake and reverse modes. The BLACK wire
activates reverse and the RED wire activates the brake mode. If desired, tap these into the coorresponding wire on your
vehicle.
BLACK – REVERSE
YELLOW – RIGHT TURN
BLUE – LEFT TURN
RED – BRAKE
Switch Box Functions
The Switch Box has 5 buttons to control the strobe tubes. These buttons are SOLID, STROBE, LEFT CHASE,
CENTER CHASE, and RIGHT CHASE. There is a master ON/OFF switch on the side of the Switch Box. Turning the
switch to OFF will cut all power from the tubes and disable any of the signal wire functions (ie right turn signal). Holding
any single button down will turn all tubes off.
SOLID – pressing this button will turn all tubes solid on.
STROBE – pressing strobe will activate strobe mode. Press repeatedly to cycle through different strobe patterns.
LEFT CHASE – press left chase to activate the left chasing mode. This will make the tubes chase from the passenger
side to the driver side of the vehicle.
CENTER CHASE – press center chase to activate the center chase mode. The tubes will illuminate from the center
and cycle outwards. Please note that if the Switch Box has been synconized for 3 or less tubes, the center chase
mode will be disabled.
RIGHT CHASE – press right chase to activate the left chasing mode. This will make the tubes chase from the driver
side to the passenger side of the vehicle.
