XL Systems 0001821 User manual

XL SYSTEM INC
HO Drop in DC/DCC Sound Decoder for Athearn F
Item #0001821
• 1.5 amp capacity
• 11 different types of horns and 6 types of bells
• Adjustable individual sound volumes (4 levels)
• Programmable either 2-digit or 4-digit addresses
• Programmable start voltage and top voltage
• Programmable acceleration and decelaration rates
• Programmable 14, 28, 128 speed steps with Back EMF load control
• Advanced speed table control CV67-CV94
• 28 accessory functions (F1-F28)
• Compatible with NMRA DCC standards
• Complies with Part 15 of FCC Rules
• 28 mm speaker included
INSTALLATION
Take a photo of your loco orignal wiring and identify all the wires. Remove the orignal PCB. Follow
the diagram to install the decoder. Hook up the front headlight to the two center tabs. Hook up the
accessory light to the two edge tabs. There are four pickup tabs for the four pickup wires. Hoop up
the motor wires to motor tabs.
OPERATION
The factory defualt address is #3. The decoder has start up and shut down features. If the loco was
previously shut down you have to start up the engine. Press any function key to start up the engine
before operating the loco. To shut down the engine you must bring the loco to idle and then double
click F8. You can use doublee click F0 to turn on/off sound
SPEED TABLE CV67-CV94 FOR 28 SPEED STEPS
When CV29’s bit 4 is set to “1” it will use the speed table formed by CV67-CV94 to control speed
(motor voltage). It allows you to setup each speed for all 28 speed steps. First, program CV29 to 18
for short addresses (1-127) or program CV29 to 50 for long addresses (128-9999) to enable speed
table control. Then select throttle to 28 speed steps and run your loco at speed step 1. Use program
CV on the main to change CV67’s value (1-255) to adjust step 1’s speed. The kick voltage, CV65 is
only applied when the speed step changes from 0 to 1. You should switch between 0 to 1 many times
to check step 1’s speed. When done with CV67, select speed step 2 and program CV68. CV68’s
value must be greater then CV67’s. When done with CV67-CV94, use read back CV to make sure
their values are in increasing order.
Note: When using MRC Prodigy DCC to program addresses it will automatically disable the speed
table (set CV29’s bit 4 to “0”). Programming CV125 to 1 will also disable the speed table and re-
program CV67-CV94 to a default linear speed setting.
FCC COMPLIANCE
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions. (1) This device may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation.
TROUBLE SHOOTING
This decoder should perform well with all DCC systems. The maximum DCC output should be less
than 15 V. If the locomotive does not respond to commands, it may have lost its address. Please re-
program the address and program CV19 to 0 (disable consist). If it responds to slowly, you should
clear its momentum by reprogramming CV3 and CV4 to zero. If step 1’s speed is too high, you
should program start voltage, CV2 to zero. If its top speed is too slow, program top voltage CV5 to
31. You should also clean the track to improve electrical pickup. Read your DCC system manual to
learn how to program and operate the decoder. For more information about registers/CVs and their
functions,
please refer to the NMRA DCC Standard & Recommended Practices, RP-9.2.2. This
is available directly from the NMRA or their website at www.nmra.org.
RETURN PROCEDURE
This decoder carries a 6 month warranty against factory defects. This warranty does not include
abuse, misuse, neglect, improper installation, If it should become necessary to return the decoder for
warranty repair / replacement, Please also include a check or a money order for $9.00 to cover
return shipping and handling. If the decoder is no longer considered under warranty, then please
include a check or a money order for $25.00 to cover the cost of repair or replacement and return
shipping and handling. Before sending in the decoder please email us at [email protected] for
service support. We may solve your program through email.
Send the decoder to: XL Systems Inc 14 Dora Ln Holmdel NJ 07733
Pickup
Volume adjustment Motor
Motor
head
light
acc light
Pickup
FUNCTION CHARTER
Function Idle / Moving
F0(double) Sound on/off
F1 Bell on/off
F2 Horn
F3 Turns on/off accessory lighting
F4 Coupling
F5 Brake release (idle) / brake squeal (moving)
F6 Dynamic brake on/off
F7 uncoupling lever
F8 Air hose firing
F9 Engine cooling fan
F10 Rail wheel clack (only moving)
F11 Traction air compressor
F12 Turns on/off sound
F13 short air release
F14 Coupling crash
F15 Air pump
F16 Associated loco sound
F17 flange noise
F18 short air
F19 short air
CV CHARTER
CV Description Range Default
CV1 Short address 1-127 3
CV2 Start voltage 0-32 0
CV3 Acceleration 0-32 0
CV4 Deceleration 0-32 0
CV5 Top voltage 0-32 32
CV6 Speed curve select (0=linear, 1=slow increase at slow speed, 2=fast increase at slow speed
0-2 0
CV29 Basic configuration —- 2
CV7 Manufacturer version number —- 32
CV8 Manufacturer ID —- 143
CV17 Long address upper byte 192-231 192
CV18 Long address lower byte 0-255 3
CV19 Advanced consist address 0-127 0
CV21 When CV21=0, all accessory functions will follow its own address. When CV21=1, all functions
will follow the consist address —- 0
CV49 Sound on/off (0=on) 0-1 0
CV50 Horn type 0-11 4 (=11 is horn off)
CV51 Horn volume 0-3 3
CV52 Bell type 0-6 3 (=7 is bell off)
CV53 Bell volume 0-7 3
CV54 Bell ring rate 0-50 3
CV55 Diesel rumble volume 0-3 3
CV56 Brake squeal volume 0-3 3
CV57 Dynamic brake volume 0-3 3
CV58 Air release volume 0-3 3
CV59 Air pump volume 0-3 3
CV60 Safety pop valve volume 0-3 3
CV61 Engine cooling fan volume 0-3 3
CV62 Coupling volume 0-3 3
CV63 Random noise volume 0-3 3
CV64 Rail wheel clack 0-3 3
CV112 Exhaust volume 0-3 3
CV113 Coupling fire volume 0-3 3
CV114 brake release volume 0-3 0
CV115 Auto brake squeal enable/disable 0-1 1(enable)
CV116 Coupling sound type 0-2, 0=off 1
CV125 Factory default setting: Programming to 1 will restore all CV’s to default setting —- 0
About US
XL Systems Inc has designed and manufactured model rail road products for MRC for more than 20
years. All MRC DCC products are made by XL Systems Inc. All our DCC products are compatible MRC
DCC products. We will introduce more new products to meet customer’s beget. We also provide
installation and special programming and modification for customer. If you have special needs please
contact to us at: [email protected] or [email protected].

Other XL Systems Media Converter manuals

XL Systems 0001808 User manual

XL Systems

XL Systems 0001808 User manual

XL Systems 0001916 User manual

XL Systems

XL Systems 0001916 User manual

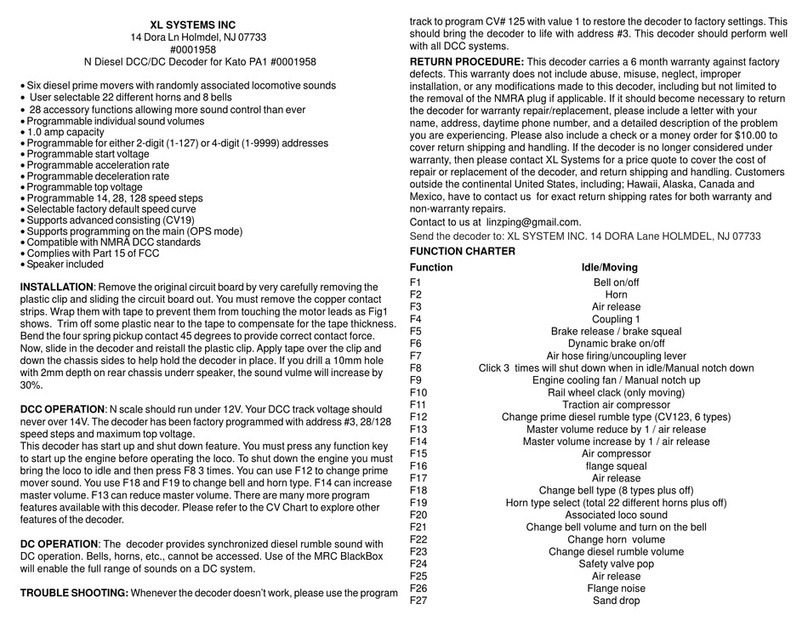

XL Systems 0001958 User manual

XL Systems

XL Systems 0001958 User manual

XL Systems 0001660 User manual

XL Systems

XL Systems 0001660 User manual

XL Systems 0001960 User manual

XL Systems

XL Systems 0001960 User manual

XL Systems 0001909 User manual

XL Systems

XL Systems 0001909 User manual

XL Systems 0001908 User manual

XL Systems

XL Systems 0001908 User manual

XL Systems 0001955 User manual

XL Systems

XL Systems 0001955 User manual

Popular Media Converter manuals by other brands

Trelawny 1B Operation & maintenance manual

Trelawny

Trelawny 1B Operation & maintenance manual

ORTEC 566 Operating and service manual

ORTEC

ORTEC 566 Operating and service manual

Zhejiang Uniview Technologies DVS4016-IN quick guide

Zhejiang Uniview Technologies

Zhejiang Uniview Technologies DVS4016-IN quick guide

Exsys EX-1309-9 manual

Exsys

Exsys EX-1309-9 manual

Reach ENC110 user manual

Reach

Reach ENC110 user manual

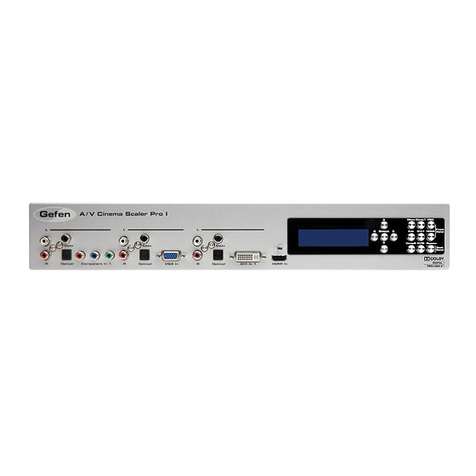

Gefen EXT-AVCINEMAAA user manual

Gefen

Gefen EXT-AVCINEMAAA user manual

Allied Telesis AT-FS238 AT-FS238a/1 installation guide

Allied Telesis

Allied Telesis AT-FS238 AT-FS238a/1 installation guide

Antelope Zodiac+ Ower's manual

Antelope

Antelope Zodiac+ Ower's manual

Benchmark DAC3 B instruction manual

Benchmark

Benchmark DAC3 B instruction manual

M-Audio Portman PC/S manual

M-Audio

M-Audio Portman PC/S manual

Gonbes GBS-8200 Basic setup

Gonbes

Gonbes GBS-8200 Basic setup

Huawei IRD6000 user guide

Huawei

Huawei IRD6000 user guide

Team Corally Booster 250 instruction manual

Team Corally

Team Corally Booster 250 instruction manual

ICPDAS I-7550 user manual

ICPDAS

ICPDAS I-7550 user manual

Siqura S620 E user manual

Siqura

Siqura S620 E user manual

SEW-Eurodrive MOVIDRIVE CES11A manual

SEW-Eurodrive

SEW-Eurodrive MOVIDRIVE CES11A manual

Extron electronics Digital Video Scaler Series user manual

Extron electronics

Extron electronics Digital Video Scaler Series user manual

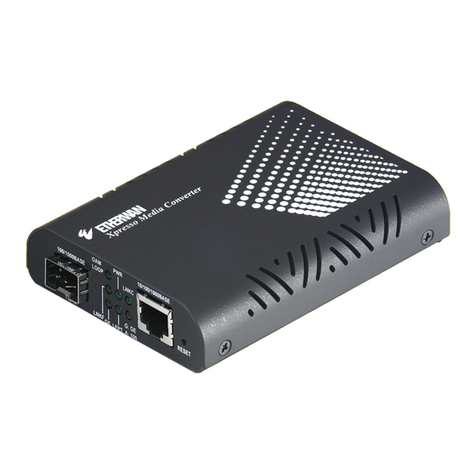

EtherWAN EL2211 quick start guide
