Xpand Xpandvision X106 Evolution X106-IR-C1 User manual

XPANDVISION 3D Glasses
X106™ Evolution
Model No. X106-IR-C1
User Manual

© 2018, XPAND 3D 2 www.xpandvision.com

© 2018, XPAND 3D 3 www.xpandvision.com
X106™ Evolution glasses from XPANDVISION™ are professional quality,
easy-to-use glasses for 3D cinema, a part of XPANDVISION™ 3D cinema
glasses system for creating stereoscopic images based on active glasses
technology.
The glasses must be synchronized with the image presented on screen. This
is achieved by using an Infra-Red signal / IR link. The synchronization signal
is fed from a digital projector to the XPANDVISION system which generates
IR pulses and transmits them to the glasses using its IR emitters. This
approach yields the highest performance, a wide viewing angle, immunity
to head tilt problems and eliminating crosstalk.
X106™ Evolution 3D Glasses
by XPANDVISION™
Model No. X106-IR-C1

© 2018, XPAND 3D 4 www.xpandvision.com
Compatibility
X106™ Evolution 3D glasses are compatible with XPANDVISION’s IR secured
cinema systems. All standard frame rates, including HFR are supported as
listed below.
STANDARD FRAME RATES
»48 Hz (24 fps, double ash or 48 fps single ash)
»50 Hz
»60 Hz
»72 Hz (24 fps, triple ash)
HIGH FRAME RATES (HFR)
»96 Hz (48 fps, double ash)
»100 Hz
»120 Hz (60 fps, double ash)
»144 Hz (48 fps, triple ash)
Glasses Overview
Image 1 – Glasses Parts
(1) Nosepiece (A larger nosepiece can be purchased separately and installed
over the existing one. See section Optional Nosepiece Installation.)
(2) Ear handles (replaceable)
(3) Battery compartment

© 2018, XPAND 3D 5 www.xpandvision.com
Using the Glasses
X106™ Evolution glasses were designed with ease of use in mind. Their
usage is straightforward and intuitive. See following sections for details.
Turning ON / OFF
X106™ Evolution glasses from XPANDVISION™ work in automatic mode –
there is no power switch to turn the glasses “ON” or “OFF”. Their default
mode is “OFF”. When the glasses are “OFF”, the electronic circuit periodically
checks for a presence of a valid IR signal. If a valid IR signal is present,
the glasses turn “ON” and start shuttering their lenses. Once the signal
disappears, glasses clear their lenses and return to OFF mode.
Glasses Testing
It is strongly suggested that glasses are tested before handing them out to
viewers. The test consists of two steps:
1) Observe the glasses to determine whether they are signaling a low
battery – see section Low Battery Indication.
2) Test for normal operation using the AT100 Active Glasses Tester, which is
distributed with XPANDVISION’s cinema system.
The AT100 is designed to generate a low intensity IR signal that, when
passed within 2 feet (60 cm) of the glasses, causes the lenses to blink in
response to the IR signal. Both lenses should blink at a visible rate and in
doing so indicate that the glasses are functioning properly and are ready
for distribution. If the lenses do not blink, the battery is empty and should
be replaced before further use, or glasses are damaged or malfunctioning.

© 2018, XPAND 3D 6 www.xpandvision.com
Low Battery Indication
When battery level is low, glasses start indicating this by blinking both their
lenses periodically. This only happens when glasses are in OFF mode!
If a low battery condition is detected during operation, i.e., in ON mode
while watching 3D content, glasses will continue to operate normally for at
least 5 hours to allow the viewers to nish watching the content.
Once low battery indication is observed, or if glasses are nonresponsive,
batteries should be replaced. Check the Battery Replacement section for
details.
Anti-Theft System
X106™ Evolution glasses feature an integrated EAS security tag based on
AM NDL technology to discourage, prevent and/or detect theft.
Optional Nosepiece Installation
X106™ Evolution glasses come equipped with a preinstalled nosepiece. If
needed, a larger nosepiece can be installed to make wearing the glasses
more comfortable, especially for viewers with smaller noses.
The original, preinstalled nosepiece is not removed when installing the
larger one. Instead, the larger nosepiece gets installed over the existing one

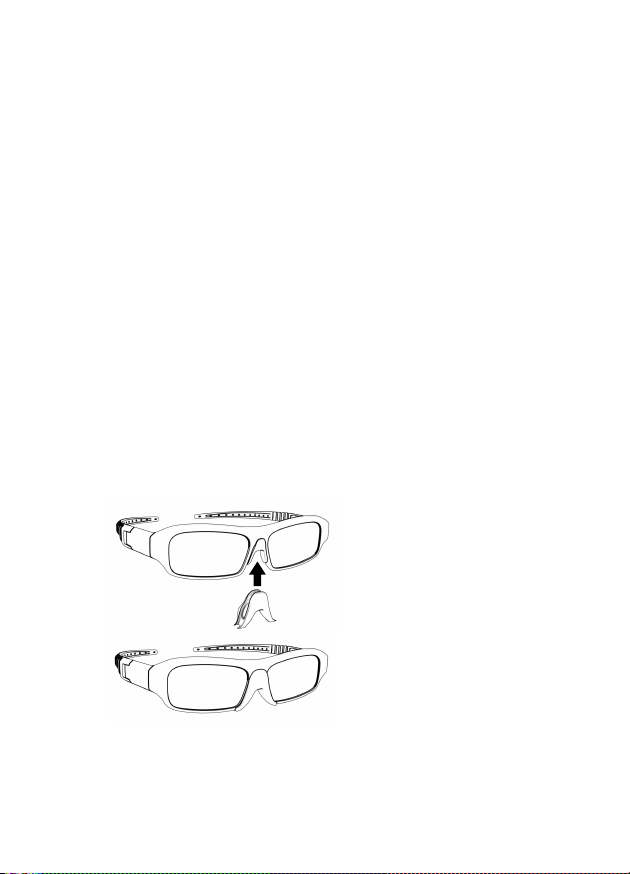

by pressing it into position. See below images.
Note: The larger nosepiece is an accessory sold separately.
Image 2: Installing the Large
Nosepiece by Pressing over
existing Nosepiece into Position.
Image 3: Glasses Equipped
with a Large Nosepiece.

© 2018, XPAND 3D 7 www.xpandvision.com
Maintenance and Cleaning
Battery Replacement
Warning: Only use original batteries provided by
XPANDVISION™. Use of other batteries may result in device
malfunction and damage.
Required tools: Use tools included in battery packaging box.
Replacement batteries for X106™ Evolution glasses can be purchased from
XPANDVISION™. To replace batteries, follow the steps below.
1) Locate the battery compartment (Image 1, item 3).

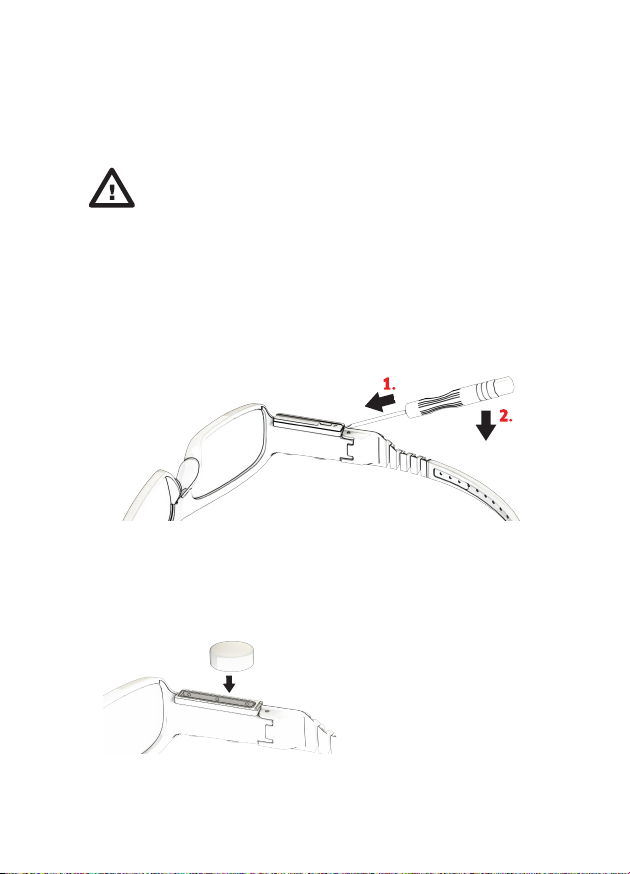

2) Insert included athead screwdriver tool under the battery compartment
door (recessed area; bottom side of the glasses) and pry open the battery
compartment by using the inserted screwdriver as a lever. See below image
for details.
Image 4: Removing a Used Battery cover
3) Use included battery removal tool to pull batteries from the battery
compartment.
Magnet
Image 5: Battery removing proces with
battery removal tool.

© 2018, XPAND 3D 8 www.xpandvision.com

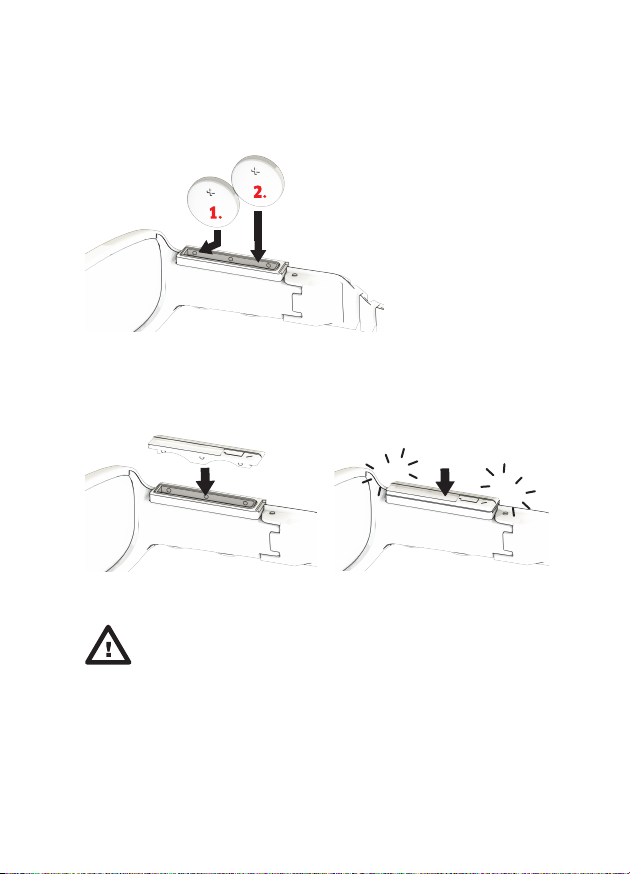

4) Carefully insert new batteries by rst inserting battery nr.1. Once battery
nr.1 is fully inserted, insert battery nr.2. Make sure battery orientation is
correct; see image below and/or observe markings on the glasses.
Image 6: Inserting a New batteries
5) Install battery Sealing Cover by inserting it into the battery compartment
opening and pushing it down until it clicks in place. When installing, be
carefull not to damage the silicon gasket installed on the Sealing Cover.
Image 7: Installing battery Sealing Cover
Warning: Sealing Cover is meant for one time use. Once
opened it needs to be replaced with new one. Sealing
Cover is supplied with new batteries or it can be purchased
separately. Using old Sealing Cover may result in water leakage
which will cause permanent damage to glasses.
CLICK
CLICK

© 2018, XPAND 3D 9 www.xpandvision.com
Ear Handles Replacement
If broken or damaged, ear handles can be replaced with new ones. A
dedicated tool for facilitating the replacement is provided with the purchase
of replacement ear handles.
Steps below describe the replacement process.

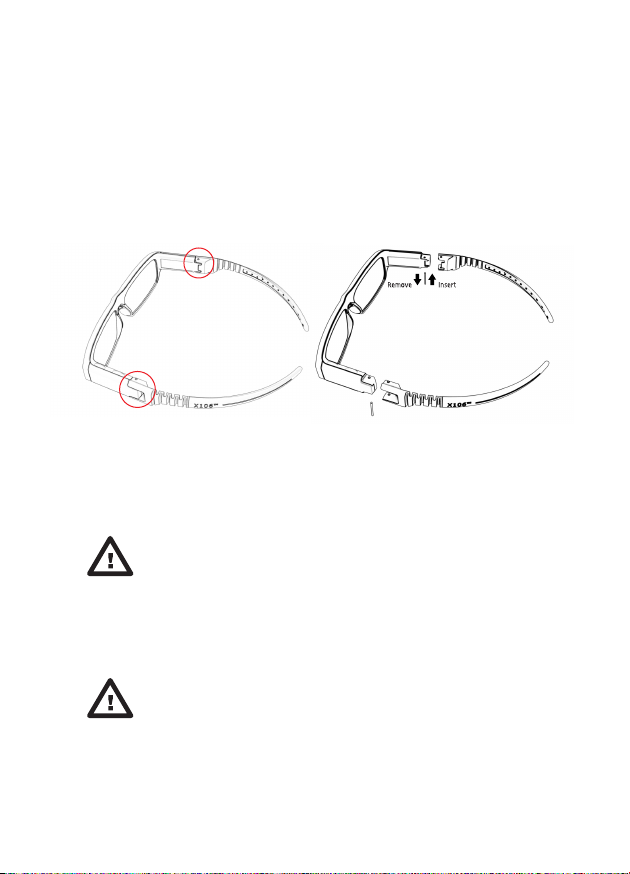

1) Locate two hinge spindles, with which the two ear handles are attached
to the glasses frame.
Image 6: Ear Handles Replacement - Location of Hinge Spindles
2) Use the provided tool to remove the two spindles and remove the ear
handles.
Warning: Spindles must be removed by pushing them out of
the hinge from the TOP side of the glasses to the BOTTOM!
3) Insert new ear handles into the glasses frame and use new spindles
provided with the replacement handles into the hinges. Use a at surface or
similar to fully press the spindles into the hinges.
Warning: Spindles must be inserted by pushing them in to
the hinge from the BOTTOM side of the glasses to the TOP!

© 2018, XPAND 3D 10 www.xpandvision.com
Cleaning
For cleaning X106™ Evolution 3D glasses, which are sealed and therefore
water resistant, XPANDVISION™ offers an elegant, efcient yet powerful
solution with exceptional cleaning results – the ELAVO™ Complete
Sanitization and Distribution System. ELAVO™ system is a portable and
environmentally friendly solution for cleaning, distributing and storing
X106™ Evolution glasses, making it less expensive, quicker and easier on
the theatre staff to manage. The glasses are placed in custom racks, which
are inserted into the ELAVO™ machine, which then cleans, disinfects and
dries the glasses, making them ready for their next users.
Alternatively, cleaning and sanitizing wipes from XPANDVISION™ can be
used to manually clean the glasses.
Handling Instructions
Storage
It is recommended that the glasses be stored away from any IR sources such
as uorescent lights. It is sufcient to cover the glasses so that any IR signal
does not accidentally trigger the glasses to turn ON.
Storage temperature should be standard ofce temperatures as higher or
lower temperatures reduce battery life.
In cinema, the optimal storage solution is either the ELAVO™ Cart and
ELAVO Rack, if using the ELAVO™ Sanitization System or the XPANDVISION™
Trolley. Both of these solutions were designed to provide the cinemas with
optimal solution for storage, handling, distribution, service and collection of
XPANDVISION™ Cinema 3D Glasses.
Handling
The glasses feature exible ear handles and durable frame, both designed
to protect the electronics and lenses. However, the lenses are susceptible to
cracking if the glasses are twisted or bent excessively.
Do not twist or bend the glasses more than required to place
them comfortably on the head! Broken lenses are not covered by
warranty.

© 2018, XPAND 3D 11 www.xpandvision.com
Glasses should be held by the frame and/or ear handles in order to avoid
scratching the lenses or getting ngerprints on them.
The user must be aware of these limitations and avoid any twisting, bending
or other rough handling of the glasses.
Troubleshooting
If glasses do not work as expected and as described in this user manual,
rst make sure that a XPANDVISION 3D IR emitter is being used, that glasses
are in range of its signal, that the emitter is connected to a projector and
that the projector is in 3D mode. If despite this glasses don’t work, replace
batteries to make sure they are not empty.
Attention – Consult Accompanying
Documentation
Important Safety Instructions
»Read these instructions.
»Keep these instructions.
»Heed all warnings.
»Follow all instructions.
»Only use the attachments/accessories included or suggested by these
instructions.
Battery
Replace Batteries With Original Batteries Provided by
XPANDVISION™. Use of Different Batteries May Present A Risk
Of Fire Or Explosion.
WARNING, Battery May Explode If Mistreated.
Do Not Recharge, Disassemble, Or Dispose of In Fire.
Dispose Of Used Battery Promptly.
Keep Away From Children.

© 2018, XPAND 3D 12 www.xpandvision.com
General Health And Safety Warnings
Warning!
Carefully read and follow all warnings in the User’s Guide to reduce health
risks associated with viewing media in 3D. Before allowing a child to view
3D media, Parents or Guardians must read and follow the warnings and
ensure that the child understands and follows the warnings.
May Cause Seizures
Some people have a condition that can cause them to experience seizures
or lose consciousness momentarily while viewing certain kinds of ashing
lights or patterns. These persons may have seizures while watching some
kinds of television pictures or playing certain video or computer games.
Persons who have not had any previous seizures may still have an
undetected seizure condition.
If you or anyone in your family has experienced symptoms linked to a
seizure condition, including experiencing seizures or a loss of awareness,
consult your physician before viewing 3D media.
We recommend that Parents or Guardians observe their children while the
children use 3D glasses. Discontinue use immediately and consult your
physician if you or your child experience any of the following symptoms:
dizziness, altered vision, eye or muscle twitching, involuntary movements,
loss of awareness, unconsciousness, disorientation, or seizures. Do not use
3D glasses for extended periods of time.
May Cause Eye Fatigue
Some users have reported dizziness, headaches, or eye fatigue as a result
of viewing media in 3D. Discontinue use if you or your child experience any
of these conditions. Do not use 3D glasses for extended periods of time.
Parents or Guardians should limit use by children to no more than a few
hours per day.
Young Children
The vision of young children (especially children under the age of six) is
still under development. Consult your doctor (such as a pediatrician or eye
doctor) before allowing young children to watch 3D video images or play
3D videos games. Parents or Guardians should supervise young children to
ensure they follow these recommendations.

© 2018, XPAND 3D 13 www.xpandvision.com
Choking Hazard: Keep Out of Reach of Small Children
Babies and young children could choke on small pieces associated with 3D
glasses. Keep the 3D glasses out of reach of small children.
Stereoscopic Viewing May Cause a slight After-Effect in Your
Vision
Your eyes change to accommodate viewing through stereoscopic glasses.
Wait a few moments after you remove the 3D glasses for your eyesight to
return to normal before resuming your regular activities.
Do Not Use 3D Glasses for other purposes than viewing 3D
visual content
Do not wear 3D Glasses as sunglasses or safety glasses. Never wear 3D
glasses while driving, swimming, or operating machinery. Do not use near
staircases, ledges or balconies. You may risk falling during or after use.
Never use 3D glasses if you are tired, fatigued, or ill.

© 2018, XPAND 3D 14 www.xpandvision.com
Regulatory Compliance Statements
Caution: Any changes or modications to this equipment not explicitly
approved by X6D Limited shall void the user’s authority to operate it.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Hereby X6D Limited declares that the X106-IR-C1 is in compliance with the
essential requirements and other relevant provisions of the EU Directive
2004/108/EC. The declaration of conformity may be consulted at http://
www.xpandvision.com/products/xpand-3d-glasses-lite/declaration-of-
conformity/
Technical Support
For direct support with XPANDVISION Consumer products please contact us
at: [email protected]
Manufactured by:
X6D Ltd., 195 Arch Makariou III Ave,
Neocleous House, P.C. 3030
Limassol, Cyprus
European Union
Made in China
X106-IR-C1_M_eng_02
08-19
