ABOUT THIS MANUAL
This manual contains important information and warnings about the operation of this XZENT unit.
Please store it in a place where you have access later on.
SAFETY INFORMATION 3
DEVICE SUPPORT, SOFTWARE UPDATES AND MAINTENANCE 4
FRONT PANEL 5
MAIN MENU 6
WEBLINK 2.0 7
MAIN SYSTEM SETTINGS 8
FM / AM 9
DAB TUNER 10
USB AUDIO 11
BLUETOOTH PHONE 12
BLUETOOTH MUSIC STREAMING 13
AV-IN / CAMERA 14
TERMS OF WARRANTY 16-17
WIRING DIAGRAM 18
TECHNICAL SPECIFICATIONS 19
ADDITIONAL INFORMATION 20-21
SAFTY INFORMATION
CONTENT
General
1. The descriptions and other content shown in this manual may deviate from the real device.
2. Pictures shown in this manual and some HMI screenshots may deviate from the real unit.
3. Specicationsandtechnicaldesignofthisdevicemodelarenecessarilysubjecttochange
without notice.
■Read the instructions entirely. Heed all warnings. Follow the instructions.
■Retain this manual. Whoever will use the unit should have access to this manual.
■This unit is designed to be functional in vehicles with 12 V DC battery and negative ground.
■Do not operate the unit in any other way than described in this manual. Failure to follow the
instructions as provided may void your warranty.
■Do not disassemble or alter the unit in any way because this will void your warranty. Do not
attempt to repair or to service the unit yourself, but contact an authorized XZENT dealer instead.
■Use only original accessories which are designed and manufactured for the unit, otherwise you
will risk damage. Install the unit according to the mounting instructions by using the supplied
mounting accessories. Acceleration forces during accidents can be huge. Incorrectly mounted
devices pose a serious risk for the driver and passengers during an accident.
■Protect the unit from water and other liquids that could enter the housing. A short circuit or even
 arecouldresult.
■ Topreventashortcircuit,neverinsertanymetallicobject(suchascoinsormetaltools)intotheunit.
■ Beforeyoureplaceadefectivefusetrytondthecausefortheshortcircuit.Payattentionto
the cables of the power supply! If the short circuit does not result from a failure of the power
 supplyorwiring,youcanreplacethedefectivefusewithanewone(ofidenticalvalue).Ifthe
shortcircuit persists, contact an authorized XZENT dealer.
■When connecting to any other device, read the user‘s guide for compatibility and notes on
electrical connections. Do not try to connect incompatible products.
■Be careful not to drain the car battery while using the unit when the car engine is turned off.
Because the unit consumes a considerable amount of energy and the battery will be charged
only while the engine is running, it might happen that the battery will discharge to a point where
it is not possible to start the engine anymore.
■According to the law in different European countries, driving with monitors showing movies in
the viewing range of the driver is not allowed, because the driver might get distracted from
 trafc.Pleaserespectthetrafcregulationsofyourcountryoryoumayfacelegalpenalties
in case of accidents or even lose your insurance coverage. Pay attention to the playback volume
inside your vehicle since you are required to notice exterior warning sounds like police sirens etc..
■Don‘t expose the unit to hard impacts. A mechanical or electrical malfunction of the unit could be
the result.
■Should any problems or questions occur during the installation, please consult your
XZENT dealer/importer.

4 5
Operation buttons:
1. Reset Press to perform a power reset.
2. Home Press to enter Main Menu.
3. FAV Press to enter your favourite source.
You can set the FAV source in Settings, General menu.
4. Power/Volume Whenon,rotatetoadjustVolume,presstoMUTE.Press
  andholdtoenterStandby(ScreenOff,AudioOff).
5. BT Press to enter BT mode
6. CAM Press to enter rear camera view, press again to exit.
7. Touch area Press screen area to perform touch press action.
Various
A. Microphone.
FRONT PANEL
X-107
VOL
FAV
RST
CAM
MIC
MICMIC
BT
1
2
3
4
5
6
7
A
DEVICE SUPPORT, SOFTWARE UPDATES AND
MAINTENANCE
Software updates and improvements are provided via USB updates which can be downloaded from
our website www.xzent.com
Also customer care, FAQs and other helpful information can be found there.

6 7
This feature will become available via future software update, if not present on device upon
market launch.
WithWebLinkyoucanconnectyourcompatiblePhone*totheXZENTdeviceandenjoycompatible
smartphone apps in your car.
Warning!
Please keep in mind that in certain countries it is not legal to operate a smartphone while driving.
XZENT is not liable for any problems or incorrect use of app-based content. Using connected cont-
ent should respect your phones data plan to avoid additional costs.
1. TousethisfunctionalityyouneedrstdownloadtheWebLinkHostAppfromyourApp-Store.
2. Launch the WebLink Host App on your phone
3. Unlock your Phone and connect it via USB to your XZENT
4. Press the WebLink home screen icon on your XZENT
5. Touch the phone icon on the XZENT screen and select the desired compatible WebLink App to
be launched
Note:
To see if your iPhone or Android Phone is compatible, please check if the phone App store offers the
ofcialWeblinkHostapp.YoucanndadditionalinformationontheofcialwebsitesofWebLink
(byAbalta)orXZENT.
WEBLINK SOURCE
MAIN MENU Operation buttons and area
A
1
MAIN MENU
2 3 4
5678
9 10 11

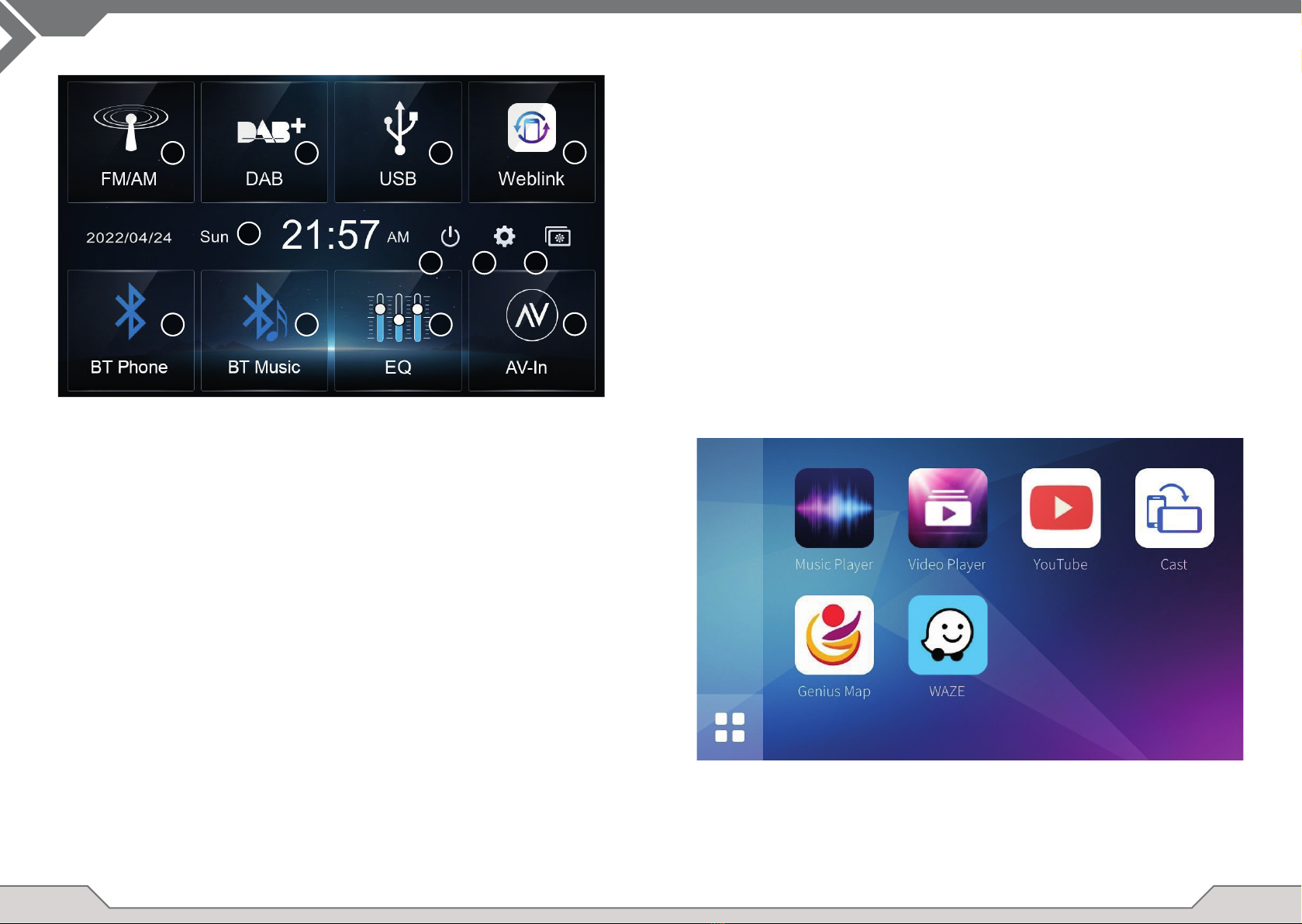

Tap to enter FM/AM source
Tap to enter DAB source
Tap to enter USB Music / USB Video source Tap to enter
Weblink source
Tap to enter BT Phone source
Tap to enter BT Music source
Tap to enter EQ
Tap to enter AV-In source
Tap to enter Standby
Tap to enter Settings
Tap to change background picture
1. FM/AM
2. DAB
3. USB
4. Weblink
5. BT Phone
6. BT Music
7. EQ
8. AV-In
9. Standby
10. Settings
11. Background picture
A Clock and Date

8 9
Operation Buttons:
Note:
■ ThisunitfeaturesanRDStuner.RDSisasystemwhichtransmitsdataontopoftheradiosignal.
Availability and content of the RDS data depend on the respective broadcast station and its signal
strength. RDS does, for example, transmit alternative frequencies, which allow for frequency
changes without user interaction.
■ YouneedtohavetheAFfunctionactivatedinordertousetheRDSfunctionalityandfeatures.
FM/AM
Tap to open Main Menu.
Tap to step frequency down.
Tap and hold to seek down.
Tap to step frequency up.
Tap and hold to seek up.
Tap to select preset.
Tap and hold to save current station as preset.
Tap to open PTY.
Tap to switch the Radio band.
Tap to search and auto save all presets
Tap to open keypad.
Tap to open RDS options. AF, TA, CT.
Tap to open EQ menu.
InformationdisplayeldsfortunersettingsandRDSfeatures.
Currentstationfrequency(orRDSstationname).
1. Home
2. Seek Down
3. Seek Up
4. Preset
5. PTY
6. BAND
7. Search
8. Keypad
9. RDS
10. EQ
A
B
1
2 3
4
5 6 7 8 9
10
A
B
Operation Buttons:
(MAIN SYSTEM) SETTINGS
1
2
3
4
5
6
Tap to open Main Menu.
Tap to return to previous menu.
Tap to select a different available language.
Tap to select an area in the list.
Taptoshowlist(defaultvaluesarewritteninboldletters)
TaptochangevalueofDayBrightness(Brightnessrange:1…9...10).
TaptochangevalueofNightBrightness(Brightnessrange:1…3...10).
Tap to change Auto/Day/Night Mode.
Press to toggle touch control acoustic feedback On/Off.
Tap to set FAV function BT-Music/AV-In/USB/WebLink/Radio/DAB.
Tap to load factory defaults
Tap to show MCU/MPEG Version of Device
Tap to set the Date and Time
1. Home
2. Back
3. Language
4. Radio Region
5. General
 a)DimmerValueDay
 b)DimmerValueNight
 c)DimmerTrigger
 d)Beep
 e)FAV-SETUP
 f)Factorysetting
 g)System
6. Date & Time

10 11
Operation Buttons:
The video mode has the same controls and replaces the center with the video picture display.
Please tap the touch screen to show the control bar from full screen.
USB MODE AUDIO / VIDEO
Tap to open Main Menu.
Tappositiontojumpto.
Tap to toggle Repeat All, Repeat Single, Random Play.
Taptoselectprevioustrack/le.
Tap to toggle pause and resume.
Taptoselectnexttrack/le.
Taptoopenlist:
Showaudiofolderandlelist.
Showvideofolderandlelist.
Showspicturelesorfolderswithpictures.
Embeddedcoverofle
ID3Tagleinformation(Album,Song,Artist)
Index of current song in folder
1. Home
2. Progress bar
3. Repeat/Random
4. Seek Down
5. Pause/resume
6. Seek Up
7. List
 a)AudioList
 b)VideoList
 c)PictureList
A
B
C
1
2
3 4 5 6 7
A
B
Operation Buttons:
Tap to open Main Menu.
TaptochangePresetpage(1to3).

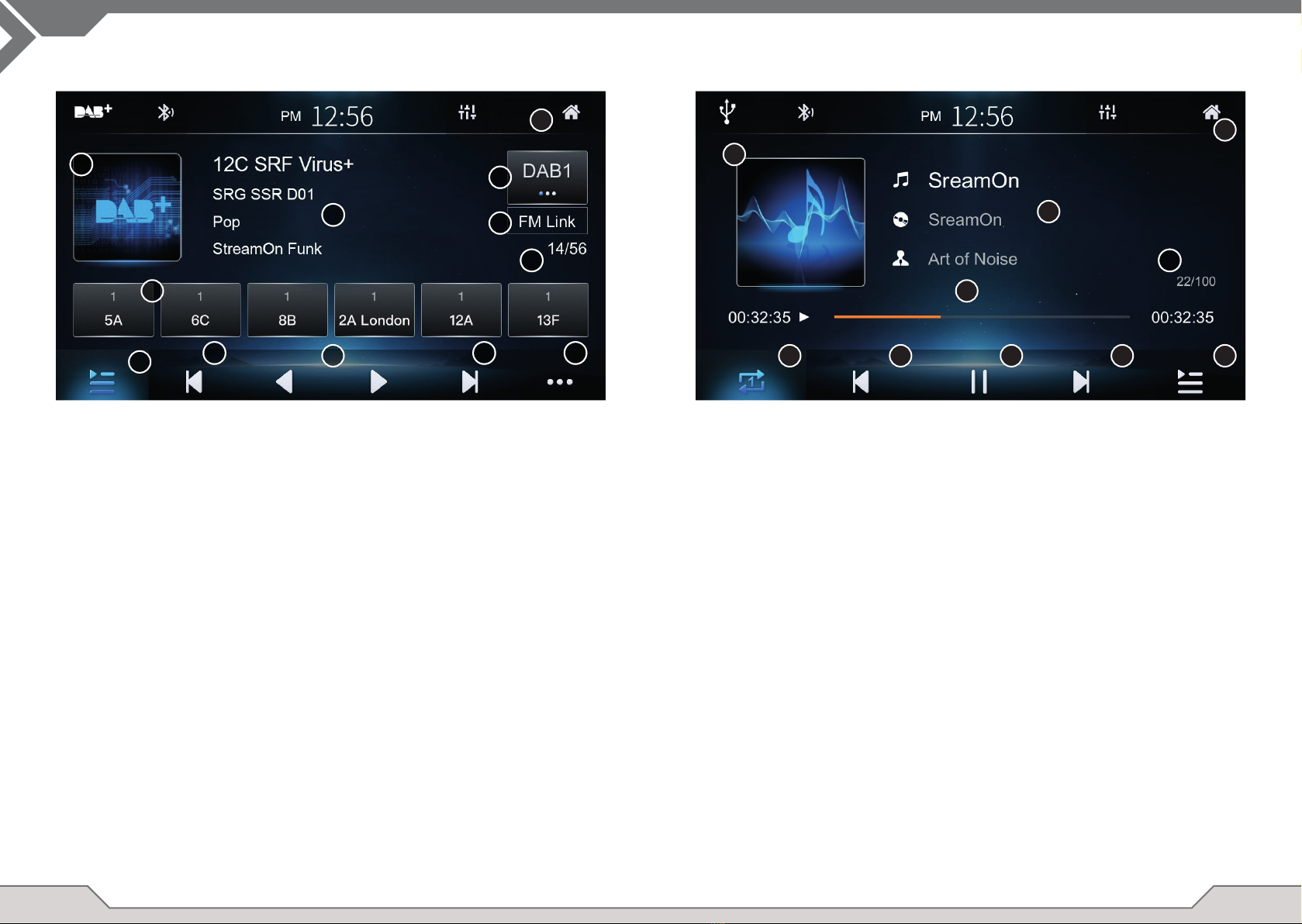

will show in case of signal quality issues an system performs DAB>FM
switching
Tap and hold to save current station to this preset. Tap to select this preset.
Tap to open list. You can change between station list and ensemble list.
You can also perform a DAB scan.
Tap skip last to select last ensemble.
Tap skip next to select next ensemble.
Tap skip down to select last station.
Tap skip up to select next station.
Tapforoptionsandsettings:TAinterrupt,DABAntPower,ServiceFollow,
Soft Link.
Sourcepicture(noslideshow)
Informationofcurrentplayingstation:Ensemblename,Stationname,PTY
Category, DLS Text.
Shows current station and max. count of currently scanned stations
1. Home
2. Preset Page
3 FM Link Status
4. Preset
5. List / Scan
6. Skip last / next
7. Skip down / up
8. DAB mode
A
B
C
DAB+ TUNER
1
2
3
4
57
6
A
B
6 8
C C

12 13
Operation buttons:
1. Home
2. EQ
3. Seek Down
4. Pause/resume
5. Seek Up
A
A
1
BLUETOOTH MUSIC STREAMING
2
43 5
Tap to open Main Menu.
Tap to open EQ menu.
Tap to select previous song.
Tap to toggle pause and resume.
Tap to select next song.
Streaminginformation(dependsonphonecapability).
Operation buttons:
1. Home
2. Keypad
3. Call Log
4. Phonebook
5. Disconnect
6. Pick up call
7. Hang up call
8. Change output
A
BLUETOOTH PHONE
1
3
2
4
Tap to open Main Menu.
Tap to open keyboard to dial a number.
Tap to enter Call Log- list mode.
Tap the Sync-Button in the Call Log page to synchronise.
Tap to enter Phonebook- list mode.
Tap the Sync-Button in the Phonebook page to synchronise.
Tap to disconnect the current phone
Tap to pick up call or initiate recall on last known number.
Tap to hang up call
Taptotoggleaudiotocarspeakerorsmartphone(discretemode)
This area shows call information on active call
A
5

14 15

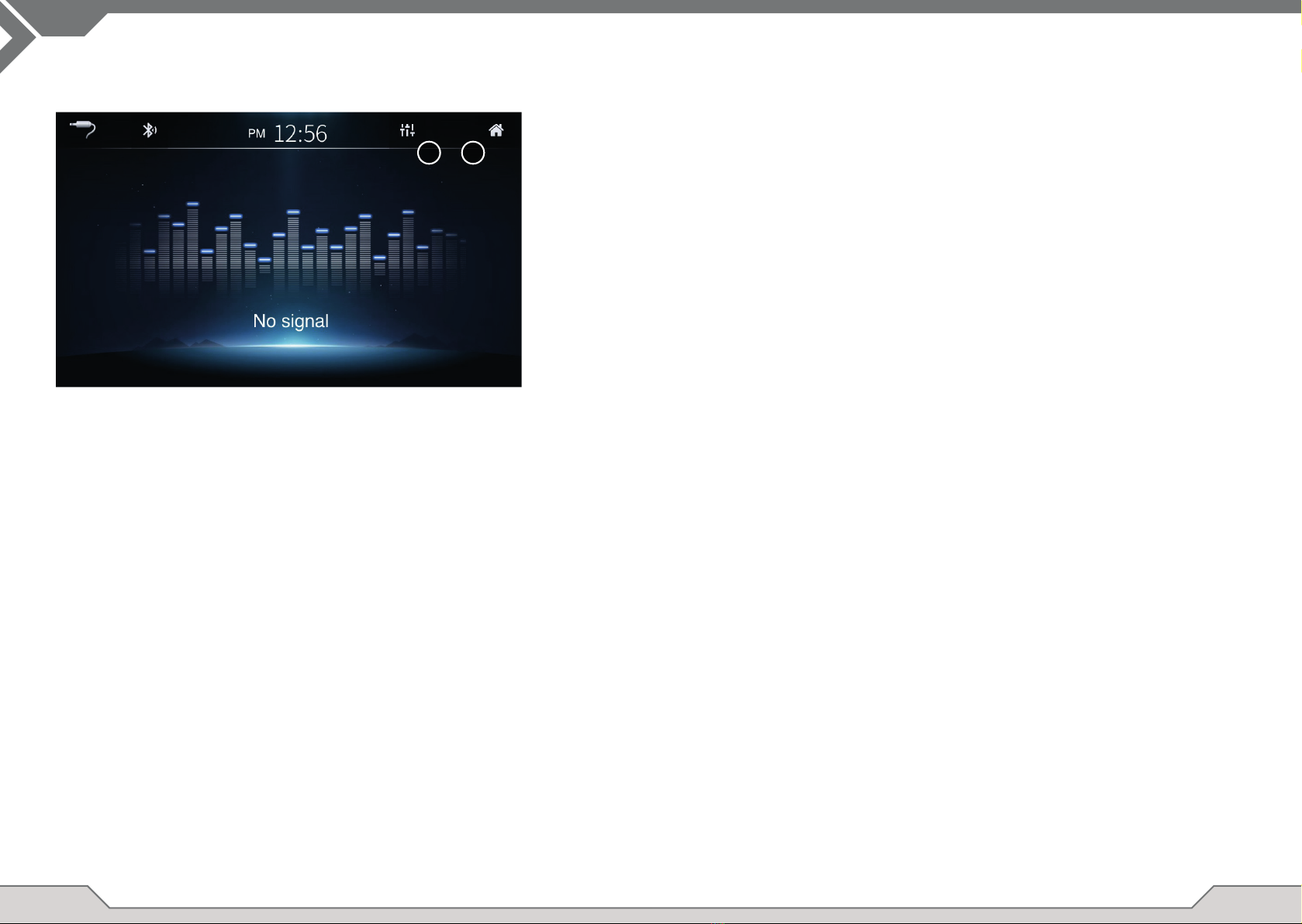

AV-IN / CAMERA
Operation buttons:
1. Home
2. EQ
In AV IN Source you can listen to audio from external AV/IN device. There are no touch control
functions for this source.
12
Tap to open Main Menu.
Tap to open EQ Menu.

16 17
No warranty service will be provided, moreover, if the model number
/serial number/UUID/product number on the product is changed, erased, made illegible or removed. The
same applies if the receipt or invoice is incomplete and/or illegible when presented.
Is XZENT liable for other defects or damage?
XZENT will repair or replace products, only if they are covered by the terms of this Warranty. XZENT is not
liableforanymaterialorintangiblelossordamagesuchasthepricepaidfortheproduct,lossofprots,
revenue,data,orrelatingtotheenjoymentoftheproductorcomponentsassociatedwithit,arisingdirectly
or indirectly under this Warranty or otherwise in relation to products or services. This likewise applies to
loss or damage relating to the impairment or operational failure of the product, or devices associated with
it, caused by defects or the non-availability of the product during the time it is with XZENT or XZENT’s
service partner, as well as to periods of downtime and business interruptions. In addition, XZENT does not
accept any liability for shipment-related risks - such as the loss or destruction of the product - in connection
withthefullmentoftheWarranty.
This disclaimer applies to losses of damage irrespective of the legal basis, especially on the grounds of
negligence,otherwrongfulconduct(torts),breachofcontract,expressorimpliedguarantees,andstrict
liability(evenifXZENToritsservicepartnerhasbeenadvisedofthepossibilityofsuchdamageoccurring).
If these disclaimers are prohibited or limited under the applicable law, XZENT will limit its Warranty and
liability to the extent permissible under the applicable regulations. For example, some national laws prohibit
the exclusion or limiting of damages payable in connection with negligence, gross negligence, willful
wrongdoing, deceitful conduct, and other such acts. For the duration of this Warranty, all liability that
cannot be excluded completely will be limited to the extent permissible under the applicable law. Liability
under this Warranty is limited to the price paid for the product. If the applicable law only permits higher
limits on any liability, this higher limitation will apply.
How do I exercise my Warranty rights?
If you want to exercise your entitlements under this Warranty, please contact the authorized dealer where
the product was purchased, and present it with the original copy of the till receipt or invoice. Do not return
anyproductstoXZENTdirectly,otherwiseourWarrantyobligationscannotbefullled.Youwillndthe
name of the relevant dealer or reseller on your proof of purchase.
Defective devices sent by the authorized dealer to the service center, must also be accompanied by
any accessories with a logical connection to the observed fault. This means, for example, the navigation
package on an SD or microSD card supplied or purchased with the device, if problems or functional errors
were observed in connection with the navigation function.
How will XZENT full its Warranty?
XZENT or its service partner will choose to either repair or replace the product or its defective parts covered
by the Warranty, and assume the costs of material and labor in doing so.
Repairs under the Warranty must be carried out by XZENT or its authorized service partner. Products that
are repaired or replaced may contain new and/or refurbished components and devices. Components that
are swapped out will become the property of XZENT.
Will I incur any costs in connection with the Warranty service?
XZENT assumes the costs of material and labor in connection with its Warranty service. The Warranty
holder is responsible for the costs of shipment and bears the risks connected with the shipment (see
above).Iftheproductisfoundtobeoperatingfaultlessly,orthereisnowarrantyentitlementbecausethe
warrant period has expired or for any other reason, XZENT or its authorized service partner will be entitled
tochargeaat-rateinvestigationfeeof€30.00.
Do this Warranty affect my statutory or contractual rights?
This Warranty is made voluntarily by XZENT, and it will, in any case, extend your statutory rights. As a
consumer, you remain fully entitled to your statutory rights, such as the statutory guarantee. This Warranty
also has no effect whatsoever on your contractual rights against the reseller. You may continue to exercise
these rights in full.
What products are covered by XZENT’s limited Warranty?
ThelimitedWarranty(the“Warranty”)appliestoXZENTproductspurchasedfromanauthorizeddealerby
endcustomersintheEuropeanEconomicAreaorSwitzerland(“TerritorialScope”).
What is the validity period of XZENT’s Warranty?
Under this Warranty, XZENT warrants, for a period of 2 years, that the product is free from defects in material
and/or workmanship at the time of the original purchase. This 2-year period commences on the date of the
original purchase as per the original invoice or until receipt. If you have purchased the product as a consumer,
andthedefectisidentiedwithintherstsixmonthsaftertheoriginalpurchase(seeabove),wewillassume
that the defect already existed at the time of purchase.
Who can claim under the Warranty?
XZENT grants the limited Warranty to natural persons only, who purchased the relevant product primarily for
personal use.
What is covered by the Warranty?
XZENT warrants that the product is free from defects in material and/or workmanship at the time of the original
purchase. XZENT does not, however, provide a warranty covering every defect and damage that may occur.
It only covers the hardware components of the device, and in no event the software used with the device,
regardless if this was provided by XZENT or the third-party vendor. The Warranty therefore does not cover
thefollowingcases,inparticular:
■ normalwearandtear(suchastosurfacesandprotectivecoverings);
■ supercial damage, such as scratches, dents, and damaged plastic, worn or mechanically defective
 connections;
■ misuse,includinganytreatmentresultinginphysicalorsupercialdamage,suchasacosmeticdefect,
 totheproduct;
■ damage caused by connecting or using the product for a purpose other than those specied, or a
 failuretoobservetheoperatingand/orinstallationinstructionsfortheparticularmodel;
■ installationoruseoftheproductcontrarytotheapplicabletechnicalstandards,orthesafetyregulations
 inthecountryinwhichtheproductisinstalledorused;
■ damagecaused throughan unauthorized attempted repair,oranattempted repairby someoneother
 thanaXZENTauthorizedservicepartner;
■ damagecausedbymodicationstotheproductnotexpresslyauthorizedbythemanufacturer;
■ damage caused by malicious code (“Software Viruses”) or by using software not supplied with the
 productorwhichwasincorrectlyinstalled;
■ use of third party vendor software programs for editing, modifying, adapting, or extending XZENT’s
 authorizedsoftwarecomponentsasarerunontheproduct;
■ useofthird-partyvendorrmware/operatingsystemsoftware
■ damage caused by liquids or chemicals of whatever type, and/or excessive temperatures, moisture,
 ordamp;
■ accidents,dropsorothersucheffectsofextremeacceleratingforces;
■ damagecausedbylightningstrikes,electrostaticcharge,incorrectoperatingvoltage,water,re,force
 majeure,inadequateventilationforotherreasonsforwhichXZENTisnotresponsible;
■ damagecausedbyusingthedeviceoutsideofthedenedspecications;
■ damagecausedbyusingtheproductwithothersystemsordevices,whicharenotdesignedtobeused
 withthisproduct;
■ adjustments or modications without XZENT‘s prior written approval, including product upgrades
 extendingbeyondthespecicationsorcharacteristicsdescribedintheoperatingmanual;
■ modicationsoftheproductforthepurposeofadaptingittonationalorlocaltechnicalnormsorsafety
 standardsofcountriesforwhichtheproductwasnotexpresslydesignedormanufactured;
■ usingserviceorsparepartsnotproducedordistributedbyXZENT;
■ usingtheproductinconnectionwithaccessoriesnotapprovedforusewiththisproduct;
XZENT, moreover, does not warrant (expressly, implicitly,statutorily,or otherwise) the quality, performance,
reliabilityorsuitabilityoftheproductforaparticularpurposeexceptasdescribed,northesoftware/rmware
installed on the device ex works.
TERMS OF WARRANTY

18 19
VEHICLE COMPATIBILITY
Every vehicle with a 2-DIN mounting slot. Adapter cables and installation kit may be
required(notincludedinthescopeofdelivery).
Electrical characteristics
Powersupply:+12VDCagainstvehicleground
Externalprotectionagainstinternalshort-circuit:15AMini-ANLfuse
Operating currents*
ACCoffidlestatus: <5.0mA
Audio/videoplayback(VOL20): ~1.40A
GPSmodewithactiverouteguidance(VOL20): ~1.55A
GPSmodewithactiverouteguidance(VOL40): ~3.80A
* @ 13.8 V operating voltage with front and rear 4 ohm loudspeaker connected
to device
Transmitters (max. power)
Bluetooth module 100 mW
Transmitters frequency (max. power)
Bluetooth module 2.4 Ghz
TECNICAL SPECIFICATIONADDITIONAL INFORMATION

20 21
http://productip.com/?f=1ff903
EU Legal Representative:
ACR S & V GmbH, Industriestrasse 35, D-79787 Lauchringen, Germany
Hereby,ACRBrändli+VögeliAGdeclaresthatthetypeofradioequipmentX-107complieswiththe
2014/53/EU Directive. The full text of the EU Declaration of Conformity is available at the following
Internetaddress:www.xzent.com(seelink„ProductConformityDocuments“inthefooterofthepage).
ADDITIONAL INFORMATIONS

Bedienungsanleitun g
2-Din Infotainer X-522
XZENT by ACR AG · Bohrturmweg 1 · Bad Zurzach · Switzerland
www.xzent.com
USERMANUAL
X-522
MAnuale uten t e
Manuel utilisateur
