BT55727
BT55797
USER MANUAL
HD Dash Cam +
Rearview Camera™

TABLE OF CONTENTS
1. Introduction ....................................................................................................................................................................................1
2. Package Contents .........................................................................................................................................................................2
3. Product Specications ................................................................................................................................................................3
4. Safety Information........................................................................................................................................................................5
5. Operation.........................................................................................................................................................................................6
6. Settings.............................................................................................................................................................................................9
7. Viewing Files..................................................................................................................................................................................19
8. Warranty .........................................................................................................................................................................................22
9. General Information...................................................................................................................................................................25

1
The Yada HD Dash Cam + Rearview Camera™ is a video recording camera intended to capture incidents
while driving. The 3.5” LCD is convenient for instant playback. Simply mount the camera as directed and
use loop recording or motion detection recording to capture events while driving.
Please read all of the installation instructions carefully before installing and using the product. Improper
installation or usage will void manufacturer’s warranty.
All certications and technical specications can be found at www.letsyada.com <http://www.letsyada.com> .
1. INTRODUCTION

2

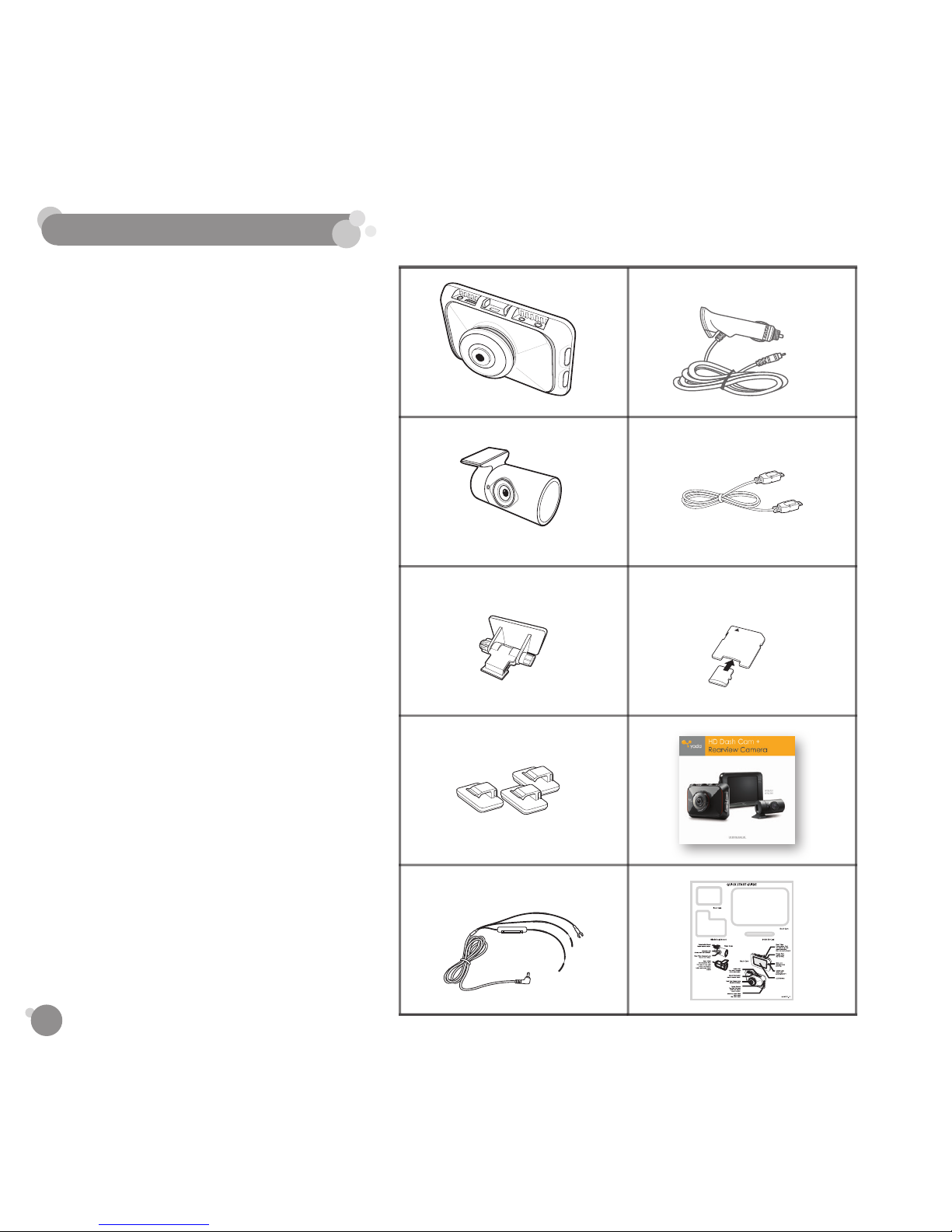

1. HD Dash Camera
2. Rearview Camera
3. Windshield Mount
4. Wire Clip
5. Hardwired Power Cable (optional)
6. 12V/24V Power Cable
7. Connection Cable
8. micro SDHC Card & Adaptor
9. User Manual
10. Quick Start Guide
2. PACKAGE CONTENTS
1.
2.
5. 10.
3. 8.
6.
4. 9.
7.

3
3. PRODUCT SPECIFICATIONS
Model Name
Dimensions / Weight
Supported Capacity
Camera Resolution
Normal Recording
Event Recording
Manual Recording
Parking Recording
(Recording when event
or motion is detected)
View Angle
VideoEncoding
Sound
Speaker
Acceleration Sensor
Input Power
Battery
Power Consumption
Operating Temperature
/ Storage Temperature
Interface
Output Method
Miscellaneous
BT55727 / BT55797
Front: 102 x 68 x 28 / 105g
Rear: 56 x 27.7 x 31.8 / 20.4g
micro SDHC 16GB/32GB
Front : 1920 x 1080p @30fps
Rear: 1280 x 720p@30fps
Recording in 1 minute units
15 seconds before and after impact, total 30 seconds
15 seconds before and 45 seconds after impact, total 60 seconds
15 seconds before and after impact, total 30 seconds
Separate installation required for vehicles
without constant power support
Front : 135°(D) X 110°(H) X 58°(V)
Rear : 115°(D) X 95°(H) X 50°(V)
Video: H.264
Sound: PCM
.AVI
Built-in mic
Built-in speaker 8ohm
-2g ~ +2g
DC 12~24V
Super Capacitator
Max 3.7W
Operating Temperature -10°C ~ 80°C
Storage Temperature -20°C ~ 85°C
TV Out port, external GPS port,
Micro USB (Rear camera connection terminal)
NTSC
Security LED

4
NOTE: With the device on, shortly press the power switch to start manual recording and press and hold the power switch to turn power OFF.
NOTE: To invert the image of rear view, select the inverted image (1 dot) and normal image view(2 dots : default)
Connecting other PC mini USB cables within the rear connection port may result in product damage.

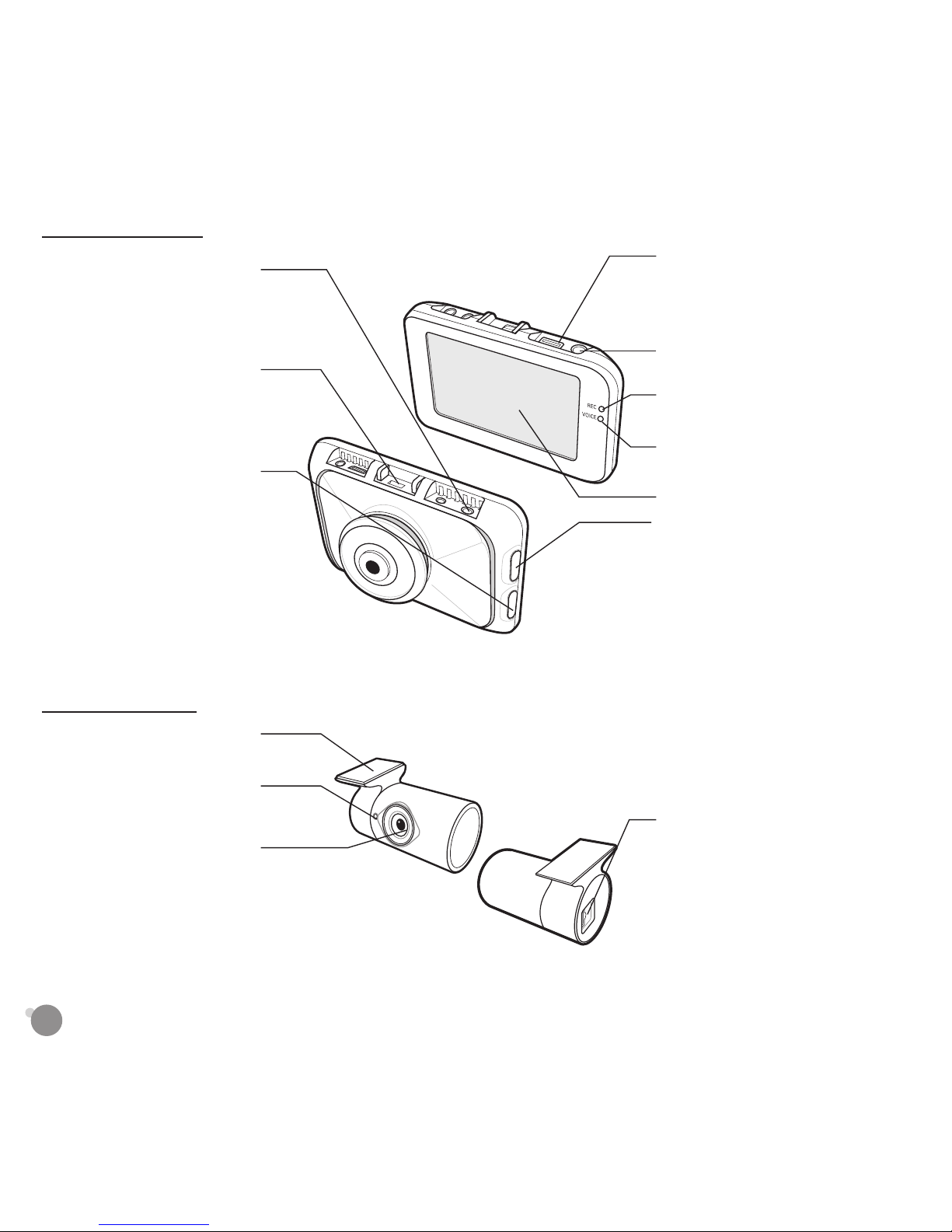

Video Port
Port used to connect
video output cable.
Mount Connector
Used to connect mount.
Memory Card Slot
Slot to insert
Micro SDHC card.
Detachable Mount
Fixates camera position.
Security LED
Checks Dash Cam operation.
Rear View Camera Lens
Records rear videos.
Rear View
Connection Port Port used for
rear view camera connection.
(video and power input/output)
Power Port
Supplies power (DC 12V~24V).
REC LED
Operates normal recording.
VOICE LED
Check voice recording(ON/OFF)
LCD Screen
Power Switch
Turns camera on/o or press for
manual recording
Rear View Connection Port
Port used for rear view
camera connection.
(video and power input/output)
Dash Camera
Rear Camera

5
a. Please read all safety warnings listed in this user’s manual.
b. Do not operate or adjust the camera while driving. The camera should be set prior to operating the vehicle.
c. Make sure the camera is not blocking the driver’s line of sight and check local laws and regulations for
placement instructions.
d. Do not disassemble the camera. This will void the warranty and possibly cause failure, electric shock or
re. Please contact Winplus North America for repair or warranty claims.
e. Damage due to production malfunction, loss of data, or other damages occurring while using this
product shall not be the responsibility of the manufacturer.
f. Always keep your eyes on the road and surrounding vehicles. At no time should the screen be used as
a monitor for driving assistance.
g. This product is a road safety accessory and the manufacturer is not liable for any losses brought on by
malfunctions, loss of data or any other forms of losses from using this product.
h. This product is an accessory designed for the specic purpose of recording and saving captured video
footage of the areas near the vehicle. Certain functions may not be supported depending on the driving
conditions and vehicle conditions. The rmware updates for improving performance may result in
dierent performance by each product. The video may not be recorded depending on the conditions
in which the device is used. Please use the device only for your reference. The recording may not take
place depending on the status of the SD card.
i. This device is designed to capture and save accident footages of the vehicle in which the product is
installed in. However, it does not guarantee that every accident footage will be recorded. Accidents with
very minor level of impact may not activate the impact sensor and the accident may not be recorded as
event footage.
j. Do not put anything inside of the SD memory card slot except for the card itself.
k. Do not operate the product with sharp instruments such as a pen or pencil.
l. Do not attach a sticker or apply paint on the device or the SD Card.
m. Do not remove the SD card during operation.
n. Do not expose the camera to the direct heat of the vehicles heating system.
o. The camera is not weatherproof and is not intended for outside use. It should remain in the interior of the
vehicle for proper operation. At no time should the camera be exposed to moisture or weather elements.
4. SAFETY INFORMATION

6

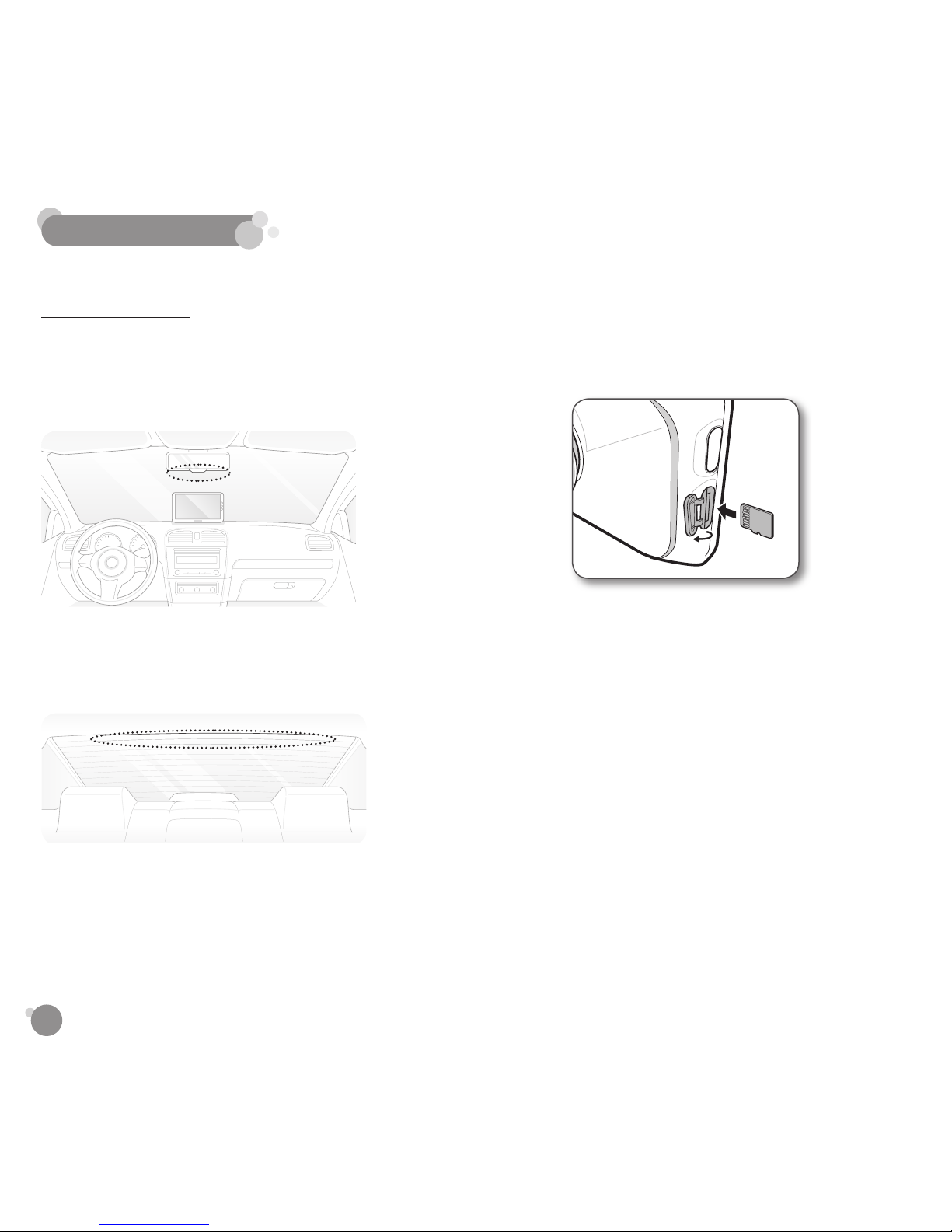

INSTALLATION
Select the Dash Cam Position
Suggested placement is to the side of your rearview mirror on
the front windshield
Select the Rearview Camera Position
Suggested placement is at the top of the rear view window.
5. OPERATION
Insert the Micro SDHC Card
NOTE: Refrain from installing the product in areas that block the driver’s line of sight.

7

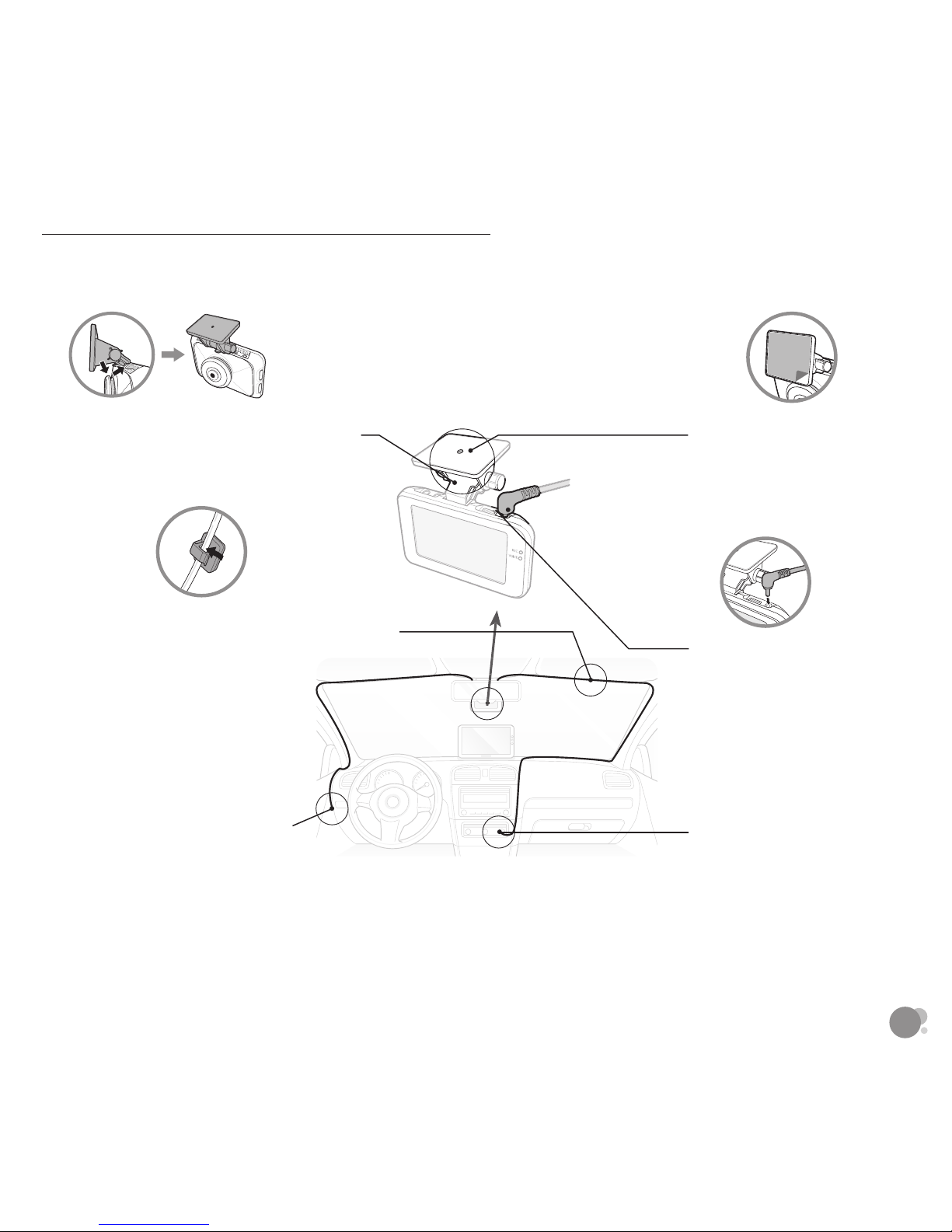

HD Dash Cam Installation (Front Windshield)
1. Connect mount to the HD Dash Cam
3. Use the clips to manage the cables
2. Attach the mount
with cam to the
windshield using the
tape provided
4. Connect Power Adapter
5. Power using a 12V/24V
Socket*
*Optional Hardwire Power

8

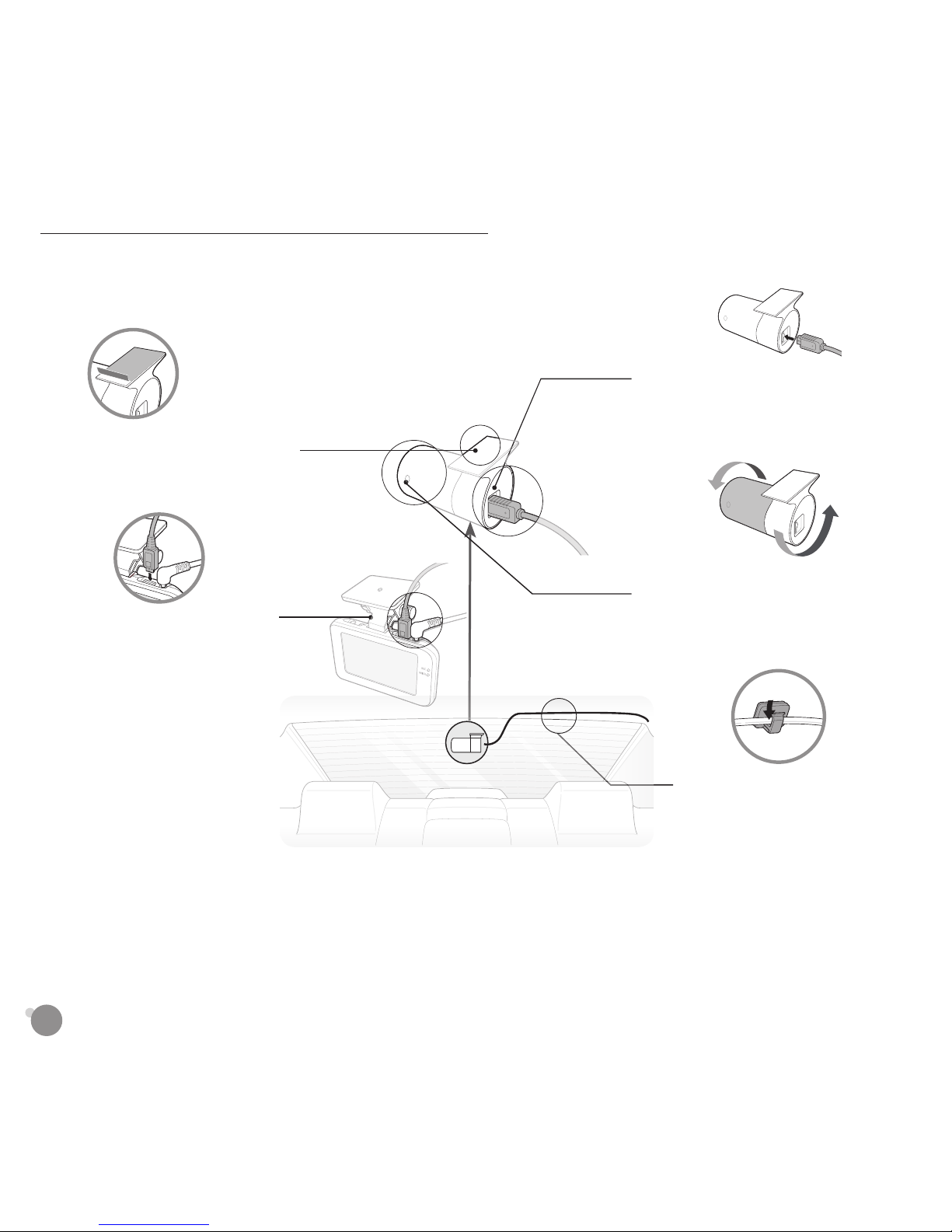

Rearview Camera Installation (Rear Window)
1. Mount The Camera to the Rear
Window Using the Tape Provided
3. Plug the Other End of the
Connection Cable to the HD
Dash Cam
2. Plug in the Connection Cable
5. Use the clips to manage
the cables
4. Adjust Camera Angle to get the
Best View

9

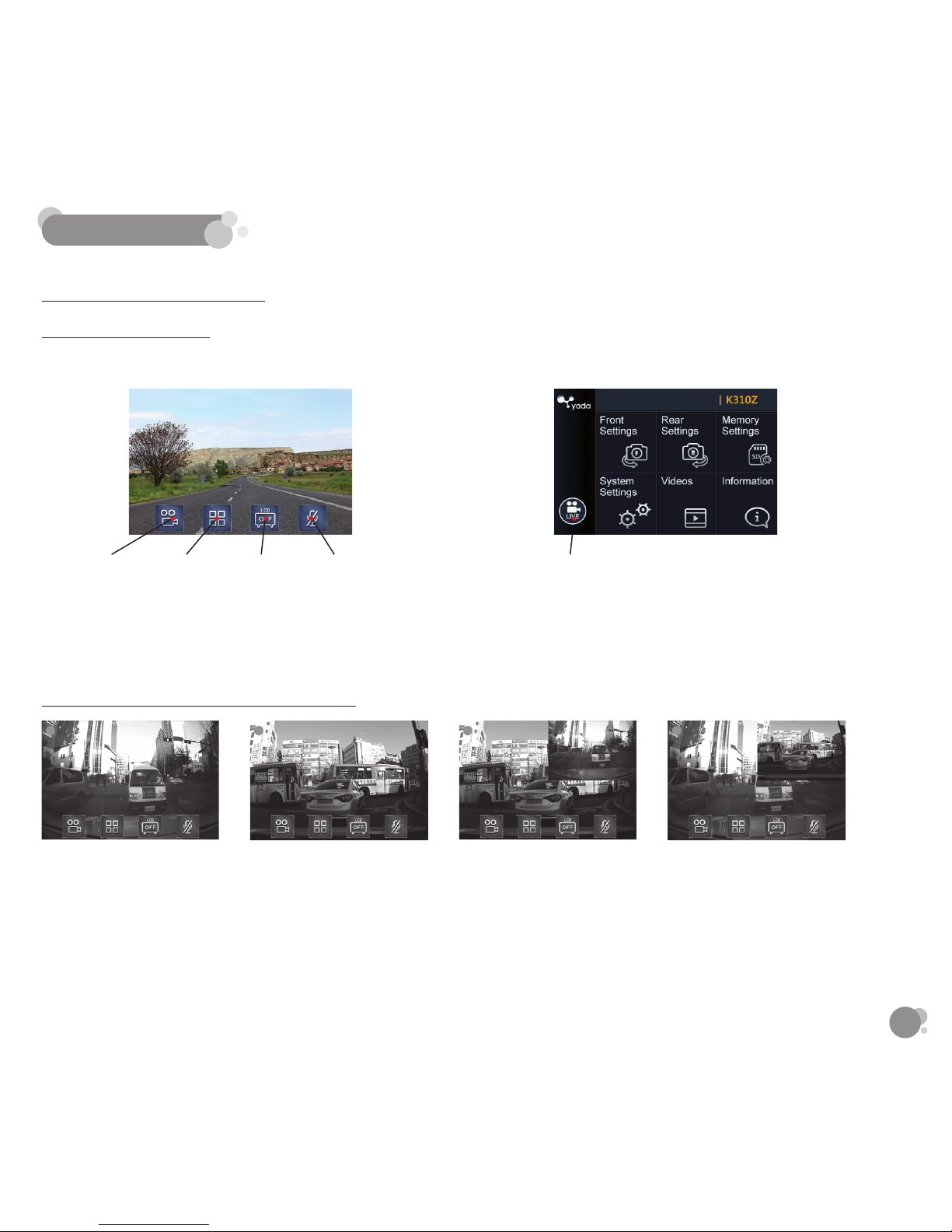

USING THE DASH CAM
Screen Conguration
Switching to Live Screen (Driving Mode)
Live Screen
Rear View Screen Front View Screen Front PIP Screen Rear PIP Screen
Menu Screen
Manual
Recording
• Upon booting, you can select from Rear View / Front View / Front PIP / Rear PIP
• In Driving Mode, you can select from Live Screen / LCD xOFF(after 1 min/after 3 min) / screens .
• If you touch an area other than the bottom-side menu buttons, the screen will convert in order of
Rear View Screen >Front View Screen>Front PIP Screen >Rear PIP Screen.
Menu
Screen LCD OFF MIC ON/OFF MIC ON/OFF
6. SETTINGS

10
Recording While Driving
Drive Recording
Event Recording
Manual Recording
Once booting is complete, the system will convert to Drive
Recording mode. Recorded les are saved in the Drive
folder within the memory card.
If an event is detected during Normal Recording mode,
switches to Event Recording mode. A total of 30 seconds
from 15 seconds before to after the event is saved in the
event folder.
Pressing the Manual Recording button will convert the
mode to Manual Recording mode and the REC LED will
blink. A total of 60 seconds, 15 seconds before and 45
seconds after pressing the button, will be recorded.
Recorded les are saved within the camcorder folder within
the memory card.
NOTE: Event Sensitivity can be set in [Menu > System Settings > Sensitivity]. (Refer to page 17)

11
Recording While Parked
Parking Surveillance
Mode:
Event Recording
Manual Recording
When the ignition is turned o (ACC power is blocked), the
system will convert to Parking Surveillance mode after 15
seconds. When the ignition is turned back on (ACC power is
connected), the system will convert to Normal Recording mode.
When an event is detected during Parking Surveillance
mode, recording will start. (15 seconds before / 15 seconds
after, total 30 seconds) Recorded les are saved within the
event folder within the memory card.
When movement is detected within the product line of
site during Parking Surveillance mode, recording will start.
(15 seconds before / 15 seconds after, total 30 seconds)
Recorded les are saved within the motion folder within
the memory card..
NOTE:
• Constant power must be used during parking recording. Please seek assistance from your installation specialist.
• Only event and motion detection videos are recorded when parked.
• Do not cut the constant power cable. Cutting or damaging the cable may result in product malfunction.

12

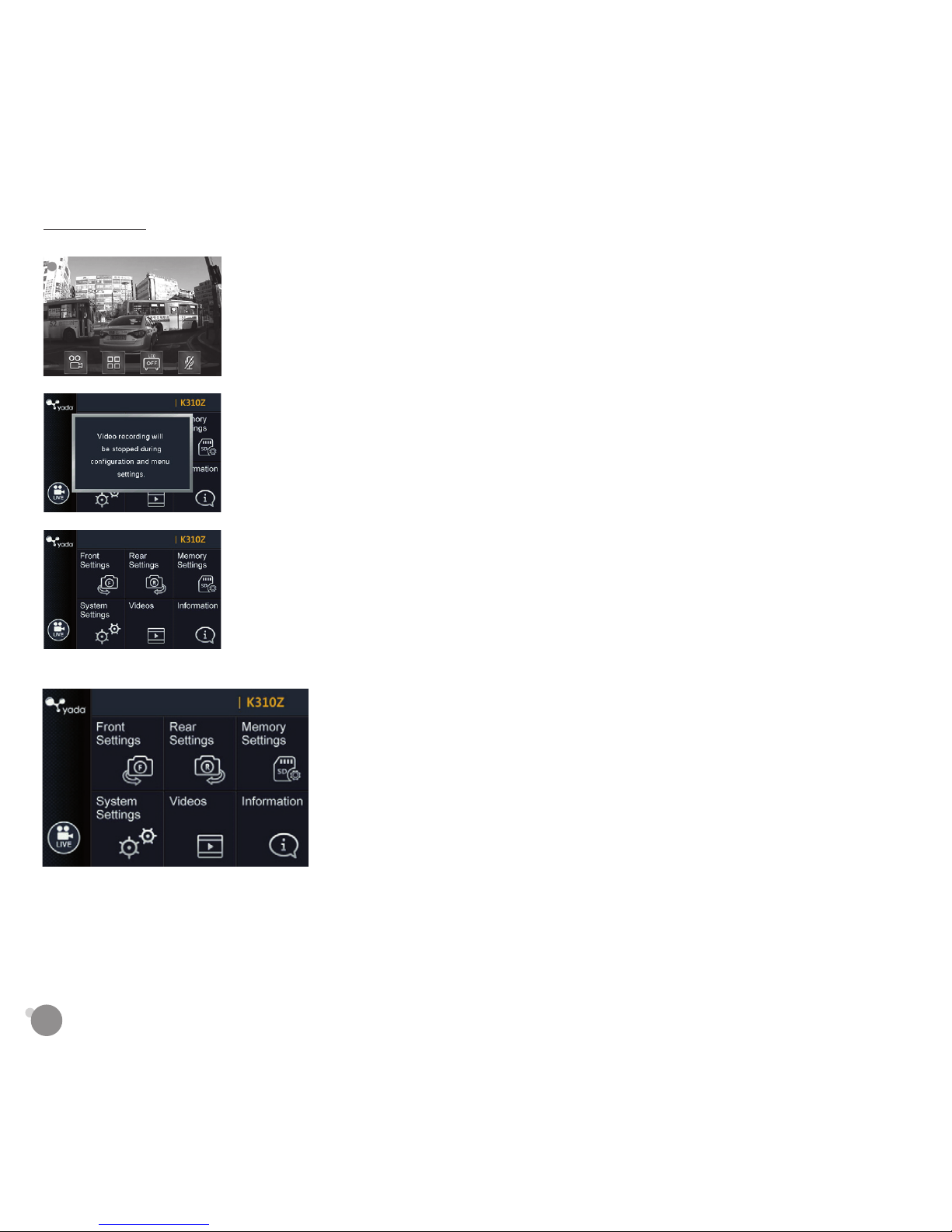

Menu Screen
• Touch the Menu button to display the Menu screen.
• Moving to the Menu screen during Drive Recording will discontinue the recording.
• Operating menus while driving is dangerous Please operate the product only
after you have parked the vehicle.
• In the Menu screen, you can check , set, and change settings
Front View Settings: Changes front view camera settings.
Rear View Settings: Changes rear view camera settings.
Memory Management: Used to change memory settings or format.

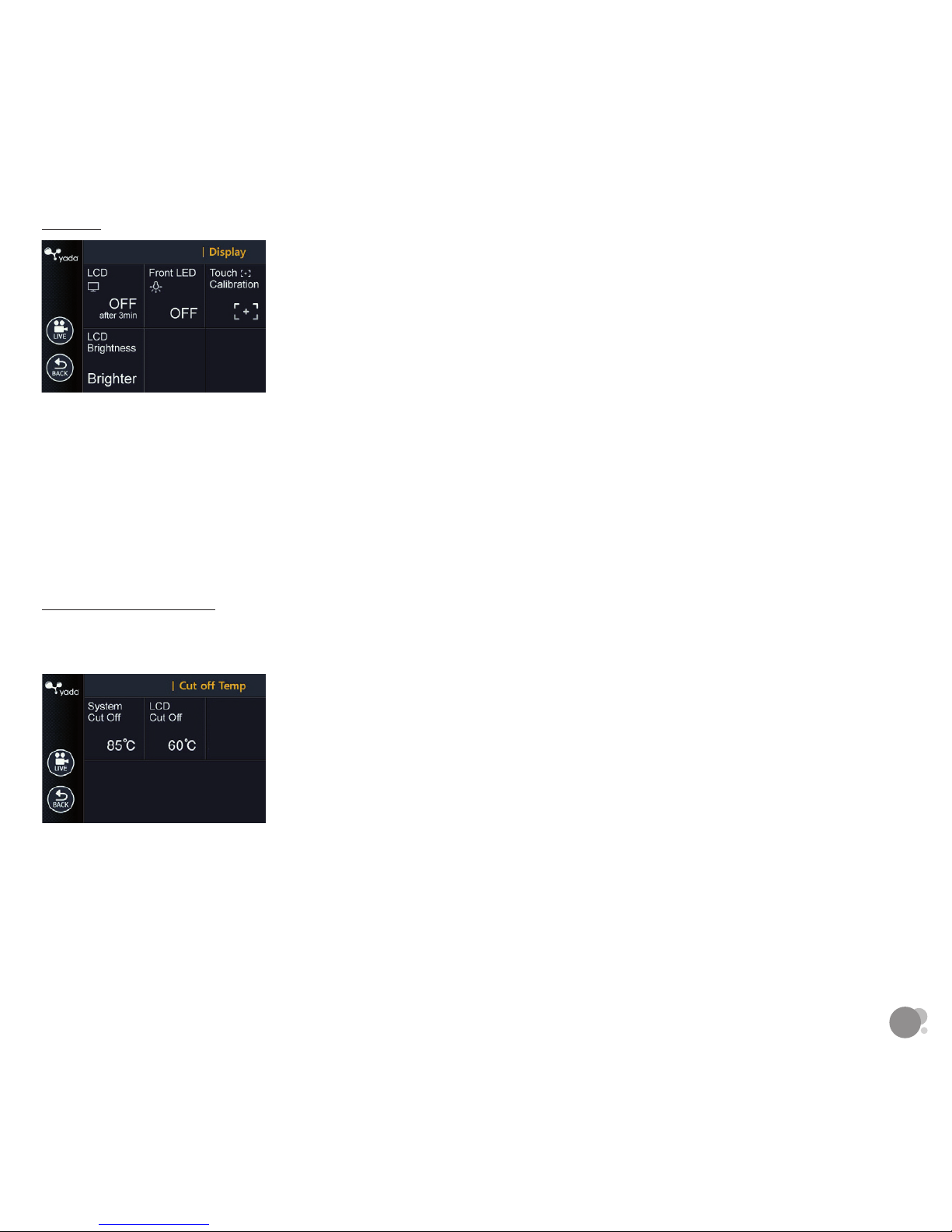

System Settings: The speaker,Parking Mode settings,display, sensitivity
settings,temperature settings values can be set.

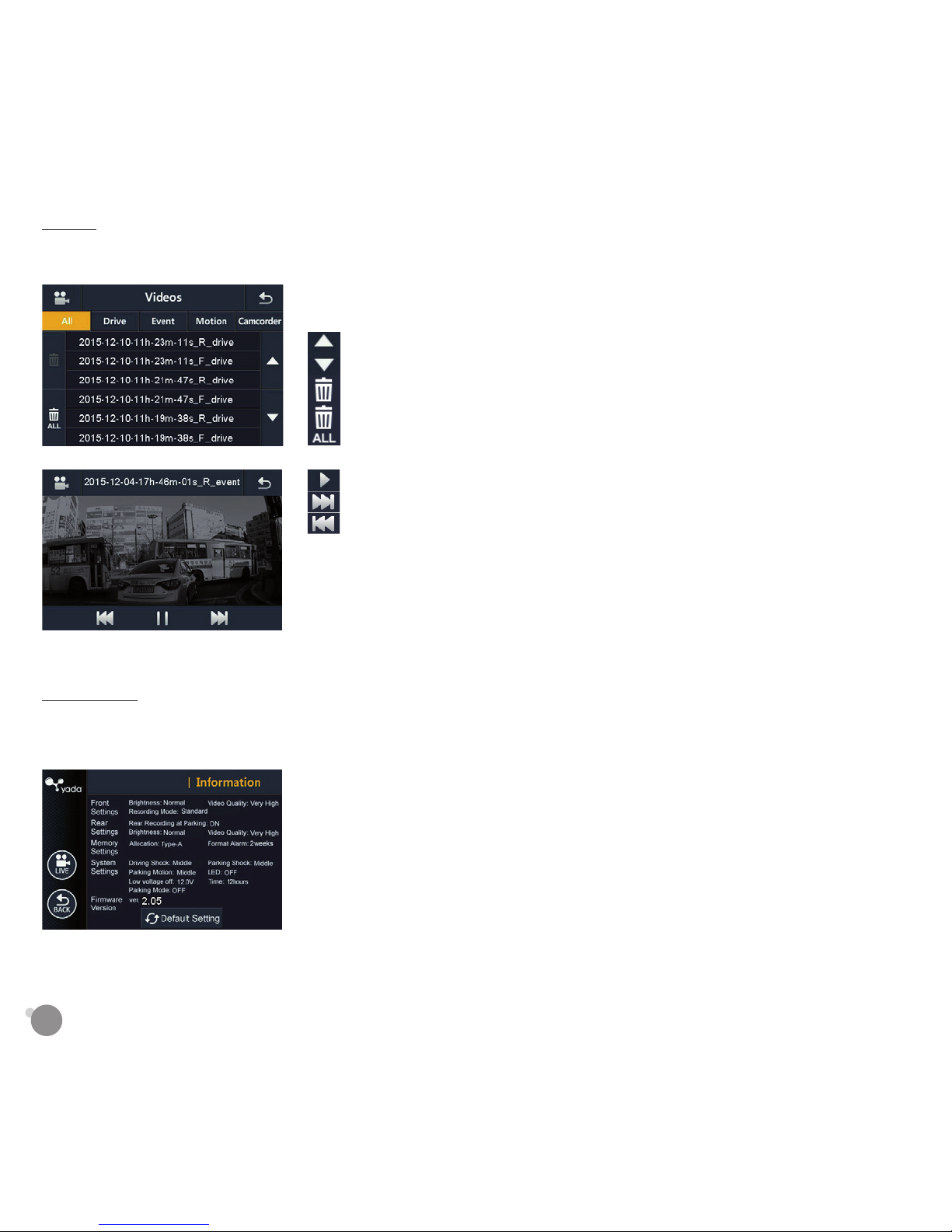

Videos: Used to play and check recorded videos.
Information: Setting Information Used to check current Settings.

13
Resolution: Used to check the resolution.
Video Brightness: Adjusts the video brightness.
Video Quality: Changes the video quality.
Recording Mode: Change the recording mode setting.
Resolution: Used to check the resolution.
Video Brightness: Adjusts the video brightness.
Video Quality: Changes the video quality.
Rear Recording: Change the Rear Recording at Parking.
Front Settings
Rear Settings
NOTE: The front resolution support only 1920 x 1080p.
NOTE: The rear resolution support only 1280 x 720p.

14
When only micro SDHC card is installed
- Driving videos are saved in the micro SDHC card .
Micro SDHC card format
- Active memory cards can be formatted.
Settings can be changed in [Menu > Memory Settings].
SDHC Card Format - Active memory cards can be formatted.
Memory allocation can be selected by the user according to driving environment.
Saving in micro SDHC card
Memory Management

15
The location of folders that videos are saved to dier by recording mode.
Recording Time
Mode
Normal Recording
Event Recording
Parking Surveillance Recording
-Event Recording
-Motion Detection Recording
Manual Recording
Saved Time
60 seconds
15 seconds before
/ 15 seconds after,
total 30 seconds
15 seconds before
/ 15 seconds after,
total 30 seconds
15 seconds before
/ 45 seconds after,
total 60 seconds
15 seconds before
/ 45 seconds after,
total 60 seconds
No. of Frames
30fps
30fps
30fps
30fps
30fps
Folder Name
DRIVE
EVENT
EVENT
MOTION
CAMCORDER

16
System Settings
Speaker: Used to change the speaker volume.
Parking Mode: Used to change the Parking Mode settings.
Display: Used to change the display settings.
Sensitivity Settings: Sets the driving impact, parked impact,
parking operation sensitivity settings.
Date & Time Settings: Sets the time zone, date & time
Temperature Settings: Used to change the system protection
temperature and LCD protection temperature
Parking Mode
Display
Sensitivity Settings
Date & Time Settings
Temperature settings

17
Display
Temperature Settings
LCD: Sets the LCD o feature.
Front View LED: Sets the front view LED.
Touch Calibration: Used to recalibrate the touch screen when accuracy is low.
LCD Brightness: Used to adjust the LCD brightness.
The system protection temperature and LCD protection temperature can be changed in
[Menu > System Settings > Temperature Settings].
System protection temperature
LCD protection temperature
The system is blocked when the external temperature is higher than the set
temperature.
The LCD screen is blocked when the external temperature is higher than the
set temperature
NOTE: This feature may not operate properly in certain external conditions.

18
Videos
Information
A list of 6 video les is displayed Click the video le to select and doubleclick
the le to play.
Press the button to display the next 6 video les.
Press the button to display the previous 6 video les.
Press the button to delete of selected le.
Press the button to delete all les.
Press the button to play the le.
Press the button to move to the next le.
Press the button to move to the previous le.
• It is possible to restore default settings in [Menu > Information] .
• When restoring default settings, all data are deleted.
Recorded videos can be checked in [Menu >Videos].
Current settings can be checked in [ [Menu > Information]
