Yada BT58186 User manual

User Manual
Important, retain for future reference:
Read carefully
BT58186
1080PROADCAM

TF Card
10
4 GB
2
QUICK INSTALLATION GUIDE

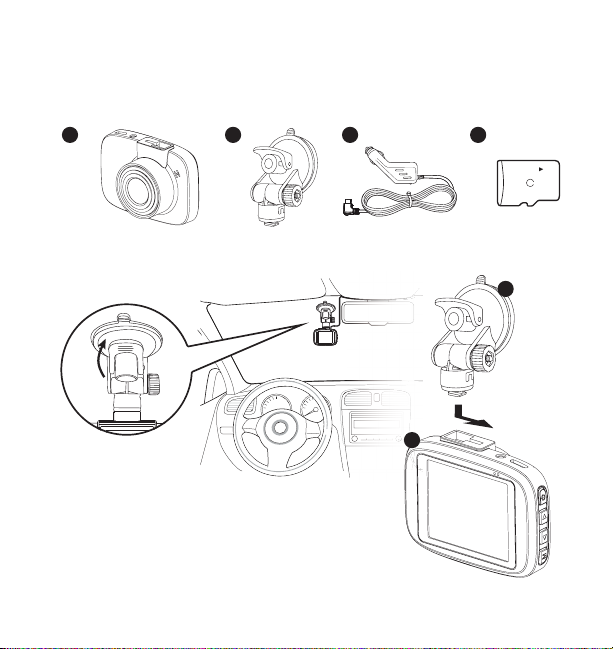

1. Mount the Roadcam
Before you begin... Gather these items.
1
1
2
2
3 4
Mount the Roadcam
on the windshield.

3
3. Connect to Power
2. Insert the MicroSD Card
3
4

4
Please read all of the installation instructions carefully before installing
the product. Improper installation will void manufacturer’s warranty. The
installation instructions do not apply to all types of vehicles, and are
written as guidelines to assist in installing the system.
Consult an experienced technician if you are not comfortable installing
the product. You can also contact YADA at 1.866.294.9244 to speak
to one of our installation specialists if you have any specific questions
regarding the 1080P Roadcam.
BEFORE using the 1080P Roadcam, please read the safety
information provided in this user manual. ALWAYS use the
product as outlined in this user manual.
Please make sure to read and understand all local laws and regulations
regarding cameras and their use in a vehicle. Laws vary by state.
INTRODUCTION

5
TF Card
10
4 GB

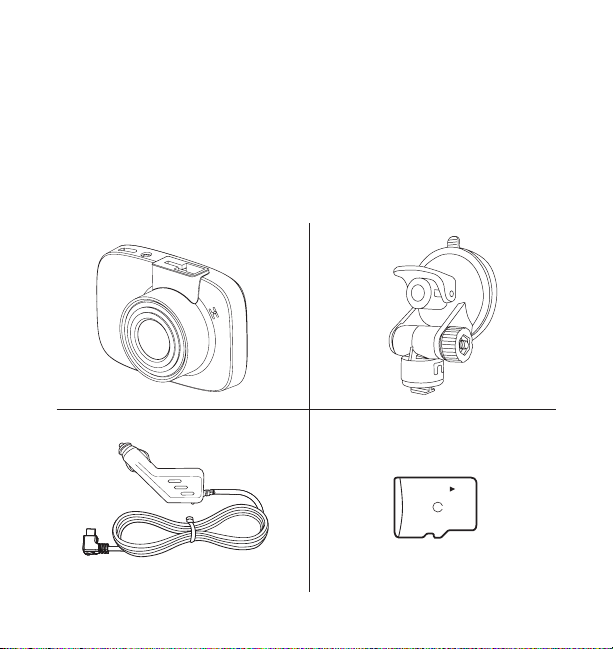

PACKAGE CONTENTS
21
3 4
1. 1 x 1080P Roadcam
2. 1 x Windshield Mount
3. 1 x 12V/24V Power Adapter
4. 1 x 4GB MicroSD Card

6
PRODUCT SPECIFICATIONS
Display: 2.2 inch display
Lens:
120 degrees diagonal
Video Resolution: 1080P / 30 FPS
Circular Video: Seamless loop recording
Memory Card: MicroSD (maximum support 32GB)
Microphone: Supported
Built-in Audio: Supported
Operating Temperature: 14°F~140°F (-10°C~60°C)
Operating Voltage: Cigarette Charger - DC 12/24V / DC 5V (Micro USB)
Battery: Built-in 180 mAh li-ion battery

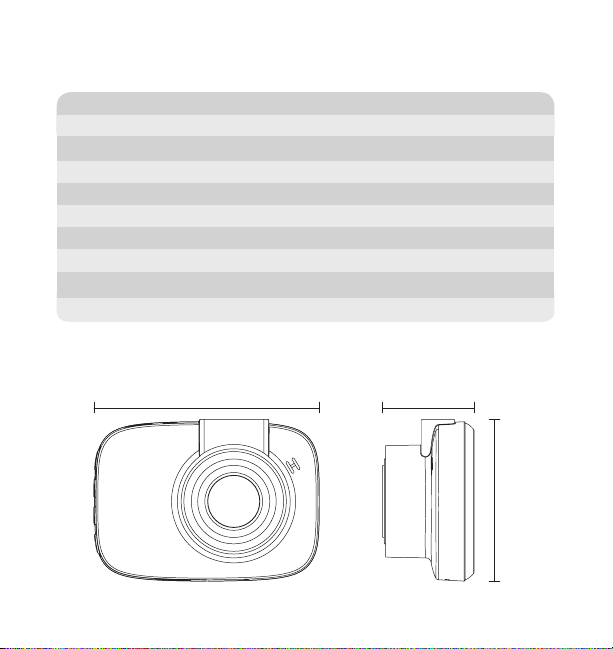

CAMERA DIMENSIONS
2.9” / 73mm 1.18” / 30mm
2.09” /
53mm

7
PRODUCT OVERVIEW
1. LCD Screen
2. Power / OK / Record Button
3. Up Navigation Button
4. Down Navigation Button
5. Menu / Back Button
6. Camera Lens
7. Micro USB Power Port
8. Rear View Camera Jack
(Rear View Camera not Included)
* Sold Separately
9. Mounting Socket
10. Speaker
11. MicroSD Card Slot
12. Power Reset Hole
8*
10
11 12
7
9
1
2
3
4
5
6

8
1. 2.
3.

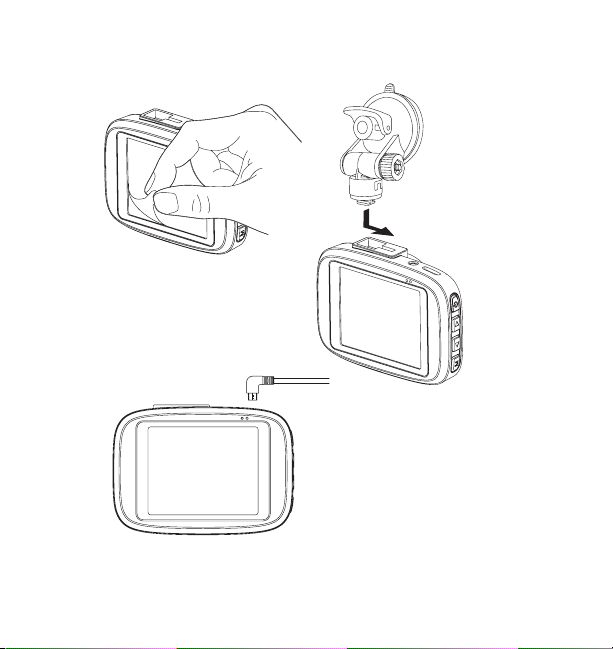

INSTALLATION
Insert the
windshield
mount to the
socket on the top
of the Roadcam.
Plug the Micro USB
power cable into the
DC input port.
Note: Power on and test camera before mounting.
Peel off the protective
sticker from the LCD
screen and insert the
MicroSD card.

9
4.
5.

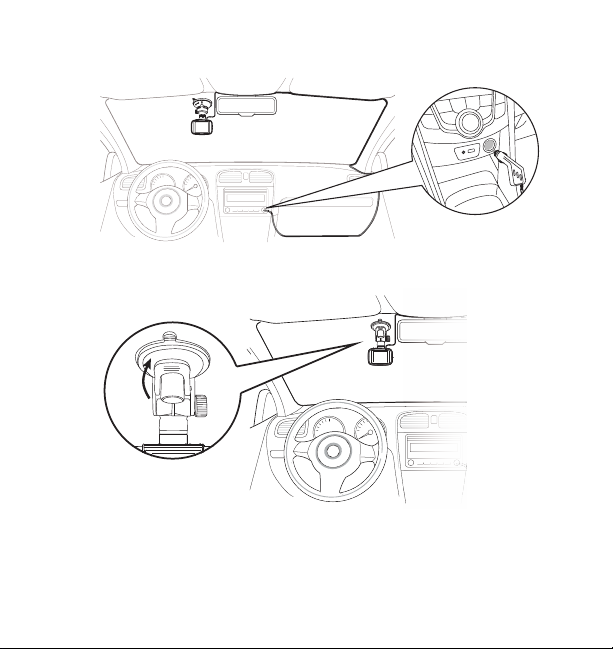

Route and hide the power cable in the headliner and pillars in your vehicle.
Plug the cigarette charger cable into your vehicle’s 12/24V DC outlet.
INSTALLATION
Mount the Roadcam on the windshield. You can turn on the Roadcam and
check the live screen to determine the most suitable mounting position.
Push the locking lever while pressing the windshield mount onto the glass
to secure the camera on the windshield. You are all set!

10
Initial Setup
Set the date & time before installing and using the Roadcam. This date & time is the time stamp
for all recorded media files and digital clock.
Switching Modes
Press and hold the button to cycle through the following modes: video mode > camera mode
> playback mode. The Roadcam cannot switch between modes while it is recording. Press the
button to stop recording and press and hold the button to switch between modes.
Video Mode
• This is the default recording setting. The Roadcam will start recording
automatically once it is turned on.
•
Files are looped or recorded over by the default of 1 minute.
The MicroSD card will hold 1 minute segments and record over them as space is needed.
• Stop loop video: press the button once to pause or resume recording.
• Lock video: press the button during recording to lock that recorded file.
• Press the button during recording to turn the microphone on or off.
G-Sensor Setting: The Roadcam’s integrated G-Sensor will automatically save and lock the
recorded file if activated by an impact event or accident. Select to turn the G-Sensor on or off.
The default setting is low.
Camera Mode
• Press the
button each time you want to take a picture.
Playback Mode
• Press the and button to cycle through all the media files.
• Press the
button to play video files and press it again to pause.
• Press the button to delete the file, press to confirm.
CONFIGURATION & MENU SETTINGS

11
General Settings Page
Recording must be paused manually to access the general settings page. Next, press the Mbutton
on video mode or camera mode to open the general settings page. Press the and button to
cycle through all the settings.
Video Resolution FHD 1920 x 1080, HD 1280 x 720 or VGA 640 x 480.
Photo Resolution 12M, 10M, 8M, 5M, 3M, 2M or 1M.
Loop Record 5minutes,3minutes, 2 minutes or 1 minute.
Motion Detection ON or OFF.
White Balance Auto, Daylight, Cloudy, Tungsten or Fluorescent.
Sharpness High, Normal or Soft.
Exposure +2, +1.7, +1.3, +1.0, +0.7, +0.3, +0, -0.3, -0.7, -1.0, -1.3, -1.7 or -2.0.
Screen Save 10 minutes, 5 minutes, 3 minutes or OFF.
(Screen will dim to a digital clock interface after the specified time you select. )
Record Audio ON or OFF.
Parking Monitor ON or OFF.
G-Sensor High, Medium, Low or OFF.
Date/Time Set the date and time.
Language Supports English only.
Date Stamp ON or OFF.
Frequency 50Hz or 60Hz.
Format Select to erase all data in the MicroSD card.
Default Setting Reset settings to their defaults.
Version Firmware version.

12
ADDITIONAL FEATURES
Automatic ON / OFF
When the Roadcam is connected to the vehicle’s power, it will power on
and start recording when the vehicle engine starts. When the engine is
off, the Roadcam will stop recording and turn off automatically.
Gravity Induction Recording Protection System
In a vehicle collision, the Roadcam will lock the video of the accident and
save it as a special image. At the same time, the icon of the lock will be
displayed in the middle of the display screen. The locked image will not
be overwritten by looped recordings.
Note: The G-Sensor supports sensitivity adjustment and it can be done
in the general settings page according to actual needs.
Park & Record Mode
The Park & Record mode allows the Roadcam to record videos when
an impact is detected while the vehicle’s engine is off. The Roadcam
will turn on automatically and record a 20 second video clip and then
shutdown; when it detects another impact, it will record another 20
second video clip until memory card capacity is reached.
Note: The Roadcam will switch to Park & Record mode when the
vehicle’s engine is turned off. Alternatively, press the power button for
more than 3 seconds.

13
Battery Indications:
Please refer to the diagram below for the battery indication.
Fully charged
Battery low
Battery is empty
Charging
Note: The Roadcam is designed to be powered on while the vehicle is
running. The built-in battery is only designed for storing documents when
the vehicle’s engine is off. The battery capacity of the built-in battery is
limited. Please connect the Roadcam to the vehicle’s on-board power
supply for daily use.
Camera Reset: If the camera is involved in an accident and requires
reset, simply hold the power button for 5 secs to power off, and then
press the power button to turn on the Roadcam.

14
1) Problem: The Roadcam is unable to take pictures and record videos.
Solution: Check if the MicroSD card has enough space and lock it.
2) Problem: The Roadcam stopsautomatically when it is recording a
video.
Solution: Because HD video data takes a lot of space, please use a
high-speed MicroSD card compatible with SDHC, high-speed
MicroSD cards will have a C10 logo.
3) Problem: During the playback of pictures and videos, a “file error”
message prompts.
Solution: When a MicroSD card storage error or incomplete file
occurred, please use the camera’s “format” function to
reformat the MicroSD card.
4) Problem: The image looks foggy.
Solution: Please check whether there is dirt or fingerprintson the lens.
Clean the lens using lens cleaner or lens wiper before using.
5) Problem: The image looks too dark.
Solution: If the Roadcam captures an image that is too dark, adjust the
exposure level to your desired brightness.
Help / FAQs

15
IMPORTANT SAFETY INSTRUCTIONS
1. SAVE THESE INSTRUCTIONS – This manual contains important
safety and operating instructions of the 12V/24V cigarette lighter
adapter for Model BT58186.
2. Before using the product, read all instructions and cautionary markings.
3. Do not expose cigarette lighter adapter to rain, moisture, or snow.
4. Use of an attachment not recommended or sold by the product
manufacturer may result in a risk of fire, electric shock, or injury to
persons.
5. To reduce risk of damage to cigarette lighter connector and cord,
pull by cigarette lighter connector rather than cord when disconnecting
cigarette lighter adapter.
6. Make sure cord is carefully secured so that it will not be stepped on,
tripped over, or otherwise subjected to damage or stress.
7. Do not operate cigarette lighter adapter with damaged cord or
cigarette lighter connector – replace it immediately.
8. Do not operate cigarette lighter adapter if it has received a sharp
blow, been dropped, or otherwise damaged in any way; take it to a
qualified serviceperson.
9. Do not disassemble cigarette lighter adapter; take it to a qualified
serviceperson when service or repair is required. Incorrect reassembly
may result in a risk of electric shock or fire.
10. To reduce risk of electric shock, unplug cigarette lighter adapter
before attempting any maintenance or cleaning. Turning off controls
will not reduce this risk.
SAFETY INFORMATION

16
WARNING: A failure to read and follow these warnings and instructions
may result in a serious accident, including damaged property or a serious
injury, including loss of life.
• The 1080P Roadcam is designed as an aid to the driver in detecting
large stationary objects to help avoid damaging the vehicle. However, you,
the driver, must use it safely and properly. Use of the 1080P Roadcam is
not a substitute for safe, proper and legal driving.
• Never depend on the 1080P Roadcam entirely when driving. The image
on the screen is different from actual conditions. Objects viewed on the
Roadcam Monitor differ from actual distance because a wide-angle lens
is used.
• Always check behind and all around the vehicle visually with mirrors
before proceeding.
• The area displayed by the 1080P Roadcam is limited. The 1080P
Roadcam does not display objects that are out of the camera’s field of
view. The area displayed on the screen may vary according to vehicle
orientation or road conditions.
• Be sure to check the camera’s position and mounting angle before each use.
• Do not strike the 1080P Roadcam. It is a precision instrument.
Otherwise, it may malfunction or cause damage resulting in a fire or an
electric shock.
• This product will only provide images of items that are within the field
of view of the 1080P Roadcam. Thus, it is imperative that the 1080P
Roadcam should be kept clean and unobstructed.
• Adhere to all applicable traffic laws and motor vehicle regulations
applicable to the device.
• Consult local laws and regulations for any restrictions on installation or use.
• Never allow children to play with the device. Small parts may be a
choking hazard.

17
Safety Around and Behind Other Vehicles
Using a 1080P Roadcam is not enough to completely overcome a vehicle’s
blind spot. Many preventable injuries and deaths occur in driveways or
parking lots when drivers do not see children, pets, or others near their
vehicles. Here are a few safety tips that will help you to avoid an accident:
• Walk completely around your vehicle before getting in. Check for kids,
toys, and pets before entering the vehicle and starting the engine.
• Know where children are. Have children stand in a place where they are
in full view.
• Be aware of young children. Young children are small and hard to see.
• Parents, caregivers and all adults need to be vigilant in supervising
children, especially when children are in the yard, driveway or parking lot
playing near parked cars.
• There is a plastic cover over the 1080P Roadcam. Do not scratch the
cover when cleaning dirt or snow from it.
• If the temperature changes rapidly, the system may not operate normally.
• When strong light directly enters a camera, objects may not be displayed
clearly.
• The screen may flicker under fluorescent light.
• The colors of objects on the 1080P Roadcam may differ from those of the
actual object.
• Do not use alcohol or thinner to clean the camera. This will cause
discoloration. To clean the camera, wipe with a clean cloth dampened with
mild cleaner diluted with water and then wipe with a dry cloth.

18
MAINTENANCE & WARRANTY
Cleaning
• If dirt, rain or snow attaches to the camera, the Monitor may not clearly
display objects. If water droplets, snow or mud adhere to the camera
lens, rinse with water and wipe with a dry cloth.
• Do not use alcohol or thinner to clean the camera. This will cause
discoloration. To clean the camera, wipe with a clean cloth dampened
with mild cleaner diluted with water and then wipe with a dry cloth.
Warranty
YADA LIMITED WARRANTY
YADA warrants, to the original purchaser, that its products are free from
defects in material and workmanship for 1 year from the date of original
purchase. Where permitted by law, YADA’s liability shall be limited to that set
forth in this limited express warranty. This limited express warranty shall be
the exclusive remedy of the purchaser and YADA makes no other warranty
of any kind aside from the limited express warranty stated above.
Note: Warranty only applies for North American customers of purchases
made in North America.
• Roll down your window so you will be able to hear what is happening
outside your vehicle.
• Owners of SUVs, trucks, and vans need to take extra care to avoid hitting
or running over a child.
• Teach children to move away from a vehicle whenever it is started.

19
CONDITIONS OF WARRANTY
If during the 1 year warranty period your new product is found to be
defective, YADA will repair such defect, or replace the product, without
charge for parts or labor subject to the following conditions:
1. All repairs must be performed by YADA.
2. All warranty claims must be accompanied by a copy of the sales
receipt or bill of sale.
3. The equipment must not have been altered or damaged through
negligence, accident, improper operation, or failure to follow the
product instructions for installation, use, or care.
4. The replacement of parts is excluded from the warranty when
replacement is necessary due to normal wear and tear.
5. Repair or replacement parts supplied by YADA under this warranty are
protected only for the unexpired portion of the original warranty.
6. This is a “repair or replace” warranty only, and does not cover the costs
incurred for the installation, removal or reinstallation of the product, or
damage to any mobile phone device or vehicle.
OWNER’S RESPONSIBILITIES:
YADA will make every effort to provide warranty service within a reasonable
period of time. SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE
RECEIVED OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING SERVICE,
PLEASE CALL TOLL FREE 1.866.294.9244 DURING REGULAR BUSINESS
HOURS MONDAY THROUGH FRIDAY 8:00 AM TO 5:00PM.
Note: Toll Free # is for North America Customers ONLY. See Customer
service section for customer contact numbers for other regions/offices.
For customer service and technical support, please call us at
1.866.294.9244. If at that time it is determined that a replacement unit is

20
needed, the support representative will issue a Return Authorization and
instruct on how to get a new unit.
YADA makes no other warranty of any kind aside from the limited express
warranty stated herein.
DISCLAIMER OF WARRANTIES, INCLUDING WARRANTY OF
MERCHANTABILITY AND WARRANTY OF FITNESS FOR PARTICULAR
PURPOSE: EXCEPT AS SPECIFICALLY SET FORTH HEREIN, NO
WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIES, IS MADE
AS TO THE 1080P ROADCAM. EXCEPT AS EXPRESSLY SET FORTH
HEREIN, YADA AND/OR ITS AFFILIATES EXPRESSLY DISCLAIMS,
WITHOUT LIMITATION, ANY STATUTORY WARRANTIES AND ALL
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
YADA and/or its affiliates do not guarantee or promise that the user of
1080P Roadcam will not be in an accident or otherwise not collide with an
object and/or person. Our 1080P Roadcam is not intended in any way to be
a substitute for careful and cautious driving or for the consistent adherence
to all applicable traffic laws and motor vehicle safety regulations.
The 1080P Roadcam is not intended to be a substitute for rearview mirrors
or for any other motor vehicle equipment mandated by law. Even when
properly installed, our 1080P Roadcam has a limited field of vision and does
not provide a comprehensive view of the rear area of the vehicle.
YADA and/or its affiliates are not responsible for a user’s intended or actual
use of the 1080P Roadcam. In no event shall YADA and/or its affiliates
have any liability for any losses (whether direct or indirect, in contract, tort or
otherwise) incurred in connection with the 1080P Roadcam, including but
