Yada BT58190 User manual

DUAL-1080PROADCAM
User Manual
Important, retain for future reference:
Read carefully
BT58190

2
QUICK INSTALLATION GUIDE
1. Mount the Roadcam
Before you begin... Gather these items.
1
1
2
2
3 4
Mount the Roadcam
on the windshield.

3
3
4
3. Connect to Power
2. Insert the MicroSD Card

4
Please read all of the installation instructions carefully before installing
the product. Improper installation will void manufacturer’s warranty. The
installation instructions do not apply to all types of vehicles, and are
written as guidelines to assist in installing the system.
Consult an experienced technician if you are not comfortable installing
the product. You can also contact YADA at 1.866.294.9244 to speak
to one of our installation specialists if you have any specific questions
regarding the Dual-1080P Roadcam.
BEFORE using the Dual-1080P Roadcam, please read the safety
information provided in this user manual. ALWAYS use the
product as outlined in this user manual.
Please make sure to read and understand all local laws and regulations
regarding cameras and their use in a vehicle. Laws vary by state.
INTRODUCTION

5

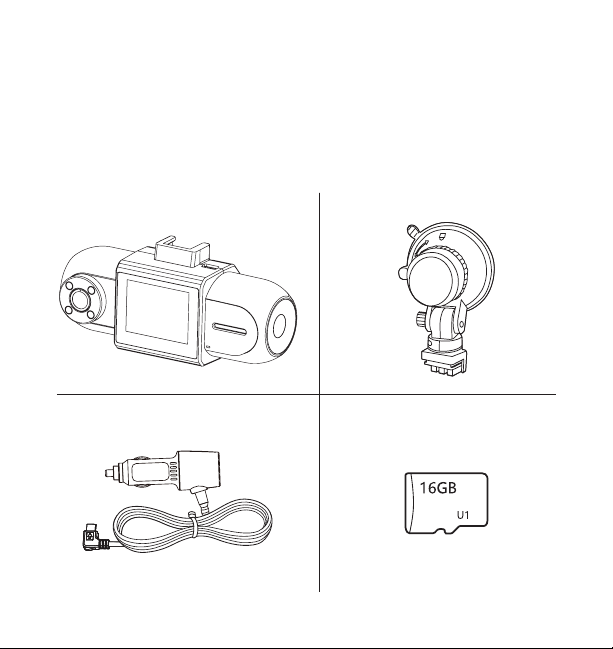

PACKAGE CONTENTS
1. 1 x Dual-1080P Roadcam
2. 1 x Windshield Mount
3. 1 x 12V/24V Power Adapter
4. 1 x 16GB MicroSD Card
1 2
3 4

6
PRODUCT SPECIFICATIONS
Display: 1.5 inch display
Front and Rear Lenses:
120 degrees diagonal
Video Resolution: 1080P / 25 FPS
Circular Video: Seamless loop recording
Memory Card: MicroSD (maximum support 32GB)
Microphone: Supported
Built-in Audio: Supported
Operating Temperature: 14°F~140°F (-10°C~60°C)
Operating Voltage: Cigarette Charger - DC 12/24V / DC 5V (Mini-USB)
Battery: Built-in 300 mAh li-ion battery

7
PRODUCT OVERVIEW
Rear Camera Lens LCD Screen
Mount Socket
Speaker
LED Indicator
Speaker
Front Camera Lens
Mini-USB Power Port
Infrared LEDs

8
CAMERA CONTROLS
CAMERA DIMENSIONS
Power / OK Button
Menu / Mode Button
1.46” / 37mm 3.98” / 101mm
1.86” /
47mm
Down Navigation Button
Power Reset Hole
Microphone
MicroSD Card Slot
Up Navigation Button

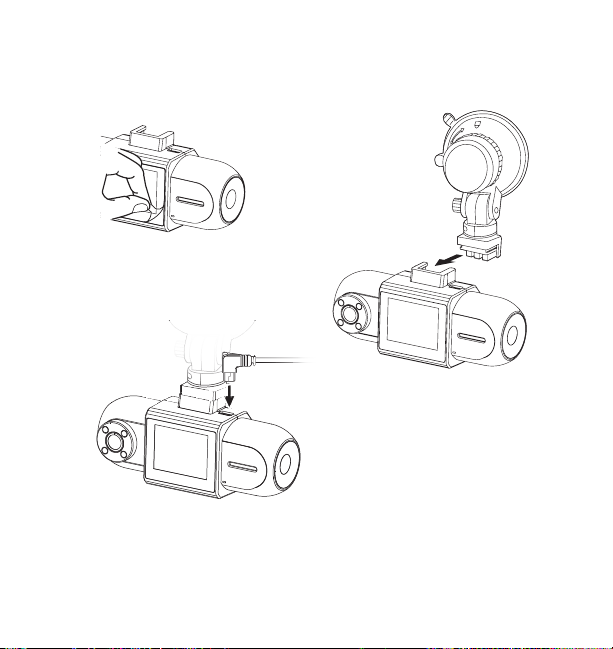

Peel off the
protective sticker
from the LCD screen.
9
1. 2.
3.
INSTALLATION
Insert the
windshield
mount to the
socket on the top
of the Roadcam.
Plug the Mini-USB
power cable into the
DC input port.
Note: Power on and test camera before mounting.

10
4.
5.
INSTALLATION

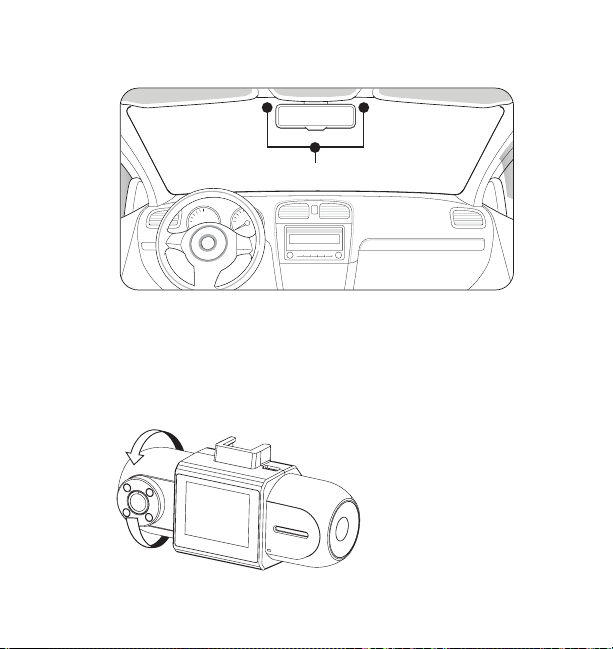

Mount the Roadcam on the windshield. You can turn on
the Roadcam and check the live screen to determine the
most suitable mounting position.
Warning: Do not install the product in a location where it
can obstruct the driver’s field of vision.
Recommended mounting position
Adjust the rear camera
lens angle to get the
best interior view.

11

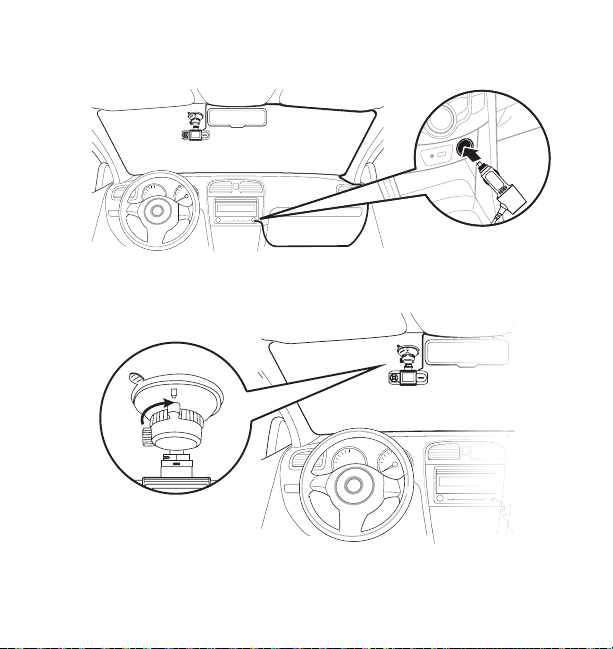

Turn the adjustment knob clockwise while pressing the windshield mount
onto the glass to secure the Roadcam on the windshield. You are all set!
6.
7.
INSTALLATION
Route and hide the power cable in the headliner and pillars in your vehicle.
Plug the cigarette charger cable into your vehicle’s 12/24V DC outlet.

12
Initial Setup
Set the date & time before installing and using the Roadcam. This date
& time is the time stamp for all recorded media files and digital clock.
Switching Display Modes
Press to switch between different display modes: front camera > rear
camera > picture-in-picture. The Roadcam can switch between different
display modes while it is recording.
Video Mode
• This is the default recording setting. The Roadcam will start recording
automatically once it is turned on.
•
Files are looped or recorded over by the default of 1 minute.
The MicroSD card will hold 1 minute segments and record over them as
space is needed.
• Stop loop video: press once to pause or resume recording.
• Lock video: press during recording to lock that recorded file.
G-Sensor Setting The Roadcam’s integrated G-Sensor will
automatically save and lock the recorded file if activated by an impact
event or accident. Select to adjust the G-Sensor sensitivity level, or to turn
it on or off. The default setting is low.
CONFIGURATION & MENU SETTINGS

13
Camera Mode
• Press once during video recording to take one photo from the front
and rear camera.
Playback Mode
• Press and hold to enter the media gallery.
• Press and to cycle through all 8 categories and press to enter
that category:
- Front camera video - Front camera locked video
- Rear camera video - Rear camera locked video
- Front camera parking mode - Front camera photo
- Rear camera parking mode - Rear camera photo
• Press to play video files and press it again to pause.
• Press to select file managing options:
Delete: Select to erase the file.
Protect: Select to protect the file from deletion.
• Press and hold to go back to the main gallery.
General Settings
Recording must be paused manually to access the general settings page. Next,
press to bring up the general settings page.
Loop Record 5 minutes, 3 minutes, 2 minutes or 1 minute.
Resolution 1080P 1920 x 1080 or 720P 1280 x 720.

14
General Settings
Beep Sound ON or OFF.
Record Audio ON or OFF.
Date/Time Set the date and time.
Language Supports English only.
Frequency 50Hz or 60Hz.
Screen Save 5 minutes, 3 minutes, 1 minute or OFF.
(Screen will dim to a digital clock interface after the
specified time you select. )
Night Vision Auto, ON or OFF.
G-Sensor High, Middle, Low or OFF.
Parking Monitor High, Middle, Low or OFF.
Default Setting Reset settings to their defaults.
Format Select to erase all data in the MicroSD card.
Exposure +2, +1.7, +1.3, +1.0, +0.7, +0.3, +0, -0.3, -0.7,
-1.0, -1.3, -1.7 or -2.0.
WDR ON or OFF.
Date Stamp ON or OFF.
Version Firmware version.

15
ADDITIONAL FEATURES
Automatic ON / OFF
When the Roadcam is connected to the vehicle’s power, it will power on
and start recording when the vehicle engine starts. When the engine is
off, the Roadcam will stop recording and turn off automatically.
Gravity Induction Recording Protection System
In a vehicle collision, the Roadcam will lock the video of the accident and
save it as a special image. At the same time, the icon of the lock will be
displayed in the middle of the display screen. The locked image will not
be overwritten by looped recordings.
Note: The G-Sensor supports sensitivity adjustment and it can be done
in the general settings page according to actual needs.
Park & Record Mode
The Park & Record mode allows the Roadcam to record videos when
an impact is detected while the vehicle’s engine is off. The Roadcam
will turn on automatically and record a 15 second video clip and then
shutdown; when it detects another impact, it will record another 15
second video clip until memory card capacity is reached.
Note: The Roadcam will switch to Park & Record mode when the
vehicle’s engine is turned off. Alternatively, press the power button for
more than 3 seconds.

16
Battery Indications:
Please refer to the diagram below for battery indication.
Fully charged
Battery low
Battery is empty
Charging
Note: The Roadcam is designed to be powered on while the vehicle is
running. The built-in battery is only designed for storing documents when
the vehicle’s engine is off. The battery capacity of the built-in battery is
limited. Please connect the Roadcam to the vehicle’s on-board power
supply for daily use.
Camera Reset: If the camera is involved in an accident and requires
reset, simply hold the power button for 5 secs to power off, and then
press the power button to turn on the Roadcam.

17
1) Problem: The Roadcam is unable to take pictures and record videos.
Solution: Check if the MicroSD card has enough space and lock it.
2) Problem: The Roadcam stopsautomatically when it is recording a
video.
Solution: Because HD video data takes a lot of space, please use a
high-speed MicroSD card compatible with SDHC, high-speed
MicroSD cards will have a U1 logo.
3) Problem: During the playback of pictures and videos, a “file error”
message prompts.
Solution: When a MicroSD card storage error or incomplete file
occurred, please use the camera’s “format” function to
reformat the MicroSD card.
4) Problem: The image looks foggy.
Solution: Please check whether there is dirt or fingerprintson the lens.
Clean the lens using lens cleaner or lens wiper before using.
5) Problem: The image looks too dark.
Solution: If the Roadcam captures an image that is too dark, adjust the
exposure level to your desired brightness.
Help / FAQs

18
IMPORTANT SAFETY INSTRUCTIONS
1. SAVE THESE INSTRUCTIONS – This manual contains important
safety and operating instructions of the 12V/24V cigarette lighter
adapter for Model BT58190.
2. Before using the product, read all instructions and cautionary markings.
3. Do not expose cigarette lighter adapter to rain, moisture, or snow.
4. Use of an attachment not recommended or sold by the product
manufacturer may result in a risk of fire, electric shock, or injury to
persons.
5. To reduce risk of damage to cigarette lighter connector and cord,
pull by cigarette lighter connector rather than cord when disconnecting
cigarette lighter adapter.
6. Make sure cord is carefully secured so that it will not be stepped on,
tripped over, or otherwise subjected to damage or stress.
7. Do not operate cigarette lighter adapter with damaged cord or
cigarette lighter connector – replace it immediately.
8. Do not operate cigarette lighter adapter if it has received a sharp
blow, been dropped, or otherwise damaged in any way; take it to a
qualified serviceperson.
9. Do not disassemble cigarette lighter adapter; take it to a qualified
serviceperson when service or repair is required. Incorrect reassembly
may result in a risk of electric shock or fire.
10. To reduce risk of electric shock, unplug cigarette lighter adapter
before attempting any maintenance or cleaning. Turning off controls
will not reduce this risk.
SAFETY INFORMATION

19
WARNING: A failure to read and follow these warnings and instructions
may result in a serious accident, including damaged property or a serious
injury, including loss of life.
• The Dual-1080P Roadcam is designed as an aid to the driver in detecting
large stationary objects to help avoid damaging the vehicle. However,
you, the driver, must use it safely and properly. Use of the Dual-1080P
Roadcam is not a substitute for safe, proper and legal driving.
• Never depend on the Dual-1080P Roadcam entirely when driving. The
image on the screen is different from actual conditions. Objects viewed
on the Roadcam Monitor differ from actual distance because a wide-
angle lens is used.
• Always check behind and all around the vehicle visually with mirrors
before proceeding.
• The area displayed by the Dual-1080P Roadcam is limited. The Dual-
1080P Roadcam does not display objects that are out of the camera’s
field of view. The area displayed on the screen may vary according to
vehicle orientation or road conditions.
• Be sure to check the camera’s position and mounting angle before each use.
• Do not strike the Dual-1080P Roadcam. It is a precision instrument.
Otherwise, it may malfunction or cause damage resulting in a fire or an
electric shock.
• This product will only provide images of items that are within the field of
view of the Dual-1080P Roadcam. Thus, it is imperative that the Dual-
1080P Roadcam should be kept clean and unobstructed.
• Adhere to all applicable traffic laws and motor vehicle regulations
applicable to the device.
• Consult local laws and regulations for any restrictions on installation or use.
• Never allow children to play with the device. Small parts may be a
choking hazard.

20
Safety Around and Behind Other Vehicles
Using a Dual-1080P Roadcam is not enough to completely overcome a
vehicle’s blind spot. Many preventable injuries and deaths occur in driveways
or parking lots when drivers do not see children, pets, or others near their
vehicles. Here are a few safety tips that will help you to avoid an accident:
• Walk completely around your vehicle before getting in. Check for kids,
toys, and pets before entering the vehicle and starting the engine.
• Know where children are. Have children stand in a place where they are
in full view.
• Be aware of young children. Young children are small and hard to see.
• Parents, caregivers and all adults need to be vigilant in supervising
• There is a plastic cover over the Dual-1080P Roadcam. Do not scratch
the cover when cleaning dirt or snow from it.
• If the temperature changes rapidly, the system may not operate normally.
• When strong light directly enters a camera, objects may not be displayed
clearly.
• The screen may flicker under fluorescent light.
• The colors of objects on the Dual-1080P Roadcam may differ from those
of the actual object.
• Do not use alcohol or thinner to clean the camera. This will cause
discoloration. To clean the camera, wipe with a clean cloth dampened with
mild cleaner diluted with water and then wipe with a dry cloth.
