Yaesu FTDX-9000D General instructions

4/05/10
PEP9000
This procedure is used to update Main CPU Ver. 0518 and EDSP Ver. 11.54 flash
programming for FTDX9000 Transceivers that have already been updated to
PEP9000.
IMPORTANT: This procedure is only needed under the below conditions:
•Must have the PEP9000 logo sticker on the radio below the serial number label.
PEP9000 Logo Sticker
•Must have MAIN CUP Version 0505 or higher or EDSP Version 11.24. While holding the three
buttons [GEN]＋[50]＋[ENT] turn the radio on and read the 7 digits on the top line of the LED
display. See page (6) for more detail instructions. If the software version is not immediately
displayed, your radio has not been updated to PEP9000; you must have the radio updated. Please
contact Vertex Standard, Amateur Tech Support.
If your radio meets the above conditions you may proceed to update the Main CPU to V0518
programming and EDSP to V11.54.
We recommend installing the Flash Programming Software on a PC computer with Windows 2000,
XP or Vista Operating System; and use the CT-119 programming cable or 8-pin mini-DIN PGM-SW
(P0091526) and serial cable RS-232C, DB9F to DB9F straight cable.
NOTE: There are many USB adapters available; however some may not function with this software.
We recommend using the latest USB adapter driver software when available.
.
.
The software updates will work with PEP9000 all versions (AF, AS, EU, NA, OC, SA or all Countries) of the
FTDX9000Contest, FTDX9000D and FTDX9000MP
The update software is available from our website at http://www.yaesu.com. The CT-119
programming cable is available from your authorized Vertex Standard dealer. You may also order
by email to Vertex Standard parts department,

The software versions can be displayed on the radio
While holding the three buttons [GEN]＋[50]＋[ENT] turn the radio on. The software version will be
displayed in the VFO-A window for 5 seconds then the radio will start up in normal operation.
See below: Example EDSP V11.54 and MAIN V 0158 software version.
*If you already have EDSP V11.54 and MAIN V0158 software versions, it is not necessary to update the
FTDX9000 again.
Ver. 0518 MAIN implements improvements (also includes all previous updates):
•The CW MEMORY KEYER MESSAGE TEXT save is corrected.
•The FH-2 [<-][->]keys are made to increment the frequency at 100kHz up or down.
•CW carrier is corrected to change LSB ⇔USB when the indication is changed on VFO B.
•Correct the CW Auto Mode.
•DMU Band Scope Display Signal Peak Frequency is centered.
Ver. 11.54 EDSP implements improvements (also includes all previous updates):
•Corrected FM TX for a slight frequency offset.
*When menu settings are saved on the DMU-9000 CF card and transferred to the new version, some previous versions
may not transfer correctly. Please check your menu, update the settings, and then save the new settings to the CF card.
Install the data file to PC
*Before you install this software make sure that you delete all of the old update files AH010 and FWS002
that are saved on your computer. Do not keep any of the old files or folders on your computer. (The old
files are not compatible with the PEP9000 updated radio).
1. Down load the FTDX9000 data file [FTdx9000_PEP9000_4-05-10.zip] from the following
website:
http://www.yaesu.com/indexVS.cfm?cmd=DisplayProducts&ProdCatID=102&encProdID=34B0B268
F77981D7E72CF66FC1930880&DivisionID=65&isArchived=0
2. Save the FTDX9000 data file [FTdx9000_PEP9000_4-05-10.zip] to the desktop on your
computer.
EDSP:
Software version 11.XX
(This image & version is for
illustration only)
Main CPU:
Software version
05XX
(This image & version is
for illustration only)

3. Unzip and Extract the contents of [FTdx9000_PEP9000_4-05-10.zip] to the desktop of your
computer.
4. You will find the PEP9000_EDSP and PEP9000_MAIN folders on your desktop.
The programmer and software are now stored on your computer on the desktop. The files designated
in the last step above are ready to update your FTDX9000 Transceiver.
* The PEP_9000 MAIN folder with the new software writer FWS004 V2.02. We recommend not using the
earlier version software and writer.
* The PEP_9000 EDSP folder includes a new software writer EDSP V2.00; it no longer requires the four
DLL files that were needed by V1.03. We recommend you use the V2.00 writer and remove V1.03 and the
four DLL files from you PC.
MAIN Software Update
This procedure is used for uploading new Software into the FTDX9000 Amateur Transceivers using
the CT-119 program cable. If you have the 8-pin mini-DIN PGM-SW (P0091526) refer to the page 4.
*Don't forget to write down (or save to a CF Card) any personal menu settings you have changed from the
default before you start. Please see the Data Management Operation Manual for the procedure to save your
settings to a CF card.
(1) Turn off the main power switch located on the back of the FTDX9000 (or turn off the power
supply for FTDX9000MP and wait a minute, until the capacitors discharge) and remove the AC
power cord.
(2) Connect the CT-119 cable’s DB-9F connector to the serial port COM1 in the back of your
computer. Plug the mini-DIN connector of the CT-119 into the ACC jack connector on the rear
of the transceiver. Be sure that the arrow indicator on the mini-DIN plug is down. If you use a
USB to serial adapter, you might need to change the COM-Port number.
(3) Connect the AC power cord (in the case of the FTDX9000MP connect the power supply cables).
(4) Turn on the main power switch located on the rear panel of the FTDX9000 (or on the top of the
power supply for the FTDX9000MP). [NOTE: The radio will not show a display now.]

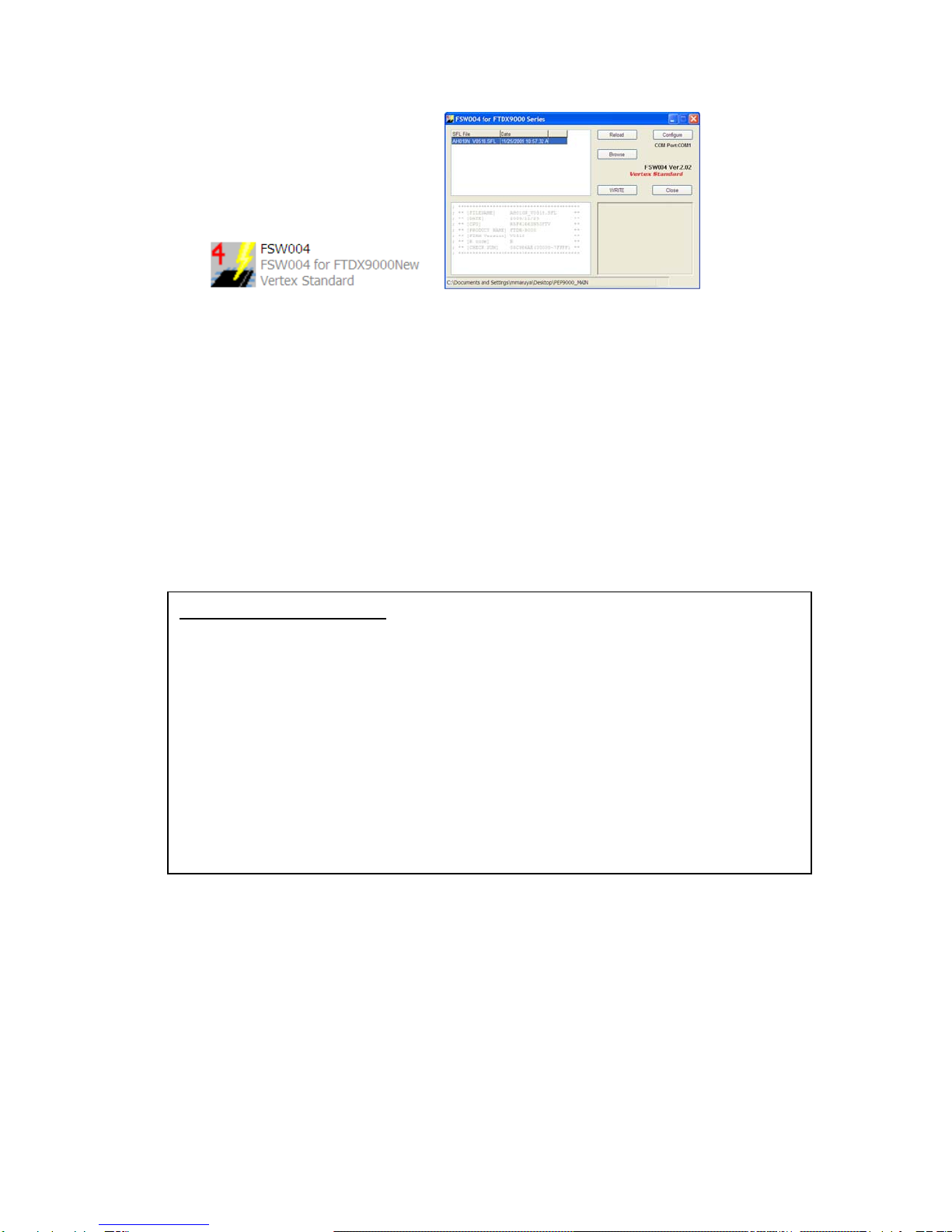

(5) Now go to the desktop and find the FSW004 as shown below. Double-click the FSW004 icon,
displayed on the Program Screen.
ACC
Main Power SW

(6) When the program opens, confirm that the file AH010N_V0518.SFL is highlighted; if not, click
on it to highlight it.
(7) Click on [WRITE] in the program window. A green status bar should appear below the [WRITE]
button to show the progress of the download. Do not interrupt the process until it completes.
(8) When the loading process is complete, an [OK?] box will appear. Click [OK?].
(9) Turn off the main power switch. Located on the rear panel of the FTDX9000 (or on the top of the
power supply for the FTDX9000MP. Remove the CT-119 cable from the DB-9F connector of
your computer and the ACC connector on the rear of the transceiver.
(10) Turn on the main power switch located on the back of the FTDX9000 (or on the top of the power
supply for FTDX9000MP).
(11) Press and hold in the [FAST] and [LOCK] keys while turning the radio back on. This resets the
radio and locks in the new software. Turn the radio off. The updating process is now complete.
Follow the instructions below to update the EDSP.
8-pin mini-DIN PGM-SW
1. Turn the main REAR power switch OFF.
2. Connect a RS-232C straight cable to the CAT connector.
3. Open the file FSW004.
4. Insert the 8-pin mini-DIN PMG-SW connector to FTdx9000 (ACC) jack.
5. Turn on the REAR Main power switch.
6. I choose the .sfl file of the version V0518 to write in and push WRITE of the screen.
7. When complete appears, click OK. Turn the REAR power switch OFF.
8. Remove the 8-pin mini-DIN PMG-SW and the RS-232C cable.
9. Turn on REAR power switch.
10. Reset the radio to default.
NOTE: for a more detailed description see the Main CPU programming.

EDSP Software Update
This procedure is used for uploading new EDSP Software into the FTDX9000 Amateur Transceivers,
from your personal computer, using the RS-232C, DB9F to DB9F straight cable.
1. Turn off the main power switch located on the back of the FTDX9000 (or turn off the power
supply for FTDX9000MP and wait a minute, until the capacitors discharge) and remove the AC
power cord.
2. Connect a serial RS-232C, DB9F to DB9F straight cable to the COM1 connector of your
computer and the 9-pin CAT connector on the rear of the transceiver. If you use a USB to serial
adapter, you might need to change the COM-Port number.
3. Reconnect the power cable and turn ON the main power switch located on the back of the
FTDX9000 (or turn ON the power supply for FTDX9000MP).
4. While holding the [DNR]＋[CONT] for the Dor [NR]＋[CONT] buttons for the Contest and
MP, press the front main power switch to turn the radio on. You will see [dSP Prg]on the radio
display.

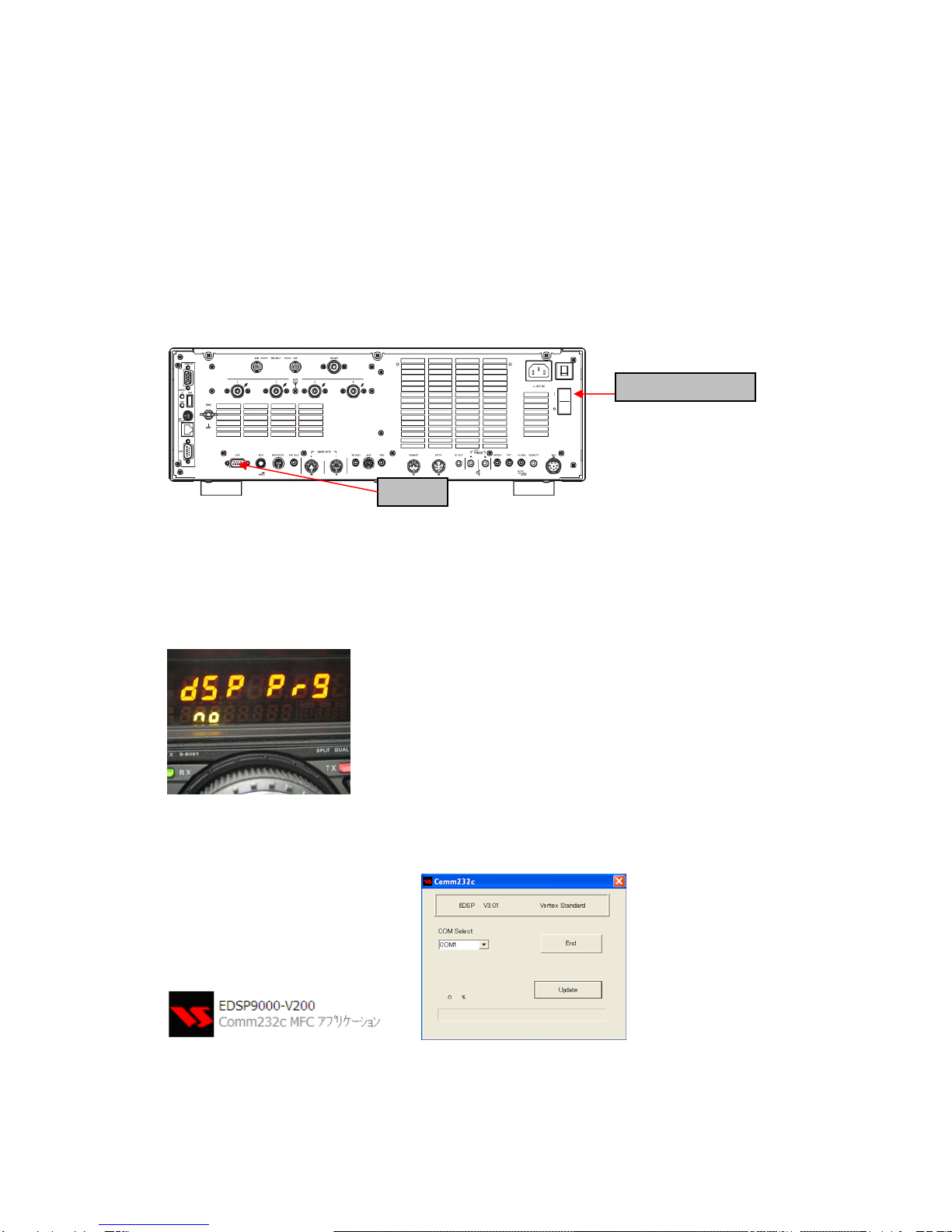

5. On your computer desk top open PEP9000_EDSP folder and find the EDSP-9000 icon as shown
below. Double-click the EDSP-9000 icon, displayed on the Program Screen.

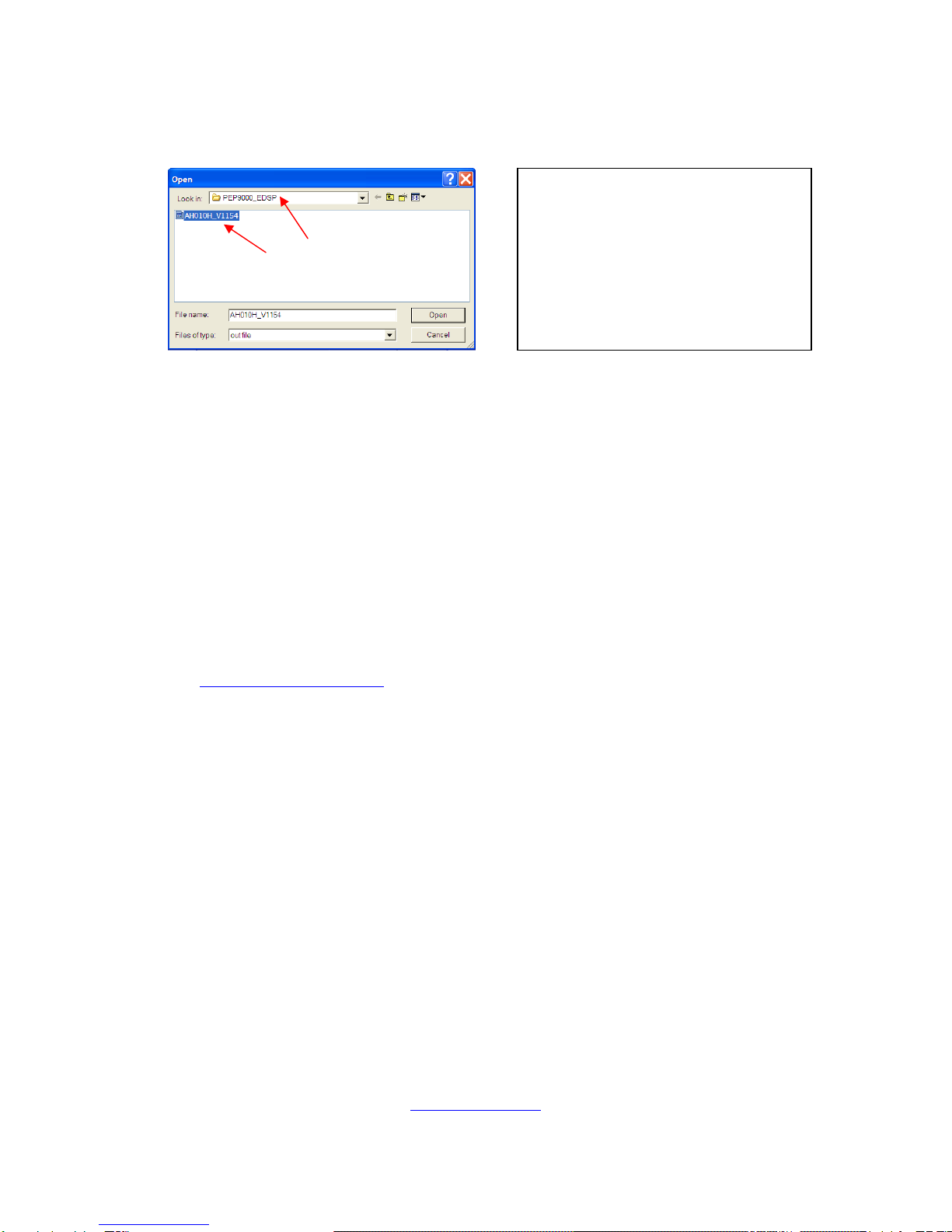

6. Click the Update button. You will see AH010H_V1154 out file displayed. If you do not see
AH010H_V1154 (as in the screen below), then open the “Look in:” window and go to the desktop
and find PEP9000_EDSP. Open the folder and AH010H_V1154 will be displayed in the
CAT
Main Power SW

window. Click AH010H_V1154 out file to highlight it. Then click the Open button and wait until
the program is loaded, and 100% is indicated on the bar graph, [completion!!!] will be displayed.
7. Turn the front Power Switch and the Main Power Switch in the back OFF (or turn off the power
supply for FTDX9000MP and wait a minute, until the capacitors discharge) and remove the AC
power cord. This resets the radio and locks in the new software. Remove the DB9F to DB9F
cable. The updating process is now complete
It is important to reset the FTDX9000. Plug the radio back in. Press and hold in the [FAST] and
[LOCK] keys; while holding them in, turn the radio back on (this resets the radio and locks in
the new software).
NOTE: We recommend trying the new factory default settings rather than transferring your old ones,
because of the changes in the EDSP and the Main CPU, you may wish to make new settings.
We hope this new software will increase your enjoyment of your FTDX9000. Thank you for choosing
Yaesu radios. If you have any problems or questions please contact Vertex Standard, Amateur Tech
Support. [e-mail]
Best regards,
Mikio Maruya, WA6F
Executive Vice President
Engineering & Customer Service
Vertex Standard USA, Inc.
Vertex Standard USA, Inc. | 10900 Walker St. | Cypress, CA 90630 | 714.827-7600 | FAX: [phone]
www.vertexstandard.com
NOTE: If you receive a “communications
error” message on your screen you should
check the COM port number and speed under
Device Manager. The writing speed 38.4kbps
is fixed in the download algorithm of the EDSP
board so you may need to set the port speed
close to 38.4kbps. Click on the COM Select
box arrow and choose a different COM port
from the drop down menu in the EDSP9000
writer.
