Basic Operation
Microphone Gain Setting
The microphone gain has been programmed at the factory to a level that should be
satisfactory for the supplied MH-48A6JA Microphone. If an after-market microphone is
used, you may wish to set a different Mic Gain level.
1. Press and hold in the [MHz(SETUP)] key for
one second to enter the Set mode.
2. Rotate the DIAL knob to select “MIC GAIN
17”.
3. Press the [MHz(SETUP)] key, then rotate
the DIAL knob to select the desired micro-
phone gain level (LEVEL 1 - LEVEL 9).
Default: LEVEL 5
4. Press and hold in the [MHz(SETUP)] key for
one second to save the new setting and exit
to normal operation.
VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz
RF Squelch
A special RF Squelch feature is provided on this radio, which allows setting the squelch so
that only signals exceeding a pre-set S-meter level will open the squelch.
Use the following procedure to set up the RF squelch circuit for operation:
1. Press and hold in the [MHz(SETUP)] key for
one second to enter the Set mode.
2. Rotate the DIAL knob to select “RF SQL 27”.
3. Press the [MHz(SETUP)] key, then rotate
the DIAL knob to select the desired signal
strength level for the squelch threshold (S1 -
S8 or OFF).
Default: OFF
4. Press and hold in the [MHz(SETUP)] key for
one second to save the new setting and exit
to normal operation.
VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz

4FTM-3100R/E Advance Manual
Advanced Operation
Programming the Key Assignments
Default FTM-3100R/E key functions have been assigned to the Microphone [P1]/[P2]/
[P3]/[P4]keys at the factory. The user may change these key function assignments, if
quick access to another function is desired.
Note: The default setting: [P1]- SQL OFF
[P2]- HOME
[P3]- CD SRCH
[P4]- WX CH (T CALL: EXP/European version)
To change the assignments for the programmable keys:
1. Press and hold in the [MHz(SETUP)] key
for one second, then rotate the DIAL knob
to select the Menu Item to configure the
desired microphone button: (“PRG P1 23”,
“PRG P2 24”, “PRG P3 25” or “PRG P4 26”).
2. Press the [MHz(SETUP)] key, then rotate
the DIAL knob to select the function you
wish to assign to the key you selected in the
previous step.
VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz
The available program functions differ slightly for each of the four keys, the choices
include:
SQL OFF: Open the Squelch to allow un-muted reception.
HOME: Recall the home channel.
WX CH: Switches operation to the Weather channels bank.
CD SRCH: Engages the Tone or DCS Search Scanning feature.
SCAN: Engages the Scan operation.
T CALL: Activates 1750 Hz Tone Burst.
TX POWER: Set the transmission power level.
Alternatively, one of the Set Menu items previously assigned may be set. To assign
another desired Set Mode item to a programmable key, see the description in the box
shown below.
3. Press and hold in the [MHz(SETUP)] key for one second to exit to normal operation.
You may assign Set Mode items to the Microphone [P1]/[P2]/[P3]/[P4]buttons, as
well, to do this:
1. Press and hold in the [MHz(SETUP)] key for one second to enter the Set mode.
2. Rotate the DIAL knob to select the Set Mode Item that you wish to assign to the
key as a Menu short cut.
3. Press and hold in the Microphone’s [P1], [P2], [P3]or [P4]key for one second to
assign the Set Mode Item to that button.
4. Now you can recall this preferred Set Mode Item by simply pressing the
Microphone button momentarily.

5
Advanced Operation
FTM-3100R/E Advance Manual
Split Tone Operation
The FTM-3100R/E can be configured to operate in a “Split Tone” system via the Setup
menu, to facilitate operation on repeaters using a mix of both CTCSS and DCS control.
1. Press and hold in the [MHz(SETUP)] key for
one second to enter the Set mode.
2. Rotate the DIAL knob to select “SQL EXP
33”.
3. Press the [MHz(SETUP)] key, then rotate
the DIAL knob to select “ON”.
Default: OFF
VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz
4. Press the [MHz(SETUP)] key momentarily,
then rotate the DIAL knob to select “SQL
TYPE 34”.
5. Press the [MHz(SETUP)] key, and then ro-
tate the DIAL knob to select the following
parameters.
D CODE: DCS Encode only (the “DCS” icon
will blink during operation)
T DCS: Encodes a CTCSS Tone and
Decodes a DCS code (the “T”
icon will blink and the “DCS” icon
will appear during operation)
D TONE: Encodes a DCS code and
Decodes a CTCSS Tone (the “T
SQ” icon will appear and “DCS”
icons will blink during operation)

6
Advanced Operation
FTM-3100R/E Advance Manual
Tone Search
When the CTCSS tone being transmitted by another station is not known, you can tune
the radio to the incoming signal and activate tone scan to search for and identify the tone
being used.
To scan for the tone in use:
1. Set the transceiver up for CTCSS Decod-
er operation (see the description in the box
shown below.).
“T SQ” will appear on the display.
2. Press the Programmable key on the MH-48A6JA Microphone that is assigned “CD
SRCH” (see page 4) to start scanning for the incoming CTCSS code.
3. When the radio detects the correct tone, scanning will halt on that tone, and audio will
be allowed to pass.
4. Press the assigned Programmable key of the Microphone to lock in that tone and exit
to normal operation.
Note: You may listen to the (muted) signals from the other stations during Tone Scanning
when Set Mode Item “TS MUTE 39” is set to “OFF”. See page 31 for details.
You can also change the Tone Search scanning speed, using Set Mode Item “TS
SPEED 40” See page 32 for details.
CTCSS Decoder Operation
1. Press and hold in the [MHz(SETUP)] key for one second to enter the Set mode.
2. Rotate the DIAL knob to select “SQL TYPE 34”.
3. Press the [MHz(SETUP)] key, and then rotate the DIAL knob to select “TSQL”.
4. Press and hold in the [MHz(SETUP)] key for one second to save the new
setting and exit to normal operation.

7
Advanced Operation
FTM-3100R/E Advance Manual
DCS Search
When the DCS code being transmitted by another station is not known, you can tune the
radio to the incoming signal and activate DCS code scan to search for and identify the
DCS code being used.
To scan for the DCS in use:
1. Set the transceiver up for DCS operation
(see the description in the box shown be-
low.).
“DCS” will appear on the display.
2. Press the Programmable key on the MH-48A6JA Microphone that is assigned “CD
SRCH” (see page 4) to start scanning for the incoming DCS code.
3. When the radio detects the correct code, scanning will halt on that code, and audio will
be allowed to pass.
4. Press the assigned Programmable key of the Microphone to lock in that tone and exit
to normal operation.
Note: You may listen to the (muted) signals from the other stations during DCS Scanning
when Set Mode Item “TS MUTE 39” is set to “OFF”. See page 31 for details.
You can also change the DCS Search scanning speed, using Set Mode Item “TS
SPEED 40” See page 32 for details.
DCS Operation
1. Press and hold in the [MHz(SETUP)] key for one second to enter the Set mode.
2. Rotate the DIAL knob to select “SQL TYPE 34”.
3. Press the [MHz(SETUP)] key, and then rotate the DIAL knob to select “DCS”.
4. Press and hold in the [MHz(SETUP)] key for one second to save the new
setting and exit to normal operation.

8
Advanced Operation
FTM-3100R/E Advance Manual
EPCS (Enhanced Paging & Code Squelch) Operation
The FTM-3100R/E includes an Enhanced CTCSS tone encoder/decoder and a dedicated
microprocessor providing paging and selective calling features. This allows placing a call
to a specific station (Paging), and choosing to receive calls directed only to you (Code
Squelch).
The paging and code squelch systems use two pairs of (alternately switched) CTCSS
tones, which are stored in the pager memories. Basically, your receiver remains silent until
it receives the CTCSS tone pair that matches those stored in the Receiving Pager Memory.
The squelch then opens so the caller is heard, and the paging ringer immediately sounds,
if activated. When you close the PTT switch to transmit, the CTCSS tone pair that is
stored in the Transmitting Pager Memory will be transmitted automatically.
On the paged radio, the squelch will close automatically after the incoming page ends.
Storing CTCSS Tone Pairs for EPCS Operation
1. Press and hold in the [MHz(SETUP)] key for
one second to enter the Set mode.
2. Rotate the DIAL knob to select “PAG CD-R
21” for the Receiving CTCSS Tone Pair or
“PAG CD-T 22” for the Transmitting CTCSS
Tone Pair.
VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz
3. Press the [MHz(SETUP)] key momentarily to
enable adjustment of this Set Mode Item.
4. Rotate the DIAL knob to set the CTCSS
Tone number, which corresponds to the first
tone of the CTCSS Tone Pair.
5. Press the [SQL]or [V/M(MW)] key, then ro-
tate the DIAL knob to set the CTCSS Tone
number, which corresponds to the second
tone of the CTCSS Tone Pair.
6. Press and hold in the [MHz(SETUP)] key for one second to lock in that tone and exit to
normal operation.
Note: The FTM-3100R/E does not recognize the order of the 1st tone and the 2nd tone.
In other words, for example, the FTM-3100R/E considers both CTCSS pairs “05,
47” and “47, 05” to be identical.

9
Advanced Operation
FTM-3100R/E Advance Manual
Activating the Enhanced Paging & Code Squelch System
1. Press and hold in the [MHz(SETUP)] key for
one second to enter the Set mode.
2. Rotate the DIAL knob to select “SQL TYPE
34”.
VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz
3. Press the [MHz(SETUP)] key, and then
rotate the DIAL knob to select “PAGER”.
4. Press and hold in the [MHz(SETUP)] key for one second to save the new setting and
exit to normal operation.
5. To disable the Enhanced Paging & Code Squelch, just repeat the above procedure,
rotating the DIAL knob to select “OFF” in step 3 above.
When the Enhanced Paging & Code Squelch
feature is activated, the “P” notation will appear
on the right of the frequency display.

10
Advanced Operation
FTM-3100R/E Advance Manual
DTMF Operation
DTMF tones (Dual Tone Multi Frequencies) are the tones you hear when dialing from a
telephone keypad. The FTM-3100R/E transceiver can transmit the DTMF codes by using
the keys on the microphone or recalling registered number strings from memories.
The maximum of 16-digit DTMF codes can be registered in up to 10 memory channels.
It is convenient to register telephone patch numbers, and network linking sequences to
the DTMF memory channels.
Note: The two combined frequencies of the DTMF tone transmitted for each key are
indicated in the following table:
1209 Hz 1336 Hz 1477 Hz 1633 Hz
697 Hz 1 2 3 A
770 Hz 4 5 6 B
852 Hz 7 8 9 C
941 Hz ]0 # D
Transmitting a DTMF code manually
You can generate DTMF tones during transmission manually.
1. Press and hold in the [MHz(SETUP)] key for
one second to enter the Set mode.
2. Rotate the DIAL knob to select “DT AUTO
10”.
VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz
3. Press the [MHz(SETUP)] key momentari-
ly, and then rotate the DIAL knob to select
“MANUAL”.
4. Press and hold in the [MHz(SETUP)] key for one second to save the new setting and
exit to normal operation.
5. While pressing and holding PTT, press the desired DTMF characters ([0]to [9], []], [#],
or [A]to [D]), sequentially on the microphone keypad.
6 Release PTT.
While transmitting the DTMF code, transmission status is sustained even when PTT is
released.

11
Advanced Operation
FTM-3100R/E Advance Manual
Registering a DTMF code
1. Press and hold in the [MHz(SETUP)] key for
one second to enter the Set mode.
2. Rotate the DIAL knob to select “DT SET 12”.
VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz
3. Press the [MHz(SETUP)] key momentarily,
then rotate the DIAL knob to select the de-
sired memory channel (C0 to C9) to register
the DTMF code.
4. Press the [TXPO]key momentarily, then ro-
tate the DIAL knob to select the first digit of
the DTMF code.
Note: You can also use the keypad on the
microphone to input the DTMF code.
5. When you have selected the correct digit,
press the [V/M(MW)] key momentarily. Now,
rotate the DIAL knob to select the second of
16 available numbers in the current DTMF
Autodialer memory register.
6. Repeat this procedure for each digit in the DTMF code.
Note: mTo make a correction, press the [SQL]key to back-space the cursor, then
re-enter the correct number.
mPress and hold in the [REV(DW)] key for one second to delete all data after
the cursor that may have been previously stored.
7. When entry of all digits is complete, press and hold in the [MHz(SETUP)] key for one
second to set the DTMF code and exit to normal operation.

12
Advanced Operation
FTM-3100R/E Advance Manual
Transmitting the registered DTMF code
1. Press and hold in the [MHz(SETUP)] key for
one second to enter the Set mode.
2. Rotate the DIAL knob to select “DT AUTO
10”.
VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz
3. Press the [MHz(SETUP)] key momentari-
ly, and then rotate the DIAL knob to select
“AUTO”.
4. Press and hold in the [MHz(SETUP)] key for one second to save the new setting and
exit to normal operation.
Note: While the DTMF Autodialer is activat-
ed, the “ ” icon will appear on the
LCD.
5. In the Autodialer mode, which you just engaged, first press the PTT switch, then press
the microphone numeric key ([0]through [9]) corresponding to the DTMF memory
string you wish to send. Once the string begins, you may release the PTT switch, as
the transmitter will be held “on the air” until the DTMF string is completed.
To disable the Autodialer function mode, select “MANUAL” in step 3 above.
Setting DTMF Autodialer sending Speed
The speed at which the DTMF digits are sent can be changed.
1. Press and hold in the [MHz(SETUP)] key for
one second to enter the Set mode.
2. Rotate the DIAL knob to select “DT SPEED
13”.
3. Press the [MHz(SETUP)] key momentarily,
and then rotate the DIAL knob to select the
desired speed (“50 MS”: High speed or “100
MS”: Low speed).
4. Press and hold in the [MHz(SETUP)] key for
one second to save the new setting and exit
to normal operation.
VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz

13
Advanced Operation
FTM-3100R/E Advance Manual
Setting DTMF Autodialer TX delay time
A longer delay may be set between the time the transmitter is keyed and the first DTMF
digit is sent:
1. Press and hold in the [MHz(SETUP)] key for
one second to enter the Set mode.
2. Rotate the DIAL knob to select “DT DELAY
11”.
3. Press the [MHz(SETUP)] key momentarily,
and then rotate the DIAL knob to select the
desired delay time (50 MS / 250 MS / 450
MS / 750 MS / 1000 MS).
Default: 450 MS
4. Press and hold in the [MHz(SETUP)] key for
one second to save the new setting and exit
to normal operation.
VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz

14 FTM-3100R/E Advance Manual
Memory Operation
Split Memory
A separate transmit frequency may be registered to a memory channel to which a receive
frequency has already been registered.
1. In the VFO mode, select the transmit frequency to be registered.
2. Press and hold the [V/M(MW)] key for one second.
A memory number will appear in the bottom right corner of the display.
3. With in five seconds of pressing [V/M(MW)] key, rotate the DIAL knob (if necessary) to
select the memory channel to which the transmit frequency is to be registered.
4. Press and hold in the PTT, and press the [V/M(MW)] key momentarily while holding in
the PTT. This will not cause transmission, but rather it will instruct the transceiver to
program the separate transmit frequency into memory.

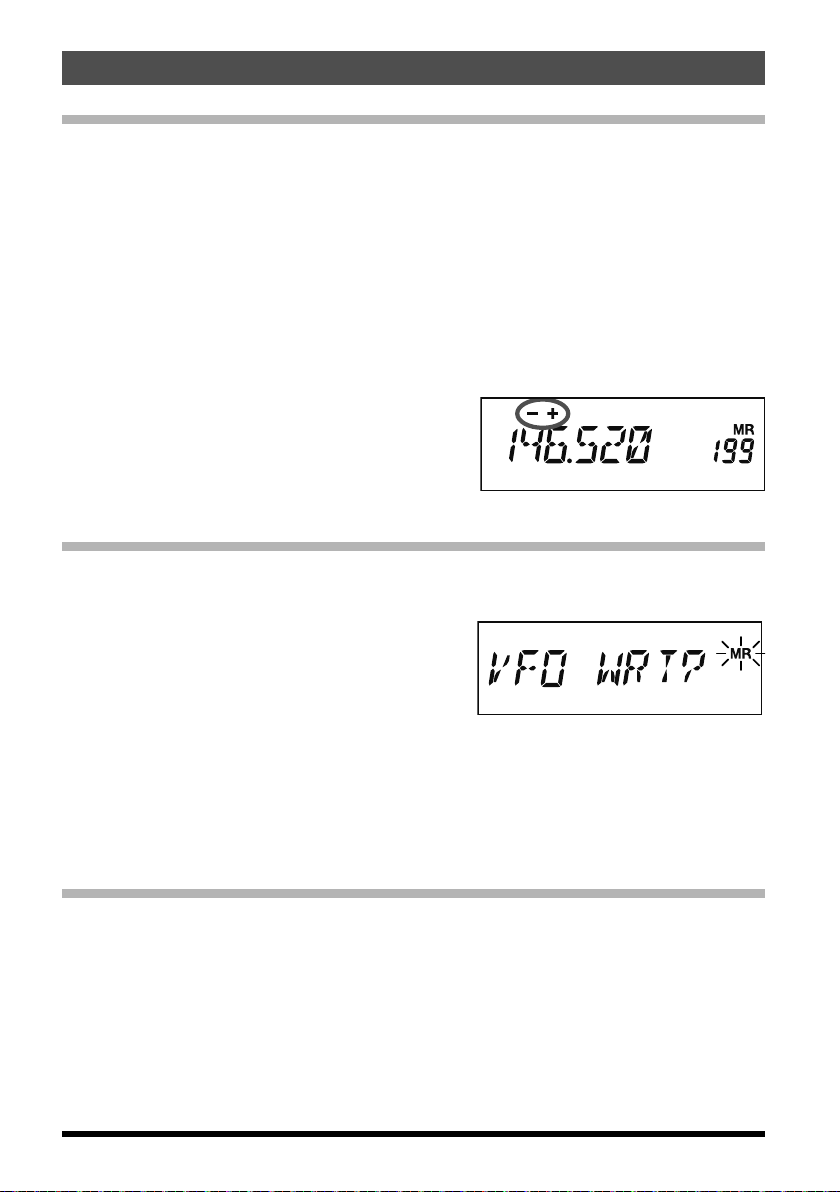

Whenever a memory which contains inde-
pendently stored transmit and receive frequen-
cies is recalled, the “
-
+” indication will appear
in the display.
Moving Memory Data to the VFO
The data stored on a memory channel can easily be moved to the VFO.
1. Select the memory channel containing the frequency data to be moved to the VFO.
2. Press and hold in the [V/M(MW)] key for one
second, and then press the [MHz(SETUP)]
key. The “VFO WRT?” will appear on the dis-
play.
3. Press the [MHz(SETUP)] key, the data will now have been copied to the VFO, although
the original memory contents will remain intact on the previously-stored channel.
Note: If a split Frequency Memory channel was transferred, the TX frequency will be
ignored (The transceiver will be set up for Simplex operation on the Receive
frequency.)
Memory Only Mode
When memory channel programming has been completed, you may place the radio in
a “Memory Only” mode, whereby VFO operation is impossible. This may be particularly
useful during public-service events where a number of operators may be using the radio
for first time, and ultimate simplicity of channel selection is desired.
To place the radio into the Memory Only mode, turn the transceiver OFF. Now press and
hold in the [V/M(MW)] key while turning the transceiver ON. The VFO and Home Channel
will now be disabled.
To return to normal operation, repeat the above power-on procedure.

15
Memory Operation
FTM-3100R/E Advance Manual
Naming a Memory Channel
You may wish to append an alphanumeric “Tag” (label) to each memory, to aid in
recollection of the channel’s use (such as club name, etc.).
1. Recall the memory channel on which you wish to append a label.
2. Press and hold in the [MHz(SETUP)] key for
one second to enter the Set mode.
3. Rotate the DIAL knob to select “MEM NAME
18”.
4. Press the [MHz(SETUP)] key momentarily to
enable programming of the nametag.
5. Rotate the DIAL knob to select the first digit
of the desired label.
6. Press the [V/M(MW)] key to move to the next
character.
Note: To make a correction, press the [SQL]
key to back-space the cursor, then
re-enter the correct letter, number, or
symbol.
7. Repeat steps 5 through 6 to program the re-
maining letters, numbers, or symbols of the
desired label. A total of 8 characters may be
used in the creation of a label.
8. When you have programmed a label that is
under 8 characters, press the [MHz(SET-
UP)] key to confirm the label.
VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz
Note: Press and hold in the [REV(DW)] key for one second to delete all data after the
cursor that may have been previously stored.
9. When you have completed the creation of the label, then press and hold in the
[V/M(MW)] key for one second to save the label and exit.
While operating in the Memory Recall mode,
press the [MHz(SETUP)] key to toggle the
display between indication of the frequency,
and indication of the Alpha/Numeric label.

16 FTM-3100R/E Advance Manual
Scanning
Scan Resume Options
Select one of the three receiving operations to be performed after the scanning stops.
(1) Restart scanning after receiving the frequency for the set amount of time. Select from
2.0 to 10.0 seconds (0.5 step).
(2) Continue receiving the frequency until the signal disappears, and then restart scan-
ning 2 seconds after the signal disappears (BUSY).
(3) Stop scanning and receive that frequency (HOLD).
1. Press and hold in the [MHz(SETUP)] key for
one second to enter the Set mode.
2. Rotate the DIAL knob to select “SCAN RSM
31”.
3. Press the [MHz(SETUP)] key, then rotate
the DIAL knob to select the desired scan-re-
sume mode.
Default: 5.0 SEC
4. Press and hold in the [MHz(SETUP)] key for
one second to save the new setting and exit
to normal operation.
VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz

17
Scanning
FTM-3100R/E Advance Manual
Memory Skip Scanning
When some memory channels are continuously active, you may wish to skip them during
scanning, but still have them available for manual selection.
To mask a memory to be skipped (only) during scanning, use the following procedure:
1. Set the radio to the Memory Recall mode by
pressing the [V/M(MW)] key repeatedly, as
necessary, until
“ ” and a channel number
appear on the right side of the display.
2. Rotate the DIAL knob to select the Memory
Channel to be skipped during scanning.
3. Press and hold in the [MHz(SETUP)] key for
one second, then rotate the DIAL knob to
select “SCAN SKP 32”.
4. Press the [MHz(SETUP)] key, then rotate
the DIAL knob to select “SKIP”. The current
Memory Channel will now be ignored during
scanning.
VOL
DIAL
DW MW
SETUP
REV V/MMHz
SQL TXPO
VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz
5. Press and hold in the [MHz(SETUP)] key for
one second to save the new setting and exit
to normal operation.
Blinks
A blinking “ ” icon will appear when you recall
the “skipped” memory channel manually.
To reinstate a channel into the scanning loop,
select “OFF” in step 4 above, after first recalling
the currently blocked channel (the “Skipped”
channel is accessible via manual channel
selection methods using the DIAL knob in the
Memory mode, whether or not it is locked out of
the scanning loop).
Blinks

18
Scanning
FTM-3100R/E Advance Manual
Preferential Memory Scan
The FTM-3100R/E also allows setting up a “Preferential Scan List” of channels, which you
can “flag” within the memory system. The flagged channels are designated by an
“ ” icon
when they are selected, one by one, for the Preferential Scan List.
When memory scanning is initiated beginning on a channel with the
“ ” icon appended, only
those channels bearing the
“ ” icon will be scanned. If scanning is initiated on a channel
which does not have the
“ ” icon appended, all channels including those with the “ ” icon
appended will be scanned.
Here is the procedure for setting up and using the Preferential Scan List:
1. Set the radio to the Memory Recall mode by
pressing the [V/M(MW)] key repeatedly, as
necessary, until
“ ” and a channel number
appear on the right side of the display.
2. Rotate the DIAL knob to select the Memory
Channel that you wish to add to the prefer-
ential Scan List.
VOL
DIAL
DW MW
SETUP
REV V/MMHz
SQL TXPO
3. Press and hold in the [MHz(SETUP)] key for
one second, then rotate the DIAL knob to
select “SCAN SKP 32”. VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz
4. Press the [MHz(SETUP)] key, and then ro-
tate the DIAL knob to select “SELECT”.
5. Press and hold in the [MHz(SETUP)] key for
one second to save the new setting and exit
to normal operation.
To initiate Preferential Memory Scanning:
1. Set the radio to the Memory Recall mode by pressing the [V/M(MW)] key repeatedly, if
necessary.
2. Rotate the DIAL knob to select any memory
channel which has an “ ” icon appended to
the channel number.
3. Press and hold in either the microphone [UP]or [DWN]button for one second to initiate
Preferential Memory Scanning. Only the channels which have a “ ” icon appended to
the channel number will be scanned.

19
Scanning
FTM-3100R/E Advance Manual
Programmable Memory Scan (PMS)
The FTM-3100R/E can be set to tune or scan only the frequencies between user-defined
lower and band limits.
Example: Set up a PMS channel by registering a lower frequency of 144.300 MHz, and
an upper frequency of 148.000 MHz to the L1/U1 memory channels.
Registering to the programmable memory channels
1. In the VFO mode, select the desired lower-limit scan frequency (144.300 MHz).
2. Press and hold the [V/M(MW)] key for one
second.
A memory number will appear in the bottom
right corner of the display.
3. Within five seconds of pressing the
[V/M(MW)] key, rotate the DIAL knob to se-
lect “L1”.
VOL
DIAL
DW MW
SETUP
REV V/MMHz
SQL TXPO
Note: While operating in the Memory Storage mode, the keypad of the MH-48A6JA
Microphone may be used to enter the memory channel number directly.
To do this, enter the desired Channel Number (see table below) on the keypad
and then press the [#]key.
To enter Memory Channel “L1”, press [2]à[0]à[1]à[#]
To enter Memory Channel “U0”, press [2]à[2]à[0]à[#]
L1 201 L3 205 L5 209 L7 213 L9 217
U1 202 U3 206 U5 210 U7 214 U9 218
L2 203 L4 207 L6 211 L8 215 L0 219
U2 204 U4 208 U6 212 U8 216 U0 220
4. Press the [V/M(MW)] key again, momentarily, to store the displayed data into the
memory channel (L1).
5. Select the desired upper-limit scanning frequency (148.000 MHz).
6. Within five seconds of pressing the
[V/M(MW)] key, rotate the DIAL knob to se-
lect “U1”.
7. Press the [V/M(MW)] key again, momentar-
ily, to store the displayed data into the mem-
ory channel (U1).

20
Scanning
FTM-3100R/E Advance Manual
Scanning the programmable memory channels
1. Press the [V/M(MW)] key to enter memory mode.
2. Turn the DIAL knob, or use the microphone keypad, to recall the upper or lower fre-
quency PMS memory channel (L1 or U1).
3. Press the [#]key on the MH-48A6JA Microphone.
“P1” appear on the right side of the display.
4. Press and hold [UP]or [DWN]on the microphone for over one second.
Programmable memory scanning will begin.
Note: To stop programmable memory scanning, press PTT on the microphone (this does
not cancel PMS mode).
To cancel PMS mode, when programmable memory scanning stops, press the [#]
key on the MH-48A6JA Microphone.
Band Edge Beeper
The FTM-3100R/E will automatically “beep” when the receive band edge is encountered
during scanning (either in standard VFO scanning or during PMS operation). Additionally,
the band edge beep feature may be enabled to sound when the band edge frequency is
reached while tuning the VFO, using the DIAL knob.
The procedure to enable the Band-Edge Beeper (during manual tuning) is:
1. Press and hold in the [MHz(SETUP)] key for
one second, then rotate the DIAL knob to
select “BEP EDGE 4”.
2. Press the [MHz(SETUP)] key, and then ro-
tate the DIAL knob to set this Menu item to
“ON”.
3. Press and hold in the [MHz(SETUP)] key for
one second to save the new setting and exit
to normal operation.
VOL
DIAL
DW MW
SETUP
REV
SQL TXPO V/MMHz
