Yaesu FTDX-9000D User manual

FT DX 9000D
Operation Manual

Page 1FT DX 9000D OPERATION MANUAL
GENERAL DESCRIPTION
We wish to take this opportunity to thank you for your purchase of the FT DX 9000D Transceiver!
The FT DX 9000D is the culmination of a four-year design project. But it also is the product of our company’s fifty years
of engineering, design, and manufacturing know how. As pioneers in the development of SSB, we have led the technologi-
cal advances in Amateur Radio communications over the last half century. And now, with the introduction of the
FT DX 9000D, we again lead the way with a no-compromise 21st-century design that will make your operating dreams
come true. More importantly, it is a radio that will let your skills and experience find expression, as you harness the
excitement of HF operating like you’ve never done before!
ABOUT THIS MANUAL. . .
The FT DX 9000D is a leading-edge transceiver with a number of new and exciting features, some of which may be
unfamiliar to you. In order to gain the most enjoyment and operating efficiency from your FT DX 9000D, we recommend
that you read this manual in its entirety, and keep it handy for reference as you explore the many capabilities of your new
transceiver.
Before using your FT DX 9000D, be sure to read and follow the instructions in the “Before You Begin” section of this
manual.
CONVENTIONS USED IN THIS MANUAL
Please note the conventions, described below, for operational commands and texts included in this manual.
NN
NN
NOO
OO
OTETE
TETE
TE ............................................. This is used for a note as to a particular point of interest.
AA
AA
ADD
DD
DVICEVICE
VICEVICE
VICE .......................................... This is used to amplify or expand on instructions, so as to recommend a way to gain
maximum benefit from a feature or function.
EE
EE
EXAMPLEXAMPLE
XAMPLEXAMPLE
XAMPLE ....................................... This is used to demonstrate an example of how a feature or function should work or be
programmed.
QQ
QQ
QUICKUICK
UICKUICK
UICK NN
NN
NOO
OO
OTETE
TETE
TE/QQ
QQ
QUICKUICK
UICKUICK
UICK PP
PP
POINTOINT
OINTOINT
OINT ....... This is used for a brief explanation of a particular aspect of operation.
TT
TT
TERMINOLERMINOL
ERMINOLERMINOL
ERMINOLOGYOGY
OGYOGY
OGY ............................... An explanation of a term or expression used in this manual.
ABOUT THE TFT DISPLAY
In the FT DX 9000 Series, a large 6.5” (800 x 480 dot) TFT is built into the FT DX 9000D version, and is optional on other
versions. Please see the separate TFT Operation Manual for details regarding TFT operation.
PThe TFT is a precision-designed, advanced display unit. You may observe, inside the TFT panel, a black point, or a
luminescent point or points; these are normal, and do not indicate a defective TFT. Please note.
PIf you turn on the FT DX 9000 (with the TFT) in a cold environment, or if the transceiver itself is very cold, it may
require several minutes for the TFT to warm up to full brilliance of color and full illumination. This is a normal
condition, and does not indicate a breakdown.
PThere may be times when the TFT display illumination appears not to be uniform, but this is a normal condition.
This device is designed for Amateur Radio operation only. Operation on the Amateur Radio bands requires a license, in
accordance with the telecommunications statutes in your country. The discussions in this manual presume that you possess
the fundamental knowledge consistent with your status as a licensed Amateur Radio operator.

Page 2 FT DX 9000D OPERATION MANUAL
TABLE OF CONTENTS
General Description ........................................... 1
About This Manual. . . ......................................................................... 1
Conventions Used in This Manual ...................................................... 1
About the TFT Display ........................................................................ 1
Before You Begin. . . ........................................... 4

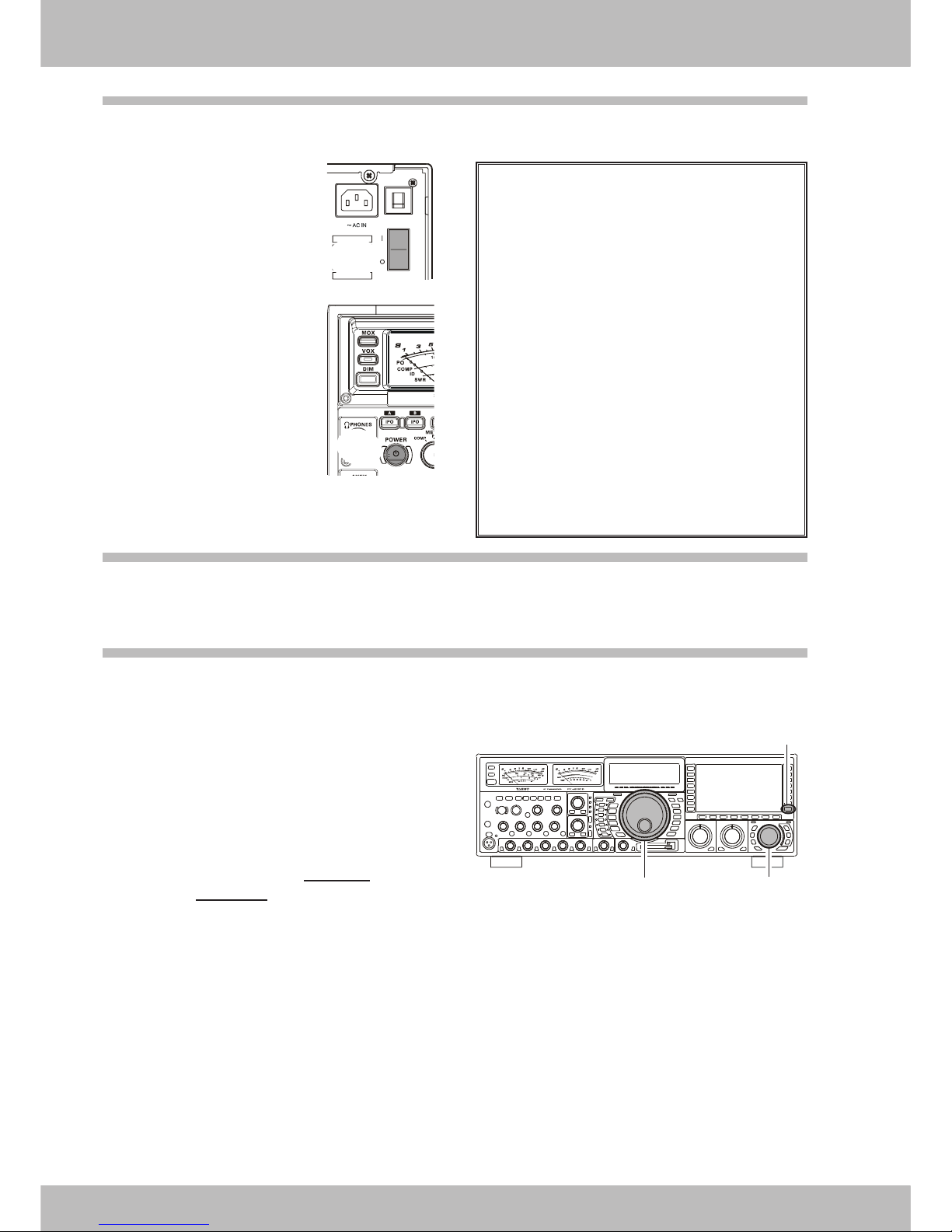

1. Connecting AC Power ..................................................................... 4
2. Setting Your Local Time .................................................................. 4
3. Configuring Your FT DX 9000 Using the Menu ............................. 4
4. Connecting and Selecting the Microphone ...................................... 5
5. Extending the Front Feet ................................................................. 5

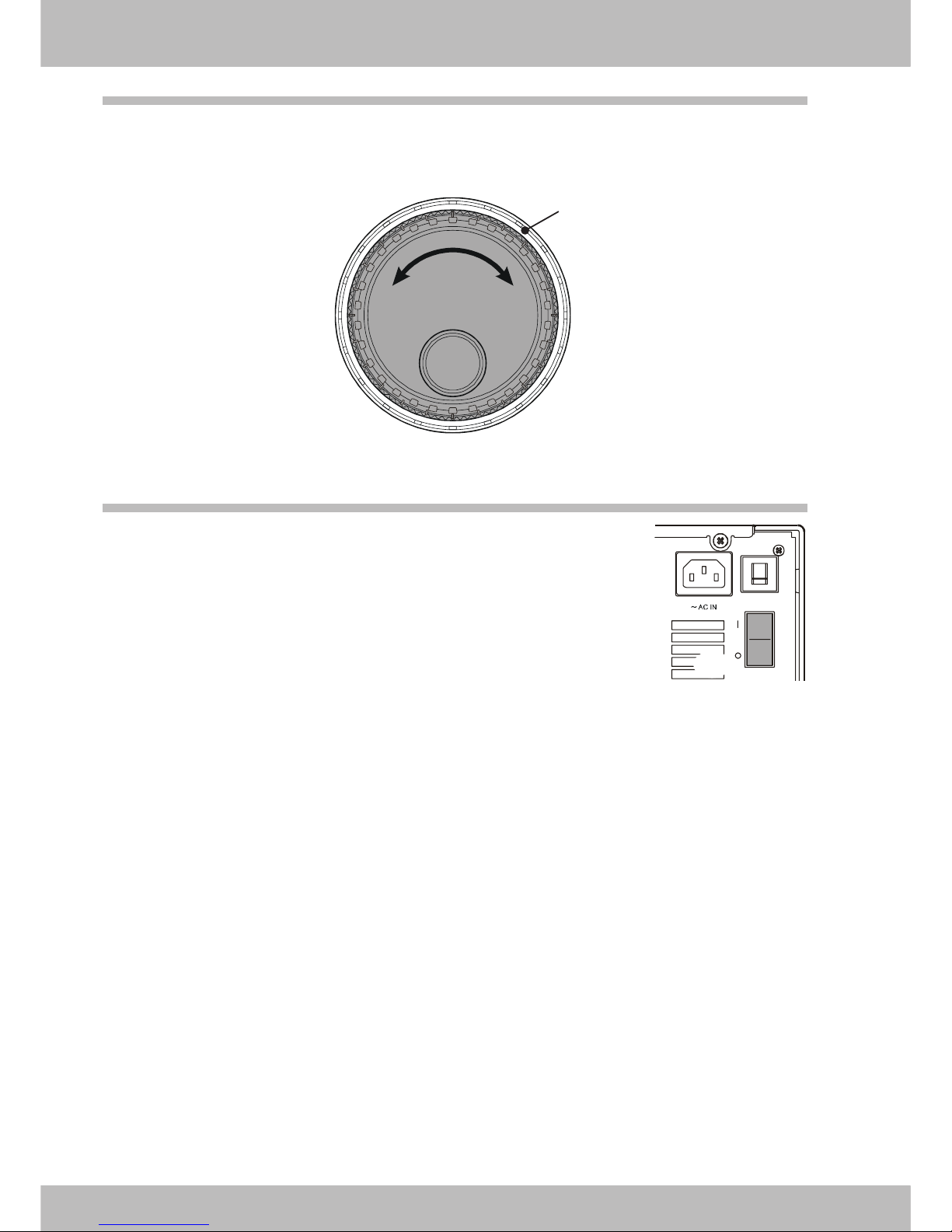

6. Adjusting the Main Dial Torque ...................................................... 6
7. Restarting Power after a Voltage Fluctuation .................................. 6

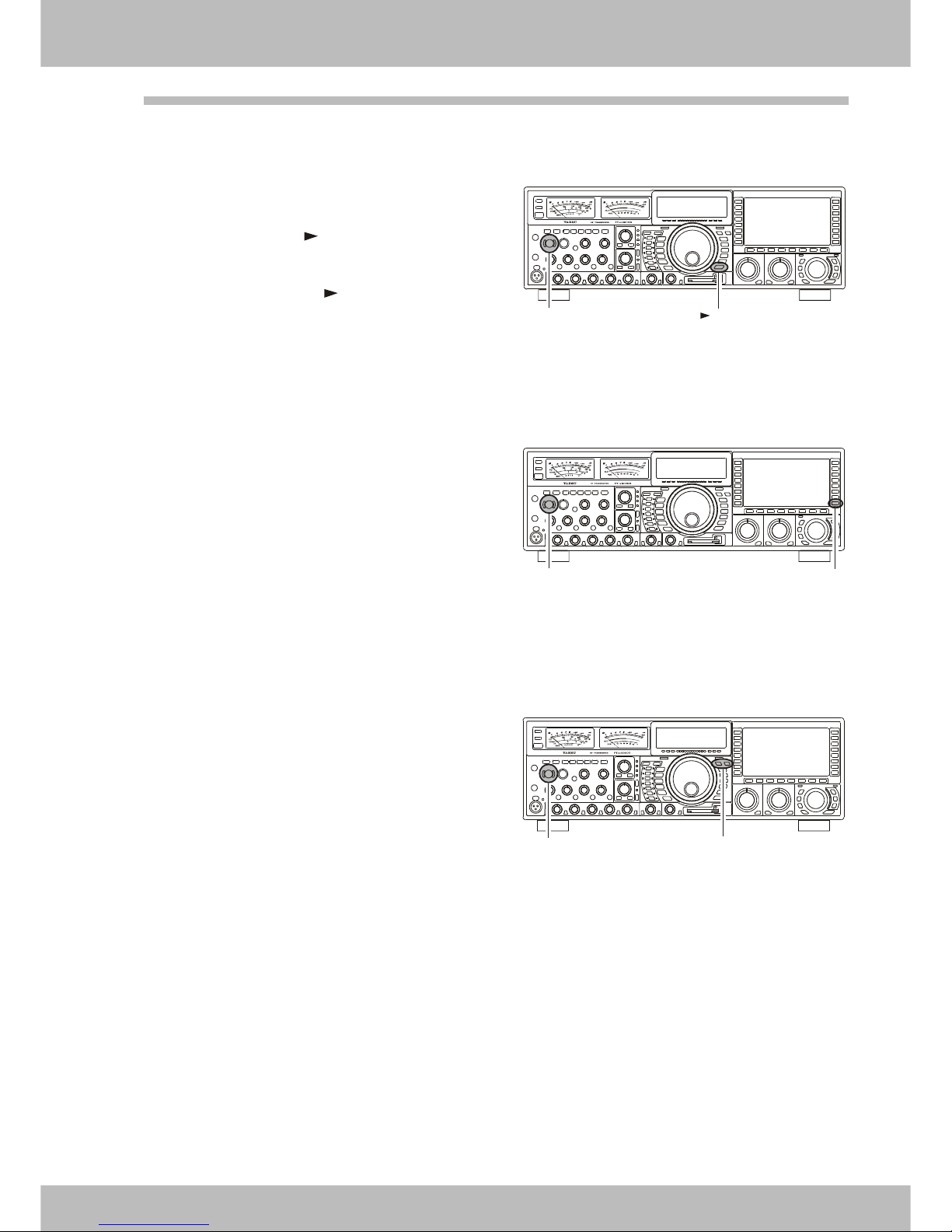

8. Resetting the Microprocessor .......................................................... 7
Resetting Memories (Only) .......................................................... 7
Menu Resetting ............................................................................. 7
Full Reset ...................................................................................... 7
Features .............................................................. 8

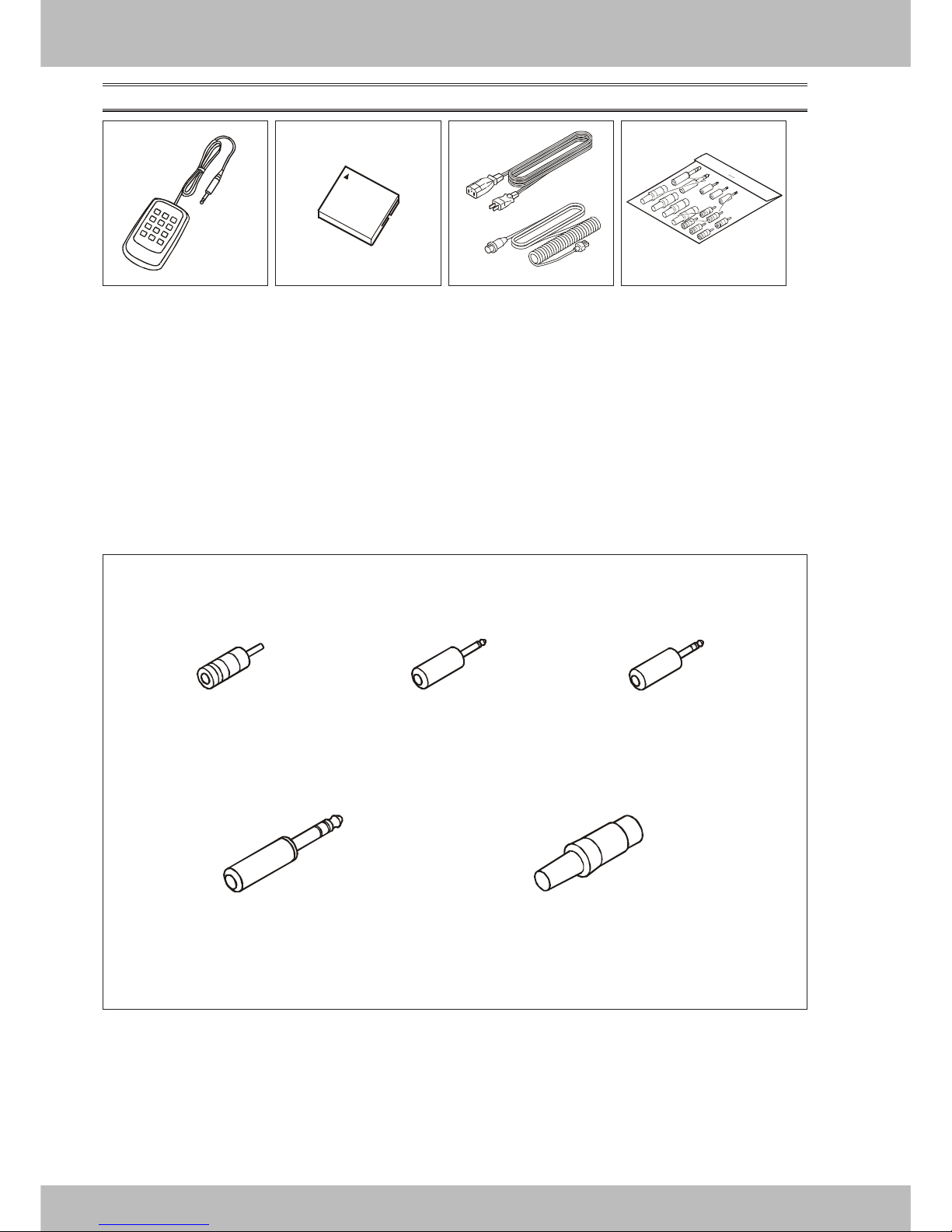

Accessories ...................................................... 10
Options .............................................................. 11
Installation and Interconnections ................... 12
Antenna Considerations ..................................................................... 12
About Coaxial Cable ......................................................................... 12

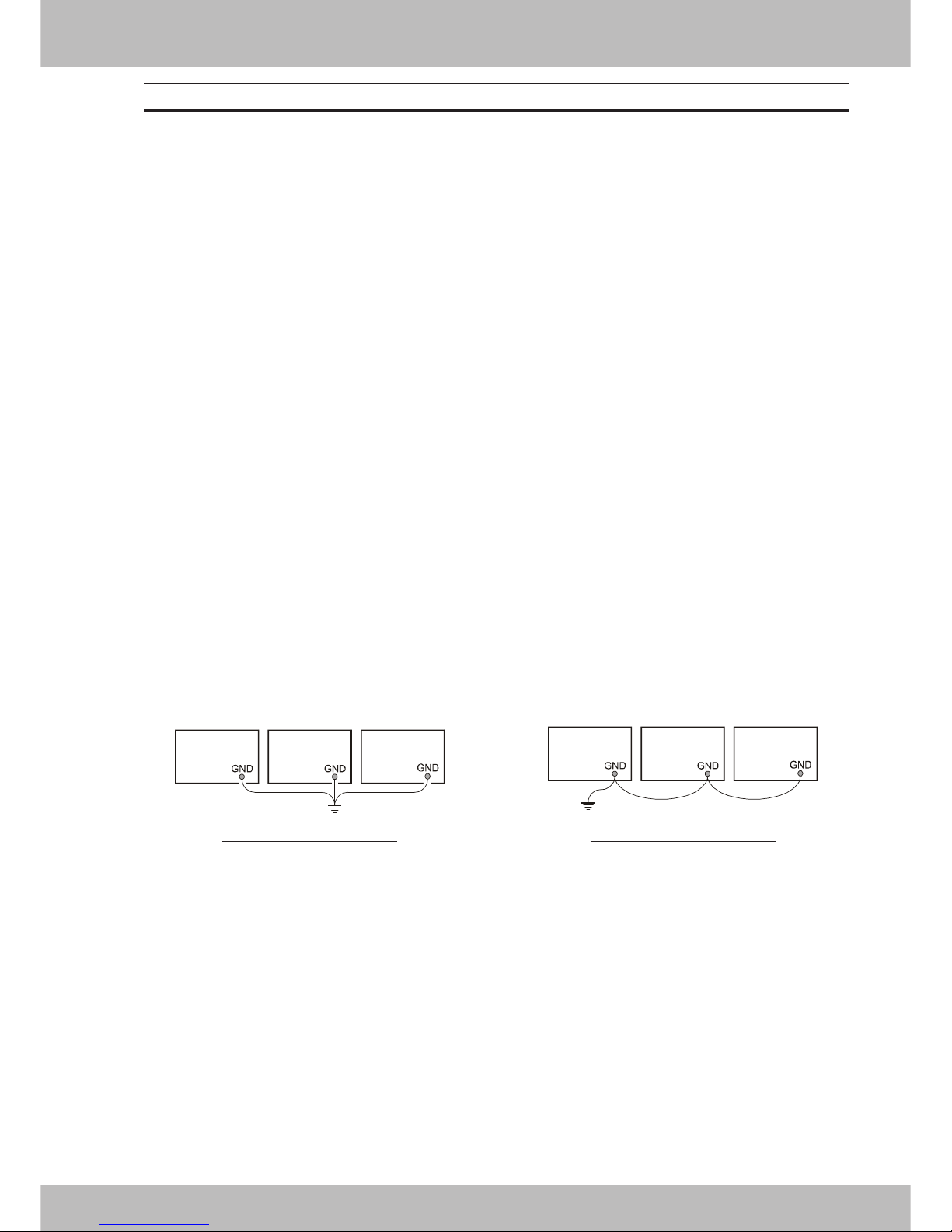

Grounding .......................................................................................... 13
Connection of Antenna and Power Cables ........................................ 14

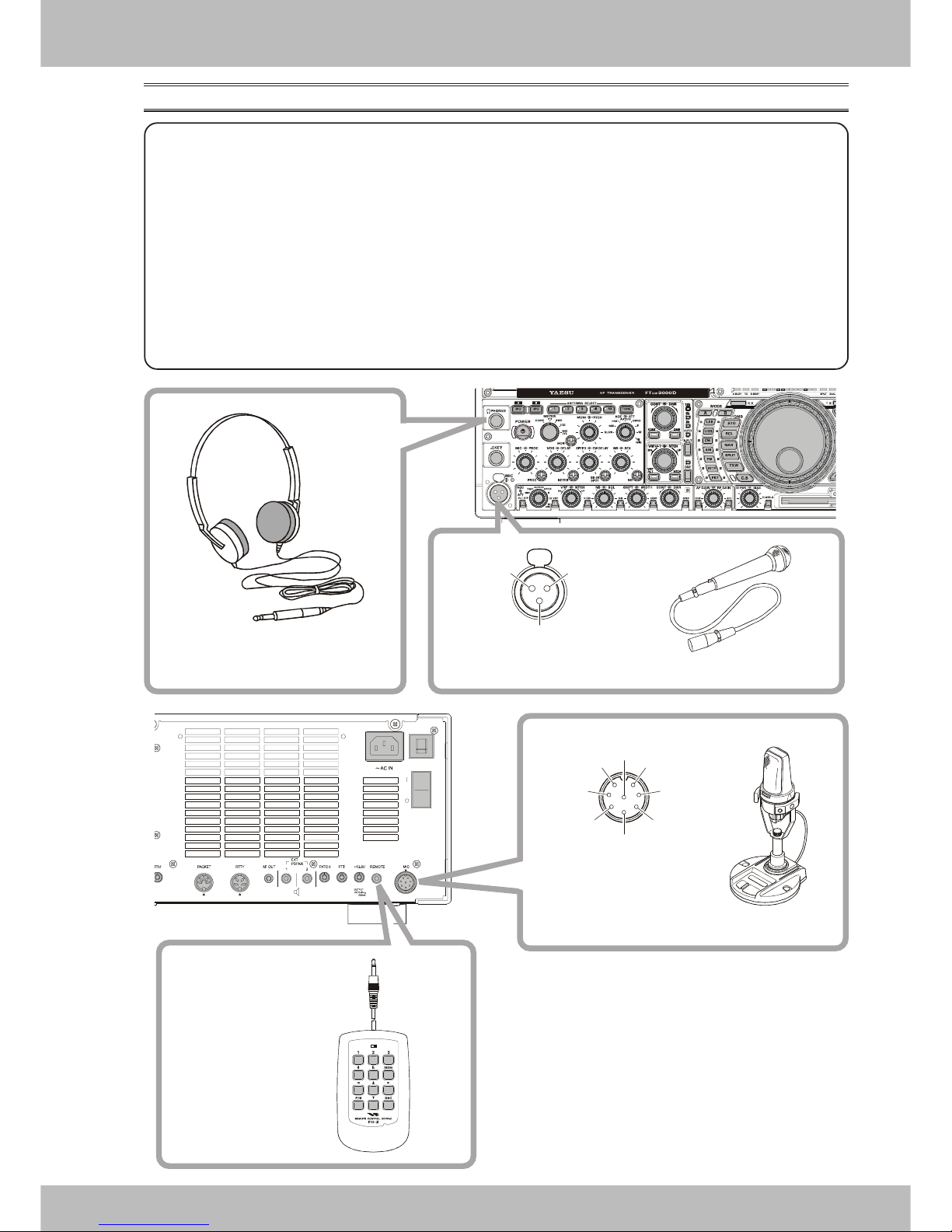

Connection of Microphone, Headphones and
FH-2 Remote Control Keypad ............... 15

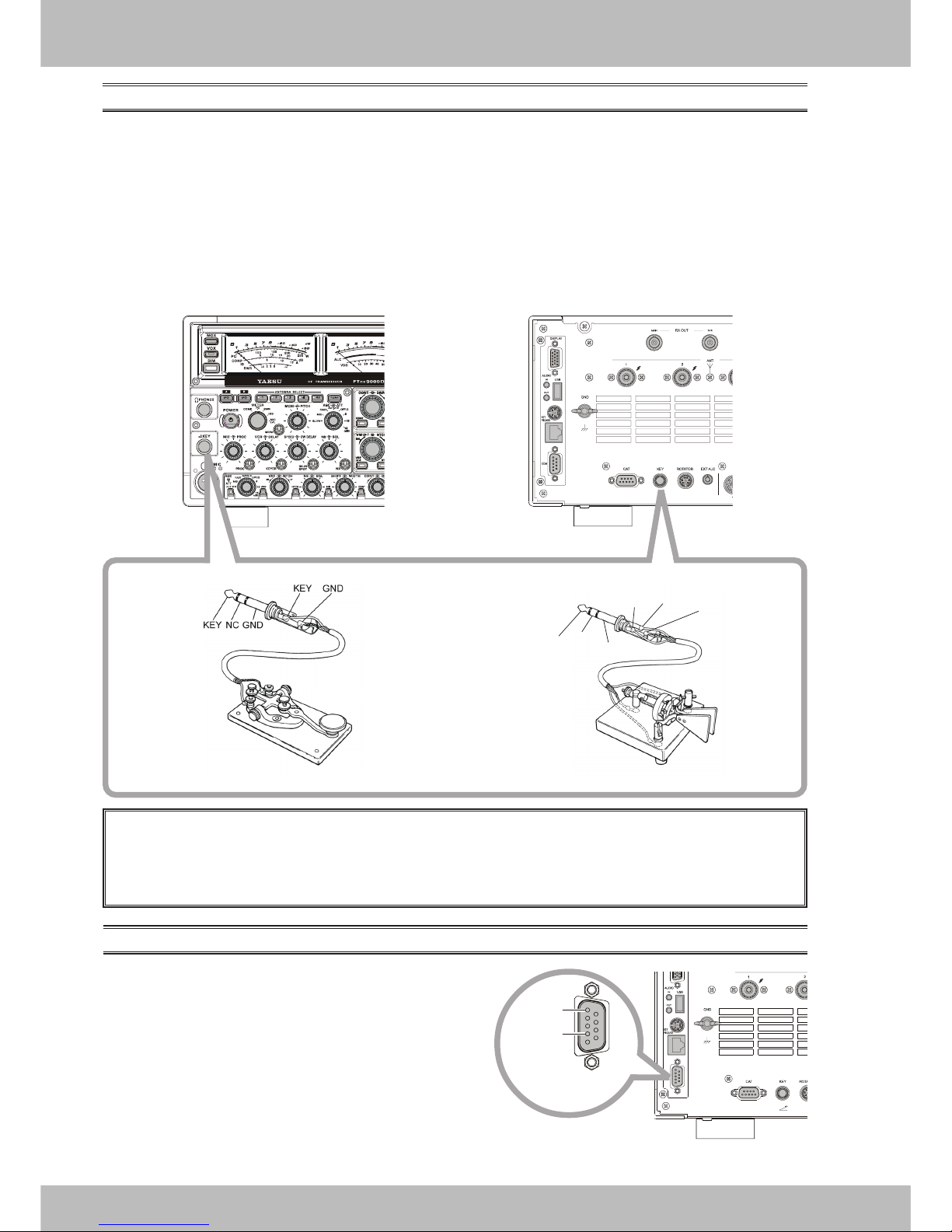

Key, Keyer, and Computer-Driven Keying Interconnections ............ 16
VL-1000 Linear Amplifier Interconnections ..................................... 17
Interfacing to Other Linear Amplifiers .............................................. 18
Plug/Connector Pinout Diagrams ................... 19
Front Panel Controls ........................................ 20
Rear Panel ......................................................... 36
Frequency Display ........................................... 39
TFT Feature/Control Details ............................ 40
FH-2 Operation ................................................. 41
Basic Operation:
Receiving on Amateur Bands ......... 42
Operation ........................................................................................... 43
Operation on 60-Meter (5 MHz) Band (U.S. version only) .............. 45
CLAR (Clarifier) Operation on Main (VFO-A) ................................ 46
LOCK ................................................................................................ 47
DIM ................................................................................................... 47
B-DISP OFF ...................................................................................... 48
Convenient Features ........................................ 49
Dual Receive ..................................................................................... 49
P.BACK (Audio Playback) from Main (VFO-A) Receiver ............... 53
"MY Bands" Operation ...................................................................... 54
Band Stack Operation ........................................................................ 55
Dial Swap Configuration (AF/RF GAIN controls) ........................... 56
C.S (Custom Switch) ......................................................................... 57
More Frequency Navigation Techniques ........................................... 58
ANTENNA SELECTION ................................................................. 59
Changing the Speaker Output Configuration .................................... 60
Receiver Operation (Front End Block Diagram) ............................... 61
IPO (Intercept Point Optimization) ................................................... 62
ATT .................................................................................................... 63
RF Gain (SSB/CW/AM Modes) ........................................................ 64
Advanced Interference-
Suppression Features ................... 65
Using the μ-Tune Feature .................................................................. 65
Using the VRF (Variable RF Front-end Filter) .................................. 68
Interference Rejection...................................... 69
R.FLT (Roofing Filters) ..................................................................... 69
CONT (Contour) Control Operation ................................................. 70
IF SHIFT Operation (SSB/CW/RTTY/PKT/AM Modes) ................. 72
WIDTH (IF DSP Bandwidth) Tuning
(SSB/CW/RTTY/PKT Modes) ......................... 73
Using IF Shift and Width Together ............................................. 74
IF Notch Filter Operation (SSB/CW/RTTY/PKT/AM Modes) ......... 75
Digital Noise Reduction (DNR) Operation ....................................... 77
NARROW (NAR) One-Touch IF Filter Selection ............................ 78
Digital Notch Filter (DNF) Operation ............................................... 79
IF Noise Blanker (NB) Operation ..................................................... 80
Tools for Comfortable and
Effective Reception .................. 81
AGC (Automatic Gain Control) ........................................................ 81
SLOPED AGC Operation ........................................................... 82
Mute Feature Main (VFO-A) Band .................................................. 83
Audio Limiter (AFL) Feature ............................................................ 83
Adjacent Channel Monitor (ACM) CW Mode Only ....................... 84
SSB/AM Mode Transmission
(Let’s Look at the Transmitter. . .) ......... 85
Phantom Voltage for Condenser Microphones .................................. 87
Using the Automatic Antenna Tuner ............... 88
ATU Operation .................................................................................. 88
About ATU Operation ........................................................................ 89
Lithium Battery Replacement ............................................................ 90
SSB/AM Mode Transmission ........................... 92
Using the Speech Processor - SSB, AM Mode - ............................ 92
Adjusting the SSB Transmitted Bandwidth ....................................... 93
Signal Quality Enhancement Using the
Parametric Microphone Equalizer .................................... 94
Low- Distortion CLASS-A Operation ............................................... 96
Voice Memory ................................................................................... 98
Convenient Transmitter Accessories ............. 99
VOX: Automatic TX/RX Switching using Voice Control
SSB/AM/FM Modes ............... 99
Using the MONITOR ...................................................................... 100
Split Operation Using the TX Clarifier (VFO-A Operation) .......... 101
Clarifier Offset Bar Indicator ................................................... 101
Split-Frequency Operation .............................................................. 102
VFO Tracking Feature .............................................................. 103
Quick Split Operation ............................................................... 104
Full Duplex Operation ..................................................................... 105

Page 3FT DX 9000D OPERATION MANUAL
TABLE OF CONTENTS
CW Mode Operation ....................................... 106
Setup for Straight Key (and Straight Key emulation) Operation ..... 106
Using the Built-in Electronic Keyer ................................................ 108
Full Break-in (QSK) Operation ....................................................... 108
Setting the Keyer Weight (Dot/Space:Dash ) Ratio ......................... 109
Selecting the Keyer Operating Mode .............................................. 109
CW Convenience Features ............................ 110
CW Spotting (Zero-Beating) ............................................................ 110
Using CW Reverse ........................................................................... 111
CW Delay Time Setting .................................................................... 112
CW Pitch Adjustment ....................................................................... 113
CW Wave Shape ............................................................................... 113
Contest Memory Keyer .................................................................... 114
Message Memory ...................................................................... 114
TEXT Memory .......................................................................... 116
FM Mode Operation ........................................ 118
Basic Operation ................................................................................ 118
Repeater Operation ........................................................................... 119
Convenient Memory Functions ..................... 122
QMB (Quick Memory Bank) ........................... 123
QMB Channel Storage .................................................................... 123
QMB Channel Recall ...................................................................... 123
Memory Groups .............................................. 124
Memory Group Assignment ............................................................ 124
Choosing the Desired Memory Group ............................................. 124
Memory Operation .......................................... 125
Memory Storage .............................................................................. 125
Memory Channel Recall .................................................................. 126
Checking a Memory Channel’s Status ...................................... 127
Erasing Memory Channel Data ....................................................... 128
Moving Memory Data to the Main (VFO-A) Band ........................ 129
Memory Tune Operation .......................................................... 130
Operation on Alaska Emergency Frequency:
5167.5 kHz (U.S. Version Only) ............... 131
Operation on the 60-Meter Band (U.S. Version) ............................. 132
VFO and Memory Scanning ........................... 133
VFO Scanning ................................................................................. 133
Memory Scan ................................................................................... 134
PMS ................................................................. 135
Packet Operation ............................................ 136
RTTY (Radio TeleType) Operation ................. 137
Miscellaneous AFSK-based Data Modes ...... 138
About the Transverter Output Terminal ........ 139
Menu Mode ..................................................... 140
Using the Menu ............................................................................... 140
Menu Mode Reset .................................................................... 140
Menu Mode Setting Table ............................................................... 141
Menu Mode Setting ......................................................................... 145
Specifications ................................................. 163

Page 4 FT DX 9000D OPERATION MANUAL
1. Connecting AC Power
There are two power switches on this transceiver, one each on the rear and front panels. If the rear panel’s Power switch is
not turned on, the front panel Power switch will not function.
UPush the rear panel’s Power
switch to the [I]position to
apply power from the power
supply to the OCXO (Ref-
erence Crystal Oven) and to
enable the front panel
power switch.
UPress and hold in the front
panel Power switch for two
seconds to turn the trans-
ceiver on.
NN
NN
NOO
OO
OTETE
TETE
TE
The opening screen will appear on the TFT dis-
play, and the self-check function of the CPU inside
the radio will begin. Then, the μ-Tuning circuitry
will receive the data from the CPU, and it will per-
form its own self-check, and will preset itself to the
proper settings for the current operating frequency.
While the μ-Tuning circuitry is obtaining the data,
the drive mechanism will move from one end of its
range to the other end (fast), and this will cause a
temporary “motor” noise that can be heard; this,
does not represent any trouble or problem.
When the radio is turned on for the first time, it
takes about 50 seconds (from turning the radio on
to completing the self-check) until the radio be-
comes ready to use; however, from the next time
you turn it on, it will take around 10 seconds until
the transceiver is ready for full operation.
2. Setting Your Local Time
When first turning on the FT DX 9000, be sure to set the local time to match your location’s time zone. If you do not do
this, several functions will not work correctly, including the World Clock, Great Circle Map, etc.; please see the appropri-
ate section of the TFT Operating Manual for details on Local Time Setup.
3. Configuring Your FT DX 9000 Using the Menu
The FT DX 9000 is configured, at the factory, with its various functions set up in a manner typical for most operation. Via
the “Menu” system, you may change these settings to match the way you want your transceiver to operate.
Menu programming is enabled by pressing the [MNU]
(Menu) key momentarily. You may then rotate the [Main
Tuning Dial]knob to display the desired Menu item, in
the menu list, on the TFT. Each of the settings can be
changed or customized via the [CLAR/VFO-B]knob, as
you like, in this mode.
Once you have made a change to the configuration of a
Menu item or items, you must press and hold in the [MNU]
(Menu) key for two seconds to save the new settings and
exit to normal operation.
If you wish to cancel a change to a Menu item or items,
just press the [MNU]key momentarily. If you do not press
and hold in the [MNU]key in for two seconds, any changes
you have made will not be saved.


[Main Tuning Dial]knob
[MNU]key
[CLAR/VFO-B]Knob
BEFORE YOU BEGIN. . .

Page 5FT DX 9000D OPERATION MANUAL
4. Connecting and Selecting the Microphone
The FT DX 9000D comes equipped with two microphone connectors: the front panel includes a “Cannon” (XLR) three-
pin connector, while the rear panel provides an eight-pin (round) connector.
As shipped from the factory, the front panel XLR connector is engaged for operation, and the rear panel 8-pin microphone
jack is not connected. If you wish to enable the 8-pin connector instead of the XLR connector, use the Menu to accomplish
this. Note that you may leave microphones connected to both jacks, and may select the microphone you want for operation
on a particular operating mode (SSB, AM, FM, etc.), as well!
UPress the [MNU](Menu) key momentarily to enter
the Menu Mode.
URotate the [Main Tuning Dial]knob to select Menu
Item #077, located within the “MODE SSB” group:
SSB MIC SELECT.
URotate the [CLAR/VFO-B]knob to change the set-
ting of Menu #076 from “FRONT” to “REAR.”
UPress and hold in the [MNU](Menu) key for two sec-
onds to save the new setting and exit to normal opera-
tion.
UIn a similar manner, you may use Menu #048 (AM
MIC SEL) in the MODE-AM Menu Group to select
the microphone jack to be used during AM operation,
and Menu #067 (FM MIC SEL) in the MODE-FM
Menu Group to select the microphone to be used dur-
ing FM transmission.
5. Extending the Front Feet
In order to elevate the front panel for easy viewing, the front left and right feet of the bottom case may be extended.
UPull the front legs outward from the bottom panel.
URotate the legs counter-clockwise to lock them in the
extended position. Be sure the legs have locked se-
curely in place, because the transceiver is quite heavy
and an unlocked leg could result in damage, should
the transceiver move suddenly.
“FRONT”
Cannon (XLR)
three-pin connector
“REAR”
8-pin microphone jack
[Main Tuning Dial]knob
[MNU]key
[CLAR/VFO-B]Knob
Retracting the Front Feet
URotate the legs clockwise, and push them inward while
rotating to the right.
UThe front feel should now be locked in the retracted
position.
EXTEND
RETRACT




BEFORE YOU BEGIN. . .

Page 6 FT DX 9000D OPERATION MANUAL
6. Adjusting the Main Dial Torque
The torque (drag) of the Main Tuning Dial may be adjusted according to your preferences. Simply hold down the rear skirt
of the knob, and while holding it in place rotate the Main Dial itself to the right to reduce the drag, or to the left to increase
the drag.
7. Restarting Power after a Voltage Fluctuation
If your AC mains power should suffer a significant fluctuation or interruption, we recom-
mend that you go through a complete power-up cycle, in order to ensure that all circuits are
properly initialized. To do this, be sure the front panel Power switch is turned off, then set
the rear-panel Power switch to the “O” position. Now unplug the AC cable from the rear
panel of the transceiver, and wait ten seconds. Plug the AC cable back in, set the rear-panel
Power switch to “I,” and now press and hold in the front-panel Power switch for two sec-
onds to turn the transceiver on. After about 50 seconds, all circuits will be initialized, and
normal operation may resume.

TIGHTEN TOOSEN
HOLD THE SKIRT
BEFORE YOU BEGIN. . .

Page 7FT DX 9000D OPERATION MANUAL
8. Resetting the Microprocessor
SResetting Memories (Only)
Use this procedure to reset (clear out) the Memory channels previously stored, without affecting any configuration changes
you may have made to the Menu settings.
1. Press the front panel’s [POWER]switch to turn the
transceiver off.
2. Press and hold in the [A M]switch; while holding it
in, press and hold in the front panel’s [POWER]switch
to turn the transceiver on. Once the transceiver comes
on, you may release the [A M]switch.
SMenu Resetting
Use this procedure to restore the Menu settings to their factory defaults, without affecting the memories you have pro-
grammed.
1. Press the front panel’s [POWER]switch to turn the
transceiver off.
2. Press and hold in the [MNU](Menu) key; while hold-
ing it in, press and hold in the front panel’s [POWER]
switch to turn the transceiver on. Once the transceiver
comes on, you may release the [MNU](Menu) key.
SFull Reset
Use this procedure to restore all Menu and Memory settings to their original factory defaults. All Memories will be cleared
out by this procedure.
1. Press the front panel’s [POWER]switch to turn the
transceiver off.
2. Press and hold in the [FAST]and [LOCK]switches;
while holding them in, press and hold in the front
panel’s [POWER]switch to turn the transceiver on.
Once the transceiver comes on, you may release the
other two switches.
[A M]switch
[FAST]switch
&
[LOCK]switch
[POWER]switch
[POWER]switch
[POWER]switch
[MNU]key
BEFORE YOU BEGIN. . .

Page 8 FT DX 9000D OPERATION MANUAL
FEATURES
Superior Visibility and Logical, Fatigue-reducing Panel Layout
The front panel layout is logically crafted, with the large-aperture main frequency display squarely in the middle of the front panel; the
two large S-meters to the left providing instant recognition of signal strength.
Just as in an aircraft cockpit, the panel meters and the TFT are canted slightly toward the center for maximum visibility.
Large, Multi-colored VFD Fluorescent Display
A proprietary, high-brightness VFD (fluorescent) display is incorporated in the FT DX 9000D, providing outstanding visibility
(superior even to the TFT) and easy reading of the important frequency information, whether in dim or bright lighting environments.
Function-Indicating LEDs
The many function status indications on the front panel are clearly identified by the operator, thanks to the innovative multi-color LEDs
incorporated in design. A Red LED indicates that a function is engaged on the Main Band, while an Orange LED shows that the function
is engaged on the Sub Band.
Indirect Illumination
For ease of nighttime operation, the controls on the front panel are indirectly illuminated, thanks to carefully-positioned lamps in the
frame underneath the meters and TFT (depending on model).
Aluminum-Die-Cast Oversized Main Tuning Dial
The Main Tuning Dial is a large-diameter (3.2”/81 mm) dial directly coupled to the magnetic rotary encoder which drives the HRDDS
via microprocessor control. Its heavy weight (7 oz./200 g) and quality mounting and construction provide a smooth “flywheel” effect
during operation, ideal for quick cruising up and down a band.
Oversized Knobs for Most Important Functions
The concentric AF/RF Gain, SHIFT/WIDTH, and CLAR/VFO-B knobs are conveniently located right below the TFT, for ease of access
to these important controls.
World’s First 400 MHz HRDDS Local Oscillator
So as to optimize spurious-free dynamic range in a multi-signal environment, Yaesu’s engineers have introduced the world’s first
HRDDS (High Resolution Direct Digital Synthesizer) as the first local oscillator of the FT DX 9000D. Dividing directly from this high
frequency, this local oscillator design ensures extraordinarily low noise, resulting in improved weak-signal reception even on a crowded
band during a weekend contest.
New-design Large-area OCXO Reference Oscillator
Serving as the master reference oscillator for the transceiver, the 10 MHz OCXO (Oven Controlled Crystal Oscillator) is a large-area (50
x 50 mm/2” x 2”) oven-stabilized oscillator operating at high temperature, for industry-leading frequency stability rated at 0.03 ppm
over the temperature range –10° to +60° C (–14° to +140° F).
Triple-conversion Design with Optimized Gain Distribution
Taking into account the most efficient transceiver design concept consistent with high performance we have adopted a triple-conversion IF
structure, utilizing a first IF at 40 MHz, a second IF at 455 kHz, and the third IF at 30 kHz (for FM, the 3rd IF is at 24 kHz). Gain distribution
through all stages is carefully optimized, for preservation of high system dynamic range.
Ultra-strong Receiver Front End
YAESU’s outstanding RF-stage filtering establishes a clean performance that allows the rest of the receiver to perform at a high level.
By reducing the ingress of energy from very strong sources like Shortwave Broadcast, local AM/FM/TV stations, and other signal
sources, the overall purity of the spectrum delivered to the RF Amplifier first mixer, and subsequent stages is maintained, and the system
Blocking Dynamic Range is also enhanced.
Large, Multi-function Color TFT Display
The 800 x 480 dot, 6.5” TFT display is loaded with information that enhances operation of your FT DX 9000D. Besides general status
information, the TFT includes an Audio Scope (both audio spectrum and “Waterfall” displays) and Oscilloscope page, an RF Spectrum
Scope, a Log Book, Swept-Frequency SWR along with PA Temperature, Bias Level, and Voltage, Memory Channel List, World Clock
with Grey Line display, and a Great Circle Map centered on your location, plus direction indication and control of Yaesu Rotators!
Compact Flash (CF) Card for Data Management
A Compact Flash card is supplied with every FT DX 9000D, for preservation of transceiver configuration settings along with Log Book
archival data.
Professional-Grade Cannon (XLR) Microphone Connector
The FT DX 9000D incorporates, for the first time ever in an Amateur Radio transceiver, a balanced-input “Cannon” (XLR) micro-
phone connector on the front panel, for use with studio-grade professional microphones. A round 8-pin microphone jack is also
provided on the rear panel.
Two High-precision Analog Meters (Page 29)
The FT DX 9000D incorporates two large (3.4”/86 mm) high-precision analog meters, for the utmost accuracy in measuring transceiver
performance. Visibility is enhanced by the oversized meter scales, making the meters easy to read at all times.

Page 9FT DX 9000D OPERATION MANUAL
FEATURES
Separated Clarifier Display (Page 46, 101)
A clearly-separated display window within the main frequency display area contains receiver and/or transmitter frequency offset ("Clari-
fier") data, for quick comprehension by the operator.
YAESU Custom-designed 32-Bit Floating Point IF DSP (Page 61)
The new IF DSP system, utilizing a TI TMS320C6711 device, is a high-speed 32-bit floating point circuit designed with a unique
objective: to do away with the “digital” sound of many DSP filtering systems, and emulate the “Analog Sound” so familiar and
comfortable to HF DX and Contest operators. The result is a leading-edge receiver that has the “feel” of a traditional analog receiver, but
with the flexibility and superb filtering capability of a modern digital filtering system.
New Mu (μ) Narrow-bandwidth High-Q RF Filters Using Large-Diameter (28 mm) Coils (Page 65)
On the 14 MHz and lower Amateur bands, Yaesu’s breakthrough “μ-Tuning” RF preselector filters provide the greatest level of RF
protection ever incorporated into an Amateur Radio transceiver. Utilizing a 1.1” (28 mm) ferrite core stack, driven through a coil
structure, μ-Tuning provides greatly improved RF selectivity, even compared to our VRF (Variable RF Filter) preselector, resulting in
an ultra-strong front end. Insertion of the μ-Tuning filter improves the 3rd-Order Intercept Point by at least 4 dB, and you can operate
on a very crowded band with the utmost confidence in your receiver.
VRF (Variable RF Filter) Preselector Filter (Page 68)
On the 18 MHz and higher Amateur bands, and on 1.8 - 50 MHz on the Sub (VFO-B) band, Yaesu’s robust VRF (Variable RF Filter)
preselector provides a relay-selected RF selectivity much tighter than that afforded by traditional bandpass filter networks. Sealed relays
select heavy-duty inductors and capacitors, providing a tracking RF filter that protects the RF amplifier and following stages from
strong out-of-band energy.
First IF 3 kHz Roofing Filter (Page 25, 69)
In the 40 MHz 1st IF, three selectable roofing filters are provided, in bandwidths of 3 kHz, 6 kHz, and 15 kHz, to protect the following
stages from strong signals that could degrade dynamic range in the first IF amplifier and subsequent stages. The roofing filters are
automatically assigned according to the operating mode, but the operator may override the automatic selections on the fly.
CONTOUR Filter Enhances “Analog Feeling” of DSP Filters (Page 25, 70)
The DSP-based Contour system is a unique five-band filter that may be used to roll off or peak the IF response. It is chiefly useful for
modifying the response of the ultra-sharp DSP filters, allowing you to roll off (or emphasize) certain frequency components. Oftentimes,
the result is that a difficult-to-understand signal suddenly will pop out of the background noise as solid copy.
SLOPED AGC Circuitry (Page 82)
In traditional AGC systems, all signals rising above a certain RF level are then clamped together at the same audio output, so as to
prevent distortion throughout the IF and AF stages. In the FT DX 9000D, however, you can engage the “Sloped” AGC capability to
provide an AGC response whereby ever-increasing signal strength results in a slightly-louder audio response, still without accompany-
ing distortion. This lets you use your brain to sort out weak signals from strong ones more effectively.
Receiver AF Limiter Circuit (Page 33, 83)
Occasionally a noise burst or a sudden transmission from a loud station may startle you if you have the AF Gain turned up, and may even
damage your hearing temporarily. The FT DX 9000D provides an AF Limiter (AFL) circuit which, once engaged, clamps an upper limit
on the available audio output power, much like the AGC circuit does in the RF and IF stages.
“Adjacent Channel Encroachment” S-Meter Monitor (Page 33, 84)
When operating CW in a narrow bandwidth like 300 Hz, you may not be aware of the presence of strong stations that may be making it
difficult for others to hear you. In these situations, the “ACM” (Adjacent Channel Monitor) will take over the Sub Receiver, center it on
the Main Receiver frequency, and display ± 1.2 kHz of signal activity on the Sub Receiver’s S-meter (without feeding the interfering
audio through). This alerts you to the situation, and you can QSY or ask the other station to QSY.
Rugged, High-Output Final Amplifier Design (Page 97)
The final amplifier stage of the FT DX 9000D utilizes push-pull SD2931 MOS FET devices in a conservative, high-stability design. The
large-area die-cast aluminum heat sink is monitored thermostatically, and a quiet cooling fan will engage when the heat sink temperature
rises during long periods of high-power transmission.
Ultra-linear Class-A Operation Capability (Page 96)
The FT DX 9000D’s Class-A capability provides ultra-linear amplifier operation at 75 Watts of power output. Typically, 3rd-order IMD
products are suppressed more than 50 dB, while 5th- and higher-order distortion products are at least 70 dB down during Class-A
operation.
Parametric Microphone Equalizer Circuit (Page 94)
For unmatched flexibility in tailoring your microphone’s audio to match your voice, Yaesu’s engineers have incorporated the industry’s
first Three-Band Parametric Microphone Equalizer, which allows you to enhance or suppress frequency components in three different
audio bands. Equalization may be applied independently to microphones attached to the front and rear panel microphone jacks.

Page 10 FT DX 9000D OPERATION MANUAL
ACCESSORIES
SUPPLIED ACCESSORIES
Plug Details and Part Numbers
FH-2
Remote Control Keypad
CF Card
(128 MB: Q9000855)
AC Power CordÚ1
Microphone Extend Cable
Ú2
(8 Pin Ù Modular)
Plugs
RCA Plug (P0091365)
6 pcs
Items are shown for illustrative purposes only, and may vary slightly in appearance.
Ú2: AC Power Cord
USA: T9017882
Europe: T9013285
Australia: T9013283A
UK: T9013285
Ú2: This microphone cable (T9101549) is for use with
the optional MD-200A8X, MD-100A8X, or MH-
31B8 microphones.
3.5 mm 2-contact Plug
(P0090034)
2 pcs
3.5 mm 3-contact Plug
(P0091046)
1 pc
1/4-inch 3-contact Plug
(P0090008)
2 pcs
4-pin DIN Plug (P0091004) 1 pc
5-pin DIN Plug (P0091006) 1 pc
7-pin DIN Plug (P0091419) 1 pc
8-pin DIN Plug (P0090651) 1 pc
POperating Manual
PWarranty Card

Page 11FT DX 9000D OPERATION MANUAL
OPTIONS
External Speaker with Dual Speakers and Audio
Filter
SP-9000
Lightweight Stereo Headphones
YH-77STA
Linear Amplifier / AC Power Supply
VL-1000 / VP-1000
Ultra-High-Fidelity Desk-Top Microphone
MD-200A8X
Desk-Top Microphone
MD-100A8X
AVAILABLE OPTIONS
MD-200A8X
Antenna Rotator Connection Cable: T9101556

Page 12 FT DX 9000D OPERATION MANUAL
INSTALLATION AND INTERCONNECTIONS
ANTENNA CONSIDERATIONS
The FT DX 9000D is designed for use with any antenna system providing a 50 Ohm resistive impedance at the desired
operating frequency. While minor excursions from the 50-Ohm specification are of no consequence, the transceiver’s
Automatic Antenna Tuner may not be able to reduce the impedance mismatch to an acceptable value if the Standing Wave
Ratio (SWR) present at the Antenna jack is greater than 3:1.
Every effort should, therefore, be made to ensure that the impedance of the antenna system utilized with the FT DX 9000D
be as close as possible to the specified 50-Ohm value.
Any antenna to be used with the FT DX 9000D must, ultimately, be fed with 50 Ohm coaxial cable. Therefore, when using
a “balanced” antenna such as a dipole, remember that a balun or other matching/balancing device must be used so as to
ensure proper antenna performance.
The same precautions apply to any additional (receive-only) antennas connected to the RX ANT jack; if your receive-only
antennas do not have an impedance near 50 Ohms at the operating frequency, you may need to install an external antenna
tuner to obtain optimum performance.
ABOUT COAXIAL CABLE
Use high-quality 50-Ohm coaxial cable for the lead-in to your FT DX 9000D transceiver. All efforts at providing an efficient
antenna system will be wasted if poor quality, lossy coaxial cable is used. This transceiver utilizes standard “M” (“PL-
259”) type connectors, except for the “RX OUT” BNC connectors used for special filters, etc.
1/16"
3/4"
1 1/8"
3/4''
1/8''
5/8''3/8''
Adapter
Typical PL-259 Installation

Page 13FT DX 9000D OPERATION MANUAL
INSTALLATION AND INTERCONNECTIONS
GROUNDING
The FT DX 9000D HF transceiver, like any other HF communications apparatus, requires an effective ground system for
maximum electrical safety and best communications effectiveness. A good ground system can contribute to station effi-
ciency in a number of ways:
UIt can minimize the possibility of electrical shock to the operator.
UIt can minimize RF currents flowing on the shield of the coaxial cable and the chassis of the transceiver; such currents
may lead to radiation which can cause interference to home entertainment devices or laboratory test equipment.
UIt can minimize the possibility of erratic transceiver/accessory operation caused by RF feedback and/or improper
current flow through logic devices.
An effective earth ground system make take several forms; for a more complete discussion, see an appropriate RF engi-
neering text. The information below is intended only as a guideline.
Typically, the ground connection consists of one or more copper-clad steel rods, driven into the ground. If multiple ground
rods are used, they should be positioned in a “V” configuration, and bonded together at the apex of the “V” which is
nearest the station location. Use a heavy, braided cable (such as the discarded shield from type RG-213 coaxial cable) and
strong cable clamps to secure the braided cable(s) to the ground rods. Be sure to weatherproof the connections to ensure
many years of reliable service. Use the same type of heavy, braided cable for the connections to the station ground bus
(described below).
Inside the station, a common ground bus consisting of a copper pipe of at least 25 mm (1”) diameter should be used. An
alternative station ground bus may consist of a wide copper plate (single-sided circuit board material is ideal) secured to
the bottom of the operating desk. Grounding connections from individual devices such as transceivers, power supplies,
and data communications devices (TNCs, etc.) should be made directly to the ground bus using a heavy, braided cable.
Do not make ground connections from one electrical device to another, and thence to the ground bus. This so-called
“Daisy-Chain” grounding technique may nullify any attempt at effective radio frequency grounding. See the drawing
below for examples of proper grounding techniques.
Inspect the ground system - inside the station as well as outside - on a regular basis so as to ensure maximum performance
and safety.
Besides following the above guidelines carefully, note that household or industrial gas lines must never be used in an
attempt to establish an electrical ground. Cold water pipes may, in some instances, help in the grounding effort, but gas
lines represent a significant explosion hazard, and must never be used.
Linear
Amplifier
Power
Supply
Transceiver
Transceiver Linear
Amplifier
Power
Supply
"Daisy Chain"
PROPER GROUND CONNECTION IMPROPER GROUND CONNECTION

Page 14 FT DX 9000D OPERATION MANUAL
CONNECTION OF ANTENNA AND POWER CABLES
Please follow the outline in the illustration regarding the proper connection of antenna coaxial cables, as well as the AC
power cable.
Use a short, thick, braided
cable to connect your sta-
tion equipment to the bur-
ied ground rod (or alterna-
tive earth ground system).
AA
AA
ADD
DD
DVICEVICE
VICEVICE
VICE
yDo not position this apparatus in a location with direct exposure to sunshine.
yDo not position this apparatus in a location exposed to dust and/or high humidity.
yEnsure adequate ventilation around this apparatus, so as to prevent heat build-up and possible reduction of
performance due to high heat.
yDo not install this apparatus in a mechanically-unstable location, or where objects may fall onto this product
from above.
yTo minimize the possibility of interference to home entertainment devices, take all precautionary steps includ-
ing separation of TV/FM antennas from Amateur transmitting antennas to the greatest extent possible, and keep
transmitting coaxial cables separated from cables connected to home entertainment devices.
yEnsure that the AC power cord is not subject to undue stress or bending, which could damage the cable or cause
it to be accidentally unplugged from the rear panel AC input jack.
yBe absolutely certain to install your transmitting antenna(s) such that they cannot possibly come in contact with
TV/FM radio or other antennas, nor with outside power or telephone lines.
Ground Rod
ANTENNA "1" ANTENNA "2" ANTENNA "3" ANTENNA "4"
AB
INSTALLATION AND INTERCONNECTIONS

Page 15FT DX 9000D OPERATION MANUAL
C ONNECTION OF M ICROPHONE , H EADPHONES AND FH-2 R EMOTE C ONTROL K EYPAD
This transceiver was shipped from the factory in configuration for a microphone input via the Front Panel XLR
connector. To use the Rear Panel microphone with an 8-pin round connector, please change the microphone set up
via the Menu.
1. To do this, first press the [MNU]key located an the bottom right corner of the TFT display.
2. The Menu list will appear on the TFT display screen.
3. Rotate the [Main Tuning Dial]knob (VFO-A) to select menu item “MODE-SSB 077 SSB MIC SELECT.”
4. Now rotate the [CLAR/VFO-B]knob to change the setting to Rear.
Available selections are “FRONT,” “REAR,” “DATA,” and “PC.”
5. To save the set-up, press and hold in the [MNU]key for 2 seconds.
If the [MNU]key is not held for 2 seconds, the set-up will not be saved.
NN
NN
NOO
OO
OTETE
TETE
TE: To use the AM or FM mode, please select Menu items “048” for AM and “067” for FM, and follow the same
procedure above.
LOCK
OFFON
MIC ⑧
① UP
② +5V
③ DOWN
④ FAST
⑤ GND
⑥ PTT
⑦ MIC GND
① MIC-GND
③ MIC-Cold
② MIC-Hot
1/4-inch 3-contact jack
Stereo Headphones XLR connector Type Microphone
8-pin Connector Type Microphone
FH-2 Remote Control
Keypad
INSTALLATION AND INTERCONNECTIONS

Page 16 FT DX 9000D OPERATION MANUAL
INSTALLATION AND INTERCONNECTIONS
COMMON
COMMON
DOT
DOT
DASH
DASH
KEY, KEYER, AND COMPUTER-DRIVEN KEYING INTERCONNECTIONS
The FT DX 9000D includes a host of features for the CW operator, the functions of which will be detailed in the “Opera-
tion” section later. Besides the built-in Electronic Keyer, two key jacks are provided, one each on the front and rear panels,
for convenient connection to keying devices.
The Menu system allows you to configure the front and rear panel KEY jacks according to the device you wish to connect.
For example, you may connect your keyer paddle to the front panel KEY jack, and use Menu #049 (F-KEYER TYPE) for
paddle input, while connecting the rear panel’s KEY jack to the keying line from your personal computer (which emulates
a “straight key” for connection purposes), and configure the rear panel jack using Menu #052 (R-KEYER TYPE).
Both KEY jacks on the FT DX 9000D utilize “Positive” keying voltage. Key-up voltage is approximately +5V DC, and
key-down current is approximately 1 mA.
AA
AA
ADD
DD
DVICEVICE
VICEVICE
VICE
When connecting a key or other device to the KEY jacks, use only a 3-pin (“stereo”) 1/4” phone plug; a 2-pin plug
will place a short between the ring and (grounded) shaft of the plug, resulting in a constant “key-down” condition
in some circumstances.
Pin 2
GPS DATA IN
Pin 5
GND
CONNECTING AGPS RECEIVER
If you connect a properly-equipped after-market GPS re-
ceiver (not supplied) to the COM port on the back of the
transceiver, the “Rotator” page on the TFT display will au-
tomatically include a Great Circle map centered on your
location.
Connect a GPS receiver capable of output of NMEA-0183
data to the COM port. The data line connects to Pin 2, and
the ground shield connects to Pin 5.
This transceiver can support the GGA, GLL, and RMC Data
Sentences from the GPS unit.

Page 17FT DX 9000D OPERATION MANUAL
21
ANT 1
ANT 2
ANT 3
ANT 4
REMOTE
ON
OFF
BAND DATA 1
BAND DATA 2
GND
ALC 2
ALC 1
PTT 2
PTT 1
INPUT 1
INPUT 2
CONTROL
DC48V IN
ANT
ANT 1 ANT 2 ANT 3 INPUT 1
EXT ALC
BAND DATA 1
BAND-DATA 1
BAND-DATA 2
GND GND
DC 48V IN
CONTROL
ALC 1
CONTROL CABLE User constructed （）
BAND DATA CABLE
（） Supplied w/VL-1000
ALC CABLE Supplied w/VL-1000
（）
VP-1000 VP-1000
¾¾
ANTENNA CABLE Supplied w/VL-1000 （）
ANTENNA
~AC IN
BAND DATA 2
INSTALLATION AND INTERCONNECTIONS
VL-1000 LINEAR AMPLIFIER INTERCONNECTIONS
Be sure that both the FT DX 9000D and VL-1000 are turned off, then follow the installation recommendations contained
in the illustration.
On the rear panel of the VL-1000, please set the “ATT” switch to the “ON” position. The 200-Watt power output from the
FT DX 9000D is far in excess of what is required to drive the VL-1000 to its full rated output.
NN
NN
NOO
OO
OTETE
TETE
TE
yPlease refer to the VL-1000 Operating Manual for details regarding amplifier operation.
yPlease do not attempt to connect or disconnect coaxial cables when your hands are wet.
About the CONTROL Cable
The VL-1000 may be operated with the FT DX
9000D whether or not the CONTROL Cable is
connected; however, the CONTROL Cable allows
you to tune up the amplifier automatically by just
pressing the [F SET]or [TUNE]key on the VL-
1000, so as to transmit a carrier for tuning pur-
poses.
To link the FT DX 9000D and VL-1000 Power
switches, set the VL-1000 REMOTE switch to the
ON position.
Control Cable Modification
Please cut off the RCA connector on one end of
the CONTROL Cable supplied with the VL-
1000, and install a 7-pin DIN connector in its
place, according to the illustration.
Pin 7
TRQ
Pin 3
GND
Pin 9
F SET COMMON
Pin 11
F SET 2

Page 18 FT DX 9000D OPERATION MANUAL
INTERFACING TO OTHER LINEAR AMPLIFIERS
NN
NN
NOO
OO
OTETE
TETE
TE
yThe TX/RX switching in the linear amplifier is controlled by switching components in the transceiver. The
relay circuit of the FT DX 9000D used for this switching is capable of switching AC voltage of 100 Volts at up
to 300 mA, or DC voltages or 60 V at 200 mA or 30 V at up to 1 Amp. In order to engage the switching relay,
use Menu “TX GNRL 175 EXT AMP TX-GND” within the “TX GNRL” Menu Group; set this Menu selec-
tion to “ENABLE” to activate the amplifier switching relay.
yThe specified range for ALC voltage to be used with the FT DX 9000D is 0 to –4 Volts DC.
yAmplifier systems utilizing different voltages will not work correctly with the FT DX 9000D, and their ALC
lines must not be connected if this is the case.
INSTALLATION AND INTERCONNECTIONS
GND GND RELAYALC
ACFUSEGND
RF INRF OUT
RFOUT
HFAntenna
RFIN
EXTALC
TXGND
GND
ANT1
~ACIN
50MHz
Antenna
Antenna Cable (50 ) Ω
ANT2
GND
