Yakima StickUp User manual

1033429E-1/21
Warranty registration on-line at: Yakima.com
TOOLS REQUIRED:
ADJUSTABLE WRENCH
Important warnIng
ItIs crItIcal that all yakIma racks and accessorIes be properly and securely attached to your vehIcle. Improper attachment could
result In an automobIle accIdent, and could cause serIous bodIly Injury or death to you or to others. you are responsIble for
securIng the racks and accessorIes to your car, checkIng the attachments prIor to use, and perIodIcally InspectIng the products
for adjustment, wear, and damage. therefore, you must read and understand all of the InstructIons and cautIons supplIed wIth
your yakIma product prIor to InstallatIon or use. Ifyou do not understand all of the InstructIons and cautIons, or If you have no
mechanIcal experIence and are not thoroughly famIlIar wIth the InstallatIon procedures, you should have the product Installed by a
professIonal Installer.
•Do not use with a
hitch-extender.
•Only use with Yakima
2" hitch adapter.
•Do not use TubeTop
accessory with this
product.
In addition, some
undersized receivers may
not accept this product.
If you do not know the
capabilities of your hitch
receiver, consult an
automotive professional.

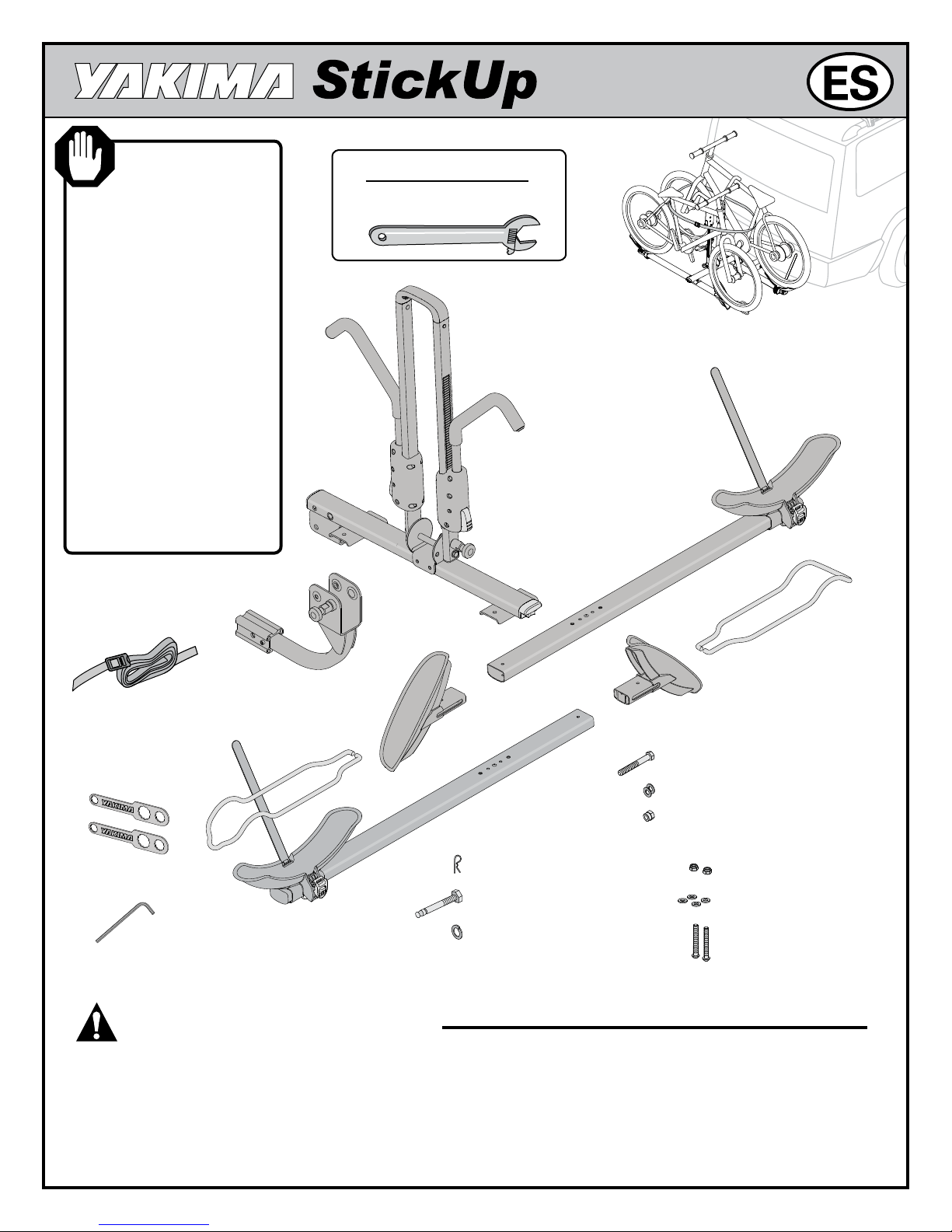

HEX WRENCH (1X)
MAST (1X)
WHEEL HOOP (2X)
WHEEL TRAY (2X)
SUPPORT TUBE (2X) CAP SCREW (2X)
NYLOC NUT (2X)
WASHER (4X)
WRENCH (2X)
HITCH BOLT (2X)
LOCK
WASHER (2X)
SAFETY PIN (1X)
BOLT (1X)
WASHER (2X)
TOUNGE (1X)
NYLOC NUT (1X)
Part #1033429 Rev.E
LONG STRAP (1X)

1033429E-2/21

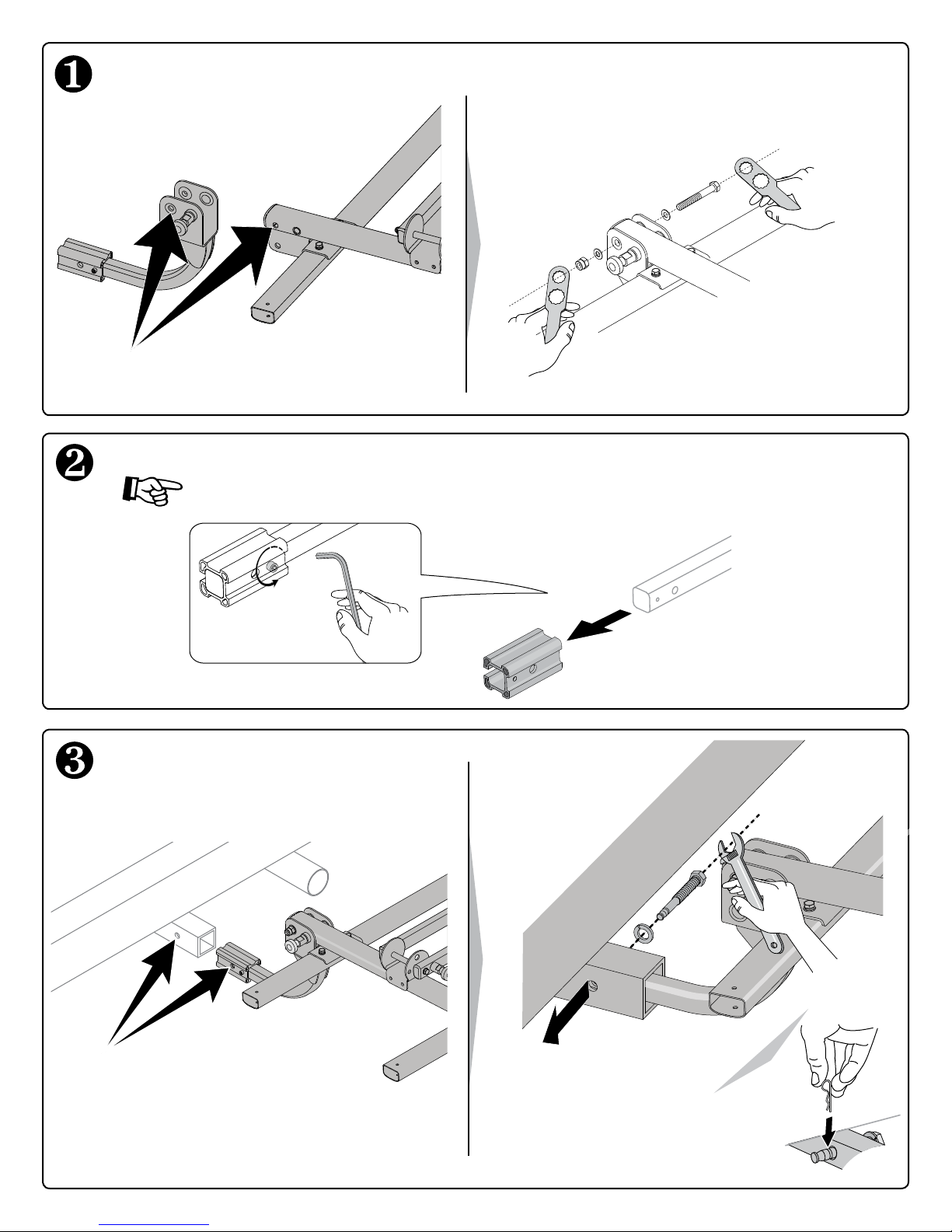

FaStEn HItCH BoLt.
•Insertboltthroughwasher,
and through holes on
tongue and main assembly.
•Install second washer and
nyloc nut.
•Tightenwithsupplied
wrenches.
For 1 1/4" HItCH onLy: rEmovE tHE HItCH adaptEr.
•Removethe
set screw.
For 2" HItCHES SkIp tHIS StEp and proCEEd to StEp 3.
attaCH tonguE to maIn aSSEmBLy.
Align holes on tongue assembly
with holes on main assembly.
Align holes on hitch
and tongue.
•Inserthitch
bolt and lock-
washer from
right to left.
•Tightenwith
adjustable
wrench.
•Installsafetypin.
•Removetheadapter.
NOTE: Long bolt for 2" receivers.
Short bolt for 1 1/4" receivers.

1033429E-3/21

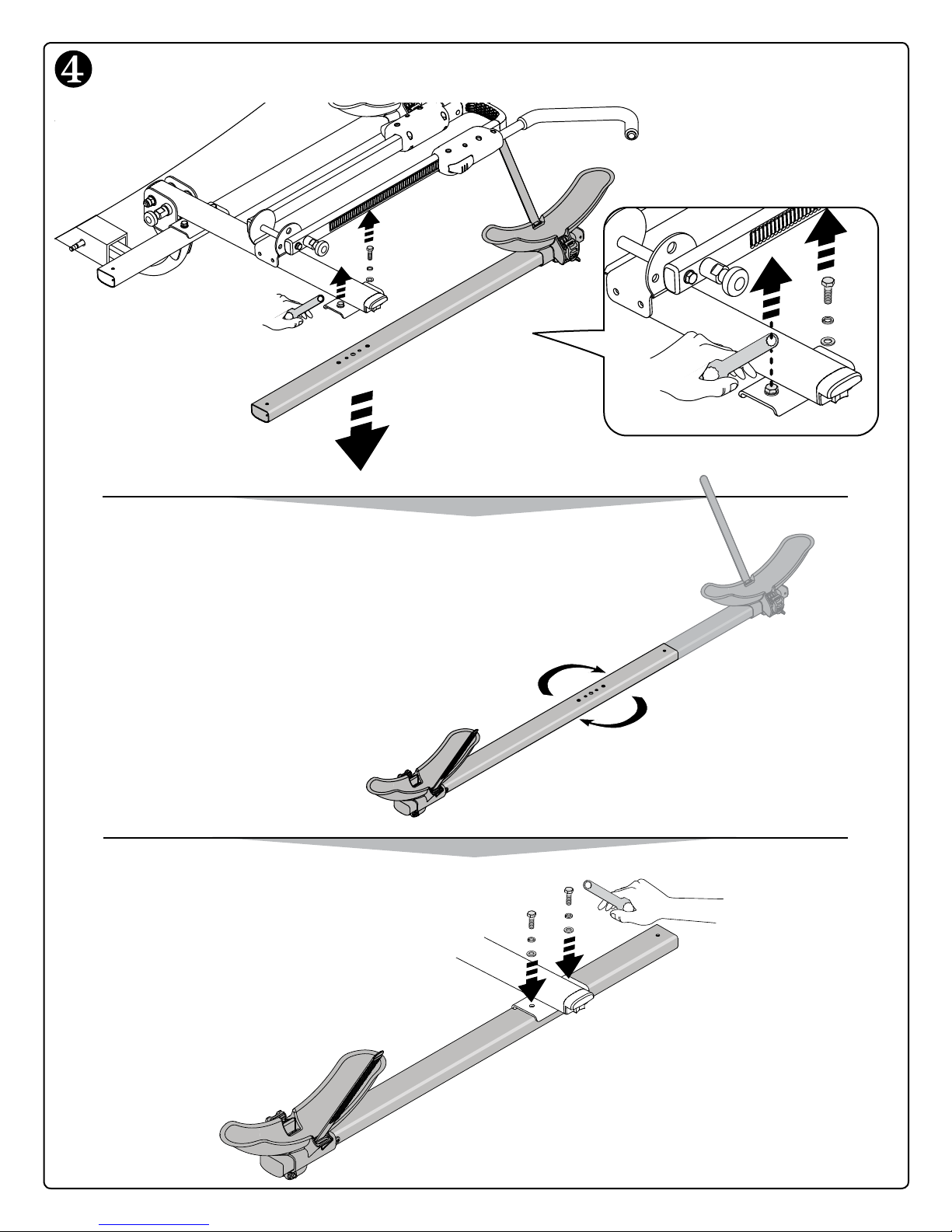

FLIp outErmoSt Support tuBE.
•Usingsupplied
wrench remove
both sets of bolts,
washers, and lock
washers. Set aside.
•Removesupporttube.
•Rotatesupporttube180°.
Place rotated support
tube back on bracket.
Align holes.
Secure support tube using
supplied wrench. Fasten and
tighten both sets of bolts,
washers, and lock washers.

1033429E-4/21

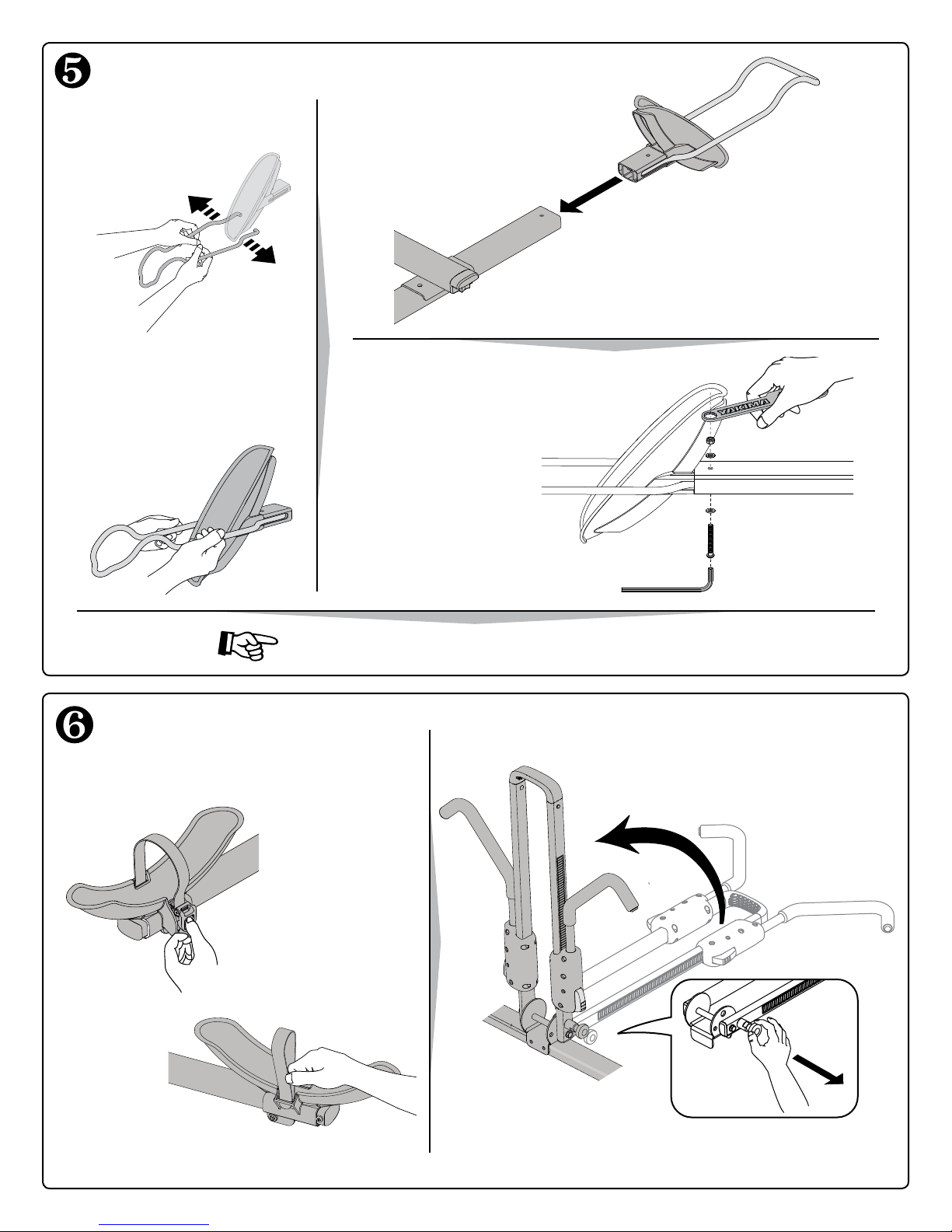

InStaLL wHEEL trayS.
•Insertcapscrew
through washer, and
through holes on tube.
•Install second washer
and nyloc nut.
•Tighten using
supplied wrench, and
supplied hex wrench.
rEpEat For SECond FIXEd wHEEL tray.
prEparE For LoadIng.
Tuck strap into slot at
rear of wheeltray.
Release
wheelstrap
by pressing
the lever on
the buckle.
Pull Knob.
Raise Mast.
Pull wheel hoop
apart. Put in place
around wheeltray
as shown below.
Release letting wire rest in
hole, and slot of wheeltray.
Insert into
opening of tube.

1033429E-5/21

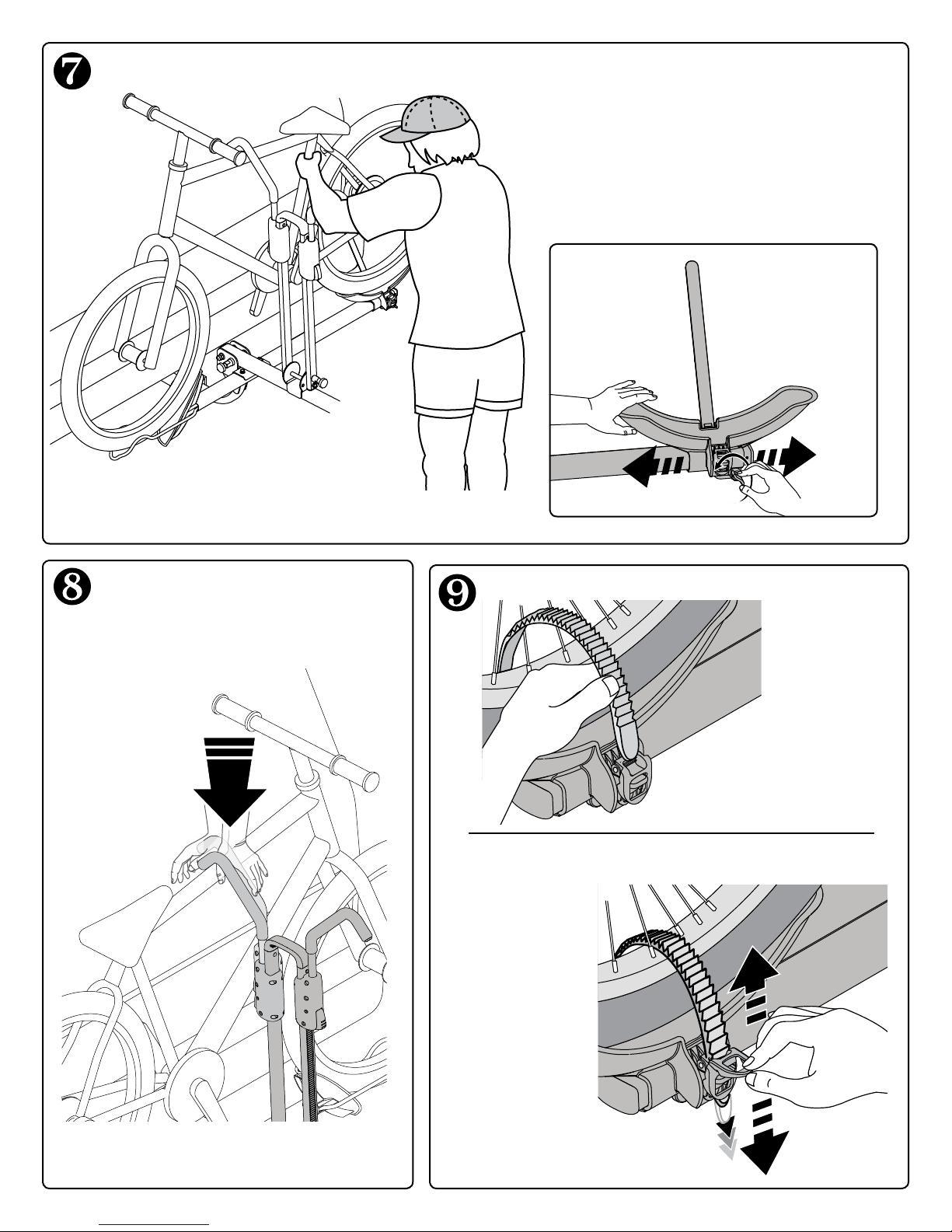

Load your BIkES. •Loadheaviestbike
first. Load it closest
to the vehicle.
•Set your bike in
place.
•Loosen sliding
wheel tray, and
adjust if necessary.
•Tighten knob.
Insert the strap end
through the top of
the ratchet buckle.
Move the ratchet
tab up and down to
tighten the strap.
tIgHtEn rEar wHEEL Strap.
SECurE tHE Hook.
Compress the
hook against
the frame by
applying firm
pressure.
Feed the
strap through
the spokes of
wheel.
Rotate the wheel
slightly, if necessary.
SECurE rEar wHEEL Strap.

1033429E-6/21
Now that you’ve installed your
Yakima StickUp take a moment to
enjoy your beverage of choice.
Use the built in bottle opener to
crack open a cold one.
•Donotdrinkalcoholanddrive.
•Donotdrinkalcoholandride.

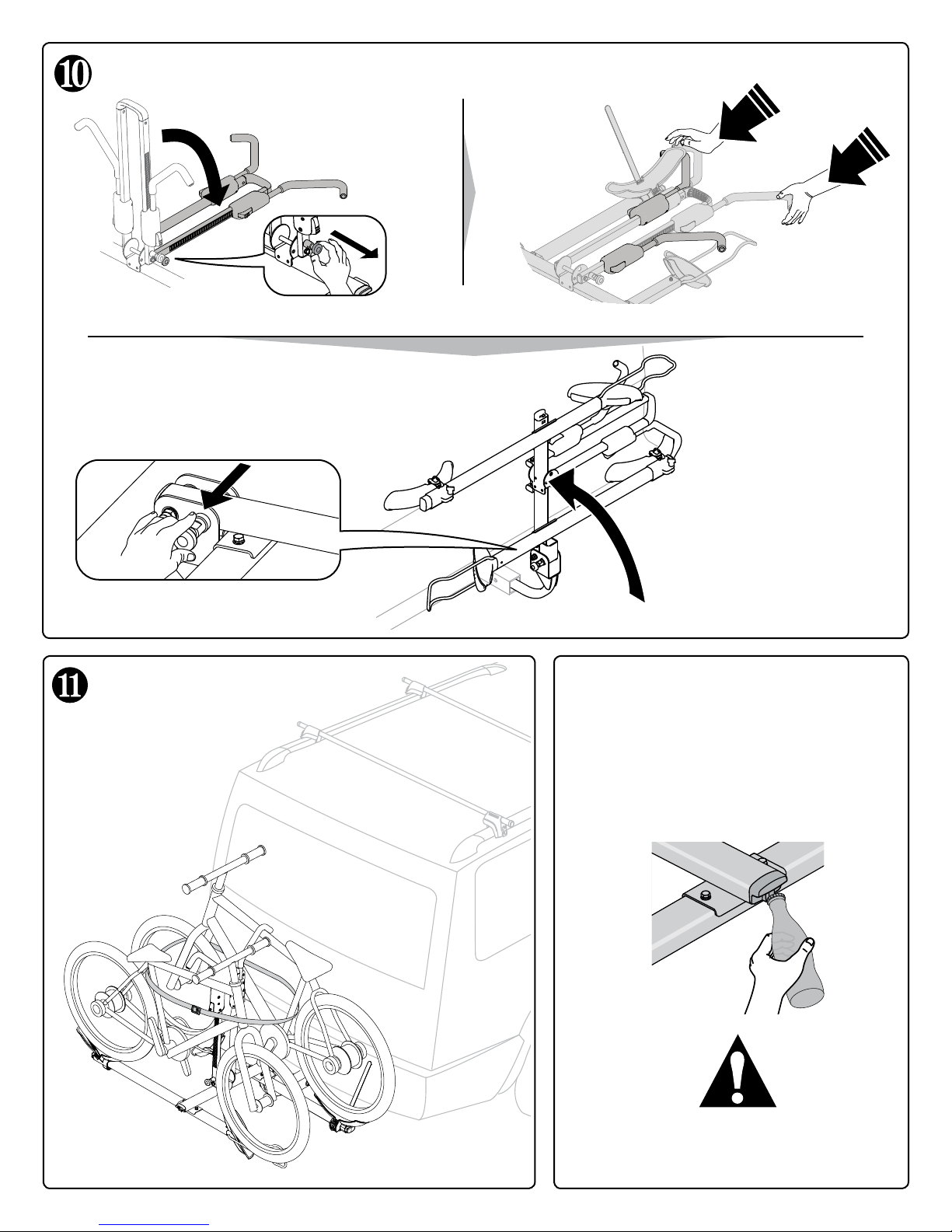

Pull Knob.
Fold mast down.
Push rear hook
in securing it
underneath
wheel tray.
Push front hook
in as shown.
Fold StickUp up. Be sure it
locks into upright position.
Pull Knob.
wHEn not In uSE FoLd StICkup up.
•Use Long Strap
to secure bikes
to mast.
•Secure loose
strap end.
SECurE BIkES.

1033429E-7/21
•Neverdriveoff-roadwithbicyclesloaded.
•Donotusewithbikesthathavestepthroughorseverely
sloped, angled top tubes.
•DonotuseTubeTopaccessorywiththisproduct.
•Donotinstallontrailers,campers,orRVs.
•Donotpositionbicycletiresnearvehicle’shotexhaust.
•Donotinstallifsparetirecausesinterferencewithbikesor
folded carrier.
•Beforedrivingawayalwayscheckthatallhardwarehasbeen
fully tightened.
BIkES:
•Makesureyourtiresarelledtorecommendedpressurefound
on the tire.
•Donotcarrytandemorrecumbentbikes.
•Do not transport bicycles with attached baby seats, panniers,
wheel covers, full bike covers or motors.
Important Load LImItS:
HItCH Load IS LImItEd to 45 LBS. (20kg) pEr BIkE.
InStaLL tHIS
produCt on 2"
and 1 1/4" HItCH
rECEIvErS onLy.
Remove this rack before entering an automatic car
wash, and when not in use.
MAINTENANCE: Periodically use non-water soluble
lubricant on moving metal parts. Use a soft cloth with
water and mild detergent to clean rubber parts.
In addition, some undersized
receivers may not accept this
product. If you do not know the
capabilities of your hitch receiver,
consult an automotive professional.
•Donotusewitha 
hitch-extender.
•Onlyusetheincluded
2” hitch adapter.
TECHNICAL ASSISTANCE OR REPLACEMENT PARTS:
GO ONLINE: WWW.YAKIMA.COM
Contact your dealer or call
[phone]
Monday through Friday
7:00 am to 5:00 pm PST
k E E p t H E S E I n S t r u C t I o n S !
Attachment hardware can loosen over time. Check before each use, and tighten if necessary.
Failure to obey load limits can result in property damage, personal injury, or death.
This product is covered by YAKIMA’s
“Love It Till You Leave It” Limited Lifetime Warranty
To obtain a copy of this warranty, go online to www.yakima.com
or email us at [email protected]
orcall(888)925-4621

1033429E-8/21
