Yamaha RS-65 Installation guide

ヤマハ電子ドラムラックシステム 
RS65
   組立説明書
このたびはヤマハ電子ドラムラックシステム RS65 をお買い上げいただきまして、まことにありがとうございます。
お使いになる前に、この組立説明書をよくお読みになり、安全に正しくお使いくださいますようお願い申し上げます。

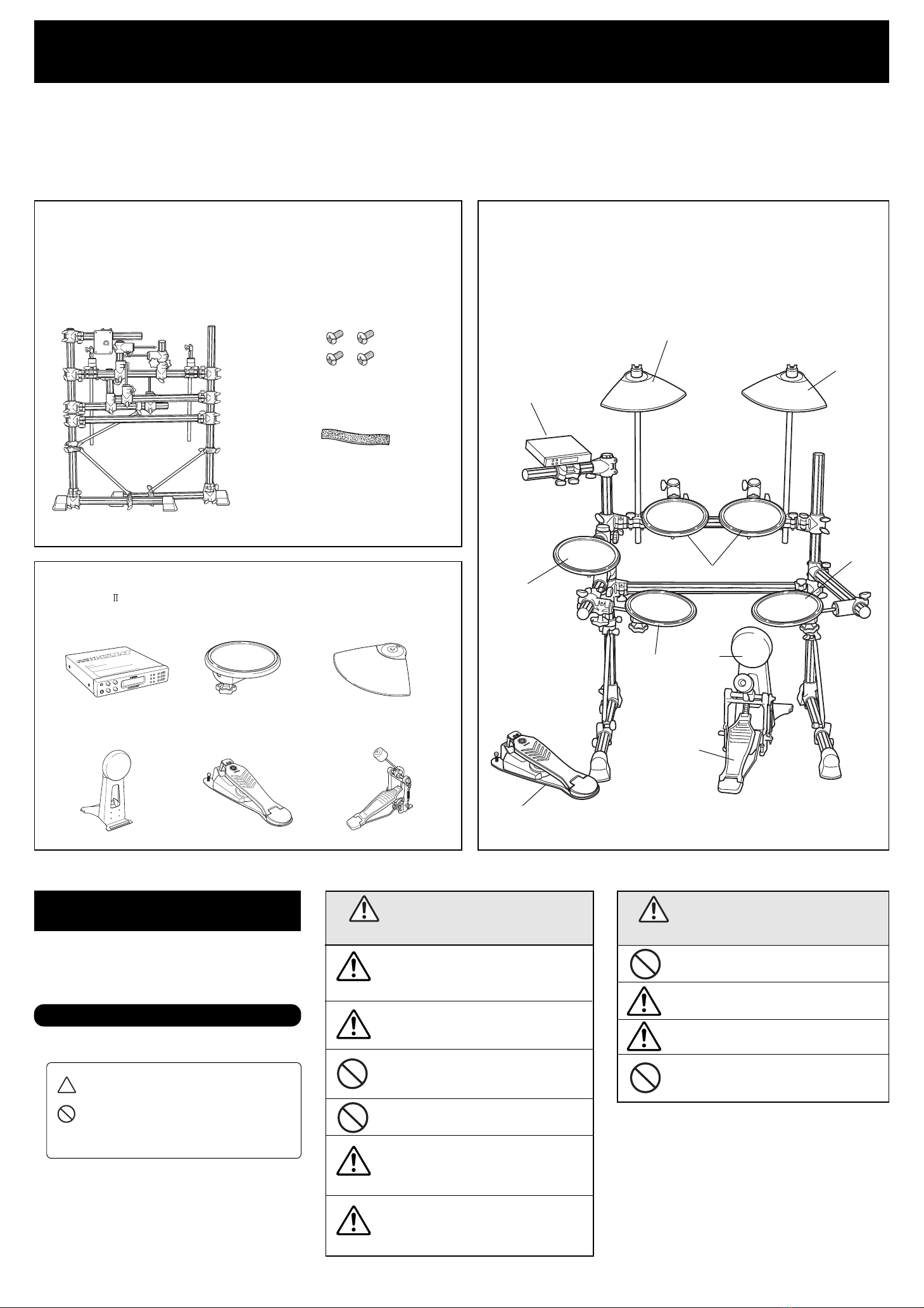

■RS65 梱包内容 ■RS65 +パッド類:セットアップ例
※ ラックを組み立てる前に、すべての部品がそろっ
ていることを確認してください。
●パッド、ドラムトリガーモジュール類(別売品)
qDTXPRESS

ドラムトリガーモジュール
wTP65/65S
ドラムパッド
ePCY65/65S
シンバルパッド
rKP65
キックパッド
tHH65
ハイハットコントロールペダル
yフットペダル
※FP-700 など
*仕様および外観は改良のため予告なく変更する場合があります。
安全へのこころがけ
ご使用の前に、この『安全へのこころがけ』を
よくお読みのうえ正しくお使いください。
特にお子様には、最初にご家族の方、
または指導者から取扱い方法の指導をお願いいたします。
人身傷害の危険を防止するには
〜以下の指示を必ず守ってください〜
注意(危険・警告を含む)を促す
内容があることを告げるものです。
禁止の行為を告げるものです。
行為を強制したり指示する
内容を告げるものです。
■ヤマハ株式会社 EM 営業統括部
各地区お問い合わせ先
●EM 北海道
〒064-8543札幌市中央区南 10 条西 1 丁目 1-50
TEL011(512)6113
●EM 仙台
〒980-0804仙台市青葉区大町 2-2-10
TEL022(222)6147
●EM 東京
〒108-8568東京都港区高輪 2-17-11
TEL03(5488)5471
●EM 名古屋
〒460-8588名古屋市中区錦 1-18-28
TEL052(201)5199
●EM 大阪
〒542-0081大阪市中央区南船場 3-12-9
TEL06(6252)5231
●EM 九州
〒812-8508福岡市博多区博多駅前 2-11-4
TEL092(472)2130
ホームページ http://www.yamaha.co.jp/
設置場所は床面が平らで丈夫な所にしてくださ
い。床が傾いていたり、段差がありますと不安定
となり、転倒する恐れがあります。
固定用ネジはしっかり締め付けてください。
転倒、落下等によりけがの原因となります。
高さや角度の調整をおこなう際、急にネジを緩め
ないでください。パッドが落下したり、ラック、
パイプが滑り落ちて手や指を挟む等けがの原因と
なります。
ラックに腰かけたり踏み台にしないでください。転
倒したり壊れたりして、けがの原因となります。
小さなお子様が触ったり、近づく場合は注意して
ください。多くのパイプやアームが並びますの
で、動きによっては体をぶつけたりして、けがを
する恐れがあります。
パッドやモジュールのセッティングの際は、ケー
ブルの引きまわしに注意してください。
足を引っかけて転倒する恐れがあります。
この表示を無視して誤った取扱いをす
ると、人が死亡又は重傷を負う危険の
恐れがある内容を示しています。
警告
フットスイッチやフットペダルの下に、手や足を入
れないでください。
挟まれてけがの原因となります。
クランプを調節する際、指に注意してください。
指が挟まれてけがをする恐れがあります。
パイプの端面や内面及びネジの先端にご注意くださ
い。尖った部分等で指にけがをする恐れがあります。
電子ドラムラックには、アコースティックドラムを
取り付けないでください。クランプの破損や、ドラ
ムの落下などで、けがをする恐れがあります。
この表示を無視して誤った取扱いをすると、
人が傷害を負ったり、財産が損害を受ける危
険の恐れがある内容を示しています。
注意
RS65 総組立(開梱時) トラス小ネジM5x8
(モジュールホルダー止めネジ x4)
ケーブルバンド(x10)
組立説明書(本紙)
e
w
q
w
t
y
w
r
ePCY65S
wTP65S
3DTXPRESS

の取り付け
3-1 モジュールホルダーをホルダークランプより取り外し、
DTXPRESS

を付属のネジで取り付けます。
必ず付属のネジを使用してください。本体の落下や破損の原因
となります。
3-2 再度モジュールホルダーをホルダークランプに取り付けます。
4シンバルパッドの取り付け
シンバルパッドをシンバルホルダーに取り付け、向きを調整し、固
定します。(取り付け方法は、シンバルパッドの取扱説明書をご参照
ください。)
1箱から取り出しましたら、全ての緩衝材を取り外します。
■RS65 組み立て手順
左レッグ集成
クランプやパッドなど各部の固定ネジはしっかりと締め付けてください。
緩かったり締めすぎたりすると、落下や破損の原因となります。ご注意く
ださい。
組み立てが完成したら、キックパッド、ハイハットコントロールペダルな
どをセットし、結線します。各ケーブルは、演奏のじゃまにならないよう
に、ケーブルバンドでパイプに固定しましょう。
一度セッティングされたものを動かす際も、必ずボルトを緩めてから行っ
てください。
2
右レッグ集成
モジュールホルダー集成
各部品のセットアップ
・下図を参考に動かす部分のボルトを緩め、セット完了しましたら
ボルトを締め付け固定します。
セットアップは q〜uの順番で進めます。
注意:セットアップ前に  印内のボルトをあらかじめ緩めてから
行ってください。
y
サイドアーム(L)集成
サイドアーム(R)集成
シンバルホルダー
シンバル
パッド
手順4
ドラムパッド
5ドラムパッドの取り付け
ドラムパッドを六角ロッドシリンダーに取り付け、向きを調整し、
固定します。
手順5
モジュール
ホルダー
ホルダー
クランプ
手順3-1 手順3-2
DTXPRESS

rt
q
w
e
u
 ※RS65本体は各部品がすでに組まれた状態で梱包されています。箱から取り出しましたら、以下の手順に従って組立完成させてください。
  DTXPRESS

を取り付ける際、ドライバー(+)を使用します。あらかじめご用意ください。
EM 営業統括部企画推進室
TEL.03(5488)5445
V960280
ハイハット用ドラムパッドクランプは
こちらにも取り付けることが
できます。
ドラムパッド
クランプ
←注意
注意→
YAMAHA
Electronic Drum Rack System Assembly Instructions
Thank you for purchasing the Yamaha Electronic Drum Rack System RS65.
Before using, thoroughly read these assembly instructions, and use this product safely and correctly.
RS65
* Specifications are subject to change without notice.
PRECAUTIONS
Before using, please read this “Assembly Instruction” sheet,
and use this product in a safe and proper manner.
Especially for children, parents or an instructor should teach the
children the proper manner in which to use the device.
Topreventagainstaccidentsandinjury
Pleasefollowthecautionslistedbelow
Caution (including danger, or warning). This mark indicates
cautions in which you should pay close attention to.
Acts indicated with this icon are prohibited and should not
be attempted.
This icon indicates acts that you are urged to follow.
●
* Specifications are subject to change without notice.
Always set the instrument on a flat and solid surface.
Placement on a sloping, unstable surface or on steps
may result in the instrument being unstable and over-
turning.
Make sure all bolts are tightened firmly. Loose bolts
may result in the rack overturning or parts dropping
causing injury.
When adjusting the height or angle, do not suddenly
loosen the bolt. The pad may drop, the rack or pipes
may slip, pinching or causing injury to hands or fingers.
Do not sit or step on the rack. The rack may overturn
or be damaged resulting in injury.
Please be careful when children are close to or touch-
ing the product. The product has many pipes and arms
so careless movement around the product may result
in injury.
When setting the pads and modules, please pay close
attention in regards to the handling and setting of
cables. Feet may become entangled in the cables re-
sulting in falls.
If this symbol is ignored and the equipment is
used improperly, fatal injury to persons or se-
rious damage could occur.
Do not put your hands or feet under the foot pedal or
foot switch. They may be pinched resulting in injury.
Watch your fingers when adjusting clamps. They may
become pinched resulting in injury.
Be careful around pipe ends, inside the pipe and screw
ends. Metal shavings, etc. may injure your fingers.
Do not attach acoustic drums to the electronic drum
rack. Clamps may be damaged and drums may drop,
causing injury.
If this symbol is ignored and the equipment is
used improperly, there is a danger of injury to
persons handling the equipment, and material
damage could occur.
CAUTION
WARNING
e
w
q
w
t
y
w
r
■RS65 Rack Stand Parts ■RS65+Pad grouping : Set up example
* Before assembling the rack stand, make sure all of the parts shown below
are included.
●Pad and Drum Trigger Grouping (option)
qDTXPRESS
Drum Trigger Module
wTP65/65S
Drum Pad
ePCY65/65S
Cymbal Pad
rKP65
Kick Pad
tHH65
Hi-hat Control Pedal
yFoot Pedal
* FP-700 etc.
Cable Band (x10)
Assembly Instructions
(this sheet)
ePCY65S
wTP65S
Overall Assembly RS65
(When the box is opened)
Small Screws M5 X8
(Module Holder Fixing Screws X4)
PrintedinIndonesia
3
4
1
2
y
5
rt
q
w
e
u
*Parts for the RS65's main structure have already been assembled before packing. After removing the unit from the box, follow
the instructions described below to complete the assembly.
A Phillips (+) screwdriver is required when attaching the DTXPRESS
module. Please prepare one before starting assembly.
■RS65 Assembly
Drum Pad
Step 3-2
Step 5
Step 4
Step 3-1 Cymbal Pad
Cymbal Holder
Left Leg Assembly
Right Leg Assembly
Module Holder Assembly
Side Arm (L) Assembly
Side Arm (R) Assembly
DTXPRESS
Holder
Clamp
Module
Holder
Drum Pad
Clamp
After removing the unit from the box, remove all cushion material.
Setting up the parts
•Loosen the bolts on the movable arms and legs, as shown in the dia-
grams below, then secure the bolts firmly once setting is complete.
Follow the setup order (q-u) in the diagrams shown below.
Caution : Make sure the bolts marked with a " " are loosened before
setting up.
Attaching the DTXPRESS
3-1 Remove the module holder from the holder clamp, and use the
supplied screws to attach the DTXPRESS
.
Make sure only the supplied screws are used. Using any other
screws may result in the unit falling off the holder or damage.
3-2 Reattach the module holder to the holder clamp.
Attaching the cymbal pads
Attach the cymbal pads to the cymbal holders and adjust their position,
then secure in place. (Please refer to the Owner's Manual that came
with the cymbal pads on attaching the cymbal pads.)
Attaching the drum pads
Attach drum pads to the hexagonal rod cylinder and adjust their posi-
tion, the secure in place.
The hi-hat drum pad clamp can
also be attached to this arm.
Make sure all bolts on clamps, pads, etc., are firmly tightened.
Loose or over-tightened bolts may result in the part falling off and/or dam-
age. Please use caution.
After assembly is complete, setup the kick pad, hi-hat control pedal, etc., and
connect the cables. Use the supplied cable bands to secure the cables to the
frame pipes to keep cables out of the way during performance.
If the rack is moved even after setup is complete, make sure the bolts are
loosened before moving the rack.
$
Caution
Caution ^
