DP-6200 Operation Manual
YCO-1111-09-02
YAMATO CORPORATION
1775 S. Murray Blvd.
Colorado Springs, CO 80916 USA
Tel (719) 591-1500 Fax (719) 591-1045
YAMATO TECH CORPORATION
#112-19425 Langley By-Pass
Surrey, B.C. V3S 6K1 Canada
Tel (604) 533-2338 Fax (604) 533-0827
www.YamatoCorp.com

YCO-1111-09-02
DP-6200 Operation Manual
Table of Contents
I. Safety Instructions 1
II. Description 2
Name and Function of Parts
Specifications
III. Setup 5
Assembling the Scale
Adjusting the Indicator Angle
Leveling the Scale
Installing Batteries or AC Adaptor
IV. Directions for Use 6
Turning the Scale On and Off
Checking the Battery Level
Zero the Display
Switching Units
Setting the Over/Under Indicator
V. Weighing 8
Using the Over/Under Indicator
Gross Weighing
Net Weighing
Batching
VI. Troubleshooting and Error Messages 10
VII. User Parameters 12
Setting the User Parameters
User Parameter Table

YCO-1111-09-02
DP-6200 Operation Manual
Before using the scale, carefully read, understand, and follow the “Safety Instructions” described in this manual. Observe
the advice given in the “Directions for Use” section to ensure proper operation. Keep this operation manual handy for
reference.
To prevent injury
1) DO NOT SHOCK LOAD the scale, Never step on or sit on the scale. Not only will the scale be damaged, but you may
also be injured.
2) DO NOT APPLY DIRECT WATER SPRAY to the scale if it is powered by an AC adaptor!! You could receive a shock. The
scale is not washdown unless the AC jack is plugged with a water-tight seal.
4) Do not operate the scale if there is smoke or a burnt smell coming from the scale. Remove the batteries or unplug the
AC adaptor immediately. After making sure that there is no danger, consult your dealer. Never try to repair the scale
by yourself.
5) This scale is not an explosion-proof model. Do not use the scale in an atmosphere containing flammable gases or
explosive fumes. A fire or an explosion can result.
6) Place the item to be weighed in the center of the platform. Items placed on the edge of the platform may fall off and
cause injury.
7) When weighing a heavy, large or unbalanced item, make sure the item is stable on the platform, otherwise an accident
may occur.
8) When carrying or moving the scale, be sure to hold it by the bottom of the weighing platform with both hands. If you hold
it by the column, the column may become detached causing the scale to fall. This will damage the scale and could
cause injury.
9) Do not insert your finger into the gap or holes in the scale. You may be injured.
10) The DP-6200 uses a liquid crystal display. If the LCD breaks and the liquid leaks from the LCD, do not touch it with your
fingers. The liquid is toxic if ingested. Be especially careful around small children.
To prevent damage to the scale
1) Do not push the indicator or keys with sharp objects. They may break or puncture the switch membrane panel.
2) Use the specified power supply and choose a suitable environment. If you do not, the weight readings may be inaccu-
rate and the scale may be damaged.
3) The scale is a sensitive weighing instrument, avoid physical shocks. If you drop something on the scale, overload the
scale, step on the platform, or drop the scale, the scale may be damaged and lose accuracy.
4) If the scale becomes dirty, wipe it with a soft cloth. For stubborn stains, apply a little neutral detergent and then wipe the
scale with a dry cloth. Do not use thinner, benzene, hot water, or chemical agents, all of which can cause deformation,
discoloration, or deterioration of the scale.
5) Never remove the case. The fine adjustment section may be damaged and you may be injured by sharp edges on the
internal parts.
6) Do not place the scale upside down.
7) When the low battery indicator appears, replace all six of the batteries. When installing the batteries, install them
according to the polarity markings in the case (+, -). If the scale will not be used for a long period, remove the batteries.
To keep the scale working efficiently
1) Place the scale on a flat stable surface that will support the scale and the load.
2) Do not place the scale in an area exposed to direct sunlight or to wind currents from an air conditioner, otherwise, the
measurements will not be accurate.
3) Do not place the scale near machines that create vibrations or electromagnetic disturbance, such as microwave ovens,
portable phones, or large motors. This will affect the accuracy.
4) The operating temperature range is from –5°C to +35°C (23°F to 95°F). Do not subject the scale to sudden tempera-
ture changes; allow the scale to adjust to the new temperature before use.
5) If the scale is sealed, do not break the seal. If you break the seal, the scale will not be considered legal for trade. In this
case, contact your dealer.
6) Do not disassemble or modify the scale, you will void the warranty. Modified scales will not be legal for trade.
I Safety Instructions
1

YCO-1111-09-02
DP-6200 Operation Manual
II Description
2
INDICATOR
LCD KEYS
COLUMN
COLUMN
BRACKET
FLOAT
LEVEL
LEVELLING
LEGS
PLATFORM
COVER
WEIGHING
PLATFORM
SERIAL NO.
PLATE
AC ADAPTER
JACK
INDICATOR
SETSCREW
ANGLE
ADJUSTMENT
BUTTON
COVER
RELEASE
TAB
COLUMN
COLUMN
BRACKET
STOP
SCREW
STOP
SCREW
HOLE
LOCKING
SCREWS

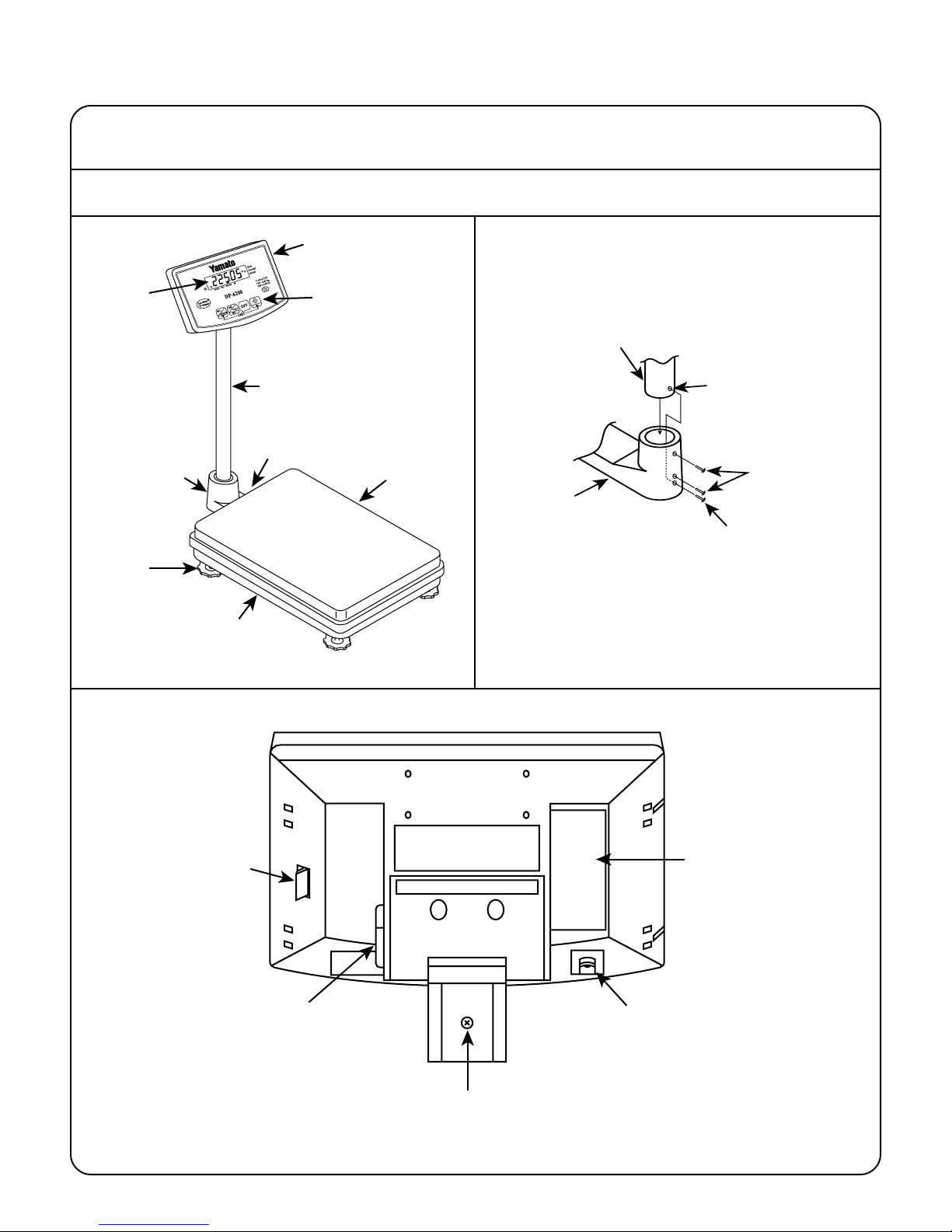

FIG. 1 FIG. 2
FIG. 3
Name and Function of Parts

YCO-1111-09-02
DP-6200 Operation Manual
ON OFF
Over
Accept
Under
CAPACITY
150 x 0.02 kg
300 x 0.05 lb
T
NET GROSSMODE
NET
GROSS
III
DP-6200DP-6200
UNIT
g
lb
oz
143
2
5
678 9

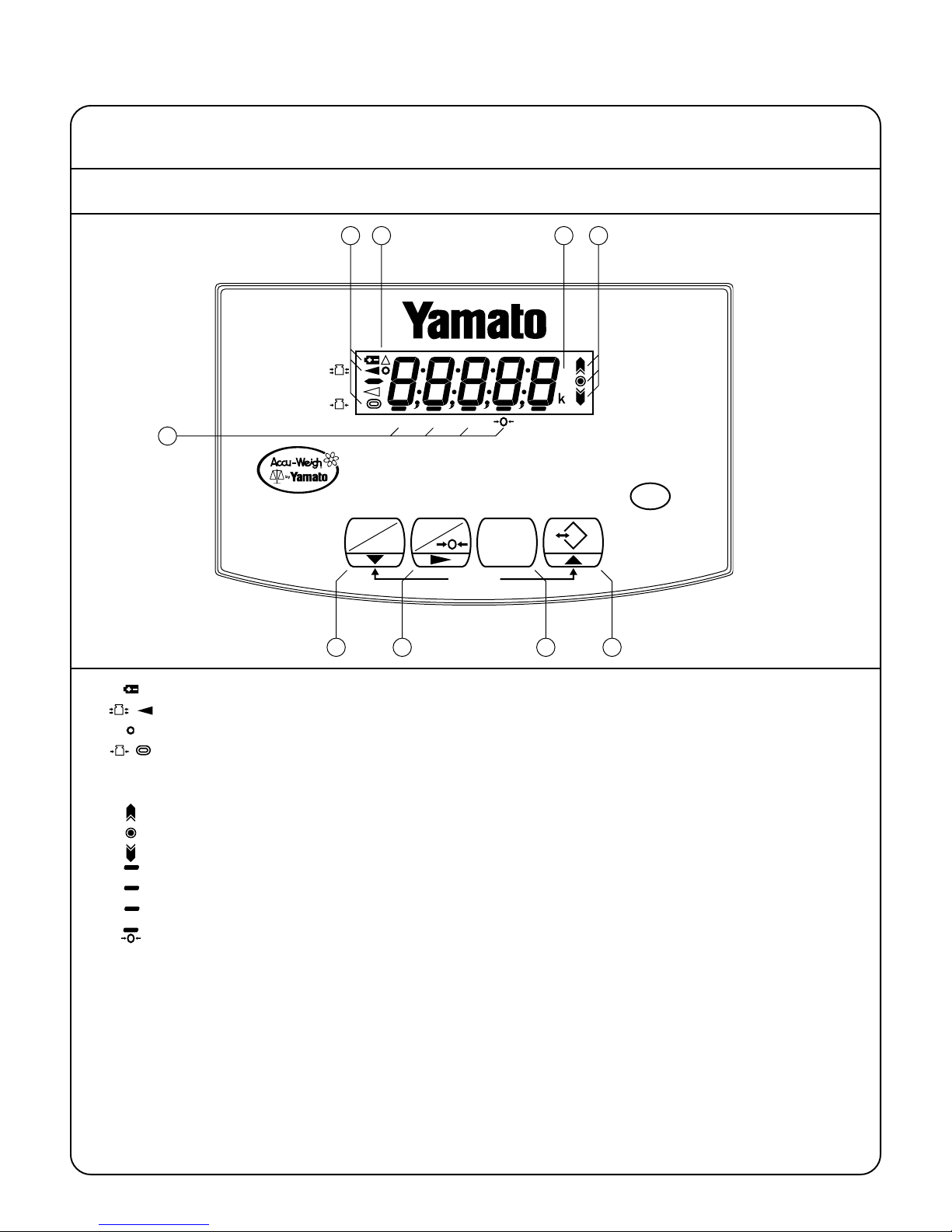

FIG. 4
1) Low Battery Indicator Time to replace the batteries.
Hold Indicator The scale is in Hold mode (not legal-for-trade).
Test/Cal Mode Indicator The scale is in Test or Calibration Mode.
Stable Indicator Indicates the weight indication is stabilized.
2) LCD Display Shows all scale indications and weight readings.
3) Unit Indication KG, LB, OZ and LB-OZ (not legal-for-trade).
4) Over Indicator The current weight is over the user’s maximum setpoint.
Accept Indicator The current weight is within the user’s setpoints.
Under Indicator The current weight is below the user’s minimum setpoint.
5) Mode Indicator The scale is in setup mode.
Net Indicator The scale is indicating net weight.
Gross Indicator The scale is indicating gross weight.
Center of Zero Indicator The scale is at gross zero.
6) Net/Gross Key Toggles between gross and net weight readings.
Decrease Key Decreases setpoints.
Unit Selection Key Press both keys simultaneously to toggle between kilogram and
either pound, ounce or pound-ounce units.
7) On/Zero Key Turns the power on, and zeroes the display.
Next Key Moves to the next setpoint.
8) Off Key Turns the power off.
9) Tare Key Tares off the current weight.
Increase Key Increases setpoints.
Unit Selection Key Press both keys simultaneously to toggle between kilogram and
either pound, ounce or pound-ounce units.
II Description
MODE
NET
GROSS
3
Name and Function of Parts

YCO-1111-09-02
DP-6200 Operation Manual
Specifications
Weighing system: Strain-gauge load cell
Platform: 13.8” x 19.7” (350 x 500 mm), stainless steel
Weight display: Single face display
Type: 7 segment LCD
Character size, etc.: 0.5” (12 mm) (W) x 0.9” (23 mm) (H), 5 digits
Optional equipment: Batteries, AC adaptor, RS-232C communication board
Power supply: 9V DC - six “D” size batteries or AC adaptor (the scale is not
washdown unless the AC jack is plugged with a water-tight seal).
Consumption: 0.12 W (max.)
Battery life: 600 hours of continuous use (when using alkaline batteries.)
Operating temperature: 23°F to 95°F (-5°C to 35°C)
Operating humidity: 25% to 85% RH
Waterproof classification: Complies with NEMA 4 (washdown) when the AC jack is plugged
with a water-tight seal.
Capacities and divisions:
Kilogram Pound Ounce Pound-Ounce*
30 kg x 0.01 kg 60 lb x 0.02 960 oz x 0.5 oz 60 lb x 0.5 oz
60 kg x 0.02 kg 150 lb x 0.05 lb 2400 oz x 1 oz 150 lb x 1 oz
150 kg x 0.05 kg 300 lb x 0.1 lb 4800 oz x 2 oz 300 lb x 2 oz
* Combined units, such as pound-ounce, are not legal-for-trade.
II Description
4

YCO-1111-09-02
DP-6200 Operation Manual
Assembling the Scale
Seat the column (1) firmly in the column bracket (2) . It may be necessary to loosen the stop (3)
and locking (4) screws. Align the stop screw hole in the column with the stop screw and tighten.
The stop screw must enter the stop screw hole for a secure column mount. Tighten the two locking
screws.
Adjusting the Indicator Angle
Loosen the indicator set screw, rotate the indicator right or left to the desired position and tighten the
set screw. Press the angle adjustment button, tilt the indicator up or down to the desired position
and release the button.
Leveling the Scale
Place the scale on a flat and level surface. There is a bubble level indicator next to the column
bracket. The bubble should be in the center of the circle. Adjust the trim by turning the feet in or out
to lower or raise the corner of the scale the foot is on. When the scale is level, tighten the lock nuts
on each foot and recheck the level. If the scale is not level, the readings may not be accurate.
Installing Batteries or AC Adaptor
Open the indicator housing by pulling the release tab (located to the right on the back of the indica-
tor) forward and swinging the front panel of the indicator housing forward and left. Install six “D” size
alkaline batteries observing the polarity markings inside the battery case.
Use only the AC adaptor specified for use with the scale. Using the wrong adaptor can damage the
scale. Insert the adaptor plug securely into the jack on the back of the indicator.
WARNING! The DP-6200 is not washdown unless the AC adaptor jack is plugged with a water-tight
seal.
III Setup
5
1
2
3
4
Foot
Bubble Level

YCO-1111-09-02
DP-6200 Operation Manual
6
Turning the Scale On and Off
Remove everything from the platform surface and press the
ON
key. The display will briefly flash
all segments of the LCD. After approximately 5 seconds, the display will stop flashing and automati-
cally set to zero. Press the
OFF
key to turn the scale off.
Checking the Battery Level
Turn the scale on and push the
T
key while the display is flashing. The remaining battery life will
be displayed. The more “o” that appear, the more life there is left in the batteries. After a few sec-
onds, the scale will start normally.
Zero the Display
The scale will zero automatically when turned on. If a value is displayed when the platform is empty,
push the
ON
key to zero the display. The maximum zero range during power up is approximately
± 1.9% of the scale capacity.
Switching Units
To switch between kilogram and either pound, ounce or pound-ounce units, press and hold the
NET
GROSS
key and press the
T
key.
IV Directions for Use

YCO-1111-09-02
DP-6200 Operation Manual
7
Setting the Over/Under Indicator
1) Place the scale in normal weighing mode.
2) Press and hold the
ON
key and push the
NET
GROSS
key (yellow
tabs).
3) Press the
ON
key to select the digit you want to change. The
flashing underscore will advance to the right.
4) Press the up and down arrows to select the desired value.
5) Repeat steps 3 and 4 until all digits are set. All values below this
setpoint will be indicated as under.
6) Press and hold the
ON
key and push the
NET
GROSS
key (yellow
tabs). This saves the lower limit and moves to the upper limit.
7) Press the
ON
key to select the digit you want to change.
8) Press the up and down arrows to select the desired value.
9) Repeat steps 7 and 8 until all digits are set. All values above
this setpoint will be indicated as over.
10) Press and hold the
ON
key and push the
NET
GROSS
key (yellow
tabs). This saves the upper limit and returns the scale to
normal weighing mode.
To disable the Over/Under indicator, set both setpoints to zero.
IV Directions for Use
lb
lb
lb
lb
lb
lb
lb
lb
lb
lb

YCO-1111-09-02
DP-6200 Operation Manual
8

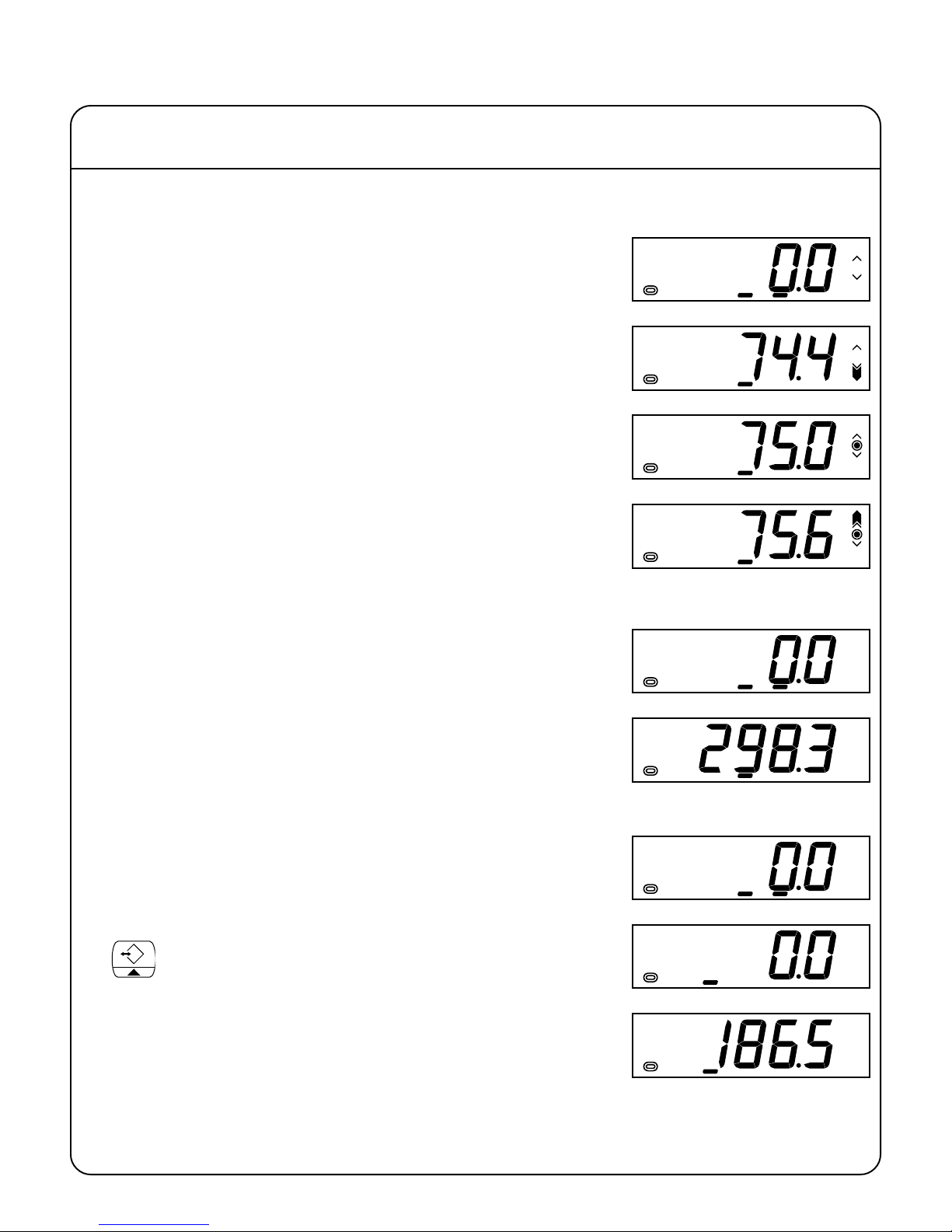

Using the Over/Under Indicator
1) Begin with no load on the scale, the display reading zero, and
the center of zero and stable indicators lit. The small up and
down arrowheads on the right side of the display indicate that
the over and under setpoints, respectively, have been set.
2) Place the item(s) to be weighed on the scale platform. If the
item weighs less than the under setpoint, the large under arrow
will appear.
3) If the item weighs from the lower setpoint to the upper setpoint,
inclusive, the accept bullseye will appear.
4) If the item weighs more than the upper setpoint, the large over
arrow will appear.
Gross Weighing

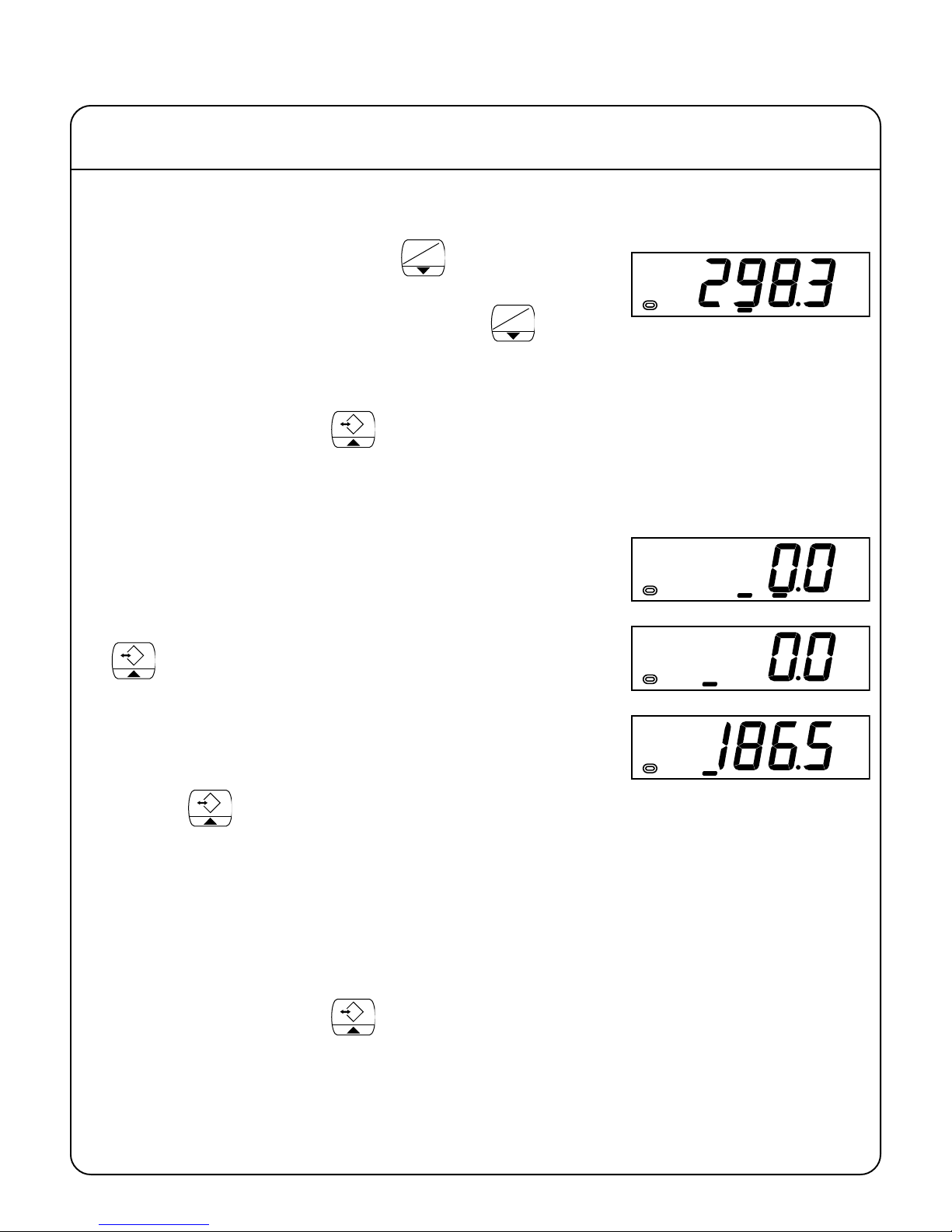

1) Begin with no load on the scale, the display reading zero, and the
center of zero, stable and gross indicators lit.
2) Place the item(s) to weighed on the scale platform and wait for
stable indication. The weight displayed will be the gross weight.
Net Weighing
1) Begin with no load on the scale, the display reading zero, and the
center of zero, stable and gross indicators lit.
2) Place an empty container on the scale platform and press the
T
key. The weight of the container will be deducted automati-
cally, the display will read zero and the net indicator will light.
3) Place the item(s) to be weighed in the container. The weight
displayed will be the net weight.
CAUTION! The total gross weight should not exceed the capac-
ity of the scale. This can damage the load cell.
V Weighing
lb
lb
lb
lb
lb
lb
lb
lb
lb

YCO-1111-09-02
DP-6200 Operation Manual
9
Net Weighing (cont’d.)
4) To display the gross weight, press the
NET
GROSS
key. The gross
indicator will light and the weight displayed will be the gross
weight of the item(s) and the container. Press the
NET
GROSS
key
again to return to the net weight.
5) To return to gross weighing mode, remove all items from the
scale platform and press the
T
key.
Batching
1) Begin with no load on the scale, the display reading zero, and the
center of zero, stable and gross indicators lit.
2) Place an empty container on the scale platform and press the
T
key. The weight of the container will be deducted automati-
cally, the display will read zero and the net indicator will light.
3) Place the first item in the container until the desired weight is
reached.
4) Press the
T
key and the display will return to zero. Place the
next item in the container until the desired weight is reached.
5) Continue in this manner until all items to be batched have been
weighed.
CAUTION! The total gross weight should not exceed the capac-
ity of the scale. This can damage the load cell.
6) To return to gross weighing mode, remove all items from the
scale platform and press the
T
key.
V Weighing
lb
lb
lb
lb

YCO-1111-09-02
DP-6200 Operation Manual
10

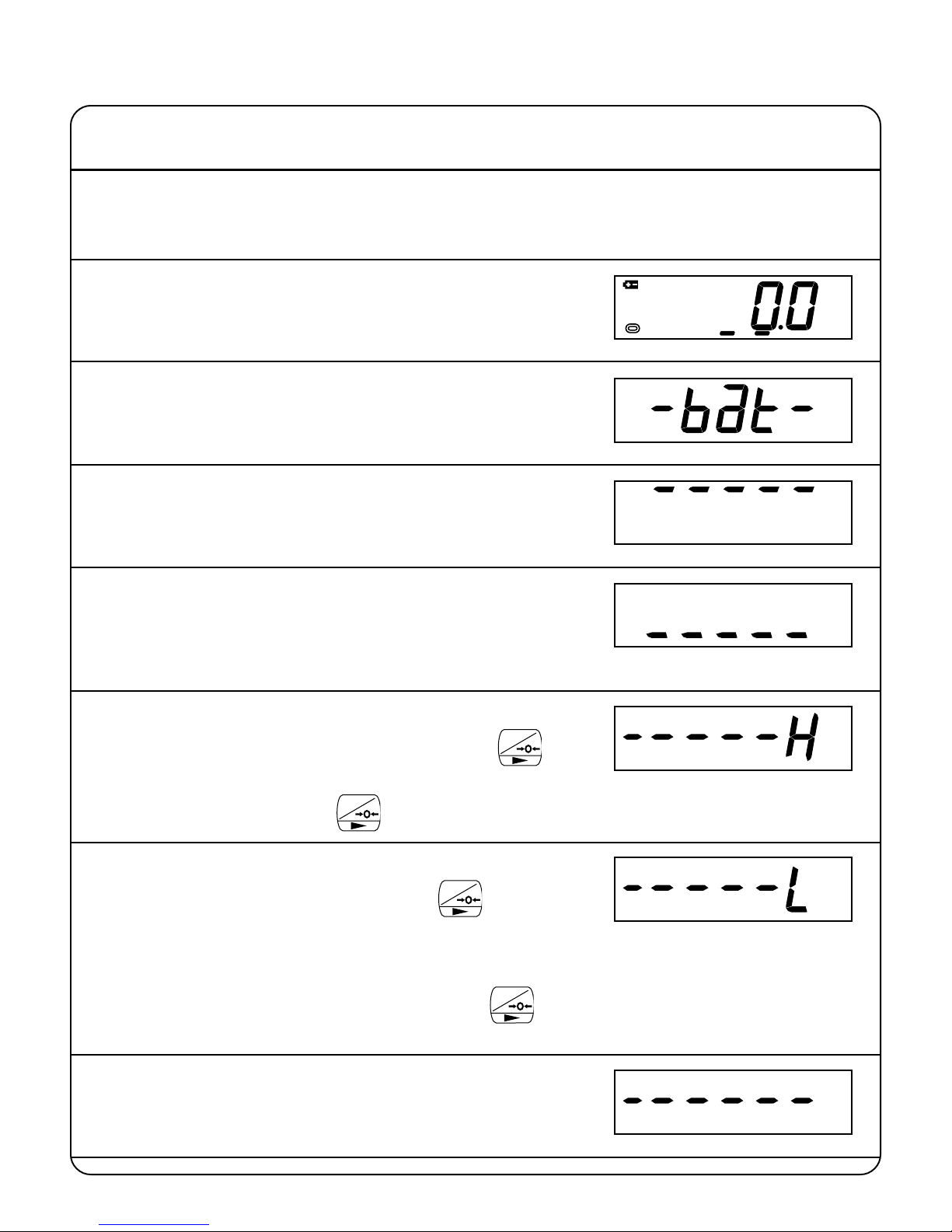

The scale can check various functions automatically. When a problem is detected, the following mes-
sages will be displayed. If you take the steps described below but the problem is not fixed, the scale
needs to be calibrated or serviced by a qualified scale technician. Please contact your scale dealer.
VI Troubleshooting and Error Messages
The batteries are running low. When the batteries are
running low, this indicator will come on. Replace all of the
batteries with new ones.
The batteries are low. When the batteries are too low for
accurate operation, this indication will be displayed and the
scale may automatically power off. The batteries must be
replaced to use the scale.
Weight out of range high. When the weighed value is 6 or
more divisions heavier than the scale’s capacity this message
will be displayed. Remove the excess weight from the scale
platform.
Weight out of range low. When the weighed value is a few
divisions below calibrated zero, this message will be displayed.
It is usually displayed when the platform is removed or has
something wedged under it. Place the platform on the platform
support or remove any objects wedged under the platform
Initial error on startup, high. When the initial weight is
heavier than the permissible zeroing range and the
ON
key is
pressed, this message will be displayed. Remove whatever is
on the platform and press the
ON
key again.
Initial error on startup, low. When the initial weight is lighter
than the permissible zeroing range and the
ON
key is
pressed, this message will be displayed. It is usually displayed
when the platform is removed or has something wedged under
it. Place the platform on the platform support or remove any
objects wedged under the platform, and press the
ON
key
again.
Weighing sensor error. When the weight detecting circuitry
registers an error, this message will be displayed. Turn the
power off and then on again.
lb

YCO-1111-09-02
DP-6200 Operation Manual
11
Electronic circuitry error. When the operating circuitry
registers an error, this message may be displayed. Turn the
power off and then on again.
Electromagnetic disturbance error. This indication is occa-
sionally displayed due to strong static electricity and/or electro-
magnetic disturbance. Move the scale away from any sources
of electromagnetic radiation (motors, generators, power cables,
transmitters, etc.) Turn the power off and then on again. If an
AC adapter is being used, try using a different power circuit or
AC adapter.
VI Troubleshooting and Error Messages

YCO-1111-09-02
DP-6200 Operation Manual
12
VII User Parameters
Setting the User Parameters
The scale keywords can be changed in the user setup mode to disable or change the duration of
the auto-off function, to set which units (metric or standard) the scale defaults to when turned on, to
set the RS-232C communications parameters and to set the display hold. The User Parameter
Table lists the nine keywords, their function and their default values.
1) With the scale on, press the
ON
and
T
keys to enter the
user setup mode. The scale will indicate a keyword followed by a
value.
2) To select the desired keyword, use the keys as follows:
ON
- increase keyword by one
ON
+
NET
GROSS
- decrease keyword by one
Note: See the User Parameter Table on the following page to
locate the function to be changed and it’s standard value.
Example: To select standard or metric mode default on power up,
press the
ON
key nine times.
3) To change a parameter value, use the keys as follows:
T
- increase value by one
T
+
NET
GROSS
- increase value by ten
NET
GROSS
- decrease value by one
NET
GROSS
+
T
- decrease value by ten
Example: To select the metric mode as default on power up,
press the
T
key to change the value from 000 to 001.
4) Press
ON
to save changes and and advance to the next key-
word. Press
OFF
to exit the user setup mode.
P
P
P
Keyword Value

YCO-1111-09-02
DP-6200 Operation Manual
13
VII User Parameters
Key Std Function Description
Word Value
01 015 Auto-off timer 000 Disables auto-off.
001~240 Number of minutes unused to activate auto-off.
02 000 Display hold timer 000 No display hold for changes less than four divisions.
001~030 Display hold duration, in seconds, for changes less
than four divisions.
031 No display hold.
03 001 Communication 000 No serial interface.
001 Specified commands acceptable.
002 Sends zero detection.
003 Sends motion detection.
004 Sends continuously.
04 000 Communication data 000 Net weight (1 batch)
001 Net weight, tare weight, gross weight (1 batch)
002 Net weight, tare weight, gross weight (3 batches)
003 Display content (1 batch)
004 Serial printer format (1 batch)
05 000 Communication speed 000 9600 bps
001 600 bps
002 1200 bps
003 2400 bps
004 4800 bps
005 9600 bps
006 19200 bps
007 38400 bps
06 000 Character length 000 8 bits
001 7 bits
07 002 Parity 000 Non
001 Odd
002 Even
08 001 Stop bit length 000 1 bit
001 2 bits
09 001 Default mode 000 kg
001 lb/oz
User Parameter Table
Other manuals for DP-6200
2
Table of contents
Other Yamato Scale manuals

Yamato
Yamato BC-10 User manual

Yamato
Yamato AW-WPS User manual

Yamato
Yamato Delicell User manual

Yamato
Yamato DKS-3002 User manual

Yamato
Yamato DP-5602 User manual

Yamato
Yamato DSR-400 User manual

Yamato
Yamato DP-8100 User manual

Yamato
Yamato SPC Series User manual

Yamato
Yamato DP-6700 User manual

Yamato
Yamato PPC-200 User manual

Yamato
Yamato DP-6100GP User manual

Yamato
Yamato Accu-weigh PPC-200W User manual

Yamato
Yamato CPS series User manual

Yamato
Yamato DP-6200 User manual

Yamato
Yamato PPC-300 User manual

Yamato
Yamato DSY-1100 User manual

Yamato
Yamato PLS Series User manual

Yamato
Yamato Acuu-Weigh SPC-2002 User manual

Yamato
Yamato SPC-2002 User manual

Yamato
Yamato BC-10 User manual
