Digital Portion Scale
AW-300P
USER MANUAL
PLEASE TAKE THE TIME TO READ THESE INSTRUCTIONS BEFORE
STARTING TO USE THE SCALES
1
TABLE OF CONTENTS
TABLE OF CONTENTS ...................................................................1
INTRODUCTION..............................................................................2
SAFETY INSTRUCTION..................................................................2
CLEANING.......................................................................................3
MAINTENANCE...............................................................................3
DISPOSING OF THE SCALE...........................................................3
Explanation of the graphic symbols..................................................4
TO Ready Scale for Use ..................................................................5
POWER SUPPLY & LOW BATTERY...............................................5
SPECIFICATIONS............................................................................6
KET FUNCTIONS ............................................................................7
USING SCALE.................................................................................8
USING TARE FUNCTION................................................................8
USING HOLD FUNCTION ...............................................................9
AW-300P : SET-UP........................................................................ 11
INSTRUCTION FOR CHARGE AND CONNECT........................... 12
Parameters of RS232 interface......................................................14
ERROR MESSAGE........................................................................18
R
OHS C O M P L I A N C E
....................................................................19

2
INTRODUCTION
Thank you for purchasing a Yamato Portion Scale. Please read this
instruction manual carefully before use. Keep these instructions
handy for future reference.
SAFETY INSTRUCTION
Before putting the device into use, please read with care the
information given in the Operating Instructions. They contain
important instructions for installation, proper use and maintenance
of the device.
The manufacturer shall not be liable for damages arising out of
failure to heed the following instructions:
When using electrical components under increased safety
requirements, always comply with the appropriate regulations.
Improper installation will render the warranty null and void.
Ensure the voltage marked on the power supply unit matches
your mains power supply.
This device is designed for use indoors.
Observe the permissible ambient temperatures for use
The device meets the requirements for electromagnetic
compatibility. Do not exceed the maximum values specified in
the applicable standards.
These batteries should be kept away from small children. If
swallowed, promptly seek medical assistance.
Expected Service Life: 5 years
If you have any problem, contact your local service partner.
3
CLEANING
We would recommend using alcohol based wipes or similar
when cleaning the scales.
Please do not use large amounts of water when cleaning the
scales as this will cause damage to the scales electronics, you
should also refrain from using corrosive liquids or high pressure
washers.
Always disconnect the scales from the mains power supply
before cleaning.
MAINTENANCE
The scale does not require any routine maintenance. However,
we recommend checking the scale’s accuracy at regular
intervals. The regularity of these checks is dependent on the
level of use and the state of the scale. If any inaccuracies occur,
please contact your local dealer or service partner
DISPOSING OF THE SCALE
This product is not to be treated as regular household waste, but
should be handed in to an electrical/electronic equipment
recycling centre.
You can obtain further details from your local council, your
municipal waste disposal company or the firm which you
purchased the product

4

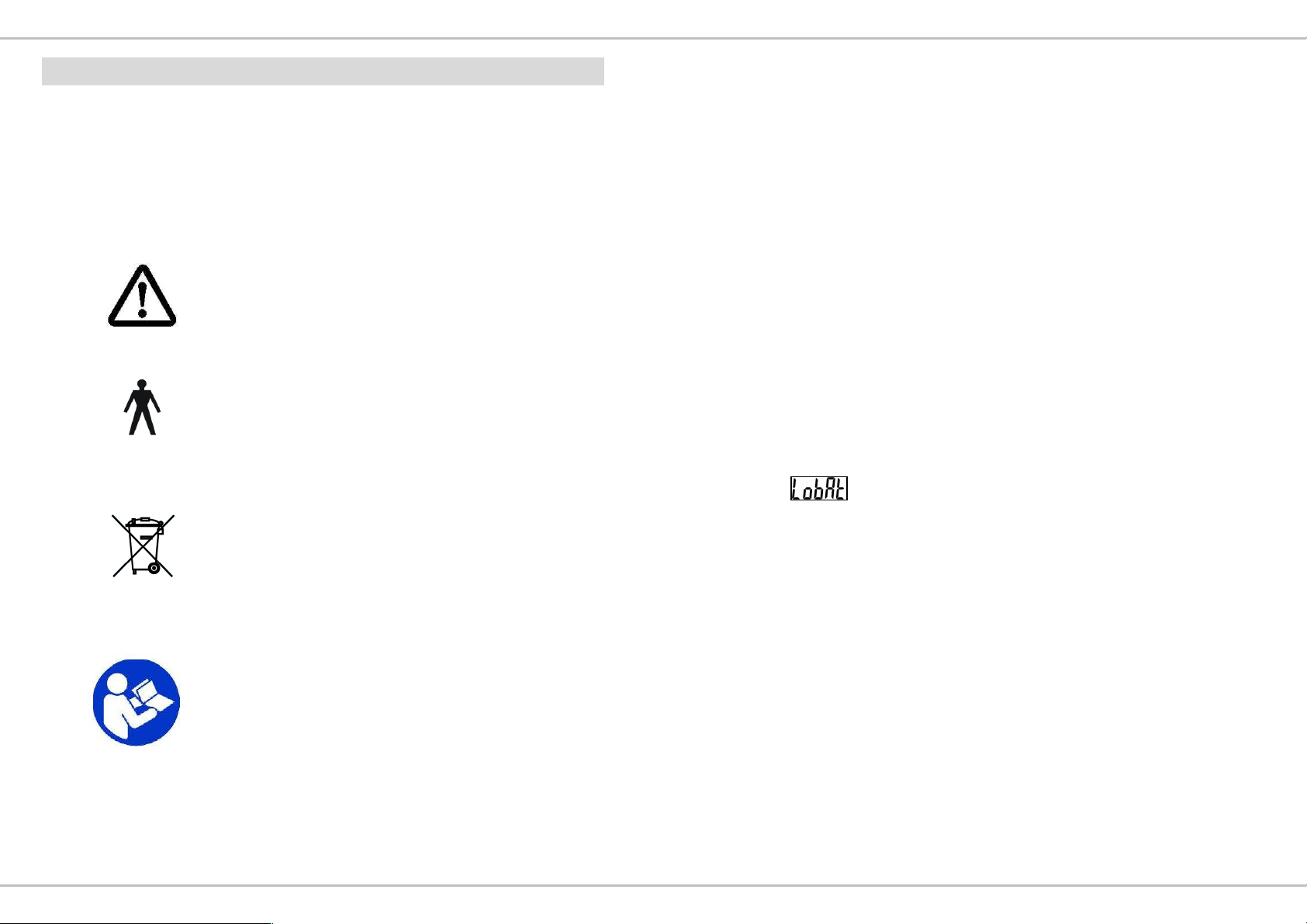

Explanation of the graphic symbols
SN-21300100
Designation of the serial number of every
device, applied at the device.
(Number as an example)
“Please note the accompanying
documents“
or “Observe operating instructions”
“Electro-medical appliance“
with attachment for type B
Dispose of old appliances separately from
your household wastrel!
Instead, take them to communal collection
points.
Carefully read this operation manual
before setup and commissioning, even if
you are already familiar with Yamato
scales.
5
TO Ready Scale for Use
1. Remove the scale from its box along with any protective film
from the platform cover.
2. Place the scale on a hard, flat surface. Uneven surfaces will
affect accuracy. If using the adapter, make sure the scale is not
resting on the cord, otherwise it may be unstable.
POWER SUPPLY & LOW BATTERY
1. The AW-WPS scale uses 9 volt battery.
2. Low battery indication will display on LCD display when battery
power is insufficient to perform the weighing.
3. When “ ” is displayed, please change batteries. Please
refer to “INSTALLING THE BATTERY”.

6
SPECIFICATIONS
Model AW-300P
Capacity 300 kg x 0.1 kg / 660 lb x 0.2 lb
Weight Unit kg / lb
LCD Readout 1.0” LCD display with 5 1/2 digits
Dimensions Assembled size: 210×110×45 mm
Platform size: 550×550x65 mm
Buttons ON/OFF, UNIT, HOLD, TARE
Power
Supply
 6-AA size batteries
 15V DC adapter 100~ 300mA
Operation
Temperature 5℃/ 35℃
PANEL
7
KET FUNCTIONS
Key Description
Turn ON/OFF the scale
To hold weighing result on the display / determine
stable weighing value
To select the weighing unit. (kg/lb)
Tare weight during weighing process.
The ‘Hold’ weighing function is active.
Stored ‘Tare’ value.
Stable symbol
Minor weight value
Indicates scale is at center of zero
Low battery indication

8
USING SCALE
WEIGHING
Switch on the scale using key. The diagnostic scale
self-check is performed and the software version is displayed.
The „0,00 kg” weight displays on the screen, now the scale is
ready for weighing.
Place a person in the middle of the scale. Wait until the scale
stabilizes and stable sign (ο) shows on the screen
Direction:
If a person is heavier than the scale capacity, the display will show
the „Err” prompt (= overload).
USING TARE FUNCTION
Tare allows the user to zero the instrument to cancel the weight of a
container/ clothes from the reading of the instrument, thus giving the
true weight of the animal being tested.
Place the object need to be tare on the tread platform.
Press TARE key after the weight stabilizes and stable sign
displays.
Move the animal need to be weighed on the scale
platform(without removing the tare object)
To delete the saved tare value, remove the tare object from the tread
platform and press [TARE] key.
9
USING HOLD FUNCTION
AW-300P is provided with the integrated hold function (determination
of average value). It enables animal to be weighed accurately
although they are not still on the scale plate. Once the HOLD key is
pressed, the weight reading will remain on the display even after the
animal has been moved from the scale platform, so the reading can
easily be read.
Note: Determination of average value is not possible if the animal is
moving too much.
Switch ‘ON’ the scale using [ON/OFF] key. The diagnostic
self-checks is performed. The scale is ready for weighing when
the „0.0 kg” displays on the screen.
Place animal in the center of the scale plate.
Press the [HOLD] key. When the triangle is flashing on the
display, the scale records the fluctuating weight values and then
calculates average weight and displays the result on the screen.
Move the animal from the scale platform, the weight reading will
remain on the display.
Press the [HOLD] key again to return the scale to the normal
weighing mode.
HOLD function can be activated before or after putting the
weight on the tread platform. But in case of weighing unstable
animal it is recommended to press HOLD key before the animal
moves on the tread platform.

10
(1)
(2)
11
AW-300P : SET-UP
Switch ON the scale and long press [UNIT] key for 3 seconds.
First “SETUP” and then “A.OFF” will display successively.
AUTO-OFF TIME SETUP
This enables operator to select the auto turn OFF time of the device.
BUZZER ON/OFF SETUP
This enables operator to select beep sound ON/OFF.
Auto off time: 120 sec/180 sec/240 sec/300 sec/off
Buzzer: On/Off
Note: To confirm the settings, please press HOLD when
displays on the display.

12
CAUTION:
Always connect the AC adaptor with the indicator before
connecting to the mains power supply.
Please disconnect the adaptor from main power supply before
taking out the AC adaptor pin from indicator.

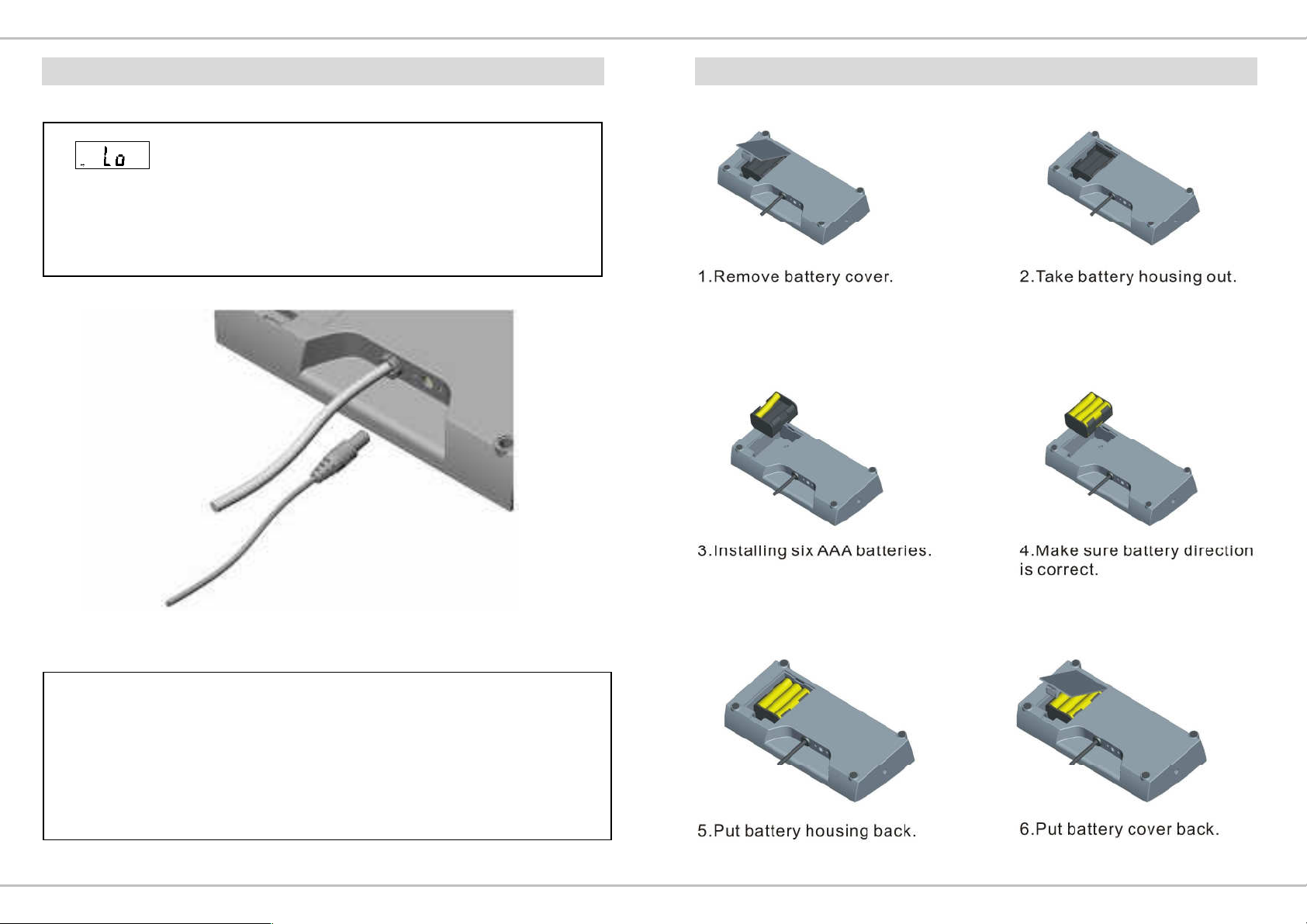

INSTRUCTION FOR CHARGE AND CONNECT
If prompt displays on the LCD, please charge the
scale with AW-300P exclusive adaptor or replace the batteries.
Locate adaptor plug-in at the back side of indicator.
13
INSTRUCTIONS FOR REPLACING BATTERIES

14
Parameters of RS232 interface
Set parameters of the scale interface on the connected device. It is
not possible to change the scale parameters.
Baud rate: 9600 bps
Parity check: None
Data length: 8 bits
Stop bit: 1 bit
Handshake: RTS/CTS
Data code: ASCII
PS2 Pin out
15
Connecting with PC
1. Start Hyper Terminal
Start Hyper Terminal program from clicking
Start Menu →Programs →Accessories →Communication →
Hyper Terminal.
2. New Connection Description
Give new connection a name then click OK.
3. Select Your COM Port
Click Connect to select your COM port. Usually there’s only one
option for select. Then click OK.
4. Port Settings
Click Bits per second to set up rate at 9600, Data bits at 8, Parity at
None, Stop bits at 1 and Flow control at Hardware. Then click OK to
complete your setting.
5. Output Data
When the has been weighed calculated, scale weighed data output
to PC

16 17

18
ERROR MESSAGE
19
R OHS C O M P L I A N C E
EU Directive 2011/65/EU restrict the use of the 6 substances below
in the manufacture of specified types of electrical equipment.
The product does not contain any of the restricted substances
in concentrations and applications banned by the directive;
and for components, the product is capable of being worked on
at higher temperatures required by lead-free soldering.
The restricted substances and maximum allowed concentrations in
the homogenous material are, by weight:
Substance Concentration
Lead 0.1%
Mercury 0.1%
PBB (Polybrominated Biphenyls) 0.1%
PBDE (Polybrominated Diphenyl Ethers) 0.1%
Hexavalant Chromium 0.1%
Cadmium 0.01%
YAMATO CORPORATION
1775 S, Murray Bivd.
Colorado Springs, Co 80916 USA
Tel [phone] Fax [phone]
YAMATO TECH CORPORATION
#112-194525 Langley By-Pass
Surrey, B.C. V3S 6K1 Canada
Tel[phone] Fax[phone]
