Yoke Extreme-100 X-A05-06 User manual

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved.
2
100
Grab Chain Sling
100
Grab Chain Sling

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved. 3
100
Grab Chain Sling

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved.
4
100
Grab Chain Sling
DANGER: Overhead lifting presents a very real danger of severe injury or loss
of life if lifting equipment is not used properly.Please read and understand all of
these instructions prior to using any lifting sling or sling assembly. Sling should
only be used by qualified persons who are responsible for the sling selection,
inspection and use.
** Safety factor 4:1 above limits are valid for standard use and equally loaded slings.
Proper use and maintaince of your YOKE chain slings will give long life and enable you to
carry out your lifting operations efficiently and safely.
The Alpha(α) angle should never exceed 120°; the Beta(β) angle should never exceed 60°
WORKING LOAD LIMITS IN LBS Acc. to PAS 1061
Load Factor 1 1.4 12.1 1.5 1.6
For Chain Size lbs β 0 - 45°
α 0 - 90°
45° - 60°
90° - 120°
β 0 - 45°
α 0 - 90°
45° - 60°
90° - 120°
67/32 3,200 4,500 3,200 6,800 4,800 5,100
71/4 (9/32) 4,300 6,100 4,300 9,100 6,400 6,900
85/16 5,700 8,100 5,700 12,100 8,500 9,100
10 3/8 8,800 12,400 8,800 18,700 13,200 14,100
13 1/2 15,000 21,200 15,000 31,800 22,500 24,000
16 5/8 22,600 32,000 22,600 47,900 33,900 36,200
20 3/4 35,300 49,900 35,300 74,900 52,950 56,500
22 7/8 42,700 60,400 42,700 90,600 64,000 68,300
26 1 59,700 84,400 59,700 12,600 89,550 95,500
32 1 1/4 90,400 127,800 90,400 191,700 135,600 144,600
Grade 100 Chain Sling Components
WORKING LOAD LIMITS IN TONNES Acc. to PAS 1061
Load Factor 1 1.4 12.1 1.5 1.6
For Chain
Size mm tonnes β 0 - 45°
α 0 - 90°
45° - 60°
90° - 120°
β 0 - 45°
α 0 - 90°
45° - 60°
90° - 120°
61.4 2.0 1.4 2.9 2.1 2.2
71.9 2.7 1.9 4.0 2.9 3.0
82.5 3.5 2.5 5.3 3.8 4.0
10 4.0 5.6 4.0 8.4 6.0 6.4
13 6.7 9.4 6.7 14.1 10.1 10.7
16 10.0 14.0 10.0 21.0 15.0 16.0
20 16.0 22.4 16.0 33.6 24.0 25.6
22 19.0 26.5 19.0 39.9 28.5 30.4
26 26.5 37.1 26.5 55.7 39.8 42.4
32 40.0 56.0 40.0 84.0 60.0 64.0
mm inch

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved. 5
100
Grab Chain Sling
Extreme-100 Grab Chain Sling Features
● Light weight but heavy duty system, extreme wear resistance and longer life than traditional
components.
● Cost effective compared to conventional slings using multiple components.
● Product designed according to EN818, EN1677 and PAS1061, tested according to GS-OA-15-05.
● Each component is Proof Load tested at 2.5 times the WLL with certification for each sling.
● Each component is Fatigue Rated to 20,000 cycles at 1.5 times the WLL.
● Each component is marked with batch number that links to the test certificate with full traceability to
raw material.
● Fully integrated shortening clutch and master link.
● No reduction in WLL when shortening chain.
● Replacement parts available worldwide.
YOKE offers best solutions which can adjust the length of Chain Sling serving for
unsymmetric lengths with convenience and functionality, also with following features.

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved.
6
100
Grab Chain Sling
α
β
<120°
α
A
1l
Lifting Condition : A standard load where the lifting angle is below 120°
Application : XTB*1
Lifting Solution : This lifting system allows riggers to perform the lift safely.
Application Scenario A:
When a standard size load is
symetrical or asymetrical, we need
a 2-leg Grab Chain Sling for lifting.
Caution

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved. 7
100
Grab Chain Sling
A
<120°
α
β
α
1l

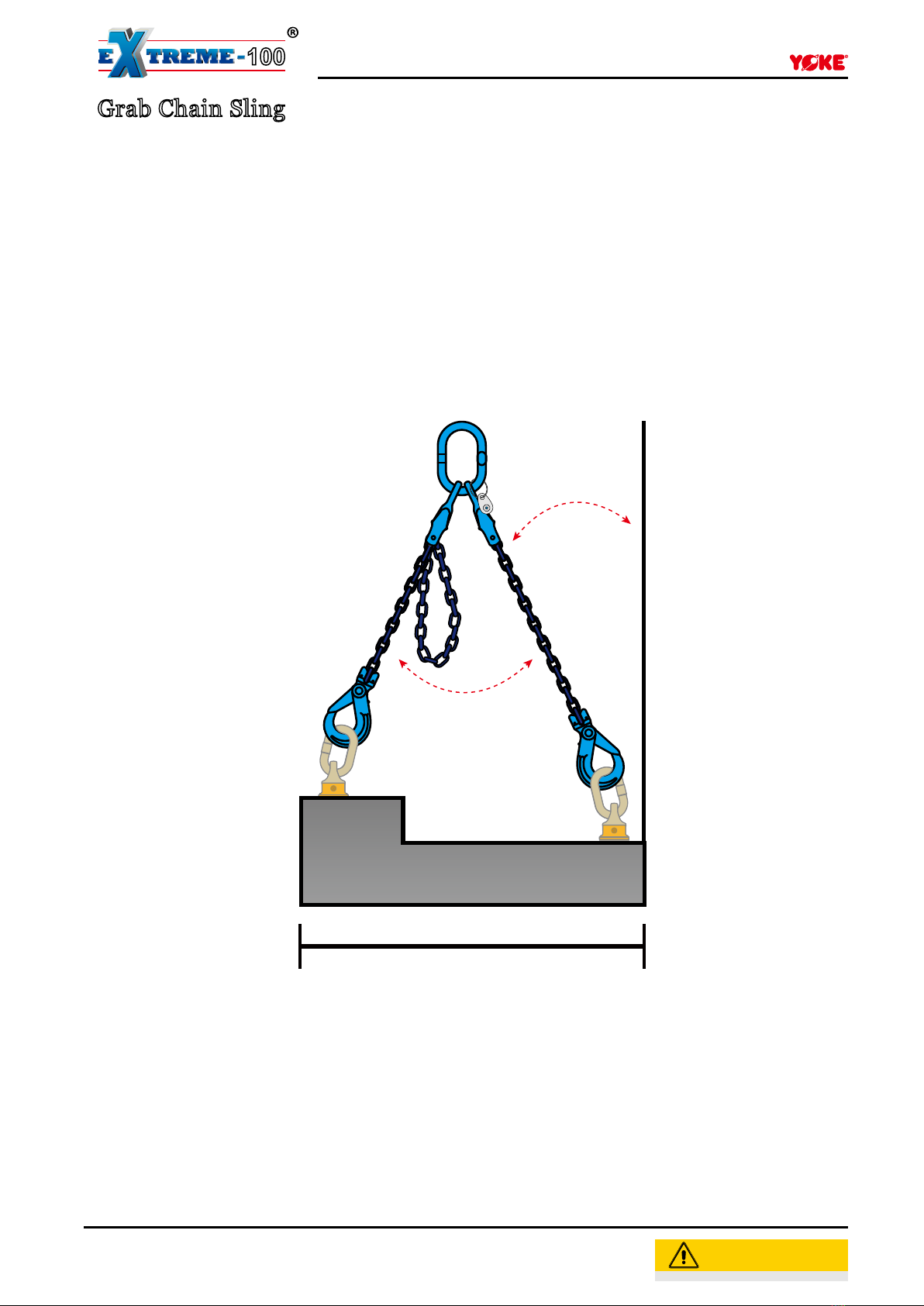

Lifting Condition : An asymetrical load lift where the lifting angle is below 120° included angle
Application : XTB*1
Lifting Solution : Adjusting the length to balance the asymetrical load.

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved.
8
100
Grab Chain Sling
Lifting Condition : A 2-times-wide load lift which results in the severe angle over 120°
Application : XTB*1
Lifting Solution : To connect 2 additional single slings for lengthening the original chain sling in
order to reduce the lifting angle.
B
α
β
>120°
α
2l
Application Scenario B:
When there's a 2-times-wide load,
we should lengthen Grab Chain
Slings to avoid incident angle effect.
Caution

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved. 9
100
Grab Chain Sling
Lifting Condition : A 2-times-wide load with lengthened chain slings can perform lifting safely
below 120° lifting angle.
Application : XTB*1+ XSB*2
Lifting Solution : This lifting system allows riggers to perform the lift safely.
B
α
β
>120°
α
2l
α
β
B
<120°
α
2l

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved.
10
100
Grab Chain Sling
α
C
β
>120°
α
<2 l2l
3
l
Lifting Condition : A 3-times-wide load lift with lengthened chain slings, however, the length
of Chain Slings are not extended enough to reduce the lifting angle, it creates a high risk and is
forbidden to work above 120 degree included angle.
Application : XTB*1+ XSB*2
Lifting Solution : To connect 2 additional single slings for lengthening the original chain sling in
order to reduce the lifting angle.
Application Scenario C:
When there's a 3-times-wide
asymetrical load, we should
lengthen Grab Chain Slings to avoid
incident angle effect.
Caution

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved. 11
100
Grab Chain Sling
<3 l3l
α
C
β
<120°
α
3l
Lifting Condition : A 3-times-wide load lift with lengthened chain slings can perform lifting safely
below 120° lifting angle.
Application : XTB*1+ XSB*4
Lifting Solution : This lifting system allows riggers to perform the lift safely.

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved.
12
100
Grab Chain Sling

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved. 13
100
Grab Chain Sling

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved.
14
100
Grab Chain Sling
RFID SupraTag
- Product Traceability
- Declaration of Conformity
- Safe Use Instruction
- Manufacturer Authentication

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved. 15
100
Grab Chain Sling

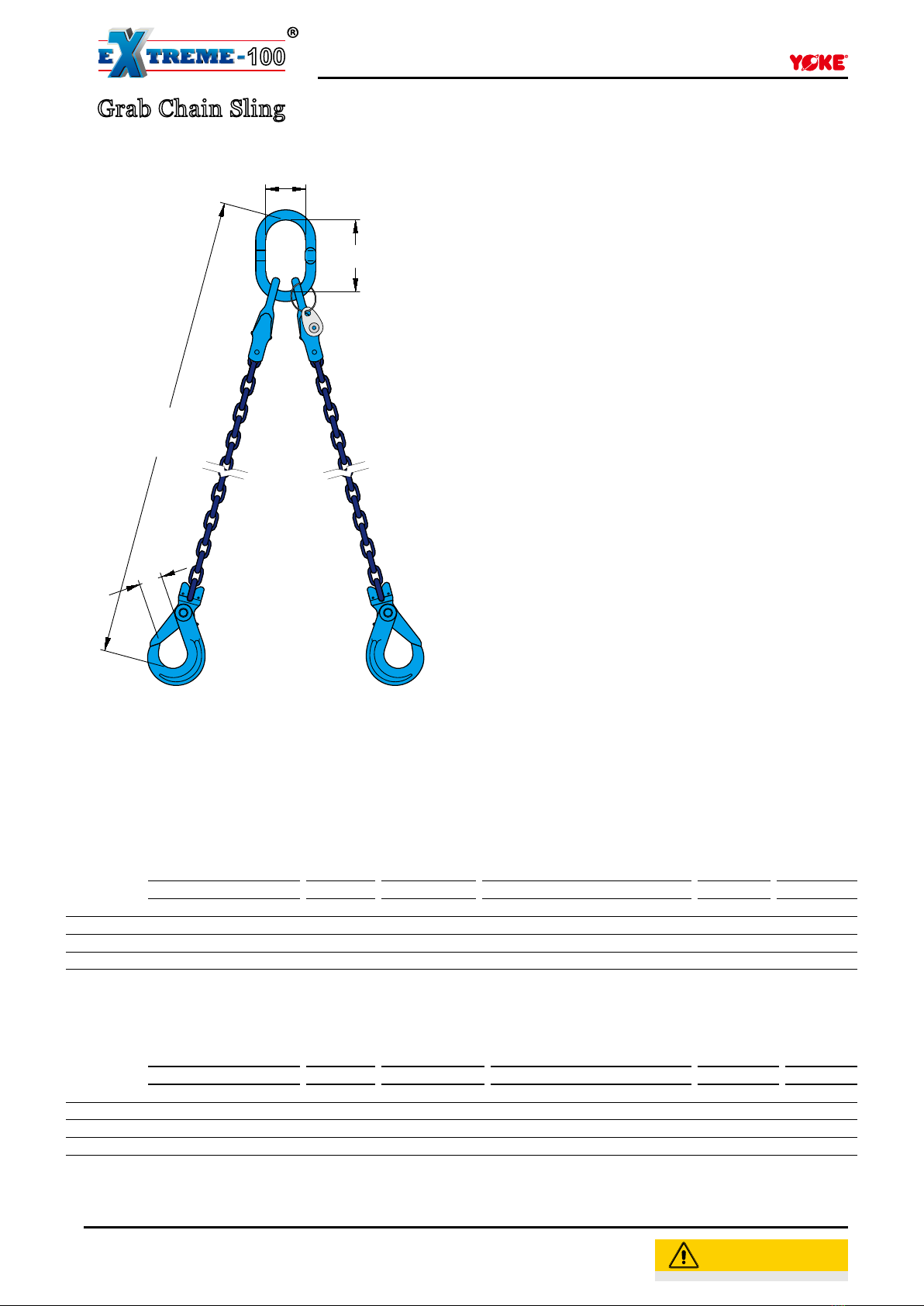

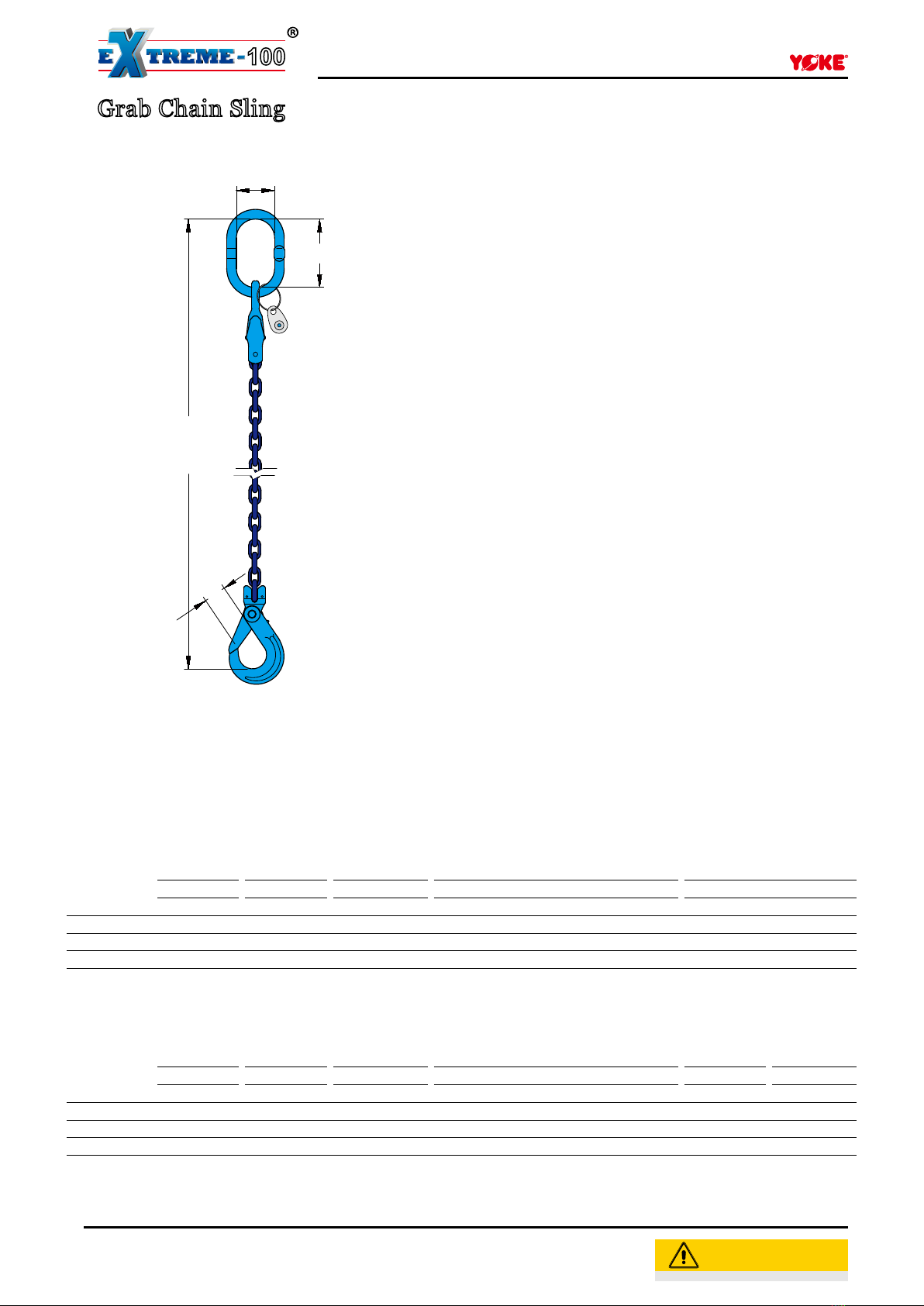

Extreme-100 Grab Chain Sling
with X-026 Self Locking Hook
Item No. WLL
For
Grade 100
Chain
Used to Single
Hook Acc. to
DIN15401
Dimensions
(mm)
Total
Component
Length (L) N.W.
tonnes mm A B P m kg
XSB-06 1.4 64 120 70 28 22.5
XSB-08 2.5 8 5 140 80 34 35.8
XSB-10 4.0 10 6 160 95 44 39.5
XSB-13 6.7 13 10 170 105 51 316.5
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than G80 products.
• Manufactured in accordance with EN1677,
ASME B30.9 and EN 818-4.
• Proof Load tested at 2.5 times the WLL with
certication for each batch manufactured.
• Each link is marked with batch number that
links to test certicate with full traceability to
raw materials.
• Fully integrated shortening clutch and master
link.
• No reduction in WLL when shortening chain.
• Speedy assembly.
• Light weight system.
• Cost effective compared to slings which use
multiple components.
• RFID equipped.
L
A
B
P
.* Design factor 4:1
Grab-to-go
Item No. WLL
For
Grade 100
Chain
Used to Single
Hook Acc. to
DIN15401
Dimensions
(inch)
Total
Component
Length (L) N.W.
tonnes inch A B P inch lbs
XSB-06 1.4 7/32 4 4.7 2.8 1.1 78.7 5.4
XSB-08 2.5 5/16 5 5.5 3.1 1.3 118.1 12.8
XSB-10 4.0 3/8 6 6.3 3.7 1.7 118.1 20.9
XSB-13 6.7 1/2 10 6.7 4.1 2.0 118.1 36.3
.* Design factor 4:1

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved.
16
100
Grab Chain Sling
RFID SupraTag
- Product Traceability
- Declaration of Conformity
- Safe Use Instruction
- Manufacturer Authentication

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved. 17
100
Grab Chain Sling
Extreme-100 Grab Chain Sling
with X-026 Self Locking Hook
B
A
L
P
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than G80 products.
• Manufactured in accordance with EN1677,
ASME B30.9 and EN 818-4.
• Proof Load tested at 2.5 times the WLL with
certication for each batch manufactured.
• Each link is marked with batch number that
links to test certicate with full traceability to
raw materials.
• Fully integrated shortening clutch and master
link.
• No reduction in WLL when shortening chain.
• Speedy assembly.
• Light weight system.
• Cost effective compared to slings which use
multiple components.
• RFID equipped.
Item No.
β 0-45° β 45-60°
α 0-90° α 90-120°
For
Grade 100
Chain
Used to Single
Hook Acc. to
DIN15401
Dimensions
(mm)
Total
Component
Length (L) N.W.
tonnes mm A B P m kg
XTB-06 2.0 1.4 64120 70 28 24.4
XTB-08 3.5 2.5 86160 95 34 311.4
XTB-10 5.6 4.0 10 10 170 105 44 318.6
XTB-13 9.4 6.7 13 10 190 110 51 332.2
Grab-to-go
* Design factor 4:1
Item No.
β 0-45° β 45-60°
α 0-90° α 90-120°
For
Grade 100
Chain
Used to Single
Hook Acc. to
DIN15401
Dimensions
(inch)
Total
Component
Length (L) N.W.
tonnes inch A B P inch lbs
XTB-06 2.0 1.4 7/32 44.7 2.8 1.1 78.7 9.7
XTB-08 3.5 2.5 5/16 66.3 3.7 1.3 118.1 25.2
XTB-10 5.6 4.0 3/8 10 6.7 4.1 1.7 118.1 40.9
XTB-13 9.4 6.7 1/2 10 7.5 4.3 2.0 118.1 70.9
* Design factor 4:1

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved.
18
100
Grab Chain Sling
XSB Series | p.15 XTB Series | p.17

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved. 19
100
Grab Chain Sling
100
Grab Chain Sling

NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
WARNING
Copyright © 2022
YOKE Industrial Corp.
All Rights Reserved.
20
