YOKOGAWA Dpharp vigilantplant EJA510A User manual

User’s
Manual
Yokogawa Electric Corporation
Model EJA510A and EJA530A
Absolute Pressure and
Gauge Pressure Transmitters
[Style: S2]
IM 01C21F01-01E
IM 01C21F01-01E
7th Edition

i
CONTENTS
IM 01C21F01-01E
FD No. IM 01C21F01-01E
7th Edition: Jan. 2008(KP)
All Rights Reserved, Copyright © 1999, Yokogawa Electric Corporation
CONTENTS
1. INTRODUCTION............................................................................................ 1-1
Regarding This Manual ................................................................................. 1-1
1.1 For Safe Use of Product........................................................................ 1-1
1.2 Warranty ................................................................................................ 1-2
1.3 ATEX Documentation ............................................................................ 1-3
2. HANDLING CAUTIONS ................................................................................ 2-1
2.1 Model and Specifications Check......................................................... 2-1
2.2 Unpacking ........................................................................................... 2-1
2.3 Storage ................................................................................................ 2-1
2.4 Selecting the Installation Location ...................................................... 2-1
2.5 Pressure Connection........................................................................... 2-2
2.6 Waterproofing of Cable Conduit Connections .................................... 2-2
2.7 Restrictions on Use of Radio Transceiver .......................................... 2-2
2.8 Insulation Resistance and Dielectric Strength Test ............................ 2-2
2.9 Installation of Explosion Protected Type ............................................ 2-3
2.9.1 FM Approval ................................................................................. 2-3
2.9.2 CSA Certification .......................................................................... 2-5
2.9.3 IECEx Certification ....................................................................... 2-6
2.9.4 CENELEC ATEX (KEMA) Certification ........................................ 2-8
2.10 EMC Conformity Standards .............................................................. 2-10
2.11 PED (Pressure Equipment Directive) ............................................... 2-10
2.12 Low Voltage Directive ....................................................................... 2-11
3. COMPONENT NAMES.................................................................................. 3-1
4. INSTALLATION ............................................................................................. 4-1
4.1 Precautions ......................................................................................... 4-1
4.2 Mounting.............................................................................................. 4-1
4.3 Rotating Transmitter Section .............................................................. 4-2
4.4 Changing the Direction of Integral Indicator ....................................... 4-2
5. INSTALLING IMPULSE PIPING ................................................................... 5-1
5.1 Impulse Piping Installation Precautions .............................................. 5-1
5.1.1 Connecting Impulse Piping to the Transmitter............................. 5-1
5.1.2 Routing the Impulse Piping .......................................................... 5-1
5.2 Impulse Piping Connection Examples ................................................ 5-2
6. WIRING .......................................................................................................... 6-1
6.1 Wiring Precautions .............................................................................. 6-1
6.2 Selecting the Wiring Materials ............................................................ 6-1
6.3 Connections of External Wiring to Terminal Box................................ 6-1
6.3.1 Power Supply Wiring Connection ................................................ 6-1
6.3.2 External Indicator Connection ...................................................... 6-1
6.3.3 BRAIN TERMINAL BT200 Connection ........................................ 6-1
6.3.4 Check Meter Connection.............................................................. 6-2

ii
CONTENTS
IM 01C21F01-01E
6.4 Wiring .................................................................................................. 6-2
6.4.1 Loop Configuration ....................................................................... 6-2
(1) General-use Type and Flameproof Type ...................................... 6-2
(2) Intrinsically Safe Type................................................................... 6-2
6.4.2 Wiring Installation ......................................................................... 6-2
(1) General-use Type and Intrinsically Safe Type .............................. 6-2
(2) Flameproof Type........................................................................... 6-3
6.5 Grounding............................................................................................ 6-3
6.6 Power Supply Voltage and Load Resistance ..................................... 6-3
7. OPERATION .................................................................................................. 7-1
7.1 Preparation for Starting Operation ...................................................... 7-1
7.2 Zero Point Adjustment ........................................................................ 7-2
7.2.1 When you can obtain Low Range Value from actual
measured value of 0% (0 kPa, atmospheric pressure); .............. 7-2
7.2.2 When you cannot obtain Low Range Value from actual
measured value of 0%; ................................................................ 7-3
7.3 Starting Operation ............................................................................... 7-3
7.4 Shutting Down Operation .................................................................... 7-3
7.5 Setting the Range Using the Range-setting Switch ........................... 7-4
8. BRAIN TERMINAL BT200 OPERATION ..................................................... 8-1
8.1 BT200 Operation Precautions............................................................. 8-1
8.1.1 Connecting the BT200 ................................................................. 8-1
8.1.2 Conditions of Communication Line .............................................. 8-1
8.2 BT200 Operating Procedures ............................................................. 8-1
8.2.1 Key Layout and Screen Display................................................... 8-1
8.2.2 Operating Key Functions.............................................................. 8-2
(1) Alphanumeric Keys and Shift Keys .............................................. 8-2
(2) Function Keys ............................................................................... 8-2
8.2.3 Calling Up Menu Addresses Using the Operating Keys.............. 8-3
8.3 Setting Parameters Using the BT200 ................................................. 8-4
8.3.1 Parameter Summary .................................................................... 8-4
8.3.2 Parameter Usage and Selection .................................................. 8-6
8.3.3 Setting Parameters....................................................................... 8-7
(1) Tag No. Setup ............................................................................... 8-7
(2) Calibration Range Setup .............................................................. 8-7
(3) Damping Time Constant Setup..................................................... 8-8
(4) Output Signal Low Cut Mode Setup ............................................. 8-9
(5) Integral Indicator Scale Setup .................................................... 8-10
(6) Unit Setup for Displayed Temperature........................................ 8-11
(7) Operation Mode Setup ............................................................... 8-12
(8) Output Status Display/Setup when a CPU Failure ..................... 8-12
(9) Output Status Setup when a Hardware Error Occurs................. 8-12
(10)Range Change while Applying Actual Inputs .............................. 8-12
(11)Zero Point Adjustment ................................................................ 8-13
(12)Test Output Setup ....................................................................... 8-14
(13)User Memo Fields ...................................................................... 8-15
8.4 Displaying Data Using the BT200..................................................... 8-15
8.4.1 Displaying Measured Data ......................................................... 8-15
8.4.2 Display Transmitter Model and Specifications ........................... 8-15

iii
CONTENTS
IM 01C21F01-01E
8.5 Self-Diagnostics ................................................................................ 8-16
8.5.1 Checking for Problems ............................................................... 8-16
(1) Identifying Problems with BT200 ................................................ 8-16
(2) Checking with Integral Indicator ................................................. 8-17
8.5.2 Errors and Countermeasures ..................................................... 8-18
9. MAINTENANCE............................................................................................. 9-1
9.1 Overview ............................................................................................. 9-1
9.2 Calibration Instruments Selection ....................................................... 9-1
9.3 Calibration ........................................................................................... 9-1
9.4 Disassembly and Reassembly ............................................................ 9-3
9.4.1 Replacing the Integral Indicator ................................................... 9-3
9.4.2 Replacing the CPU Board Assembly ........................................... 9-4
9.4.3 Cleaning and Replacing the Capsule Assembly.......................... 9-5
9.5 Troubleshooting................................................................................... 9-6
9.5.1 Basic Troubleshooting .................................................................. 9-6
9.5.2 Troubleshooting Flow Charts ....................................................... 9-6
10. GENERAL SPECIFICATIONS .................................................................... 10-1
10.1 Standard Specifications .................................................................... 10-1
10.2 Model and Suffix Codes.................................................................... 10-3
10.3 Optional Specifications...................................................................... 10-4
10.4 Dimensions........................................................................................ 10-7
Customer Maintenance Parts List
Model EJA510A and EJA530A Absolute and Gauge
Pressure Transmitter....................................................... CMPL 01C21F01-01E
REVISION RECORD

1-1
1. INTRODUCTION
IM 01C21F01-01E
1. INTRODUCTION
Thank you for purchasing the DPharp electronic
pressure transmitter.
The DPharp Pressure Transmitters are precisely
calibrated at the factory before shipment. To ensure
correct and efficient use of the instrument, please read
this manual thoroughly and fully understand how to
operate the instrument before operating it.
Regarding This Manual
• This manual should be passed on to the end user.
• The contents of this manual are subject to change
without prior notice.
• All rights reserved. No part of this manual may be
reproduced in any form without Yokogawa’s written
permission.
• Yokogawa makes no warranty of any kind with
regard to this manual, including, but not limited to,
implied warranty of merchantability and fitness for a
particular purpose.
• If any question arises or errors are found, or if any
information is missing from this manual, please
inform the nearest Yokogawa sales office.
• The specifications covered by this manual are
limited to those for the standard type under the
specified model number break-down and do not
cover custom-made instruments.
• Please note that changes in the specifications,
construction, or component parts of the instrument
may not immediately be reflected in this manual at
the time of change, provided that postponement of
revisions will not cause difficulty to the user from a
functional or performance standpoint.
• Yokogawa assumes no responsibilities for this
product except as stated in the warranty.
• If the customer or any third party is harmed by the
use of this product, Yokogawa assumes no responsi-
bility for any such harm owing to any defects in the
product which were not predictable, or for any
indirect damages.
NOTE
For FOUNDATION FieldbusTM, PROFIBUS PA and
HART protocol versions, please refer to IM
01C22T02-01E, IM 01C22T03-00E and IM
01C22T01-01E respectively, in addition to this
manual.
• The following safety symbol marks are used in this
manual:
WARNING
Indicates a potentially hazardous situation which,
if not avoided, could result in death or serious
injury.
CAUTION
Indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate
injury. It may also be used to alert against
unsafe practices .
IMPORTANT
Indicates that operating the hardware or software
in this manner may damage it or lead to system
failure.
NOTE
Draws attention to information essential for
understanding the operation and features.
Direct current
1.1 For Safe Use of Product
For the protection and safety of the operator and the
instrument or the system including the instrument,
please be sure to follow the instructions on safety
described in this manual when handling this instru-
ment. In case the instrument is handled in contradiction
to these instructions, Yokogawa does not guarantee
safety. Please give your attention to the followings.
(a) Installation
• The instrument must be installed by an expert
engineer or a skilled personnel. The procedures
described about INSTALLATION are not permitted
for operators.

1-2
1. INTRODUCTION
IM 01C21F01-01E
• In case of high process temperature, care should be
taken not to burn yourself because the surface of
body and case reaches a high temperature.
• The instrument installed in the process is under
pressure. Never loosen the process connector bolts to
avoid the dangerous spouting of process fluid.
• During draining condensate from the pressure-
detector section, take appropriate care to avoid
contact with the skin, eyes or body, or inhalation of
vapors, if the accumulated process fluid may be
toxic or otherwise harmful.
• When removing the instrument from hazardous
processes, avoid contact with the fluid and the
interior of the meter.
• All installation shall comply with local installation
requirement and local electrical code.
(b) Wiring
• The instrument must be installed by an expert
engineer or a skilled personnel. The procedures
described about WIRING are not permitted for
operators.
• Please confirm that voltages between the power
supply and the instrument before connecting the
power cables and that the cables are not powered
before connecting.
(c) Operation
• Wait 10 min. after power is turned off, before
opening the covers.
(d) Maintenance
• Please do not carry out except being written to a
maintenance descriptions. When these procedures
are needed, please contact nearest YOKOGAWA
office.
• Care should be taken to prevent the build up of drift,
dust or other material on the display glass and
name plate. In case of its maintenance, soft and dry
cloth is used.
(e) Explosion Protected Type Instrument
• Users of explosion proof instruments should refer
first to section 2.9 (Installation of an Explosion
Protected Instrument) of this manual.
• The use of this instrument is restricted to those who
have received appropriate training in the device.
• Take care not to create sparks when accessing the
instrument or peripheral devices in a hazardous
location.
(f) Modification
• Yokogawa will not be liable for malfunctions or
damage resulting from any modification made to this
instrument by the customer.
1.2 Warranty
• The warranty shall cover the period noted on the
quotation presented to the purchaser at the time of
purchase. Problems occurred during the warranty
period shall basically be repaired free of charge.
• In case of problems, the customer should contact the
Yokogawa representative from which the instrument
was purchased, or the nearest Yokogawa office.
• If a problem arises with this instrument, please
inform us of the nature of the problem and the
circumstances under which it developed, including
the model specification and serial number. Any
diagrams, data and other information you can
include in your communication will also be helpful.
• Responsible party for repair cost for the problems
shall be determined by Yokogawa based on our
investigation.
• The Purchaser shall bear the responsibility for repair
costs, even during the warranty period, if the
malfunction is due to:
- Improper and/or inadequate maintenance by the
purchaser.
- Failure or damage due to improper handling, use or
storage which is out of design conditions.
- Use of the product in question in a location not
conforming to the standards specified by
Yokogawa, or due to improper maintenance of the
installation location.
- Failure or damage due to modification or repair by
any party except Yokogawa or an approved
representative of Yokogawa.
- Malfunction or damage from improper relocation
of the product in question after delivery.
- Reason of force majeure such as fires, earthquakes,
storms/floods, thunder/lightening, or other natural
disasters, or disturbances, riots, warfare, or
radioactive contamination.

1-3
1. INTRODUCTION
IM 01C21F01-01E
1.3 ATEX Documentation
This procedure is only applicable to the countries in
European Union.
GB
All instruction manuals for ATEX Ex related products
are available in English, German and French. Should
you require Ex related instructions in your local
language, you are to contact your nearest Yokogawa
office or representative.
DK
Alle brugervejledninger for produkter relateret til
ATEX Ex er tilgængelige på engelsk, tysk og fransk.
Skulle De ønske yderligere oplysninger om håndtering
af Ex produkter på eget sprog, kan De rette
henvendelse herom til den nærmeste Yokogawa
afdeling eller forhandler.
I
Tutti i manuali operativi di prodotti ATEX
contrassegnati con Ex sono disponibili in inglese,
tedesco e francese. Se si desidera ricevere i manuali
operativi di prodotti Ex in lingua locale, mettersi in
contatto con l’ufficio Yokogawa più vicino o con un
rappresentante.
E
Todos los manuales de instrucciones para los productos
antiexplosivos de ATEX están disponibles en inglés,
alemán y francés. Si desea solicitar las instrucciones de
estos artículos antiexplosivos en su idioma local,
deberá ponerse en contacto con la oficina o el
representante de Yokogawa más cercano.
NL
Alle handleidingen voor producten die te maken
hebben met ATEX explosiebeveiliging (Ex) zijn
verkrijgbaar in het Engels, Duits en Frans. Neem,
indien u aanwijzingen op het gebied van
explosiebeveiliging nodig hebt in uw eigen taal, contact
op met de dichtstbijzijnde vestiging van Yokogawa of
met een vertegenwoordiger.
SF
Kaikkien ATEX Ex -tyyppisten tuotteiden käyttöhjeet
ovat saatavilla englannin-, saksan- ja ranskankielisinä.
Mikäli tarvitsette Ex -tyyppisten tuotteiden ohjeita
omalla paikallisella kielellännne, ottakaa yhteyttä
lähimpään Yokogawa-toimistoon tai -edustajaan.
P
Todos os manuais de instruções referentes aos produtos
Ex da ATEX estão disponíveis em Inglês, Alemão e
Francês. Se necessitar de instruções na sua língua
relacionadas com produtos Ex, deverá entrar em
contacto com a delegação mais próxima ou com um
representante da Yokogawa.
F
Tous les manuels d’instruction des produits ATEX Ex
sont disponibles en langue anglaise, allemande et
française. Si vous nécessitez des instructions relatives
aux produits Ex dans votre langue, veuillez bien
contacter votre représentant Yokogawa le plus proche.
D
Alle Betriebsanleitungen für ATEX Ex bezogene
Produkte stehen in den Sprachen Englisch, Deutsch
und Französisch zur Verfügung. Sollten Sie die
Betriebsanleitungen für Ex-Produkte in Ihrer
Landessprache benötigen, setzen Sie sich bitte mit
Ihrem örtlichen Yokogawa-Vertreter in Verbindung.
S
Alla instruktionsböcker för ATEX Ex (explosionssäkra)
produkter är tillgängliga på engelska, tyska och
franska. Om Ni behöver instruktioner för dessa
explosionssäkra produkter på annat språk, skall Ni
kontakta närmaste Yokogawakontor eller representant.
GR
       ATEX Ex
  ,  .
       Ex 
     
   Yokogaw a   .

1-4
1. INTRODUCTION
IM 01C21F01-01E
LT
LV
PL
EST
SLO
H
BG
RO
M
CZ
SK

IM 01C21F01-01E
2-1
2. HANDLING CAUTIONS
2. HANDLING CAUTIONS
This chapter describes important cautions regarding
how to handle the transmitter. Read carefully before
using the transmitter.
The EJA-A Series pressure transmitters are thoroughly
tested at the factory before shipment. When the
transmitter is delivered, visually check them to make
sure that no damage occurred during shipment.
Also check that all transmitter mounting hardware
shown in Figure 2.1.1 is included. If the transmitter
was ordered without the mounting bracket, the trans-
mitter mounting hardware is not included. After
checking the transmitter, repack it in the way it was
delivered until installation.
U-bolt nut (S)
Plate
U-bolt nut (L)
U-bolt (L)
Mounting bracket
(Flat type)
F0201.EPS
Adapter
U-bolt (S)
Figure 2.1.1 Transmitter Mounting Hardware
2.1 Model and Specifications
Check
The model name and specifications are indicated on the
name plate attached to the case. If the reverse operat-
ing mode was ordered (reverse signal), ‘REVERSE’
will be inscribed in field *1.
F0202.EPS
: Refer to USER S MANUAL
Figure 2.1.2 Name Plate
2.2 Unpacking
When moving the transmitter to the installation site,
keep it in its original packaging. Then, unpack the
transmitter there to avoid damage on the way.
2.3 Storage
The following precautions must be observed when
storing the instrument, especially for a long period.
(a) Select a storage area which meets the following
conditions:
• It is not exposed to rain or water.
• It suffers minimum vibration and shock.
• It has an ambient temperature and relative
humidity within the following ranges.
Ambient temperature:
–40 to 85°C without integral indicator
–30 to 80°C with integral indicator
Relative humidity:
5% to 100% R.H. (at 40°C)
Preferred temperature and humidity:
approx. 25°C and 65% R.H.
(b) When storing the transmitter, repack it as nearly
as possible to the way it was packed when
delivered from the factory.
(c) If storing a transmitter that has been used,
thoroughly clean the chambers inside the body, so
that no measured fluid remains in it. Also make
sure before storing that the transmitter assemblies
are securely mounted.
2.4 Selecting the Installation
Location
The transmitter is designed to withstand severe
environmental conditions. However, to ensure stable
and accurate operation for years, observe the follow-
ing precautions when selecting an installation loca-
tion.
(a) Ambient Temperature
Avoid locations subject to wide temperature
variations or a significant temperature gradient. If
the location is exposed to radiant heat from plant
equipments, provide adequate thermal insulation
and/or ventilation.
(b) Ambient Atmosphere
Avoid installing the transmitter in a corrosive
atmosphere. If the transmitter must be installed in
a corrosive atmosphere, there must be adequate
ventilation as well as measures to prevent
intrusion or stagnation of rain water in conduits.

IM 01C21F01-01E
2-2
2. HANDLING CAUTIONS
(c) Shock and Vibration
Select an installation site suffering minimum shock
and vibration (although the transmitter is designed
to be relatively resistant to shock and vibration).
(d) Installation of Explosion-protected Transmitters
Explosion-protected transmitters can be installed in
hazardous areas according to the types of gases for
which they are certified. See Subsection 2.9
“Installation of Explosion Protected Type Transmit-
ters.”
2.5 Pressure Connection
WARNING
• Instrument installed in the process is under
pressure. Never loosen the process connection
part to avoid the dangerous spouting of process
fluid.
• During draining condensate from the capsule
assembly, take appropriate care to avoid
contact with the skin, eyes or body, or inhala-
tion of vapors, if the accumulated process fluid
may be toxic or otherwise harmful.
The following precautions must be observed in order to
safely operate the transmitter under pressure.
(a) Make sure that the process connection part is
tightened firmly.
(b) Make sure that there are no leaks in the impulse
piping.
(c) Never apply a pressure higher than the specified
maximum working pressure.
2.6 Waterproofing of Cable
Conduit Connections
Apply a non-hardening sealant to the threads to
waterproof the transmitter cable conduit connections.
(See Figure 6.4.2a, 6.4.2b and 6.4.2c.)
2.7 Restrictions on Use of Radio
Transceiver
IMPORTANT
Although the transmitter has been designed to
resist high frequency electrical noise, if a radio
transceiver is used near the transmitter or its
external wiring, the transmitter may be affected
by high frequency noise pickup. To test for such
effects, bring the transceiver in use slowly from a
distance of several meters from the transmitter,
and observe the measurement loop for noise
effects. Thereafter, always use the transceiver
outside the area affected by noise.
2.8 Insulation Resistance and
Dielectric Strength Test
Since the transmitter has undergone insulation resis-
tance and dielectric strength tests at the factory before
shipment, normally these tests are not required.
However, if required, observe the following precau-
tions in the test procedures.
(a) Do not perform such tests more frequently than is
absolutely necessary. Even test voltages that do not
cause visible damage to the insulation may degrade
the insulation and reduce safety margins.
(b) Never apply a voltage exceeding 500 V DC (100 V
DC with an internal lightning protector) for the
insulation resistance test, nor a voltage exceeding
500 V AC (100 V AC with an internal lightning
protector) for the dielectric strength test.
(c) Before conducting these tests, disconnect all signal
lines from the transmitter terminals. Perform the
tests in the following procedure:
• Insulation Resistance Test
1) Short-circuit the + and – SUPPLY terminals in the
terminal box.
2) Turn OFF the insulation tester. Then connect the
insulation tester plus (+) lead wire to the shorted
SUPPLY terminals and the minus (–) leadwire to
the grounding terminal.
3) Turn ON the insulation tester power and measure
the insulation resistance. The voltage should be
applied short as possible to verify that the insula-
tion resistance is at least 20 M1.
4) After completing the test and being very careful not
to touch exposed conductors disconnect the
insulation tester and connect a 100 k1resistor
between the grounding terminal and the short-
circuiting SUPPLY terminals. Leave this resistor
connected at least one second to discharge any
static potential. Do not touch the terminals while it
is discharging.
• Dielectric Strength Test
1) Short-circuit the + and – SUPPLY terminals in the
terminal box.

IM 01C21F01-01E
2-3
2. HANDLING CAUTIONS
2) Turn OFF the dielectric strength tester. Then
connect the tester between the shorted SUPPLY
terminals and the grounding terminal. Be sure to
connect the grounding lead of the dielectric strength
tester to the ground terminal.
3) Set the current limit on the dielectric strength tester
to 10 mA, then turn ON the power and gradually
increase the test voltage from ‘0’ to the specified
voltage.
4) When the specified voltage is reached, hold it for
one minute.
5) After completing this test, slowly decrease the
voltage to avoid any voltage surges.
2.9 Installation of Explosion
Protected Type
In this section, further requirements and differences
and for explosionproof type instrument are described.
For explosionproof type instrument, the description in
this chapter is prior to other description in this users
manual.
For the intrinsically safe equipment and explosionproof
equipment, in case the instrument is not restored to its
original condition after any repair or modification
undertaken by the customer, intrinsically safe
construction or explosionproof construction is damaged
and may cause dangerous condition. Please contact
Yokogawa for any repair or modification required to
the instrument.
NOTE
For FOUNDATION Fieldbus and PROFIBUS PA
explosion protected type, please refer to IM
01C22T02-01E and IM 01C22T03-00E respec-
tively.
CAUTION
This instrument is tested and certified as intrinsi-
cally safe type or explosionproof type. Please
note that the construction of the instrument,
installation, external wiring, maintenance or
repair is strictly restricted, and non-observance
or negligence of this restriction would result in
dangerous condition.
WARNING
To preserve the safety of explosionproof equip-
ment requires great care during mounting,
wiring, and piping. Safety requirements also
place restrictions on maintenance and repair
activities. Please read the following sections very
carefully.
2.9.1 FM Approval
a. FM Intrinsically Safe Type
Caution for FM intrinsically safe type. (Following
contents refer “DOC. No. IFM012-A12 P.1 and 2.”)
Note 1. Model EJA Series pressure transmitters
with optional code /FS1 are applicable for
use in hazardous locations.
• Applicable Standard: FM3600, FM3610, FM3611,
FM3810, ANSI/NEMA250
• Intrinsically Safe for Class I, Division 1, Groups A,
B, C & D. Class II, Division 1, Groups E, F & G
and Class III, Division 1 Hazardous Locations.
• Nonincendive for Class I, Division 2, Groups A, B,
C & D. Class II, Division 2, Groups E, F & G and
Class III, Division 1 Hazardous Locations.
• Outdoor hazardous locations, NEMA 4X.
• Temperature Class: T4
• Ambient temperature: –40 to 60°C
Note 2. Entity Parameters
• Intrinsically Safe Apparatus Parameters
[Groups A, B, C, D, E, F and G]
Vmax = 30 V Ci = 22.5 nF
Imax = 165 mA Li = 730 μH
Pmax = 0.9 W
* Associated Apparatus Parameters
(FM approved barriers)
Voc )30 V Ca > 22.5 nF
Isc )165 mA La > 730 μH
Pmax )0.9W
• Intrinsically Safe Apparatus Parameters
[Groups C, D, E, F and G]
Vmax = 30 V Ci = 22.5 nF
Imax = 225 mA Li = 730 μH
Pmax = 0.9 W
* Associated Apparatus Parameters
(FM approved barriers)
Voc )30 V Ca > 22.5 nF
Isc )225 mA La > 730 μH
Pmax )0.9 W

IM 01C21F01-01E
2-4
2. HANDLING CAUTIONS
• Entity Installation Requirements
Vmax *Voc or Vt, Imax *Isc or It,
Pmax (IS Apparatus) *Pmax (Barrier)
Ca *Ci + Ccable, La *Li + Lcable
Note 3. Installation
• Barrier must be installed in an enclosure that meets
the requirements of ANSI/ISA S82.01.
• Control equipment connected to barrier must not use
or generate more than 250 V rms or V dc.
• Installation should be in accordance with ANSI/ISA
RP12.6 “Installation of Intrinsically Safe Systems for
Hazardous (Classified) Locations” and the National
Electric Code (ANSI/NFPA 70).
• The configuration of associated apparatus must be
FMRC Approved.
• Dust-tight conduit seal must be used when installed
in a Class II, III, Group E, F and G environments.
• Associated apparatus manufacturer’s installation
drawing must be followed when installing this
apparatus.
• The maximum power delivered from the barrier
must not exceed 0.9 W.
• Note a warning label worded “SUBSTITUTION OF
COMPONENTS MAY IMPAIR INTRINSIC
SAFETY,” and “INSTALL IN ACCORDANCE
WITH DOC. No. IFM012-A12 P.1 and 2.”
Note 4. Maintenance and Repair
• The instrument modification or parts replacement by
other than authorized representative of Yokogawa
Electric Corporation is prohibited and will void
Factory Mutual Intrinsically safe and Nonincendive
Approval.

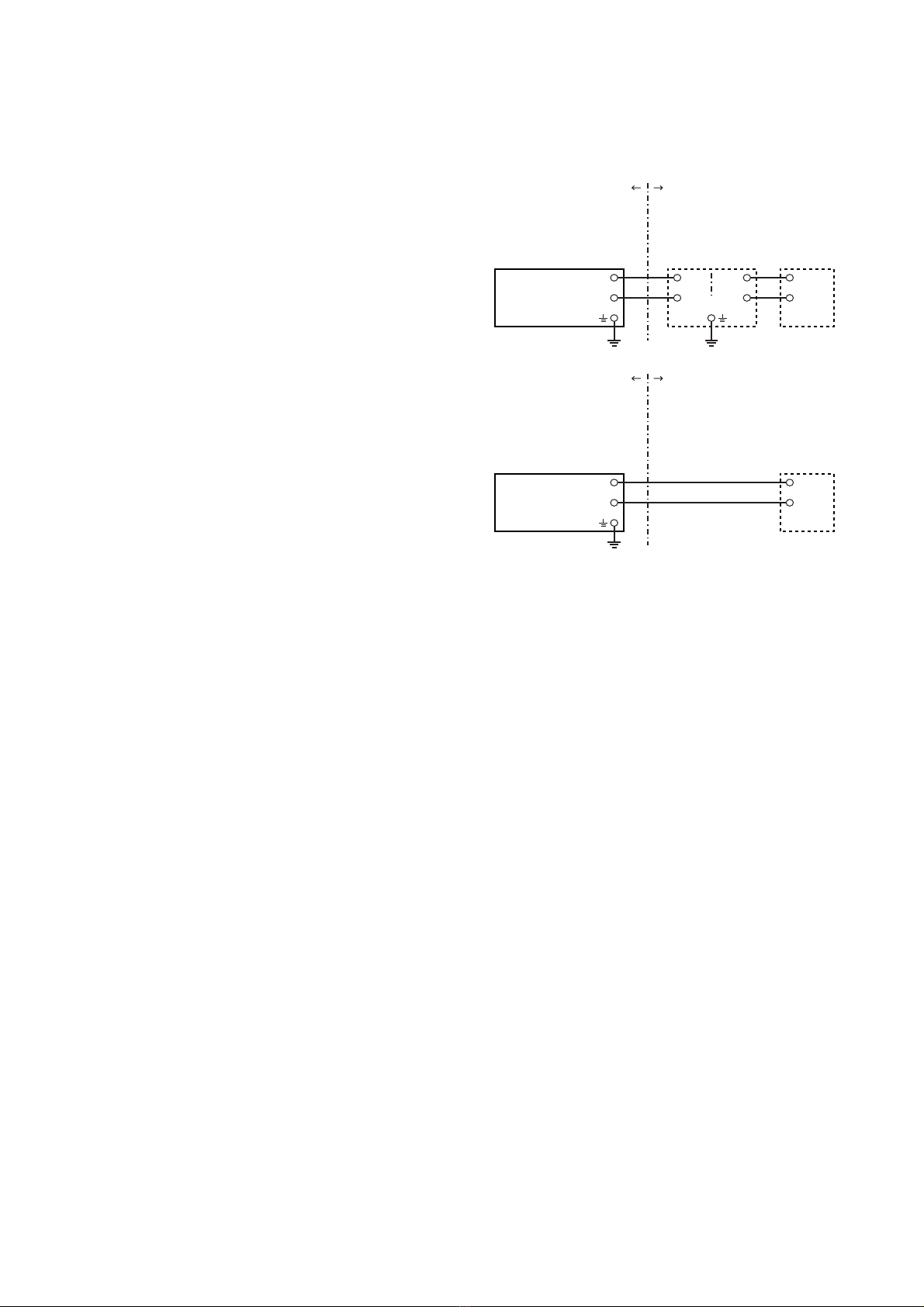

F0203.EPS
Class I, II, III, Division 1,
Groups A, B, C, D, E, F, G
EJA Series Pressure
Transmitters
EJA Series Pressure
Transmitters
Safety Barrier
Supply
Supply
Hazardous Location Nonhazardous Location
Hazardous Location Nonhazardous Location
General
Purpose
Equipment
+
–
+
–
+
–
+
–
+
–
+
–
[Intrinsically Safe]
Class I, II, Division 2,
Groups A, B, C, D, E, F, G
Class III, Division 1.
Not Use
Safety Barrier
[Nonincendive]
General
Purpose
Equipment
b. FM Explosionproof Type
Caution for FM explosionproof type.
Note 1. Model EJA Series differential, gauge,
and absolute pressure transmitters with
optional code /FF1 are applicable for
use in hazardous locations.
• Applicable Standard: FM3600, FM3615, FM3810,
ANSI/NEMA250
• Explosionproof for Class I, Division 1, Groups B,
C and D.
• Dust-ignitionproof for Class II/III, Division 1,
Groups E, F and G.
• Outdoor hazardous locations, NEMA 4X.
• Temperature Class: T6
• Ambient Temperature: –40 to 60°C
• Supply Voltage: 42 V dc max.
• Output signal: 4 to 20 mA
Note 2. Wiring
• All wiring shall comply with National Electrical
Code ANSI/NEPA70 and Local Electrical Codes.
• When installed in Division 1, “FACTORY
SEALED, CONDUIT SEAL NOT REQUIRED.”
Note 3. Operation
• Keep the “CAUTION” nameplate attached to the
transmitter.
CAUTION: OPEN CIRCUIT BEFORE REMOV-
ING COVER. SEAL ALL CONDUITS WITHIN
18 INCHES. WHEN INSTALLED IN DIV.1,
“FACTORY SEALED, CONDUIT SEAL NOT
REQUIRED.” INSTALL IN ACCORDANCE
WITH THE INSTRUCTION MANUAL IM 1C22.
• Take care not to generate mechanical sparking
when accessing to the instrument and peripheral
devices in a hazardous location.
Note 4. Maintenance and Repair
• The instrument modification or parts replacement
by other than authorized representative of
Yokogawa Electric Corporation is prohibited and
will void Factory Mutual Explosionproof Ap-
proval.
c. FM Intrinsically Safe Type/FM
Explosionproof Type
Model EJA Series pressure transmitters with
optional code /FU1 can be selected the type
of protection (FM Intrinsically Safe or FM
Explosionproof) for use in hazardous loca-
tions.

IM 01C21F01-01E
2-5
2. HANDLING CAUTIONS
Note 1. For the installation of this transmitter,
once a particular type of protection is
selected, any other type of protection
cannot be used. The installation must be
in accordance with the description about
the type of protection in this instruction
manual.
Note 2. In order to avoid confusion, unnecessary
marking is crossed out on the label other
than the selected type of protection when
the transmitter is installed.
2.9.2 CSA Certification
a. CSA Intrinsically Safe Type
Caution for CSA Intrinsically safe type. (Following
contents refer to “DOC No. ICS003-A12 P.1-1 and
P.1-2.”)
Note 1. Model EJA Series differential, gauge, and
absolute pressure transmitters with
optional code /CS1 are applicable for use
in hazardous locations
Certificate: 1053843
• Applicable Standard: C22.2 No.0, No.0.4, No.25,
No.30, No.94, No.142, No.157, No.213
• Intrinsically Safe for Class I, Division 1, Groups A,
B, C & D. Class II, Division 1, Groups E, F & G
and Class III, Division 1 Hazardous Locations.
• Nonincendive for Class I, Division 2, Groups A, B,
C & D, Class II, Division 2, Groups F & G, and
Class III, Hazardous Locations. (not use Safety
Barrier)
• Encl. “Type 4X”
• Temperature Class: T4
• Ambient temperature: –40 to 60°C
• Process Temperature: 120°C max.
Note 2. Entity Parameters
• Intrinsically safe ratings are as follows:
Maximum Input Voltage (Vmax) = 30 V
Maximum Input Current (Imax) = 165 mA
Maximum Input Power (Pmax) = 0.9 W
Maximum Internal Capacitance (Ci) = 22.5 nF
Maximum Internal Inductance (Li) = 730 μH
* Associated apparatus (CSA certified barriers)
Maximum output voltage (Voc) )30 V
Maximum output current (Isc) )165 mA
Maximum output power (Pmax) )0.9 W
Note 3. Installation
• All wiring shall comply with Canadian Electrical
Code Part I and Local Electrical Codes.
• The instrument modification or parts replacement
by other than authorized representative of
Yokogawa Electric Corporation and Yokogawa
Corporation of America is prohibited and will void
Canadian Standards Intrinsically safe and
nonincendive Certification.
Class I, II, III, Division 1,
Groups A, B, C, D, E, F, G
EJA Series Pressure
Transmitters Safety Barrier
Supply
Hazardous Location Nonhazardous Location
General
Purpose
Equipment
+
–
+
–
+
–
+
–
[Intrinsically Safe]
F0204-1.EPS
F0204-2.EPS
EJA Series Pressure
Transmitters
Supply
Hazardous Location Nonhazardous Location
+
–
+
–
Class I, II, Division 2,
Groups A, B, C, D, E, F, G
Class III, Division 1.
Not Use
Safety Barrier
[Nonincendive]
General
Purpose
Equipment
b. CSA Explosionproof Type
Caution for CSA explosionproof type.
Note 1. Model EJA Series differential, gauge, and
absolute pressure transmitters with
optional code /CF1 are applicable for use
in hazardous locations:
Certificate: 1089598
• Applicable Standard: C22.2 No.0, No.0.4, No.25,
No.30, No.94, No.142
• Explosionproof for Class I, Division 1, Groups B,
C and D.
• Dust-ignitionproof for Class II/III, Division 1,
Groups E, F and G.
• Encl “Type 4X”
• Temperature Class: T6, T5, and T4
• Process Temperature: 85°C (T6), 100°C (T5), and
120°C (T4)
• Ambient Temperature: –40 to 80°C
• Supply Voltage: 42 V dc max.
• Output Signal: 4 to 20 mA
Note 2. Wiring
• All wiring shall comply with Canadian Electrical
Code Part I and Local Electrical Codes.
• In hazardous location, wiring shall be in conduit as
shown in the figure.
CAUTION: SEAL ALL CONDUITS
WITHIN 50 cm OF THE ENCLOSURE.
UN SCELLEMENT DOIT ÊTRE
INSTALLÉ À MOINS DE 50 cm DU
BÎTIER.

IM 01C21F01-01E
2-6
2. HANDLING CAUTIONS
• When installed in Division 2, “SEALS NOT
REQUIRED.”
Note 3. Operation
• Keep the “CAUTION” label attached to the
transmitter.
CAUTION: OPEN CIRCUIT BEFORE
REMOVING COVER.
OUVRIR LE CIRCUIT AVANT
D´NLEVER LE COUVERCLE.
• Take care not to generate mechanical sparking
when accessing to the instrument and peripheral
devices in a hazardous location.
Note 4. Maintenance and Repair
• The instrument modification or parts replacement
by other than authorized representative of
Yokogawa Electric Corporation and Yokogawa
Corporation of America is prohibited and will void
Canadian Standards Explosionproof Certification.
Non-hazardous
Location
Equipment
42 V DC Max.
4 to 20 mA DC
Signal
Non-Hazardous
Locations Hazardous Locations Division 1
Non-Hazardous
Locations Hazardous Locations Division 2
50 cm Max.
Sealing Fitting Conduit
EJA Series
Non-hazardous
Location
Equipment
42 V DC Max.
4 to 20 mA DC
Signal Sealing Fitting
EJA Series
F0205.EPS
c. CSA Intrinsically Safe Type/CSA
Explosionproof Type
Model EJA Series pressure transmitters with
optional code /CU1 can be selected the type of
protection (CSA Intrinsically Safe or CSA
Explosionproof) for use in hazardous locations.
Note 1. For the installation of this transmitter,
once a particular type of protection is
selected, any other type of protection
cannot be used. The installation must be
in accordance with the description about
the type of protection in this instruction
manual.
Note 2. In order to avoid confusion, unnecessary
marking is crossed out on the label other
than the selected type of protection when
the transmitter is installed.
2.9.3 IECEx Certification
Model EJA Series differential, gauge, and
absolute pressure transmitters with
optional code /SU2 can be selected the type of
protection (IECEx Intrinsically Safe/type n or
flameproof) for use in hazardous locations.
Note 1. For the installation of this transmitter,
once a particular type of protection is
selected, any other type of protection
cannot be used. The installation must be
in accordance with the description about
the type of protection in this instruction
manual.
Note 2. In order to avoid confusion, unnecessary
marking is crossed out on the label other
than the selected type of protection when
the transmitter is installed.
a. IECEx Intrinsically Safe Type / type n
Caution for IECEx Intrinsically safe and type n.
Note 1. Model EJA Series differential, gauge, and
absolute pressure transmitters with
optional code /SU2 are applicable for use
in hazardous locations.
• No. IECEx KEM 06.0007X
• Applicable Standard: IEC 60079-0:2004,
IEC 60079-11:1999, IEC 60079-15:2005,
IEC 60079-26:2004
• Type of Protection and Marking Code:
Ex ia IIC T4, Ex nL IIC T4
• Ambient Temperature :–40 to 60°C
• Max. Process Temp.: 120°C
• Enclosure: IP67
Note 2. Entity Parameters
• Intrinsically safe ratings are as follows:
Maximum Input Voltage (Ui) = 30 V
Maximum Input Current (Ii) = 165 mA
Maximum Input Power (Pi) = 0.9 W
Maximum Internal Capacitance (Ci) = 22.5 nF
Maximum Internal Inductance (Li) = 730 μH
• Type "n" ratings are as follows:
Maximum Input Voltage (Ui) = 30 V
Maximum Internal Capacitance (Ci) = 22.5 nF
Maximum Internal Inductance (Li) = 730 μH
• Installation Requirements
Uo )Ui, Io )Ii, Po )Pi,
Co *Ci + Ccable, Lo *Li + Lcable
Uo, Io, Po, Co, and Lo are parameters of
barrier.

IM 01C21F01-01E
2-7
2. HANDLING CAUTIONS
Note 3. Installation
• In any safety barreir used output current must be
limited by a resistor 'R' such that Io=Uo/R.
• The safety barrier must be IECEx certified.
• Input voltage of the safety barrier must be less than
250 Vrms/Vdc.
• The instrument modification or parts replacement
by other than authorized representative of
Yokogawa Electric Corporation and will void
IECEx Intrinsically safe and type n certification.
• The cable entry devices and blanking elements for
type n shall be of a certified type providing a level
of ingress protection of at least IP54, suitable for
the conditions of use and correctly installed.
• Electrical Connection:
The type of electrical connection is stamped near
the electrical connection port according to the
following marking.
T0202.EPS
F0210.EPS
Location of the marking
Note 4. Operation
• WARNING:
WHEN AMBIENT TEMPERATURE *55°C,
USE THE HEAT-RESISTING CABLES *90°C.
Note 5. Special Conditions for Safe Use
• WARNING:
IN THE CASE WHERE THE ENCLOSURE OF
THE PRESSURE TRANSMITTER IS MADE OF
ALUMINUM, IF IT IS MOUNTED IN AN AREA
WHERE THE USE OF ZONE 0 IS REQUIRED,
IT MUST BE INSTALLED SUCH, THAT, EVEN
IN THE EVENT OF RARE INCIDENTS, IGNI-
TION SOURCES DUE TO IMPACT AND
FRICTION SPARKS ARE EXCLUDED.
F0211.EPS
EJA Series Pressure
Transmitters
IECEx certified
Safety Barrier
Supply
Hazardous Location Nonhazardous Location
General
Purpose
Equipment
+
–
+
–
+
–
+
–
[Intrinsically Safe]
Group I/IIC, Zone 0
F0212.EPS
EJA Series Pressure
Transmitters
Supply
Hazardous Location Nonhazardous Location
+
–
+
–
Not Use
Safety Barrier
[type n]
IECEx Certified
Equipment [nL]
Group IIC, Zone 2
b. IECEx Flameproof Type
Caution for IECEx flameproof type.
Note 1. Model EJA Series differential, gauge, and
absolute pressure transmitters with
optional code /SU2 are applicable for use
in hazardous locations:
• No. IECEx KEM 06.0005
• Applicable Standard: IEC60079-0:2004,
IEC60079-1:2003
• Type of Protection and Marking Code:
Ex d IIC T6...T4
• Enclosure: IP67
• Maximum Process Temperature: 120°C (T4),
100°C (T5), 85°C (T6)
• Ambient Temperature: –40 to 75°C (T4), –40 to
80°C (T5), –40 to 75°C (T6)
• Supply Voltage: 42 V dc max.
• Output Signal: 4 to 20 mA dc
Note 2. Wiring
• In hazardous locations, the cable entry devices shall
be of a certified flameproof type, suitable for the
conditions of use and correctly installed.
• Unused apertures shall be closed with suitable
flameproof certified blanking elements. (The plug
attached is certificated as the flame proof IP67 as a
part of this apparatus.)
• In case of ANSI 1/2 NPT plug, ANSI hexagonal
wrench should be applied to screw in.
Note 3. Operation
• WARNING:
AFTER DE-ENERGIZING, DELAY 10 MINUTES
BEFORE OPENING.
• WARNING:
WHEN AMBIENT TEMPERATURE *70°C,
USE THE HEAT-RESISTING CABLES *90°C.
• Take care not to generate mechanical sparking
when accessing to the instrument and peripheral
devices in a hazardous location.
Note 4. Maintenance and Repair
• The instrument modification or parts replacement
by other than authorized representative of
Yokogawa Electric Corporation is prohibited and
will void IECEx Certification.

IM 01C21F01-01E
2-8
2. HANDLING CAUTIONS
2.9.4 CENELEC ATEX (KEMA)
Certification
(1) Technical Data
a. CENELEC ATEX (KEMA) Intrinsically Safe
Type
Caution for CENELEC ATEX (KEMA) Intrinsi-
cally safe type.
Note 1. Model EJA Series differential, gauge, and
absolute pressure transmitters with
optional code /KS2 for potentially explo-
sive atmospheres:
• No. KEMA 02ATEX1030 X
• Applicable Standard: EN50014:1997,
EN50020:1994, EN50284:1999
• Type of Protection and Marking code:
EEx ia IIC T4
• Temperature Class: T4
• Enclosure: IP67
• Process Temperature: 120°C max.
• Ambient Temperature: –40 to 60°C
Note 2. Electrical Data
• In type of explosion protection intrinsic safety EEx
ia IIC only for connection to a certified intrinsically
safe circuit with following maximum values:
Ui = 30 V
Ii = 165 mA
Pi = 0.9 W
Effective internal capacitance; Ci = 22.5 nF
Effective internal inductance; Li = 730 μH
Note 3. Installation
• All wiring shall comply with local installation
requirements. (Refer to the installation diagram)
Note 4. Maintenance and Repair
• The instrument modification or parts replacement
by other than authorized representative of
Yokogawa Electric Corporation is prohibited and
will void KEMA Intrinsically safe Certification.
Note 5. Special Conditions for Safe Use
• In the case where the enclosure of the Pressure
Transmitter is made of aluminium, if it is mounted
in an area where the use of category 1 G apparatus
is required, it must be installed such, that, even in
the event of rare incidents, ignition sources due to
impact and friction sparks are excluded.
Transmitter
Supply Safety Barrier *1
Nonhazardous Location
[Installation Diagram]
Hazardous Location
+
–
+
–
F0208.EPS
*1: In any safety barriers used the output current must be limited by
a resistor “R” such that Imaxout-Uz/R.
b. CENELEC ATEX (KEMA) Flameproof Type
Caution for CENELEC ATEX (KEMA) flameproof
type.
Note 1. Model EJA Series differential, gauge, and
absolute pressure transmitters with
optional code /KF2 for potentially explo-
sive atmospheres:
• No. KEMA 02ATEX2148
• Applicable Standard: EN50014:1997,
EN50018:2000
• Type of Protection and Marking Code: EEx d IIC
T6···T4
• Temperature Class: T6, T5, and T4
• Enclosure: IP67
• Maximum Process Temperature:
85°C (T6), 100°C (T5), and 120°C (T4)
• Ambient Temperature: T4 and T6; –40 to 75°C,
T5; –40 to 80°C
Note 2. Electrical Data
• Supply voltage: 42 V dc max.
• Output signal: 4 to 20 mA
Note 3. Installation
• All wiring shall comply with local installation
requirement.
• The cable entry devices shall be of a certified
flameproof type, suitable for the conditions of use.
Note 4. Operation
• Keep the “CAUTION” label to the transmitter.
CAUTION: AFTER DE-ENERGIZING,
DELAY 10 MINUTES BEFORE
OPENING. WHEN THE AMBIENT
TEMP.70°C, USE HEAT-RESISTING
CABLES90°C.

IM 01C21F01-01E
2-9
2. HANDLING CAUTIONS
• Take care not to generate mechanical sparking
when accessing to the instrument and peripheral
devices in a hazardous location.
Note 5. Maintenance and Repair
• The instrument modification or parts replacement
by other than authorized representative of
Yokogawa Electric Corporation is prohibited and
will void KEMA Flameproof Certification.
c. CENELEC ATEX (KEMA) Intrinsically Safe
Type/CENELEC ATEX (KEMA) Flameproof
Type/ CENELEC ATEX Type n
Model EJA-A Series pressure transmitters with
optional code /KU2 can be selected the type of
protection CENELEC ATEX (KEMA) Intrinsically
Safe, Flameproof or CENELEC ATEX Type n
for use in hazardous locations.
Note 1. For the installation of this transmitter,
once a particular type of protection is selected,
any other type of protection cannot be used.
The installation must be in accordance with the
description about the type of protection in this
user’s manual.
Note 2. In order to avoid confusion, unnecessary
marking is crossed out on the label other than
the selected type of protection when the
transmitter is installed.
CENELEC ATEX Type of Protection “n”
WARNING
When using a power supply not having a non-
incendive circuit, please pay attention not to
ignite in the surrounding flammable atmosphere.
In such a case, we recommend using wiring
metal conduit in order to prevent the ignition.
• Applicable Standard: EN60079-15:2003
• Referential Standard: IEC60079-0:1998, IEC60079-
11:1999
• Type of Protection and Marking Code:
EEx nC IIL T4
• Temperature Class: T4
• Enclosure: IP67
• Process Temperature: 120°C max.
• Ambient Temperature: –40 to 60°C
Note 1. Electrical Data
Ui = 30 V
Effective internal capacitance; Ci = 22.5 nF
Effective internal inductance; Li = 730 μH
Note 2. Installation
• All wiring shall comply with local installation
requirements. (refer to the installation diagram)
Note 3. Maintenance and Repair
• The instrument modification or parts replacement
by other than authorized representative of
Yokogawa Electric Corporation is prohibited and
will void Type of Protection “n”.
Power Supply
(Zone 2 only)
Transmitter
Supply
Nonhazardous Location
[Installation Diagram]
Hazardous Location
+
–
+
–
F0209.EPS
Ratings of the Power Supply as follows;
Maximum Voltage: 30 V
CENELEC ATEX Type of Protection “Dust”
• Applicable Standard: EN50281-1-1:1997
• Type of Protection and Marking Code: II 1D
• Maximum Surface Temperature:
T65°C (Tamb.: 40°C), T85°C (Tamb.: 60°C), and
T105°C (Tamb.: 80°C)
Note 1. Installation instructions
The cable entry devices and blanking elements
shall be of a certificated type providing a level
of ingress protection of at least IP6x, suitable
for the conditions of use and correctly installed.
(2) Electrical Connection
The type of electrical connection is stamped near
the electrical connection port according to the
following marking.
F0200.EPS
Location of the marking
(3) Installation
WARNING
• All wiring shall comply with local installation
requirement and local electrical code.
• There is no need of the conduit seal for both of
Division 1 and Division 2 hazardous locations
because this product is sealed at factory.
• In case of ANSI 1/2 NPT plug, ANSI hexagonal
wrench should be applied to screw in.

IM 01C21F01-01E
2-10
2. HANDLING CAUTIONS
(4) Operation
WARNING
• OPEN CIRCUIT BEFORE REMOVING
COVER. INSTALL IN ACCORDANCE WITH
THIS USER’S MANUAL
• Take care not to generate mechanical sparking
when access to the instrument and peripheral
devices in hazardous locations.
(5) Maintenance and Repair
WARNING
The instrument modification or parts replacement
by other than authorized Representative of
Yokogawa Electric Corporation is prohibited and
will void the certification.
(6) Name Plate
 Name plate
: Refer to USER'S MANUAL
 Tag plate for flameproof type
 Tag plate for intrinsically safe type
 Tag plate for type n protection
 Tag plate for flameproof, intrinsically safe type,
type n protection, and Dust
F0298.EPS
DT65C (Tamb 40 C) T85C (Tamb 60 C)
and T105C (Tamb 80C)
MODEL: Specified model code.
STYLE: Style code.
SUFFIX: Specified suffix code.
SUPPLY: Supply voltage.
OUTPUT: Output signal.
MWP: Maximum working pressure.
CAL RNG: Specified calibration range.
DISP MODE: Specified display mode.
OUTPUT MODE: Specified output mode.
NO.: Serial number and year of production*1.
TOKYO 180-8750 JAPAN:
The manufacturer name and the
address*2.
*1: The third figure from the last shows the last one
figure of the year of production. For example, the
production year of the product engraved in “NO.”
column on the name plate as follows is 2001.
The year 2001
12A819857 132
*2: “180-8750” is a zip code which represents the
following address.
2-9-32 Nakacho, Musashino-shi, Tokyo Japan
2.10 EMC Conformity Standards
EN61326, AS/NZS CISPR11
CAUTION
This instrument is a Class A product, and it is
designed for use in the industrial environment.
Please use this instrument in the industrial
environment only.
NOTE
YOKOGAWA recommends customer to apply
the Metal Conduit Wiring or to use the twisted
pair Shield Cable for signal wiring to conform the
requirement of EMC Regulation, when customer
installs the EJA Series Transmitters to the plant.
2.11 PED (Pressure Equipment
Directive)
(1) General
• EJA series of pressure transmitters are categorized
as pressure accessories under the vessel section of
this directive 97/23/EC, which corresponds to
Article 3, Paragraph 3 of PED, denoted as Sound
Engineering Practice (SEP).

IM 01C21F01-01E
2-11
2. HANDLING CAUTIONS
• EJA130A, EJA440A, EJA510A, and EJA530A can
be used above 200 bar and therefore considered as
a part of a pressure retaining vessel where category
lll, Module H applies. These models with option
code /PE3 conform to that category.
(2) Technical Data
• Models without /PE3
Article 3, Paragraph 3 of PED, denoted as Sound
Engineering Practice (SEP) .
• Models with /PE3
Module: H
Type of Equipment: Pressure Accessory - Vessel
Type of Fluid: Liquid and Gas
Group of Fluid: 1 and 2
Model
EJA110A
EJA120A
EJA130A
EJA130A
With code /PE3
EJA310A
EJA430A
EJA440A
EJA440A
With code /PE3
EJA510A
EJA510A
With code /PE3
EJA530A
EJA530A
With code /PE3
Category*2
Article 3, paragraph 3
(SEP)
Article 3, paragraph 3
(SEP)
Article 3, paragraph 3
(SEP)
III
Article 3, paragraph 3
(SEP)
Article 3, paragraph 3
(SEP)
Article 3, paragraph 3
(SEP)
III
Article 3, paragraph 3
(SEP)
III
Article 3, paragraph 3
(SEP)
III
PS-V(bar-L)
1.6
0.005
4.2
4.2
1.6
1.6
50
50
50
50
50
50
V(L)
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
PS(bar)*1
160
0.5
420
420
160
160
500
500
500
500
500
500
*1: PS is maximum allowable pressure for vessel itself.
*2: Referred to Table 1 covered by ANNEX II of EC Directive
on Pressure Equipment Directive 97/23/EC T0299.EPS
(3) Operation
CAUTION
• The temperature and pressure of fluid should
be applied under the normal operating condi-
tion.
• The ambient temperature should be applied
under the normal operating condition.
• Please pay attention to prevent the excessive
pressure like water hammer, etc. When water
hammer is to be occurred, please take mea-
sures to prevent the pressure from exceeding
PS by setting the safety valve, etc. at the
system and the like.
• When external fire is to be occurred, please
take safety measures at the device or system
not to influence the transmitters.
2.12 Low Voltage Directive
Applicable standard : EN61010-1
(1) Pollution Degree 2
"Pollution degree" describes the degree to which a
soild, liquid, or gas which deteriorates dielectric
strength or surface resistivity is adhering. " 2 "
applies to normal indoor atmosphere. Normally,
only non-conductive pollution occurs. Occasionally,
however, temporary conductivity caused by
condenstaion must be expected.
(2) Installation Category I
"Overvoltage category(Installation category)"
describes a number which defines a transient
overvoltage condition. It implies the regulattion for
impulse withstand voltage. " I " applies to electrical
equipment which is supplied from the circuit when
appropriate transient overvoltage control means
(interfaces) are provided.

IM 01C21F01-01E
3-1
3. COMPONENT NAMES
3. COMPONENT NAMES
Setting pin (CN4)
Integral
indicator
(Note 1)
CPU assembly
External indicator
conduit connection
(Note 1)
Transmitter section
Terminal box cover
Zero-adjustment screw
Pipe (Open to atmosphere)
(Note 3)
Capsule assembly
Mounting screw
Range-setting
switch
(Note 1)
(See Subsection 7.5)
Amplifier Cover Setting Pin (CN4)
Position
(Note 2)
Burn-Out
Direction
Output at
Burn-Out
H
L
H
L
HIGH
LOW
110% or
higher
- 5% or
lower
F0301.EPS
Note 1: See Subsection 10.2, “Model and Suffix Codes,” for
details.
Note 2: Insert the pin (CN4) as shown in the figure above to
set the burn-out direction. The pin is set to the H side
for delivery (unless option code /C1 is specified in the
order).
The setting can be confirmed by calling up parameter
D52 using the BRAIN TERMINAL. Refer to Subsection
8.3.3 (8).
Note 3: Applied to Model EJA530A with Measurement span
code A, B, and C.
Figure 3.1 Component Names
Table 3.1 Display Symbol
Display Symbol
%, Pa, kPa, MPa, kgf/cm
2
, gf/cm
2
, mbar, bar,
atm, mmHg, mmH
2
O, inH
2
O, inHg, ftH
2
O, psi, Torr
Meaning of Display Symbol
The output signal being zero-adjusted is increasing.
The output signal being zero-adjusted is decreasing.
Select one of these sixteen available engineering units for the display.
T0301.EPS
