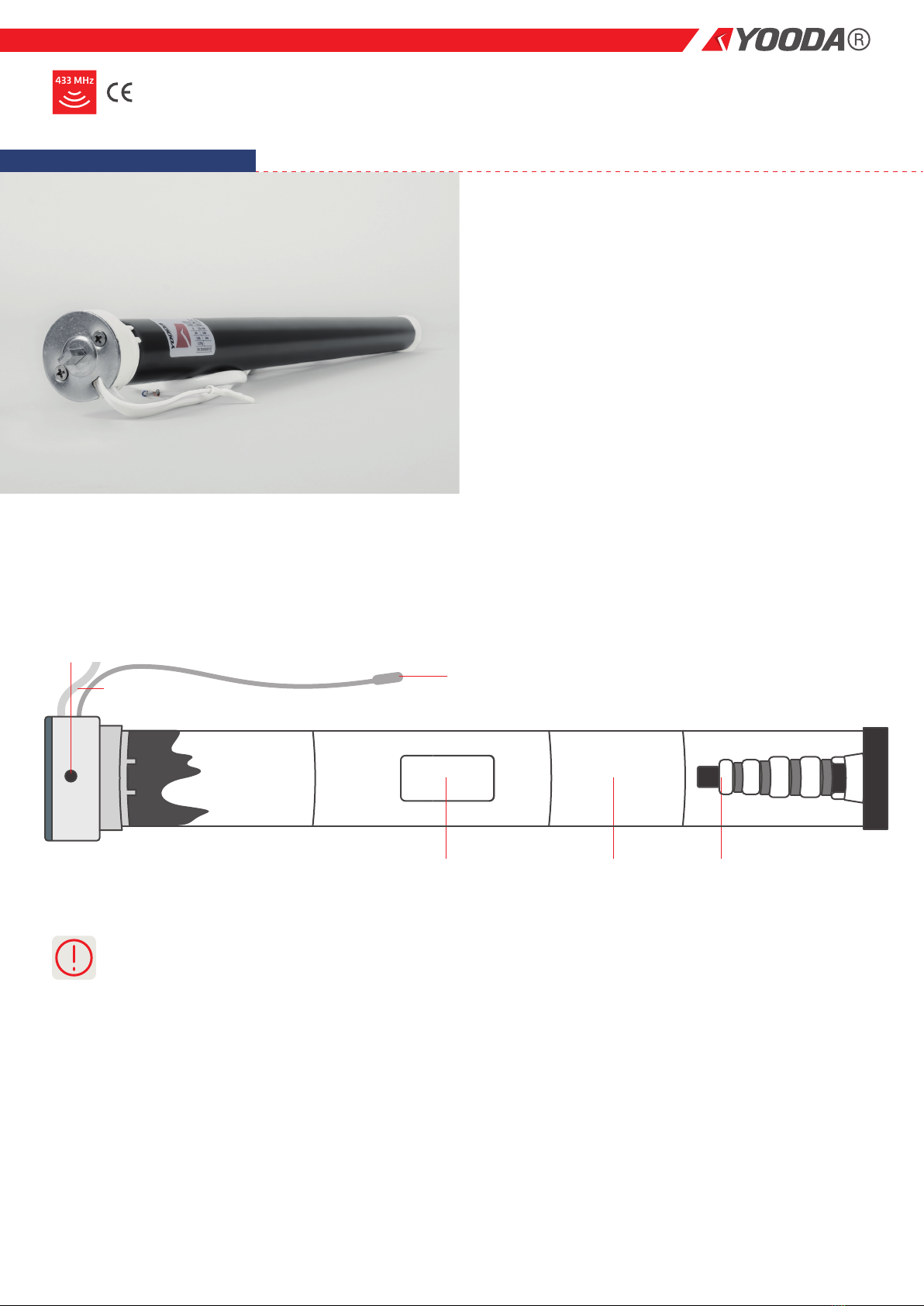

YOODA 25TE Series User manual

TE type motors equipped with a radio receiver are wireless
and can be controlled with a remote. They are designed for
automation of blinds. They have electronic limit switches
which are programmed by the remote control. TE type
motores are compatible with all YOODA transmitters.
Radio receiver memory:
up to 20 transmitters
Power supply:
230 V / 50 Hz
Operating temperature:
from -5°C to 50°C
Protection degree:
IP 40
Load:
25TE 0,7 Nm up to 4 kg
25TE 1,5 Nm up to 8 kg
25 TE motor with radio receiver 230 V AC
Programming button functions:
1. Pressing the programming button briefly for approximately 1 second controls the drive step by step.
2. Press the programming button for 2 seconds to enter the transmitter programming mode.
3. Pressing the programming button for 6 seconds block radio signal . To turn off this function, briefly press the program -
ming button on the motor head.
4. Pressing the programming button for 10 seconds changes work motor direction.
5. Pressing the programming button for 14 seconds deletes the motor memory and restores the factory settings.
Non-compliance with the specification might cause risk for life or health and can determine proper work of the blind.
We strongly recommend to comply with the specification.
25TE SERIES TUBULAR MOTOR
www.sukcesgroup.pl
1. General information
1
motor gear
antenna
power supply cable
radio receiver,
limit switches system
programming button

Motor should be mounted in places protected from unfavourable weather conditions. Do not pull the motor head when
removing it from the tube.
1. Cut the tube
to the proper length.
2. Deburr the edges
and remove the metal residue.
3. Place the adaptation
on the motor.
4. Measure the distance (L)
between the inner edge of motors head
and the end of the motors adaptor.
5. Insert the motor into the tube
up to the point of connection
between the edge of the tube and
the inner edge of the motors head.
Attach the tube to the
coupling part of the adaptation.
2. Safety measures
3. Placing motor in the tube
Before installing or using motor please read the following instruction. The installer must comply with the standards and regulations in
force in the country where the appliance will be installed and provide information to users about the conditions and maintenance of the
device. Failure to follow these instructions can present risk to life and health, or invalid functioning of the roller shutter. This also
results in the loss of warranty rights.
Motors torque parameter should be adequate to the
weight of the roller shutter curtain.
Do not hit the motor. Reduce the vibration of the
motor to a minimum.
No tools should be used when placing motor
in the tube.
During the adapter montage special attention must
be paid not to damage the motor.
All contact of the motor with any liquids should be
reduced to minimum.
Motor and its control system should be kept out of
children reach.
Motor cables should be installed in such a way that
water can not get inside to the motor and that they
have not been damaged by working roller shutter.
Turn off the power supply before any installation or
maintenance activity.
Electrical system control should be performed regularly
to detect any signs of use or damage of the motor.
2

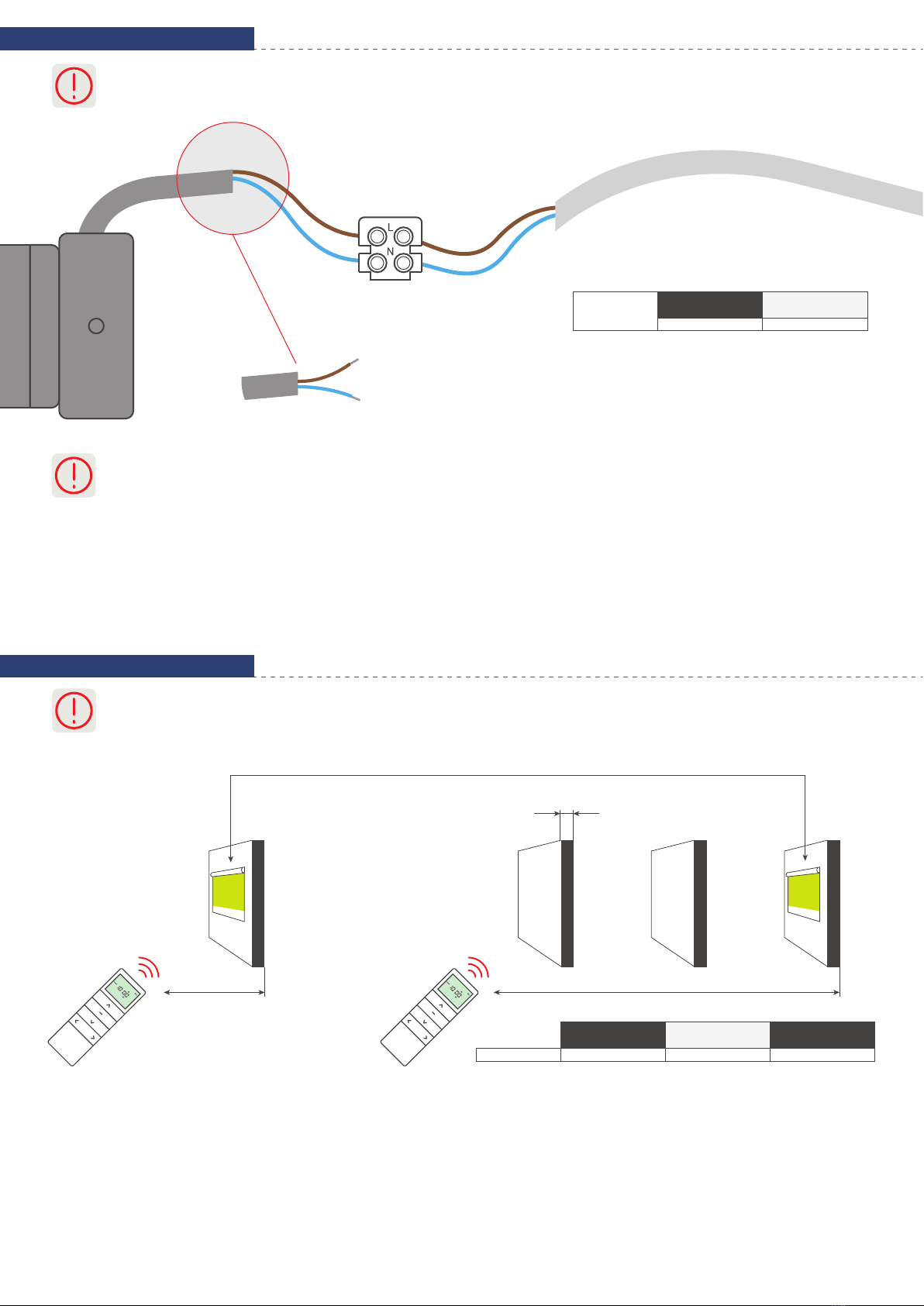

4. Connection
5. Range
Radio receiver range is a variable value and can differ from declared values depending on conditions in which device
operates. Possible sources of changes in range are building construction, interference caused by other radio transmitters
etc.
Electrical appilance class II.
230 V / 50 Hz 200 m 35 m 433,92 MHz
L1
outdoor L2 indoor Operating frequency
20
Blind with remotely controlled motor
L2L1
3
230 V AC
phase wire neutral wire
LN
Installation of the tubular motor should be performed by specialists with 1kV or higher SEP-certified electrician's licence
(SEP - Association of Polish Electrical Engineers) or equal license. Device is designed to operate in places shielded from
unfavourable weather conditions. Motor should be installed in accordance with all provisions of regional law and
professional standards. All cables connecting power receiver with electric source should be protected from overload and
short-circuits effects with devices automatically disconnecting power. Device should be powered with a separate source
and protected only with a fast-blow fuse (never slow-blow fuse). Creating electrical system using inadequate fuse may
result in loosing rights under the provisions of warranty. When connecting device to power source with cables with
adequate cross-section should be used. Long-lasting output load capacity table should be the ground for choosingade-
quate cables.
brown wire - phase
230 V / 50 Hz
blue wire - neutral

6. Programming first transmitter
7. Changing motors direction
8. Programming limit positions
1. Longer than 10 seconds pause between series of button clicks during programming will cause device to switch off from
programming mode without saving any changes.
2. Programming the first transmitter removes the previously programmed transmitters from memory.
Turn on the power or press the
programming button on the
motor head (for 2 seconds)
when power is on.
Blind will make
short up/down
movements.
Motor will make a sound
Blind will make
short up/down
movements.
Motor will make a sound
Press programming button
P2 on the remote control.
Blind will make short
up/down movements.
Motor will make several
sounds.
Motor will
make a sound.
Press programming
button P2 on the
remote control.
Press
UP button.
When pressing DOWN
button blind moves up.
When pressing DOWN
button blind moves down.
Blind will make short
up/down movements.
Motor will make 3 sounds.
Press and hold
for about 10 seconds
programming button
on the motor head.
4
To set the upper and lower limit position press the programming button P2 during the motor movement, it causes the work
displacement. Then you can precisely set the limit positions. Pressing the P2 button again motor will run continuously.
Press
programming
button P2.
Press
UP button.
Press
programming button
P2 again.
Upper
limit position.
Press
UP button.
Blind will make short
up/down movements.
Motor will make a sound.
Blind will make short
up/down movements.
Motor will make a sound.
Blind will make short
up/down movements.
Motor will make several sounds.
When the blind
reaches upper limit
position press
STOP button.
Blind will make short
up/down movements.
Motor will make
several sounds.
Blind will make short
up/down movements.
Motor will make
several sounds.
Press STOP button
5 times at 0.5 sec intervals
to confirm the upper
limit position.
Press STOP button
5 times at 0.5 sec intervals
to confirm the lower limit
position.
Press
DOWN button.
Limit positions
has been
programmed.
Lower
limit position.
When the blind
reaches lower
limit position
press STOP button.
Turn on the power or press the
programming button on the
motor head (for 2 seconds)
when power is on.
Blind will make
short up/down
movements.
Motor will make a sound
Blind will make short
up/down movements.
Motor will make a sound
Press programming button
P2 on the remote control.
Blind will make short
up/down movements.
Motor will make
several sounds.
Motor will
make a sound.
Press programming
button P2 on the
remote control.
Press
DOWN button.

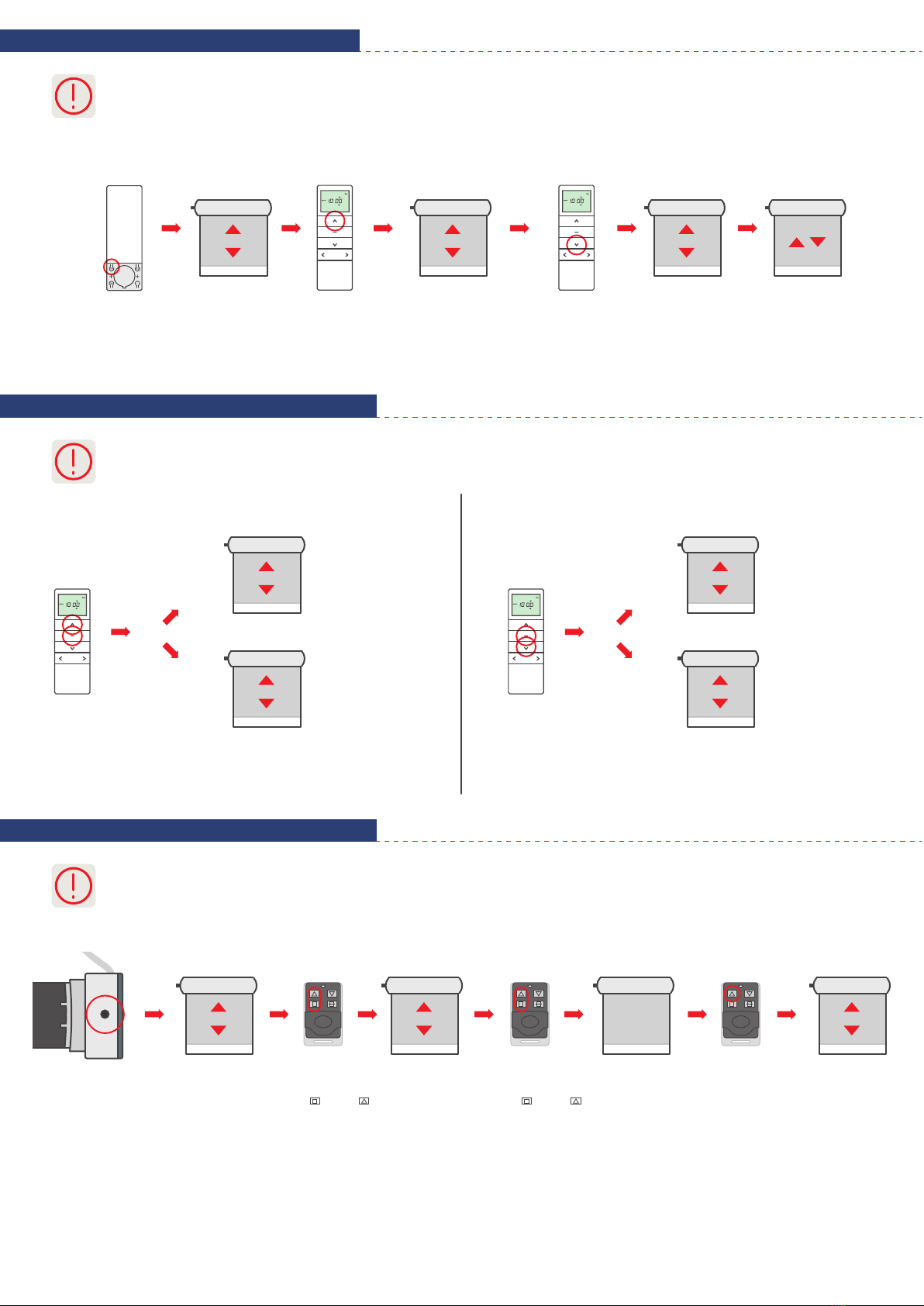

We can change the work direction of the motor by using two methods:
METHOD 1:
METHOD 2:

9. Regulation limit positions
12. Removing third limit position
11. Programming the third limit position
5
Press and hold
simultaneously
for 5 seconds UP
and DOWN buttons.
Using UP and DOWN
buttons set the
new limit position.
Blind will make short
up/down movements.
Motor will make several sounds.
We set the motor
in the upper or
lower limit position.
Press STOP button
5 times at 0.5 sec intervals
to confirm the new
limit position.
Blind will make short
up/down movements.
Motor will make
several sounds.
10. Removing limit positions
Blind will make short
up/down movements.
Motor will make a sound.
Blind will make short
up/down movements.
Motor will make a sound.
Blind will make short
up/down movements.
Motor will make several sounds.
Limit positions
has been removed.
Press
programming
button P2.
Press
programming
button P2 again.
Press
DOWN button.
1. After setting the upper and lower limit positions, it is possible to set the third position (favorite) between those
positions.
2. Hold the STOP button for 3 seconds to set the blind in third limit position.
3. When the motor is in pulse mode, hold the STOP button for 3 seconds, blind reaches lower limit position, and then to
the set third position.
Blind will make short
up/down movements.
Motor will make a sound.
Blind will make short
up/down movements.
Motor will make several sounds.
Favourite position
has been programmed.
Press
STOP button.
Press
STOP button.
Blind will make short
up/down movements.
Motor will make a sound.
Blind will make short
up/down movements.
Motor will make a sound.
Blind will make short
up/down movements.
Motor will make several sounds.
Favourite position
has been removed.
Press
programming
button P2.
Press
STOP button.
Press
STOP button.
Blind will make short
up/down movements.
Motor will make a sound.
Upper limit position
has been set.
Lower limit position
has been set.
An example of the third
limit position
Set the blind
in favourite position.
Press
programming
button P2.
In case of setting the limit positions, the upper or lower limit position can be corrected.

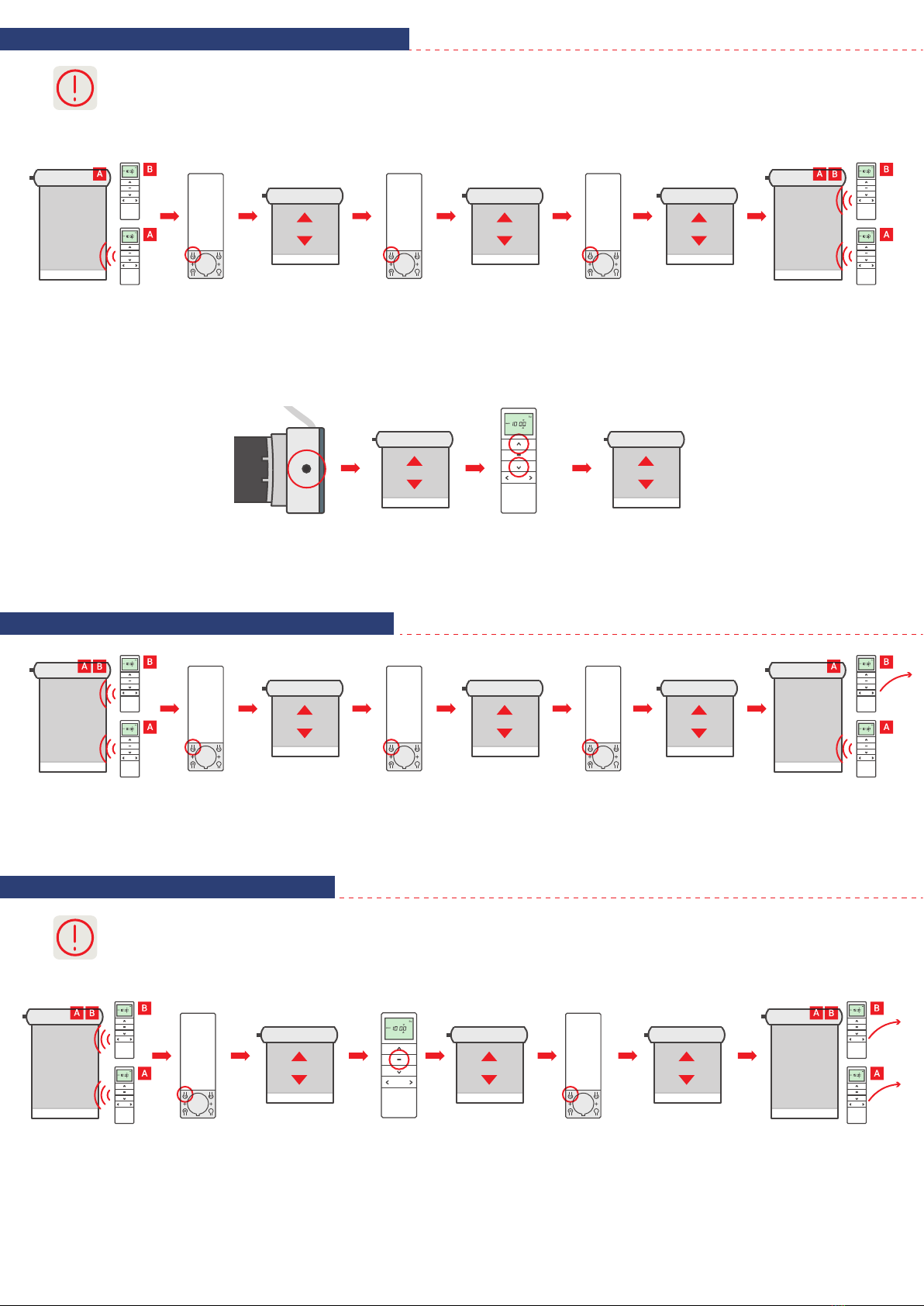

13. Programming another transmitter
14. Deleting another transmitter
15. Deleting motor memory
6
Blind will make short
up/down movements.
Motor will make a sound.
Blind will make short
up/down movements.
Motor will make a sound.
Blind will make short
up/down movements.
Motor will make
several sounds.
Press programming
button P2 on the
A remote control.
Press programming
button P2 on the
A remote control.
Press programming
button P2 on the
B remote control.
Remote control
has been programmed.
Blind will make short
up/down movements.
Motor will make a sound.
Blind will make short
up/down movements.
Motor will make a sound.
Blind will make short
up/down movements.
Motor will make
several sounds.
Press programming
button P2 on the
A remote control.
Press programming
button P2 on the
A remote control.
Press programming
button P2 on the
B remote control.
Remote control
has been removed.
Deleting memory of motors radio receiver will cause for all programmed transmitters to be lost.
Longer than 10 seconds pause between series of button clicks during programming will cause device to switch off from
programming mode without saving any changes.
Blind will make short
up/down movements.
Motor will make a sound.
Blind will make short
up/down movements.
Motor will make a sound.
Blind will make short
up/down movements.
Motor will make
several sounds.
All active transmitters have
been removed from memory.
Press programming
button P2 on
any remote control.
Press
STOP button.
Press programming
button P2 on the
remote control.
Press and hold
UP and DOWN buttons
simultaneously on added
transmitter.
Blind will make short
up/down movements.
Motor will make a sound.
Press and hold
for about 2 seconds
programming button
on the motor head.
Blind will make short
up/down movements.
Motor will make
several sounds.
Receiver can be controlled by up to 20 transmitters.
Longer than 10 seconds pause between series of button clicks during programming will cause device to switch off from
programming mode without saving any changes.
METHOD 1:
METHOD 2:

16. Activating impulse mode
17. Motor speed regulation
7
1. Longer than 10 seconds pause between series of button clicks during programming will cause device to switch off
from programming mode without saving any changes.
2. To activate impulse mode please make the procedure below. To reverse this procedure please repeat the instruction.
Blind will make short
up/down movements..
Motor will make a sound.
Press programming
button P2 on
any remote control.
Blind will make short
up/down movements.
Motor will make
2 sounds.
When motor is in
impulse mode single push of
a button on the remote will
cause motor to make
short move.
Press
UP button.
Press and hold
UP and STOP buttons
simultaneously
for about 2 seconds.
If the drive performs two
Up / down movements
the middle speed
has been set.
Press
DOWN button.
Blind will make short
up/down movements.
Motor will make a sound.
If the drive performs three
Up / down movements
the highest speed
has been set.
If the motor does not respond when pressed, it means that it is set to the smallest or highest speed motor.
INCREASE THE SPEED OF THE MOTOR: MOTOR SPEED REDUCTION:
18. Programming key-ring remotes
When programming key-ring remotes that do not have additional P2 programming button the same function is
substituted with simultaneous push of STOP and UP buttons.
Longer than 10 seconds pause between series of button clicks during programming will cause device to switch
off from programming mode without saving any changes.
Blind will make short
up/down movements.
Motor will make a sound.
Blind will make short
up/down movements.
Motor will make a sound.
Blind will make short
up/down movements.
Motor will make
several sounds.
Motor will
make a sound.
Press
UP button.
Press simultaneously
STOP and UP
programming buttons.
Press simultaneously
STOP and UP
programming buttons.
Turn on the power or press the
programming button on the
motor head (for 2 seconds)
when power is on.
2x
3x
Press and hold
DOWN and STOP buttons
simultaneously
for about 2 seconds.
If the drive performs one
Up / down movement
the smallest speed
has been set.
If the drive performs two
Up / down movements
the middle speed
has been set.
1x
2x
