YOODA Cortino DT72EN User manual

The motors of the DT72EN series are motors with a radio
receiver, which together with the curtain rod are designed to
automate curtains and enable wireless control using a remote
control. They have electronic limit switches that are set
automatically. The DT72EN series motors are compatible
with all YOODA and CORTINO brand transmitters.
Radio receiver memory:
up to 20 transmitters
Power supply:
230 V / 50 Hz
Operating temperature:
from 0°C to 50°C
Protection degree:
IP 20
Load:
up to 50 kg
Maximum continuous work time:
6 min.
Motor for curtains DT72EN
Non-compliance with the specification might cause risk for life or health and can determine proper work of the curtains.
We strongly recommend to comply with the specification.
MOTOR FOR CURTAINS DT72EN
www.sukcesgroup.pl
1. General information
2. Safety measures
Before installing or using motor please read the following instruction. The installer must comply with the standards and regulations in
force in the country where the appliance will be installed and provide information to users about the conditions and maintenance of the
device. Failure to follow these instructions can present risk to life and health, or invalid functioning of the roller shutter. This also results
in the loss of warranty rights.
Electrical system control should be performed
regularly to detect any signs of use or damage
of the motor.
Motor cables should be fixed in such a way that they
have not been damaged by working curtain.
Motors torque parameter should be adequate to the
weight of the curtain.
Switch off the power supply before any installation
or maintenance operation.
All contact of the motor with any liquids
should be reduced to minimum.
Motor and its control system should be kept out
or reach of children.
The switch should be mounted at a height of not less
than 140 cm, and at such a distance from the curtain
to be able to observe its operation during use.
1
LED diode
programming
button
power
supply cable
switch
socket
interfejs socket
RS485

1. We mount the handles. Two handles per meter of curtain track,
and one for each following meter of curtain track.
Mount the motor in the holder, then move
the protection until it snaps into the motor.
2. Place the curtain track on the handles.
3. Installation
4. Connecting
5. Connecting and configurating of the switch
2
Installation of the tubular motor should be performed by specialists with 1kV or higher SEP-certified electrician's licence
(SEP - Association of Polish Electrical Engineers) or equal license. Device is designed to operate in places shielded from
unfavourable weather conditions. Motor should be installed in accordance with all provisions of regional law and profes-
sional standards. All cables connecting power receiver with electric source should be protected from overload and
short-circuits effects with devices automatically disconnecting power. Device should be powered with a separate source
and protected only with a fast-blow fuse (never slow-blow fuse). Creating electrical system using inadequate fuse may
result in loosing rights under the provisions of warranty. When connecting device to power source with cables with
adequate cross-section should be used. Long-lasting output load capacity table should be the ground for choosing
adequate cables.
1. Connect the switch to the socket using the RJ plug. For mounting the RJ plug, use the right tools for it.
2. The motor can work in one of four switch modes:
I MODE - ASTABLE SWITCH FOR BLINDS:
a) A short circuit between wires 1 and 3 causes open or close the curtain.
b) A short circuit between wires 1 and 4 closes or stops the curtain.
brown wire - phaze
230 V / 50 Hz
yellow-green wire - protective
blue wire - neutral
4
3
2
1
close
open
common wire
1
4

6. Programming first transmitter
3

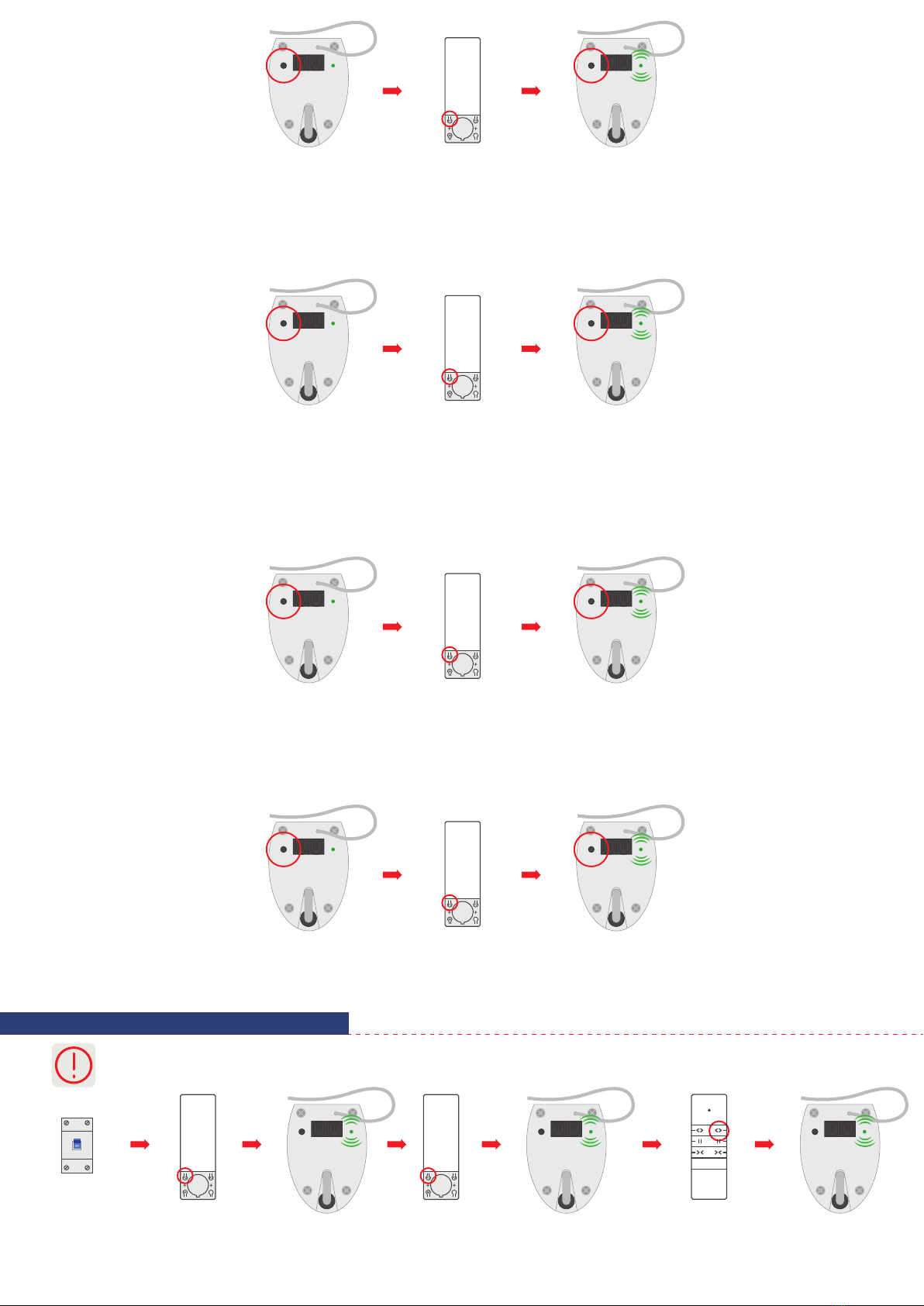

II MODE - STABLE SWITCH FOR BLINDS:
a) A short circuit between wires 1 and 3 causes open the curtain.
b) A short circuit between wires 1 and 4 closes the curtain.
1. Longer than 5 seconds pause between series of button clicks during programming will cause device to switch off from
programming mode without saving any changes.
III MODE - ASTABLE SWITCH:
a) A short circuit between wires 1 and 3 causes open.
b) A short circuit between wires 1 and 4 closes the curtain.
c) A short circuit between wires 1,3 and 4 stops the curtain.
IV MODE - IMPULSE SWITCH
a) A short circuit between wires 1 and 3 causes to move the curtain in step-by-step mode.
Press and hold the programming
button on the motor for 5
seconds. Release programming
button after the second flash
of the diode.
Press programming button P2
on the remote control.
Press and hold the programming
button on the motor
for 5 seconds. The LED diode
flashes 5 times - settings have
been saved.
Press and hold the programming
button on the motor for 5
seconds. Release programming
button after the second flash
of the diode.
Press two times programming
button P2 on the remote control.
Press and hold the programming
button on the motor
for 5 seconds. The LED diode
flashes 5 times - settings have
been saved.
Press and hold the programming
button on the motor for 5
seconds. Release programming
button after the second flash
of the diode.
Press three times programming
button P2 on the remote control.
Press and hold the programming
button on the motor for 5
seconds. The LED diode flashes
5 times - settings have been
saved.
Press and hold the programming
button on the motor for 5
seconds. Release programming
button after the second flash
of the diode.
Press four times programming
button P2 on the remote control.
Press and hold the programming
button on the motor for 5
seconds. The LED diode flashes
5 times - settings have been
saved.
Switch power on. Press
programming button
P2 on the remote control.
Press
programming button
P2 on the remote control.
The led diode
will flash once.
The led diode
will flash once.
Press OPEN button
on the remote control.
The LED diode flashes 5 times -
transmitter has been
programmed.
5
5
5
5
5

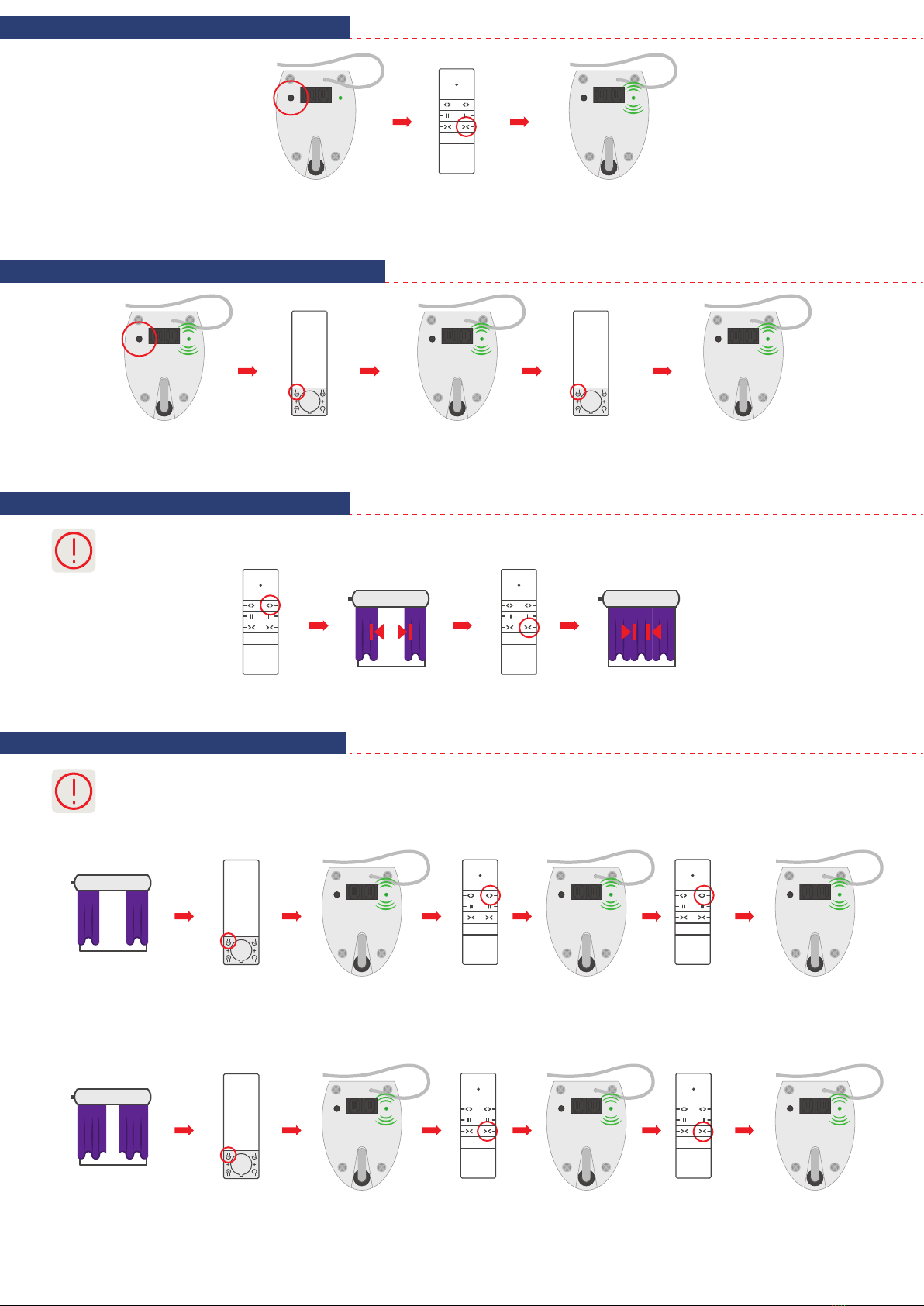

7. Changing motors direction
8. Programming another transmitter
9. Programming limit positions
10. Regulation limit positions
4
1. The limit positions are set automatically after the first cycle.
LIMIT POSITION OF THE OPEN CURTAIN:
1. After automatic setting of the limit positions, it is possible to adjust them manually.
2. The limit positions set manually must not be outside the range of the limit positions set automatically.
Press OPEN button
on the remote control.
Press OPEN button
on the remote control.
Press OPEN button
on the remote control.
Press CLOSE button
on the remote control.
The motor will stop the curtain
and set the limit position.
Set the curtain in the
new limit position.
Press programming button
P2 on the remote control.
The led diode
will flash once.
The led diode
will flash once.
The LED diode flashes 5 times -
the limit position has been
changed.
LIMIT POSITION OF THE CLOSE CURTAIN:
Press CLOSE button
on the remote control.
Press CLOSE button
on the remote control.
Set the curtain in the
new limit position.
Press
programming button
P2 on the remote control.
The led diode
will flash once.
The led diode
will flash once.
The LED diode flashes 5 times -
the limit position has been
changed.
The motor will stop the curtain
and set the limit position.
Press and hold the programming
button on the motor for 2
seconds. LED diode flash once.
Press
programming button
on the remote control.
LED diode flashes.
Press and hold the programming
button on the motor for 5
seconds. Release programming
button after the second flash
of the diode.
Press CLOSE button
on the remote control.
The LED diode flashes 5 times -
settings have been saved.
Press
programming button
on the remote control.
The LED diode flashes 5 times -
the transmitter has been
programmed.
5
5
5
5

5

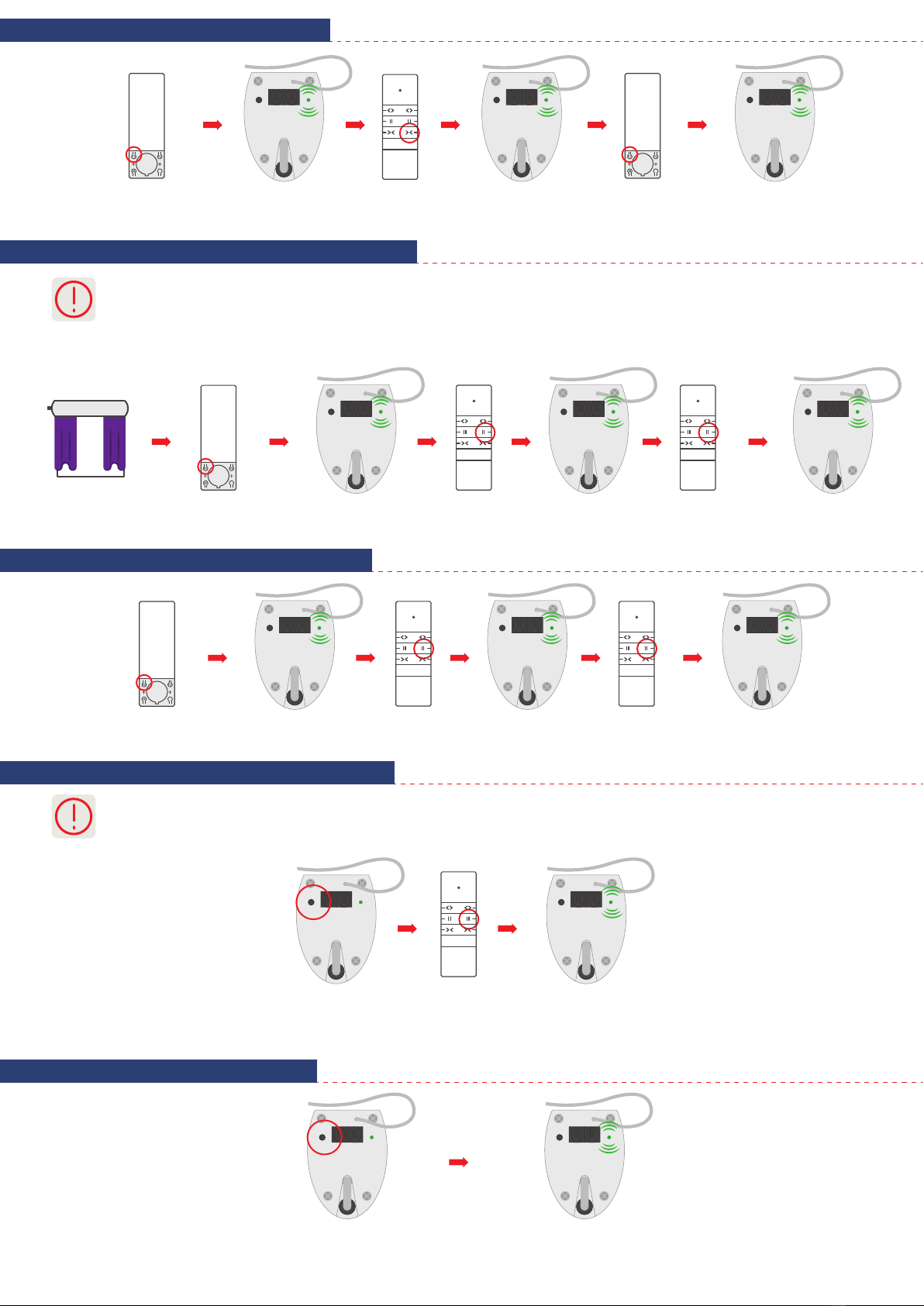

1. After setting the limit positions, it is possible to set the third position (favorite) between those positions.
2. To program a new third limit position, the previously programmed position must be deleted.
3. After performing the following procedure, holding down the STOP button for 3 seconds causes the curtain to be
positioned in the third limit position.
1. This function is enabled at the factory.
2. The MOTION TOUCH function automatically starts the motor when the curtain is pulled.
3. Follow the procedure below to on / off the function.
12. Programming the third limit position
13. Removing third limit position
14. On/Off MOTION TOUCH function.
15. Restore factory settings
11. Removing limit positions
Press CLOSE button
on the remote control.
Press
programming button
P2 on the remote control.
Press
programming button
P2 on the remote control.
The led diode
will flash once.
The led diode
will flash once.
The LED diode flashes 5 times -
the limit position has been
deleted.
Press and hold the program-
ming button on the motor
for 10 seconds.
The LED diode flashes 5 times -
the factory settings
have been restored.
Press and hold the programming
button on the motor for 5 seconds.
Release programming button after
the second flash of the diode.
The LED diode flashes 5 times -
settings have been saved.
Press STOP button
one the remote control.
Press STOP button
one the remote control.
Press STOP button
one the remote control.
Press
programming button
P2 on the remote control.
The led diode
will flash once.
The led diode
will flash once.
The LED diode flashes 5 times -
the third limit position has been
deleted.
Press STOP button
one the remote control.
Press STOP button
one the remote control.
Set the curtain in the
third limit position.
Press
programming button
P2 on the remote control.
The led diode
will flash once.
The led diode
will flash once.
The LED diode flashes 5 times -
the third limit position has been
set.
5
5
5
5
7
