YOODA Ortino DT72TE Series User manual

The motors of the DT72TE/S series are motors with two-way
communication and with radio receiver, which together with
the curtain rod are designed to automate curtains and enable
wireless control using a remote control. They have electronic
limit switches that are set automatically. The DT72TE/S series
motors are compatible with all YOODA Smart Home System
transmitters.
Radio receiver memory:
up to 10 transmitters
Power supply:
230 V / 50 Hz
Operating temperature:
from 0°C to 50°C
Protection degree:
IP 20
Load:
up to 50 kg
Maximum continuous work time:
4 min.
Motor for curtains DT72TE/S
Non-compliance with the specification might cause risk for life or health and can determine proper work of the curtains.
We strongly recommend to comply with the specification.
MOTOR FOR CURTAINS DT72TE/S
www.sukcesgroup.pl
1. General information
2. Safety measures
Before installing or using motor please read the following instruction. The installer must comply with the standards and regulations in
force in the country where the appliance will be installed and provide information to users about the conditions and maintenance of the
device. Failure to follow these instructions can present risk to life and health, or invalid functioning of the roller shutter. This also results
in the loss of warranty rights.
Motors torque parameter should be adequate to the
weight of the curtain.
Switch off the power supply before any installation
or maintenance operation.
1
LED diode
programming
button
power
supply cable
switch
socket
PROGRAMMING BUTTON FUNCTIONS:
1. Pressing the programming button briefly for approximately 1 second controls the drive step by step.
2. Pressing the programming button for 2 secons enters the motor into the transmitter programming mode.
3. Pressing the programming button for 6 seconds activates the function of blocking the radio signal. To deactivate the
function, briefly press the programming button on the motor head or disconnect motor power.
4. Pressing the programming button for 10 seconds changes work motor direction or switch configuration
5. Pressing the programming button for 14 seconds deletes the motor memory and restores the factory settings.
interface socket
RS485
The DT72TE/S series are motors with two-way communication system.

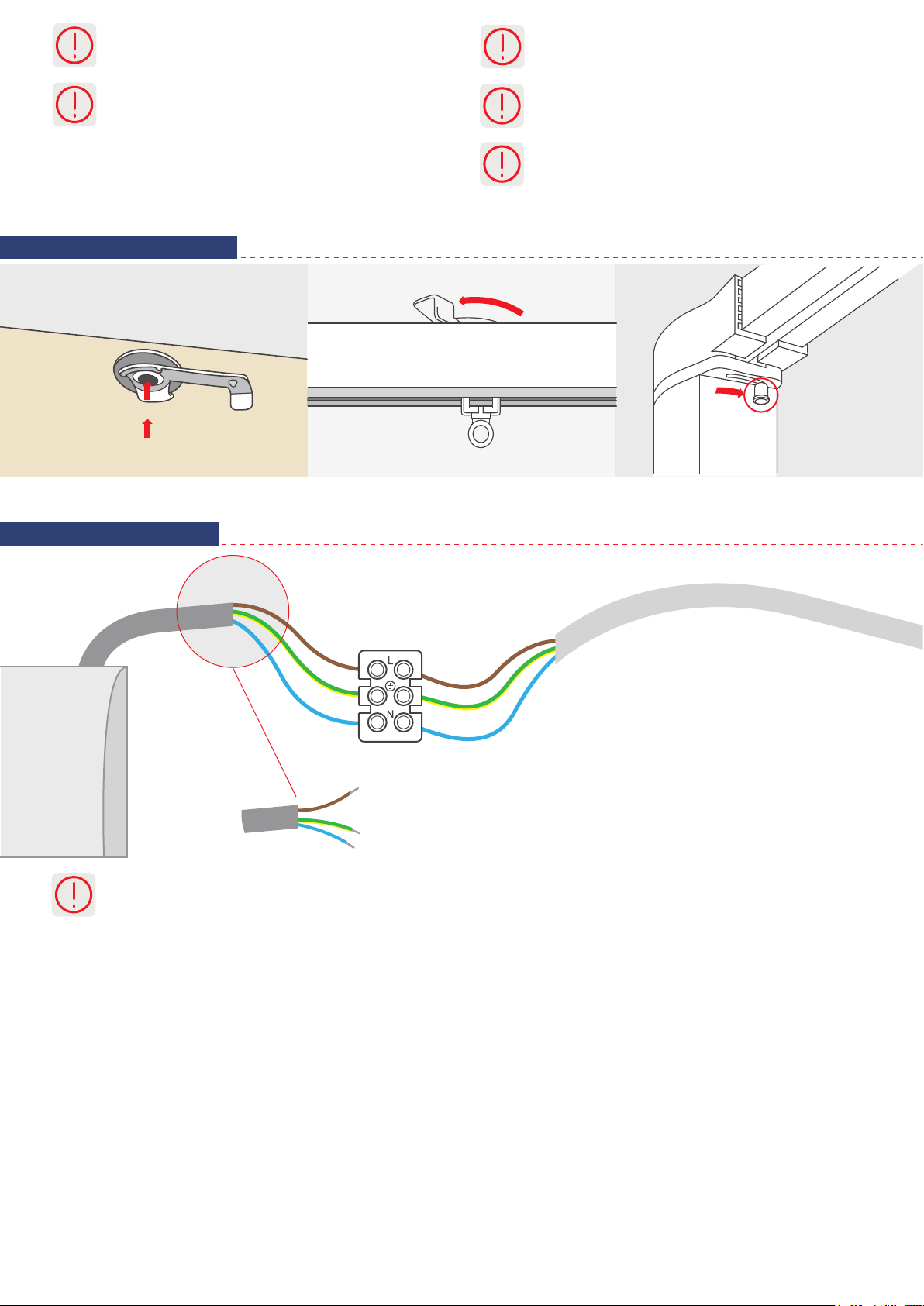

1. We mount the handles. Two handles per meter of curtain track,
and one for each following meter of curtain track.
3. Mount the motor in the holder, then move
the protection until it snaps into the motor.
2. Place the curtain track on the handles.
3. Installation
Electrical system control should be performed
regularly to detect any signs of use or damage
of the motor.
Motor cables should be fixed in such a way that they
have not been damaged by working curtain.
All contact of the motor with any liquids
should be reduced to minimum.
Motor and its control system should
be kept out or reach of children.
The switch should be mounted at a height of not less
than 140 cm, and at such a distance from the curtain
to be able to observe its operation during use.
4. Connecting
2
Installation of the tubular motor should be performed by specialists with 1kV or higher SEP-certified electrician's licence
(SEP - Association of Polish Electrical Engineers) or equal license. Device is designed to operate in places shielded from
unfavourable weather conditions. Motor should be installed in accordance with all provisions of regional law and professional
standards. All cables connecting power receiver with electric source should be protected from overload and short-circuits
effects with devices automatically disconnecting power. Device should be powered with a separate source and protected
only with a fast-blow fuse (never slow-blow fuse). Creating electrical system using inadequate fuse may result in loosing
rights under the provisions of warranty. When connecting device to power source with cables with adequate cross-sec-
tion should be used. Long-lasting output load capacity table should be the ground for choosing adequate cables.
brown wire - phaze
230 V / 50 Hz
yellow-green wire - protective
blue wire - neutral

5. Connecting and configurating of the switch
3
1. Connect the switch to the socket using the RJ-9 plug. For mounting the RJ plug, use the right tools for it.
2. The motor can work in one of four switch modes:
I MODE - ASTABLE SWITCH FOR BLINDS:
a) A short circuit between wires 1 and 3 causes open or close the curtain.
b) A short circuit between wires 1 and 4 closes or stops the curtain.
II MODE - STABLE SWITCH FOR BLINDS:
a) A circuit between wires 1 and 3 causes open the curtain.
b) A circuit between wires 1 and 4 closes the curtain.
III MODE - ASTABLE SWITCH:
a) A short circuit between wires 1 and 3 causes open the curtain.
b) A short circuit between wires 1 and 4 closes the curtain.
c) A short circuit between wires 1,3 and 4 stops the curtain.
Press and hold the programming
button on the motor for 10
seconds. Release programming
button after the third flash
of the diode. Motor will make 3 sounds.
Press P2
programming button.
LED diode flash once.
Motor will make a sound.
I MODE
has been set.
II MODE
has been set.
III MODE
has been set.
Press and hold the programming
button on the motor for 2 seconds.
The LED diode will flash 5 times.
Motor will make 3 sounds.
Press and hold the programming
button on the motor for 10 seconds.
Release programming button after
the third flash of the diode.
Motor will make 3 sounds.
Press P2
programming button
2 times.
LED diode will flash 2 times.
Motor will make 2 sounds.
Press and hold the programming
button on the motor for 2 seconds.
The LED diode will flash 5 times.
Motor will make 3 sounds.
Press and hold the programming
button on the motor for 10 seconds.
Release programming button after
the third flash of the diode.
Motor will make 3 sounds.
Press P2
programming button
3 times.
LED diode will flash 3 times.
Motor will make 3 sounds.
Press and hold the programming
button on the motor for 2 seconds.
The LED diode will flash 5 times.
Motor will make 3 sounds.
4
3
2
1
close
open
common wire
1
4

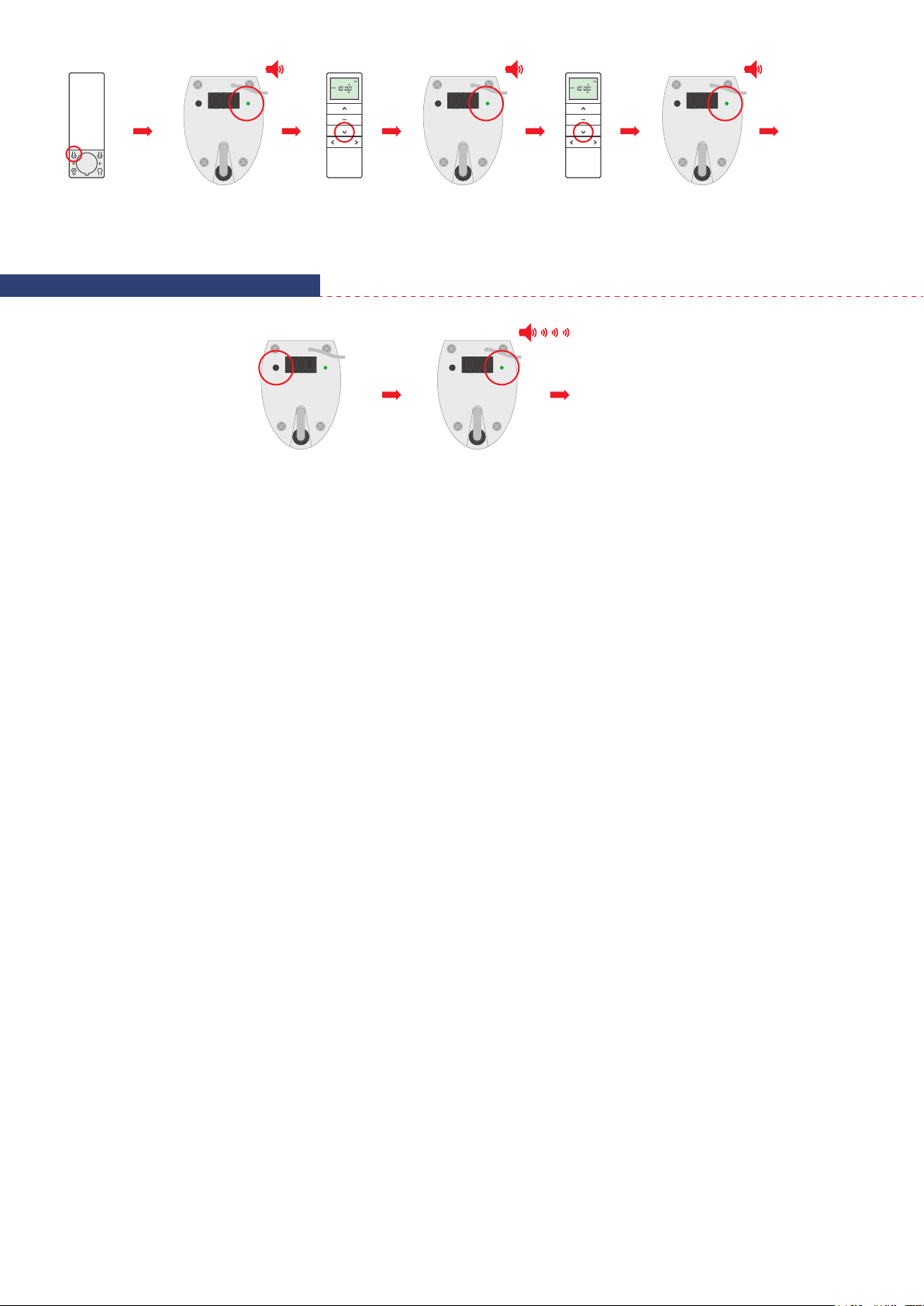

6. Programming first transmitter

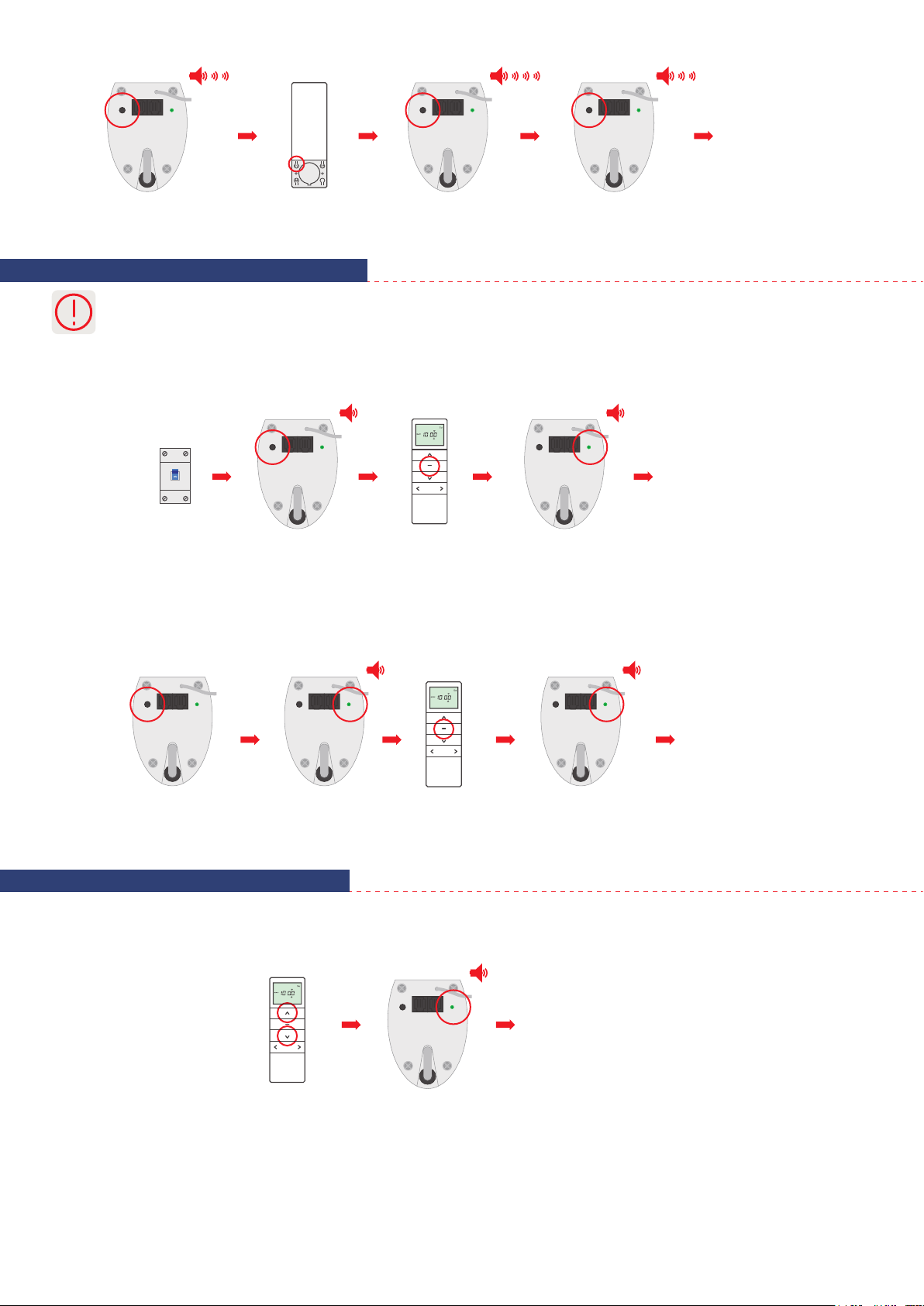

7. Changing motors direction
4
1. Longer than 10 seconds pause between series of button clicks during programming will cause device to switch off from
programming mode without saving any changes.
IV MODE - IMPULSE SWITCH
a) A short circuit between wires 1 and 3 causes to move the curtain in step-by-step mode.
METHOD 1:
Programming the first transmitter by this method it is possible, when none of the transmitters has been programmed.
METHOD 1:
Changing the work motor direction using this method is only possible before the limit positions are programmed.
METHOD 2:
If the limit positions have not been set, programming the first transmitter removes the previously programmed transmitters from
memory.
IV MODE
has been set.
Press and hold the programming button
on the motor for 10 seconds. Release
programming button after the third flash
of the diode. Motor will make 3 sounds.
Press P2
programming button
4 times.
LED diode will flash 4 times.
Motor will make 4 sounds.
Press and hold the programming
button on the motor for 2 seconds.
The LED diode will flash 5 times.
Motor will make 3 sounds.
Turn on
the power.
When power is on press and hold
programming button for 2 seconds.
Simultaneously
press and hold
UP and DOWN buttons
for 2 seconds.
LED diode will flash 5 times.
Motor will make few
short sounds.
LED diode flash once.
Motor will make a sound.
Press and hold STOP button for
2 seconds on the transmitter.
LED diode flashed.
Motor will make a sound. Press and hold STOP button for
2 seconds on the transmitter.
LED diode will flash 5 times.
Motor will make few sounds.
LED diode will flash 5 times.
Motor will make few sounds.
The transmitter has been
programmed.
The transmitter has been
programmed.
The work motor direction
has been changed.

8. Programming limit positions
10. Removing of the transmitter
5
1. The limit positions are set automatically after the first cycle.
Press
UP button.
Press and hold the programming
button on the motor
for 2 seconds.
LED diode flash once.
Motor will make
a short sound.
Press and hold STOP button
one the remote control.
LED diode will flash 5 times.
Motor will make a few short
sounds.
The transmitter has
been removed.
Press
DOWN button.
The motor will stop the curtain
and set the limit position.
The motor will stop the curtain
and set the limit position.
The limit positions
have been set.
METHOD 1:
Work motor direction has been
changed.
METHOD 2:
Changing the direction of work motor with this method delete the limit positions.
Press and hold the programming
button on the motor for 10 seconds. Release
programming button after the third flash
of the diode. Motor will make 3 sounds.
Press
DOWN button.
LED diode will flash 5 times.
Motor will make a sound.

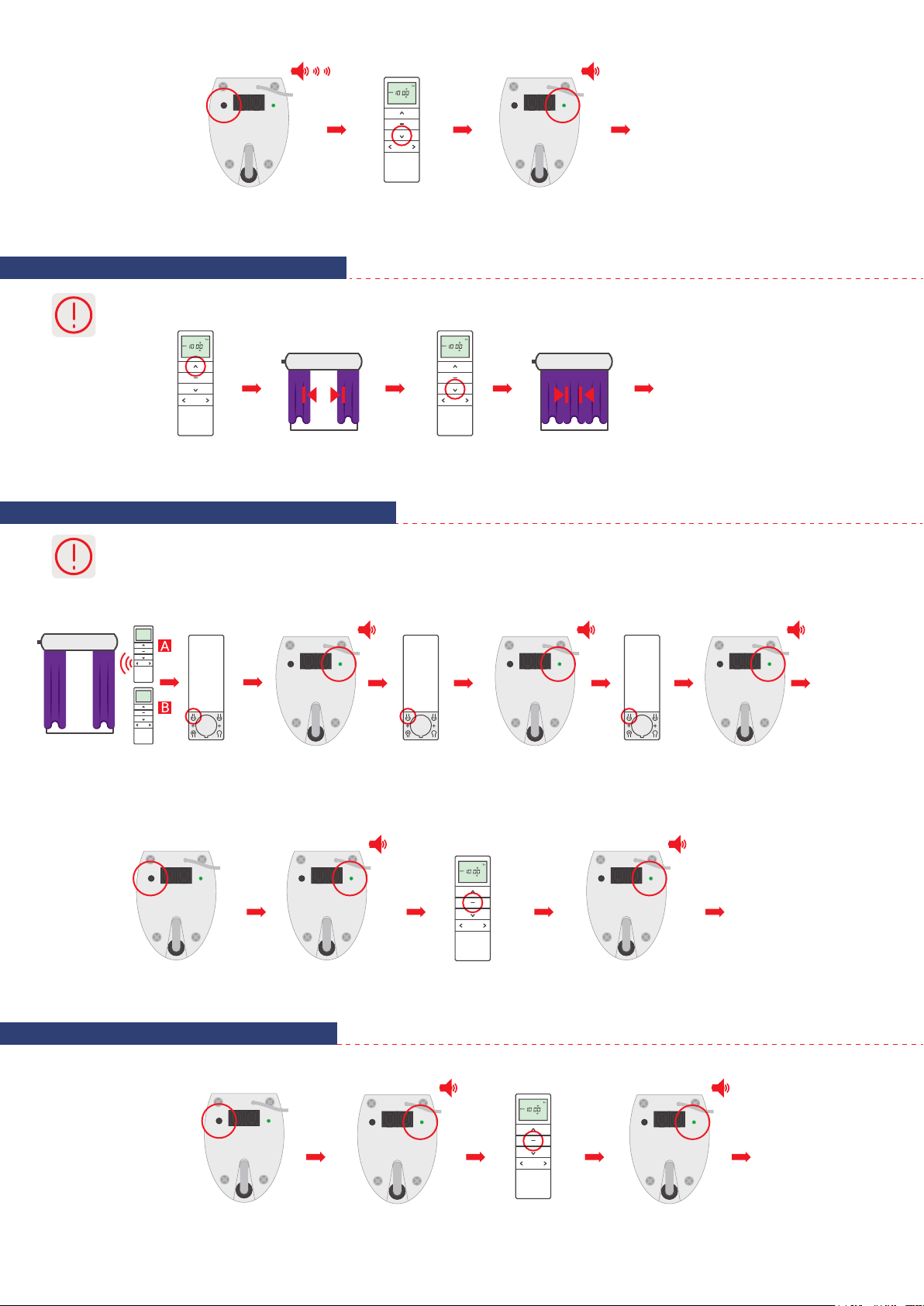

Adding another transmitter is possible after programming the limit positions.
Press programming button P2
on the A remote control.
LED diode flash once.
Motor will make a sounds.
Press programming
button P2 on the
A remote control.
LED diode flash once.
Motor will make a sounds.
Press programming
button P2 on the
B remote control.
LED diode will flash 5 times.
Motor will make a few
short sound.
B transmitter
has been programmed.
METHOD 1:
METHOD 2:
Press and hold the programming
button on the motor
for 2 seconds.
LED diode flash once.
Motor will make a sound.
Press and hold STOP
button for 2 seconds on
the remote control.
LED diode will flash 5 times.
Motor will make a few short
sounds.
The transmitter has been
programmed.
9. Programming another transmitter

11. Regulation limit positions
6
LIMIT POSITION OF THE OPEN CURTAIN:
1. After automatic setting of the limit positions, it is possible to adjust them manually.
2. The limit positions set manually must not be outside the range of the limit positions set automatically.
1. After setting the limit positions, it is possible to set the third position (favorite) between those positions.
2. To program a new third limit position, the previously programmed position must be deleted.
3. After performing the following procedure, holding down the STOP button for 3 seconds causes the curtain to be
positioned in the third limit position.
13. Programming the third limit position
LIMIT POSITION OF THE CLOSE CURTAIN:
Press and hold simultaneously
UP and STOP buttons
for 2 seconds.
Press and hold simultaneously
UP and STOP buttons
for 5 seconds.
LED diode flash once.
Motor will make a sound.
Set the curtain in the
new limit position.
LED diode will flash 5 times.
Motor will make a few
short sounds.
The limit position of the open
curtain has been set.
Press and hold simultaneously
DOWN and STOP buttons
for 2 seconds.
Press and hold simultaneously
DOWN and STOP buttons
for 5 seconds.
LED diode flash once.
Motor will make a sound.
Set the curtain in the
new limit position.
LED diode will flash 5 times.
Motor will make a few
short sounds.
The limit position of the close
curtain has been set.
12. Removing limit positions
Press
DOWN button.
Press
programming
button P2.
Press
programming
button P2.
LED diode flash once.
Motor will make a sound.
LED diode flash once.
Motor will make a sound.
LED diode will flash 5 times.
Motor will make a sound.
The limit positions have been
removed.
METHOD 2:
Press programming button P2
on the A remote control.
LED diode flash once.
Motor will make a sound.
Press programming
button P2 on the
A remote control.
LED diode flash once.
Motor will make a sound.
Press programming
button P2 on the
B remote control.
LED diode will flash 5 times.
Motor will make a few short
sounds.
B transmitter
has been removed.

7
INCREASE SPEED OF THE MOTOR:
1. This function is enabled at the factory.
2. The MOTION TOUCH function automatically starts the motor when the curtain is pulled.
3. Follow the procedure below to on / off the function.
1. If the motor will make two sounds after the procedure, it means that it has the highest or lowest speed.
2. Before programming the limit positions, the lowest drive speed is set by default. After programming the limit
positions, the highest drive speed is set by default.
3. The motor has 3 speeds: 60 rpm, 90 rpm, 120 rpm.
14. Removing the third limit position
15. On/Off MOTION TOUCH function.
16. Motor speed regulation
The third limit position
has been removed.
MOTION TOUCH function
has been off/on.
Press and hold the programming
button on the motor for 10 seconds. Release
programming button after the third flash
of the diode. Motor will make 3 sounds.
Press programming button
P2 on the remote control.
LED diode flash once.
Motor will make a sound.
Press
UP button.
Press
UP button.
LED diode will flash 5 times.
Motor will make a sound.
The speed has been
increased.
LED diode flash once.
Motor will make
a sound.
LED diode will flash 5 times.
Motor will make 3 sounds.
Press
STOP button.
Press
STOP button.
Press
STOP button.
Press programming button
P2 on the remote control.
LED diode flash once.
Motor will make a sound.
LED diode flash once.
Motor will make a sound.
LED diode will flash 5 times.
Motor will make a sound.
The third limit position
has been set.
Press
STOP button.
Press
STOP button.
Set the curtain in the
third limit position.
Press
programming button
P2 on the remote control.
LED diode flash once.
Motor will make a sound.
LED diode flash once.
Motor will make a sound.
LED diode will flash 5 times.
Motor will make a sound.

8
MOTOR SPEED REDUCTION:
17. Restore factory settings
Press and hold the programming
button on the motor for 14 seconds.
The LED diode flash 7 times.
Motor will make 4 sounds.
Press programming button
P2 on the remote control.
LED diode flash once.
Motor will make a sound.
Press
DOWN button.
Press
DOWN button.
LED diode will flash
5 times. Motor will make
a sound.
The speed
has been reduced.
The factory settings
have been restored.
LED diode flash once.
Motor will make a sound.
