York CZF024 THRU 060 Quick start guide

TECHNICAL GUIDE
AFFINITYTM
SPLIT-SYSTEM AIR CONDITIONERS
16 SEER – R-410A
MODELS:
CZF024 THRU 060
(2 THRU 5 NOMINAL TONS)
Due to continuous product improvement,
specifications are subject to change without notice.
Visit us on the web at
www.upgnet.com and www.york.com
Additional rating information can be found at
www.ahridirectory.org
WARRANTY SUMMARY
Standard 5-years limited parts warranty.
Standard 10-years limited compressor warranty.
Extended 10-years limited parts warranty when product is
registered online within 90 days of purchase for replacement or
closing for new home construction.
Premium System Warranty - Limited lifetime compressor war-
ranty when matched with an approved Johnson Controls Unitary
Products premium furnace and coil or premium air handler.
*See Limited Warranty certificate in User's Information Manual for details.
®
567175-YTG-E-0512
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
The 16 SEER Series unit is the outdoor part of a versatile cli-
mate system. It is designed with a matching indoor coil compo-
nent from Johnson Controls Unitary Products. Available for
typical applications, this climate system is supported with
accessories and documents to serve specific functions.
FEATURES
•Superior Coil Protection – A decorative, stamped metal coil
guard completely protects coil from debris and other large
damaging material.
•Isolated Compressor Compartment – A molded composite
bulkhead isolates the compressor from the rest of the unit,
reducing sound and vibration.
•Protected Compressors – Each compressor is protected
against abnormal pressures by an internal pressure relief
valve and factory installed high and low pressure controls.
Additional protection against moisture and debris is provided
by factory installed liquid line filter driers.
•Environmentally Friendly Refrigerant – Next generation
refrigerant R-410A delivers environmentally friendly perfor-
mance with zero ozone depletion.
•Durable Finish – Automotive quality finish provides the ulti-
mate protection from harmful U.V. rays and rust creep,
ensuring long-lasting, high quality appearance. A powder-
paint topcoat is applied over a baked-on primer, using a gal-
vanized, zinc coated steel base material. The result is a fin-
ish that has been proven in testing to provide 33% greater
durability than conventional powder-coat finishes.
•Lower Installed Cost – Designed to provide enhanced
installability by featuring a slide-down control compartment
and angled service valves to reduce overall installation time
and cost.
•Low Operating Sound Levels – A fan design boasting tech-
nology adapted from aeronautic and defense engineering
provides for whisper quiet operation by allowing airflow to
flow smoothly and efficiently across the fan tips.
•Filter-Drier – A factory installed, solid core liquid line filter-
drier filters harmful debris and moisture from the system.
•Easy Service Access – A full end, full service, access panel
with handle makes for easy entry to internal components.
•Composite Base - Strong and durable composite base pan
resists rust and corrosion while it helps reduce vibrations and
noise.
•QuietDriveTM System - Features combination of swept-wing
fan, composite base pan, isolated compressor compartment,
and single-stage compressor to reduce overall sound to a
mere whisper.
•Low RPM fan motor - Helps to reduce airflow noise.
•Communications Capable – Requiring only a simple 4-wire
installation, the communicating capability enables the use of
the Touch Screen Communicating Control, allowing real time
visibility of system operation and the use of diagnostic fea-
tures, while still maintaining the ability to function with a tradi-
tional thermostat.
•Agency Listed - U.L. and C.U.L. listed - approved for out-
door application. The unit is certified in accordance with the
Unitary Small Equipment certification program, which is
based on ANSI/AHRI Standard 210/240.

567175-YTG-E-0512
2Johnson Controls Unitary Products

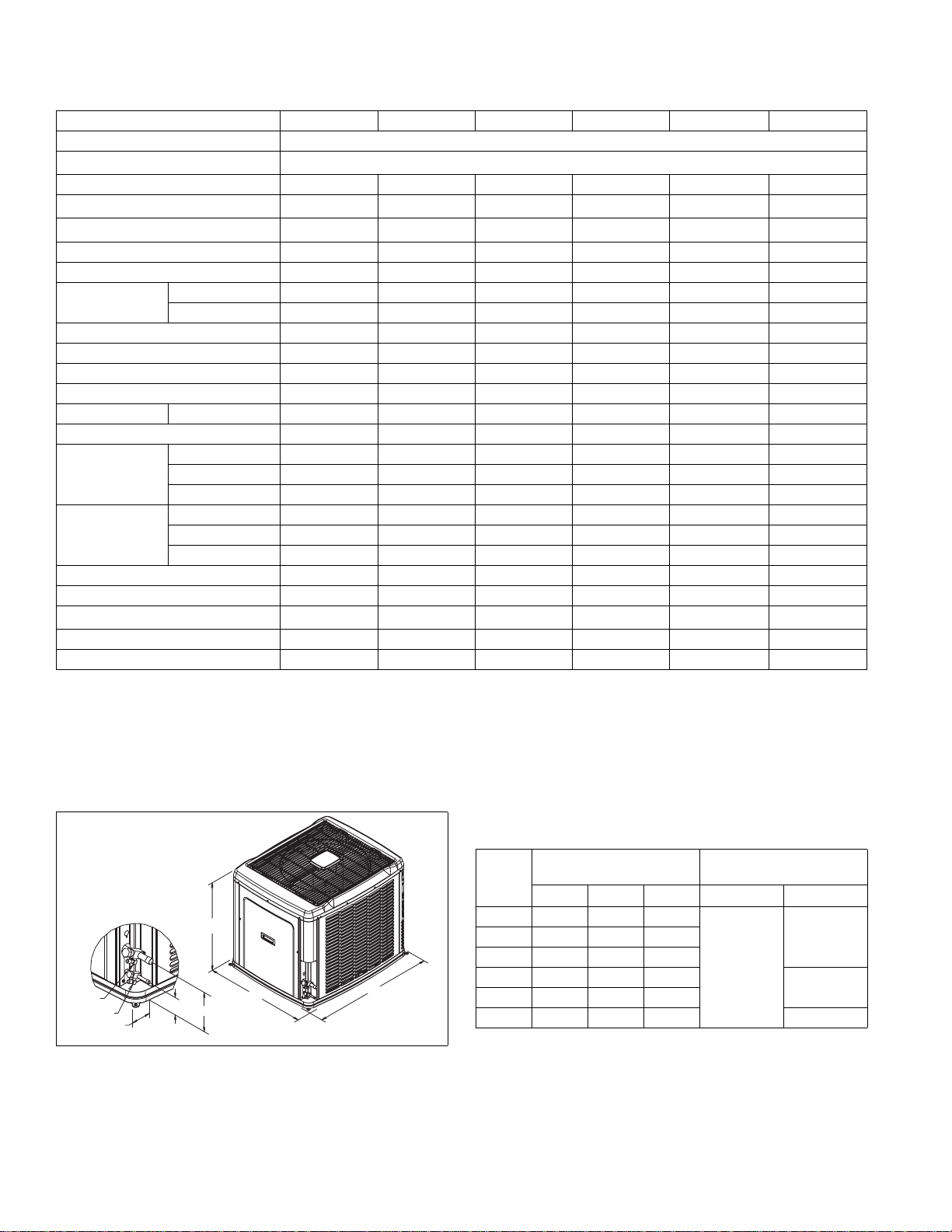

All dimensions are in inches. They are subject to change with-
out notice. Certified dimensions will be provided upon request.
* Expander fitting required for 1-1/8” line set.
PHYSICAL AND ELECTRICAL DATA
MODEL CZF02413(C) CZF03013(C) CZF03613(C) CZF04213(C) CZF04813(C) CZF06013(C)
Unit Supply Voltage 208-230V, 1 60Hz
Normal Voltage Range 1187 to 252
Minimum Circuit Ampacity 17.3 18.1 22.9 23.7 27.7 29.5
Max. Overcurrent Device Amps 230 30 40 40 45 50
Min. Overcurrent Device Amps 320 20 25 25 30 35
Multi-Stage Compressor No No No No No No
Compressor Type Scroll Scroll Scroll Scroll Scroll Scroll
Compressor Amps Rated Load 13.4 14.1 17.3 17.9 21.1 21.4
Locked Rotor 58.3 73.0 96.7 112 106 135
Crankcase Heater No No No No No No
Factory External Discharge Muffler No No No No No No
Factory External Check Valve No No No No No No
HS Kit Required with TXV 4No No No No No No
Fan Motor Amps Rated Load 0.5 0.5 1.3 1.3 1.3 2.8
Fan Diameter Inches 22 22 22 22 24 24
Fan Motor Rated HP 1/15 1/15 1/4 1/4 1/4 1/3 Nominal RPM 850 850 850 850 850 917
Nominal CFM 2020 2045 3240 3300 3800 3900
Coil Face Area Sq. Ft. 14.10 13.97 16.12 19.34 22.82 22.82 Rows Deep 1 1 1 1 1 1
Fins / Inch 23 23 23 23 23 23
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed) 3/4 3/4 3/4 7/8 7/8 1-1/8
Unit Charge (Lbs. - Oz.) 53 - 12 4 - 6 5 - 0 6 - 4 6 - 5 6 -14
Charge Per Foot, Oz. 0.62 0.62 0.62 0.67 0.67 0.75
Operating Weight Lbs. 159 166 192 209 225 235
1. Rated in accordance with ANSI/AHRI Standard 110-2002, utilization range “A”.
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
4. See Hard Start Kit Accessory Installation Manual for Hard Start Kit part number for each model.
5. The Unit Charge is correct for the outdoor unit, matched indoor coil, and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet,
add or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.
VAPOR
LIQUID
2-3/8
3-1/8 6-1/2
C
A
B
Unit
Model
Dimensions
(Inches) Refrigerant Connection Service Valve Size
A B C Liquid Vapor
024 29-1/2 37 31
3/8”
3/4”030 29-1/2 37 31
036 33-1/2 37 31
042 39-1/2 37 31 7/8”
048 39-1/2 42 34
060 39-1/2 42 34 7/8” *

567175-YTG-E-0512
Johnson Controls Unitary Products 3
PROCEDURES:
1. Unit factory charge listed on the unit nameplate includes refrigerant for the condenser, the smallest evaporator, and 15 feet of interconnecting
line tubing.
2. Verify the TXV and additional charge required for specific evaporator coil in the system using the above table.
3. Additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified in Physical and Electrical Data Table.
4. For TXV matches requiring additional charge, the refrigerant needs to be weighed in for specific coil match and lineset length.
5. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + charge adder for
evaporator + charge adder for line set.
System Charge for Various Matched Systems
Outdoor Unit CZF02413(C) CZF03013(C) CZF03613(C) CZF04213(C) CZF04813(C) CZF06013(C)
Approved System Thermal Expansion Valve14F1 4F1 4F1 4N1 4N1 4H1
Indoor Coil 2,3,4,5TXV Kit - Additional Charge, Oz
AHE24B 9–––––
AHE30B 90––––
AHE36C 15 6 0 – – –
AHE42D –933––
AHE48D – 13 7 7 4 –
AHE60D – – 12 12 9 4
AHP30 90––––
AHP36 –60–––
AHP42 ––0–––
AHP48 –––74–
AHP60 –––74–
AHR24B 9–––––
AHR30B –0––––
AHR36B –60–––
AHR42C ––33––
AHR48D –––74–
AHR60D – – – 12 9 4
AV*36 1560–––
AV*48 ––774–
AV*60 –––740
AHX24 4–––––
AHX30 12 0 – – – –
AHX36 15 6 0 – – –
AHX42 ––33––
AHX48 ––774–
AHX60 – – 12 12 9 4
F6FP030 90––––
F6FP036 90––––
F6FP042 –933––
F6FP048 – 13 7 7 4 –
F6FP060 – – 12 12 9 4
F4FV060 ––774–
FC/MC/PC32 90––––
FC/MC/PC35 90––––
FC/MC/PC37 15 6 0 – – –
FC/MC/PC43 15 6 0 0 – –
FC/MC/PC48 –9330–
FC/MC/PC60 – 13 7 7 4 0
FC/MC62 – – 12 12 9 4
FC64 – – 18 18 15 11
HD48 ––330–
HD60 ––774–
UC48 –93–0–
UC60 – 13 7 7 4 –
Some of the combinations shown in the above System Charge table require Advanced Main Air Circulating Fan indoor product. For approved coil
only matches, please see the “COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils” table.
FOOTNOTES:
1. For applications requiring a TXV use S1-1TVM*** series kit.
2. Systems matched with furnace or air handlers not equipped with blower-off delays may require blower Time Delay Kit S1-2FD06700224.
3. PC coils cannot be used in downflow or horizontal applications. FC coils cannot be used in horizontal applications.
4. A TXV kit must be used with these coils to obtain system performance. Note: If a TXV is factory installed on the coil, it must be replaced wit the
listed TXV.
5. Refer to Cooling Performance Data tables for actual performance for specified system matches.

567175-YTG-E-0512
4Johnson Controls Unitary Products
COOLING CAPACITY - With Air Handler Coils
UNIT
MODEL
AIR HANDLER COIL MODEL1COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
16 SEER AC WITH AIR HANDLERS
CZF02413(C)
AHE24B 17 – 795 24.8 17.0 16.75 13.50
AHE30B 17 – 795 24.8 17.0 16.75 13.50
AHE36C 21 – 855 25.4 18.0 17.50 14.00
AHP30 17 – 800 23.6 17.0 14.50 12.00
AHR24B 17 – 740 23.6 16.6 15.00 12.75
AV*36 21 – 725 24.8 16.7 17.25 14.00
AHX24 17 – 800 24.6 16.9 16.75 13.50
AHX30 17 – 820 24.8 17.2 17.00 13.75
AHX36 21 – 820 25.0 17.3 16.50 13.25
F6FP030 17 – 850 24.8 17.2 16.50 13.25
F6FP036 21 – 855 25.0 17.3 16.75 13.50
MV12B 17 FC/MC35B 800 24.8 17.1 17.00 13.75
MV12B 17 FC/MC43B 800 25.0 17.2 17.00 13.75
MX12B 17 FC/MC35B 815 25.0 17.0 17.50 14.00
MX12B 17 FC/MC43B 735 24.8 16.8 17.50 14.00
CZF03013(C)
AHE30B 17 – 985 30.0 20.6 15.75 12.75
AHE36C 21 – 1000 30.8 21.2 16.50 13.50
AHE42D 21 – 1000 31.2 21.6 17.00 13.75
AHE48D 24 – 1000 30.8 21.4 16.75 13.75
AHP30 17 – 1000 29.6 20.6 14.00 12.00
AHP36 21 – 1000 30.0 21.0 14.25 12.25
AHR30B 17 – 1115 30.0 21.6 14.00 12.00
AHR36B 21 – 1060 30.4 21.6 14.25 12.25
AV*36 21 – 960 30.6 21.0 16.25 13.50
AHX30 17 – 1025 29.8 20.7 15.25 12.75
AHX36 21 – 1005 30.8 21.4 16.75 13.50
F6FP030 17 – 1035 30.0 20.6 15.25 12.50
F6FP036 21 – 980 29.4 20.1 15.50 12.75
F6FP042 24 – 1065 31.0 21.7 16.50 13.50
F6FP048 24 – 1105 31.0 21.4 16.50 13.00
MV12B 17 FC/MC35B 1010 29.8 20.5 15.75 13.00
MV16C 21 FC/MC35C 1070 30.2 21.3 16.00 13.00
MV12B 17 FC/MC43B 990 30.6 21.1 16.25 13.25
MV16C 21 FC/MC43C 1000 30.8 21.2 16.25 13.25
MV16C 21 FC/MC48C 1000 31.0 21.4 16.50 13.50
MX12B 17 FC/MC35B 1085 30.6 21.6 16.25 13.00
MX16C 21 FC/MC35C 1035 30.4 20.8 16.75 13.50
MX12B 17 FC/MC43B 1095 31.2 22.0 16.50 13.50
MX16C 21 FC/MC43C 970 30.8 21.2 17.00 13.75
MX16C 21 FC/MC48C 995 31.2 21.4 17.00 13.75
CZF03613(C)
AHE36C 21 – 1190 35.8 26.6 16.00 13.00
AHE42D 21 – 1180 36.2 26.8 16.25 13.50
AHE48D 24 – 1195 36.0 26.6 16.25 13.50
AHE60D 24 – 1190 36.4 27.0 16.50 13.75
AHP36 21 – 1200 35.0 26.0 14.00 12.25
AHP42 21 – 1255 35.0 26.0 14.00 12.25
AHR36B 21 – 1245 34.8 25.8 13.75 12.00
AHR42C 21 – 1230 35.6 26.6 14.25 12.50
AV*36 21 – 1190 35.8 26.8 16.00 13.00
AV*48 24 – 1220 36.4 27.4 16.50 13.50
AHX36 21 – 1225 36.0 26.8 16.00 13.25
AHX42 21 – 1190 36.4 27.2 16.50 13.75
AHX48 24 – 1255 36.6 28.0 16.50 13.50
AHX60 24 – 1300 36.8 28.2 16.50 13.50
For Notes See Page 6.

567175-YTG-E-0512
Johnson Controls Unitary Products 5
CZF03613(C)
F6FP042 24 – 1290 36.6 27.6 16.00 13.25
F6FP048 24 – 1125 35.4 26.2 16.00 13.25
F6FP060 24 – 1240 36.6 27.6 16.25 13.50
F4FV060 24 – 1200 36.0 27.0 16.25 13.25
MV12B 17 FC/MC43B 1225 36.0 26.6 15.75 13.00
MV16C 21 FC/MC43C 1190 36.0 26.6 16.00 13.25
MV12D 24 FC/MC48D 1160 36.6 26.8 16.50 13.75
MV16C 21 FC/MC48C 1200 36.2 26.8 16.25 13.25
MV20D 24 FC/MC48D 1300 36.8 28.0 16.25 13.50
MV12D 24 FC/MC60D 1135 36.0 26.4 16.00 13.25
MV20D 24 FC/MC60D 1300 36.4 27.4 16.25 13.50
MV12D 24 FC/MC62D 1155 36.6 27.2 16.75 13.75
MV20D 24 FC/MC62D 1300 36.8 28.0 16.50 13.50
MV12D 24 FC64D 1155 37.0 27.8 17.00 14.00
MV20D 24 FC64D 1300 37.2 28.8 16.75 14.00
MX12B 17 FC/MC43B 1220 35.8 26.6 15.50 12.75
MX16C 21 FC/MC43C 1140 35.8 26.2 16.25 13.50
MX12D 24 FC/MC48D 1225 36.4 26.6 16.00 13.25
MX16C 21 FC/MC48C 1150 36.6 26.8 16.50 13.75
MX12D 24 FC/MC60D 1275 36.6 27.4 16.25 13.50
MX20D 24 FC/MC60D 1295 36.8 27.8 16.75 13.75
MX12D 24 FC/MC62D 1270 36.8 27.8 16.75 13.75
MX20D 24 FC/MC62D 1260 36.8 27.8 16.75 13.75
MX12D 24 FC64D 1270 37.8 29.2 17.25 14.25
MX20D 24 FC64D 1260 37.8 29.0 17.25 14.25
CZF04213(C)
AHE42D 21 – 1385 40.5 30.4 15.50 13.00
AHE48D 24 – 1385 42.0 31.2 15.75 13.25
AHE60D 24 – 1390 42.5 32.0 16.25 13.75
AHP48 24 – 1400 41.5 31.0 14.50 12.25
AHP60 24 – 1400 42.0 31.4 15.50 13.00
AHR42C 21 – 1485 40.0 30.2 13.75 11.75
AHR48D 24 – 1320 41.0 29.8 14.00 11.75
AHR60D 24 – 1350 41.5 30.8 14.50 12.25
AV*48 24 – 1385 42.0 31.0 16.00 13.25
AV*60 24 – 1360 42.0 31.0 16.00 13.25
AHX42 21 – 1395 40.5 30.2 15.75 13.25
AHX48 24 – 1445 42.5 32.2 16.00 13.50
AHX60 24 – 1440 42.5 32.0 16.00 13.25
F6FP042 24 – 1455 40.5 30.4 15.25 13.00
F6FP048 24 – 1380 41.5 30.4 15.25 13.00
F6FP060 24 – 1475 43.0 32.4 15.75 13.25
F4FV060 24 – 1350 41.0 30.2 15.50 13.00
MV16C 21 FC/MC43C 1380 40.0 29.6 15.00 12.75
MV16C 21 FC/MC48C 1400 40.5 29.6 15.25 13.00
MV20D 24 FC/MC48D 1470 41.0 31.2 15.75 13.25
MV16C 21 FC/MC60C 1400 42.0 30.8 15.50 13.00
MV20D 24 FC/MC60D 1400 42.0 30.8 15.75 13.25
MV20D 24 FC/MC62D 1450 42.5 32.0 16.00 13.25
MV20D 24 FC64D 1400 43.0 32.4 16.50 13.75
MX16C 21 FC/MC43C 1365 40.0 29.8 15.00 12.75
MX16C 21 FC/MC48C 1390 40.5 29.8 15.75 13.50
MX20D 24 FC/MC48D 1415 40.5 30.6 15.75 13.25
MX16C 21 FC/MC60C 1420 42.5 31.6 16.00 13.25
MX20D 24 FC/MC60D 1470 43.0 32.4 16.25 13.50
MX20D 24 FC/MC62D 1470 43.5 32.8 16.25 13.75
MX20D 24 FC64D 1470 44.5 34.2 16.75 14.00
For Notes See Page 6.
COOLING CAPACITY - With Air Handler Coils (Continued)
UNIT
MODEL
AIR HANDLER COIL MODEL1COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
16 SEER AC WITH AIR HANDLERS

567175-YTG-E-0512
6Johnson Controls Unitary Products
— = Not applicable.
MA Modular Air Handlers use Coil Only Ratings.
CZF04813(C)
AHE48D 24 – 1600 45.0 33.2 15.00 12.50
AHE60D 24 – 1565 45.5 33.8 15.50 13.00
AHP48 24 – 1600 45.0 32.2 13.75 12.00
AHP60 24 – 1600 46.0 32.8 14.50 12.50
AHR48D 24 – 1610 45.5 32.6 13.75 12.00
AHR60D 24 – 1620 45.5 32.8 14.00 12.25
AHX48 24 – 1660 46.0 34.4 15.25 12.75
AHX60 24 – 1570 46.0 33.8 15.50 13.00
AV*48 24 – 1625 45.5 33.6 15.25 12.50
AV*60 24 – 1560 45.5 33.8 15.50 12.75
F6FP048 24 – 1625 45.5 33.6 15.00 12.50
F6FP060 24 – 1570 46.0 33.8 15.50 13.00
F4FV060 24 – 1600 45.0 33.6 15.00 12.50
MV16C 21 FC/MC48C 1625 45.0 33.0 14.50 12.50
MV20D 24 FC/MC48D 1620 45.0 33.2 14.75 12.75
MV16C 21 FC/PC60C 1600 44.5 32.8 14.00 11.75
MV20D 24 FC/MC60D 1600 45.0 33.2 15.00 12.50
MV20D 24 FC/MC62D 1630 45.5 33.8 15.50 12.75
MV20D 24 FC64D 1630 47.0 35.8 16.00 13.25
MX16C 21 FC/MC48C 1685 45.0 34.0 14.50 12.50
MX20D 24 FC/MC48D 1525 45.0 33.2 14.75 13.00
MX16C 21 FC/PC60C 1630 45.0 33.0 14.50 13.00
MX20D 24 FC/MC62D 1605 46.0 34.0 15.75 13.25
MX20D 24 FC64D 1605 47.0 36.0 16.50 13.50
CZF06013(C)
AHE60D 24 – 1835 53.5 38.0 15.25 13.00
AHR60D 24 – 1870 52.0 36.2 13.75 12.00
AHX60 24 – 1865 53.5 38.5 15.40 13.00
AV*60 24 – 1730 52.5 36.4 15.25 12.75
F6FP060 24 – 1865 53.5 38.5 15.40 13.00
MV20D 24 FC/MC60D 1845 53.0 37.3 15.00 12.75
MV20D 24 FC/MC62D 1855 53.5 38.0 15.00 12.75
MV20D 24 FC64D 1705 54.5 39.0 16.00 13.50
MX20D 24 FC/MC60D 1780 53.0 37.5 15.50 13.00
MX20D 24 FC/MC62D 1795 54.0 38.5 15.75 13.25
MX20D 24 FC64D 1795 55.0 40.0 16.25 13.50
Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and AHRI Standard 210/240.
Cooling MBH based on 8°F entering air temperature, 50% RH (Relative Humidity), and rated air flow.
EER (Energy Efficiency Ratio) is the total cooling output in BTUs at 95 °F outdoor ambient divided by the total electric power in watt-hours at those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTUs during a normal annual usage period for cooling divided by the total electric power
input in watt-hours during the same period.
1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
COOLING CAPACITY - With Air Handler Coils (Continued)
UNIT
MODEL
AIR HANDLER COIL MODEL1COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
16 SEER AC WITH AIR HANDLERS

567175-YTG-E-0512
Johnson Controls Unitary Products 7
MA Modular Air Handlers use Coil Only Ratings.
PSC furnaces, such as the TG8S, TGLS, and TG9S, use Coil Only Ratings.
COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils (Coil Only Ratings)
UNIT MODEL
FURNACE COIL
MODEL
COOLING
CFM RANGE
(MIN.-MAX.) WIDTH RATED CFM NET MBH SEER1,2 EER
TOTAL SENS.
CZF02413(C)
600 - 1000 14 FC/MC/PC32 800 23.6 17.0 14.50 12.25
600 - 1000 17,21 FC/MC/PC35 800 23.6 17.0 14.50 12.25
600 - 1000 14 FC/MC/PC37 800 24.0 17.3 14.50 12.25
600 - 1000 17,21 FC/MC/PC43 800 24.0 17.3 14.50 12.25
CZF03013(C)
800 - 1200 14 FC/MC/PC32 1000 29.6 20.6 14.00 12.00
800 - 1200 17,21 FC/MC/PC35 1000 29.6 20.6 14.00 12.00
800 - 1200 14 FC/MC/PC37 1000 30.0 21.0 14.25 12.25
800 - 1200 17,21 FC/MC/PC43 1000 30.0 21.0 14.25 12.25
800 - 1200 21,24 FC/MC/PC48 1000 30.0 21.4 14.25 12.25
800 - 1200 21,24 FC/MC/PC60 1000 30.0 21.2 14.25 12.25
800 - 1200 21,24 UC48 1000 28.6 20.0 13.75 11.75
800 - 1200 21,24 UC60 1000 28.8 19.9 13.75 11.75
CZF03613(C)
1000 - 1400 14 FC/MC/PC37 1200 35.0 26.0 14.00 12.25
1000 - 1400 17,21 FC/MC/PC43 1200 35.0 26.0 14.00 12.25
1000 - 1400 21,24 FC/MC/PC48 1200 35.0 26.0 14.00 12.25
1000 - 1400 21,24 FC/MC/PC60 1200 35.0 26.0 14.00 12.25
1000 - 1400 24 FC/MC62 1200 35.4 26.0 14.00 12.25
1000 - 1400 24 FC64 1200 36.4 27.4 14.50 12.50
1000 - 1400 – HD48 1200 35.0 25.8 14.00 12.25
1000 - 1400 – HD60 1200 35.4 26.0 14.00 12.25
1000 - 1400 21,24 UC48 1200 34.6 25.8 13.75 12.00
1000 - 1400 21,24 UC60 1200 34.6 25.4 13.75 12.00
CZF04213(C)
1200 - 1600 21,24 FC/MC/PC60 1400 41.5 30.2 14.25 12.00
1200 - 1600 24 FC/MC62 1400 41.5 30.2 14.50 12.25
1200 - 1600 24 FC64 1400 42.5 31.8 15.00 12.50
1200 - 1600 – HD60 1400 42.0 30.8 14.25 12.25
1200 - 1600 21,24 UC60 1400 40.5 29.6 13.75 11.75
CZF04813(C)
1400 - 1800 21,24 FC/MC/PC48 1600 45.0 32.2 13.75 12.00
1400 - 1800 21,24 FC/MC/PC60 1600 45.0 32.2 13.75 12.00
1400 - 1800 24 FC/MC62 1600 45.5 32.8 13.75 12.00
1400 - 1800 24 FC64 1600 47.0 34.2 14.25 12.50
1400 - 1800 – HD48 1600 45.0 32.2 13.75 12.00
1400 - 1800 – HD60 1600 46.0 32.8 14.00 12.25
CZF06013(C) 1500 - 1900 24 FC64 1800 53.5 37.4 14.50 12.50
1. Requires a S1-2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.
2. TXV = Use S1-1TVM series kit.

567175-YTG-E-0512
8Johnson Controls Unitary Products
COOLING CAPACITY - With High Efficiency Motor Furnaces
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
16 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2
CZF02413(C)
T*(8,L)X*A12 14 FC/MC/PC32A 800 24.8 17.0 17.25 14.00
T*9X*A10 14 FC/MC/PC32A 745 24.2 16.3 16.00 13.00
T*(8,L)X*B12 17 FC/MC/PC35B 850 25.2 17.7 17.50 14.25
T*9X*B12 17 FC/MC/PC35B 785 24.8 17.0 17.25 14.00
T*(8,L)X*C16 21 FC/MC/PC35C 865 25.2 17.8 17.50 14.25
T*(8,L)X*C20 21 FC/MC/PC35C 885 25.2 18.0 17.00 14.00
T*9X*C16 21 FC/MC/PC35C 765 24.8 17.0 17.25 14.00
T*9X*C20 21 FC/MC/PC35C 825 24.8 17.0 17.00 13.75
T*(8,L)X*A12 14 FC/MC/PC37A 840 25.4 17.9 17.75 14.25
T*9X*A10 14 FC/MC/PC37A 740 24.4 16.5 16.25 13.25
T*(8,L)X*B12 17 FC/MC/PC43B 865 25.6 18.1 17.75 14.25
T*9X*B12 17 FC/MC/PC43B 800 25.2 17.3 17.50 14.00
T*(8,L)X*C16 21 FC/MC/PC43C 855 25.4 18.1 17.75 14.25
T*(8,L)X*C20 21 FC/MC/PC43C 815 25.0 17.2 17.25 14.00
T*9X*C16 21 FC/MC/PC43C 785 25.2 17.3 17.50 14.00
T*9X*C20 21 FC/MC/PC43C 790 25.0 17.2 17.25 14.00
(Y*LC/T*8V/T*LV)*A12 14 FC/MC/PC32A 755 24.4 16.6 16.50 13.50
T*9V*A10 14 FC/MC/PC32A 785 24.4 16.7 15.75 12.75
(Y*LC/T*8V/T*LV)*B12 17 FC/MC/PC35B 785 24.8 16.9 16.75 13.75
(Y*9C/T*9V)*B12 17 FC/MC/PC35B 815 24.6 16.9 16.50 13.25
(Y*LC/T*8V/T*LV)*C16 21 FC/MC/PC35C 775 24.8 17.0 17.00 13.75
(Y*LC/T*8V/T*LV)*C20 21 FC/MC/PC35C 755 24.6 16.7 17.00 13.75
(Y*9C/T*9V)*C16 21 FC/MC/PC35C 900 25.2 18.0 16.75 13.75
(Y*9C/T*9V)*C20 21 FC/MC/PC35C 755 24.6 16.7 16.75 13.75
(Y*LC/T*8V/T*LV)*A12 14 FC/MC/PC37A 765 25.0 17.2 16.75 13.50
T*9V*A10 14 FC/MC/PC37A 790 24.4 17.0 15.75 12.75
(Y*LC/T*8V/T*LV)*B12 17 FC/MC/PC43B 790 25.0 17.2 17.00 13.75
(Y*9C/T*9V)*B12 17 FC/MC/PC43B 800 25.0 17.1 16.75 13.50
(Y*LC/T*8V/T*LV)*C16 21 FC/MC/PC43C 770 25.0 17.2 17.25 14.00
(Y*LC/T*8V/T*LV)*C20 21 FC/MC/PC43C 740 24.8 16.8 17.25 13.75
(Y*9C/T*9V)*C16 21 FC/MC/PC43C 810 25.0 17.2 17.00 13.75
(Y*9C/T*9V)*C20 21 FC/MC/PC43C 890 25.6 18.3 17.00 14.00
CZF03013(C)
T*(8,L)X*A12 14 FC/MC/PC32A 970 29.6 20.3 15.00 12.50
T*(8,L)X*B12 17 FC/MC/PC35B 1120 30.2 21.5 15.50 13.00
T*9X*B12 17 FC/MC/PC35B 1085 30.2 21.3 15.50 13.00
T*(8,L)X*C16 21 FC/MC/PC35C 1105 30.4 21.5 15.75 13.00
T*(8,L)X*C20 21 FC/MC/PC35C 850 29.0 19.3 15.50 13.00
T*9X*C16 21 FC/MC/PC35C 1075 30.2 21.1 15.50 13.00
T*9X*C20 21 FC/MC/PC35C 835 29.0 19.3 15.75 13.00
T*9X*A10 14 FC/MC/PC37A 1025 30.0 20.9 14.50 12.00
T*(8,L)X*A12 14 FC/MC/PC37A 1105 31.2 22.2 16.25 13.25
T*(8,L)X*B12 17 FC/MC/PC43B 1125 31.2 22.4 16.25 13.25
T*9X*B12 17 FC/MC/PC43B 1095 31.2 22.0 16.50 13.25
T*(8,L)X*C16 21 FC/MC/PC43C 955 31.0 21.2 16.75 13.50
T*(8,L)X*C20 21 FC/MC/PC43C 870 30.2 20.2 16.50 13.50
T*9X*C16 21 FC/MC/PC43C 1055 31.0 21.8 16.50 13.25
T*9X*C20 21 FC/MC/PC43C 720 28.8 18.6 16.00 13.00
T*(8,L)X*C16 21 FC/MC/PC48C 970 31.2 21.4 17.00 13.75
T*(8,L)X*C20 21 FC/MC/PC48C 890 30.6 20.8 16.75 13.75
T*9X*C16 21 FC/MC/PC48C 1075 31.4 22.2 16.75 13.50
T*9X*C20 21 FC/MC/PC48C 745 29.4 19.0 16.25 13.25
T*9X*D20 24 FC/MC/PC48D 780 29.6 19.5 16.50 13.25
T*(8,L)X*C16 21 FC/PC60C 1115 31.2 22.1 17.00 13.50
For Notes See Page 14.

567175-YTG-E-0512
Johnson Controls Unitary Products 9
CZF03013(C)
T*(8,L)X*C20 21 FC/PC60C 895 30.6 20.7 17.00 13.75
T*9X*C16 21 FC/PC60C 1080 31.4 22.1 16.75 13.50
T*9X*C20 21 FC/PC60C 905 29.4 20.1 16.25 13.50
T*9X*D20 24 FC/MC/PC60D 945 29.6 20.3 16.50 13.50
T*(8,L)X*C16 21 UC48C 970 28.8 19.6 16.00 13.00
T*9X*C16 21 UC48C 1075 29.2 20.4 15.50 12.50
T*(8,L)X*C16 21 UC60C 1075 28.8 20.0 15.75 12.75
T*9X*C16 21 UC60C 1080 29.2 20.3 15.75 12.75
(Y*LC/T*8V/T*LV)*A12 14 FC/MC/PC32A 1035 29.4 20.1 14.25 11.75
(Y*LC/T*8V/T*LV)*B12 17 FC/MC/PC35B 1020 29.6 20.3 15.00 12.50
(Y*9C/T*9V)*B12 17 FC/MC/PC35B 1045 29.4 20.3 14.75 12.25
(Y*LC/T*8V/T*LV)*C16 21 FC/MC/PC35C 985 29.8 20.5 15.25 12.75
(Y*LC/T*8V/T*LV)*C20 21 FC/MC/PC35C 1035 29.6 20.5 15.00 12.50
(Y*9C/T*9V)*C16 21 FC/MC/PC35C 1005 29.8 20.5 15.25 12.75
(Y*9C/T*9V)*C20 21 FC/MC/PC35C 985 29.8 20.5 15.25 12.75
(Y*LC/T*8V/T*LV)*A12 14 FC/MC/PC37A 950 30.2 20.6 15.75 12.75
(Y*LC/T*8V/T*LV)*B12 17 FC/MC/PC43B 1045 30.6 21.0 15.75 12.75
(Y*9C/T*9V)*B12 17 FC/MC/PC43B 1035 30.4 20.8 15.50 12.50
(Y*LC/T*8V/T*LV)*C16 21 FC/MC/PC43C 1035 30.8 21.0 16.25 13.25
(Y*LC/T*8V/T*LV)*C20 21 FC/MC/PC43C 1025 30.8 21.2 16.75 13.50
(Y*9C/T*9V)*C16 21 FC/MC/PC43C 1030 30.6 21.0 16.00 13.00
(Y*9C/T*9V)*C20 21 FC/MC/PC43C 995 30.8 21.0 16.25 13.25
(Y*LC/T*8V/T*LV)*C16 21 FC/MC/PC48C 1010 31.0 21.4 16.50 13.25
(Y*LC/T*8V/T*LV)*C20 21 FC/MC/PC48C 1030 31.0 21.4 16.50 13.50
(Y*9C/T*9V)*C16 21 FC/MC/PC48C 990 31.0 21.4 16.50 13.25
(Y*9C/T*9V)*C20 21 FC/MC/PC48C 965 31.0 21.4 16.50 13.50
(Y*9C/T*9V)*D20 24 FC/MC/PC48D 1085 31.4 22.2 16.50 13.50
(Y*LC/T*8V/T*LV)*C16 21 FC/PC60C 1050 31.0 21.8 16.50 13.50
(Y*LC/T*8V/T*LV)*C20 21 FC/PC60C 970 31.0 21.3 16.50 13.50
(Y*9C/T*9V)*C16 21 FC/PC60C 1020 31.0 21.3 16.50 13.00
(Y*9C/T*9V)*C20 21 FC/PC60C 980 31.0 21.3 16.50 13.25
(Y*9C/T*9V)*D20 24 FC/MC/PC60D 1075 31.4 22.1 16.50 13.25
(Y*LC/T*8V/T*LV)*C16 21 UC48C 1010 28.6 19.6 15.50 12.50
(Y*LC/T*8V/T*LV)*C20 21 UC48C 1040 28.6 19.5 15.50 12.50
(Y*9C/T*9V)*C16 21 UC48C 990 28.6 19.5 15.50 12.50
(Y*9C/T*9V)*C20 21 UC48C 965 28.6 19.5 15.50 12.50
(Y*9C/T*9V)*D20 24 UC48D 1085 29.4 20.6 15.50 12.50
(Y*LC/T*8V/T*LV)*C16 21 UC60C 995 28.6 19.3 15.75 12.75
(Y*LC/T*8V/T*LV)*C20 21 UC60C 1055 28.6 19.7 15.50 12.75
(Y*9C/T*9V)*C16 21 UC60C 1020 28.6 19.3 15.50 12.50
(Y*9C/T*9V)*C20 21 UC60C 980 28.6 19.3 15.50 12.75
(Y*9C/T*9V)*D20 24 UC60D 1075 29.4 20.4 15.50 12.75
CZF03613(C)
T*(8,L)X*A12 14 FC/MC/PC37A 1290 36.0 27.6 15.75 12.75
T*(8,L)X*B12 17 FC/MC/PC43B 1300 36.4 27.6 15.75 13.00
T*9X*B12 17 FC/MC/PC43B 1270 36.0 27.6 15.50 12.75
T*(8,L)X*C16 21 FC/MC/PC43C 1175 36.2 26.8 16.50 13.50
T*(8,L)X*C20 21 FC/MC/PC43C 1250 36.0 26.6 16.00 13.25
T*9X*C16 21 FC/MC/PC43C 1260 36.2 27.2 15.75 13.00
T*9X*C20 21 FC/MC/PC43C 1185 36.0 26.6 16.00 13.25
T*(8,L)X*C16 21 FC/MC/PC48C 1185 36.4 26.8 16.50 13.50
T*(8,L)X*C20 21 FC/MC/PC48C 1270 36.6 27.8 16.50 13.50
T*9X*C16 21 FC/MC/PC48C 1280 36.4 27.8 16.00 13.25
T*9X*C20 21 FC/MC/PC48C 1205 36.0 26.8 16.00 13.25
For Notes See Page 14.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
16 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2

567175-YTG-E-0512
10 Johnson Controls Unitary Products
CZF03613(C)
T*9X*D20 24 FC/MC/PC48D 1240 36.4 26.8 16.00 13.50
T*(8,L)X*C16 21 FC/PC60C 1190 36.2 26.8 16.50 13.75
T*(8,L)X*C20 21 FC/PC60C 1275 36.4 27.6 16.25 13.50
T*9X*C16 21 FC/PC60C 1315 36.4 27.8 16.00 13.25
T*9X*C20 21 FC/PC60C 1240 36.0 26.6 16.00 13.25
T*9X*D20 24 FC/MC/PC60D 1310 36.4 27.6 16.50 13.50
T*9X*D20 24 FC/MC62D 1225 36.2 26.6 16.25 13.50
T*9X*D20 24 FC64D 1225 36.8 27.4 16.50 13.75
T*(8,L)X*B12 17 HD48 1150 36.2 26.8 16.25 13.50
T*(8,L)X*C16 21 HD48 1120 35.6 26.0 16.25 13.50
T*(8,L)X*C20 21 HD48 1245 36.0 26.6 16.00 13.25
T*9X*B12 17 HD48 1290 36.4 27.6 15.75 13.00
T*9X*C16 21 HD48 1320 36.6 28.0 16.00 13.25
T*9X*C20 21 HD48 1245 36.0 26.6 16.00 13.25
T*9X*D20 24 HD48 1260 36.6 27.4 16.00 13.50
T*(8,L)X*C16 21 HD60 1120 36.0 26.4 16.25 13.50
T*(8,L)X*C20 21 HD60 1245 36.4 27.0 16.25 13.50
T*9X*C16 21 HD60 1320 36.8 28.2 16.25 13.50
T*9X*C20 21 HD60 1245 36.4 27.0 16.25 13.50
T*9X*D20 24 HD60 1260 36.6 27.4 16.25 13.50
T*(8,L)X*C16 21 UC48C 1185 35.8 26.4 16.25 13.50
T*(8,L)X*C20 21 UC48C 1270 35.8 27.2 16.25 13.25
T*9X*C16 21 UC48C 1280 35.6 27.4 15.75 13.00
T*9X*C20 21 UC48C 1205 35.6 26.4 15.75 13.00
T*9X*D20 24 UC48D 1240 35.8 26.4 15.75 13.25
T*(8,L)X*C16 21 UC60C 1190 35.6 26.2 16.25 13.50
T*(8,L)X*C20 21 UC60C 1275 35.8 27.0 16.25 13.25
T*9X*C16 21 UC60C 1315 35.8 27.2 15.75 13.00
T*9X*C20 21 UC60C 1240 35.4 26.0 15.75 13.00
T*9X*D20 24 UC60D 1310 35.8 26.8 16.25 13.50
(Y*LC/T*8V/T*LV)*A12 14 FC/MC/PC37A 1150 35.6 26.4 15.00 12.25
(Y*LC/T*8V/T*LV)*B12 17 FC/MC/PC43B 1275 35.6 27.2 14.75 12.25
(Y*9C/T*9V)*B12 17 FC/MC/PC43B 1200 35.6 26.4 15.00 12.25
(Y*LC/T*8V/T*LV)*C16 21 FC/MC/PC43C 1190 36.0 26.4 15.75 13.00
(Y*LC/T*8V/T*LV)*C20 21 FC/MC/PC43C 1190 36.0 26.4 15.75 13.00
(Y*9C/T*9V)*C16 21 FC/MC/PC43C 1240 35.6 26.2 15.25 12.50
(Y*9C/T*9V)*C20 21 FC/MC/PC43C 1200 35.8 26.4 15.50 13.00
(Y*LC/T*8V/T*LV)*C16 21 FC/MC/PC48C 1195 36.0 26.8 16.00 13.25
(Y*LC/T*8V/T*LV)*C20 21 FC/MC/PC48C 1150 36.2 26.8 16.00 13.25
(Y*9C/T*9V)*C16 21 FC/MC/PC48C 1195 36.0 26.6 15.75 13.00
(Y*9C/T*9V)*C20 21 FC/MC/PC48C 1330 36.4 28.0 15.50 12.75
(Y*9C/T*9V)*D20 24 FC/MC/PC48D 1240 36.2 26.6 15.50 13.00
(Y*LC/T*8V/T*LV)*C16 21 FC/PC60C 1185 36.0 26.6 16.25 13.25
(Y*LC/T*8V/T*LV)*C20 21 FC/PC60C 1215 36.0 26.6 16.00 13.25
(Y*9C/T*9V)*C16 21 FC/PC60C 1235 35.6 26.4 15.25 12.75
(Y*9C/T*9V)*C20 21 FC/PC60C 1330 36.4 27.8 15.50 12.75
(Y*9C/T*9V)*D20 24 FC/MC/PC60D 1225 35.6 26.2 15.75 13.00
(Y*9C/T*9V)*D20 24 FC/MC62D 1235 36.2 26.6 16.00 13.25
(Y*LC/T*8V/T*LV)*B12 17 HD48 1210 35.8 26.6 15.25 12.75
(Y*LC/T*8V/T*LV)*C16 21 HD48 1210 36.0 26.6 15.75 13.25
(Y*LC/T*8V/T*LV)*C20 21 HD48 1155 36.0 26.6 16.00 13.25
(Y*9C/T*9V)*B12 17 HD48 1150 35.8 26.4 15.00 12.50
(Y*9C/T*9V)*C16 21 HD48 1195 35.8 26.4 15.50 13.00
For Notes See Page 14.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
16 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2

567175-YTG-E-0512
Johnson Controls Unitary Products 11
CZF03613(C)
(Y*9C/T*9V)*C20 21 HD48 1330 36.4 27.6 15.25 12.75
(Y*9C/T*9V)*D20 24 HD48 1225 36.0 26.4 15.50 13.00
(Y*LC/T*8V/T*LV)*C16 21 HD60 1210 36.2 26.8 16.00 13.25
(Y*LC/T*8V/T*LV)*C20 21 HD60 1155 36.4 27.0 16.25 13.50
(Y*9C/T*9V)*C16 21 HD60 1195 36.2 26.8 15.75 13.00
(Y*9C/T*9V)*C20 21 HD60 1330 36.6 28.0 15.50 12.75
(Y*9C/T*9V)*D20 24 HD60 1225 36.0 26.4 15.75 13.25
(Y*LC/T*8V/T*LV)*C16 21 UC48C 1210 35.4 26.2 15.75 13.00
(Y*LC/T*8V/T*LV)*C20 21 UC48C 1155 35.6 26.4 16.00 13.25
(Y*9C/T*9V)*C16 21 UC48C 1195 35.4 26.2 15.50 12.75
(Y*9C/T*9V)*C20 21 UC48C 1330 35.6 27.4 15.25 12.50
(Y*9C/T*9V)*D20 24 UC48D 1240 35.6 26.2 15.25 12.75
(Y*LC/T*8V/T*LV)*C16 21 UC60C 1195 35.4 26.0 15.75 13.00
(Y*LC/T*8V/T*LV)*C20 21 UC60C 1215 35.4 26.0 15.75 13.00
(Y*9C/T*9V)*C16 21 UC60C 1235 35.0 25.8 15.00 12.50
(Y*9C/T*9V)*C20 21 UC60C 1330 35.6 27.0 15.25 12.75
(Y*9C/T*9V)*D20 24 UC60D 1225 35.0 25.6 15.50 12.75
CZF04213(C)
T*(8,L)X*C16 21 FC/MC/PC48C 1360 40.5 29.8 15.75 13.25
T*(8,L)X*C20 21 FC/MC/PC48C 1475 40.5 30.8 15.75 13.25
T*9X*C16 21 FC/MC/PC48C 1425 40.0 29.6 15.25 13.00
T*9X*C20 21 FC/MC/PC48C 1420 40.5 29.8 15.50 13.00
T*9X*D20 24 FC/MC/PC48D 1435 40.5 29.8 15.75 13.00
T*(8,L)X*C16 21 FC/MC/PC48D 1360 40.5 29.8 15.75 13.25
T*(8,L)X*C20 21 FC/MC/PC48D 1475 40.5 30.8 15.75 13.25
T*9X*C16 21 FC/MC/PC48D 1425 40.0 29.6 15.25 13.00
T*9X*C20 21 FC/MC/PC48D 1420 40.5 29.8 15.00 13.00
T*(8,L)X*C16 21 FC/PC60C 1360 42.0 31.0 16.00 13.25
T*(8,L)X*C20 21 FC/PC60C 1485 42.5 32.0 16.00 13.25
T*9X*C16 21 FC/PC60C 1460 42.0 30.6 15.50 13.00
T*9X*C20 21 FC/PC60C 1460 42.0 30.8 15.75 13.00
T*9X*D20 24 FC/MC/PC60D 1515 42.5 32.4 16.00 13.50
T*(8,L)X*C16 21 FC/MC/PC60D 1360 42.0 31.0 16.00 13.50
T*(8,L)X*C20 21 FC/MC/PC60D 1485 42.0 31.8 15.75 13.25
T*9X*C16 21 FC/MC/PC60D 1460 42.0 30.6 15.50 13.00
T*9X*C20 21 FC/MC/PC60D 1460 42.0 30.8 15.75 13.25
T*(8,L)X*C16 21 FC/MC62D 1360 42.5 31.4 16.25 13.50
T*(8,L)X*C20 21 FC/MC62D 1485 43.0 32.6 16.25 13.50
T*9X*C16 21 FC/MC62D 1460 42.0 31.2 15.75 13.00
T*9X*C20 21 FC/MC62D 1460 42.5 31.2 16.00 13.25
T*9X*D20 24 FC/MC62D 1425 42.5 31.4 16.00 13.25
T*(8,L)X*C16 21 FC64D 1360 43.5 32.4 16.50 13.75
T*(8,L)X*C20 21 FC64D 1485 43.5 33.6 16.50 13.75
T*9X*C16 21 FC64D 1460 43.0 32.2 16.25 13.50
T*9X*C20 21 FC64D 1460 43.0 32.4 16.50 13.50
T*9X*D20 24 FC64D 1425 43.0 32.4 16.50 13.50
T*(8,L)X*C16 21 HD48 1340 40.5 29.8 15.75 13.00
T*(8,L)X*C20 21 HD48 1490 40.5 30.4 15.75 13.00
T*9X*C16 21 HD48 1465 40.0 29.6 15.25 12.75
T*9X*C20 21 HD48 1465 40.0 29.6 15.50 13.00
T*9X*D20 24 HD48 1460 40.0 29.6 15.50 13.00
T*(8,L)X*C16 21 HD60 1340 43.0 31.6 16.00 13.00
T*(8,L)X*C20 21 HD60 1490 43.0 32.6 16.00 13.00
T*9X*C16 21 HD60 1465 42.5 31.4 15.50 13.25
For Notes See Page 14.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
16 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2

567175-YTG-E-0512
12 Johnson Controls Unitary Products
CZF04213(C)
T*9X*C20 21 HD60 1465 42.5 31.4 15.75 13.25
T*9X*D20 24 HD60 1460 43.0 31.4 16.00 13.50
T*(8,L)X*C16 21 UC60C 1400 41.5 30.4 15.75 13.00
T*(8,L)X*C20 21 UC60C 1485 41.5 30.8 15.50 13.00
T*9X*C16 21 UC60C 1460 41.0 30.0 15.00 12.50
T*9X*C20 21 UC60C 1460 41.0 30.2 15.25 12.75
T*9X*D20 24 UC60D 1515 42.0 31.2 15.75 13.00
Y*(8,L)C*C16 21 UC60C 1420 41.0 30.0 15.00 12.50
Y*(8,L)C*C20 21 UC60C 1410 41.0 30.2 15.25 12.75
Y*9C*C16 21 UC60C 1445 40.5 29.8 14.25 12.00
Y*9C*C20 21 UC60C 1445 41.0 30.0 14.50 12.25
Y*9C*D20 24 UC60D 1445 41.0 30.0 14.75 12.50
(Y*LC/T*8V/T*LV)*C20 21 FC/MC/PC48C 1410 40.0 29.6 15.00 12.75
(Y*9C/T*9V)*C16 21 FC/MC/PC48C 1395 40.0 29.4 14.75 12.50
(Y*9C/T*9V)*C20 21 FC/MC/PC48C 1430 40.0 29.4 14.50 12.50
(Y*9C/T*9V)*D20 24 FC/MC/PC48D 1450 40.0 29.4 15.00 12.50
(Y*LC/T*8V/T*LV)*C20 21 FC/MC/PC48D 1410 40.0 29.6 15.00 12.75
(Y*9C/T*9V)*C16 21 FC/MC/PC48D 1395 40.0 29.4 14.75 12.50
(Y*9C/T*9V)*C20 21 FC/MC/PC48D 1430 40.0 29.4 14.75 12.50
(Y*LC/T*8V/T*LV)*C16 21 FC/PC60C 1420 42.0 30.6 15.25 12.75
(Y*LC/T*8V/T*LV)*C20 21 FC/PC60C 1340 42.0 30.8 15.50 13.00
(Y*9C/T*9V)*C16 21 FC/PC60C 1445 41.5 30.4 14.50 12.25
(Y*9C/T*9V)*C20 21 FC/PC60C 1445 41.5 30.6 15.00 12.50
(Y*9C/T*9V)*D20 24 FC/MC/PC60D 1445 42.0 30.6 15.00 12.75
(Y*LC/T*8V/T*LV)*C16 21 FC/MC/PC60D 1420 42.0 30.6 15.00 12.75
(Y*LC/T*8V/T*LV)*C20 21 FC/MC/PC60D 1340 42.0 30.8 15.50 13.00
(Y*9C/T*9V)*C16 21 FC/MC/PC60D 1445 41.5 30.4 14.50 12.25
(Y*9C/T*9V)*C20 21 FC/MC/PC60D 1445 41.5 30.6 14.75 12.50
(Y*LC/T*8V/T*LV)*C16 21 FC/MC62D 1420 42.0 31.0 15.25 12.75
(Y*LC/T*8V/T*LV)*C20 21 FC/MC62D 1365 42.5 31.2 15.75 13.00
(Y*9C/T*9V)*C16 21 FC/MC62D 1445 42.0 30.8 14.75 12.25
(Y*9C/T*9V)*C20 21 FC/MC62D 1445 42.0 31.0 15.00 12.75
(Y*9C/T*9V)*D20 24 FC/MC62D 1455 42.0 31.0 15.25 12.75
(Y*LC/T*8V/T*LV)*C16 21 FC64D 1420 43.0 32.2 16.00 13.25
(Y*LC/T*8V/T*LV)*C20 21 FC64D 1410 43.0 32.2 16.25 13.50
(Y*9C/T*9V)*C16 21 FC64D 1445 42.5 31.8 15.25 12.75
(Y*9C/T*9V)*C20 21 FC64D 1445 43.0 32.0 15.50 13.00
(Y*9C/T*9V)*D20 24 FC64D 1455 43.0 32.2 15.75 13.00
(Y*LC/T*8V/T*LV)*C16 21 HD48 1435 40.0 29.4 14.75 12.50
(Y*LC/T*8V/T*LV)*C20 21 HD48 1410 40.0 29.4 15.00 12.75
(Y*9C/T*9V)*C16 21 HD48 1395 40.0 29.4 14.75 12.50
(Y*9C/T*9V)*D20 24 HD48 1450 40.0 29.4 14.75 12.50
(Y*LC/T*8V/T*LV)*C16 21 HD60 1420 42.5 31.2 15.50 13.00
(Y*LC/T*8V/T*LV)*C20 21 HD60 1410 42.5 31.4 15.75 13.25
(Y*9C/T*9V)*C16 21 HD60 1445 42.0 31.0 14.75 12.50
(Y*9C/T*9V)*C20 21 HD60 1445 42.5 31.2 15.00 12.75
(Y*9C/T*9V)*D20 24 HD60 1445 42.5 31.2 15.25 13.00
For Notes See Page 14.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
16 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2

567175-YTG-E-0512
Johnson Controls Unitary Products 13
CZF04813(C)
T*(8,L)X*C16 21 FC/MC/PC48C 1600 45.0 33.0 14.50 12.50
T*(8,L)X*C20 21 FC/MC/PC48C 1660 45.0 33.0 14.50 12.50
T*9X*C16 21 FC/MC/PC48C 1565 45.0 33.0 14.25 12.25
T*9X*C20 21 FC/MC/PC48C 1615 45.0 33.0 14.50 12.50
T*9X*D20 24 FC/MC/PC48D 1635 45.0 33.0 14.25 12.50
T*(8,L)X*C16 21 FC/MC/PC48D 1600 45.0 33.0 14.25 12.50
T*(8,L)X*C20 21 FC/MC/PC48D 1660 45.0 33.0 14.50 12.50
T*9X*C16 21 FC/MC/PC48D 1565 45.0 33.0 14.25 12.50
T*9X*C20 21 FC/MC/PC48D 1615 45.0 33.0 14.50 12.50
T*(8,L)X*C16 21 FC/PC60C 1605 45.0 33.2 14.75 12.50
T*(8,L)X*C20 21 FC/PC60C 1595 45.0 33.2 15.00 12.50
T*9X*C16 21 FC/PC60C 1575 45.0 33.0 14.75 12.25
T*9X*C20 21 FC/PC60C 1625 45.0 33.2 15.00 12.50
T*9X*D20 24 FC/MC/PC60D 1490 45.0 32.8 15.50 13.00
T*(8,L)X*C16 21 FC/MC/PC60D 1605 45.0 33.2 15.00 12.50
T*(8,L)X*C20 21 FC/MC/PC60D 1595 45.0 33.2 15.00 12.50
T*9X*C16 21 FC/MC/PC60D 1575 45.0 33.0 14.75 12.25
T*9X*C20 21 FC/MC/PC60D 1625 45.0 33.2 15.00 12.50
T*(8,L)X*C16 21 FC/MC62D 1610 45.5 33.6 15.00 12.50
T*(8,L)X*C20 21 FC/MC62D 1665 45.5 33.8 15.25 12.75
T*9X*C16 21 FC/MC62D 1550 45.5 33.6 15.00 12.50
T*9X*C20 21 FC/MC62D 1595 45.5 33.8 15.25 12.50
T*9X*D20 24 FC/MC62D 1610 45.5 33.6 15.00 12.50
T*(8,L)X*C20 21 FC64D 1485 46.5 34.6 16.25 13.50
T*9X*C16 21 FC64D 1460 46.5 34.0 16.00 13.00
T*9X*C20 21 FC64D 1460 46.5 34.2 16.00 13.25
T*9X*D20 24 FC64D 1425 46.0 33.8 16.00 13.25
T*(8,L)X*C16 21 HD48 1610 44.5 32.8 14.25 12.50
T*(8,L)X*C20 21 HD48 1665 44.5 33.0 14.50 12.50
T*9X*C16 21 HD48 1575 44.5 32.8 14.25 12.25
T*9X*C20 21 HD48 1625 44.5 33.0 14.50 12.50
T*9X*D20 24 HD48 1645 44.5 32.8 14.25 12.25
T*(8,L)X*C16 21 HD60 1610 45.5 33.6 15.00 12.50
T*(8,L)X*C20 21 HD60 1665 45.5 33.8 15.25 12.75
T*9X*C16 21 HD60 1575 45.5 33.6 15.00 12.50
T*9X*C20 21 HD60 1625 45.5 33.8 15.25 12.50
T*9X*D20 24 HD60 1645 45.5 33.6 15.00 12.50
T*9X*C20 21 UC48C 1615 44.5 32.8 14.25 12.50
T*(8,L)X*C16 21 UC60C 1605 44.5 32.6 14.75 12.25
T*(8,L)X*C20 21 UC60C 1540 45.0 33.0 14.75 12.25
T*9X*C16 21 UC60C 1575 44.5 32.4 14.75 12.25
T*9X*C20 21 UC60C 1625 44.5 32.6 14.75 12.25
T*9X*D20 24 UC60D 1490 44.5 32.0 14.75 12.25
(Y*LC/T*8V/T*LV)*C16 21 FC/MC/PC48C 1565 44.5 32.6 13.75 11.75
(Y*LC/T*8V/T*LV)*C20 21 FC/MC/PC48C 1640 44.5 32.8 14.00 12.00
(Y*9C/T*9V)*C16 21 FC/MC/PC48C 1590 44.5 32.8 13.75 12.00
(Y*9C/T*9V)*C20 21 FC/MC/PC48C 1655 44.5 32.8 13.75 12.00
(Y*9C/T*9V)*D20 24 FC/MC/PC48D 1645 44.5 32.8 13.75 12.00
(Y*LC/T*8V/T*LV)*C16 21 FC/MC/PC48D 1565 44.5 32.6 13.50 11.75
(Y*LC/T*8V/T*LV)*C20 21 FC/MC/PC48D 1640 44.5 32.8 14.00 12.00
(Y*9C/T*9V)*C16 21 FC/MC/PC48D 1590 44.5 32.8 13.75 12.00
(Y*9C/T*9V)*C20 21 FC/MC/PC48D 1655 44.5 32.8 13.75 12.00
(Y*LC/T*8V/T*LV)*C16 21 FC/PC60C 1600 45.0 32.8 14.25 12.00
For Notes See Page 14.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
16 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2

567175-YTG-E-0512
14 Johnson Controls Unitary Products
PSC furnaces, such as the TG8S, TGLS, and TG9S, use Coil Only Ratings.
CZF04813(C)
(Y*LC/T*8V/T*LV)*C20 21 FC/PC60C 1625 45.0 33.0 14.50 12.00
(Y*9C/T*9V)*C16 21 FC/PC60C 1590 44.5 32.8 14.25 12.00
(Y*9C/T*9V)*C20 21 FC/PC60C 1655 44.5 32.8 14.25 12.00
(Y*9C/T*9V)*D20 24 FC/MC/PC60D 1615 45.0 33.0 14.50 12.00
(Y*LC/T*8V/T*LV)*C16 21 FC/MC/PC60D 1600 45.0 32.8 14.50 12.00
(Y*LC/T*8V/T*LV)*C20 21 FC/MC/PC60D 1625 45.0 33.0 14.50 12.00
(Y*9C/T*9V)*C16 21 FC/MC/PC60D 1590 44.5 32.8 14.25 12.00
(Y*9C/T*9V)*C20 21 FC/MC/PC60D 1655 44.5 32.8 14.25 12.00
(Y*LC/T*8V/T*LV)*C16 21 FC/MC62D 1635 45.5 33.6 14.75 12.25
(Y*LC/T*8V/T*LV)*C20 21 FC/MC62D 1620 45.5 33.6 15.00 12.50
(Y*9C/T*9V)*C16 21 FC/MC62D 1590 45.0 33.4 14.75 12.25
(Y*9C/T*9V)*C20 21 FC/MC62D 1655 45.0 33.4 14.25 12.00
(Y*9C/T*9V)*D20 24 FC/MC62D 1630 45.0 33.4 14.50 12.25
(Y*LC/T*8V/T*LV)*C16 21 HD48 1615 44.5 32.6 13.75 12.00
(Y*LC/T*8V/T*LV)*C20 21 HD48 1640 44.5 32.6 13.75 12.00
(Y*LC/T*8V/T*LV)*C16 21 HD60 1625 45.5 33.6 14.75 12.25
(Y*LC/T*8V/T*LV)*C20 21 HD60 1605 45.5 33.6 15.00 12.50
(Y*9C/T*9V)*C16 21 HD60 1590 45.0 33.4 14.50 12.00
(Y*9C/T*9V)*C20 21 HD60 1655 45.0 33.4 14.50 12.00
(Y*9C/T*9V)*D20 24 HD60 1615 45.0 33.4 14.50 12.25
(Y*LC/T*8V/T*LV)*C20 21 UC60C 1605 44.5 32.6 14.75 12.25
(Y*LC/T*8V/T*LV)*C16 21 FC64D 1420 46.0 33.6 15.75 13.00
(Y*LC/T*8V/T*LV)*C20 21 FC64D 1410 46.0 33.6 16.00 13.00
(Y*9C/T*9V)*C16 21 FC64D 1445 46.0 33.4 15.25 12.50
(Y*9C/T*9V)*C20 21 FC64D 1445 46.0 33.6 15.50 12.75
(Y*9C/T*9V)*D20 24 FC64D 1455 46.0 33.8 15.75 13.00
CZF06013(C)
T*(8,L)X*C20 21 FC/PC60C 1595 52.0 35.3 15.00 12.75
T*9X*C20 21 FC/PC60C 1625 52.0 35.5 15.00 12.75
T*(8,L)X*C20 21 FC/MC/PC60D 1690 52.0 36.1 15.25 13.00
T*9X*C20 21 FC/MC/PC60D 1645 52.0 35.5 15.25 12.75
T*9X*D20 24 FC/MC/PC60D 1730 52.5 36.5 15.50 13.00
T*(8,L)X*C20 21 FC/MC62D 1665 53.0 36.9 15.50 13.25
T*9X*C20 21 FC/MC62D 1595 53.0 36.9 15.50 13.00
T*9X*D20 24 FC/MC62D 1645 53.0 36.7 15.25 13.00
T*(8,L)X*C20 21 FC64D 1665 54.5 38.5 16.00 13.25
T*9X*D20 24 FC64D 1645 54.0 38.0 16.00 13.25
(Y*LC/T*8V/T*LV)*C20 21 FC/MC62D 1600 52.5 36.5 15.00 12.50
(Y*9C/T*9V)*C20 21 FC/MC62D 1655 52.5 36.5 14.75 12.50
(Y*9C/T*9V)*D20 24 FC/MC62D 1630 52.5 36.5 15.00 12.75
(Y*LC/T*8V/T*LV)*C20 21 FC64D 1855 54.5 39.0 15.25 12.75
(Y*9C/T*9V)*C20 21 FC64D 1655 54.0 37.8 15.25 12.75
(Y*9C/T*9V)*D20 24 FC64D 1630 54.0 37.6 15.25 12.75
1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
2. High Efficiency Motor Furnaces have B.O.D (Blower on Delay) standard.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
16 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2

567175-YTG-E-0512
Johnson Controls Unitary Products 15
ACCESSORIES
Hard Start Kit - Provides increased starting torque for areas
with low voltage. See Hard Start Kit Accessory Installation
Manual for Hard Start Kit part number for each model.
TXV Kits - S1-1TVM series thermal expansion valves precisely
meter refrigerant for optimum performance over a wide range of
conditions. See System Charge table for TXV part number for
each model.
Low Ambient Pressure Switch Kit (S1-2LA06700424) -
Allows use of air conditioning at low outdoor ambient tempera-
tures. For use with models containing R-410A refrigerant only.
Dehumidistat (S1-2HU16700124) - Provides increased dehu-
midification when matched with variable speed furnace or air
handler.
Thermostats - Compatible thermostat controls are available
through accessory sourcing. For optimum performance, these
outdoor units are fully compatible with the Residential Touch-
screen Communicating Control S1-TTSCC01.
SOUND POWER LEVEL - TYPICAL OCTAVE BAND SPECTRUM (without tone adjustment)
Rated in accordance with ARI Standard 270-2008.
TYPICAL INSTALLATION
Size Test Condition 63 125 250 500 1000 2000 4000 8000 dBA SQI
024 Cooling Mode 72 75 66 66 61 54 47 40 67 19.2
030 Cooling Mode 70 77 67 69 66 58 51 47 70 19.1
036 Cooling Mode 74 73 70 71 69 63 57 51 73 19.0
042 Cooling Mode 78 72 69 70 67 61 55 48 71 19.1
048 Cooling Mode 72 73 70 70 67 62 58 52 72 19.0
060 Cooling Mode 76 73 74 70 70 62 58 55 74 19.2
THERMOSTAT
NEC CLASS 1
WIRING
TO INDOOR
BLOWER
NEC CLASS 2
WIRING
TO COIL
WEATHERPROOF
DISCONNECT
SWITCH
24” SERVICE
ACCESS
CLEARANCE
ALL OUTDOOR WIRING MUST BE WEATHERPROOF
MINIMUM 24” UNIT TO UNIT CLEARANCE
SEAL OPENINGS WITH
PERMAGUM OR EQUIVALENT
60” OVERHEAD
CLEARANCE
10” CLEARANCE
AROUND PERIMETER
NOTES:

567175-YTG-E-0512
16 Johnson Controls Unitary Products
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per
degree above the listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. CZF02413(C)
INDOOR COIL MODEL NO. FC/MC/PC35B
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 600 800 1000
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65 T.C. 20.0 22.0 22.8 25.2 28.1 21.7 23.5 24.1 27.1 30.1 23.4 25.0 25.4 29.1 32.1 S.C. 20.0 19.1 16.8 16.7 13.4 21.7 22.1 18.8 19.1 14.7 23.4 25.0 20.9 21.4 16.0
K.W. 1.32 1.30 1.30 1.31 1.30 1.38 1.37 1.37 1.38 1.37 1.44 1.45 1.44 1.45 1.45
75 T.C. 19.0 21.2 21.6 24.2 26.9 20.6 22.6 23.1 26.0 28.9 22.2 24.1 24.5 27.8 31.0 S.C. 19.0 18.7 16.1 16.1 12.9 20.6 21.6 18.2 18.4 14.2 22.2 24.1 20.4 20.7 15.6
K.W. 1.50 1.49 1.49 1.49 1.49 1.56 1.56 1.56 1.56 1.55 1.63 1.63 1.63 1.63 1.62
85 T.C. 18.0 20.3 20.4 23.1 25.7 19.5 21.8 22.0 24.8 27.7 21.1 23.2 23.6 26.5 29.8 S.C. 18.0 18.3 15.4 15.5 12.4 19.5 21.1 17.6 17.7 13.8 21.1 23.2 19.8 19.9 15.2
K.W. 1.68 1.69 1.68 1.67 1.67 1.75 1.75 1.75 1.74 1.73 1.81 1.81 1.82 1.82 1.80
95 T.C. 17.0 19.5 19.3 22.0 24.4 18.4 20.9 21.0 23.6 26.5 19.9 22.4 22.7 25.2 28.6 S.C. 17.0 17.9 14.7 14.9 11.9 18.4 20.7 17.0 17.0 13.4 19.9 22.4 19.3 19.1 14.8
K.W. 1.87 1.88 1.88 1.85 1.85 1.93 1.94 1.94 1.93 1.91 2.00 1.99 2.00 2.00 1.98
105 T.C. 16.1 18.3 18.1 20.8 23.2 17.4 19.6 19.6 22.3 25.1 18.8 20.9 21.1 23.8 27.1 S.C. 16.1 17.2 14.2 14.4 11.4 17.4 19.6 16.4 16.5 12.8 18.8 20.9 18.6 18.5 14.1
K.W. 2.24 2.23 2.22 2.17 2.15 2.27 2.27 2.27 2.24 2.21 2.31 2.30 2.33 2.30 2.27
115 T.C. 15.2 17.1 17.0 19.6 22.0 16.5 18.3 18.3 21.0 23.7 17.8 19.5 19.6 22.5 25.5 S.C. 15.2 16.5 13.6 13.9 10.9 16.5 18.3 15.8 15.9 12.2 17.8 19.5 17.9 18.0 13.5
K.W. 2.61 2.57 2.56 2.49 2.44 2.60 2.59 2.60 2.54 2.50 2.60 2.60 2.64 2.59 2.56
125 T.C. 14.3 15.9 15.9 18.4 20.8 15.5 17.0 17.0 19.8 22.4 16.7 18.1 18.1 21.2 24.0 S.C. 14.3 15.8 13.1 13.4 10.4 15.5 17.0 15.2 15.4 11.6 16.7 18.1 17.2 17.5 12.8
K.W. 2.97 2.91 2.90 2.80 2.73 2.93 2.91 2.92 2.84 2.79 2.90 2.90 2.95 2.87 2.85
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Air Handlers Coils T.C. S.C. KW
– FC/MC/PC32 1.00 1.00 1.00
– FC/MC/PC37 1.02 1.02 1.02
– FC/MC/PC43 1.02 1.02 1.02
AHE24B – 1.05 1.00 0.95
AHE30B – 1.05 1.00 0.95
AHE36C – 1.08 1.06 0.94
AHP30 – 1.00 1.00 1.02
AHR24B – 1.00 0.98 0.96
AV*36 – 1.05 0.98 0.92
AHX24 – 1.04 0.99 0.95
AHX30 – 1.05 1.01 0.94
AHX36 – 1.06 1.02 0.98
F6FP030 – 1.05 1.01 0.97
F6FP036 – 1.06 1.02 0.96
MV12B FC/MC35B 1.05 1.01 0.94
MV12B FC/MC43B 1.06 1.01 0.94
MX12B FC/MC35B 1.06 1.00 0.93
MX12B FC/MC43B 1.05 0.99 0.92
Furnaces Coils T.C. S.C. KW
T*(8,L)X*A12 FC/MC/PC32A 1.05 1.00 0.92
T*9X*A10 FC/MC/PC32A 1.03 0.96 0.97
T*(8,L)X*B12 FC/MC/PC35B 1.07 1.04 0.92
T*(8,L)X*C16 FC/MC/PC35C 1.07 1.05 0.92
T*(8,L)X*C20 FC/MC/PC35C 1.07 1.06 0.93
T*9X*B12 FC/MC/PC35B 1.05 1.00 0.92
T*9X*C16 FC/MC/PC35C 1.05 1.00 0.92
T*9X*C20 FC/MC/PC35C 1.05 1.00 0.94
T*(8,L)X*A12 FC/MC/PC37A 1.08 1.05 0.93
T*9X*A10 FC/MC/PC37A 1.03 0.97 0.96
T*(8,L)X*B12 FC/MC/PC43B 1.08 1.06 0.93
T*(8,L)X*C16 FC/MC/PC43C 1.08 1.06 0.93
T*(8,L)X*C20 FC/MC/PC43C 1.06 1.01 0.93
T*9X*B12 FC/MC/PC43B 1.07 1.02 0.93
T*9X*C16 FC/MC/PC43C 1.07 1.02 0.93
T*9X*C20 FC/MC/PC43C 1.06 1.01 0.93
(Y*LC/T*8V/T*LV)*A12 FC/MC/PC32A 1.03 0.98 0.94
T*9V*A10 FC/MC/PC32A 1.03 0.98 0.99
(Y*LC/T*8V/T*LV)*B12 FC/MC/PC35B 1.05 0.99 0.94
(Y*LC/T*8V/T*LV)*C16 FC/MC/PC35C 1.05 1.00 0.94
(Y*LC/T*8V/T*LV)*C20 FC/MC/PC35C 1.04 0.98 0.93
(Y*9C/T*9V)*B12 FC/MC/PC35B 1.04 0.99 0.96
(Y*9C/T*9V)*C16 FC/MC/PC35C 1.07 1.06 0.95
(Y*9C/T*9V)*C20 FC/MC/PC35C 1.04 0.98 0.93
(Y*LC/T*8V/T*LV)*A12 FC/MC/PC37A 1.06 1.01 0.96
T*9V*A10 FC/MC/PC37A 1.03 1.00 0.99
(Y*LC/T*8V/T*LV)*B12 FC/MC/PC43B 1.06 1.01 0.94
(Y*LC/T*8V/T*LV)*C16 FC/MC/PC43C 1.06 1.01 0.93
(Y*LC/T*8V/T*LV)*C20 FC/MC/PC43C 1.05 0.99 0.94
(Y*9C/T*9V)*B12 FC/MC/PC43B 1.06 1.01 0.96
(Y*9C/T*9V)*C16 FC/MC/PC43C 1.06 1.01 0.94
(Y*9C/T*9V)*C20 FC/MC/PC43C 1.08 1.08 0.95
Furnaces Coils T.C. S.C. KW

567175-YTG-E-0512
Johnson Controls Unitary Products 17
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per
degree above the listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
Continued on next page.
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. CZF03013(C)
INDOOR COIL MODEL NO. FC/MC43B
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 800 1000 1200
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65 T.C. 24.6 29.3 29.4 32.1 34.3 26.9 30.5 30.6 33.0 36.0 29.3 31.8 31.7 33.9 37.7 S.C. 24.6 24.8 20.7 20.5 15.8 26.9 27.5 23.0 22.0 16.8 29.3 30.3 25.3 23.5 17.8
KW 1.69 1.68 1.68 1.70 1.71 1.76 1.76 1.76 1.78 1.80 1.84 1.84 1.84 1.86 1.88
75 T.C. 23.8 27.9 28.0 31.0 33.5 25.8 29.2 29.2 32.0 35.0 27.7 30.5 30.3 33.0 36.6 S.C. 23.8 23.7 20.0 20.0 15.4 25.8 26.4 22.2 21.7 16.5 27.7 29.0 24.4 23.3 17.6
KW 1.92 1.92 1.92 1.93 1.93 2.00 2.00 1.99 2.00 2.02 2.07 2.08 2.07 2.08 2.10
85 T.C. 23.1 26.6 26.6 29.9 32.6 24.6 27.9 27.8 31.0 34.1 26.2 29.3 29.0 32.1 35.5 S.C. 23.1 22.6 19.3 19.4 15.1 24.6 25.2 21.4 21.3 16.3 26.2 27.7 23.6 23.2 17.5
KW 2.16 2.17 2.16 2.15 2.15 2.23 2.24 2.23 2.23 2.23 2.31 2.32 2.30 2.30 2.31
95 T.C. 22.4 25.3 25.2 28.7 31.7 23.5 26.7 26.4 30.0 33.1 24.7 28.0 27.6 31.3 34.5 S.C. 22.4 21.6 18.5 18.9 14.8 23.5 24.0 20.7 21.0 16.1 24.7 26.5 22.8 23.1 17.4
KW 2.39 2.42 2.39 2.38 2.37 2.47 2.49 2.46 2.45 2.45 2.54 2.56 2.53 2.52 2.53
105 T.C. 21.6 23.9 23.7 27.2 30.0 22.9 25.3 24.9 28.4 31.4 24.2 26.6 26.0 29.6 32.8 S.C. 21.6 20.9 17.8 18.2 14.1 22.9 23.3 19.9 20.2 15.4 24.2 25.7 22.0 22.3 16.7
KW 2.78 2.84 2.79 2.75 2.75 2.84 2.88 2.85 2.82 2.83 2.90 2.92 2.91 2.89 2.91
115 T.C. 20.8 22.6 22.2 25.7 28.4 22.3 23.9 23.4 26.8 29.8 23.7 25.2 24.5 27.9 31.2 S.C. 20.8 20.3 17.0 17.5 13.5 22.3 22.7 19.1 19.5 14.7 23.7 25.0 21.1 21.4 16.0
KW 3.16 3.24 3.18 3.11 3.11 3.20 3.25 3.23 3.18 3.20 3.25 3.27 3.29 3.25 3.28
125 T.C. 20.1 21.3 20.8 24.2 26.7 21.7 22.6 21.9 25.3 28.1 23.3 23.9 22.9 26.3 29.5 S.C. 20.1 19.6 16.3 16.8 12.9 21.7 22.0 18.3 18.7 14.1 23.3 23.9 20.3 20.6 15.3
KW 3.54 3.65 3.56 3.48 3.48 3.57 3.63 3.61 3.55 3.56 3.60 3.61 3.66 3.61 3.65
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Air Handlers Coils T.C. S.C. KW
– FC/MC/PC32 0.99 0.98 1.01
– FC/MC/PC35 0.99 0.98 1.01
– FC/MC/PC37 1.00 1.00 1.00
– FC/MC/PC48 1.00 1.02 1.00
– FC/MC/PC60 1.00 1.01 1.00
– UC48 0.95 0.95 0.99
– UC60 0.96 0.95 1.00
AHE30B – 1.00 0.98 0.96
AHE36C – 1.03 1.01 0.93
AHE42D – 1.04 1.03 0.93
AHE48D – 1.03 1.02 0.91
AHP30 – 0.99 0.98 1.01
AHP36 – 1.00 1.00 1.00
AHR30B – 1.00 1.03 1.02
AHR36B – 1.01 1.03 1.01
AV*36 – 1.02 1.00 0.93
AHX30 – 0.99 0.99 0.95
AHX36 – 1.03 1.02 0.93
F6FP030 – 1.00 0.98 0.98
F6FP036 – 0.98 0.96 0.94
F6FP042 – 1.03 1.03 0.94
F6FP048 – 1.03 1.02 0.97
MV12B FC/MC35B 0.99 0.98 0.94
MV16C FC/MC35C 1.01 1.01 0.95
MV12B FC/MC43B 1.02 1.00 0.94
MV16C FC/MC43C 1.03 1.01 0.95
MV16C FC/MC48C 1.03 1.02 0.94
MX12B FC/MC35B 1.02 1.03 0.96
MX16C FC/MC35C 1.01 0.99 0.92
MX12B FC/MC43B 1.04 1.05 0.94
MX16C FC/MC43C 1.03 1.01 0.91
MX16C FC/MC48C 1.04 1.02 0.93

567175-YTG-E-0512
18 Johnson Controls Unitary Products
Furnaces Coils T.C. S.C. KW
T*(8,L)X*A12 FC/MC/PC32A 0.99 0.97 0.97
T*(8,L)X*B12 FC/MC/PC35B 1.01 1.02 0.95
T*(8,L)X*C16 FC/MC/PC35C 1.01 1.02 0.95
T*(8,L)X*C20 FC/MC/PC35C 0.97 0.92 0.91
T*9X*B12 FC/MC/PC35B 1.01 1.01 0.95
T*9X*C16 FC/MC/PC35C 1.01 1.00 0.95
T*9X*C20 FC/MC/PC35C 0.97 0.92 0.91
T*(8,L)X*A12 FC/MC/PC37A 1.04 1.06 0.96
T*9X*A10 FC/MC/PC37A 1.00 0.99 1.02
T*(8,L)X*B12 FC/MC/PC43B 1.04 1.07 0.96
T*(8,L)X*C16 FC/MC/PC43C 1.03 1.01 0.94
T*(8,L)X*C20 FC/MC/PC43C 1.01 0.96 0.91
T*9X*B12 FC/MC/PC43B 1.04 1.05 0.96
T*9X*C16 FC/MC/PC43C 1.03 1.04 0.96
T*9X*C20 FC/MC/PC43C 0.96 0.89 0.90
T*(8,L)X*C16 FC/MC/PC48C 1.04 1.02 0.93
T*(8,L)X*C20 FC/MC/PC48C 1.02 0.99 0.91
T*9X*C16 FC/MC/PC48C 1.05 1.06 0.95
T*9X*C20 FC/MC/PC48C 0.98 0.90 0.91
T*9X*D20 FC/MC/PC48D 0.99 0.93 0.91
T*(8,L)X*C16 FC/PC60C 1.04 1.05 0.94
T*(8,L)X*C20 FC/PC60C 1.02 0.99 0.91
T*9X*C16 FC/PC60C 1.05 1.05 0.95
T*9X*C20 FC/PC60C 0.98 0.96 0.89
T*9X*D20 FC/MC/PC60D 0.99 0.97 0.90
T*(8,L)X*C16 UC48C 0.96 0.93 0.90
T*9X*C16 UC48C 0.97 0.97 0.95
T*(8,L)X*C16 UC60C 0.96 0.95 0.92
T*9X*C16 UC60C 0.97 0.97 0.94
(Y*LC/T*8V/T*LV)*A12 FC/MC/PC32A 0.98 0.96 1.02
(Y*LC/T*8V/T*LV)*B12 FC/MC/PC35B 0.99 0.97 0.97
(Y*LC/T*8V/T*LV)*C16 FC/MC/PC35C 0.99 0.98 0.95
(Y*LC/T*8V/T*LV)*C20 FC/MC/PC35C 0.99 0.98 0.97
(Y*9C/T*9V)*B12 FC/MC/PC35B 0.98 0.97 0.98
(Y*9C/T*9V)*C16 FC/MC/PC35C 0.99 0.98 0.95
(Y*9C/T*9V)*C20 FC/MC/PC35C 0.99 0.98 0.95
(Y*LC/T*8V/T*LV)*A12 FC/MC/PC37A 1.01 0.98 0.97
(Y*LC/T*8V/T*LV)*B12 FC/MC/PC43B 1.02 1.00 0.98
(Y*LC/T*8V/T*LV)*C16 FC/MC/PC43C 1.03 1.00 0.95
(Y*LC/T*8V/T*LV)*C20 FC/MC/PC43C 1.03 1.01 0.93
(Y*9C/T*9V)*B12 FC/MC/PC43B 1.01 0.99 0.99
(Y*9C/T*9V)*C16 FC/MC/PC43C 1.02 1.00 0.96
(Y*9C/T*9V)*C20 FC/MC/PC43C 1.03 1.00 0.95
(Y*LC/T*8V/T*LV)*C16 FC/MC/PC48C 1.03 1.02 0.96
(Y*LC/T*8V/T*LV)*C20 FC/MC/PC48C 1.03 1.02 0.94
(Y*9C/T*9V)*C16 FC/MC/PC48C 1.03 1.02 0.96
(Y*9C/T*9V)*C20 FC/MC/PC48C 1.03 1.02 0.94
(Y*9C/T*9V)*D20 FC/MC/PC48D 1.05 1.06 0.95
(Y*LC/T*8V/T*LV)*C16 FC/PC60C 1.03 1.04 0.94
(Y*LC/T*8V/T*LV)*C20 FC/PC60C 1.03 1.01 0.94
(Y*9C/T*9V)*C16 FC/PC60C 1.03 1.01 0.97
(Y*9C/T*9V)*C20 FC/PC60C 1.03 1.01 0.96
(Y*9C/T*9V)*D20 FC/MC/PC60D 1.05 1.05 0.97
(Y*LC/T*8V/T*LV)*C16 UC48C 0.95 0.93 0.93
(Y*LC/T*8V/T*LV)*C20 UC48C 0.95 0.93 0.93
(Y*9C/T*9V)*C16 UC48C 0.95 0.93 0.93
(Y*9C/T*9V)*C20 UC48C 0.95 0.93 0.93
(Y*9C/T*9V)*D20 UC48D 0.98 0.98 0.96
(Y*LC/T*8V/T*LV)*C16 UC60C 0.95 0.92 0.92
(Y*LC/T*8V/T*LV)*C20 UC60C 0.95 0.94 0.92
(Y*9C/T*9V)*C16 UC60C 0.95 0.92 0.93
(Y*9C/T*9V)*C20 UC60C 0.95 0.92 0.92
(Y*9C/T*9V)*D20 UC60D 0.98 0.97 0.94
Furnaces Coils T.C. S.C. KW

567175-YTG-E-0512
Johnson Controls Unitary Products 19
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per
degree above the listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
Continued on next page.
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. CZF03613(C)
INDOOR COIL MODEL NO. FC/MC43C
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1000 1200 1400
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65 T.C. 30.5 36.1 36.7 39.0 41.1 32.1 37.2 37.5 40.0 41.3 33.7 38.3 38.4 41.0 41.5 S.C. 30.5 30.7 26.8 25.1 19.5 32.1 33.6 28.7 26.8 20.1 33.7 36.4 30.5 28.4 20.7
KW 2.04 2.03 2.04 2.04 2.06 2.11 2.11 2.11 2.12 2.13 2.18 2.18 2.18 2.20 2.21
75 T.C. 30.3 34.4 34.8 37.4 39.8 31.9 35.4 35.7 38.3 40.1 33.5 36.4 36.6 39.2 40.4 S.C. 30.3 30.0 25.8 24.7 19.2 31.9 32.7 27.8 26.5 20.1 33.5 35.3 29.9 28.3 21.0
KW 2.29 2.29 2.29 2.29 2.30 2.36 2.37 2.36 2.37 2.37 2.43 2.44 2.43 2.44 2.45
85 T.C. 30.1 32.7 33.0 35.9 38.5 31.7 33.6 33.9 36.7 38.9 33.2 34.5 34.8 37.4 39.3 S.C. 30.1 29.4 24.8 24.2 18.9 31.7 31.8 27.0 26.3 20.1 33.2 34.2 29.3 28.3 21.2
KW 2.54 2.55 2.55 2.54 2.54 2.61 2.62 2.62 2.61 2.61 2.68 2.69 2.69 2.69 2.69
95 T.C. 29.9 31.1 31.2 34.3 37.2 31.4 31.8 32.1 35.0 37.7 33.0 32.6 33.0 35.7 38.2 S.C. 29.9 28.7 23.8 23.8 18.7 31.4 30.9 26.2 26.0 20.0 33.0 32.6 28.7 28.2 21.4
KW 2.80 2.81 2.80 2.79 2.78 2.86 2.88 2.87 2.86 2.85 2.93 2.94 2.94 2.93 2.93
105 T.C. 28.3 28.9 29.1 31.9 34.9 29.7 29.8 29.8 32.6 35.4 31.1 30.7 30.6 33.2 35.8 S.C. 28.3 27.4 22.6 22.8 17.7 29.7 29.3 24.9 24.9 19.1 31.1 30.7 27.1 27.1 20.5
KW 3.21 3.21 3.21 3.19 3.15 3.26 3.27 3.28 3.25 3.22 3.32 3.33 3.34 3.32 3.29
115 T.C. 26.7 26.9 27.1 29.6 32.6 27.9 27.9 27.7 30.2 33.1 29.2 28.9 28.3 30.8 33.5 S.C. 26.7 26.1 21.5 21.8 16.8 27.9 27.8 23.6 23.9 18.3 29.2 28.9 25.7 26.0 19.7
KW 3.61 3.60 3.62 3.58 3.51 3.65 3.65 3.67 3.64 3.58 3.70 3.70 3.73 3.69 3.65
125 T.C. 25.2 24.8 25.1 27.3 30.4 26.2 26.0 25.5 27.8 30.8 27.3 27.1 25.9 28.4 31.2 S.C. 25.2 24.8 20.5 20.8 15.9 26.2 26.0 22.3 22.9 17.4 27.3 27.1 24.2 25.0 18.9
KW 4.00 3.99 4.02 3.97 3.88 4.04 4.03 4.07 4.02 3.94 4.07 4.07 4.11 4.07 4.00
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Air Handlers Coils T.C. S.C. KW
–FC/MC/PC37 1.00 1.00 1.00
–FC/MC/PC48 1.00 1.00 1.00
–FC/MC/PC60 1.00 1.00 1.00
–FC/MC62 1.01 1.00 1.01
–FC64 1.04 1.05 1.02
–HD48 1.00 0.99 1.00
–HD60 1.01 1.00 1.01
–UC48 0.99 0.99 1.01
–UC60 0.99 0.98 1.01
AHE36C – 1.02 1.02 0.96
AHE42D – 1.03 1.03 0.94
AHE48D – 1.03 1.02 0.93
AHE60D – 1.04 1.04 0.93
AHP36 – 1.00 1.00 1.00
AHP42 – 1.00 1.00 1.00
AHR36B – 0.99 0.99 1.02
AHR42C – 1.02 1.02 1.00
AV*36 – 1.02 1.03 0.96
AV*48 – 1.04 1.05 0.94
AHX36 – 1.03 1.03 0.95
AHX42 – 1.04 1.05 0.93
AHX48 – 1.05 1.08 0.95
AHX60 – 1.05 1.08 0.95
F4FV060 – 1.03 1.04 0.95
F6FP048 – 1.01 1.01 0.94
F6FP060 – 1.05 1.06 0.95
F6FP042 – 1.05 1.06 0.97
MV12B FC/MC43B 1.03 1.02 0.97
MV16C FC/MC43C 1.03 1.02 0.95
MV12D FC/MC48D 1.05 1.03 0.93
MV16C FC/MC48C 1.03 1.03 0.96
MV12D FC/MC60D 1.03 1.02 0.95
MV20D FC/MC48D 1.05 1.08 0.95
MV20D FC/MC60D 1.04 1.05 0.94
MV12D FC/MC62D 1.05 1.05 0.93
MV20D FC/MC62D 1.05 1.08 0.95
MV12D FC64D 1.06 1.07 0.93
MV20D FC64D 1.06 1.11 0.93
MX12B FC/MC43B 1.02 1.02 0.98
MX16C FC/MC43C 1.02 1.01 0.93
MX12D FC/MC48D 1.04 1.02 0.96
MX16C FC/MC48C 1.05 1.03 0.93
MX12D FC/MC60D 1.05 1.05 0.95
MX20D FC/MC60D 1.05 1.07 0.94
MX12D FC/MC62D 1.05 1.07 0.94
MX20D FC/MC62D 1.05 1.07 0.94
MX12D FC64D 1.08 1.12 0.93
MX20D FC64D 1.08 1.12 0.93
Air Handlers Coils T.C. S.C. KW

567175-YTG-E-0512
20 Johnson Controls Unitary Products
Furnaces Coils T.C. S.C. KW
T*(8,L)X*A12 FC/MC/PC37A 1.03 1.06 0.99
T*(8,L)X*B12 FC/MC/PC43B 1.04 1.06 0.98
T*(8,L)X*C16 FC/MC/PC43C 1.03 1.03 0.94
T*(8,L)X*C20 FC/MC/PC43C 1.03 1.02 0.95
T*9X*B12 FC/MC/PC43B 1.03 1.06 0.99
T*9X*C16 FC/MC/PC43C 1.03 1.05 0.97
T*9X*C20 FC/MC/PC43C 1.03 1.02 0.95
T*(8,L)X*C16 FC/MC/PC48C 1.04 1.03 0.94
T*(8,L)X*C20 FC/MC/PC48C 1.05 1.07 0.95
T*9X*C16 FC/MC/PC48C 1.04 1.07 0.96
T*9X*C20 FC/MC/PC48C 1.03 1.03 0.95
T*9X*D20 FC/MC/PC48D 1.04 1.03 0.94
T*(8,L)X*C16 FC/PC60C 1.03 1.03 0.92
T*(8,L)X*C20 FC/PC60C 1.04 1.06 0.94
T*9X*C16 FC/PC60C 1.04 1.07 0.96
T*9X*C20 FC/PC60C 1.03 1.02 0.95
T*9X*D20 FC/MC/PC60D 1.04 1.06 0.94
T*9X*D20 FC/MC62D 1.03 1.02 0.94
T*9X*D20 FC64D 1.05 1.05 0.94
T*(8,L)X*B12 HD48 1.03 1.03 0.94
T*(8,L)X*C16 HD48 1.02 1.00 0.92
T*(8,L)X*C20 HD48 1.03 1.02 0.95
T*9X*B12 HD48 1.04 1.06 0.98
T*9X*C16 HD48 1.05 1.08 0.97
T*9X*C20 HD48 1.03 1.02 0.95
T*9X*D20 HD48 1.05 1.05 0.95
T*(8,L)X*C16 HD60 1.03 1.02 0.93
T*(8,L)X*C20 HD60 1.04 1.04 0.94
T*9X*C16 HD60 1.05 1.08 0.95
T*9X*C20 HD60 1.04 1.04 0.94
T*9X*D20 HD60 1.05 1.05 0.95
T*(8,L)X*C16 UC48C 1.02 1.02 0.93
T*(8,L)X*C20 UC48C 1.02 1.05 0.95
T*9X*C16 UC48C 1.02 1.05 0.96
T*9X*C20 UC48C 1.02 1.02 0.96
T*9X*D20 UC48D 1.02 1.02 0.95
T*(8,L)X*C16 UC60C 1.02 1.01 0.92
T*(8,L)X*C20 UC60C 1.02 1.04 0.95
T*9X*C16 UC60C 1.02 1.05 0.96
T*9X*C20 UC60C 1.01 1.00 0.95
T*9X*D20 UC60D 1.02 1.03 0.93
(Y*LC/T*8V/T*LV)*A12 FC/MC/PC37A 1.02 1.02 1.02
(Y*LC/T*8V/T*LV)*B12 FC/MC/PC43B 1.02 1.05 1.02
(Y*LC/T*8V/T*LV)*C16 FC/MC/PC43C 1.03 1.02 0.97
(Y*LC/T*8V/T*LV)*C20 FC/MC/PC43C 1.03 1.02 0.97
(Y*9C/T*9V)*B12 FC/MC/PC43B 1.02 1.02 1.02
(Y*9C/T*9V)*C16 FC/MC/PC43C 1.02 1.01 1.00
(Y*9C/T*9V)*C20 FC/MC/PC43C 1.02 1.02 0.96
(Y*LC/T*8V/T*LV)*C16 FC/MC/PC48C 1.03 1.03 0.95
(Y*LC/T*8V/T*LV)*C20 FC/MC/PC48C 1.03 1.03 0.96
(Y*9C/T*9V)*C16 FC/MC/PC48C 1.03 1.02 0.97
(Y*9C/T*9V)*C20 FC/MC/PC48C 1.04 1.08 1.00
(Y*9C/T*9V)*D20 FC/MC/PC48D 1.03 1.02 0.97
(Y*LC/T*8V/T*LV)*C16 FC/PC60C 1.03 1.02 0.95
(Y*LC/T*8V/T*LV)*C20 FC/PC60C 1.03 1.02 0.95
(Y*9C/T*9V)*C16 FC/PC60C 1.02 1.02 0.98
(Y*9C/T*9V)*C20 FC/PC60C 1.04 1.07 1.00
(Y*9C/T*9V)*D20 FC/MC/PC60D 1.02 1.01 0.96
(Y*9C/T*9V)*D20 FC/MC62D 1.03 1.02 0.96
(Y*LC/T*8V/T*LV)*B12 HD48 1.02 1.02 0.98
(Y*LC/T*8V/T*LV)*C16 HD48 1.03 1.02 0.95
(Y*LC/T*8V/T*LV)*C20 HD48 1.03 1.02 0.95
(Y*9C/T*9V)*B12 HD48 1.02 1.02 1.00
(Y*9C/T*9V)*C16 HD48 1.02 1.02 0.96
(Y*9C/T*9V)*C20 HD48 1.04 1.06 1.00
(Y*9C/T*9V)*D20 HD48 1.03 1.02 0.97
(Y*LC/T*8V/T*LV)*C16 HD60 1.03 1.03 0.96
(Y*LC/T*8V/T*LV)*C20 HD60 1.04 1.04 0.94
(Y*9C/T*9V)*C16 HD60 1.03 1.03 0.97
(Y*9C/T*9V)*C20 HD60 1.05 1.08 1.00
(Y*9C/T*9V)*D20 HD60 1.03 1.02 0.95
(Y*LC/T*8V/T*LV)*C16 UC48C 1.01 1.01 0.95
(Y*LC/T*8V/T*LV)*C20 UC48C 1.02 1.02 0.94
(Y*9C/T*9V)*C16 UC48C 1.01 1.01 0.97
(Y*9C/T*9V)*C20 UC48C 1.02 1.05 1.00
(Y*9C/T*9V)*D20 UC48D 1.02 1.01 0.98
(Y*LC/T*8V/T*LV)*C16 UC60C 1.01 1.00 0.95
(Y*LC/T*8V/T*LV)*C20 UC60C 1.01 1.00 0.95
(Y*9C/T*9V)*C16 UC60C 1.00 0.99 0.98
(Y*9C/T*9V)*C20 UC60C 1.02 1.04 0.98
(Y*9C/T*9V)*D20 UC60D 1.00 0.98 0.96
Furnaces Coils T.C. S.C. KW
