YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES

CeilingInlineFans

The CI model of ceiling exhaust fans operate quietyly. Some

selections are available with sound ratings below 1 sone. There

are 15 types of models that cover a wide range of performance.

The units are easily eld convertible to change the discharge

orientation from right angle to top discharge. They are also easily

eld convertible from ceiling (model CI) to inline (model CI-TDA)

installations. There are multiple sizes that utilize two speed motors

that allow these units to cover an even greater range. All motors are

equipped with thermal overload protection as standard. The units

utilize quick access wiring to make them easy to install. Many of the

units are offered with variable speed motor control which will allow

for easy balancing. All models are AMCA Air and Sound rated and

UL705 and UL507 listed.

Models:CI3-CI12

• Static pressure up to 0.75” wg.

• Flow capacity up to 1566 CFM.

INTRODUCTION

LargeCapacityFans

CI14 and CI15 models are designed to produce high volumes of air at low noise levels. Fans

can be used for general ventilation and exhaust applications. These larger capacity fans will

accommodate single or multi-room ventilation and can be installed above the ceiling. The units

are AMCA Air certied and UL705 listed. CI14 is also UL507 listed.

Models:CI14&CI15

• Static pressure up to 1” wg.

• Flow capacity up to 3290 CFM.

LowProleFans

The CIT and CIJ models are low prole and operate quietly. They can be installed into very

shallow ceilings where other units will not t. A speed controller is available for both models

for precise system balancing and energy conservation. The units come standard with thermally

protected motors, AMCA Air rated and UL705, UL507 listed.

Models:CITandCIJ

• Static pressure up to 0.75” wg.

• Flow capacity up to 160 CFM.

CI CI-TDA

Models:CI3-CI12(TDA)

• Static pressure up to 1.5” wg.

• Flow capacity up to 1519 CFM.

TransferFans

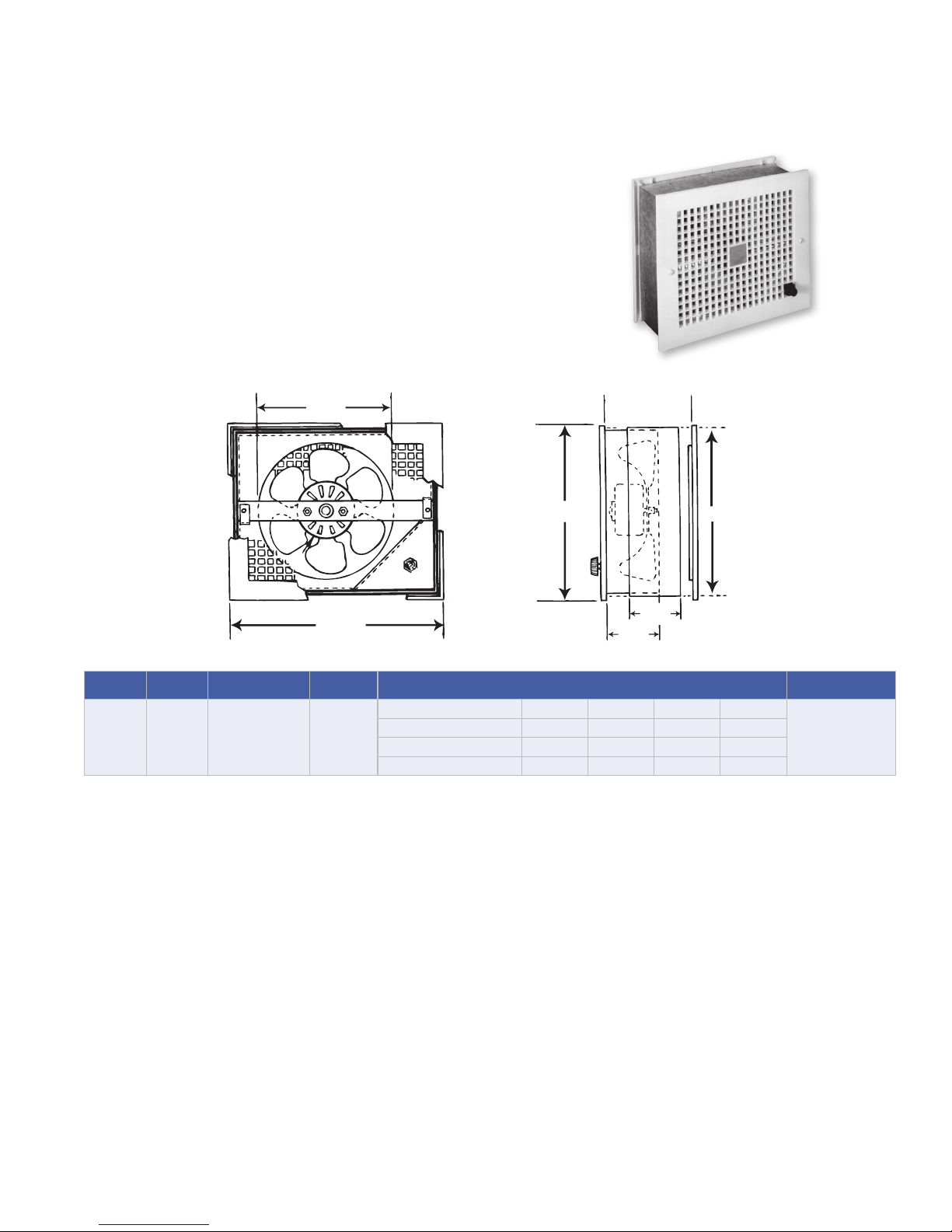

The CIF is a room-to-room transfer fan. It has an adjustable wall sleeve for varying wall

thicknesses and ts easily between wall studs or ceiling joists. It is supplied with a built in variable

speed motor control. It is AMCA Air rated and UL705, UL507 listed.

Model:CIF

• Static pressure up to 0.2” wg.

• Flow capacity up to 255 CFM.

YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES

INTRODUCTION

LowFlowCeilingFan

The CI1 is for very low ow requirements. The unit comes with a white polymeric grille and

utilizes a quiet centrifugal blower wheel. The housing is made from rugged steel and has built

in mounting brackets. The exhaust connection is a 4” polymeric round duct connector that has

a durable damper that eliminates backdrafts and produces no metallic clatter. The CI1 is UL507

listed for use over bathtubs and showers when connected to a GFCI protected branch circuit. The

CI1 is AMCA licensed for Sound and Air performance.

Model:CI1

• Static pressure up to 0.5” wg.

• Flow capacity up to 56 CFM.

CeilingFanswithLight

The CIL1 and CIL2 light models come with a maximum of 100 watt incandescent lighting (bulb

not included). The units are supplied with a totally enclosed motor that utilizes sealed bearings.

The units come with a white polymeric grille that has an unbreakable light lens. They utilize quiet

centrifugal blower wheels with plug in receptacles for the fan and light. The housing is made from

rugged steel and has built in mounting brackets. The exhaust connection is a 4” polymeric round

duct connector that has a durable damper that eliminates backdrafts and produces no metallic

clatter. The models are UL507 listed for use over bathtubs and showers when connected to a

GFCI protected branch circuit. The units are AMCA licensed for Sound and Air performance.

Models:CIL1&CIL2

• Static pressure up to 0.5” wg.

• Flow capacity up to 97 CFM.

ULandcULCertication

CI-Series fans carry the UL label, UL705,

(ZACT/ZACT7), le #E28413 and UL507,

(GPWX), le #E39313. The CI-Series radiation

damper carries the UL label UL555C, (CABS),

le #R8039.

Models CI1, CIL1, and CIL2 are not UL705

certied. CI15 is not UL507 certied.

AMCACertication

YORK® by Johnson Controls certies that the CI-

Series models shown herein are licensed to bear

the AMCA Seal. The ratings shown are based on

tests and procedures performed in accordance

with AMCA Publication 211 and AMCA Publication

311 and comply with the requirements of the

AMCA Certied Ratings Program.

YORK® by Johnson Controls certies that the CI-

Series models shown herein are licensed to bear

the AMCA Seal. The ratings shown are based on

tests and procedures performed in accordance

with AMCA Publication 211 and comply with

the requirements of the AMCA Certied Ratings

Program.

CERTIFICATIONS & LISTINGS

YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES

LowSound

For sound critical applications, S type fans delivers the lowest

sound ratings. All units feature acoustically insulated housings,

custom designed blower and motor pairings, motors mounted on

vibration isolators, and for all but the smallest model (CI3H), dual

inlet blowers.

HighStaticPressures

When higher static pressures are encountered, the H type fans

excel. Faster RPM allow these fans to better sustain airow as

static pressure increases. This makes them well suited for inline

applications.

Housings

Housings are fabricated of galvanized steel. Acoustical

installation is used to minimize sound.

EasyTapSpeedSelection

Select models (CI6S/H, CI8S/H, and CI10S/H) are provided with

dual speed motors designed to run at nominal speeds of 1050

and 1550 RPM. By simply changing one wire tap, a fan’s speed

can be switched. This ability to alter speed and air ow allows

on the spot adjustments to deal with unforeseen circumstances.

Systems deciencies can be accommodated in the eld quickly

and without the added cost of replacing a fan.

Motors

All units have permanently lubricated motors manufactured

to our exacting specications. Motors feature built in overload

protection and plug in disconnects.

Grilles

Constructed of attractive molded white plastic, aerodynamically

designed grilles feature an 85% free area. To make for easy

removal and cleaning, the grilles are held in place with spring

clips. An optional metal face grille with a white nish is available.

Wheels

Wheels are dynamically balanced and performance matched

with the motor. On units CI5H and larger, dual inlet blowers are

employed to minimize sound levels.

QuickAccessWiring

Access to the motor leads is through a panel in the side of the

unit; there is no need to remove the power pack. However, if the

need to remove the power pack ever arises, a quick connect plug

makes the process simple and easy.

FieldConversion

The CI-Series cabinet is designed for quick transition from right

angle discharge to top discharge or into an inline conguration.

Simply remove two (or four depending upon model) sheet metal

screws, switch positions of the access panel and top panel,

re-attach screws, and a right angle discharge becomes a top

discharge fan. There is no need to remove the power pack. The

blower remains oriented in one position while the panels change

places. The transformation to an inline fan is accomplished by

the replacement of the grille with an access panel. Again, only

two (or four) screws are involved in the process.

FEATURES & BENEFITS

ChangingfromCeilingMounttoInlineConguration

Discard grille and remove

access panel screws.

Remove access panel. Install optional TDA panel

and four screws.

Re-install access

panel and screws.

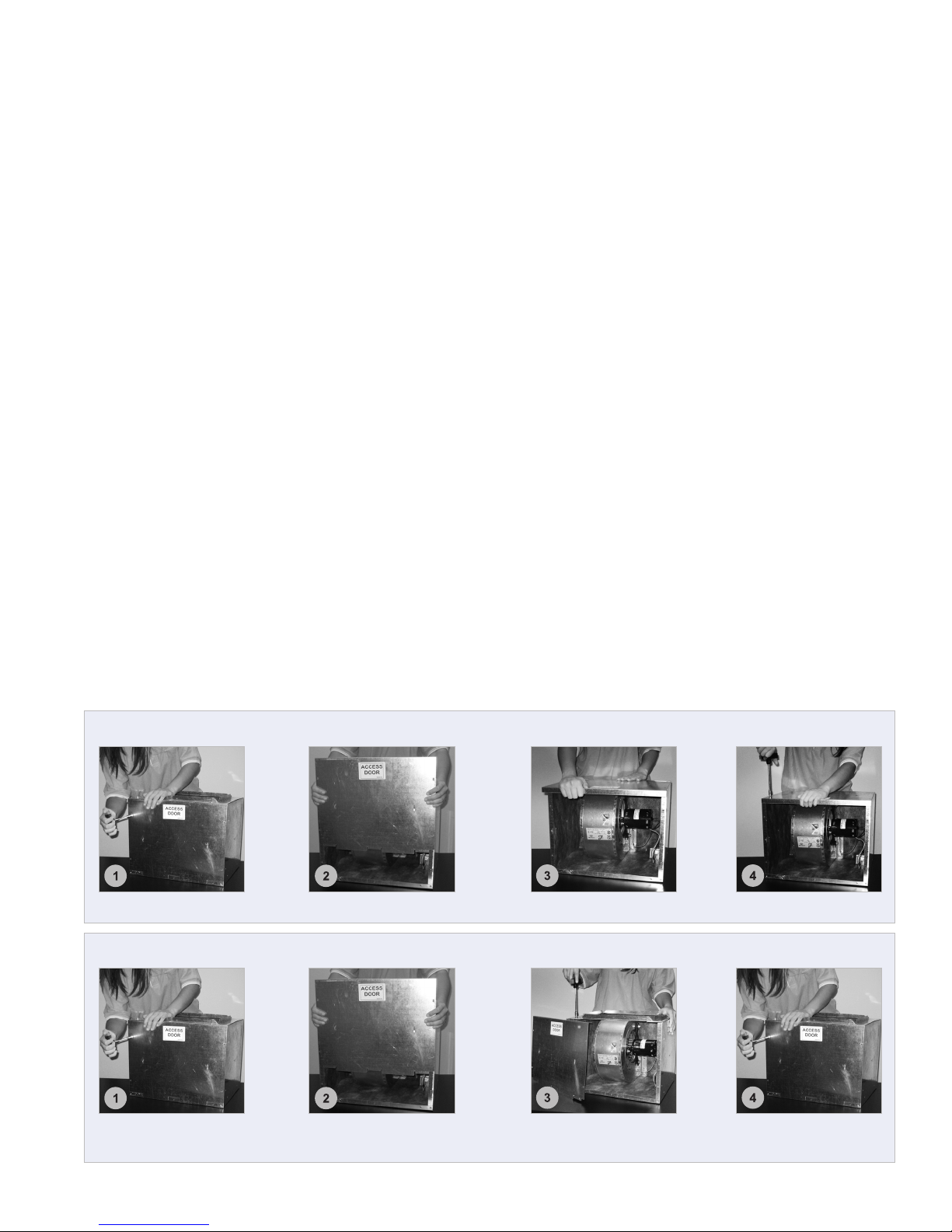

FieldConversion:ChangingfromRightAngletoTopDischarge

Remove screws. Remove access panel. Rotate access panel 90°. Re-install screws.

YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES

OPTIONS & ACCESSORIES

ForUsewithModels Model A(Throat)Dia B C ESQ F H L-Dia DamperSQ

CI1, CIL1, CIL2, CIT, CIJ, CI3H, CI5H, CI6S/H SVF06 7” N/A 3 1/2” 16 7/8” 8” 11 1/2” 12” NA

CI8S/H, CI81S, CI10S/H SVF08 9” N/A 5 1/2” 21 1/4” 8” 13 1/2” 18 1/2” NA

CI101S, CI102S SVF10 11” N/A 5 1/2” 21 1/4” 10” 15 1/2” 21” NA

CI12S, CI121S SVF12 13” N/A 7” 24” 10” 17” 25” NA

CI102H, CI12H SVF14 15” N/A 7” 28” 10” 17” 28” NA

CI14, CI15 SVF20 21” N/A 10 1/2” 32” 12” 22 1/2” 37” NA

CI1, CIL1, CIL2, CIT, CIJ, CI3H, CI5H, CI6S/H SVC06 7” 1 3 1/2” 15” 4” 8 1/2” 12” 8 3/4”

CI8S/H, CI81S, CI10S/H SVC08 9” 1-1/2 5 1/2” 18 1/2” 4” 11” 18 1/2” 11 1/4”

CI101S, CI102S SVC10 11” 1 1/2 5 1/2” 18 1/2” 4” 11” 21” 11 1/4”

CI12S, CI121S SVC12 13” 2 7” 20 1/2” 4” 13” 25” 15 3/4”

CI102H, CI12H SVC14 15” 2 7” 24 3/4” 4” 13” 28” 15 3/4”

CI14, CI15 SVC20 21” 2 10 1/2” 28 1/2” 5 1/2” 18” 37” 19 3/4”

RoofCaps

These spun aluminum, rustproof, seamless vents provide a

discharge cap for at roof mounting. Unobtrusive and furnished

with integral bird screen, they are designed for simple, safe

ashing directly to the roof. Mounting anges are also available

turned down as cap ashing when installation on roof curbs is

desired. See the Weathercap Bulletin for more information.

SlopedRoofCaps

Caps are available for sloped roof applications. Minimum height

model SL20 is durable and has a backdraft damper. Models

SVF/SVC10, 12, 14, 20 are suitable for mounting on sloped roof

4” in 12” pitch or less.

WallCaps

Inconspicuous, but efcient wall outlets for the CI-Series fans are

provided through the use of the Wall Cap. Architectural values

are not diminished by this tastefully designed accessory. When

properly installed, it is both watertight and effective.

SL20 ROOF CAP

WC10 WALL CAP

ESQ

ADIA

LDIA

ADIA

ESQ.

SVC ROOF CAP (CURB MOUNTED) SVF ROOF CAP (SELF FLASHING)

YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES

OPTIONS & ACCESSORIES

BrickVentModel RecommendedCI-SeriesUnitType H H1 S

B120 CI101, CI12, CI121, CI102, CI14 24” 24” 2”

B150 CI15 30” 30” 2”

B68 CI3, CI5, CI6, CI8, CI81 16 1/2” 4 3/4” 4”

B100 CI100 16 1/2” 7 3/4” 4”

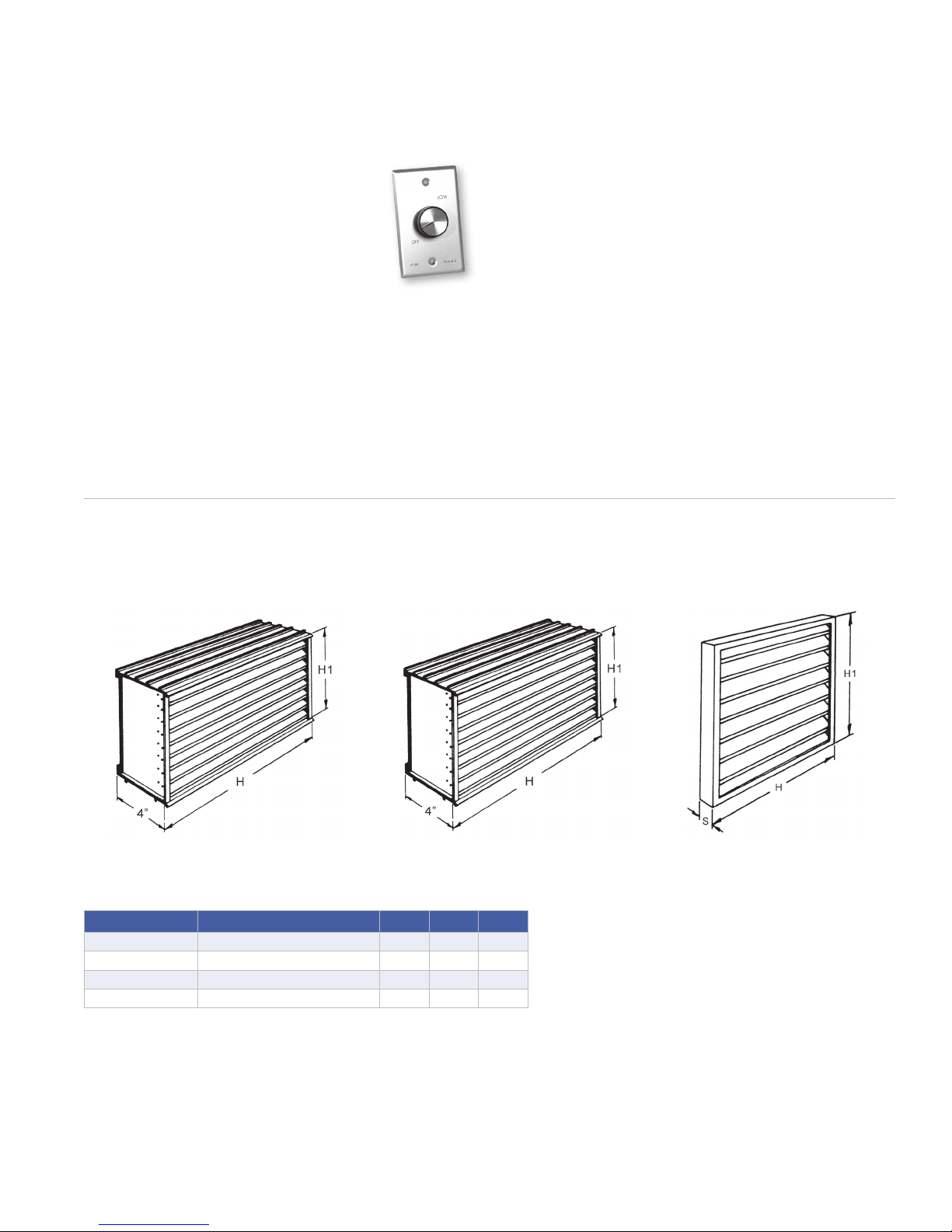

BrickVentModelRecommendations

BRICK VENT B68 BRICK VENT B100 BRICK VENT B120 / B150

277VoltTransformer

To meet local requirements, 277V transformers are available for

all CI-Series. The transformers are step-down and will step the

voltage down to 120V. Shipped loose for eld installation.

MotionSensor

For applications where automated operation of the fan is

required, a motion detector can be used to turn the fan on or off.

The sensor features full scanning capabilities and can be placed

anywhere within the room. The sensor also offers adjustable

shutoff feature with delays of up to 15 minutes.

TwoSpeedSwitch

The decorator, three position center off, two speed switch is

designed to work with our EasyTap Dual Speed Motors (units

CI6S/H, CI8S/H and CI10S/H). Adjust from low (S) to high (H)

with the ick of a switch. Manually adjust for changes in room

and static pressure conditions.

Lek-Trol™SpeedControllers

Lek-Trol™ Speed Controllers permit unlimited

air control. They use solid state “quadrac”

circuitry and insure not only complete speed

range control and extra long life reliability but

also a savings in the cost of electricity. Lek-

Trols can be installed and connected within

the fan casing, permitting precise system

balancing.

PilotLight

This amber colored light easily snaps into any opening in the CI-

Series grille. The light will indicate when the fan is in operation

and is ideal when fan is not interlocked with lights.

BrickVents

Sized to replace multiples of standard size brick or concrete block. Made of extruded aluminum with insect screens, storm proof

features and a protective nish, they are superior vents and ideal for installation in masonry walls.

YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES

CeilingRadiationDamper

For areas where local codes require re dampers for compliance

with National Fire Protection Standard 90A, YORK® by Johnson

Controls offers a UL approved damper, UL555C, (CABS), le

#R8039. The dampers are rated for 3 hours and are activated

at 165°F. Compact in design, the dampers add only 7” in height

when mounted between the fan and the grille. Static pressure

created by the damper is negligible.

OPTIONS & ACCESSORIES

VibrationHanger

Hanger vibration eliminators feature rubber-in-shear type and

are available for use with all units.

StaticPressureDropChartforAccessories

4000

3000

2500

1500

1000

900

800

700

600

500

400

300

250

200

150

100

1250

350

B100

SL120

Air CFM Thru the Accessory

Pressure Drop in Inches Water Gauge

B150

SVF/SVC 14

B120

SVF/SVC12

SVF/SVC10

SVF/SVC08

B68

SVF/SVC06

WC10

.01 .15 .02 .03 .04 .05 .06 .07 .08 .09 .10 .15 .20 .25 .30 .40 .50

SquaretoRoundTransition

Designed to make the installation of ex duct quick and easy.

Available to accommodate the most common ex duct sizes.

DuctTransition PartNo. Units RoundDia.

CIT, CIJ, CI3, CI5, CI6 56337-0 3 1/4” x 10” 6”

CI8, CI81, CI10 56340-0 6” x 8” 8”

CI12, CI101, CI102, CI121 56385-0* 6” x 8” 8”

* Includes two pieces.

2”

2 1/4”

3”

7/8”

13/32”

HOLE

DIAMETER

AVAILABLE WITH

MODELS CI14 - CI15

AVAILABLE WITH

MODELS CI3 - CI12

YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES

OptionalSteelGrille

When the design calls for a more

architecturally appealing grille, an optional

steel grille is available. It features an

attractive perforated steel design with

overall white nish. (Not available for CI1,

CIL1, or CIL2).

Model

Grille TDAPanel

KLX Y Z

CI3, 5, 6 11” 13 3/4” 10” 6” 1 5/8”

CI8, 81 13 1/4” 14 7/8” 10” 8” 1 9/16”

CI10 15 1/2” 19 3/8” 14” 10” 2”

CI12, 101, 102, 121 15 1/2” 25” 20” 10” 2”

InlineConversion(TDA)Kit

Adapter panel with integral duct ange

allows conversion from ceiling fan (RA/TD)

to inline fan (TDA). Adapter can be installed

to provide for straight through (Inline) or

90º (Right Angle Inline) application. Use of

the fan in Right Angle conguration allows

the fan to replace an elbow in the duct

system. This eliminates the pressure loss

of the elbow and simplies the installation

for the contractor.

OPTIONS & ACCESSORIES

+ Manufactured of galvanized steel. All other accessories manufactured of aluminum.

* Specify MFG (perforated metal) or MCG (aluminum core).

‡ Kit is eld installed, shipped separate from fan.

** CI6H unit only.

*** Use brick vent.

† 4” to 12” (maximum) pitch.

Model

RoofCaps

WallCap BrickVent

Switches

Radiation

‡

Damper

MetalFace

Grille

Flat CurbMount Slope Speed

Controller

Time

Delay

CI3H SVF06 SVC06 SL20+ WC10 B68 LT30 AM12 DDA3 MFG6

CI5H SVF06 SVC06 SL20+ WC10 B68 LT30 AM12 DDA3 MFG6

CI6S/H SVF06 SVC06 SL20+ WC10 B68 LT30** AM12 DDA3 MFG6

CI8S/H SVF08 SVC08 SL20+ WC10 B68 LT30 AM12 DDA8 MFG8

CI81S SVF08 SVC08 SL20+ WC10 B68 LT30 AM12 DDA8 MFG8

CI10S/H SVF08 SVC08 SL20+ SL20+ B100 LT50 AM12 DDA10 MFG10

CI101S SVF10 SVC10 SVF10† *** B120 LT30 AM12 DDA12 MFG12

CI102S SVF10 SVC10 SVF10† *** B120 LT50 AM12 DDA12 MFG12

CI12S SVF12 SVC12 SVF12† *** B120 LT50 AM12 DDA12 MFG12

CI121S SVF12 SVC12 SVF12† *** B120 LT40 AM12 DDA12 MFG12

CI102H SVF14 SVC14 SVF14† *** B120 LT40 AM12 DDA12 MFG12

CI12H SVF14 SVC14 SVF14† *** B120 LT40 AM12 DDA12 MFG12

CI14 SVF20 SVC20 Call Factory *** B120 LT40 AM12 -- MFG14*

CI15 SVF20 SVC20 Call Factory *** B150 LT35 -- -- MFG15*

AccessoriesMatrix

YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES

INSTALLATION

YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES

• Some selections below one sone.

• AMCA Air & Sound certied.

• UL Listed for UL705 and UL507.

• All motors with thermal overload protection.

• Quick access wiring.

• Easy to balance via variable speed control (Lek-Trol™).

• Field convertible discharge orientation

• Field convertible from ceiling to inline installation.

• Popular models with multi-speed motor (wide performance range). L

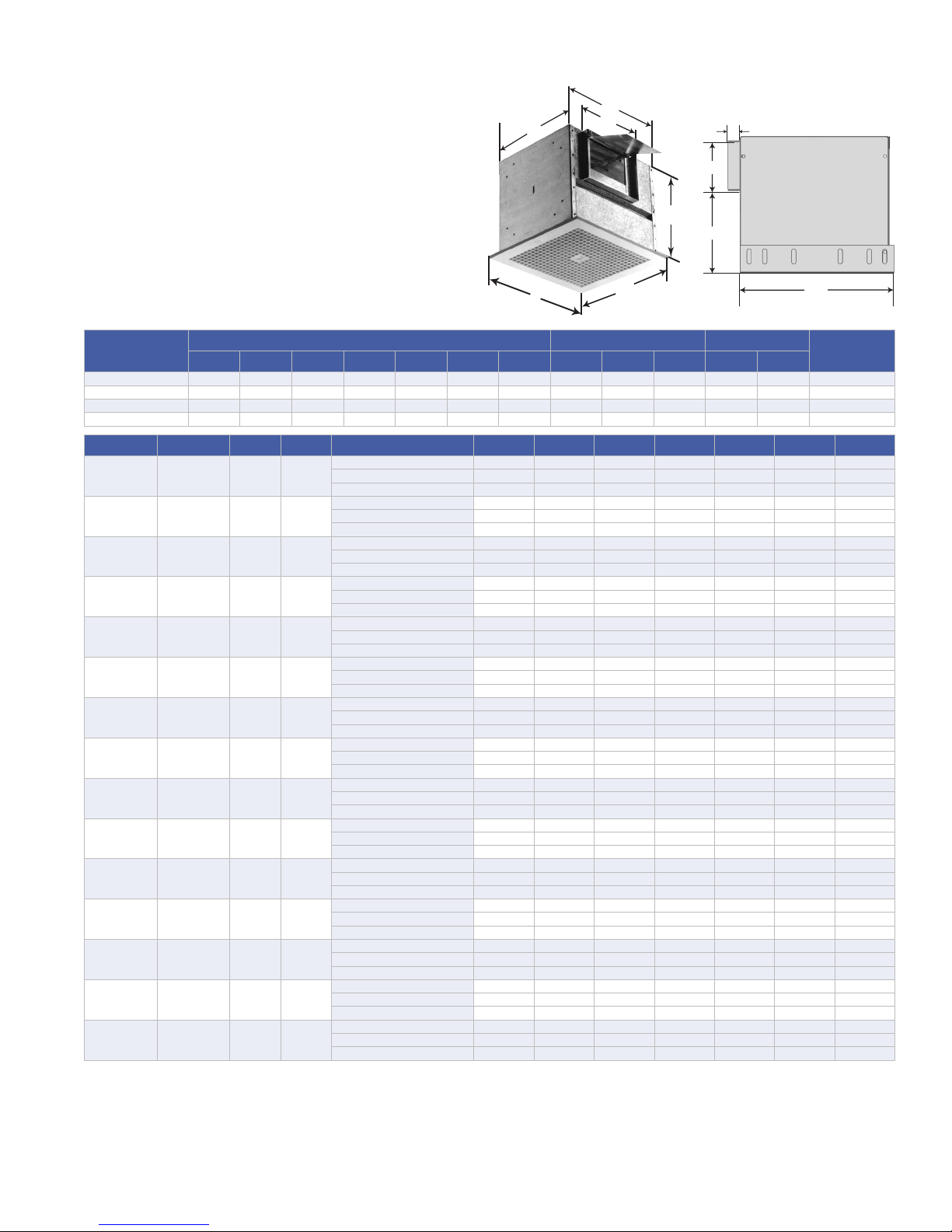

CI3 - CI12 | CEILING FANS

Model

Housing OutletDuct Grille Est.Shipping

Wt.(Lbs.)

A B C D E E

F G H JKL

CI3, 5, 6 12 1/2” 9 1/8” 16” 9 1/8” 1 1/4” 1 1/4” 5 3/8” 10” 3 1/4” 3/4” 11” 13 3/4” 14

CI8, 81 13 7/8” 11 3/8” 17 3/8” 11 3/8” 1 7/8” 4” 5 1/4” 8” 6” 3/4” 13 1/4” 14 7/8” 20

CI10 18” 14 1/8” 21 1/2” 14 1/8” 3 5/8” 6 3/8” 8” 8” 6” 3/4” 15 1/2” 19 3/8” 28

CI12, 101, 102, 121 24” 14 1/8” 27 1/2” 14 1/8” 1” 1” 8” 22” 6” 3/4” 15 1/2” 25” 52

Model Max.Watts Amps RPM SP 0.000” 0.125” 0.250” 0.375” 0.500” 0.625” 0.750”

CI3H 39 0.5 1550

CFM 109 83 - - - - -

HEMISPHERICAL SONES31.7 2.3 -----

SPHERICAL SONES40.8 1.4 - - - - -

CI5H 79 1 1550

CFM 192 163 128 93 - - -

HEMISPHERICAL SONES33.4 3.3 3.3 3.4 ---

SPHERICAL SONES41.5 1.6 1.6 1.7 - - -

CI6S647 0.6 1050

CFM 123 101 82 - - - -

HEMISPHERICAL SONES30.9 1.4 1.8 - - - -

SPHERICAL SONES40.2 0.5 0.9 - - - -

CI6H6108 1.4 1550

CFM 230 196 166 122 - - -

HEMISPHERICAL SONES33.3 3 3 3.1 ---

SPHERICAL SONES42.3 2.0 1.9 2.0 - - -

CI8S777 1 1050

CFM 272 247 231 217 199 - -

HEMISPHERICAL SONES32.1 2.4 2.9 3.3 3.6 - -

SPHERICAL SONES41.0 1.4 1.9 2.4 2.8 - -

CI81S 77 0.9 1050

CFM 310 273 239 213 182 136 73

HEMISPHERICAL SONES32.5 2.7 2.9 3.3 3.7 4.2 4.3

SPHERICAL SONES41.5 1.7 1.9 2.3 2.8 3.1 3.2

CI8H7130 1.6 1550

CFM 426 401 377 357 341 328 304

HEMISPHERICAL SONES34.5 4.7 4.7 5.1 5.6 5.8 5.8

SPHERICAL SONES43.4 3.7 3.6 4.1 4.6 4.7 4.8

CI10S8243 2.5 1050

CFM 469 441 423 403 387 367 347

HEMISPHERICAL SONES34.5 4.8 5.1 5.4 5.6 5.8 6

SPHERICAL SONES43.4 3.8 4.0 4.4 4.6 4.7 4.9

CI101S 153 1.6 1050

CFM 612 537 467 405 222 116 -

HEMISPHERICAL SONES33.9 3.6 3.9 4.6 5.5 6 -

SPHERICAL SONES42.9 2.5 2.9 3.6 4.3 5.2 -

CI10H8390 3.6 1550

CFM 728 694 664 638 613 591 565

HEMISPHERICAL SONES38.6 8.6 8.6 8.7 8.6 8.8 8.8

SPHERICAL SONES47.3 7.4 7.5 7.4 7.4 7.8 7.7

CI102S 269 4.5 1050

CFM 816 747 691 602 335 - -

HEMISPHERICAL SONES35.8 5.8 5.4 5 4.9 - -

SPHERICAL SONES44.6 4.6 4.1 3.7 3.8 - -

CI12S 260 2.9 1050

CFM 901 855 812 755 683 552 -

HEMISPHERICAL SONES35.8 5.9 6.3 6.5 6.5 6 -

SPHERICAL SONES44.6 4.8 5.2 5.2 5.3 5.0 -

CI121S 370 3.6 1050

CFM 1083 1062 1024 949 838 686 270

HEMISPHERICAL SONES37 6.9 6.6 6.1 5.7 5.3 4.6

SPHERICAL SONES45.9 6.0 5.6 5.1 4.8 4.2 3.6

CI102H 812

(BHP 0.53) 7.5 1550

CFM 1435 1385 1338 1294 1247 1203 1163

HEMISPHERICAL SONES311.8 11.7 11.9 11.9 11.7 11.3 11

SPHERICAL SONES410.4 10.1 10.3 10.3 10.0 9.8 9.6

CI12H 851

(BHP 0.65) 7.9 1550

CFM 1566 1511 1464 1417 1364 1307 1251

HEMISPHERICAL SONES313.5 13.3 12.9 12.7 12.3 12 11.7

SPHERICAL SONES411.6 11.4 11.0 11.0 10.7 10.4 10.1

(1) Speed (RPM) shown is nominal. Performance is based on actual speed of test.

(2) Performance shown is for installation type B - Free Inlet, Ducted Outlet. Performance ratings include the effects of an inlet grille and backdraft damper in the airstream.

(3) The sound ratings shown are loudness values in fan sones at 5ft. (1.5m) in a hemispherical free eld calculated per AMCA Standard 301.

(4) The spherical sones values are calculated to represent sound in a spherical free eld at 5 ft. (1.5m) per Annex B of AMCA 311.

(5) Specify discharge conguration. Standard types are RA, TD, TDA and TDA-RA.

(6) CI6S and CI6H is the same unit shipped with EASYTAP dual speed motor. Wired on S (low) speed.

(7) CI8S and CI8H is the same unit shipped with EASYTAP dual speed motor. Wired on S (low) speed.

(8) CI10S and CI10H is the same unit shipped with EASYTAP dual speed motor. Wired on S (low) speed.

YORK® CEILING AND INLINE CENTRIFUGAL FANS, CI-SERIES

• Some selections below one sone.

• AMCA Air & Sound certied.

• UL Listed for UL705 and UL507.

• All motors with thermal overload protection.

• Quick access wiring.

• Easy to balance via variable speed control (Lek-Trol™).

• Field convertible discharge orientation.

• Field convertible from ceiling to inline installation.

• Popular models with multi-speed motor (wide performance range).

CI3 - CI12 (TDA) | CEILING FANS J
