Assembly Instructions

E40S2ALBN / E40S2ALHB

(

Dual Mount Stall Curved Rod

)

Before You Begin:

Thank you for purchasing this product. Please identify all parts and hardware

pieces before you begin. When laying out parts, place them on a soft surface

to prevent scratching.

If any pieces are missing, call our Toll Free Number 1-800-892-3986 between

8:00AM-5:00PM EST Monday through Friday.

For Spanish and French instructions, start on page 17.

Para instrucciones en español y francés, comience en la página 17.

Pour les instructions espagnoles et françaises, commencez à la page 17.

Pg 2 of 32 www.zennahome.com IS04020-I

Cleaning Note:

Cleaning with a dry cloth may be sufficient, but for other stains or marks wipe

gently with a damp cloth.

DO NOT use strong detergents or abrasive cleaners, they may damage the

surface of this product.

NeverRust Guaranteed for Life Warranty:

The manufacturer warrants to the original purchaser that NeverRust aluminum shower rods,

caddies and accessories will be free from red rust during its lifetime. This warranty only covers

the proper and intended use of this product. Any alteration of this product or use of this

product in any manner other than its intended use shall automatically void this warranty.

In the event of a bona fide warranty claim relating to this product, the manufacturer will,

at its election and sole discretion provide a replacement product or a substantially similar

product. This replacement is the sole and exclusive remedy with respect to any warranty

claim relating to this product. Under no circumstances will manufacturer’s liability exceed

the purchase price of this product.

THE MANUFACTURER SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, AND/OR

CONSEQUENTIAL DAMAGES.

To obtain warranty service, please contact (302) 326-8203. No warranty claim will be

processed without a copy of the receipt showing the retailer name, purchase price and

photographs of the defective product.

Tools Needed - not included

Pg 3 of 32 www.zennahome.com IS04020-I

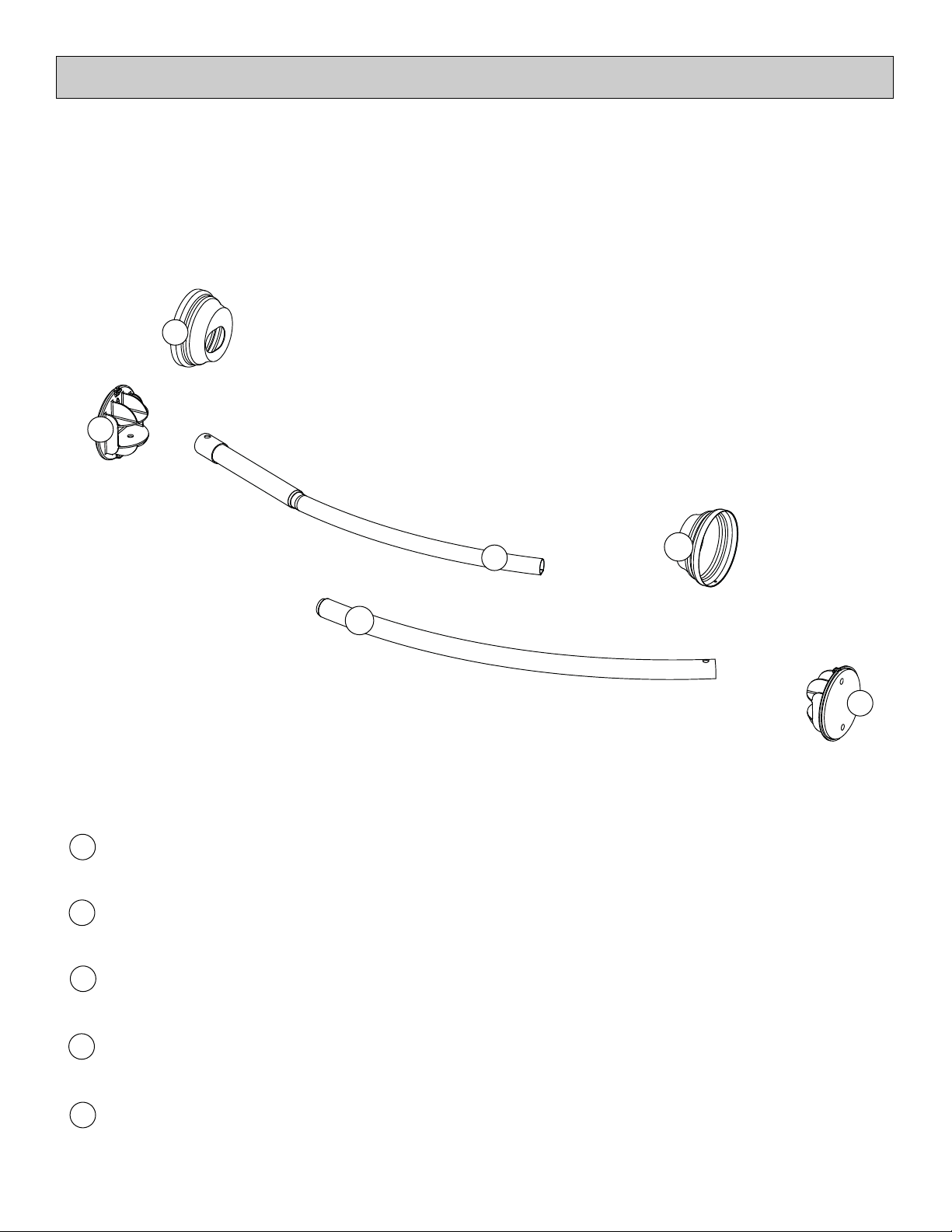

List of Parts

Before assembling,

make sure that the tube assembly (C)

is at the shortest position

by twisting the end of the tube in the

OPPOSITE DIRECTION of the arrow sticker.

A1 in. Mounting Bracket 1

B7/8 in. Mounting Bracket 1

C7/8 in. Diameter Tube assembly 1

D1 in. Diameter Tube 1

EEnd Cap 2

Pg 4 of 32 www.zennahome.com IS04020-I

List of Hardware - Hardware packed in bags.

Plastic Ring

Drywall Anchor

Mounting Bracket Screw

Rod Set Screw

Large Hex Wrench

Small Hex Wrench

x 1

x 2

x 1

x 2

x 1

x 4

Threaded Insert x 2

Mounting Screw x 4

Pg 5 of 32 www.zennahome.com IS04020-I

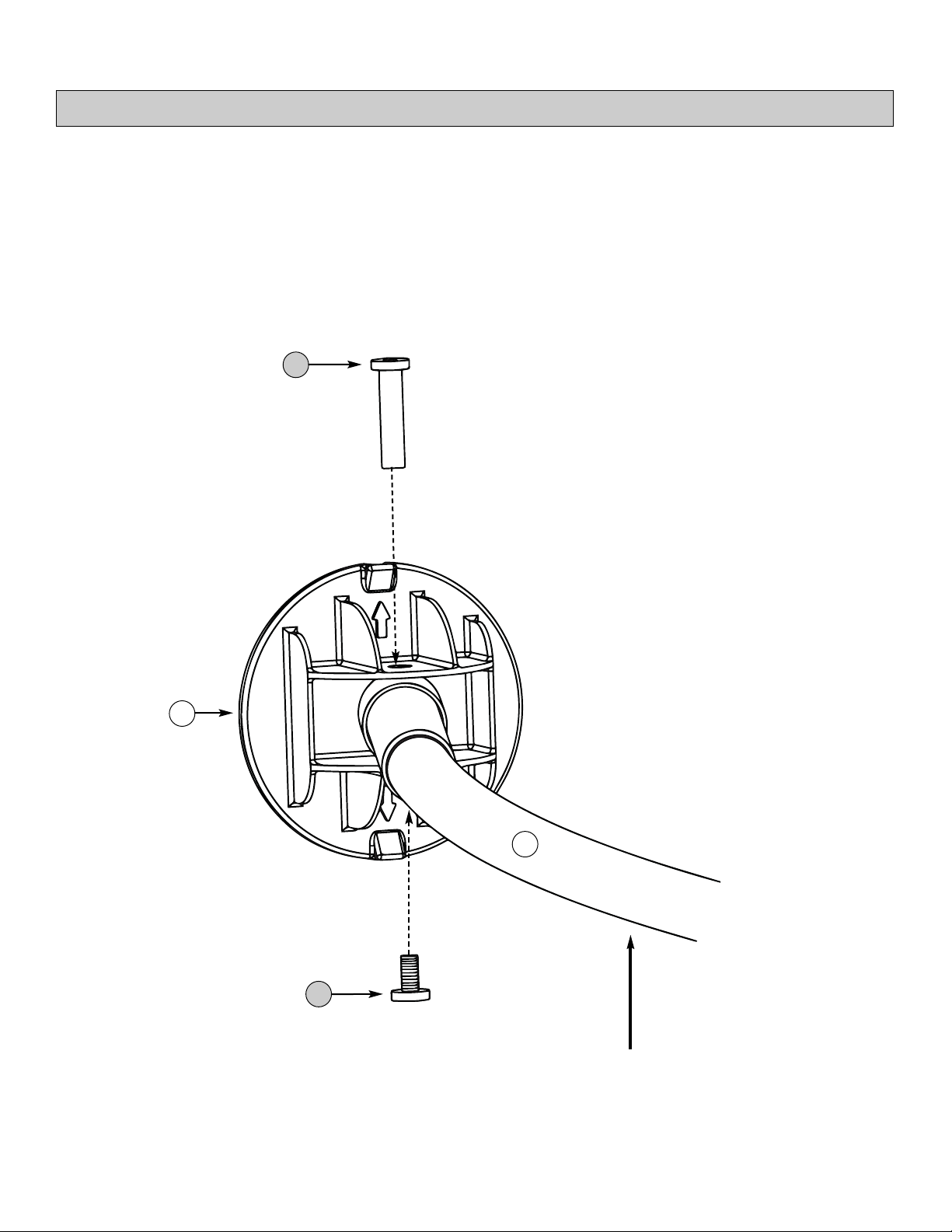

• With the arrows on the mounting bracket for the 7/8 in. diameter tube (C) pointing UP and DOWN, fasten the

7/8 in. diameter tube assembly (C) to the mounting bracket for the 7/8 in. diameter tube (B) using the

mounting bracket screw (2) and threaded insert (3). NOTE: The flat side of the 7/8 in. diameter tube assembly (C)

should be facing DOWN.

• Tighten the mounting bracket screw (2) and threaded insert (3) using the large allen wrenches (5).

• Repeat this step for the 1 in. diameter tube (D).

flat side

facing DOWN

Step 1 - Attaching the Mounting Brackets

Permanent Installation - For Tension Mount Installation go to page (12)

Pg 6 of 32 www.zennahome.com IS04020-I

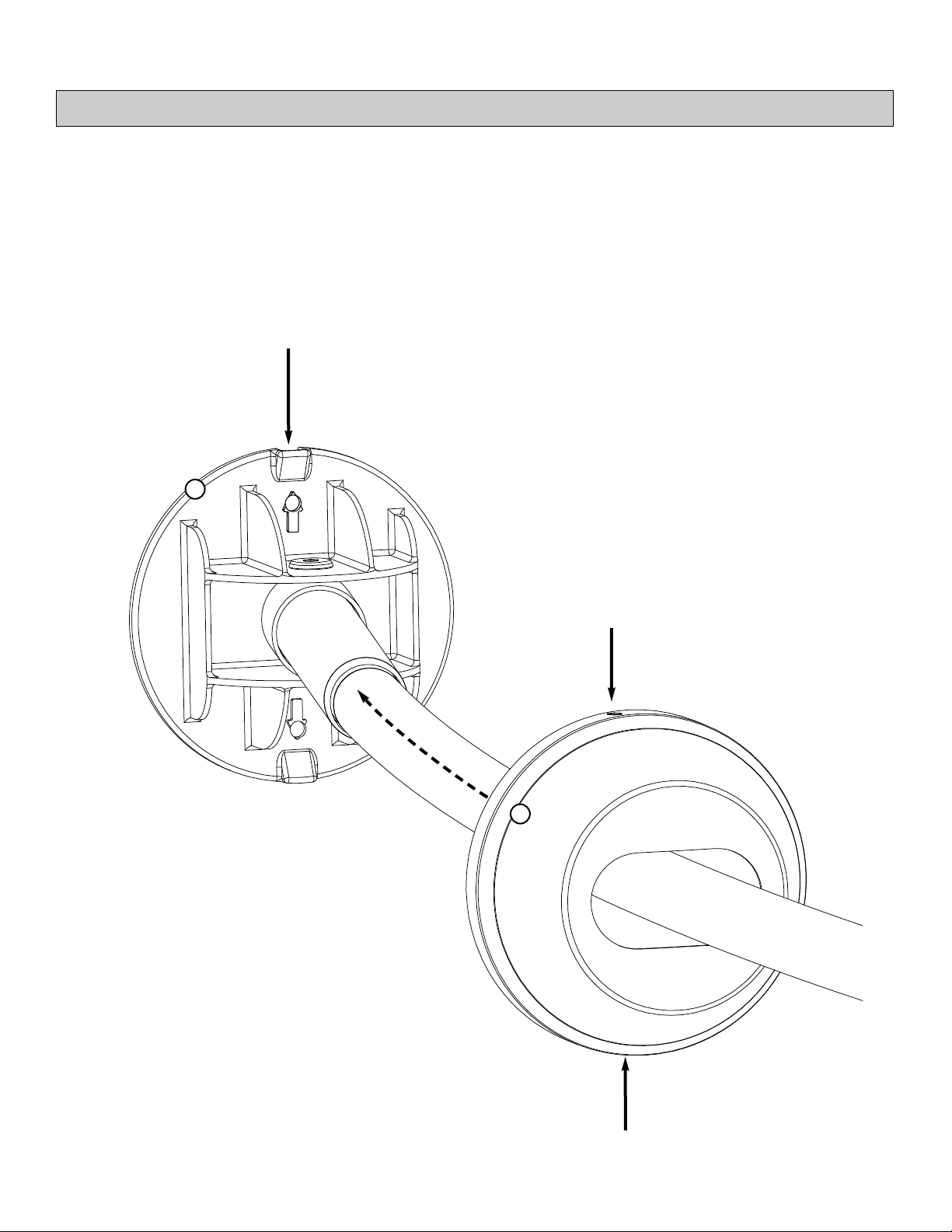

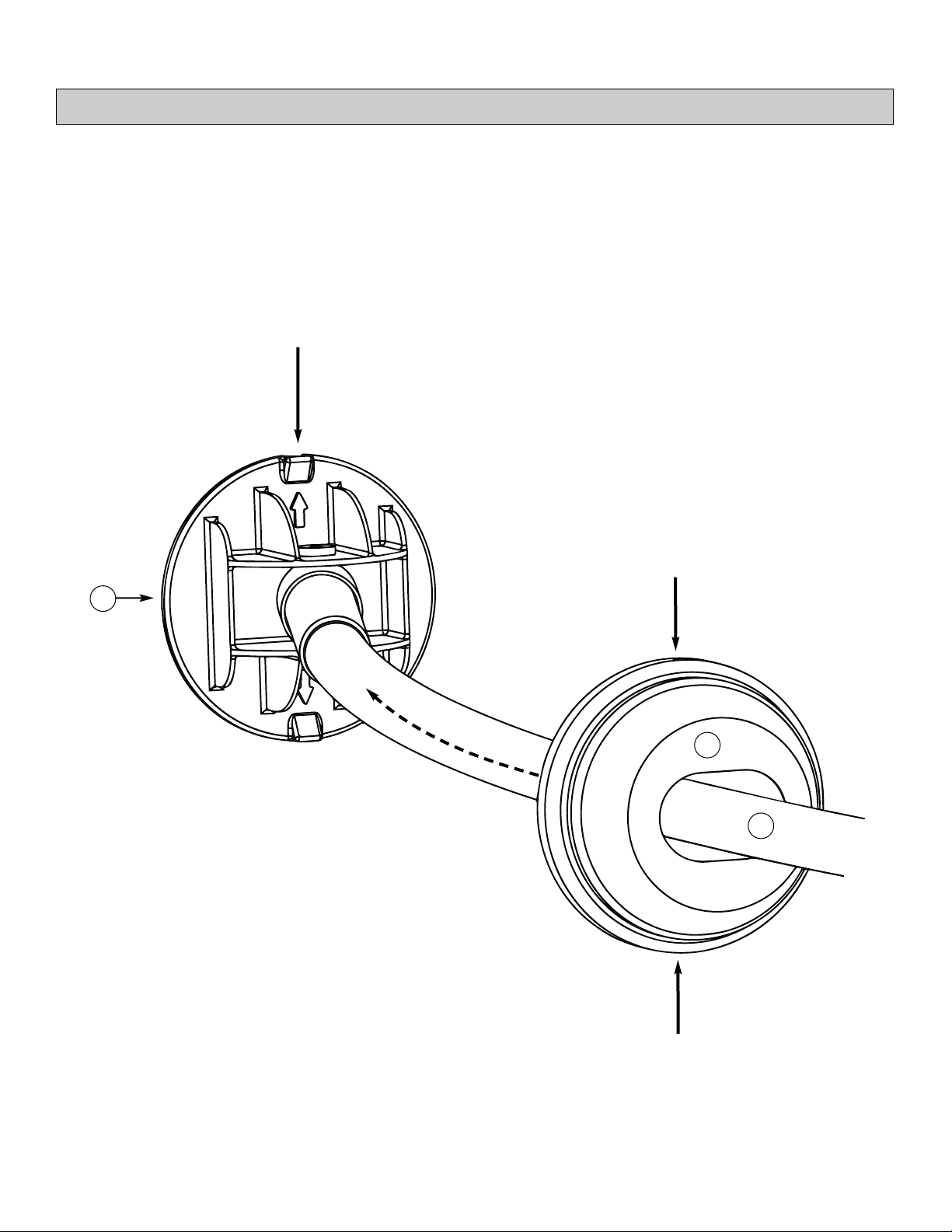

• Slide the end cap (E) onto the 7/8 in. diameter tube assembly (C).

• Snap the end cap (E) to the mounting bracket for the 7/8 in. diameter tube (B).

• Repeat this step for the 1 in. diameter tube (D).

make sure end cap dimples

line up with the notches in mounting bracket

dimples on end cap

Step 2 - Installing the End Caps.

Permanent Mount

Pg 7 of 32 www.zennahome.com IS04020-I

Step 3 - IF NEEDED, Installing the Plastic Ring.

flat side

facing DOWN

Fig. 2

• NOTE: ASSEMBLE ON A SMOOTH FLAT SURFACE.

• The plastic ring (1) comes pre-installed, if needed insert plastic ring (1) into the end of the

1 in. diameter tube (D), fig 1.

• Now, insert the end of the 7/8 in. diameter tube assembly (C) into the end of the 1 in. diameter tube (D), fig 2.

Fig. 1

flat side

facing DOWN

plastic ring (1)

Permanent Mount

Pg 8 of 32 www.zennahome.com IS04020-I

• Measure the space between the walls of the bathtub or shower where your rod assembly will be installed.

• NOTE: Please write down your measurement below, you will need this later.

• NOTE: ASSEMBLE ON A SMOOTH FLAT SURFACE.

•On the 7/8 in. diameter tube assembly (C), twist the tube in the direction of the arrow sticker by 2 turns,

making the assembly longer, fig 1.

•Now, extend the rod assembly to the measurement from step 4 and lock the length of the assembly

with the rod set screw (4) using the small hex wrench (6). NOTE: Tighten the rod set screw (4) until it is

flush with the rod, fig 2.

Step 4 - Measure the space between the walls.

Measurement

between walls:

Step 5 - Extending the 7/8 in. Rod and installing the Set Screw.

rod assembly

Fig. 1

Fig. 2

twist the tube

in the direction of the

ARROW STICKER

Permanent Mount

Pg 9 of 32 www.zennahome.com IS04020-I

Permanent Mount

Step 6 - Installing the Rod Assembly in its final location.

• Secure the shower rod to the walls by twisting the end of the 7/8 in. diameter tube assembly (C) in the

direction of the ARROW STICKER, UNTIL SNUG. NOTE: Make sure rod is level.

• Once the rod assembly is level and secure, twist the 7/8 in. diameter tube assembly (C) UNTIL TIGHT.

• NOTE: Twist the tube TOWARDS YOU TO LOOSEN the rod assembly.

mounting holes

twist the tube away from you until snug

Pg 10 of 32 www.zennahome.com IS04020-I

Permanent Mount

• Drill the 2 marked spots for each mounting bracket (A) and (B) .

• Insert drywall anchors (7) into wall, as shown. NOTE: If needed, using a hammer, lightly tap drywall

anchors (7) into wall.

• NOTE: Do not use a wall anchor if mounting screw will be going into a stud.

NOTE: Use a 1/4 in. (6mm) drill bit for drywall anchor installation. Use a 1/8 in. (3mm) drill bit for direct

stud installation. If installing into a material other than drywall or into stud,

consult a professional for proper installation.

Step 7 - Installing Wall Anchors

NOT SHOWN TO SCALE

Pg 11 of 32 www.zennahome.com IS04020-I

Permanent Mount

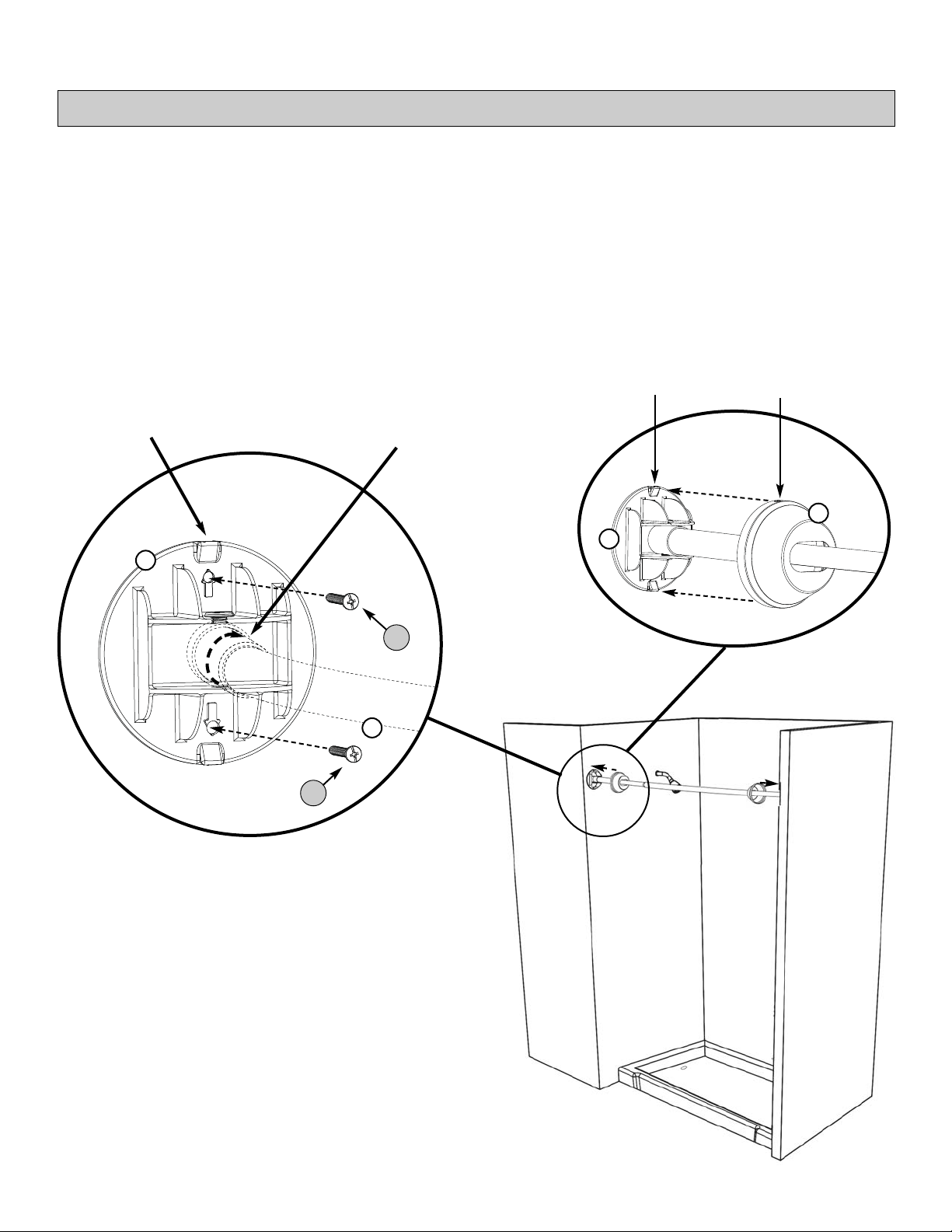

•Secure the shower rod to the walls by twisting the end of the 7/8 in. diameter tube assembly (C) away from

you, until snug. NOTE: Make sure rod is level.

•Once the rod assembly is secure, twist the tubes until tight.

• Complete mounting by tightening mounting screws (8) into the wall anchors (7) or studs.

• Align the

dimples

the end caps (E) with the

notches

on the mounting brackets (A) and (B) and snap together,

as shown.

Step 8 - Installing the Rod Assembly in its final location.

twist the tube AWAY from you until snug

notch

dimples

notch

Pg 12 of 32 www.zennahome.com IS04020-I

Step 1 - Attaching the Mounting Brackets

Tension Mount Installation - For Permanent Mount Installation go to page (5)

• With the arrows on the mounting bracket for the 7/8 in. diameter tube (C) pointing UP and DOWN, fasten the

7/8 in. diameter tube assembly (C) to the mounting bracket for the 7/8 in. diameter tube (B) using the

mounting bracket screw (2) and threaded insert (3). NOTE: The flat side of the 7/8 in. diameter tube assembly (C)

should be facing DOWN.

• Tighten the mounting bracket screw (2) and threaded insert (3) using the large allen wrenches (5).

• Repeat this step for the 1 in. diameter tube (D).

flat side facing down

Pg 13 of 32 www.zennahome.com IS04020-I

• Slide the end cap (E) onto the 7/8 in. diameter tube assembly (C).

• Snap the end cap (E) to the mounting bracket for the 7/8 in. diameter tube (B).

• Repeat this step for the 1 in. diameter tubes (D).

Step 2 - Installing the End Caps.

Tension Mount Installation

make sure end cap dimples

line up with the notches in mounting bracket

dimples on end cap

Pg 14 of 32 www.zennahome.com IS04020-I

Step 3 - IF NEEDED, Installing the Plastic Ring.

flat side

facing DOWN

Fig. 2

• NOTE: ASSEMBLE ON A SMOOTH FLAT SURFACE.

• The plastic ring (1) comes pre-installed, if needed insert plastic ring (1) into the end of the

1 in. diameter tube (D), fig 1.

• Now, insert the end of the 7/8 in. diameter tube assembly (C) into the end of the 1 in. diameter tube (D), fig 2.

Fig. 1

flat side

facing DOWN

plastic ring (1)

Tension Mount Installation

Pg 15 of 32 www.zennahome.com IS04020-I

Tension Mount Installation

• Measure the space between the walls of the bathtub or shower where your rod assembly will be installed.

• NOTE: Please write down your measurement below, you will need this later.

• NOTE: ASSEMBLE ON A SMOOTH FLAT SURFACE.

•On the 7/8 in. diameter tube assembly (C), twist the tube in the direction of the arrow sticker by 2 turns,

making the assembly longer, fig 1.

•Now, extend the rod assembly to the measurement from step 4 and lock the length of the assembly

with the rod set screw (4) using the small hex wrench (6). NOTE: Tighten the rod set screw (4) until it is

flush with the rods, fig 2.

Step 3 - Measure the space between the walls.

Measurement

between walls:

Step 4 - Extending the 7/8 in. Rod and installing the Set Screw.

rod assembly

Fig. 1

Fig. 2

twist the tube

in the direction of the

ARROW STICKER

Pg 16 of 32 www.zennahome.com IS04020-I

• Secure the shower rod to the walls by twisting the end of the 7/8 in. diameter tube assembly (C) in the

direction of the ARROW STICKER, UNTIL SNUG. NOTE: Make sure rod is level.

• Once the rod assembly is level and secure, twist the 7/8 in. diameter tube assembly (C) UNTIL TIGHT.

• NOTE: Twist the tube TOWARDS YOU TO LOOSEN the rod assembly.

Step 5 - Installing the Rod Assembly in its final location.

Tension Mount Installation

to extend the rod

Twist the tube in the direction

of the ARROW STICKER

to shorten the rod

Twist the tube in the

OPPOSITE DIRECTION

of the ARROW STICKER

Pg 17 of 32 www.zennahome.com IS04020-I

ADVERTENCIA DE SEGURIDAD:

Asegúrese de que está haciendo una instalación en un entorno limpio, seco y seguro. NO SE PARE EN EL

REBORDE DE LA BAÑERA.

Antes de que empiece:

Muchas gracias por comprar este

producto.

Identifique todas las piezas y las piezas de ferretería antes de

comenzar. Al distribuir las piezas, colóquelas sobre una superficie suave para evitar que se rayen.

Si faltaran piezas, llame a nuestro número gratuito 1-800-892-3986 entre las 8:00 a.m.- 5:00 p.m., hora del este,

de lunes a viernes o contáctenos a través de nuestro sitio web en www.zennahome.com para solicitar mas infor-

mación.

CONSIGNE DE SÉCURITÉ :

Assurez-vous d’installer le produit dans un endroit propre, sec et sécurisé. NE MONTEZ PAS SUR LE REBORD DE

LA BAIGNOIRE.

Avant de commencer :

Merci d’avoir acheté ce produit. Veuillez identifier toutes les pièces et les accessoires de montage avant de

commencer. Lorsque vous déballez les pièces, placez-les sur une surface non rugueuse afin d’éviter les

éraflures.

S’il venait à vous manquer des pièces, appelez notre numéro sans frais 1.800.892.3986 entre 8 h et 17 h (heure

de l’Est des États-Unis), du lundi au vendredi.

Instrucciones de Ensamblado / Instructions de montage

E40S2ALBN / E40S2ALHB

(Barra curva de montaje doble / Dual Mount Stall Curved Rod)

Pg 18 of 32 www.zennahome.com IS04020-I

Nota de limpieza:

La limpieza con un paño seco puede ser

suficiente, pero para otras manchas o

marcas, limpie suavemente con un paño

húmedo.

NO use detergentes fuertes o limpiadores

abrasivos, ya que pueden dañar la superficie

de este producto.

Remarque sur le nettoyage :

Le nettoyage à l’aide d’un chiffon sec peut

suffire, mais pour d’autres taches ou mar-

ques, essuyer à l’aide d’un chiffon humide.

NE PAS utiliser de détergents agressifs ou de

nettoyants abrasifs, car ils pourraient

endommager la surface de ce produit.
