KCI 4 S0
KNX Consumption Interface
ZRX-KCI4S0 TECHNICAL DOCUMENTATION
FEATURES
•4 channels for consumption counters (meters) with S0-pulse outputs
(UNE-EN 62053-31)*
•Registration of consumed electric power, cost and CO2 emissions that
can be split in up to 4 time intervals
•Compliant with UNE-EN 62053-31 Class B
•Total data saving on KNX bus failure
•Integrated KNX BCU (TP1-256)
•Size 67 x 90 x 36 mm (2 DIN units)
•DIN rail mounting according to IEC 60715 TH35, with fixing clamp
•CE, UKCA, RCM directives compliant (marks on the right side)
*Other counters (meters) with dry-voltage output or not complying S0 standard
may also work (previous test is recommended)
1. Battery holder
2. EMPTY batt. LED indicator
3. LOW batt. LED indicator
4. Programming button
5. Programming LED
6. Input Indicator LED
7. Input connectors
8. KNX connector
9. Fixing clamp

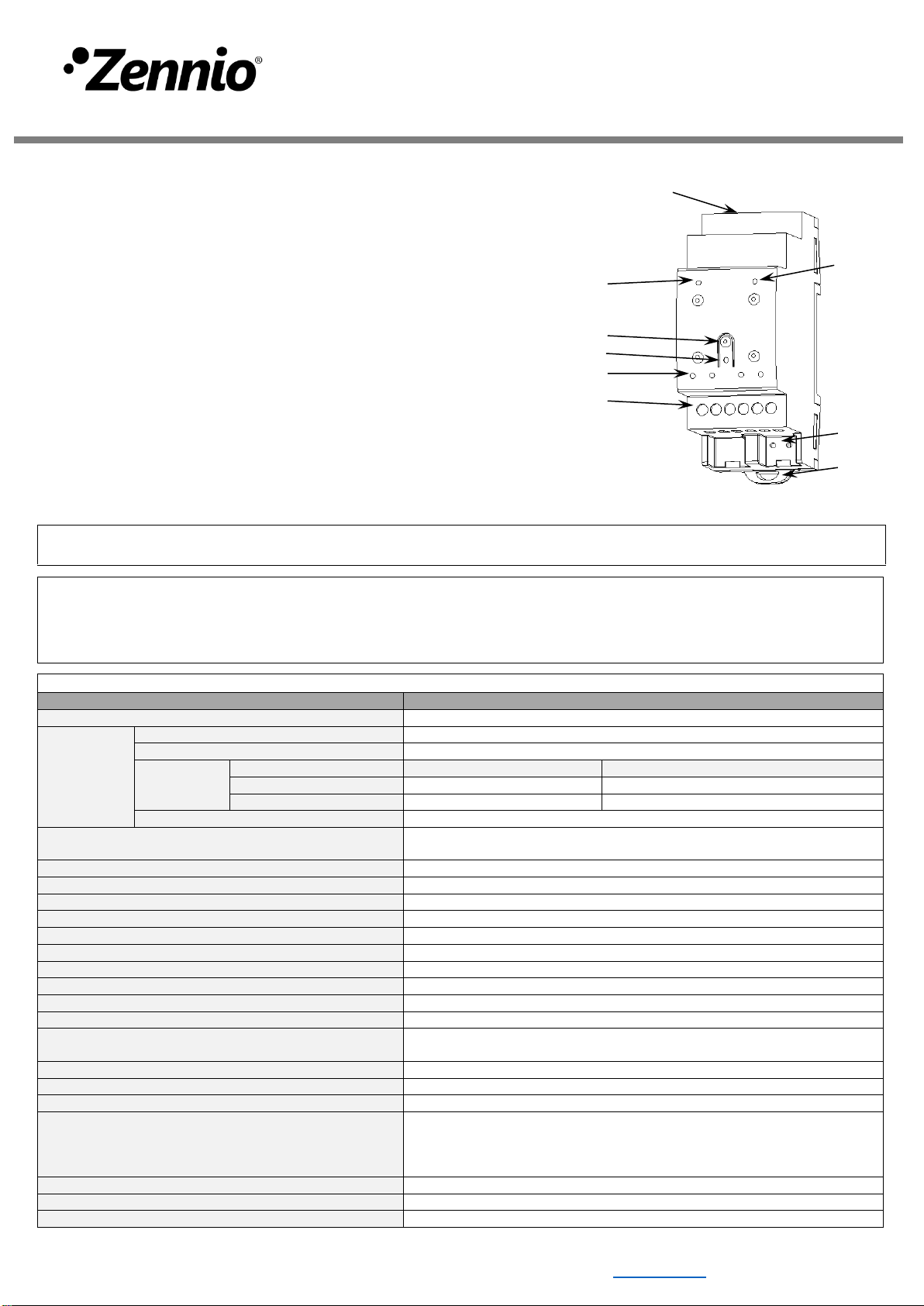

Figure 1: KCI 4 S0
Programming button: short press to set programming mode. If this button is held while plugging the device into the KNX bus, it enters the safe mode.
Programming LED: programming mode indicator (red). When the device enters the safe mode, it blinks (red) every half second. During the start-up
(reset or after KNX bus failure) and if the device is not in safe mode, it emits a red flash.
LOW batt. LED: if this LED is blinking in red, replace the batteries as soon as possible.
EMPTY batt. LED: if this LED is blinking in red, the batteries are empty.
GENERAL SPECIFICATIONS
CONCEPT
DESCRIPTION
Type of device
Electric operation control device
KNX supply
Voltage (typical)
29 VDC SELV
Voltage range
21-31 VDC
Maximum
consumption
Voltage
mA
mW
29 VDC (typical)
12.5
363
24 VDC¹
15
360
Connection type
Typical TP1 bus connector for 0.8 mm Ø rigid cable
External power supply
2 CR2032 battery (2 x 3 V). It allows to keep counting pulses without the
KNX bus power supply
Operation temperature
0 .. +55 °C
Storage temperature
-20 .. +55 °C
Operation humidity
5 .. 95%
Storage humidity
5 .. 95%
Complementary characteristics
Class B
Protection class
III
Operation type
Continuous operation
Device action type
Type 1
Electrical stress period
Long
Degree of protection
IP20, clean environment
Installation
Independentdevice to be mounted inside electrical panelswith DIN rail (IEC
60715)
Minimum clearances
Not required
Response on KNX bus failure
Data saving according to parameterization
Response on KNX bus restart
Data recovery according to parameterization
Operation indicator
Programming LED indicates programming mode (red) or safe mode
(blinking red). LOW and EMPTY batt. LED indicate the battery level when
blinking in red (KNX supply necessary). LED input indicator blinks when a
pulse is received.
Weight
89 g (+ 6 g bat.)
PCB CTI index
175 V
Housing material
PC FR V0 halogen free
¹ Maximum consumption in the worst-case scenario (KNX Fan-In model).
1
2
3
4
5
6
7
8
9

© Zennio Avance y Tecnología S.L. Edition 6 Further information www.zennio.com Page 2/2
SAFETY INSTRUCTIONSANDADDITIONALNOTES
•Installation should only be performed by qualified professionals according to the laws and regulations applicable in each country.
•Do not connect the mains voltage nor any other external voltage to any point of the KNX bus; it would represent a risk for the entire
KNX system. The facility must have enough insulation between the mains (or auxiliary) voltage and the KNX bus or the wires of other
accessories, in case of being installed.
•Once the device is installed (in the panel or box), it must not be accessible from outside.
•Keep the device away from water (condensation over the device included) and do not cover it with clothes, paper or any other material
while in use.
•The WEEE logo means that this device contains electronic parts and it must be properly disposed of by following the instructions at
https://www.zennio.com/en/legal/weee-regulation.
INPUTS SPECIFICATIONS AND CONNECTIONS
CONCEPT
DESCRIPTION
Number of S0 or dry
inputs
4
Inputs per common
2
Operation voltage
6 VDC
Connection method
Screw terminal block (0.4 Nm max.)
Cable cross-section
0.5-2.5 mm² (IEC) / 26-12 AWG
(UL)
Maximum cable length
30 m
Minimum pulse duration
30 ms
WIRING DIAGRAMS
Figure 2: Example of connections with SO pulse generators
Attaching KCI 4 S0 to DIN rail:
Removing KCI 4 S0 from DIN rail:
BATTERIESREPLACEMENT
1.
Extract the battery holder from the upper side of KCI. It is recommended to have the bus KNX connected during this
process to prevent S0 pulses loss.
2. Place the batteries in the battery holder (respecting the polarity shown) and insert it as indicated in the figure.
2
1
Figure 3: Mounting KCI 4 S0 on DIN rail
