ZIEHL MINIPAN 300 User manual

date / name ) : 06.09.07 WL / Fz/Fu Z. Nr.: 12110-0710-01
Page 1 of 12 Type: Minipan 300
ZIEHL industrie-elektronik GmbH + Co KG, Daimlerstr.13, D-74523 Schwäbisch Hall, Tel.: [phone], Fax: -56, e-mail: [e-mail]
Operating Manual
Universal Digital panel meter MINIPAN 300
MINIPAN
®
digital panel meters, temperature
-
and mains controlling,
special purpose instruments for customer requirements www.ziehl.com

date / name ) : 06.09.07 WL / Fz/Fu Z. Nr.: 12110-0710-01
Page 2 of 12 Type: Minipan 300
ZIEHL industrie-elektronik GmbH + Co KG, Daimlerstr.13, D-74523 Schwäbisch Hall, Tel.: [phone], Fax: -56, e-mail: [e-mail]
Contents Page
Application and short description ...................................................................................2
Overview of the functions...............................................................................................2
Connection plan.........................................................................................................3
Display- and operating elements ...................................................................................3
Important information’s ..................................................................................................4
Installation......................................................................................................................4
Starting ..........................................................................................................................5
Setting of parameters ..................................................................................................5
Display mode.............................................................................................................5
Display mode.............................................................................................................5
Parameter setting mode ............................................................................................5
Display codes ............................................................................................................8
Factory setting ...........................................................................................................9
Operation AC / DC.....................................................................................................9
Operation Pt 100 .......................................................................................................10
Error search and measures ...........................................................................................10
Technical data ...............................................................................................................11
Housing..........................................................................................................................12
Application and short description
With its 4 digit, 14 mm high display, Digital Panel meters of MINIPAN 300- series allow the
accurate display of different values in the range -1999 ... +9999.
Only 3 designs cover the measuring of DC voltage and current, AC voltage and current and
temperature with Pt 100- sensors (RTD).
The display can be easily programmed by the customer (e.g. input 0-10 V --> display 0-350.0
ms or AC 0-1 A ---> 0- 400.0 A
With the built-in universal power supply AC/DC 24-240 V it is especially versatile.
Overview of functions and connection plan
Easy programming with 3 buttons:
•Display (scaling, decimal-point)
•Display of MIN- and MAX-values
•Delay for display at unstable signals
•Code-lock against manipulation of settings
•Terminals pluggable
•Face-Plate 36 x 72 mm

date / name ) : 06.09.07 WL / Fz/Fu Z. Nr.: 12110-0710-01
Page 3 of 12 Type: Minipan 300
ZIEHL industrie-elektronik GmbH + Co KG, Daimlerstr.13, D-74523 Schwäbisch Hall, Tel.: [phone], Fax: -56, e-mail: [e-mail]
Inputs DC-Meter:
•Measuring of current with external shunt
max. 300 mV
•1 A for direct measuring of current
•0/4-20 mA for standard signals
•0-10 V for standard-signals
•100/500 V switch able
Inputs AC-Meter:
•500 V
•50 V
•10 V
•Measuring of current with external shunt
max. 150 mV
•1 A for direct measuring of current or
with external transformer
Measuring of Temperature Pt 100 (RTD)
•Pt 100 in 2- or 3-wire connection
•Measuring Range -199,9 ... +850,0 °C
•Resolution 0,1 °C
•Display in °C or °F
Display and operating elements
1. Digital display with 4 digits
2. Button "Up"
3. Button "Set/Reset“
4. Button "Down"
5. Decimal point behind last digit:
off = display mode (measured values)
on = menu mode, select the menu items
blinking = parameter setting mode
1 A
20 mA
300 mV
10 V
500 V / 100 V
Us
A1 A2
~
+
~
–
1 A
150 mV
10 V 50 V
500 V
Us
A1 A2
~
+
~
–
nc T1 T2 T3 nc nc
Us
A1 A2
~
+
~
–
MINIPAN 300
.c om
1 2
3
45

date / name ) : 06.09.07 WL / Fz/Fu Z. Nr.: 12110-0710-01
Page 4 of 12 Type: Minipan 300
ZIEHL industrie-elektronik GmbH + Co KG, Daimlerstr.13, D-74523 Schwäbisch Hall, Tel.: [phone], Fax: -56, e-mail: [email protected]
(1)
(2)
(3)
Important information’s
ATTENTION
Dangerous electrical voltage!
May lead to electrical shock and burn.
Before beginning of work switch unit and equipment free of voltage.
Only let persons work with the equipment who are familiar with installation, start and use
and who have appropriate qualification corresponding to their function. They must observe
the contents of the instructions manual, the information which are written on the equipment
and the relevant security instructions for the setting up and the use of electrical units.
The equipments are built according to DIN / EN and checked and leave the plant according
to security in perfect condition.
If, in any case the information in the instructions manual is not sufficient, please contact
our company or the responsible representative.
Instead of the industrial norms and regulations written in this instructions manual valid for
Europe, you must observe the valid and relevant regulations of the corresponding country.
The measuring inputs is are insulated from supply-voltage but not from each
other. Connect one input only!
Universal power supply.
The device has got a universal power supply, that is suitable for DC- and AC-voltages.
Before connecting the device to supply-voltage make sure that the connected voltage
corresponds with the voltage on the type plate on the device.

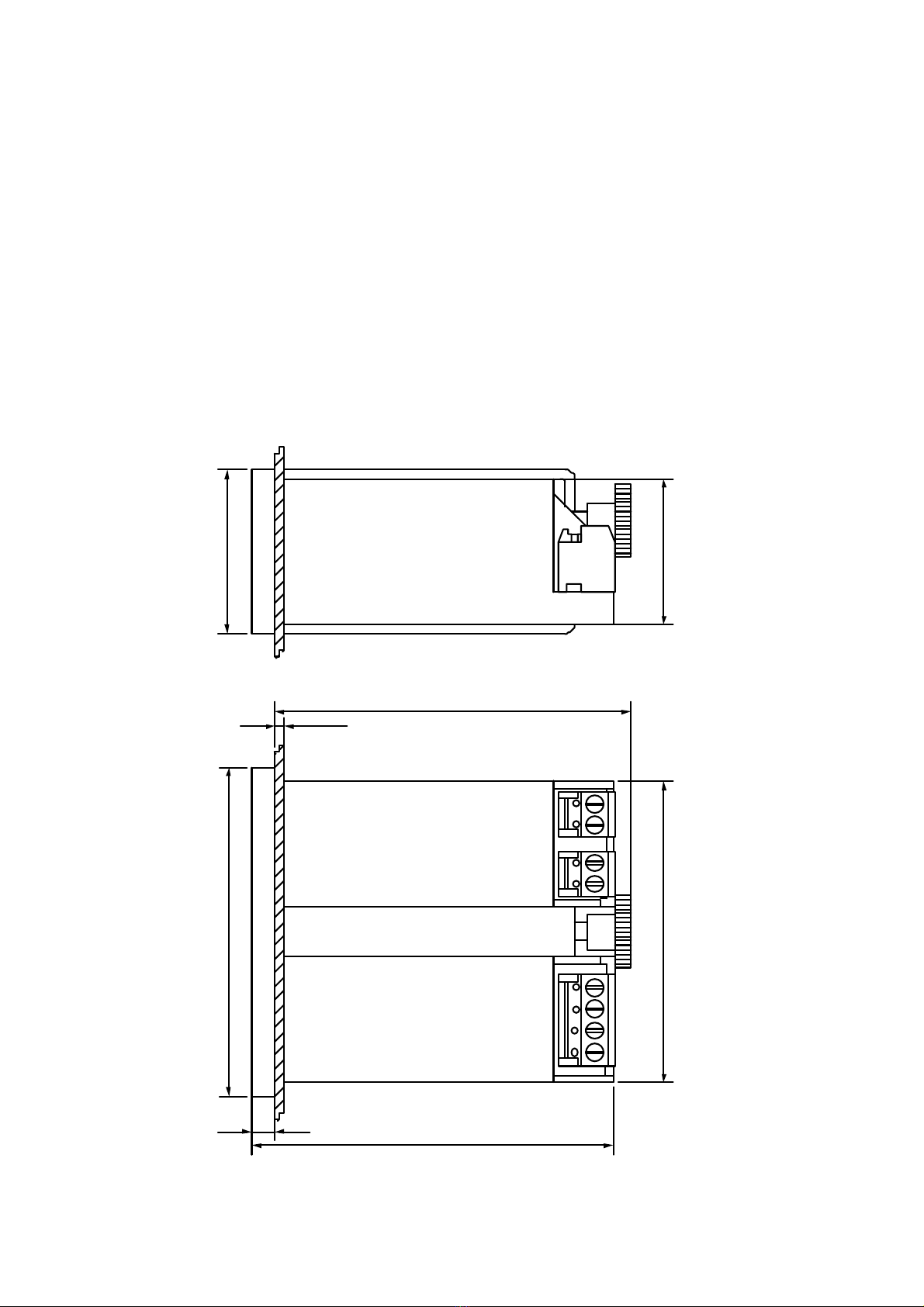

Assembly
Slide-in the MINIPAN 300 (1) into the prepared
panel-cut-out (33
+0,6
x 68
+0,7
mm) from
The front side.
Slide the holding clamp (2) over the screw
from the backside.
Screw on the knurled nut (3).
Ensure a right angle between holding clamp
and panel.
!

date / name ) : 06.09.07 WL / Fz/Fu Z. Nr.: 12110-0710-01
Page 5 of 12 Type: Minipan 300
ZIEHL industrie-elektronik GmbH + Co KG, Daimlerstr.13, D-74523 Schwäbisch Hall, Tel.: [phone], Fax: -56, e-mail: [email protected]
Putting into Operation
Connect supply-voltage Us.
Connect signal to measuring input. Connect one input only!
Setting of Parameters:
Decimal point behind last digit:
off = display mode (measured values)
on = menu mode, select the menu items
blinking = parameter setting mode
Display Mode
Display of actual measured value.
Function buttons Up/Down
Push short Change to menu mode, selection of menu item
Push for > 2 s Display of stored MIN- or MAX- values
Function of button Set /Reset
Push short no function
Push for > 2 s Reset of MIN- or MAX-value (with Min- or Max-button pushed
simultaneously)
Push for > 10 s Display of software-version
Menu Mode (Decimal point behind last digit ON)
Selection of the menu items for changing the parameters.
Function buttons Up/Down
Push short Selection of menu item; Change into display mode
Function Taste Set/Reset
Push short Change into parameter setting mode
Parameter setting mode (Decimal point behind the last digit FLASHES)
Function buttons Up/Down
Push short/long Adjustment of parameter value (slow/fast)
Function button Set/Reset
Push short Storage of setting and choice of next parameter.
Change into menu mode after the last parameter
Parametrizing of Input / Measuring Range
Select menu item with Up/Down until display InPU and measuring range alternate.
Change into parametrizing mode with Set and select measuring range with Up/Down.
Confirm and change to next menu with Set.
When changing measuring range parameters for scaling the display are set to:
InLo = 0%, InHi = 100 % of measuring range, diLi = 0, diHi = 5000 und dp = 0000.
Scaling the Display
Select menu item with Up/Down until display ScAL and mode (Auto or USEr) alternate.
Change into parametrizing mode with Set and select mode with Up/Down.
Auto: Display = measured signal without scaling.
USEr: Range of input-signal and range of display can be set by the user. The range of the
input-signal must be within the measuring range.

date / name ) : 06.09.07 WL / Fz/Fu Z. Nr.: 12110-0710-01
Page 6 of 12 Type: Minipan 300
ZIEHL industrie-elektronik GmbH + Co KG, Daimlerstr.13, D-74523 Schwäbisch Hall, Tel.: [phone], Fax: -56, e-mail: [email protected]
Examples:
InPU ScAL InLo InHi diLo diHi dP
Input 0..10 V
Display 30..100 % 10 USEr 0.00 10.00 30 100 0000.
Input 4..20 mA
Display 0..100 % 4-20 USEr 4.00 20.00 0 100 0000.
Input 0..20 mA
Display 50.0..500.0 0-20 USEr 0.00 20.00 500 5000 000.0
Input 10..90 V
Display 50.0..500.0 100 USEr 10.0 90.0 500 5000 000.0
Input 0-60 mV
Display 0,0..30.0 300 USEr 0 60 0 300 000.0
Input 2..5 V
Display -50.0..100.0 10 USEr 2.00 5.00 -500 1000 000.0
Confirm and change to next menu with Set.
Delay of Display (recommended at unstable signals)
Select menu item with Up/Down until display ddiS and programmed value alternate.
Change into parametrizing mode with Set and set delay of display with Up/Down.
Now the measured value will be written into the display every 0,1 ... 2 s.
Confirm and change to next menu with Set.
Fixed Digits (recommended when measured signal is very unstable or changing rapidly)
Select menu item with Up/Down until Fand the fixed digits blinking are displayed. When no
fixed digit is programmed, the last 2 digits are dark.
Set the fixed digits:
Fi no
Fi 0 last digit fixed (0)
Fi00 last digit fixed (00)
These digits display 0, independent from measured value.
Confirm and change to next menu with Set.
Code-lock
Select menu item with Up/Down until display Code programmed state alternate.
Here the parameters can be protected by activating the code-lock. After pushing Set, Pin is
displayed. Change to Pin 504 with buttons Up/Down (factory setting). After pushing Set the
code-lock can be activated or de-activated. After pushing Set again, an individual Pin
Can be selected (write down)
With activated code-lock, all parameters can be seen but not changed any more.
In case of problems with the code-lock (forgotten Pin), the lock can be switched off and the
Pin can be set back to 504,by pushing the button Set/Reset while connecting the device to
supply voltage until Code / o F is displayed.

date / name ) : 06.09.07 WL / Fz/Fu Z. Nr.: 12110-0710-01
Page 7 of 12 Type: Minipan 300
ZIEHL industrie-elektronik GmbH + Co KG, Daimlerstr.13, D-74523 Schwäbisch Hall, Tel.: [phone], Fax: -56, e-mail: [email protected]
Line-Resistance at version for Pt 100-sensors (RTD):
Select menu item with Up/Down until display L-A and programmed parameter alternate.
Change into parametrizing mode with Set and do the line-compensation with Up/Down (enter
value of line-resistance) or 3-wire (3-L).
2-wire-configuration, compensation of cable-resistance:
Short-circuit the wires nearby the sensor and measure the resistance of the cable. Set
„LA“ to this value.
Measuring Unit (°C or °F) at version for Pt 100-sensors (RTD):
Select menu item with Up/Down until display Unit and programmed unit alternate.
Change into parametrizing mode with Set and select unit (°C or °F).
Tips:
- After finishing one menu item it is switched automatically to the next one.
- When the right decimal point in the 7 segment display is on, the display mode has been left,
and the menu items can be chosen with up/down (menu mode).
- When the right decimal point blinks, you are in the parameter setting mode and can change
the setting with up/down.
- Long pushing on up/down speeds up the changes in the display.
- Pushing button up and down at the same time sets values to zero.
- With reset (press set/reset for 2s) the display mode can be reached from every position of the
parameter setting mode (the last selected value in is being stored).
- With InLo and InHi scaling is simplified when measuring-range and range of signal are
different.
Example: Display 0-500.0 at input-signal 10-90 V:
•Connect to measuring input 100 V and select InPU = 100
•Set InLo to 10.0
•Set InHi to 100.0
•Set diLo to 0
•Set diHi to 5000
•Set dP to 000.0

date / name ) : 06.09.07 WL / Fz/Fu Z. Nr.: 12110-0710-01
Page 8 of 12 Type: Minipan 300
ZIEHL industrie-elektronik GmbH + Co KG, Daimlerstr.13, D-74523 Schwäbisch Hall, Tel.: [phone], Fax: -56, e-mail: [email protected]
Indication of the digital display:
InPU
InPUInPU
InPU = measuring input / measuring range
500
500500
500 = 500 V
100
100100
100 = 100 V
50
5050
50 = 50 V
10
1010
10 = 10 V
300
300300
300 = 300 mV
150
150150
150 = 150 mV
0
00
0-
--
-20
2020
20 = 0-20 mA
4
44
4-
--
-20
2020
20 = 4-20 mA
1
11
1= 1 A
ScAL
ScALScAL
ScAL = scaling of measuring range and display
Auto
AutoAuto
Auto = Zero, FullScale and decimal-point are taken over from selected
measuring range
USEr
USErUSEr
USEr = scaling of measuring input and measuring range by the user
InLo
InLoInLo
InLo = measuring range - Zero
InHi
InHiInHi
InHi = measuring range - FullScale
diLo
diLodiLo
diLo = displayed value at measured signal = InLo
diHi
diHidiHi
diHi = displayed value at measured signal = InHi
dP
dPdP
dP = decimal point
ddiS
ddiSddiS
ddiS = delay of display
Fi
FiFi
Fi = fixed digits
CodE
CodECodE
CodE = code
Pin
PinPin
Pin = factory-setting of Pin = 504
on
onon
on, oFF
oFFoFF
oFF = an / off
L
LL
L-
--
-A
AA
A= line compensation
3
33
3-
--
-L
LL
L= 3-wire
Unit
UnitUnit
Unit = measuring unit for temperature Pt 100 (°C, °F)
____
________
____ = Min
,,,,
,,,,,,,,
,,,, = Max
ErLo
ErLoErLo
ErLo = input current <3,8 mA at measuring range 4-20 mA
Er8
Er8Er8
Er8, Er9
Er9Er9
Er9 =error in device
-
--
-EEE
EEEEEE
EEE = signal lower than measuring range / display range
EEEE
EEEEEEEE
EEEE = signal higher than measuring range / display range

date / name ) : 06.09.07 WL / Fz/Fu Z. Nr.: 12110-0710-01
Page 9 of 12 Type: Minipan 300
ZIEHL industrie-elektronik GmbH + Co KG, Daimlerstr.13, D-74523 Schwäbisch Hall, Tel.: [phone], Fax: -56, e-mail: [email protected]
Display
I
II
In
nn
nP
PP
PU
UU
U
input
S
SS
Sc
cc
cA
AA
AL
LL
L
U
UU
US
SS
SE
EE
Er
rr
r
A
AA
AU
UU
Ut
tt
to
oo
o
I
II
In
nn
nL
LL
Lo
oo
o d
dd
dP
PP
P
0
00
0.
..
.0
00
0.
..
.0
00
0.
..
.0
00
0
0
00
00
00
0.
..
.0
00
00
00
0
0
00
00
00
00
00
0.
..
.0
00
0
0
00
00
00
00
00
00
00
0.
..
.
P
PP
Pi
ii
in
nn
n0
00
0..
9
99
99
99
99
99
99
99
9
3x E
EE
Er
rr
rr
rr
r
o
oo
on
nn
n
o
oo
oF
FF
FF
FF
F
3x o
oo
on
nn
n/O
OO
OF
FF
FF
FF
F
-
--
-1
11
19
99
99
99
99
99
9
...9
99
99
99
99
99
99
99
9
C
CC
Co
oo
od
dd
dE
EE
E
o
oo
on
nn
n
o
oo
oF
FF
FF
FF
F
o.k.
P
PP
Pi
ii
in
nn
n0
00
0..
9
99
99
99
99
99
99
99
9
5
55
50
00
00
00
0
1
11
10
00
00
00
0
1
11
10
00
0
3
33
30
00
00
00
0
0
00
0-
--
-2
22
20
00
0
4
44
4-
--
-2
22
20
00
0
1
11
1
DC
5
55
50
00
00
00
0
5
55
50
00
0
1
11
10
00
0
1
11
15
55
50
00
0
1
11
1
AC
I
II
In
nn
nH
HH
Hi
ii
i
-
--
-1
11
19
99
99
99
99
99
9
...9
99
99
99
99
99
99
99
9
d
dd
di
ii
iL
LL
Lo
oo
o
-
--
-1
11
19
99
99
99
99
99
9
...9
99
99
99
99
99
99
99
9
d
dd
di
ii
iH
HH
Hi
ii
i
-
--
-1
11
19
99
99
99
99
99
9
...9
99
99
99
99
99
99
99
9
2
22
2.
..
.0
00
0
0
00
0.
..
.1
11
1
d
dd
dd
dd
di
ii
iS
SS
S
delay
F
FF
Fi
ii
i0
00
00
00
0
F
FF
Fi
ii
i 0
00
0
F
FF
Fi
ii
i
F
FF
Fi
ii
i
fix
2 s = Max
2 s = Min
Up
Down
Set / Reset = >2s Set
Factory-preset:
Reset to factory setting: Push button Set for 10 s when applying supply voltage until “----" is
displayed.
Version
Parameter MINIPAN DC MINIPAN AC MINIPAN Pt 100 Users own Data
InpU 10 1 -
L-A - - 3-L
Unit - - °C
ScAL Auto Auto -
InLo 0.00 0.000 -
InHi 10.00 1.000 -
DiLo 0 0 -
DiHi 5000 5000 -
dp 0000. 0000. -
ddis 0.5 0.5 0.5
Fi Fi Fi -
Code o o o
Pin 504 504 504
Operation
DC- and AC-Meters
Men
u M
od
e
Parameter Setting Mode
Display Mode

date / name ) : 06.09.07 WL / Fz/Fu Z. Nr.: 12110-0710-01
Page 10 of 12 Type: Minipan 300
ZIEHL industrie-elektronik GmbH + Co KG, Daimlerstr.13, D-74523 Schwäbisch Hall, Tel.: [phone], Fax: -56, e-mail: [email protected]
Display
P
PP
Pi
ii
in
nn
n0
00
0..
9
99
99
99
99
99
99
99
9
3x E
EE
Er
rr
rr
rr
r
o
oo
on
nn
n
o
oo
oF
FF
FF
FF
F
3x o
oo
on
nn
n/O
OO
OF
FF
FF
FF
F
C
CC
Co
oo
od
dd
dE
EE
E
o
oo
on
nn
n
o
oo
oF
FF
FF
FF
F
o.k.
P
PP
Pi
ii
in
nn
n0
00
0..
9
99
99
99
99
99
99
99
9
2
22
2.
..
.0
00
0
0
00
0.
..
.1
11
1
d
dd
dd
dd
di
ii
iS
SS
S
2 s = Max
2 s = Min
°
°°
°F
FF
F
°
°°
°C
CC
C
U
UU
Un
nn
ni
ii
it
tt
t
0
00
0.
..
..
..
..
..
.1
11
10
00
00
00
0
3
33
3-
--
-L
LL
L
L
LL
L-
--
-A
AA
A
Up
Down
Set / Reset = >2s Set
Operation Pt 100- Meter
Trouble shooting
•Unit cannot be programmed – Code lock
The code lock gives protection against unauthorized manipulation of the unit. When code
lock is activated the parameters can not be changed. The pin can be set by the user.
Pin unknown? Make code-reset: When switching in supply-voltage keep pushed button
„Set“ for 2 s.
Display indicates: "8888"; "CodE"; "oFF"; "8888" release button „Set“.
Code = oFF, Pin = 504.
•Indicated temperature does not correspond to the sensor temperature
1. Is the correct measuring unit selected (°C or °F)?
2. Check programmed sensor-connection (2- or 3-wire, line-resistance).
•Displayed value wrong or no signal
Check if the correct input is selected and if the signal is connected to the correct terminals.
Check if terminals have been plugged correctly.
•Display „ErLo“
input current <3,8 mA at measuring range 4-20 mA. Check lines for break.
•Display „Er8“ „Er9“
Er8 and Er9 are internal errors (hardware / parameters). Switch off and on supply-voltage
and reset parameters to factory-setting.
If the error still exists send it back to factory for repair.
•Display „-EEE“
signal lower than measuring range / display range.
•Display „EEEE“
signal higher than measuring range / display range.
•Display of software-version: push Set for >10 s in display mode.
Display Mode
Paramet
er Set
ting
Menümodus

date / name ) : 06.09.07 WL / Fz/Fu Z. Nr.: 12110-0710-01
Page 11 of 12 Type: Minipan 300
ZIEHL industrie-elektronik GmbH + Co KG, Daimlerstr.13, D-74523 Schwäbisch Hall, Tel.: [phone], Fax: -56, e-mail: [email protected]
Technical data
Power Supply
Rated supply voltage Us AC/DC 24-240 V
Tolerance DC DC 20 - 297 V (0,85 x 24 V...1,35 x 220 V)
Tolerance AC AC 20 - 264 V (0,85 x 24 V...1,1 x 240 V)
Power consumption < 3 VA
Frequency 48...62 Hz
Measuring Inputs insulated from supply-voltage
(connect 1 input only)
DC-Meter ± 300 mV / 120 kΩ/ max. ±2,5 V
Measuring range / resistance of input ± 10.00 V / 1 MΩ/ max. ±50 V
/ overload capacity ± 500.0 V / 3 MΩ/ max. ±600 V
± 100.0 V / 3 MΩ/ max. ±600 V
± 20.00 mA / Shunt 15 Ω/ max. ±100
± 1.00 A / Shunt 150 mΩ/ max. ±2 A
AC-Meter 150 mV / 900 Ω/ max. 2,5 V
Measuring range / resistance of input 10.00 V / 100 kΩ/ max. 50 V
/ overload capacity 50.0 V / 1 MΩ/ max. 60 V
500.0 V / 3 MΩ/ max. 600 V
1.00 A / Shunt 150 mΩ/ max. 2 A
Measuring time AC/DC < 400 ms + delay of display ddis
Pt 100- Meter - 199,9 ... + 850,0 °C (= -328 ... +1563 °F)
Sensor-connection Pt 100, 2- or 3-wire
Wire-resistance 3-wire max. 3 x 50 Ω
Measuring time temperature < 400 ms + delay of display ddis
Accuracy
Resolution +9999 / -1999
Error (of full measuring range)
DC voltage and current ± 0,1 % ± 1 Digit
AC voltage and current ± 0,5 % ± 1 Digit
Temperature factor ± 0,02 % / Kelvin
Total error
At Pt 100- Meter ± 0,3 % of value ± 0,5 K
Temperature factor ± 0,03 °C / K
Test conditions EN 50178 / EN 61010-1
EN 61326-1 industrial applications
Measuring category CAT II 600 V DOUBLE INSULATION
CAT III 300 V DOUBLE INSULATION
Contamination level 2
On-time 100 %
Rated ambient temperature range -20 °C ... +60 °C
EN 60068-2-1 dry heat
Vibration resistance EN 60068-2-6 2…25 Hz ±1,6 mm
25 ... 150 Hz 5 g

date / name ) : 06.09.07 WL / Fz/Fu Z. Nr.: 12110-0710-01
Page 12 of 12 Type: Minipan 300
ZIEHL industrie-elektronik GmbH + Co KG, Daimlerstr.13, D-74523 Schwäbisch Hall, Tel.: [phone], Fax: -56, e-mail: [email protected]
Housing Panel-mount housing
Dimensions (h x w x d) mm 36 x 72 x 79 mm
Terminals
Wire connection one wire 1 x 0,5…1,5 mm
2
Stranded with insulated ferrules 1 x 0,14…1 mm
2
Attachment Mounting Panel-mount, panel cut-out 33
+0,6
x 68
+0,7
mm
max. thickness of panel 8 mm
Protection housing IP 30
Protection terminals IP 20
Weight approx. 120 g
Subject to technical changes
Form Dimensions in mm
Panel cut-out 33
+0,6
x 68
+0,7
mm
66
79
5
72
max. 8
max. 84
36 32
