2-jaw angular gripper
GG4000 series
DDOC00273
THE KNOW-HOW FACTORY
www.zimmer-group.com

3
1 Supporting documents ............................................................................................................................................................... 4
1.1 Notices and graphics in the installation and operating instructions ...............................................................................................................................4
2 Safety notices............................................................................................................................................................................... 5
3 Proper use .................................................................................................................................................................................... 6
4 Personnelqualication................................................................................................................................................................ 6
5 Product description ..................................................................................................................................................................... 6
5.1 Type plate .............................................................................................................................................................................................................................6
6 Functional description ................................................................................................................................................................. 7
7 Technical data .............................................................................................................................................................................. 8
8 Accessories/scope of delivery ................................................................................................................................................... 8
9 Transportation/storage/preservation......................................................................................................................................... 8
10 Installation .................................................................................................................................................................................... 9
10.1 Installing the product.........................................................................................................................................................................................................10
10.2 Installing the energy supply ..............................................................................................................................................................................................11
10.3 Installing accessories ........................................................................................................................................................................................................12
11 Maintenance............................................................................................................................................................................... 12
12 Decommissioning/disposal ...................................................................................................................................................... 12
13 Declaration of Incorporation ..................................................................................................................................................... 13
INSTALLATION AND OPERATING INSTRUCTIONS:GG4000
DDOC00273 / c EN / 2022-07-20
Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • [phone] • www.zimmer-group.com
Content

4
1 Supporting documents
NOTICE
Read through the installation and operating instructions before installing or working with the product.
The installation and operating instructions contain important notes for your personal safety. They must be read
and understood by all persons who work with or handle the product during any phase of the product lifetime.
The documents listed below are available for download on our website www.zimmer-group.com.
• Installation and operating instructions
• Catalogs, drawings, CAD data, performance data
• Information on accessories
• Technical data sheets
• General Terms and Conditions, including warranty information.
ÖOnly those documents currently available on the website are valid.
In these installation and operating instructions, "product" refers to the product designation on the title page!
1.1 Notices and graphics in the installation and operating instructions
DANGER
This notice warns of an imminent danger to the life and health of people. Ignoring these notices can lead to
serious injury or even death.
►You absolutely must comply with the described measures for avoiding these dangers!
ÖThe warning symbols are assigned according to the type of danger.
WARNING
This notice warns of a situation that is potentially hazardous to personal health. Ignoring these notices can cause
serious injury or damage to health.
►You absolutely must comply with the described measures for avoiding these dangers!
ÖThe warning symbols are assigned according to the type of danger.
CAUTION
This notice warns of a situation that is potentially hazardous for people or that may result in material or environ-
mental damage. Ignoring these notices may result in slight, temporary injuries or damage to the product or to the
environment.
►You absolutely must comply with the described measures for avoiding these dangers!
ÖThe warning symbols are assigned according to the type of danger.
NOTICE
General notices contain usage tips and valuable information, but no warnings of dangers to health.
INFORMATION
Thiscategorycontainsusefultipsforhandlingtheproducte󹱺ciently.Failuretoobservethesetipswillnotresult
in damage to the product. This information does not include any information relevant to health or workplace
safety.
INSTALLATION AND OPERATING INSTRUCTIONS:GG4000
DDOC00273 / c EN / 2022-07-20
Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • [phone] • www.zimmer-group.com

5
2 Safety notices
CAUTION
Risk of injury and material damage in case of non-compliance
Installation,commissioning,maintenanceandrepairsmayonlybeperformedbyqualiedspecialistsin
accordance with these installation and operating instructions.
The product is state-of-the-art.
Itisttedtoindustrialmachinesandisusedtohold,transportandstoreworkpieces.
The following are examples of situations in which the product may cause a hazard:
• The product is not properly installed, used or maintained.
• The product is not used for its designated purpose.
• The locally applicable regulations, laws, directives or guidelines are not observed.
►The product may only be used in accordance with these installation and operating instructions and the
product'stechnicaldata.Anychangesoradditionstotheintendeduseoftheproduct,aswellasmodications
to the product, such as those in the following examples, require the written permission of the manufacturer:
• Useoftheproductunderextremeconditions,suchasaggressiveuidsorabrasivedusts
• Additional drilled holes or threads
ÖZimmer GmbH shall accept no liability for any damage caused by improper use. The operator bears sole
responsibility.
►Make sure that the power supply is disconnected before you mount, adjust, modify, maintain or repair the
product.
►Whenever work is carried out on the product, make sure that the product cannot be actuated by mistake.
►Perform maintenance tasks, renovation work or attachment work outside of the machine's danger zone when
possible.
►Do not reach into the operational range of the product.
►Observethespeciedmaintenanceintervalsandspecicationsregardingthequalityoftheoperatingmaterial.
►When using the product under extreme conditions, adjust the maintenance interval according to the degree of
contamination.
INSTALLATION AND OPERATING INSTRUCTIONS:GG4000
DDOC00273 / c EN / 2022-07-20
Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • [phone] • www.zimmer-group.com

6
3 Proper use
NOTICE
The product is only to be used in its original state with its original accessories, with no unauthorized changes and
within the stipulated parameter limits and operating conditions.
Any other or secondary use is deemed improper.
►Operate the product only in compliance with the associated installation and operating instructions.
►Operate the product only when it is in a technical condition that corresponds to the guaranteed parameters
and operating conditions.
ÖZimmer GmbH shall accept no liability for any damage caused by improper use. The operator bears sole
responsibility.
4 Personnel qualication
Installation, commissioning and maintenance may only be performed by trained specialists. These persons must have read
and understood the installation and operating instructions in full.
5 Product description
5.1 Type plate

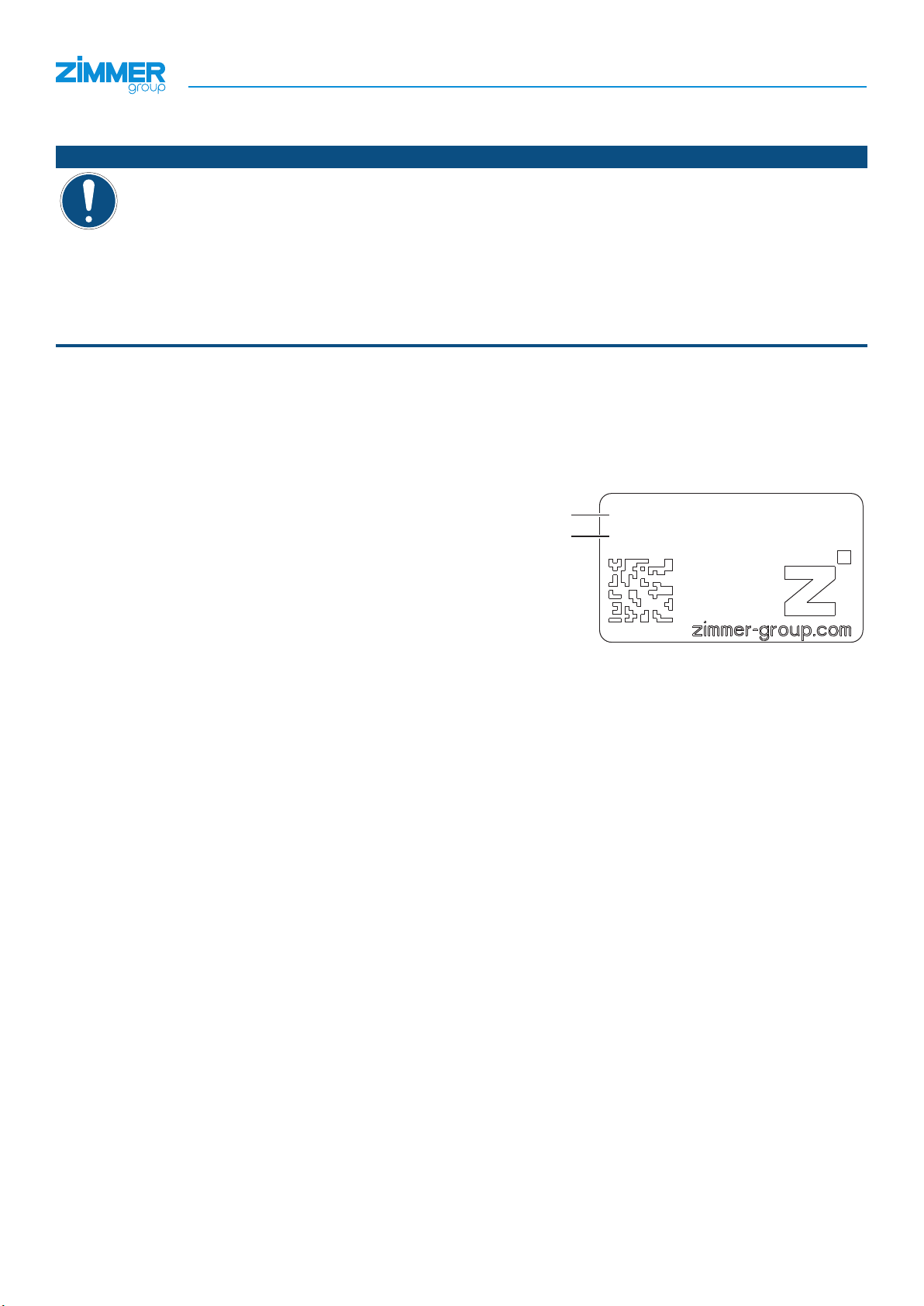

A type plate is attached to the housing of the product.
XXX
XX-XXXXXX
am
an
Thearticlenumberandtheconrmationnumberareshownonthetype
plate.
am Article number
an Conrmationnumber
INSTALLATION AND OPERATING INSTRUCTIONS:GG4000
DDOC00273 / c EN / 2022-07-20
Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • [phone] • www.zimmer-group.com

7

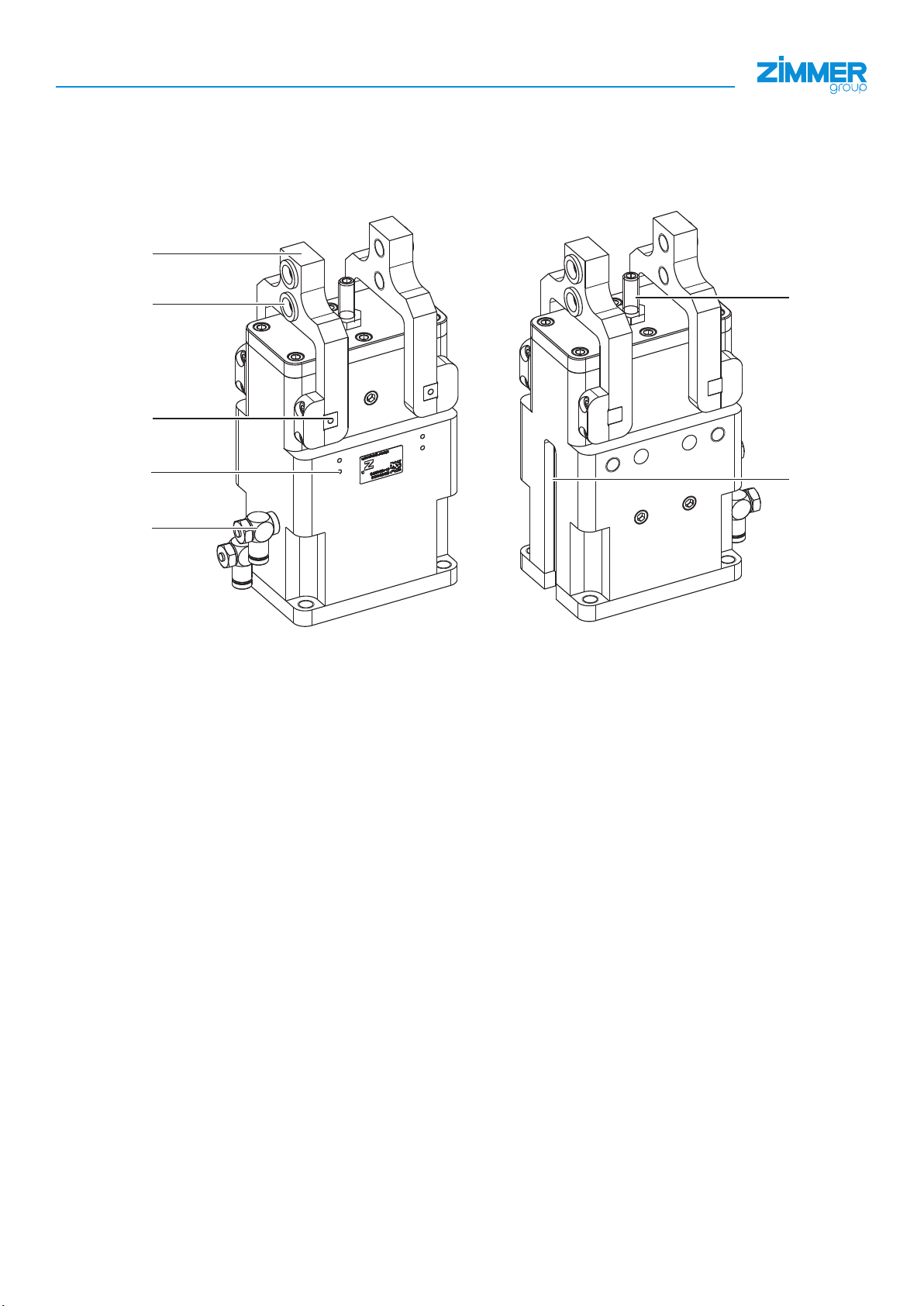

6 Functional description
The product has a pneumatic piston that is vented on both sides. Alternating ventilation sets the gripper jaws in motion. The
springusedinthecylinderchamberactsasanenergyaccumulatorandgrippingforceretentiondevice.
7
6
2
1
5
3
4
1Gripper jaw 5Power supply
2Connectionforgrippernger 6Stroke adjustment screw
3Sealed rotation point 7Sensing slot
4Connection for terminal block
INSTALLATION AND OPERATING INSTRUCTIONS:GG4000
DDOC00273 / c EN / 2022-07-20
Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • [phone] • www.zimmer-group.com

8
7 Technical data
INFORMATION
►Youcanndtheinformationinthetechnicaldatasheetonourwebsite.
Thisdatavarieswithintheseries,dependingonthespecicdesign.
►Please contact Zimmer Customer Service if you have any questions.
8 Accessories/scope of delivery
INFORMATION
If any accessories not sold or authorized by Zimmer GmbH are used, the function of the product cannot be
guaranteed.ZimmerGmbHaccessoriesarespecicallytailoredtotheindividualproducts.
►For optional accessories and those included in the scope of delivery, refer to our website.
9 Transportation/storage/preservation
►Transport and storage of the product must be done only with the original packaging.
►If the product has already been installed on the superordinate machine unit, care must be taken during transport to
ensure that no unexpected movements can occur.
►Before commissioning the product and after transport, check all power and communication connections as well as
all mechanical connections.
►If the product is stored for an extended period, the following points are to be observed:
►Keep the storage location as dust-free and dry as possible.
►Avoidtemperatureuctuations/observeandadheretothetemperaturerange.
►Avoid wind/drafts/water condensation formation.
►Cover the product with a weatherproof, tear-resistant foil to prevent dust.
►Pack the product and do not expose it to direct sunlight during storage.
►Clean all components. There must be no soiling left on the components.
►Visually inspect all components.
►Remove all foreign substances.
►Properly remove potential corrosion spots.
►Close electrical connections using suitable covers.
INSTALLATION AND OPERATING INSTRUCTIONS:GG4000
DDOC00273 / c EN / 2022-07-20
Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • [phone] • www.zimmer-group.com

9
10 Installation
WARNING
Risk of injury due to uncontrolled movements
Risk of injury in case of unexpected movement of the machine or system into which the product is to be installed.
►Switch off the energy supply of the machine before any work.
►Secure the power supply against being switched on unintentionally.
►Check the machine for any residual energy that may be present.
CAUTION
Risk of injury due to uncontrolled movements
Risk of injury in the event of uncontrolled movement of the product when the power supply is connected.
►Switch off the power supply to the machine before carrying out any work.
►Secure the power supply against being switched on unintentionally.
►Check the machine for any residual energy that may be present.
NOTICE
►Installationmayonlybecarriedoutbyqualiedpersonnelinaccordancewiththeseinstallationandoperating
instructions.
►Switch off the power supply before any assembly, installation or maintenance work.
►Installtheproductonanappropriatemountingsurfaceinaccordancewiththeatnessspecications.
INFORMATION
Requirementsforamountingsurfacewithalength<100mm:
• Permissible unevenness: 0.02 mm
Requirementsforamountingsurfacewithalength>100mm:
• Permissible unevenness: 0.05 mm
Further installation information:
• The mounting screws are not included in the scope of delivery.
• Strength class of the mounting screws is at least 8.8 (DIN EN ISO 4762)
►Observe the tightening torque of the mounting screws.
►Verify the permitted load capacity of the required screw connections in accordance with VDI 2230.
INSTALLATION AND OPERATING INSTRUCTIONS:GG4000
DDOC00273 / c EN / 2022-07-20
Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • [phone] • www.zimmer-group.com

10

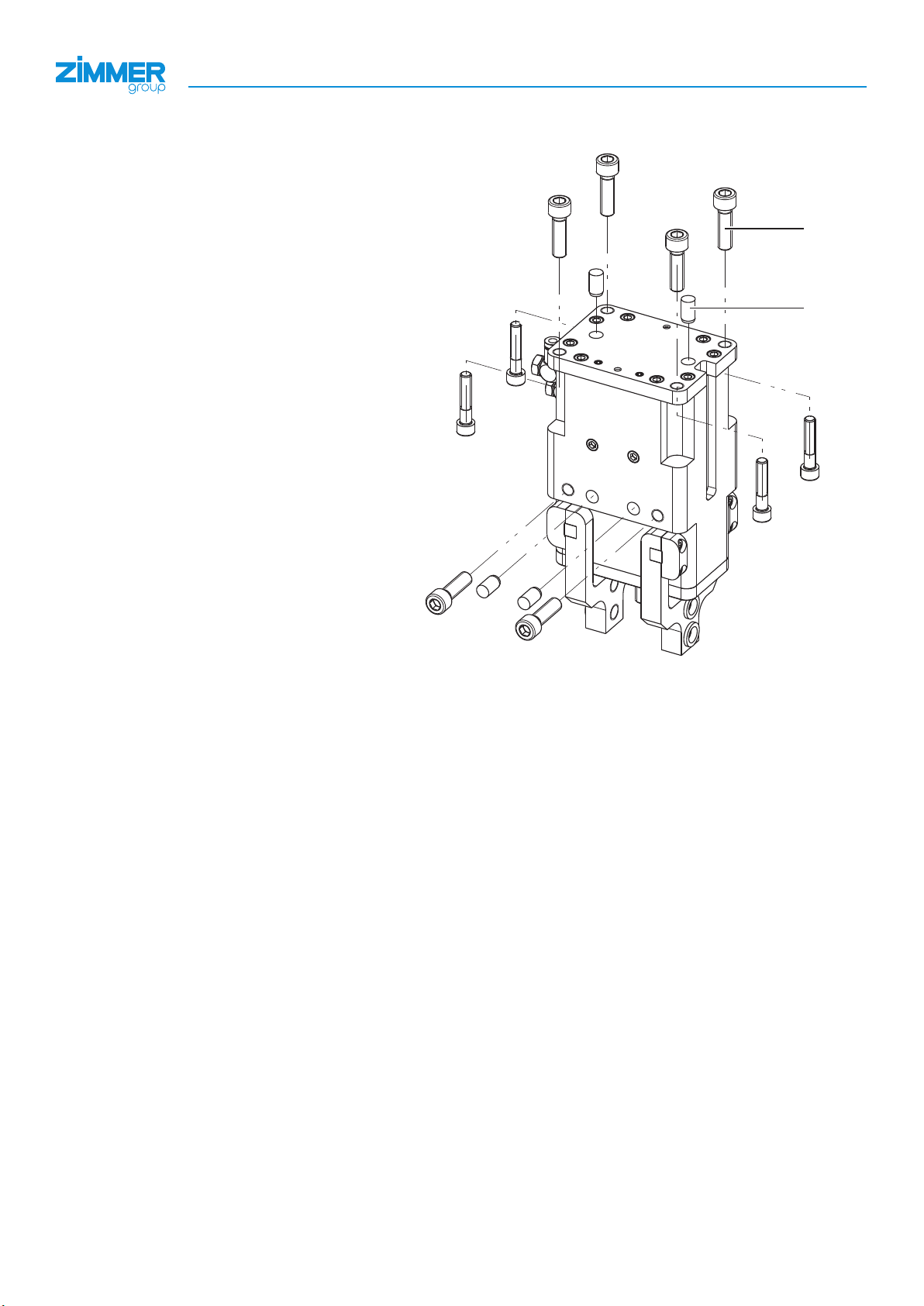

10.1 Installing the product
The product can be installed from multiple
sides.
8
9
►Insert the straight pins into the designated
tsontheproduct.
►Position the product on the mounting
surface using the straight pins.
►Mount the product on the mounting piece
using the appropriate mounting screws.
8Mounting screw
9Straight pins
INSTALLATION AND OPERATING INSTRUCTIONS:GG4000
DDOC00273 / c EN / 2022-07-20
Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • [phone] • www.zimmer-group.com

11
10.2 Installing the energy supply
CAUTION
Non-compliance may result in material damage.
Ifthegripperngersbounce,theservicelifeoftheproductmaybereduced.
►Settheowcontrolvalvestothespecicgripperngers.
►The parameters can be found in the "Moment of Inertia" chart on our website.
NOTICE
►Close off unused connections using suitable dummy plugs.
►The authorized connections that are available can be found in the accessories list on our website. The
necessary ordering information can also be found there.
►Use compressed air in accordance with DIN ISO 8573-1 [4:4:4].

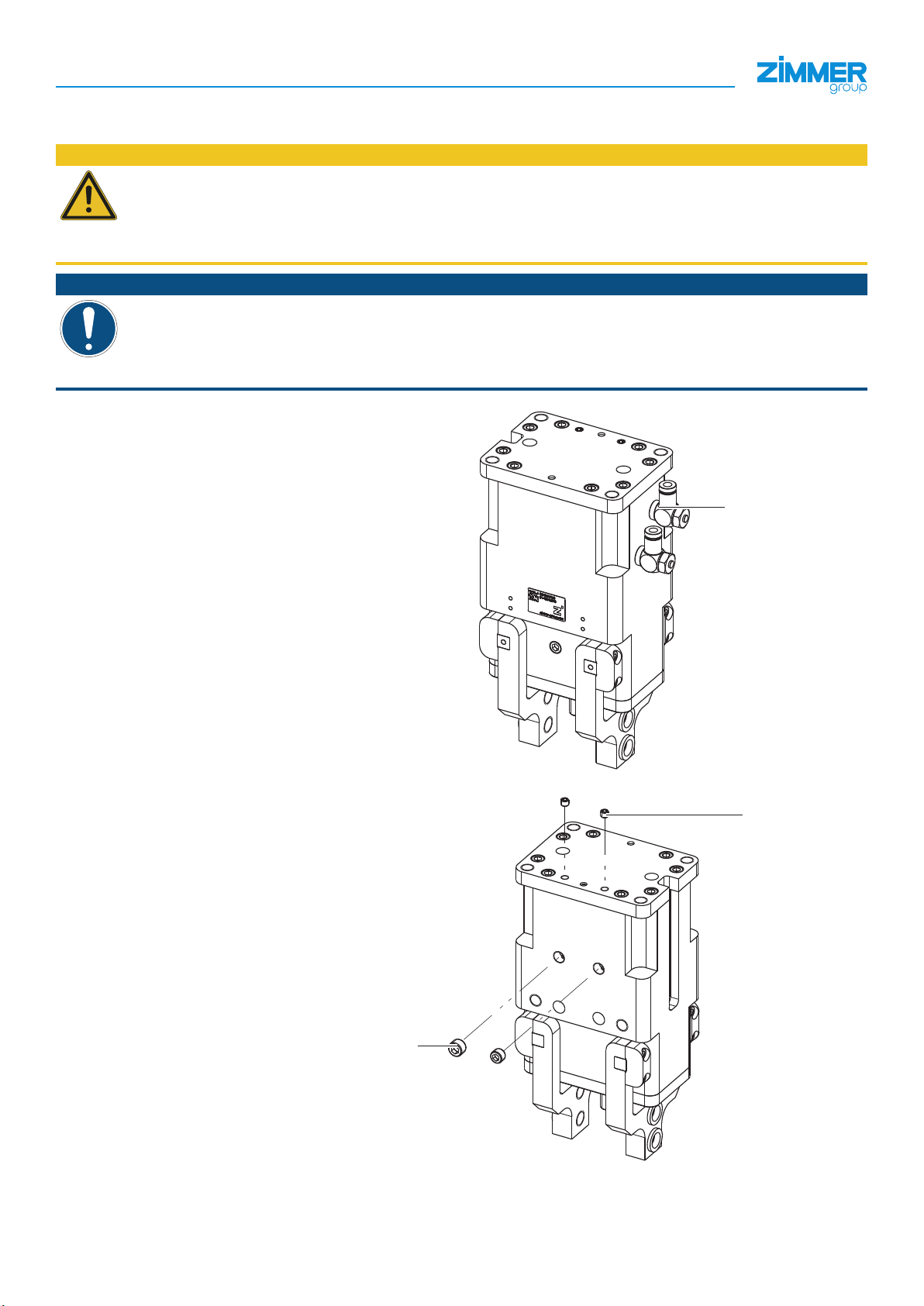

►Mount the pneumatic hoses in the screw
ttings.
bl
bl Screwtting
External throttling is required in case of an
alternative connection. bm
bm
►Unscrew the grub screws.
►Insert suitable O-rings into the mounting
piece.
bm Grub screw
INSTALLATION AND OPERATING INSTRUCTIONS:GG4000
DDOC00273 / c EN / 2022-07-20
Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • [phone] • www.zimmer-group.com

12
10.3 Installing accessories
NOTICE
Before installing an accessory, make sure it is suitable for use with the selected variant.
►Youcanndinformationonourwebsite.
►Please contact Zimmer Customer Service if you have any questions.
11 Maintenance
Maintenance-free operation of the product is guaranteed for up to 10 million cycles.
►Even though the product is maintenance-free as mentioned above, perform a regular visual inspection to check for any
corrosion, damage or contamination.
►Have maintenance work be performed by Zimmer Customer Service whenever possible.
ÖDismantling and reassembling the product without authorization may result in complications, as special installation
equipment is required in some cases. Zimmer GmbH accepts no liability for any resulting malfunctions or damage.
12 Decommissioning/disposal
INFORMATION
When the product reaches the end of its operational phase, it can be completely disassembled and disposed of.
►Disconnect the product completely from the power supply.
►Dispose of the components properly according to the material groups.
►Comply with the locally applicable environmental and disposal regulations.
INSTALLATION AND OPERATING INSTRUCTIONS:GG4000
DDOC00273 / c EN / 2022-07-20
Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • [phone] • www.zimmer-group.com

13
13 Declaration of Incorporation
In terms of the EU Machinery Directive 2006/42/EC (Annex II 1 B)
Name and address of the manufacturer:
Zimmer GmbH
Im Salmenkopf
77866 Rheinau, Germany
[phone]
[email protected]
www.zimmer-group.com



We hereby declare that the incomplete machine described below
Product designation: 2-jaw angular gripper
Type designation: GG4000 series
conform to the requirements of the Machinery Directive, 2006/42/EC, Article 2g, Annex VII.b – Annex II.b, in its design and
the version we put on the market.
Basic health and safety requirements:
No. 1.1.2, No. 1.1.3, No. .1.5, No. 1.3.2, No. 1.3.4, No. 1.3.7, No. 1.5.3, No. 1.5.4, No. 1.5.8, No. 1.6.4, No. 1.7.1, No. 1.7.4
A full list of applied standards can be obtained from the manufacturer.
WealsodeclarethatthespecictechnicaldocumentswereproducedinaccordancewithAnnexVIIPartBofthisDirective.
We undertake to provide the market supervisory bodies with electronic versions of special documents for the incomplete
machine through our documentation department, should they have reason to request them.
The incomplete machine may only be commissioned if it has been ascertained, if applicable, that the machine or
system in which the incomplete machine is to be installed satises the requirements of Directive 2006/42/EC on
Machinery and an EC Declaration of Conformity has been drawn up in accordance with Annex II 1 A.
Kurt Ross Rheinau, Germany, 2021-12-01
Authorized representative for the
compilation of relevant technical
documents
(Place and date of issuance) Martin Zimmer
(Legally binding signature)
Managing Partner
INSTALLATION AND OPERATING INSTRUCTIONS:GG4000
DDOC00273 / c EN / 2022-07-20
Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • [phone] • www.zimmer-group.com
