ZION EXECUTIVE User manual

PARTS DESCRIPTION
COLOR
Onyx Black
VOLTAGE
220 V
NW/GW
135 KG
MEAS
158.5 x 83 x 122 cm
SHOULDER AIRBAG
ARM AIRBAG
LEG AIRBAG
FOOT AIRBAG
SEAT CUSHION
BLUETOOTH SPEAKER
MONITOR
ARMREST
WHEEL
SHORTCUT KEYS
WAIST AIRBAG
POWER BOX
1

SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed,
including the following: Read all instructions before using.
DANGER - To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after
using and before cleaning.
Never use pins or other metallic fasteners with this appliance.
Carefully examine the covering before each use. Discard the appliance if the
covering shows any sign of deterioration, such as checking, blistering, or
cracking.
WARNING - To reduce the risks of burns, fire, electric shock or injury to persons:
An appliance should never be left unattended when plugged in. Unplug from
outlet when not in use, and before putting on or taking off parts
Close supervision is necessary when this appliance is used by, on, or near
children, or disabled persons
Use this appliance only for its intended use as described in this manual. Do not
use attachments that have not been recommended by the manufacturer.
Never operate this appliance if it has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or dropped into water.
Return the appliance to a service center for examination and repair.
Do not carry this appliance by the supply cord or use the cord as a handle.
Keep the cord away from heated surfaces
Never operate the appliance with the air openings blocked. Keep the air
openings free of lint, hair, and the like
Never drop or insert any object into any opening.
Do not use outdoors.
Do not operate where aerosol (spray) products are being used or where
oxygen is being administered.
To disconnect, turn all controls to the off position, then remove plug from
outlet.
Keep children away from the extended foot support
Connect this appliance to a properly grounded outlet only. See Grounding
Instructions.
Use heated surfaces carefully. May cause serious burns. Do not use over
insensitive skin areas or in the presence of poor circulation. The unsupervised
use of heat by children or disabled persons may be dangerous
Do not operate under a blanket or pillow. Excessive heating can occur and
cause fire, electric shock, or injury to persons.
2

GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or break
down, grounding provides a path of least resistance for the electric
current to reduce the risk of electric shock.
This product is equipped with a cord with an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Danger-Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the
plug provided with the product - if it will not fit the outlet, have a
proper outlet installed by a qualified electrician.
Grounding Pin
SAFETY INSTRUCTIONS
Grounded
Outlet Box
Grounded
Outlet

OPERATING SURROUNDINGS
Do not use or store the massage chair in a damp environment: i.e. bathroom,
sauna, spa to avoid any mold, electric shock, fire or mechanical failure.
Do not use the massage chair outdoors.
Do not use the massage chair under dusty, smeary, or anoxic conditions.
Do not place the massage chair near a heater, stove, or near sunlight radiation
to avoid inner components overheating and causing fire.
Make sure to place the massage chair on a flat level ground.
The bracket part should be placed on the plain ground.
To avoid electric shock, please make sure to connect an earth wire and have it
grounded.
Don't use the machine while smoking.
SAFETY INSTRUCTIONS
FOLLOWING CONDITIONS SHOULD CONSULT DOCTORS BEFORE USE
Suffered from malignant tumor
Serious heart disease
Serious skin disease
Serious boned hyperplasia
During pregnancy, be on the rest cure under the doctor's supervision
If there is a bend in the back caused by an accident or disease
Needing peaceful surroundings
Arthritis Disease
Implanted pacemaker for medical purpose
Suffered from bowels disease (i.e. gastritis, entritis, diarrhea, hepatitis)
Serious blood circulation trouble
Consciousness trouble
In hyperpyretic
Children under the age of 18 or people with disabilities
(physical and mental) are not allowed to operate the
massage chair without a doctors consent to prevent cases
of electric shock, injuries, or mechanism malfunctions.
4

Non-professional technicians are not allowed to dismantle or
repair the chair to avoid fire, electrical shock or serious harm.
Do not spray or directly pour liquids to the switch when cleaning to
avoid insolation fault, electrical shock or short-circuiting.
When moving the chair in the process of storing or maintenance,
be sure to disconnect the power plug from socket. Do not detach
the plug with wet hands.
Make sure to shut off and detach the power plug when cleaning or
storing product. During cleaning or moving the machine, make
sure to detach power cord to avoid fire or electrical shock .
Do not place the machine onto an unstable surface to avoid
roasting, insulation failure, electrical shock or turnover. When
storing the machine, make sure to disconnect power plug to avoid
fire caused by electricity leaking. Unexpected earthquake or
external force may also cause damage or injury.
Clean power plug periodically to avoid fire due to dust.
Do not use it in any unsafe places or for other purposes. It is the
main reason of product damage or accident.
Keep supply cord unobstructed at all time, i.e. not twisted, knotted,
over flexed or pulled and do not place anything heavy on it.
The appliance has a heated surface. Persons insensitive to heat
must be careful when using the appliance.
SAFETY INSTRUCTIONS
For safety reasons and in order to clearly indicate potential dangers
should the product be used improperly, instructions have been
marked in the following manners and should be strictly noted.
CAUTIONS
5

Do not store it near a fire or flammable substances. It is one of the
reasons of causing product manipulation, deviation, or damage .
Should any abnormality occur(i.e. scorching smell), stop using
immediately and detach power plug from socket. Operating under
an abnormal situation will cause fire or electrical shock, please
contact your local seller or authorized service agent for
maintenance.
Only rated voltage must be used (220 V).
Be sure to keep children away during operating to avoid any
hazard.
If the supply cord is damaged, it must be replaced by the
manufacturer or its authorized persons for repair or maintenance
to avoid any hazard.
CAUTIONS
SAFETY INSTRUCTIONS
6

SAFETY INSTRUCTIONS
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure
requirement. The device can be used in portable exposure
condition without RF striction. Changes or modifications not
approved by the party responsible for compliance could void
the users authority to operate the equipment. This equipment
has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician
for help.
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. In order to avoid the
possibility of exceeding the FCC radio frequency exposure limits,
Human proximity to the antenna shall not be less than 20cm (8
inches) during normal operation.
7

INSTALLATION GUIDE
Leg Rest Installation
In order to install the footrest make sure that the connecting axis points of the footrest lines
up with the seat base as shown in the diagram below. Once aligned tighten the "fixed
screw". An Install video will be available online for more detailed instructions. Once
completed connect the electrical wire and air pipe as shown in the left illustration.
As a final step make sure the air hose is not bent or twisted anywhere before zippering up
the seat cushion to the leg rest.
MOVING THE MASSAGE CHAIR
When moving the chair, one person
should tilt the back and the other lift
up the footrest to 45 degrees. Then
push the chair forward via casters.
The back should not be reclined too
low in case of the chair falling down
and causing damage and harm to
property or persons.
Please grasp the bottom of the
side plate (not the base) with your
hands and lift it up.
Due to the heavy weight, the chair
must be carried by two or more
people. Also please be careful
when handling to avoid back
strain.
8

ATTENTION
MOVING THE MASSAGE CHAIR
Do not drag or push the chair when it is not installed.
Do not hold the plastic parts of the foot cover and power box for moving.
Otherwise, it is easy to cause machine failure or personal injury.
Do not move the chair when someone is seated. Otherwise, it may cause
malfunction or personal injury
Before moving the machine, please turn off the chair (backrest & footrest
will go back to original position) and unplug the power cord. Otherwise, it
may cause malfunction or personal injury.
It is recommended to lay a cushion on the floor in case of scratching by
casters when
CHAIR PLACEMENT
When placing your massage chair, be sure to leave 6 in. of space
between the chair back and wall to allow it to recline safely.
When using the massage chair, ensure there are no people, pets, or
objects within 6 in. of the chair to allow the footrest to extend safely.
9
12 INCHES
12 INCHES

ATTENTION
CHAIR PLACEMENT
Do not use in places with high humidity such as bathrooms or saunas.
Please use on a flat and non-slippery ground.
Do not use in a place with a lot of debris or dust, or a place with high
surrounding temperature (above 40°C).
Do not place the unit under direct sunlight or near high-temperature
places such as heating appliances.
Do not let flames such as cigarettes near the massage chair.

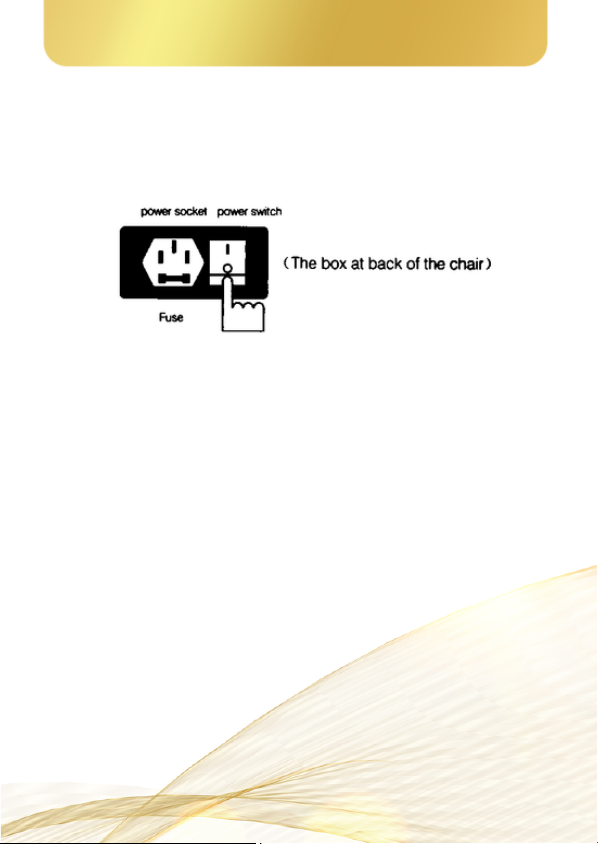

Connecting the Power Cord
Insert the power cord into the chair's power socket, then plug the cord
into a grounded wall outlet.
Turn the power switch to the ON ( I ) position.
10

1)The connecting password for Bluetooth is "------" if there is. The default
setting is without password.
2)The Bluetooth speaker could only connect with one Bluetooth device at a
time. Please turn off your Bluetooth device so others could enjoy it as well.
SETTING FAVOURITESMANUAL
POWER BUTTONTOUCH SCREEN
CONTROLLER PANEL
Bluetooth & Music Function
• Open your mobile device Bluetooth function and pair with the
chair Bluetooth code "BK8000L" then you could play the music via
speakers.
11

3. Choose your prefrered massage program
Zion Executive has 24 massage programs that perfectly made
and customized on what your body needs. After clicking the
power button the massage chair will automatically scan your
body shape.
2. Starting your Massage
Sit in the chair, then press the power button of controller panel or in
shortcut keys.
HOW TO USE
1. Turning On the Massage Chair
First, be sure that the Power Switch is in the off "O” position. Then insert the
power cable into the port of socket. Once firmly plugged in, proceed to plug
the power cord into the outlet. Then flip the switch to the on " I " position,
and the power switch should light up.
A Warning: Do not insert or pull out the power plug with
wet hands, otherwise an electric shock would happen.
12

HOW TO USE
13
DIFFERENT MASSAGE PROGRAMS

KEYS
NAME
FUNCTION
CEO
Massage Program
Massage program that can relieve the
pain in your head, neck, back, arms, and
legs because of all the day's work.
House Wife
Massage Program
Massage program that can relax and
loosen the muscles that may be made
sore by poor postures.
Office Clerk
Massage Program
Massage program that is suitable for
people who want to relieve stress by
increasing endorphin levels, which helps
you reduce pain and discomfort
Game Players
Massage Program
Massage program that is suitable for
people who want to ease their back
aches, tired hands and also to relive
their headache.
Drivers
Massage Program
Massage program that targets the deep
tissue by applying pressure all over the
body.
HOW TO USE
14
DIFFERENT MASSAGE PROGRAMS

KEYS
NAME
FUNCTION
Sports Man
Massage Program
Massage program that targets the
deeper layers of tissue and muscle.
Relieve muscle tension and reduce
soreness.
Shoppers
Massage Program
Massage program designed to keep the
muscles flexible, strong, and healthy
Home Body
Massage Program
Massage program with kneading,
tapping and full body air pressure
massage with quicker speed.
Crown
Massage Program
Massage program with kneading,
tapping and full body air pressure
massage with slower speed.
Stretch
Massage Program
Slower-paced massage delivers a
soothing intensity with full airbag
massage.
Recovery
Massage Program
Massage program that applies heavy
pressure onto muscles and deep tissues
to relieve built-up knots and tension.
Soothe
Massage Program
Massage program that matches the
natural shape of the spine in order to hit
all areas of tension and realign the body
from the neck down to the lumbar
region.
HOW TO USE
14

KEYS
NAME
FUNCTION
Morning
Massage Program
Massage program that lowers blood
pressure, decreasing inflammation, and
increasing relaxation and digestive
response.
Night
Massage Program
Massage program that can relax your
body and mind to achieve a good night's
sleep by giving you a soft and relaxing
massage.
Stress
Massage Program
Massage program that increases
endorphin levels has been correlated
with quicker recovery and reviving the
body from any pain and stress.
Energize
Massage Program
Massage program that works on your
upper back and neck, increasing oxygen,
reducing muscle fatigue and
maintaining healthy muscles.
HOW TO USE
14

HOW TO USE
POSITION TAB
Every time you enter in any massage position program you can on the
heating mode, leg rolling, air massage and add it to your favorites.
Also, you can adjust the strength and massage time from 5 minutes to
35 minutes.
The Position tab allows you to choose which specific part of your body
only needs a massage. There are 8 massage position that are
exclusively available in Zion Executive.
15
In Position tab you will see the 8 massage
position, there are:
Neck
Neck & Shoulder
Back Relief
Waist
Waist & Hip
Leg Relax
Upper Body
Lower Body

4D FORCE
4D force is an adjustment of the rollers speed. You can adjust it from one to 6
intensity that depends on what your body prefer.
CORE POWER
Core Power is an adjustment of the strength in the whole massage program.
You can adjust it from one to five intensity that depends on what your body
prefer.
AIR LEVEL
Air Level is an adjustment of the strength of airbags. You can adjust it from
one to five strength that depends on what your body prefer.
ROLLING FORCE
Rolling force is an adjustment of the rollers strength. You can adjust it from
one to five strength intensity that depends on what your body prefer.
HOW TO USE
Massage Strength Adjustment
16
In massage status page, press the key [ ] to the massage strength page.

HOW TO USE
16
Massage Chair Adjustment
In massage status page, press the key [ ] to the chair controller.
Massage Time Adjustment
In massage status page, press the key [ ] to adjust the time.
Zion Deluxe can adjust the massage time from 5 minutes is the
shortest massage time to 30 minutes as the longest massage time.
Zion Deluxe massage time can adjust from 5 minutes to 30 minutes
with 5 minutes interval.
