ZION VIP User manual

PARTS DESCRIPTION
COLOR
Dark Gray
VOLTAGE
220 V
NW/GW
85 kg / 95 kg
MEAS
144 x 83.3 x 126.1 cm
SHOULDER AIRBAG
ARM AIRBAG
LEG AIRBAG
FOOT AIRBAG
SEAT CUSHION
BLUETOOTH SPEAKER
MONITOR
ARMREST
WHEEL
SHORTCUT KEYS
WAIST AIRBAG
POWER BOX
1

SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed,
including the following: Read all instructions before using.
DANGER - To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after
using and before cleaning.
Never use pins or other metallic fasteners with this appliance.
Carefully examine the covering before each use. Discard the appliance if the
covering shows any sign of deterioration, such as checking, blistering, or
cracking.
WARNING - To reduce the risks of burns, fire, electric shock or injury to persons:
An appliance should never be left unattended when plugged in. Unplug from
outlet when not in use, and before putting on or taking off parts
Close supervision is necessary when this appliance is used by, on, or near
children, or disabled persons
Use this appliance only for its intended use as described in this manual. Do not
use attachments that have not been recommended by the manufacturer.
Never operate this appliance if it has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or dropped into water.
Return the appliance to a service center for examination and repair.
Do not carry this appliance by the supply cord or use the cord as a handle.
Keep the cord away from heated surfaces
Never operate the appliance with the air openings blocked. Keep the air
openings free of lint, hair, and the like
Never drop or insert any object into any opening.
Do not use outdoors.
Do not operate where aerosol (spray) products are being used or where
oxygen is being administered.
To disconnect, turn all controls to the off position, then remove plug from
outlet.
Keep children away from the extended foot support
Connect this appliance to a properly grounded outlet only. See Grounding
Instructions.
Use heated surfaces carefully. May cause serious burns. Do not use over
insensitive skin areas or in the presence of poor circulation. The unsupervised
use of heat by children or disabled persons may be dangerous
Do not operate under a blanket or pillow. Excessive heating can occur and
cause fire, electric shock, or injury to persons.
2

GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or break
down, grounding provides a path of least resistance for the electric
current to reduce the risk of electric shock.
This product is equipped with a cord with an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Danger-Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the
plug provided with the product - if it will not fit the outlet, have a
proper outlet installed by a qualified electrician.
Grounding Pin
SAFETY INSTRUCTIONS
Grounded
Outlet Box
Grounded
Outlet
3

OPERATING SURROUNDINGS
Do not use or store the massage chair in a damp environment: i.e. bathroom,
sauna, spa to avoid any mold, electric shock, fire or mechanical failure.
Do not use the massage chair outdoors.
Do not use the massage chair under dusty, smeary, or anoxic conditions.
Do not place the massage chair near a heater, stove, or near sunlight radiation
to avoid inner components overheating and causing fire.
Make sure to place the massage chair on a flat level ground.
The bracket part should be placed on the plain ground.
To avoid electric shock, please make sure to connect an earth wire and have it
grounded.
Don't use the machine while smoking.
SAFETY INSTRUCTIONS
FOLLOWING CONDITIONS SHOULD CONSULT DOCTORS BEFORE USE
Suffered from malignant tumor
Serious heart disease
Serious skin disease
Serious boned hyperplasia
During pregnancy, be on the rest cure under the doctor's supervision
If there is a bend in the back caused by an accident or disease
Needing peaceful surroundings
Arthritis Disease
Implanted pacemaker for medical purpose
Suffered from bowels disease (i.e. gastritis, entritis, diarrhea, hepatitis)
Serious blood circulation trouble
Consciousness trouble
In hyperpyretic
Children under the age of 18 or people with disabilities
(physical and mental) are not allowed to operate the
massage chair without a doctors consent to prevent cases
of electric shock, injuries, or mechanism malfunctions.
4

Non-professional technicians are not allowed to dismantle or
repair the chair to avoid fire, electrical shock or serious harm.
Do not spray or directly pour liquids to the switch when cleaning to
avoid insolation fault, electrical shock or short-circuiting.
When moving the chair in the process of storing or maintenance,
be sure to disconnect the power plug from socket. Do not detach
the plug with wet hands.
Make sure to shut off and detach the power plug when cleaning or
storing product. During cleaning or moving the machine, make
sure to detach power cord to avoid fire or electrical shock .
Do not place the machine onto an unstable surface to avoid
roasting, insulation failure, electrical shock or turnover. When
storing the machine, make sure to disconnect power plug to avoid
fire caused by electricity leaking. Unexpected earthquake or
external force may also cause damage or injury.
Clean power plug periodically to avoid fire due to dust.
Do not use it in any unsafe places or for other purposes. It is the
main reason of product damage or accident.
Keep supply cord unobstructed at all time, i.e. not twisted, knotted,
over flexed or pulled and do not place anything heavy on it.
The appliance has a heated surface. Persons insensitive to heat
must be careful when using the appliance.
SAFETY INSTRUCTIONS
For safety reasons and in order to clearly indicate potential dangers
should the product be used improperly, instructions have been
marked in the following manners and should be strictly noted.
CAUTIONS
5

Do not store it near a fire or flammable substances. It is one of the
reasons of causing product manipulation, deviation, or damage .
Should any abnormality occur(i.e. scorching smell), stop using
immediately and detach power plug from socket. Operating under
an abnormal situation will cause fire or electrical shock, please
contact your local seller or authorized service agent for
maintenance.
Only rated voltage must be used (220 V).
Be sure to keep children away during operating to avoid any
hazard.
If the supply cord is damaged, it must be replaced by the
manufacturer or its authorized persons for repair or maintenance
to avoid any hazard.
CAUTIONS
SAFETY INSTRUCTIONS
6

SAFETY INSTRUCTIONS
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure
requirement. The device can be used in portable exposure
condition without RF striction. Changes or modifications not
approved by the party responsible for compliance could void
the users authority to operate the equipment. This equipment
has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician
for help.
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. In order to avoid the
possibility of exceeding the FCC radio frequency exposure limits,
Human proximity to the antenna shall not be less than 20cm (8
inches) during normal operation.
7

INSTALLATION GUIDE
Leg Rest Installation
In order to install the footrest make sure that the connecting axis points of the footrest lines
up with the seat base as shown in the diagram below. Once aligned tighten the "fixed
screw". An Install video will be available online for more detailed instructions. Once
completed connect the electrical wire and air pipe as shown in the left illustration.
As a final step make sure the air hose is not bent or twisted anywhere before zippering up
the seat cushion to the leg rest.
MOVING THE MASSAGE CHAIR
When moving the chair, one person
should tilt the back and the other lift
up the footrest to 45 degrees. Then
push the chair forward via casters.
The back should not be reclined too
low in case of the chair falling down
and causing damage and harm to
property or persons.
Please grasp the bottom of the
side plate (not the base) with your
hands and lift it up.
Due to the heavy weight, the chair
must be carried by two or more
people. Also please be careful
when handling to avoid back
strain.
8

ATTENTION
MOVING THE MASSAGE CHAIR
Do not drag or push the chair when it is not installed.
Do not hold the plastic parts of the foot cover and power box for moving.
Otherwise, it is easy to cause machine failure or personal injury.
Do not move the chair when someone is seated. Otherwise, it may cause
malfunction or personal injury
Before moving the machine, please turn off the chair (backrest & footrest
will go back to original position) and unplug the power cord. Otherwise, it
may cause malfunction or personal injury.
It is recommended to lay a cushion on the floor in case of scratching by
casters when
CHAIR PLACEMENT
When placing your massage chair, be sure to leave 6 in. of space
between the chair back and wall to allow it to recline safely.
When using the massage chair, ensure there are no people, pets, or
objects within 6 in. of the chair to allow the footrest to extend safely.
9
12 INCHES
12 INCHES

ATTENTION
CHAIR PLACEMENT
Do not use in places with high humidity such as bathrooms or saunas.
Please use on a flat and non-slippery ground.
Do not use in a place with a lot of debris or dust, or a place with high
surrounding temperature (above 40°C).
Do not place the unit under direct sunlight or near high-temperature
places such as heating appliances.
Do not let flames such as cigarettes near the massage chair.
Connecting the Power Cord
Insert the power cord into the chair's power socket, then plug the cord
into a grounded wall outlet.
Turn the power switch to the ON ( I ) position.
10

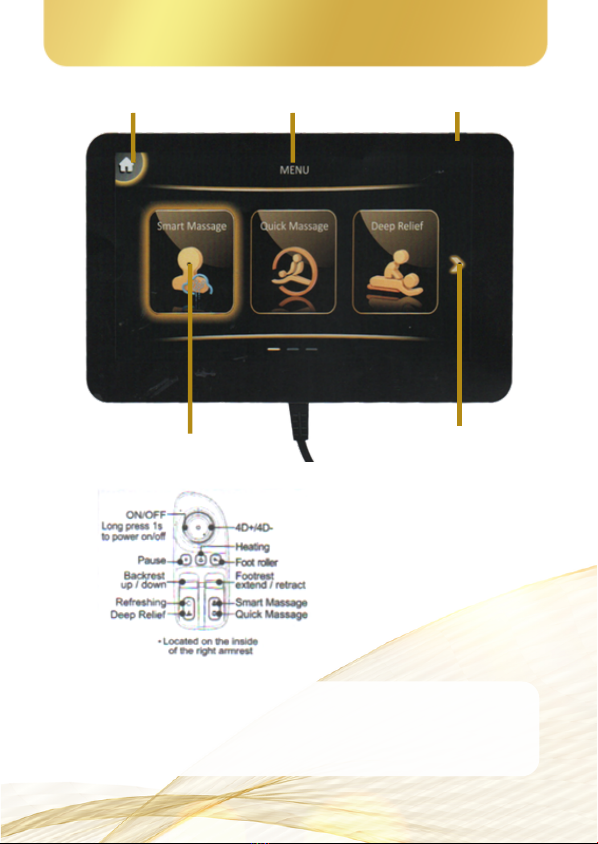

POWER BUTTONTOUCH SCREENHOME PAGE
TOUCH KEY NEXT PAGE
CONTROLLER PANEL
Bluetooth &
Music Function
• Open your mobile device
Bluetooth function and
pair with the chair
Bluetooth code "BK8000L"
then you could play the
music via speakers.
1)The connecting password for Bluetooth is "9999" if there is. The default
setting is without password.
2)The Bluetooth speaker could only connect with one Bluetooth device at a
time. Please turn off your Bluetooth device so others could enjoy it as well.
11

Press the home page [ ] key on controller panel to return the main
menu.
3. Automatic Massage Program Introduction
Operation Method:
1.
2. Press [ ] key to select Auto program menu, then choose the Auto
program menu, then choose the Auto program to start. The back rollers
will detect shoulder position automatically. When you hear "beeping", the
detection is finished, at this moment it allows to press up or down [ ]
key to adjust a more accurate shoulder position as you need, then press
[ ] key to start massage.
2. Starting your Massage
Sit in the chair, then press the power button of controller panel and select a
massage.
HOW TO USE
1. Turning On the Massage Chair
First, be sure that the Power Switch is in the off "O” position. Then insert the
power cable into the port of socket. Once firmly plugged in, proceed to plug
the power cord into the outlet. Then flip the switch to the on " I " position,
and the power switch should light up.
A Warning: Do not insert or pull out the power plug with
wet hands, otherwise an electric shock would happen.
12

HOW TO USE
13

3. Lumbar Heating: Press [ ] key to start heating. Press again to close.
4. Foot Roller: Press [ ] to start foot rolling massage. Press again to close.
5. 4D Function Adjustment: Press [ ] or [ ] to adjust the 4D roller
strength. There are total 5 levels adjustments.
KEYS
NAME
FUNCTION
Smart
Massage Program
Massage program with kneading,
tapping and full body air pressure
massage.
Quick
Massage Program
Massage program with kneading,
tapping and full body air pressure
massage with quicker speed.
Deep Relief
Massage Program
Massage program with kneading,
tapping and full body air pressure
massage with slower speed.
Refreshing
Massage Program
Slower-paced massage delivers a
soothing intensity with full airbag
massage.
Stretching
Massage Program
Performs a series of grab, hold and
stretch sequences while the back and
leg rest move up and down. Helps with
muscle recovery and benefits of
stretching.
HOW TO USE
14

KEYS
NAME
DESCRIPTION
All
All massage options
Theme
Specialty program for Office,
Phubber, Driver, Housework,
Chess.
Scenes
Specialty program for Morning,
Afternoon, Night
Healthcare
Specialty program for Man,
Lady, Elderly.
Age
Specialty program for Youth,
Middle-aged, Elderly.
HOW TO USE
Automatic Course
More
Professional
Options
Above the program massage time by default to 15 minutes, the setting
value of the air pressure is moderate, can choose the "strength" key to
adjust the pressure intensity.
Automatic massage programs including the following massages. Each
program massage different locations: kneading finger, pressing,
beating, soft hammer, and pressure.
15

1) Auto off: The massage chair will stop working automatically after 15
minutes. All auto programs timer is 15 minutes in default setting.
2) Forced stop: Press the key [ ] once, the massage chair will stop working.
Press the key [ ]to re-start massage.
3) End the massage: In the massage status page, press the key [ ] to end
the massage.
* Please wait the leg rest to return to its original position before standing up
to avoid damaging the foot parts due to the whole body's weight. After
using the massage chair, please turn off the power switch, and pull the
power cord plug out from the power socket.
HOW TO USE
Massage Strength Adjustment
In massage status page, press the key [ ] to the massage strength page.
Massage Angle Adjustment
In massage status page, press the key [ ] to the massage angle
adjustment page. Note: Press the key once to start, press again to stop.
ZERO GRAVITY BUTTON
In massage angle status page, press the key [ ] to the zero gravity
massage position 1, and press again to zero gravity massage position 2,
press three times to close.
Pause or Stop the Massage
16

DAILY CARE AND MAINTENANCE
After using the massage chair, please turn off the power switch,
and pull the power cord plug out from the power socket
WARNING
Supervision and guidance is mandatory for those disabled montally and physically. Please
advise with your doctor before using the chair if you have ANY medical conditions. Children
under 18 should not use the chair and consult with a doctor for approval if attempted. Do not
operate the chair if there are any children or pets near by. Serious injuries may occur if those
instructions are not followed.
HOW TO USE
Manual Massage Program
Introduction of manual massage program
Operation method:
1) Press the [ ] home page button to return to main menu.
2) Press the [ ] left or right key and choose "Manual massage". There are
different massage methods for your selection, including Kneading, Shiatsu,
Swedish Knocking, Tapping, Rolling.
3) Press "Fixed-point", "Partial" or "Fullback" to choose different massage area.
4) Press "Width" to adjust the massage roller width.
5) Press "Up" and "Down" key to adjust the massage position.
6) In "Additional" option, there are "Heat therapy". Bluetooth music functions.
"The manual massage program is a massage program for a partial range of the body.
"The above manual massage programs are all independent programs and cannot be mixed
with other programs.
*The initial setting of all the above massage programs is fixed-point massage. Time setting
is 15 minutes. The default setting for speed and width is medium. You could adjust as you
need 17

KEYS
NAME
FUNCTION
Full Back
Full back massage
Partial
Massage in a specific range
Fixed Point
Massage in a fixed point
Width
Adjust the massage roller width
Up or Down
Up or down adjustment
Kneading
Kneading massage
Knocking
Knocking massage
Shiatsu
Shiatsu massage
Tapping
Tapping massage
Swedish
Swedish massage
Rolling
Rolling massage
Heating
Heating on waist
Bluetooth
Bluetooth speakers for music
HOW TO USE
7) Press the key [ ] to air massage option. There are Shoulder, Arm, Leg,
Waist, Thigh and Foot for your selection.
18

KEYS
NAME
FUNCTION
Shoulder
Shoulder air massage
Waist
Waist air massage
Arm
Arm air massage
Thigh
Thigh air massage
Leg
Leg/Calves air massage
Foot
Foot air massage
HOW TO USE
8) Press [ ] key to choose "Manual massage", and then choose
"Advanced massage" option. There are different massage modes for the
basic massage modes including Kneading, Tapping, Shiatsu and etc.
The above manual massage programs are all independent programs and
cannot be mixed with other programs.
The initial setting of all the above massage programs is fixed-point
massage. Time setting is 15 minutes. The default setting for speed and
width is medium. You could adjust as you need.
19
