Zorachka Homam User manual

© Zorachka Inc., 2020

2 3
Contents
What’s in the Box
Minimum Requirements
Quick Start Guide
Use Homam with Apple® HomeKit®
Troubleshooting
• Homam States via the Homam App
• Homam States on Apple HomeKit
Technical Specifications
Safety Information
Utilization Guide
Zorachka One-Year Limited Warranty Summary
Regulatory
• FCC Regulatory Statement
• ISED Compliance Notice
Support
Copyright and Trademark Notice
4
6
7
10
12
13
13
14
17
18
19
20
20
21
23
23

4 5
What’s in the Box
• Homam
• Magic Base
• Wall Mount Kit
• Power Adapter
• USB Cable
• User Manual
• Mounting Guide
• Welcome Card
• Lens Cleaning Cloth
• Branded Stickers
Review the Homam User Guide
at www.zorachka.com/support/guide.
Once you’ve paired your mobile device with Homam,
you can also review the guide in the Homam app.
Keep this documentation for future reference.
Before using Homam

6 7
Minimum
Requirements

and supporting Bluetooth 4.2 or higher
2.4/5GHz Wi-Fi router and a stable broadband
internet connection with an upload speed of
at least 3Mbps
Power outlet
Quick Start Guide
Please follow the steps below to perform the initial setup of your Homam.

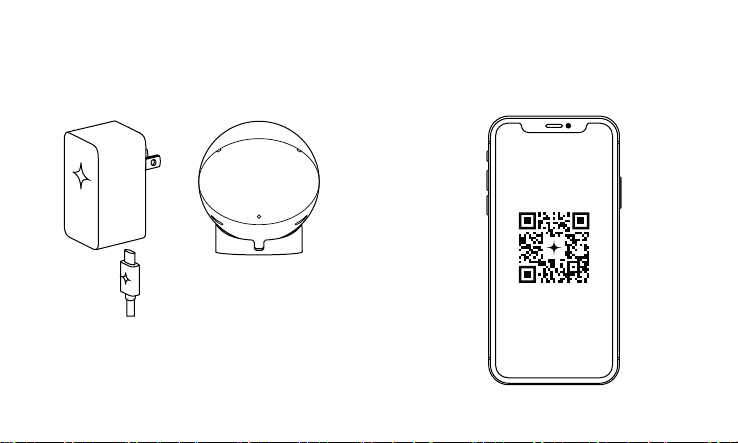

1. Plug either end of the USB cable into Homam and place it onto
the Magic Base.

8 9
2. Plug the other end of the USB cable into the power adapter.
Plug the power adapter into the power outlet.
3. Wait for Homam to boot. The status LED blinks green while loading
and blue when ready for pairing.
4. Go to the App Store or Google Play to download and install the Homam


the on-screen instructions.

10 11
Use Homam with
Apple®HomeKit®
1. Launch the Apple Home app.
2. Tap the plus sign at the top of the Home tab and then tap Add
Accessory.
3. Hold your iPhone® near Homam to activate NFC pairing as shown in
the picture below, or enter the eight-digit setup code on iPhone® or
iPad® from the sticker on the inner side of the box.
Homam is NFC-enabled
and its tag center is
behind the front lens.
4. Perform the accessory setup process (rename, assign to a room, add
to favorites, etc.)
5. Tap Done at top right.
Note: Homam pairing mode is disabled automatically after 5 minutes.
To enable it again, simply turn Homam upside down.

12 13
Troubleshooting
* A hard reset rolls Homam back to its default factory settings. This action
unpairs Homam, clears internal storage and deletes all previously saved
settings. To perform a hard reset, make sure Homam is powered up and
loaded, press and hold the reset button for about 10 seconds (you’ll see
the LED blinking red and hear the confirmation signal).
Homam
front view Homam
back view
Blinking bright GREEN
Blinking bright BLUE
Smooth breathing BLUE
Solid dim RED
Smooth breathing WHITE
Blinking RED (fast)
Blinking RED (slowly)
Homam is powered up and loading
Homam has loaded and is ready for pairing
Homam is pairing
Homam is paired and recording video to archive
Homam is updating firmware
A hard reset has been performed by the user*
Critical error; please contact service support
Homam’s status is shared via a built-in LED.
Note: The device is operated via the Homam app, the Apple Home app, or
both. The LED status indication may differ depending on whether Homam
is added to Apple HomeKit or not. If the same device is paired with both
Homam and Apple Home mobile apps, the indication system of Apple
Home takes precedence.
Homam States via the Homam App
Homam States on Apple HomeKit
Blinking bright GREEN
Blinking bright BLUE
Solid dim BLUE
Homam is powered up and loading
Homam has loaded and is ready for pairing
Homam is configured for live streaming
Solid bright RED
Smooth breathing WHITE
Blinking RED (fast)
Blinking RED (slowly)
Video stream is being watched via the Home app
Homam is updating firmware
A hard reset has been performed by the user*
Solid dim RED Homam is configured for recording to iCloud
Critical error; please contact service support
Both the Homam app and the Home app allow users to disable LED status
indications. If the indication system is disabled in the Home app, Homam’s
indication system is used. If both applications have indications disabled,
the status LED is always switched off regardless of Homam’s state.

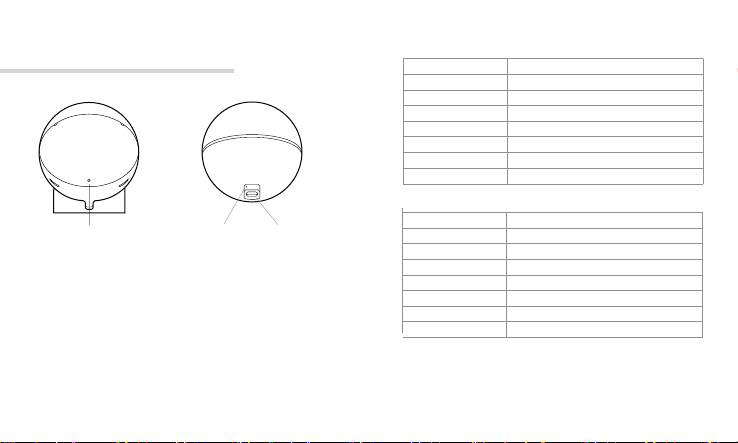

USB portReset buttonStatus LED
Solid bright RED
Video stream is being watched via the Homam app

14 15
Technical
Specifications
Camera
Case material: anodized aluminum
Color: anthracite gray
Indicator: RGB LED
Field of view: diagonal 156°, horizontal 134°, vertical 75°

Dimensions and weight




Power
Power adapter: USB, 5V, 1.5A
Average power consumption: 5W
Technology
Technology: multiprocessor system CPU Cortex-A9 Dual 600MHz

SDRAM memory: 1GB DDR3L 800MHz
Homam C1132
Sensor
Technology: Sony STARVIS back-illuminated color CMOS

Sensor size: 1/2.8’’

Wireless interfaces

Bluetooth 5.0
NFC
Night mode
IR lighting: 8 IR diodes
Day/night switcher: mechanical IR-cut filter


Audio (microphone)

Sampling rate: 48kHz

Signal-to-noise ratio: 74dB

Audio (speaker)

Input power: 1W per speaker

SPL (one speaker): 92dB

16 17
Codec


Storage
Memory: 64GB
Security: RSA/AES
Environmental requirements
Weather resistance: designed for indoor use


Safety Information
Before using Homam, review the Safety Information section of
the Homam User Guide at www.zorachka.com/support/guide. You can
also do that once you’ve paired your mobile device with Homam in
the Homam app. Please follow the safety information when operating
Homam. We cannot guarantee that no accidents or damage will occur
due to the improper use of Homam. Please use this product with care and
operate at your own risk. Also please follow these recommendations:
• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• When mounting Homam, before drilling into the wall, be sure that you
know the location of the in-wall pipes and wiring.
• The power adapter should be installed near the equipment and easily
accessible.
• Use only power adapters that are provided by the manufacturer and
in the original packaging of this product. Using a power adapter with
a different voltage rating than the one included with your product will
cause damage and void the warranty.
• Keep the device out of direct sunlight.
• Ensure at least 20 cm distance between Homam and people.
• Keep Homam and all its components out of reach of children and pets.

18 19
This symbol means that according to local laws
and regulations this product should not be disposed
of in household waste but sent for recycling. Please
take it to a collection point designated by your local
authorities once it has reached the end of its life –
some will accept products for free. By recycling
the product and its packaging in this manner you help
to conserve the environment and protect human health.
Utilization Guide Zorachka One-Year
Limited Warranty
Summary
Zorachka warrants the product contained in this packaging (including
accessories) against defects in material and workmanship when
the product is used normally for its intended purposes. The length of
the limited warranty is one year from the date of purchase. Zorachka
does not warrant against normal wear and tear, nor damage caused
by accident or abuse, or if it has been used or maintained in a manner
not conforming to the Homam User Guide. If you submit a valid claim
under the limited warranty, Zorachka will, at its sole discretion, either
(a) replace your Zorachka product with a new similar Zorachka product;
(b) accept the return of the Zorachka product and refund the full
purchase price of your Zorachka product; or (c) repair the Zorachka
product using new or previously used parts that are equivalent to new
in performance and reliability. The full terms of this limited warranty
and detailed information are available at www.zorachka.com/legal, or

You may be required to furnish proof of purchase when making a claim
under this warranty. This limited warranty gives you specific legal
rights. You may also have other legal rights that vary by state, province,
or jurisdiction.

20 21
This device complies with part 15 of the FCC Rules. Operation is subject


including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved
by the party responsible for compliance could void the user’s authority to
operate the equipment.
Regulatory This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter. This equipment complies with FCC RF
radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of
20 centimeters between the radiator and your body.
This device contains licence-exempt transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent
appareil est conforme aux CNR d’Innovation, Sciences et Développement
économique Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
1. L’appareil ne doit pas produire de brouillage, et
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en compromettre le fonctionnement.
Restrictions
1. 
use to reduce the potential for harmful interference to co-channel
mobile satellite systems;
2. High-power radars are allocated as primary users (i.e. priority users)


FCC Regulatory Statement
ISED Compliance Notice

22 23
1. Les dispositifs fonctionnant dans la bande de 5 150 à 5 250 MHz sont
réservés uniquement pour une utilisation à l’intérieur afin de réduire
les risques de brouillage préjudiciable aux systèmes de satellites
mobiles utilisant les mêmes canaux;
2. Les utilisateurs de radars de haute puissance sont désignés
utilisateurs principaux (c.-à-d., qu’ils ont la priorité) des bandes de
5 250 à 5 350 MHz et de 5 650 à 5 850 MHz et, d’autre part, que
ces radars pourraient causer du brouillage et/ou des dommages aux

Caution: Exposure to Radio Frequency Radiation
1. To comply with the Canadian RF exposure compliance requirements,
this device and its antenna must not be co-located or operating
in conjunction with any other antenna or transmitter.
2. To comply with RSS 102 RF exposure compliance requirements,
a separation distance of at least 20 cm must be maintained between
the antenna of this device and all persons.
Attention: exposition au rayonnement radiofréquence
1. Pour se conformer aux exigences de conformité RF canadienne
l’exposition, cet appareil et son antenne ne doivent pas être co-
localisés ou fonctionnant en conjonction avec une autre antenne ou
transmetteur.
2. Pour se conformer aux exigences de conformité CNR 102 RF
exposition, une distance de séparation d’au moins 20 cm doit être
maintenue entre l’antenne de cet appareil et toutes les personnes.
www.zorachka.com/support

© Zorachka Inc., 2020. All rights reserved. Homam, Zorachka and
logos are trademarks of Zorachka Inc. and its affiliates, registered in
the U.S. and other countries.
Support
Copyright and
Trademark Notice
Use of the Works with Apple badge means that an accessory has been
designed to work specifically with the technology identified in the badge
and has been certified by the developer to meet Apple performance
standards. Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards. Apple, Apple Watch,
HomeKit, HomePod, iPad, iPad Air, and iPhone are trademarks of
Apple Inc. registered in the U.S. and other countries. tvOS is a trademark
of Apple Inc.

the United States and in other countries.

© Zorachka Inc., 2020
