Zte ZTEC339 Technical manual

Technical Document
Document Name: ZTEC339 Mobile Phone
After-sales Service Manual (Level 1) for India
Total: 35 Pages (cover included)
Drafted by Fu Yongjie
Checked by Wang Fei
Signedby
Standardizedby
Approvedby
ZTE CORPORATION

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
Amendment Record
Document No. Version
No.
Drafted/Amended
by Date Amendment
Reason
Main Amendment
Content
Fu Yongjie 2009-04-10 None None
yNote:
Fill in the table when amend the document.
Write None in the column of Amendment Reason and Main Amendment Content in
first edition.

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
Legal Information
The contents of this document are protected by copyright laws and international treaties.
Any reproduction or distribution of this document or any portion of this document, in
any form by any means, without the prior written consent of ZTE CORPORATION is
prohibited. Additionally, the contents of this document are protected by contractual
confidentiality obligations.
Copyright © 2009 ZTE Corporation
All rights reserved.

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
i
Contents
Chapter 1 Product Summary·······················································································································1
1.1 Standard Configuration ·····················································································································1
1.2 Specifications····································································································································1
1.3 Main Functions ·································································································································1
1.4 Model················································································································································2
Chapter 2 Function Test ······························································································································· 3
2.1 Function Test·····································································································································3
Chapter 3 Software Download·····················································································································4
3.1 Data Cable·········································································································································4
3.2 Install Cable Driver ···························································································································4
3.3 Install Download Platform·················································································································6
3.4 Software Download···························································································································7
Chapter 4 Disassembly ·······························································································································10
4.1 Exploded View ································································································································10
4.2 Disassembly Flow ··························································································································· 11
4.3 Disassembly Tools···························································································································12
4.4 Disassembly Steps···························································································································12
4.5 Composing ······································································································································17
Chapter 5 Principle and Mainboard ·········································································································18
5.1 Principle Block Diagram ·················································································································18
5.2 Basic Component Distribution ········································································································18
5.3 PCB Layout·····································································································································20
Chapter 6 Troubleshooting Flow Chart (Level 1) ····················································································22
6.1 Housing Failure·······························································································································22
6.2 Housing Failure·······························································································································22
6.3 Switching On Failure·······················································································································22
6.4 Hang················································································································································23
6.5 Automatically Switch Off················································································································23

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
ii
6.6 Charging Failure······························································································································24
6.7 Card Unidentified····························································································································24
6.8 No Transmitted Voice ······················································································································25
6.9 No Received Voice ··························································································································25
6.10 No Ring Tone ································································································································25
6.11 Vibration Failure····························································································································26
6.12 Key Failure····································································································································26
6.13 Display Failure······························································································································26
6.14 Keypad LED Failure ·····················································································································27
6.15 No Signal ······································································································································27
Chapter 7 Parts List···································································································································· 28
Appendix······················································································································································29
After-sales Technical Support Website ··································································································29

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
1
Chapter 1 Product Summary
1.1 Standard Configuration
SN Name QTY
1 Handset 1
2 Battery 1
3 Charger 1
4 User Manual 1
1.2 Specifications
zNetwork: CDMA
zFrequency range: TX 825-835MHz; RX 870-880MHz
zDimension: 104*46*14mm
zWeight: 70g (battery included)
zLCD: CSTN, 65K colors, 128*128 dots
zMemory: 64Mbit Flash, 16Mbit SRAM
zBattery capacity: 670mAh
zContinuous talk time: >160 hrs
zContinuous standby time: >160 min
1.3 Main Functions
zPhone book: 200 pieces
z32 polyphone tones; 20 ring tones for incoming call, 6 ring tones for short
message
zMemorize the latest 40 out call number
zMemorize the latest 40 incoming call number
zSupport language: English

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
2
zShort message: 100 for inbox/outbox
zOther: calculator, game, alarm clock, stopwatch
1.4 Model
Internal Model External Model
ZTEC339 ZTEC339

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
3
Chapter 2 Function Test
2.1 Function Test
zESN checking code: *#06#
zSoftware version checking code: *983*837#
zFunction test code: *983*0#
Input *983*0# to activate the function test mode, and the handset will do LCD
test →ring tone test→vibration test→keypad test→audio loop→earphone test
automatically.

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
4
Chapter 3 Software Download
yNote:
Each handset to be repaired should be upgraded to the latest version
The handset logos vary from country to country. We take one model of C339 handset
as an example in this document (for reference only).
3.1 Data Cable
C350 download data cable (code: IS013032)
3.2 Install Cable Driver
yNote:
Data cable driver: R52&VX USB Driver.exe
Be sure to install the cable driver before software download, otherwise you will fail to
do software download.
1. Double-click the icon.

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
5
2. The following is the main interface. Click Next.
3. Click Finish.

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
6
4. Connect data cable and computer, enter Computer Management to check the
port.
5. Checking path: right-click My Computer →click Manage →click Device
Manager →click Ports.
3.3 Install Download Platform
yNote:
Software version: DL_QSC6010V1.00.06
1. Double-click the icon.
2. The shortcut icon will appear after successful installation.

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
7
3.4 Software Download
yNote:
Make sure that the mobile phone can be switched on normally before software
download. Otherwise the mobile phone will fail to do software download.
Do not interrupt download in the process. Such interruption may cause switching on
failure.
The download process lasts 15 minutes.
1. Double-click the shortcut icon.
2. The main interface is as follows. Click Browse.

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
8
3. Select Bin Files (*.bin) →select correct software version →click Open.
4. Select correct port (connect the data cable and handset, the software version of the
handset will appear on the platform automatically), and click Start.

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
9

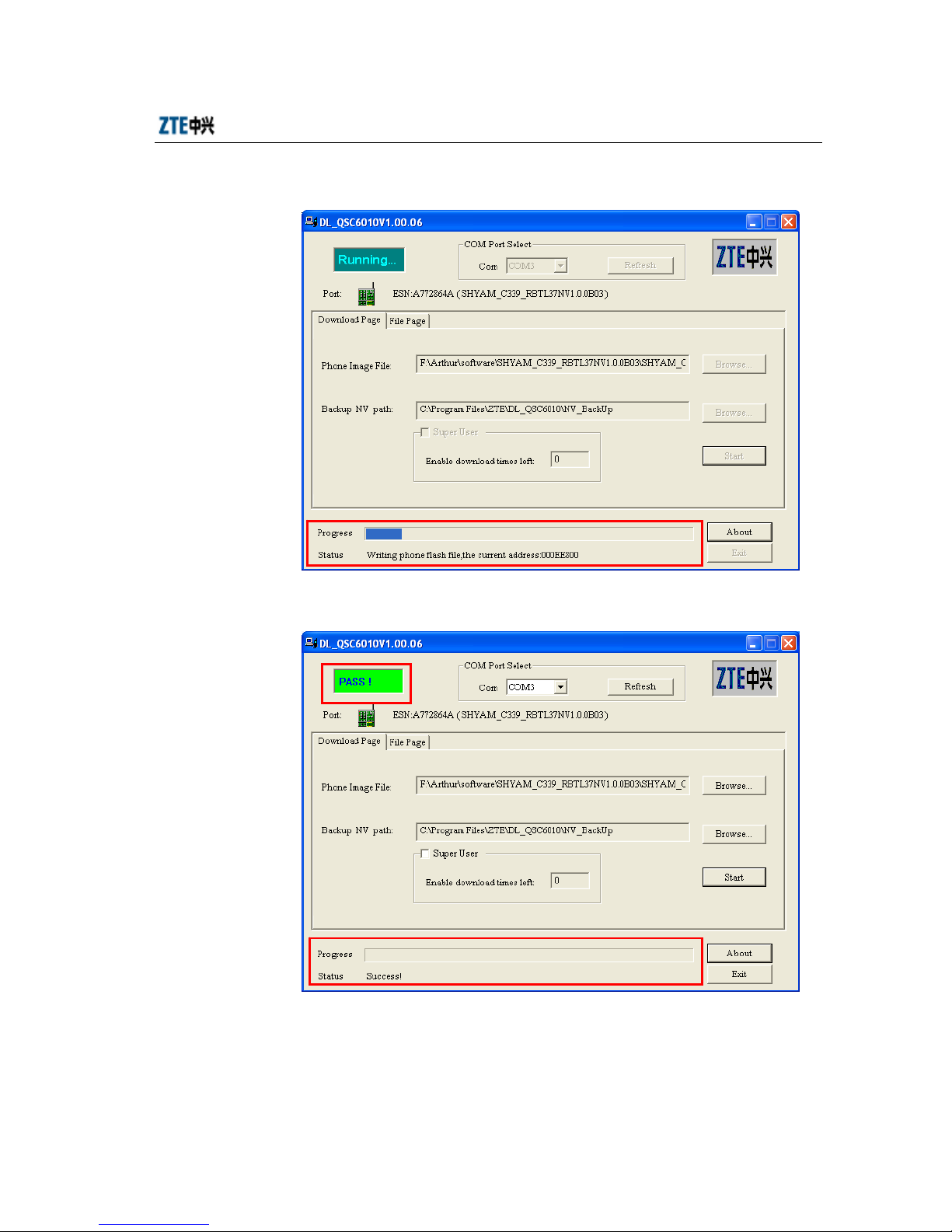

5. Downloading.
6. Download successfully.

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
10
Chapter 4 Disassembly
yNote:
The handset logos vary from country to country. We take one model of C335 handset
as an example in this document (for reference only).
4.1 Exploded View

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
11
SN Name SN Name
1Keypad 13 Shield cover
2Front cover 14 Microphone
3Back cover 15 Motor
4RF plug 16 Receiver
5Battery cover 17 Speaker conductive fabric
6Screw 18 3C universal label
7Mainboard 19 Model label
8DOME 20 Model label
9Internal antenna 21 Network access label
10 LCD 22 Waterproof label
11 Speaker conductive fabric 23 Anti-counterfeit label
12 Shield stand
4.2 Disassembly Flow

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
12
4.3 Disassembly Tools
4.4 Disassembly Steps
1. Take out the battery.

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
13
2. Screw off the four screws with screwdriver.
3. Disassemble the front/back covers with dismantle housing tool. Pay attention to
the position of locks during disassembly.
4. The position of locks.

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
14
5. The disassembled front/back covers. (the MIC should connect well with its
contact during assembly)
6. Take out the MIC with tweezers.

ZTEC339 Mobile Phone After-sales Service Manual (Level 1) for India
15
7. Screw off the two screws with screwdriver.
8. Loosen the two locks to disassemble the front cover and mainboard.
9. The disassembled front cover and mainboard (the receiver should connect well
with its contacts during assembly)
