1
ZTE AC570
EVDO USB Modem
User Guide

2
Contents
1 Modem Introduction....................................................4
1.1 Introduction....................................................... 4
1.2 Warning and Notice ........................................ 4
1.3 Applicability Scope......................................... 6
1.4 System requirements..................................... 6
1.5 Functions ........................................................... 6
1.6 Specification..................................................... 7
2 Installation.....................................................................8
2.1 Outline and Part Introduction...................... 8
2.2 Software Installation...................................... 8
2.3 Hardware Installation.................................. 12
2.4 Run the Application Software................... 13
2.5 Pull out Modem Safely................................. 13
2.6 Software Uninstall ........................................ 13
2.7 USB Disk Function ........................................ 14
3 Functions & Operation.............................................16
3.1 Interface introduction.................................. 16
3.1.1 Main Interface.......................................................16
3.1.2 Description of Mini Icons .....................................18
3.2 Connecting Internet...................................... 19
3.3 Dialing/Answering a call.............................. 20
3.4 SMS.................................................................... 22
3.4.1 Read SMS .............................................................23
3.4.2 Create new message..............................................24
3.4.3 The SMS box Operating Guide.............................26

3
3.4 Phonebook....................................................... 26
3.5 Settings ............................................................ 28
3.5.1 Network Settings...................................................29
3.5.2 Security Settings....................................................31
3.5.3 Network Settings...................................................32
3.5.4 Messages Settings .................................................33
3.5.5 Alert settings .........................................................33
3.6 Call History...................................................... 34
3.7 UTK.................................................................... 35
3.8 GPS .................................................................... 35
3.8.1 Get Position...........................................................35
3.8.2 User Settings.........................................................37
3.8.3 Restore Default......................................................37
4 FAQ & Answers...........................................................39

4
1 Modem Introduction
1.1 Introduction
Thank you for using ZTE MY69 USB Modem.
To guarantee the modem always in its best condition, please read this manual
carefully and keep it for further use.
The pictures, symbols and contents in this manual are just for your reference.
They might not be completely identical with your modem. We operate a policy of
continuous development. We reserve the right to update the technical
specifications in this document at any time without prior notice.
The ZTE CDMA2000 1X/EVDO USB Modem is a type modem suitable for
CDMA network. It adopts USB interface which provides an easy insert to
notebook PC. With the CDMA mobile network, it can help you carry out SMS,
data service and will help you break away from the limit of time and zone, and
realize wireless communication at any moment everywhere.
1.2 Warning and Notice
To the owner
Some electronic devices are susceptible to electromagnetic interference sent
by modem if inadequately shielded, such as electronic system of vehicles.
Please consult the manufacturer of the device before using the modem if
necessary.
Operating of notebook PC and modem may interfere with medical devices
like hearing aids and pacemakers. Please always keep them more than 20
centimeters away from such medical devices when they are turned on. Turn
the modem off if necessary. Consult a physician or the manufacturer of the
medical device before using the modem.
Be aware of the usage limitation when using a modem at places such as oil
warehouses or chemical factories, where there are explosive gases or
explosive products being processed. Therefore, turn off your modem if
required.
Don’t touch the inner antenna area if not necessary. Otherwise it will affect
your modem’s performance.
Store the modem out of the reach of little children. The modem may cause

5
injury if used as a toy.
Modem
Please use original accessories or accessories that are authorized. Using
any unauthorized accessories may affect your modem’s performance, and
violate related national regulations about telecom terminals.
Avoid using the modem near metallic structure device or establishment that
can emit electromagnet wave. Otherwise it may influence receiving signals.
The modem is non-waterproof type, please keep it dry and store in shady and
cool place.
Don’t use the modem immediately after a sudden temperature change. In
such case, it will produce dew inside and outside the modem, so don’t use it
until it becomes dry.
Take the modem carefully. Don’t lose, bend or cause it struck. Otherwise it
will lead to destruct damage.
No dismantling by non-professional and only qualified maintainer can
undertake repair work.
The FCC ID label is placed on the mobile phone clearly visible to all
persons at the time of purchase.
The user is cautioned that changes or modifications not expressly
approved by the manufacturer could void the user’s authority to operate
the equipment.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Do not attempt to disassemble the modem by
yourself. Non-expert handling of the devices may damage them.
For body-worn operation, this phone has been tested and meets
FCC RF exposure guidelines when the modem is positioned a
minimum of 15 mm from the body without any metal parts in the
vicinity of the handset.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio

6
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for
help.
1.3 Applicability Scope
CDMA USB modem supports the present mainstream types of notebook PCs,
such as HP, IBM, Toshiba, Lenovo, Dell, Founder, etc.
1.4 System requirements
Operating System：Windows 2000 / XP / Vista
Configuration (Recommended)：
CPU 200MHz Pentium or above
Hard Disk 30M or above
RAM 128M or above
The performance of the modem may be influenced if configuration under
recommended requirement.
1.5 Functions
Functions: SMS service, data service, applied management, data concurrence,
etc.

7
1.6 Specification
Networks CDMA 2000 1x / EVDO
Frequency
Band
CDMA 800MHz Cellular (UL824~849,DL869~894)
CDMA 1900MHz PCS (UL1850~1910,DL1930~1990)
Dimension 90.4mm*35mm*12.3mm
Weight About 35.2g
Data Rate Up to 3.1Mbps
Working
Voltage
5V（Using the notebook PC power supply）

8
2 Installation
2.1 Outline and Part Introduction
1. USB Interface 2. UIM Card Slot 3. Indicator 4. Antenna
Indicator Light Status:
Indicator Status
Green/Lighting Normal.
Red Abnormal/No network signal.
Green/Blink An Incoming Call.
Green/Blink three times A New Message.
2.2 Software Installation
The system will automatically detect and recognize the new hardware and
display the new icon in the desktop status bar, indicating that the computer and
the USB Modem have been connected properly. After a few seconds, there will
show the following installation interface if the notebook PC supports automatic
installation.
4
4
1
3
2

9
If the notebook PC doesn’t support automatic installation, you can run the
installation program in path of My Computer →ZTEMODEM →AutoRun.exe.
The following installation interface will show how to start installation.

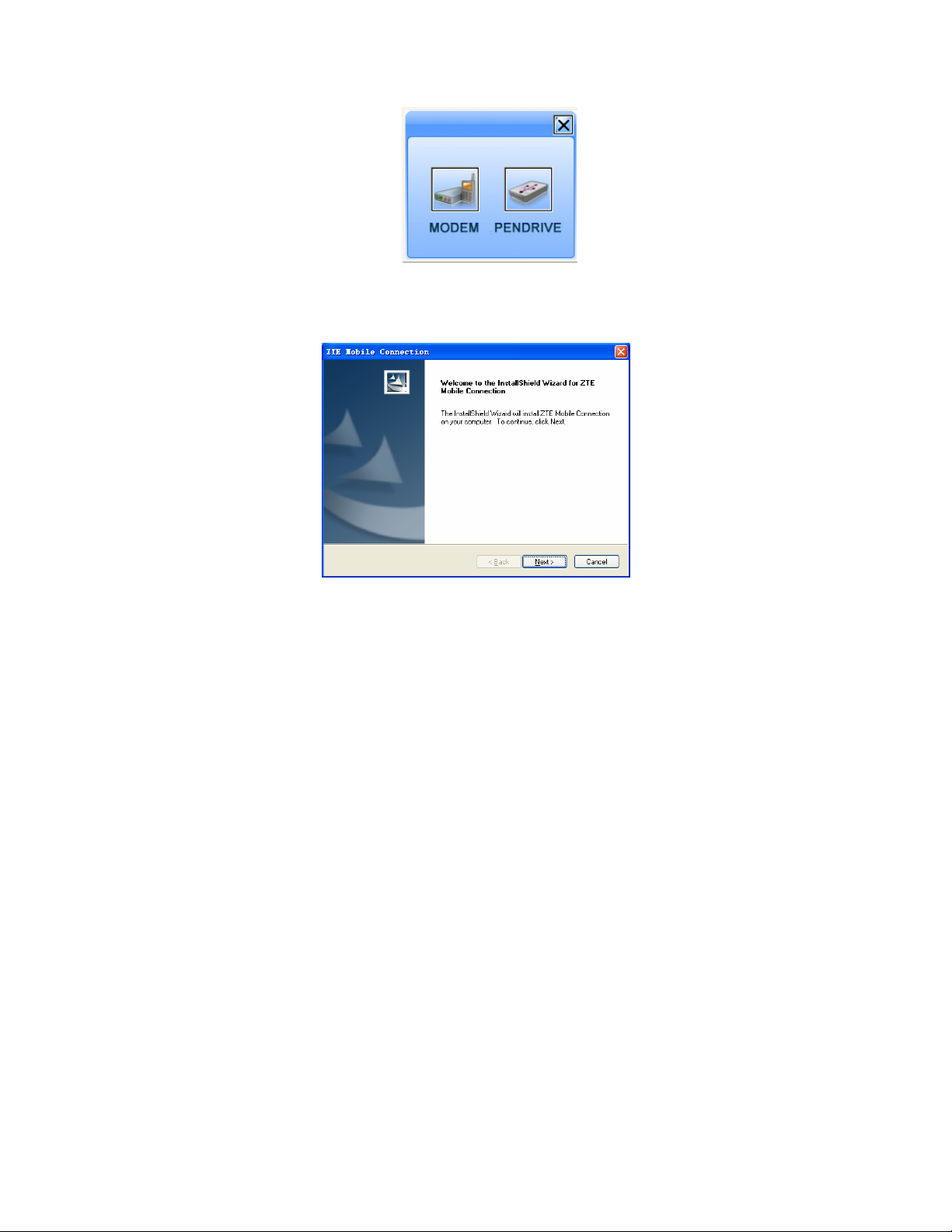

Select PENDRIVE, use the modem as U-Disk. Select MODEM, go to next
step.
Recommend you to exit other “Windows” programs, and click “Next”.

10
Read the agreement carefully. If you agree, choose “I agree to the terms of this
license agreement”, and then click “Next”.
Select the folder that you want to install the software. You can select a different
path by pressing “Change”, and then click “Next”.

11

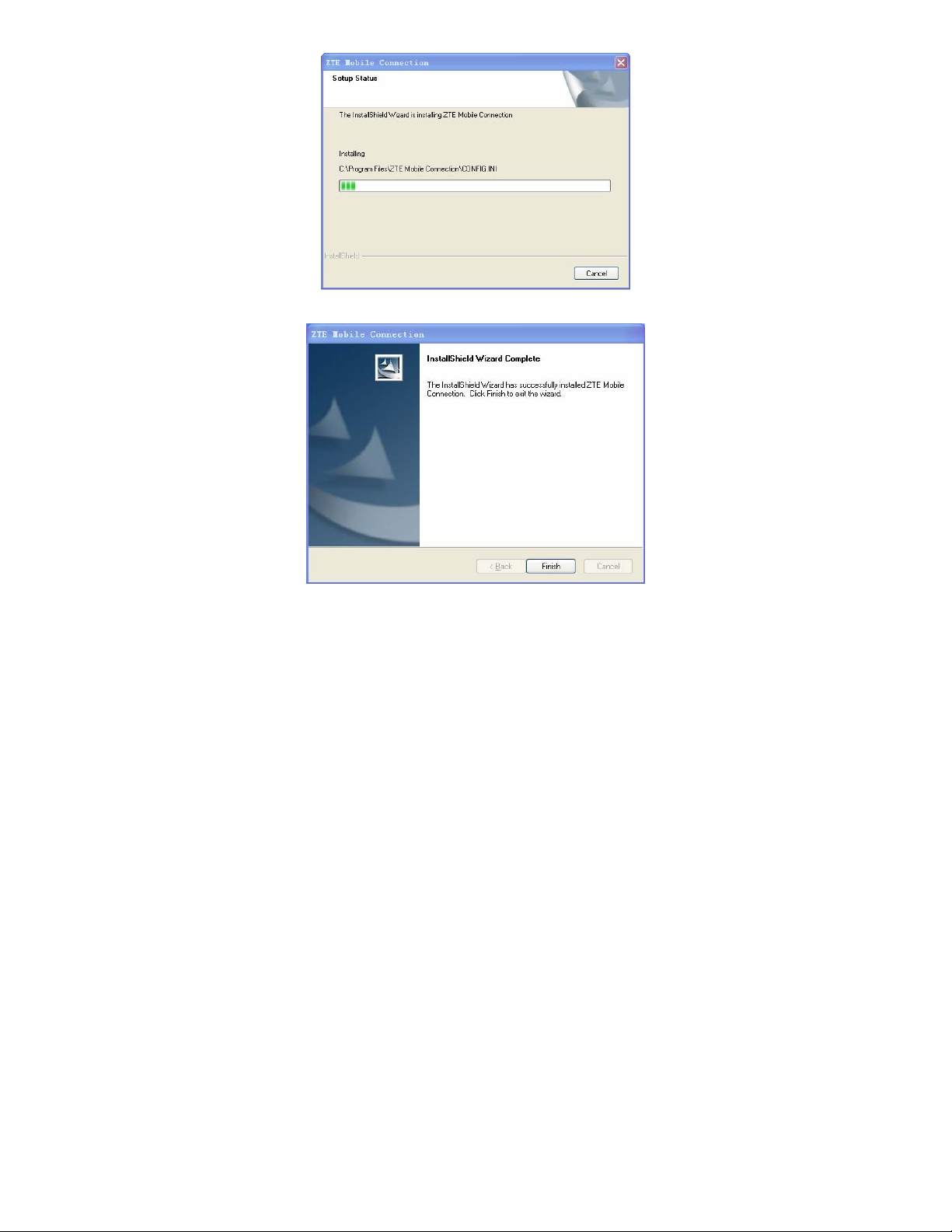

Installation is in progress, after a while, there will be a tip as follows:
Click “Finish” to finish the software installation.
Note：If you have problems with installation after the upper operation, please

12
contact the service provider for help.
After the installation, select “Start” menu →“Programs” and there will be a “ZTE
Mobile Connection” program group listed in, which includes “ZTE Mobile
Connection” and “ZTE Uninstall”, and a shortcut icon on the desktop
is also created.
2.3 Hardware Installation
1. Insert the UIM card into the modem:
First, you should insert your UIM card into the USB modem, and confirm that
your UIM card support data and CDMA services. If you don’t understand this,
please consult your local operator.

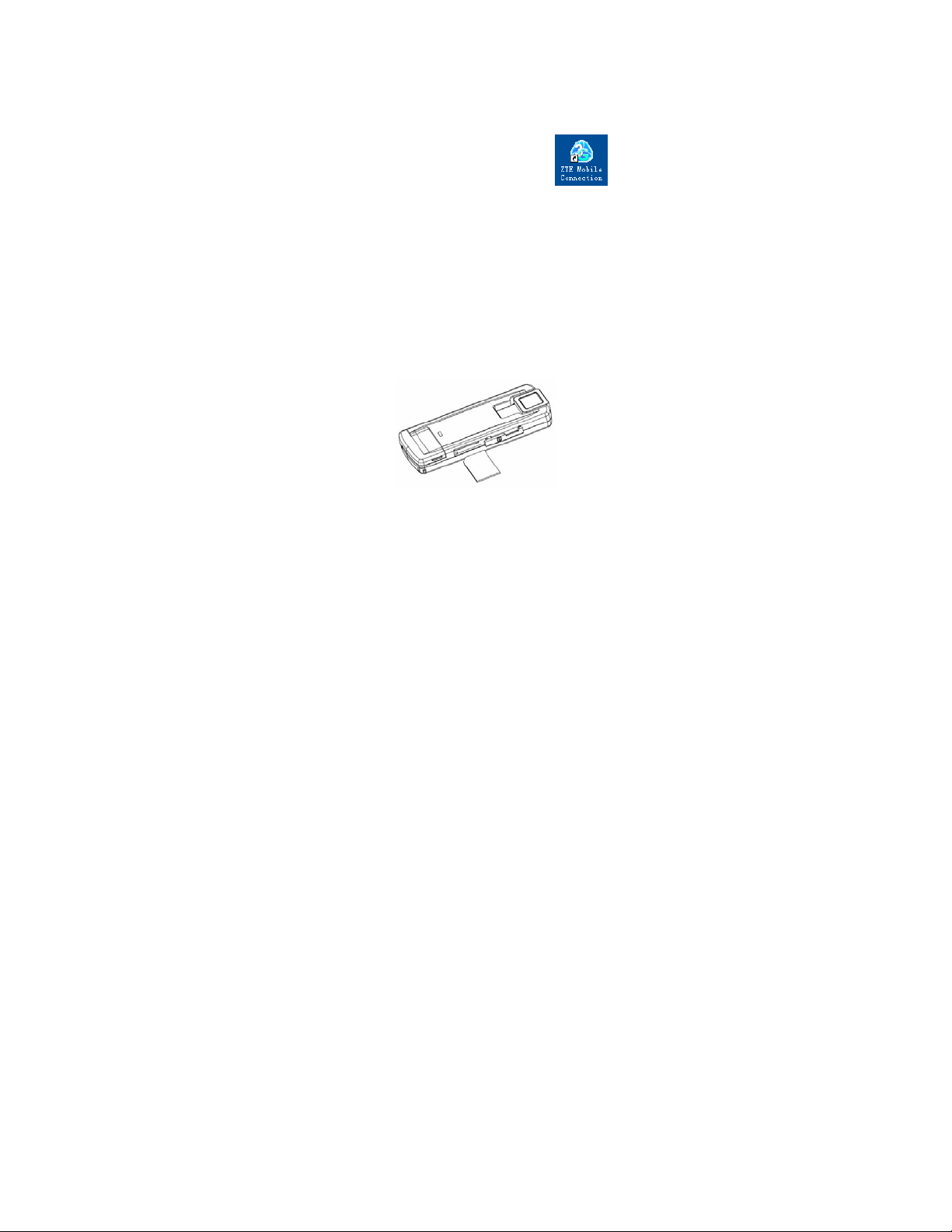

As showed in picture below, insert the UIM card with metal contact facing
downwards into the slot inside your modem. Ensure that it is tightly inserted.
2. Connect the USB Modem to your PC:
zConnect the USB Modem to the USB port and ensure that it is tightly
inserted.
zThen switch on the computer, otherwise the modem will not be installed
normally.
zThe system will automatically detect and recognize the new hardware and
display the new icon in the desktop status bar, indicating that the computer
and the USB Modem have been connected properly. After a few seconds,

13
the installation program will start automatically.
Note: For Microsoft Vista system, to avoid abnormal installation it is suggested
to turn off UAC before installation following the path of Start→Control Panel→
User Accounts→Turn User Account Control On or Off. Restart your
computer when you finish settings.
3. Antenna
When using the Modem, in order to get the good signals, please open the
antenna upright.
2.4 Run the Application Software
After the modem is correctly connected, click the Start →Programs→ZTE
Mobile Connection →ZTE Mobile Connection menu on the PC to run the
application software.

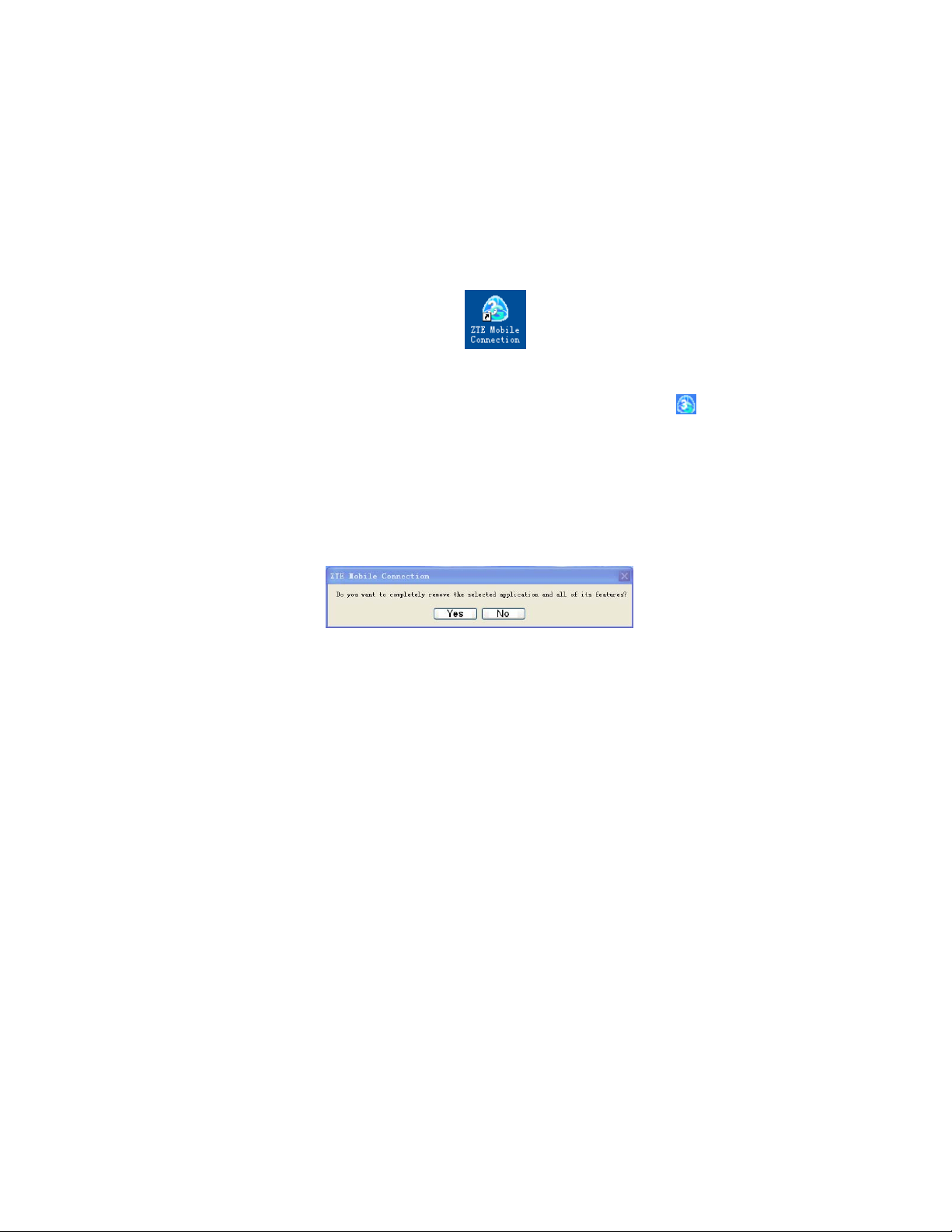

Or double click the shortcut icon on the desktop to run the
application software.

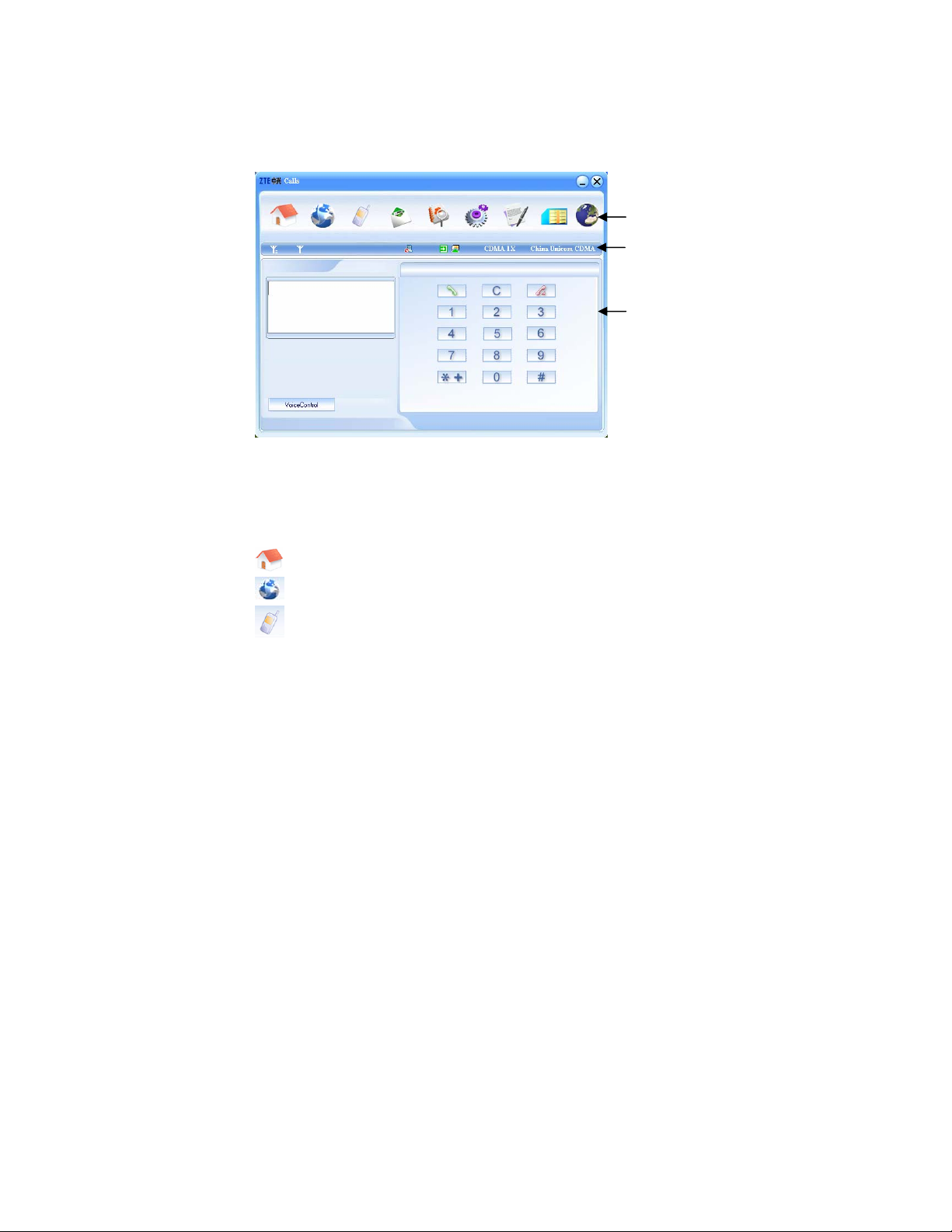

After modem initialized, main interface appears. When the standby icon
appears, the modem can work properly.
2.5 Pull out Modem Safely
Close the software application then you can pull out the USB cable directly.
2.6 Software Uninstall
Close the application program before the software uninstalling.
Click ZTE Mobile Connection →ZTE Unistall menu on the notebook PC.

14
Click “Yes” according to the indication, then the system begins to uninstall
programs, wait a moment and the following screen will appear:
Click “Finish” and complete the application software uninstall.
2.7 USB Disk Function
You can use your modem as a removable USB disk. When you insert your
modem into portable PC, the system will automatically detect and recognize the
new hardware. After a few seconds, the following window appears.

15
Note: if the system doesn’t launch the window automatically, you can run
My Computer > ZTEMODEM > AutoRun.exe.
Select PENDRIVE icon. The system will install the driver automatically.
After a few seconds, a removable disk will appear in My Computer, and then you
can use it.
If you want to stop using the USB disk and remove the disk safely, click the new
hardware icon on taskbar, select the Stop, then you can remove the USB
disk safely.

16
3 Functions & Operation
3.1 Interface introduction
3.1.1 Main Interface
The diagrams drawing for the main interface of USB modem application
software:
The whole interface is divided into three parts, related functions can be executed
by operation in the corresponding areas.
1. Function button area:
There will show various function button icons. Select different function button
and it will carry out corresponding operation.
Homepage
Internet: Connect to the Internet.
Calls: Dial/answer a call.
Function
Button Area
User Area
System
Information
Area

17
SMS: Send SMS or read SMS Inbox.
Phonebook: Save and view different information of the contact list.
Settings: Set normal relative information for the modem.
Call Records: View related information for all calls.
UTK: Supported the service provided by service provider.
GPS: Support the GPS service.
.
2. System information area:
Show the system status and different kinds of tips.
Shows network signal intensity, 5 stages from none to strong .
There are new SMS at present.
It shows the current status of Internet connection. Red means Internet
disconnected, while green means that it has already connected.
There are missed calls.
Indicates insert status of the modem, “Green” it has been connected to
the computer, orange indicates modem offline and red
indicates disconnected.
Indicates insert status of the UIM card to the mode. Green indicates the
card has been inserted, and red indicates not been inserted.
Indicates the current network service type, CDMA 1X in
service.
Name of the current service provider.
3. User Area:
Show the main-computer interaction information under various conditions.

18
3.1.2 Description of Mini Icons
When click the mini button, the software will minimize as an icon on the system
tray. If connected to the Internet, the minimized software won’t influence the
download of data or receiving SMS.
1. Taskbar Icons’ Description
Modem is in normal standby status.
Green indicates already connecting of modem with PC.
Orange indicates modem offline.
Red indicates disconnecting of modem with PC.
Red indicates no UIM card in the modem.
No network signal.
New Message.
New Incoming Call.
Green indicates successful connection of modem to Internet.
2. The uses of Tray Icons
Right Click the tray icons, the following menu will appear:
Power off USB Modem: Stop using the USB Modem and disconnect the
modem to portable PC. After powering off the modem, if you want to run the
software again, you should pull out and insert the data card into PC again.

19
Modem Offline/ Modem Online: Pause/reusing the working of the modem. If
connected Internet, you need disconnect the Internet first, and then select the
Modem Offline.
Factory Settings: Restore the factory setting.
Help: Enter Help interface.
About: View the information of the application software and hardware versions.
Exit: Close the application interface and stop using the modem.
3.2 Connecting Internet
You can browse web pages after you have accessed to Internet with the help of
modem, you can also receive SMS when surfing in the Internet.
1. Connect to the Internet:
Click the Internet icon , the system will ask you “Connect to default?”
Select “Connect”.

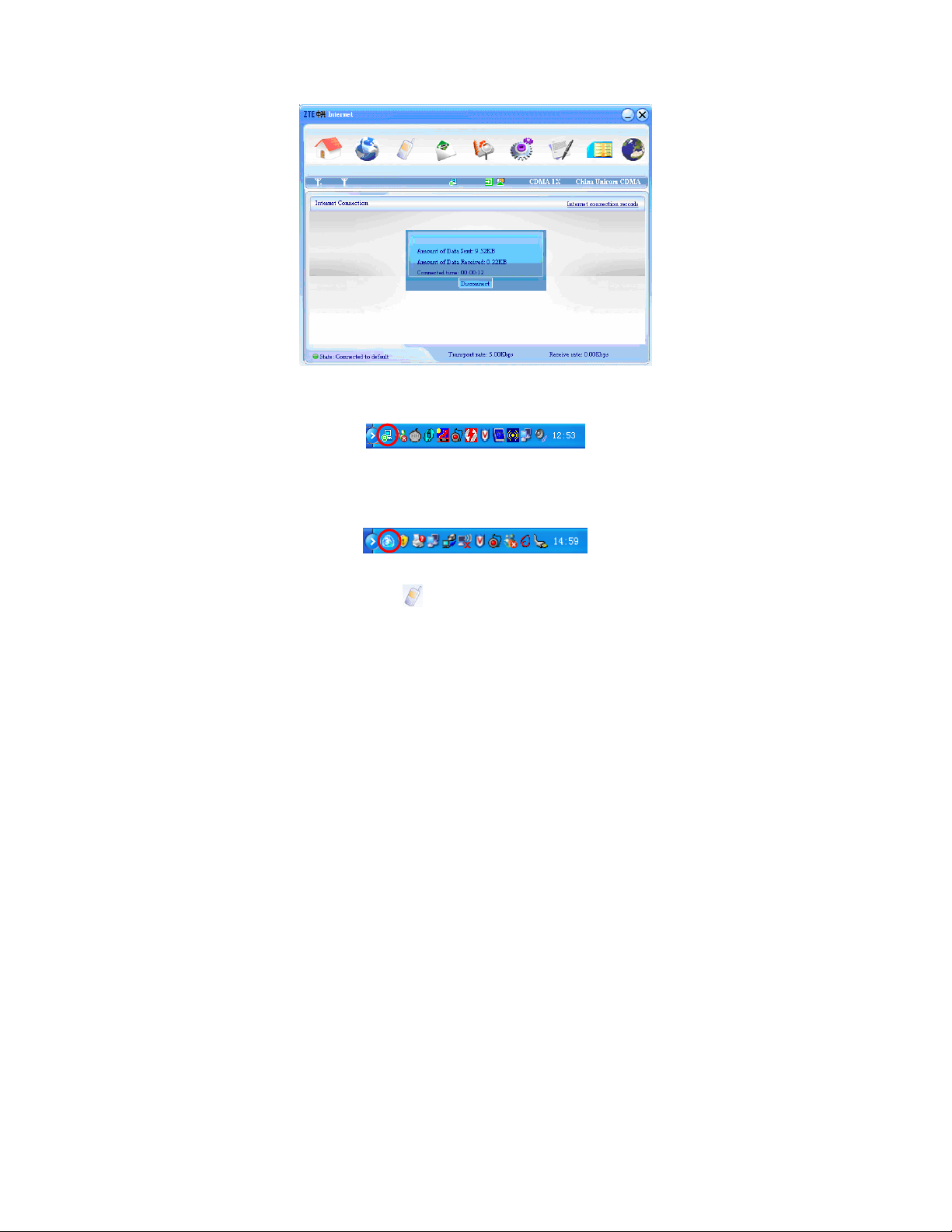

When connected, it will show “Status: connected”, and it will show data amount,
connected time and so on. Then you can access Internet and receive email etc

20
through network.
During the course of connecting, when the “Connect” 'button becomes
“Disconnect” button, you can cancel the connecting.
At the same time, an icon on taskbar appears indicating network connection.
Then you can access Internet and receive email etc. via network.
2. Disconnect the Internet
Click “Disconnect” button to disconnect Internet. After disconnection, a normal
standby icon appears on taskbar.
3.3 Dialing/Answering a call
Click the “Calls” icon , and switch to the calls interface. You can enter a
telephone number to make a call, and you can talk with the other side by using
headphone and microphone. You can redial a number from calls list and dial
extension numbers.
