Zte MF65 User manual

1
ZTE MF65
Let’s go
Getting started with your device.

2 3
LEGAL INFORMATION
Copyright © 2013 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized
in any form or by any means, electronic or mechanical, including photocopying
and microlm, without the prior written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make
modications on print errors or update specications without prior notice.
Version No. : R1.1
Edition Time : 2.5.2013
NOTE:
Do not use the device in an enclosed environment or where heat dissipation is
poor. Prolonged work in such space may cause excessive heat and raise ambi-
ent temperature, which may lead to automatic shutdown of the device for your
safety. In the case of such event, cool the device in a well-ventilated place be-
fore turning on for normal use.
Getting to Know Your Device
Appearance
The following gure is only for your reference. The actual product may be differ-
ent.
1. LED Indicators
2. Power Button
3. WPS Button
4. Micro USB Port
5. (U)SIM Card Slot
6. microSD Card Slot
NOTE: microSD logo is a trademark of SD-3C, LLC.

4 5
Indicators
Indicator Status Description
Network
Red solid
Error status. Not registered to the mobile net-
work, no (U)SIM card inserted or no network
service available.
Green solid Registered to the mobile network.
Green blinking Connected to the mobile network and data is
being transferred.
Wi-Fi
Blue solid Wi-Fi is active.
Blue blinking WPS is active.
LED light off Wi-Fi is off or your device is in sleep mode.
Battery
Red solid/ blinking The battery is low. Please charge the battery.
Green blinking The battery is being charged.
Green solid The battery level is middle or high.
LED light off Your device is in standby mode and not being
charged, or the battery is not inserted.
Connection Scenario
Your device supports two methods to connect to the Internet and supports multi-
clients for surng on the Internet at the same time. The following gure is only
for your reference.
• 3G Mode: Use your (U)SIM card to access the Internet.
• AP Station Mode: Your device will connect to other WLAN device (hotspot
device, wireless router, etc.) via Wi-Fi to access the Internet. The WLAN de-
vice has already connected to the Internet.
NOTE:
The subnets of your device and other WLAN device must be different.

6 7
Installing Your Device
1. Slide the back cover and remove it
2. Insert the (U)SIM card.
IMPORTANT: Your device does not support Micro/Nano SIM card or any other
nonstandard SIM cards. To avoid device damage, please do not use them or
any card holders.
3. Insert the microSD card if necessary.
4. Insert the battery.

8 9
5. Close the back cover.
Connecting to Your Device
Via Wi-Fi
1. Power on your device directly. It will take 1~2 minutes to initialize.
2. Use your normal Wi-Fi application on the client to search for the available
wireless networks.
NOTE: Please set the client to obtain an IP address automatically referring to
the chapter “Conguring your PC”, and then the client will get an IP address like
“192.168.0.101”.
3. Select the SSID of your device, and then click Connect.
NOTE: Please check the label on your device to get the default SSID.
4. Input the password, and then click Connect.

10 11
NOTE:
You may need to input the password for Wi-Fi connection. Please check the la-
bel on your device to get the default.
5. Wait a moment, and then the client will connect to your device successfully.
Via USB Cable
1. Connect to the device.
2. Power on your device.
3. The OS detects and recognizes new hardware and nishes the installation
automatically.
NOTE:
If the system does not launch installation automatically, you can run the installa-
tion program in path of My Computer > GP Modem.
4. Wait a moment, and then the client will connect to your device successfully.
Accessing the Internet
3G Mode
After the client connected to your device successfully, you can access the Inter-
net in the Automatic or Manual mode. The default mode is Automatic.
Mode Operations
Automatic Your device will connect to the Internet automatically, and
your clients can surf on the Internet directly.
Manual
Log in the webGUI conguration page, and select Settings >
3G Settings > Network Select > WAN Connection Mode >
Manual, and then click Connect or Disconnect.
NOTE:
If you want to modify the detailed parameters of your device, please log in the
webGUI conguration page by visiting http://192.168.0.1 or http://m.home. The
default password is admin.

12 13
AP Station Mode
1. Log in the webGUI conguration page.
2. Select Settings > AP Setting.
3. Set the WLAN and WLAN mode, and then click Apply.
NOTE:
You need to set the WLAN On and select Wi-Fi Prior.
4. Connect to the WLAN device.
There are two methods for your reference.
u Input the WLAN device information in the WLAN Setting area, and then
click Apply.
u Click More, select this WLAN device which will be listed, and then click
Connect.
5. After the client connected to the WLAN device successfully, you can access
the Internet.

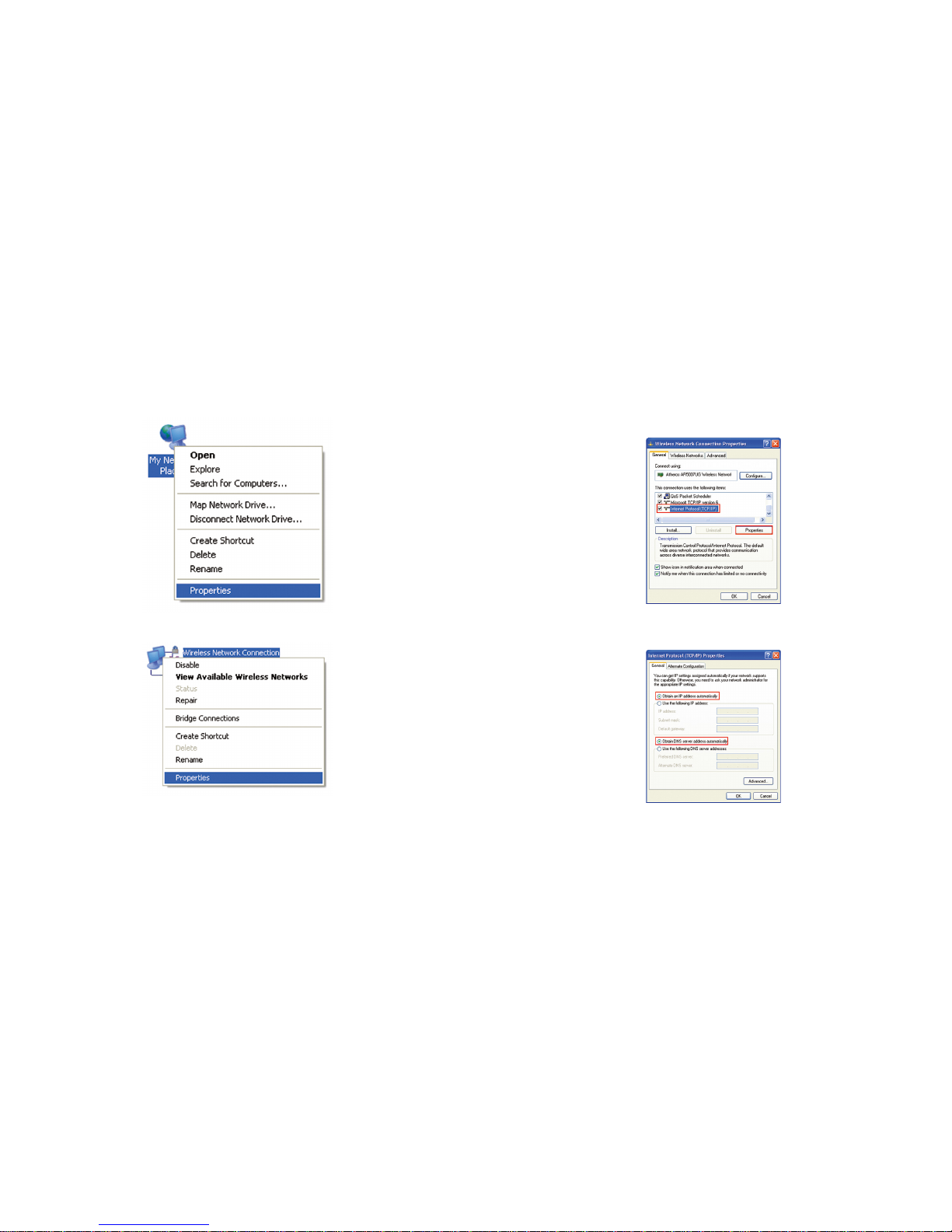

Conguring Your PC
Follow the following steps and gures for Windows XP to congure the Internet
Protocol for your Wi-Fi connection.
1. Right-click My Network Places, and then select Properties.

14 15
2. Right-click Wireless Network Connection, and then select Properties.
3. Select Internet Protocol(TCP/IP), and then click Properties.
4. Select Obtain an IP address automatically and Obtain DNS server ad-
dress automatically, and then click OK to nish the conguration.
