Zte ZXHN H108L User manual

ZXHN H108L
User Manual
Document version: 20120820-R1.0
Copyright ©2012 ZTE Corporation
All rights reserved.
No part of this documentation may be excerpted,
reproduced, translated, annotated or duplicated, in any
form or by any means without the prior written
permission of ZTE Corporation.
ZTE CORPORATION reserves the right to modify this
manual for product upgrade or other causes without
notifying users in advance.

i
Limited warranty
ZTE warrants that, for one year from the date of delivery by ZTE to
purchaser's designated carrier, the Equipment will remain free from
defects in design, material and workmanship under normal use and
service and will conform in all material respects to the applicable
specifications set forth in purchase order or agreement; ZTE does not
warrant that operation of the Equipment will be error-free or
uninterrupted.
In accordance with ZTE's standard, warranty terms, ZTE shall, at its
option, repair or replace any defective or nonconforming item, provided
that (a) purchaser/End User gives ZTE written notice of the defect or
nonconformity within the warranty period specified above promptly after
Reseller is notified by the End User of the same; and (b) End User
returns the defective item at its expense to ZTE’s nominated Customer
Service Department in accordance with ZTE’s standard parts exchange
procedures.
This warranty does not apply to defects or errors in the Equipment
caused by:(a) reasonable abrasion of equipments; (b)End User’s failure
to follow ZTE’s installation, operation or maintenance instructions or
procedures; (c) End User’s mishandling, misuse, negligence, or
improper installation, deinstallation, storage, servicing or operation of
the Equipment; (d) modifications or repairs not made by ZTE or a
ZTE-certified individual;(e) power failures, surges, fire, flood, accident,
actions of third parties or other events outside ZTE’s reasonable control.
(f) usage of products of third Parties, or usage conjunction with third
parties provided that such defects is due to the conjunction;(g) any other
cause beyond the range of normal usage for equipments. End User

ZXHN H108L User Manua l
ii
shall assure that Equipment is installed and maintained by ZTE or
ZTE-certified individuals in accordance with ZTE’s certification
procedures; provided that if End User causes or permits services to be
provided by individuals who are not ZTE-certified, the Warranty shall be
void as to all Equipment serviced in breach of this sentence. End User
shall have no right to reject, return, or receive a refund for any
Equipment from ZTE. Any item repaired or replaced by ZTE shall
continue to be warranted for the longer of the remainder of the original
warranty period or 90 days from the date the repaired or replaced part is
delivered to the carrier.
THIS WARRANTY (1) IS END USER'S SOLE REMEDY AND ZTE’S
SOLE LIABILITY FOR DEFECTIVE OR NONCONFORMING ITEMS ,
AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED,
IMPLIED OR STATUTORY, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, UNLESS OTHERWISE REQUIRED
UNDER THE MANDATORY PROVISIONS OF THE CHINESE LAW,
AND (2) IS BETWEEN ZTE AND END USER (AS THE ORIGINAL
PURCHASER FOR END USE) AND MAY NOT BE TRANSFERRED OR
ASSIGNED, BY OPERATION OF LAW OR OTHERWISE, WITHOUT
ZTE’S PRIOR WRITTEN CONSENT.
Limitation of Liability
ZTE SHALL NOT BE LIABLE FOR ANY LOSS OF PROFITS OR
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM OR ARISING OUT OF OR IN CONNECTION WITH
USING OF THIS PRODUCT, WHETHER OR NOT ZTE HAD BEEN

ZXHNH108LUserManual
iii
ADVISED, KNEW OR SHOULD HAVE KNOWN OF THE POSSIBILITY
OF SUCH DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOST
PROFITS, COST OF CAPITAL, COST OF SUBSTITUTE FACILITIES
OR EQUIPMENT, ANY DOWNTIME COSTS OR CLAIMS OF END
USERS. THE LIABILITY OF EACH PARTY UNDER THIS
AGREEMENT, WHETHER ARISING OUT OF BREACH OF
CONTRACT (INCLUDING BUT NOT LIMITED TO BREACH OF
WARRANTY) OR TORT (INCLUDING BUT NOT LIMITED TO
NEGLIGENCE AND STRICT LIABILITY) OR UNDER AN
INDEMNIFICATION PROVISION SHALL IN NO EVENT EXCEED THE
AGGREGATE AMOUNT BENIFITED BY ZTE IN THE PRODUCTS
FROM WHICH SUCH LOSS OR DAMAGE DIRECTLY AROSE.
Confidentiality
End User agrees that End User will receive confidential or proprietary
information (“Confidential Information”) in connection with the purchase
and deployment of ZTE Equipment. End User will not disclose ZTE’s
Confidential Information, will use it only for purposes for which it was
disclosed, and must treat it with the same degree of care as it does its
own similar information, but with no less than reasonable care. End
User agrees that the terms herein, the Equipment and all ZTE
documentation is ZTE Confidential Information.

Contents
Chapter 1 Safety Guidance ...........................................................1
1.1 Safety Check .....................................................................1
1.2 Safety Cautions .................................................................1
Chapter 2 Overview.......................................................................3
2.1 Features .............................................................................3
2.2 Product Specifications.......................................................3
2.3 Package Check ..................................................................4
2.4 System Requirement .........................................................4
Chapter 3 Installation Preparation ..............................................6
3.1 Hardware Description .......................................................6
3.2 Hardware Connection .......................................................9
Appendix A FAQs.........................................................................12
Appendix B Standard Compliance.............................................15

1
Chapter 1 Safety Guidance
1.1 Safety Check
Before installing the ZXHN H108L ADSL equipment, you must check the
following items.
1 Electric safety
zEnsure that there are no inflammable, conductive or moist objects around.
Check whether the cables are aged and whether other electrical appliances
are placed stably.
2 Equipment position
zBecause the running electric devices easily generate heat, please ensure
that these devices are positioned in a well ventilated environment.
zThe devices should be placed on a stable and flat plane.
zNever expose the equipment to direct sunshine, and never place it on a PC
case.
zKeep the equipment away from heat and water.
zCheck whether power supply is available. The input voltage fluctuation
range must be less than 10%. The power plug should not share one socket
with a hair drier, iron or refrigerator.
1.2 Safety Cautions
zRead the user manual carefully before using the equipment.
zNote all Cautions in the user manual and product guide.
zNever use an accessory unbelonging to the equipment without prior
consent of the manufacture, because it may cause fire or product damage.
zUse the power adapter accompanied in the package.
zRather than directly connecting phones to the ADSL line, led them out
from the phone interface of the splitter.
zNever place any objects on the equipment.
zKeep the equipment dry, ventilated and rainproof, and clean.
zUnplug the power and all connection cables in case of thunderstorms, to
protect the equipment against lightning.
zClean the equipment using a soft and dry cloth rather than liquid or
atomizers. Power off the equipment before cleansing it.

ZXHN H108L User Manua l
2
zPower off the idle equipment.
zKeep the ventilation hole clean and prevent any objects from dropping
into the equipment through it. Otherwise, it may cause short circuit and
further cause equipment damage and fire. Do not spray liquid on the
surface of the equipment.
zDo not open the case of the equipment, especially during equipment
power-on.
zBefore plugging/unplugging the power, make sure that the power is off,
thus avoiding surge.
zBe careful when unplugging the power, because the transformer may be
very hot.
zKeep the equipment and all its parts and accessories out of children’s
reach.
Note:
Please read the above safety guidance carefully before equipment use. Users
should assume responsibilities for any accidents due to incompliance with the
above instructions.

3
Chapter 2 Overview
The ZXHN H108L is an ADSL access device that allows multiple line
transmission modes. At the user end, it not only provides four 10/100Base-T
Ethernet interfaces, but also adds the wireless user access in compliance with
the IEEE802.11b/g/n standard，which can support the speed up to 135Mbps.
Through the high-speed ADSL access service, the ZXHN H108L can provide
the broadband Internet service or enterprise network access service for users.
2.1 Features
The ZXHN H108L, as a routing-capable ADSL MODEM, is of the following
characteristics:
zSupport ANSI T1.413 ISSUE 2, ITU G.992.1(G.DMT), ITU
G.992.3(ADSL2), ITU G.992.5(ADSL2+)
zSupport data transportation among ADSL, Ethernet and WLAN
zSupport 802.11b, 802.11g, 802.11n(1*1) mode
zWeb-based configuration and monitoring.
zSupport up to 8 PVCs.
zSupport Bridge or Routing mode.
zSupport NAT
zSupport DHCP Client/DHCP Server
zSupport IPv6.
2.2 Product Specifications
zEnvironmental requirements
Environmental temperature: -5°C-45°C (23 °F-113°F)
Humidity: 5% - 95% (non-condensing)
zPower specification
Power adapter: Input: AC 100-240V, 50/60 Hz
Output: DC 12V, 0.5A
zCertification
CE、Wi-Fi

ZXHN H108L User Manua l
4
2.3 Package Check
zZXHN H108L ×1
zSplitter ×1
zPower Adapter ×1
zRJ-11 telephone cable ×2
zRJ-45 Ethernet cable ×1
zUser Manual(Include Quality Warranty Card and Certificate of Quality )
×1
zCD (Optional) ×1
Note: for your information only, please refer to the actual product.
Note:
Please use a power adapter that matches the ZXHN H108L package.
2.4 System Requirement
Before installing the ZXHN H108L, please check the following items.
1 ADSL Services Subscription
If you have subscribed for the ADSL service, your ADSL operator must
provide at least one valid IP address for you (static allocation or dialup
dynamic allocation).
2 Computer configuration
Please make sure that the system has been equipped with the 10M/100M
Ethernet adapter and supports the TCP/IP protocol.
Because ADSL can be used for broadband access and involves a wide range of
multimedia services, you are recommended use a computer with such
configurations as: above Pentium III, 64M memory, 10G hard disk, graphic

ZXHNH108LUserManual
5
accelerating adapter with above 2M display memory, audio adapter and sound
box.
3 Operating system
Operating systems can be Windows 98SE, Windows Me, Windows 2000,
Windows XP, Windows Vista or Windows 7. For system configuration in the
WEB interface, the browser of Internet Explorer V 6.0 or later.

6
Chapter 3 Installation Preparation
3.1 Hardware Description
Front panel

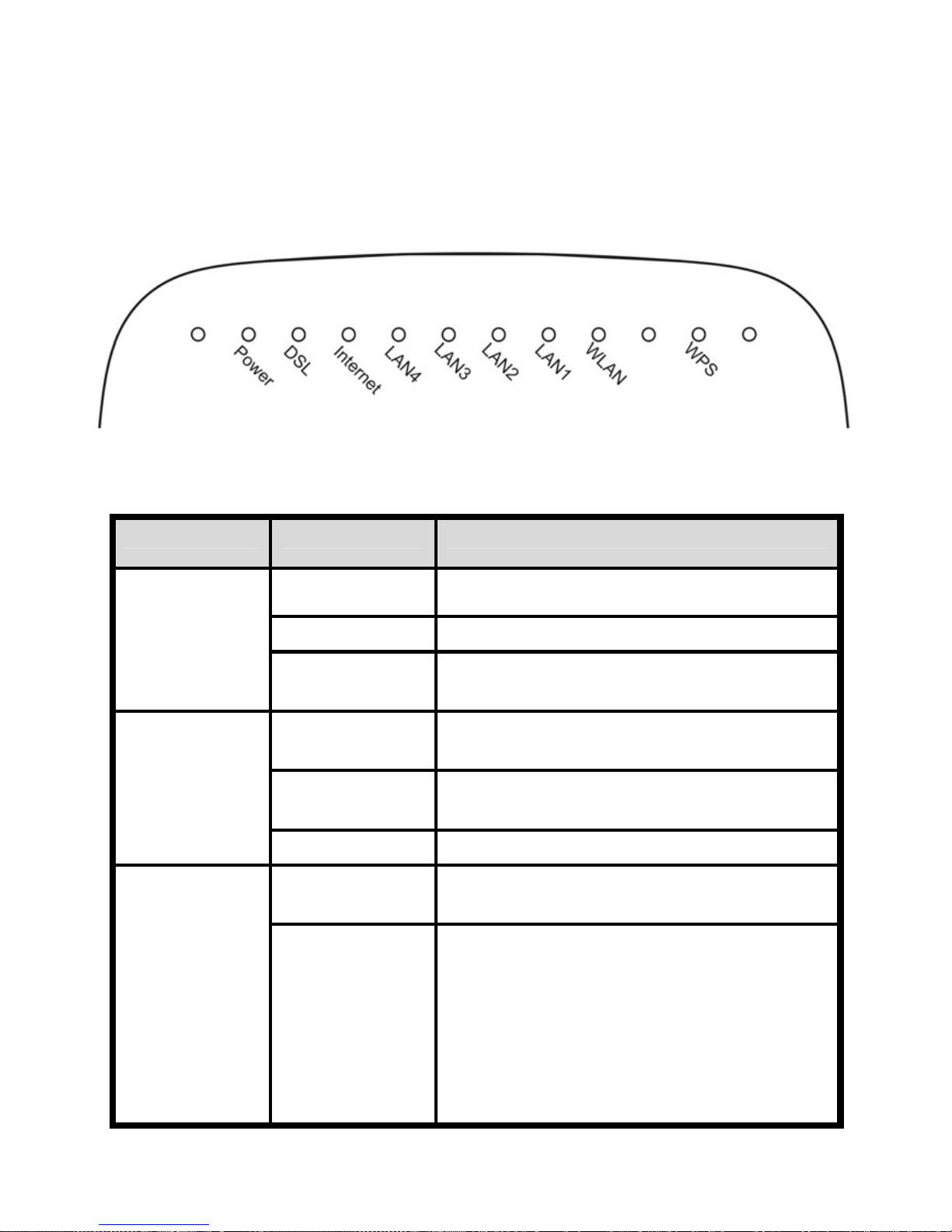

Figure 3.1-1 Front Panel of the ZXHN H108L
Table 3.1-1 Descriptions of the LEDs on the Front Panel
Function Color Definition
Off Power off
Solid Green Power on
Power
Red POST (Power On Self Test) failure
(not bootable) or Device malfunction
Slowly Flash
Green DSL line handshaking in progress
Fast Flash
Green DSL line training in progress
DSL
Solid Green DSL line connection is up.
Off The system is under the Bridge mode
or the ADSL has not been connected.
Internet
Solid Green
The system is under the Route mode
and the ADSL has been connected.
The MODEM IP data packet can be
normally transferred (For example, the
built-in PPPOE has been established
and the dynamic IP address has been
obtained).

ZXHNH108LUserManual
7
Function Color Definition
Flickering
Green
There are some data packets passing
the MODEM.
Red
Device attempted to become IP
connected and failed (no DHCP
response, no PPPoE response, PPPoE
authentication failed, no IP address
from IPCP, etc.)
Off No Ethernet signal is detected.
Blinking User data going through Ethernet port
LAN1-LAN4
Solid Green Ethernet interface is ready to work
Off No radio signal is detected.
Blinking User data going through WLAN port
WLAN
Solid Green WLAN interface is ready to work.
Solid Green
The wireless terminal device is
connected through WPS successfully.
The indicator turns off five minutes
later.
Slowly Flash
Green
The wireless terminal device is
connecting with H108L through WPS.
Fast Flash
Green
There is error when the wireless
terminal is connecting to H108L
through WPS.
WPS
Off
There is no wireless terminal device
connected to H108L through WPS or
the wireless terminal device has been
connected to H108L through WPS for
more than five minutes.

ZXHN H108L User Manua l
8
Rear panel

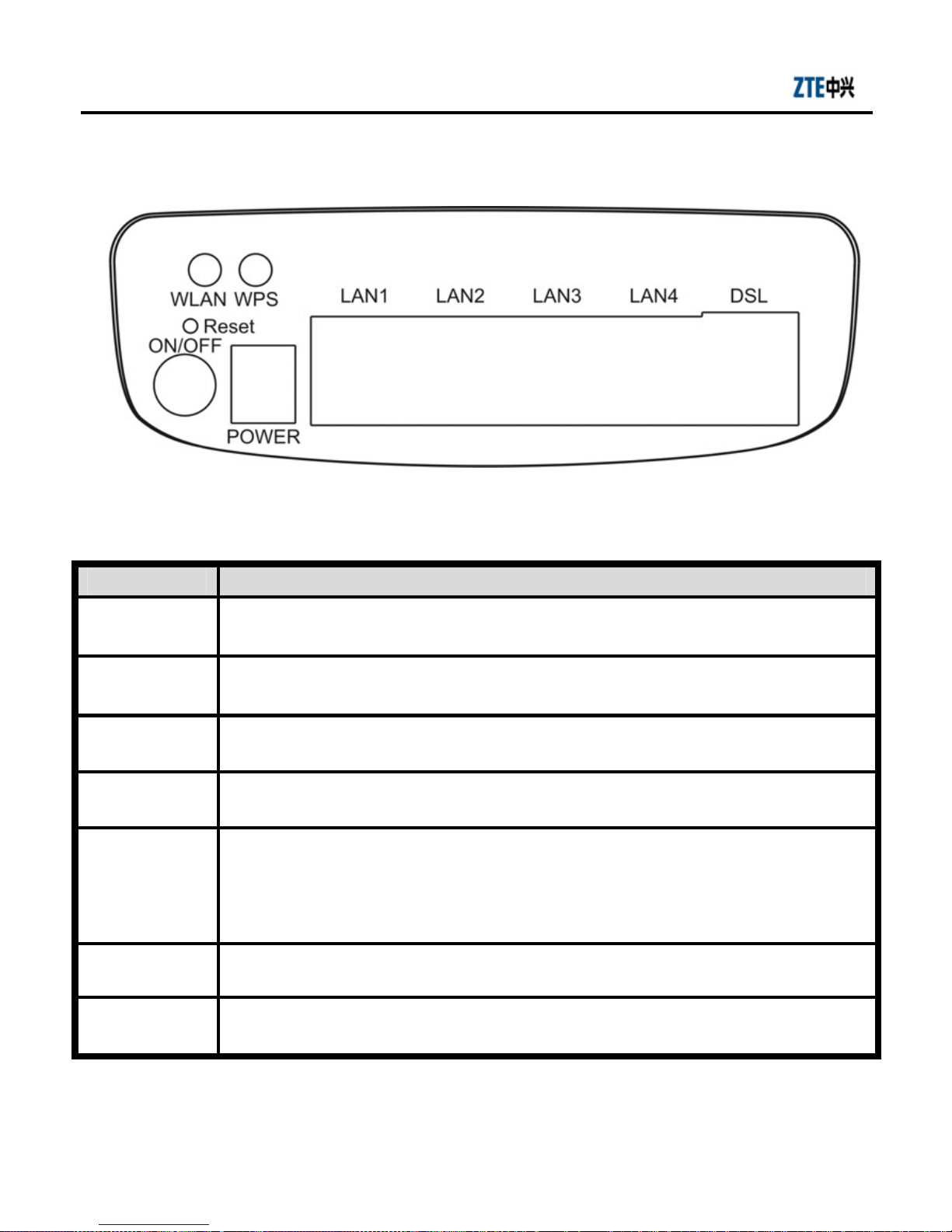

Figure 3.1-2 Rear Panel of the ZXHN H108L
Table 3.1-2 Description of Interfaces on the Rear Panel
Item Introduction
DSL RJ-11 connection interface: The equipment is connected to the
ADSL line or splitter via the telephone line.
LAN1-LA
N4
RJ-45 connection interface: Connect it to the PC computer or
other network devices using the network cable.
WPS WPS switch
WLAN To turn on / off the Wi-Fi.
Reset
This button is on the bottom of modem. In the power-on state,
you can restore the system to the default configuration by using
a thin needle to press this slot for three seconds or for three
executive times.
ON/OFF To turn on / off the power.
POWER Power interface. Connect it to the power adapter.

ZXHNH108LUserManual
9

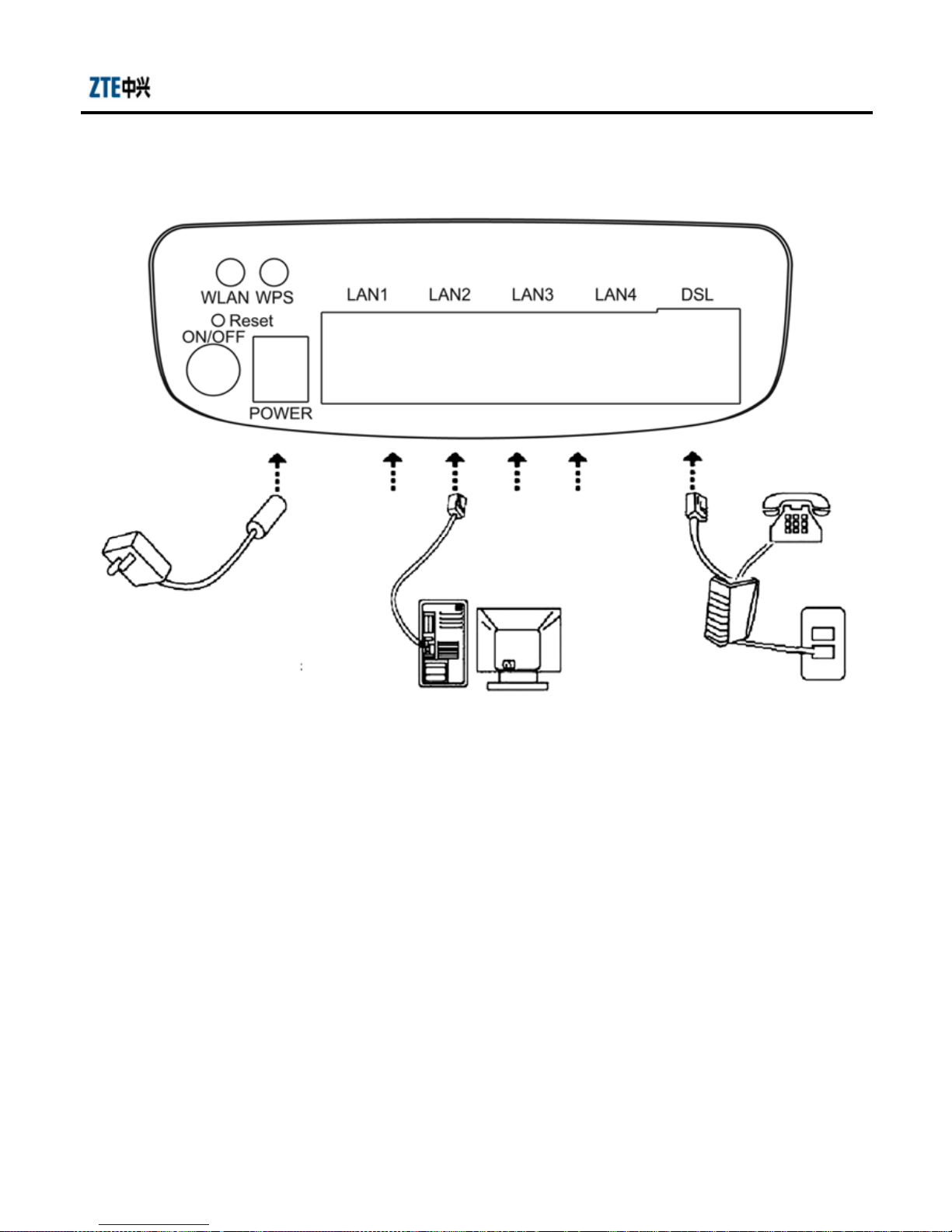

3.2 Hardware Connection
Introduction:
1 Use one RJ11 cable（match the ZXHN H108L package）to connect the LINE
port of the splitter with the RJ-11 port (the phone jack) on the wall.
2 Use another RJ11 cable（match the ZXHN H108L package）to connect the
MODEM (or ADSL) port of the splitter with the LINE port of the Gateway.
3 Use the third RJ11 cable（additional, if customers also want to use
telephone at the same time）to connect the telephone set with the PHONE (or
TEL) port of the splitter.
4 Connect Ethernet port of the Gateway with 10/100BASE-T port of the
computer using the network cable that comes with the modem.
5 Plug in the power cord, and turn on the power.

ZXHN H108L User Manua l
10
If you don’t want Internet services and telephone voice services simultaneously,
please just connect the LINE port of the Gateway with the RJ-11 port (the
phone jack) on the wall using a telephone cord. In this case, the splitter is not
necessary.
Connection procedures
1 Power off the equipment before all the other devices are connected.
2 Connect the network cables: Insert the RJ-45 Ethernet cable connector into
the Ethernet interface of the ZXHN H108L, and connect its other terminal to
the Ethernet adapter of the customer computers or ports of other network
devices.
3 Connect the splitter
The splitter has three interfaces, which are described as follows:
zLINE: Connect the user telephone cable (RJ11 interface).
zMODEM (or ADSL): Connect the DSL interface of the ZXHN H108L.
zPHONE (or TEL): Connect the phone sets.
The installation process is as follows: Connect the LINE interface of the ZXHN
H108L to the MODEM(or ADSL) interface of the splitter using the RJ-11
telephone cable, connect the phone set lines to the PHONE(or TEL) interface
of the splitter, and then connect the user telephone cable port to the LINE
interface of the splitter.
4 Connect the power
Connect one terminal of the power adapter to the POWER interface of the
ZXHN H108L, and the other terminal to the socket on the wall, and then switch
on the power of the ZXHN H108L equipment.
Checking all connection cables
Check all connection cables following the below procedure.
1 Check the ADSL cable connection

ZXHNH108LUserManual
11
If the DSL LED is on upon power-on of the ZXHN H108L, it indicates that the
ADSL line is correctly connected (Generally it takes one to two minutes to
perform the ADSL connection).
2 Check the computer connection
If both the LINK LED on the computer adapter and the Ethernet LED of the
ZXHN H108L turn green, it indicates that the computer and the ZXHN H108L
equipment are correctly connected.
3 Check the telephone cable connection
The telephone cable is correctly connected if the received telephone signals are
normal and free of noise. And the telephone will not be affected no matter
whether the ZXHN H108L is powered on or off.

12
Appendix A FAQs
1 All indicators are off after the ZXHN H108L equipment is
powered on.
First make sure that you have inserted the power adapter of the ZXHN
H108L into a working power socket and that the ZXHN H108L has
been powered on (the switch button is pressed down). If the indicators
are still off after confirmation of the above items, the hardware is
damaged probably. You may contact local operators for maintenance.
Never dismantle the equipment by yourself.
2Will ADSL affect the telephone conversation quality? Will making
phone calls cause a slow online rate?
ADSL separates voices from data through the frequency division
multiplexing technology. Therefore, voices and data run in different
paths without mutual interference. Neither the access rate nor
conversation quality will fall even if you are in a call and on line
simultaneously.
3 Sometimes, the ADSL users cannot gain access to the Internet
normally.
First check whether the ZXHN H108L is in the normal state (Check
the indicators with this user manual). If yes, the computer or
application network may be faulty, which is unrelated with ADSL. If
the ADSL MODEM is abnormal, check the status of indicators one by
one to remove the fault.
You are suggested to first make sure the following items before
seeking help from operators: 1. The ADSL telephone cable connectors
are proper; 2. The ADSL is away from the power cable and
large-power electronic devices; 3. No telephone extensions and fax
machines are installed between the ADSL incoming line and splitter; 4.
The splitter has been correctly installed; 5. The ADSL MODEM is of
good heat dissipation.
4 Password verification failure.

ZXHNH108LUserManual
13
MODEM synchronization and connection are normal. However,
sometimes the password fails to be verified.
1. Note that the account and password are case sensitive and some
accounts contain a domain name.
2. Virtual dialup software. It is possible that sometimes the virtual
dialup software is faulty, or conflict with other software in the
operating system. At this time, you are suggested to reinstall the dialup
software or replace it with other software.
3. Network adapter drive program problem.
4. In arrears of fees. Pay the fee timely in this case.
5What are reasons for ADSL synchronization failure (also referred
to link down or link establishment failure)?
If the ADSL suddenly fails to be synchronized (link down) during
application, usually the DSL indicator of the MODEM will not be
solid on. You are suggested for checkup in the following sequence:
1. First check the quality of incoming cables and incoming cable
connectors.
2. Install the ADSL Modem correctly based on the user guide, to
minimize the number of taps.
3. Check whether the telephone cables and ADSL are in good contact
or whether the telephone cables are normal.
4. Try to disconnect the splitter and directly connect the ADSL Modem
to the incoming customer cable end to ensure that the problem is not
due to improper installation or incoming customer line quality. If the
ADSL can be synchronized again, it means that installation of the
incoming customer part is improper. Please reinstall it according to the
user guide.
5. If the ADSL still fails to be synchronized after the ADSL Modem
has been connected to the incoming customer cable end, contact the
operators to check whether it is due to external line failure or Modem
failure.
