ZyXEL Communications P-871M User manual

Copyright © 2008. All rights reserved
P-871M
VDSL Modem
User’s Guide
Version ME1
5/2008
Edition 1
DEFAULT LOGIN
Password 1234
Console Port Speed 38400 bps

P-871M User’s Guide
2
Overview
The P-871M is a VDSL modem in CPE (Customer Premises
Equipment) mode and can also act as CO (Central Office)
equipment. CO equipment is where home and office phone
lines terminate and connects to a much larger switching
system. In the following example, you can build up a VDSL
bridge connection between two P-871Ms.
This guide covers:
•Overview, page 2
•Hardware Connections, page 3
•CLI Commands Configuration, page 6
•Firmware Upgrade, page 9
•Wall-mounting Instructions, page 12

3
P-871M User’s Guide
1 Hardware Connections
You can set the P-871M to work in either CO mode or CPE
mode. Follow the procedure below to complete the hardware
connections.
1.1 CO Mode
1Set the CO/CPE switch on the rear panel to the CO side.
2Use the included console cable to connect the CONSOLE
port to your computer’s COM port for configuration.
3Use the included yellow Ethernet cable to connect the
ETHERNET port to your network device, such as a switch.
4Over ISDN: Use the included gray cable with a RJ-45
connector to connect the DSL port to another P-871M in
CPE mode.
Over POTS: Use the included gray cable with a RJ-11
connector to connect the DSL port to another P-871M in
CPE mode.
3
1
24
5
6
CO
CPE

P-871M User’s Guide
4
5Use the included power adaptor to connect the POWER
socket to a proper power source.
6Push the power switch to the on position.
1.2 CPE Mode
1Set the CO/CPE switch on the rear panel to the CPE side.
2Use the included console cable to connect the CONSOLE
port to your computer’s COM port for configuration.
3Use the included yellow Ethernet cable to connect the
ETHERNET port to your network device, such as a switch.
4Over ISDN: Use the included gray cable with a RJ-45
connector to connect the DSL port to another P-871M in
CO mode.
Over POTS: Use the included gray cable with a RJ-11
connector to connect the DSL port to another P-871M in
CO mode.
5Use the included power adaptor to connect the POWER
socket to a proper power source.
3
1
2
4
5
6
CO
CPE

5
P-871M User’s Guide
6Push the power switch to the on position.
1.3 LEDs (Lights)
Look at the LEDs on the top panel of the P-871M.
•ThePOWER LED is on when the system is ready.
•TheETHERNET LED turns on if the ETHERNET port is con-
nected to an Ethernet device and blinks when the P-871M is
sending or receiving data through the ETHERNET port.
•TheDSL LED is on if the VDSL connection between two P-
871Ms is set up.
•TheCO LED is on when the P-871M is operating in CO
mode.
VIf none of the LEDs (lights) are on, check your
connections. Make sure that you have the
power adaptor connected to the P-871M and
plugged in to an appropriate power source.
Make sure the power source is turned on. Turn
the P-871M off, wait for a few seconds and turn
it back on. If the LEDs are still off, contact your
vendor.

P-871M User’s Guide
6
2 CLI Commands Configuration
When the P-871M is in CO mode, use the CLI (Command
Line Interface) commands to configure it.
2.1 Syntax Conventions
This manual follows these general conventions:
• Units of measurement may denote the “metric” value or the
“scientific” value. For example, “k” for kilo may denote “1000”
or “1024”, “M” for mega may denote “1000000” or “1048576”
and so on.
Command descriptions follow these conventions:
• Commands are in courier new font.
• Required input values are in angle brackets <>; for example,
ping <ip-address>means that you must specify an IP
address for this command.
• Optional fields are in square brackets []; for instance vdsl
profile [1|2], the name field is optional.
•The|(bar) symbol means “or”.
•italic terms represent user-defined input values; for
example, in vdsl downrate [y], ycan be replaced by the
actual data rate that you want to set, for example, 10000.
• A key stroke is denoted by square brackets and uppercase
text, for example, [ENTER] means the “Enter” or “Return”
key on your keyboard.

7
P-871M User’s Guide
2.2 Accessing the CLI
1Connect your computer to the console port and use
terminal emulation software configured to the following
parameters:
• VT100 terminal emulation
• 38400 bps
• No parity, 8 data bits, 1 stop bit
• No flow control
2Press [ENTER] to open the login screen.
3Enter the system login password.
"The default system password is 1234.
2.3 Commands Summary
The following table lists the commands available on the P-
871M.
"Use the ?or help command to see the
available commands.

P-871M User’s Guide
8
Command Description
sys Displays the system information and port
settings, including the current firmware version
and VDSL data rate.
lt=line termination, means CO mode;
nt=network termination, means CPE mode
help Displays all available commands.
exit Logs you out of the CLI.
passwd Changes the system login password.
default Returns the P-871M to the factory defaults.
upgrade
<fw|conf>
Uploads the P-871M’s firmware or
configuration file.
vdsl uprate [x]Displays or sets the VDSL upstream data rate.
x: Enter the rate from 2000 to 100000 in Kbps.
vdsl downrate
[y]
Displays or sets the VDSL downstream data
rate.
y: Enter the rate from 2000 to 100000 in Kbps.
vdsl snr [z]Displays or sets the VDSL SNR margin.
z: Enter the SNR margin from 0 to 24 in dB.
vdsl interleave
[i]
Displays or sets the VDSL interleave delay.
i: Enter the interleave delay from 0 to 100 in
0.5 ms (milisecond).
vdsl profile
[1|2]
Displays or sets the VDSL profile.
1: 12a, PSD:998-M1x-B
2: 12a, PSD:997-M1x-M
vdsl reset Resets the VDSL chipset.
vdsl reconnect Forces the P-871M to re-build up the VDSL
connection.

9
P-871M User’s Guide
3 Firmware Upgrade
This section shows you how to upload firmware via the
console port.
vdsl debug Displays VDSL debugging information.
vdsl show Displays the VDSL status and performance
data.
vdsl active
[on|off]
Displays the VDSL port status or enables/
disables the VDSL port.
enet auto
[on|off]
Displays or sets auto-negotiation mode.
enet speed
[10|100]
Displays or sets the Ethernet port speed (10 or
100 Mbps).
enet duplex
[full|half]
Displays or sets the Ethernet duplex mode.
enet fctrl
[on|off]
Displays or sets flow control.
enet status Displays the Ethernet port statistics.
enet clear Removes the Ethernet port statistics.
Command Description

P-871M User’s Guide
10
1Do not interrupt the file transfer
process as this may PERMANENTLY
DAMAGE your P-871M.
1Obtain the firmware file, unzip it and save it in a folder on
your computer.
1Only upload firmware for your specific
model!
2Access the CLI and type the upgrade fw command.
3Type yand press [ENTER].
4When you see the Press any key to start
message,press a key and activate XMODEM upload on
your terminal.

11
P-871M User’s Guide
5This is an example Xmodem configuration upload using
HyperTerminal. Click Transfer, then Send File to display
the following screen.
Type the firmware file's
location, or click Browse
to search for it.
Choose the 1K Xmodem
protocol.
Then click Send.

P-871M User’s Guide
12
6After a successful firmware upload, the P-871M restarts.

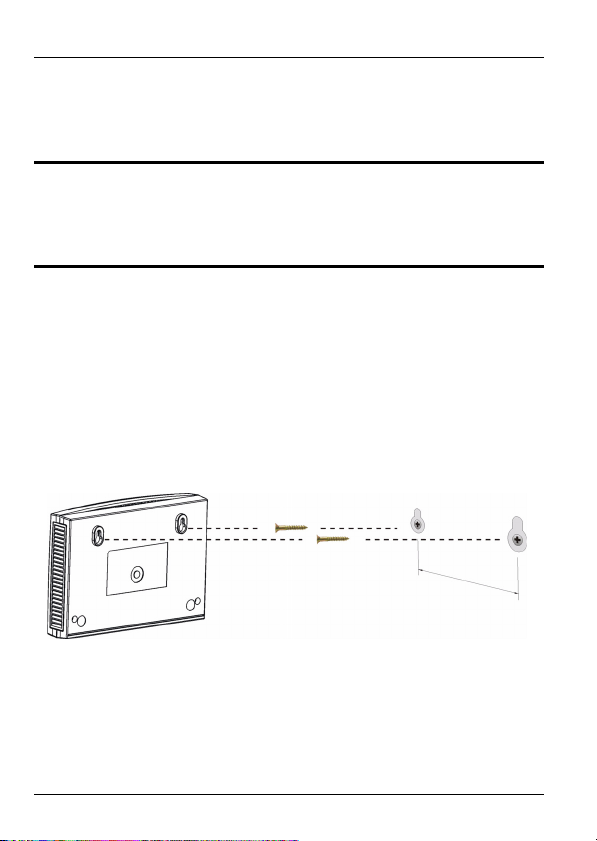

4 Wall-mounting Instructions
Complete the following steps to hang the P-871M on a wall.
VDSL>upgrade fw
This operation will overwrite the old firmware! Continue?(Y/N) y
You MUST NOT abort this operation after XMODEM data transfer begins.
Otherwise the device will be damaged.
Restart your device before XMODEM transfer begins to quit the upgrade
process.
Press any key to start...
Send firmware using the Xmodem protocol from your terminal emulator
now...
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCXmodem successfully received 268288
bytes
Firmware upgrade success!!
Rebooting...
Press any key to bypass loading Modem Code and Configurations...
User configurations does not exist, use default configurations
instead!!
ZyXEL(R) Prestige VDSL-LT Modem Version ME1(AWP.0)
Copyright (C) ZyXEL Corp 2005-2008. All rights reserved.
System initializing...
VDSL Modem Code Version: 030103
VDSL Profile: 12a,PSD:998-M1x-B
Reset VDSL Chip...
Writing 98844 bytes Modem Code...
Platform, Port initialized
Password:

13
P-871M User’s Guide
1Select a position free of obstructions on a sturdy wall.
2Drill two holes for the screws (M4*30). The centers of the
holes should be 120 mm apart.
"Be careful to avoid damaging pipes or cables
located inside the wall when drilling holes for the
screws.
3Do not screw the screws all the way into the wall. Leave a
small gap of about 0.5 cm between the heads of the
screws and the wall.
4Make sure the screws are snugly fastened to the wall.
They need to hold the weight of the P-871M with the
connection cables.
5Align the holes on the back of the P-871M with the screws
on the wall. Hang the P-871M on the screws.

P-871M User’s Guide
14
The following are dimensions of an M4 tap screw and
masonry plug used for wall mounting. All measurements are
in millimeters (mm).
Specifications
Specifications are accurate at the time of writing.
Feature Specification
Default password 1234
Dimensions (mm) 189 (Wide) x 132 (Deep) x 40 (High)
Distance between the wall-
mounting holes on the
device’s back
120 mm
Screw size for wall-
mounting
M4*30
Weight 307 g

15
P-871M User’s Guide
Ethernet Port One RJ-45, 10/100Mbps Half / Full Auto-
negotiation, Auto-crossover Ethernet port
DSL Port One RJ-45 port for the VDSL connection
over POTS or ISDN
Console Port One DB-9 female connector for
configurations via the CLI
CO/CPE Switch Set the P-871M to work in CO mode or
CPE mode
Power Supply 9 VAC @ 1A
Operation Temperature 0º C ~ 40º C
Storage Temperature -20º ~ 60º C
Operation Humidity 20% ~ 85% RH
Storage Humidity 20% ~ 90% RH
Feature Specification

P-871M User’s Guide
16
Features
Safety Warnings
1For your safety, be sure to read and
follow all warning notices and
instructions.
VDSL • VDSL standard: ETSI/ANSI/ITU-T standard
• Band Plan: 997 and 998 (Default:998)
• VDSL Profile: 8a,12a (2,3,4 band), with U0
band
• VDSL Band Plan and Profile setting:
• Profile 1: 998
• Profile 2: 997
• PSD: 997-M1x-M; 998-M1x-B
• Modulation: DMT
Network Protocols • IEEE 802.3 10BaseT Ethernet
• IEEE 802.3u 100BaseTx Ethernet
• IEEE 802.3x Flow control
• IEEE 802.1D transparent bridging
• Flow control in full duplex mode
• Back pressure in half duplex mode

17
P-871M User’s Guide
• Do NOT use this product near water, for example, in a wet basement or near a
swimming pool.
• Do NOT expose your device to dampness, dust or corrosive liquids.
• Do NOT store things on the device.
• Do NOT install, use, or service this device during a thunderstorm. There is a
remote risk of electric shock from lightning.
• Connect ONLY suitable accessories to the device.
• Do NOT open the device or unit. Opening or removing covers can expose you
to dangerous high voltage points or other risks. ONLY qualified service per-
sonnel should service or disassemble this device. Please contact your vendor
for further information.
• Make sure to connect the cables to the correct ports.
• Place connecting cables carefully so that no one will step on them or stumble
over them.
• Always disconnect all cables from this device before servicing or disassem-
bling.
• Use ONLY an appropriate power adaptor or cord for your device. Connect it to
the right supply voltage (for example, 110V AC in North America or 230V AC in
Europe).
• Do NOT allow anything to rest on the power adaptor or cord and do NOT place
the product where anyone can walk on the power adaptor or cord.
• Do NOT use the device if the power adaptor or cord is damaged as it might
cause electrocution.
• If the power adaptor or cord is damaged, remove it from the device and the
power source.
• Do NOT attempt to repair the power adaptor or cord. Contact your local vendor
to order a new one.
• Do not use the device outside, and make sure all the connections are indoors.
There is a remote risk of electric shock from lightning.
• If you wall mount your device, make sure that no electrical lines, gas or water
pipes will be damaged.
• Do not obstruct the device ventilation slots,as insufficient airflow may harm
your device.
• To reduce the risk of fire, use only No. 26 AWG (American Wire Gauge) or
larger telecommunication line cord.

P-871M User’s Guide
18
• This product is recyclable. Dispose of it properly.
Legal Information
Certifications
Federal Communications Commission (FCC) Interference
Statement
The device complies with Part 15 of FCC rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that
may cause undesired operations.
This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This device generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this device does cause harmful interference to radio/television reception,
which can be determined by turning the device off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
1Reorient or relocate the receiving antenna.
2Increase the separation between the equipment and the receiver.
3Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
4Consult the dealer or an experienced radio/TV technician for help.

19
P-871M User’s Guide
Notices
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du
Canada.
Viewing Certifications
1Go to http://www.zyxel.com.
2Select your product on the ZyXEL home page to go to that product's page.
3Select the certification you wish to view from this page.
ZyXEL Limited Warranty
ZyXEL warrants to the original end user (purchaser) that this product is free
from any defects in materials or workmanship for a period of up to two years
from the date of purchase. During the warranty period, and upon proof of
purchase, should the product have indications of failure due to faulty
workmanship and/or materials, ZyXEL will, at its discretion, repair or replace
the defective products or components without charge for either parts or labor,
and to whatever extent it shall deem necessary to restore the product or
components to proper operating condition. Any replacement will consist of a
new or re-manufactured functionally equivalent product of equal or higher
value, and will be solely at the discretion of ZyXEL. This warranty shall not
apply if the product has been modified, misused, tampered with, damaged by
an act of God, or subjected to abnormal working conditions.
Note
Repair or replacement, as provided under this warranty, is the exclusive
remedy of the purchaser. This warranty is in lieu of all other warranties, express
or implied, including any implied warranty of merchantability or fitness for a
particular use or purpose. ZyXEL shall in no event be held liable for indirect or
consequential damages of any kind to the purchaser.
To obtain the services of this warranty, contact your vendor. You may also refer
to the warranty policy for the region in which you bought the device at http://
www.zyxel.com/web/support_warranty_info.php.
Related Documentation
Please go to http://www.zyxel.com for product news, firmware, documentation,
and other support materials.

P-871M User’s Guide
20
Registration
Register your product online to receive e-mail notices of firmware upgrades and
information at www.zyxel.com for global products, or at www.us.zyxel.com for
North American products.
User Guide Feedback
Help us help you. E-mail all User Guide-related comments, questions or
suggestions for improvement to techwrit[email protected] or send regular mail
to The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation
Road II, Science-Based Industrial Park, Hsinchu, 300, Taiwan. Thank you.
Copyright
Copyright © 2008 by ZyXEL Communications Corporation.
The contents of this publication may not be reproduced in any part or as a
whole, transcribed, stored in a retrieval system, translated into any language, or
transmitted in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, photocopying, manual, or otherwise, without the prior written
permission of ZyXEL Communications Corporation.
Published by ZyXEL Communications Corporation. All rights reserved.
Disclaimer
ZyXEL does not assume any liability arising out of the application or use of any
products, or software described herein. Neither does it convey any license
under its patent rights nor the patent rights of others. ZyXEL further reserves
the right to make changes in any products described herein without notice. This
publication is subject to change without notice.
Trademarks
ZyNOS (ZyXEL Network Operating System) is a registered trademark of ZyXEL
Communications, Inc. Other trademarks mentioned in this publication are used
for identification purposes only and may be properties of their respective
owners.
Customer Support
In the event of problems that cannot be solved by using this manual, you should
contact your vendor. If you cannot contact your vendor, then contact a ZyXEL
office for the region in which you bought the device. Regional offices are listed
below (see also http://www.zyxel.com/web/contact_us.php). Please have the
following information ready when you contact an office.
