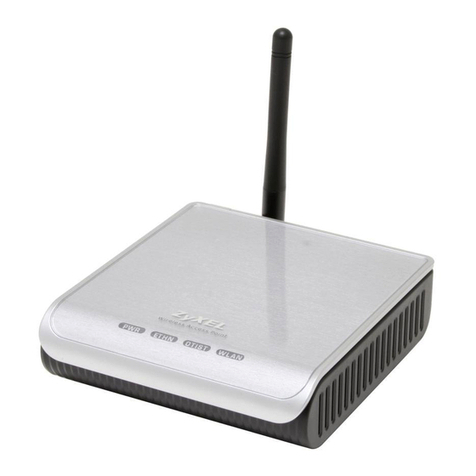

ZyXEL Communications G-570S User manual

Ultimate Wireless Network
Deployment with 4-in-1
802.11g Wireless AP/Bridge
g-570s
Benefits
Wireless AP, Bridge, Repeater and Wireless Client
4-in-1 Design
Designed for home and small office,ZyXEL G-570S 4-in-1 Access Point with
Wireless Super G technology is capable of boosting data throughput to as
high as 108Mbps.The 4-in-1 design,featuring Access Point, Repeater, Bridge
and Wireless Client modes, provides superior flexibility for wireless network
deployment. Detachable antenna and adjustable transmit power make the
G-570S the best price/performance choice for different application
scenarios in homes and small offices.
Ultra Fast and Secure Wireless Performance
The ZyXEL G-570S is compliant with the 802.11g standard allowing wireless
data throughput of 54Mbps.With the ZyXEL’s “Wireless Super G”mode
enabled, the wireless connection speed between G-570S and Super G-
enabled wireless clients will be boosted to an astounding *108Mbps
instantly. Better yet, with WPA/WPA2/WPA2-PSK encryption technology, the
compact G-570S provides enhanced, interoperable wireless network
security for uncompromised data transmission.
Setup in a Snap
With ZyXEL’s exclusive One-touch Intelligent Security Technology (OTISTTM)
activated,the highest level of security will be automatically established
between G-570S and OTIST-enabled wireless clients to protect the wireless
traffic from hackers or unauthorized users.
ł
Operation Modes: AP, Repeater, Bridge and
Wireless Client
ł
“Wireless Super G”Technology Doubles Standard
802.11g Data Rate to up to *108Mbps
ł
Simplifies Wireless Security Setting with OTIST
Technology Support
ł
Robust Security Protection with WPA/WPA2, 802.1x
and 152-bit WEP Encryption
wire
l
ess

802.11g Wireless AP/Bridge
g-570s
65-100-057001G 10/05
Standard
• IEEE 802.11b standard compliant
• IEEE 802.11g standard compliant
Memory Size
• 4MB Flash, 16MB DRAM
Hardware Specifications
• One 10/100Base-T Ethernet, full-duplex with auto
MDI/MDIX support
• Power Supply: 12V DC,1A
• One Reverse SMA antenna connector (detachable)
• Reset Button
• OTIST Button
Physical Specifications
• Dimensions: 112.1(W) x 106(D) x 28.5(H) mm
• Weight: 203g
Environmental Specifications
• Temperature: 0ºC ~ 50ºC
• Humidity: 20% ~ 95% (non-condensing)
System Requirement
• Broadband (cable, DSL, satellite or wireless) Internet
service and modem with Ethernet RJ-45 connector
• Ethernet connection (adapter or cable)
• Windows, Mac OS or Linux-based operating system
• Internet Explorer 5.0 or later
* When the Wireless Super G Technology is enabled with
Multi-Channel 108 Mbps Turbo mode, the theoretical data
rate can reach up to 108Mbps among ZyXEL Wireless Super
G-enabled access points and clients. Actual performance
may vary depending on different operating environment.
Specifications
G
-
5
7
0S
B
ridge Mode
G
-
5
7
0S
Bridge Mod
e
G-570S Repeater Mode
G-570S Bridge Mode
G-570S Client Mode
2nd Floor
1st Floor
Ground Floor

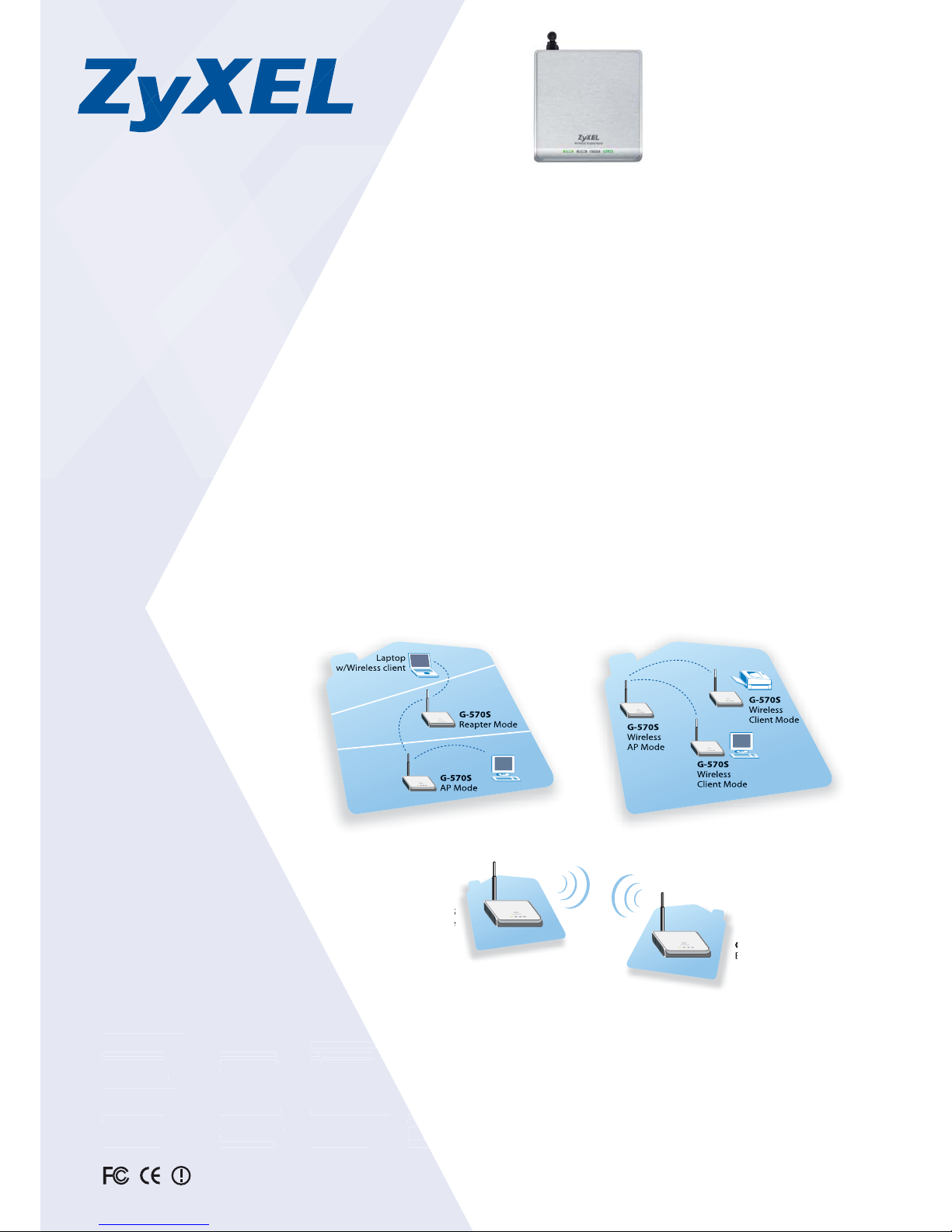

Application Diagram
