®Lift8

Communicator for lifts

User manual

2.2.0



The 2N TELEKOMUNIKACE a.s. is a Czech manufacturer and supplier of telecommunications

equipment.

The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways, private

branch exchanges (PBX), and door and lift communicators. 2N TELEKOMUNIKACE a.s. has

been ranked among the Czech top companies for years and represented a symbol of

stability and prosperity on the telecommunications market for almost two decades. At

present, we export our products into over 120 countries worldwide and have exclusive

distributors on all continents.

2N is a registered trademark of 2N TELEKOMUNIKACE a.s. Any product and/or other

names mentioned herein are registered trademarks and/or trademarks or brands protected

by law.

2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find

information and to answer your questions about 2N products and services. On

www.faq.2n.cz you can find information regarding products adjustment and instructions for

optimum use and procedures „What to do if...“.

2N TELEKOMUNIKACE a.s. hereby declares that the 2N product complies with all

®Lift8

basic requirements and other relevant provisions of the 1999/5/EC directive. For the full

wording of the Declaration of Conformity see the CD-ROM (if enclosed) or our website at

www.2n.cz.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All

development, production and distribution processes of the company are managed by this

standard and guarantee a high quality, technical level and professional aspect of all our

products.

In this section, we introduce the product, outline its application options and highlight the2N Lift8

advantages following from its use.

Here is what you can find in this section:

1.1 Product Description

1.2 Components and Associated Products

1.3 Upgrade

1.4 Terms and Symbols Used

1.1 Product Description

Basic Features

Up to 8-lift connectivity

Lift cabin, shaft and machine room voice audio units

Optimum acoustic properties

Rechargeable built-in backup battery

Easy control and configuration – voice response system

Check Call function

Lift blocking during connection failure

Internal communication – Triphony

Telephone/PC-based configuration (via USB or Internet)

USB interface

User message recording option

Local control centre (Intercom)

Fireman function

Basic Description

2N Lift8

®( ) is a communication system with a function similar to an intercom. The system voiceL8

audio units are linked to a common bus (pair of wires), connected to a splitter. The splitter is always

connected to a central unit (CU), which controls the system operation and provides connection with

the control centre. It is possible to connect up to 40 audio units to the bus. The CU contains an

internal splitter.

Each splitter is uniquely identified: by lift number 1 to 8. The audio units are connected to the

splitters and located on the shaft bottom, in the cabin interior, on the cabin roof and in the machine

room. The machine room can be shared by multiple lifts.audio unit

The contains an easily replaceable backup battery pack (lead rechargeable battery). The is CU CU

responsible for battery charging and status monitoring. It indicates the charging state, signal

strength, telephone line state, bus state core state via five colour LEDs. It is also equipped with a

USB interface for comfortable configuration, voice message recording and software upgrade.

The can be connected via: GSM, UMTS, PSTN or VoIP. CU

meets the and certifications. 2N Lift8

®TÜV CE

System Diagram

Example of Central Unit, Splitter and Audio Unit ConnectionFigure: 2N Lift8

Main bus

Audio unit bus

1.2 Components and Associated Products

2N Lift8 System Components

918600 2N Lift8 Central Unit

Central UnitFigure: 2N Lift8

For connection of up to 8 lifts to a GSM/UMTS/PSTN line. Including a power EURO cable and

rechargeable battery. USB interface for configuration.

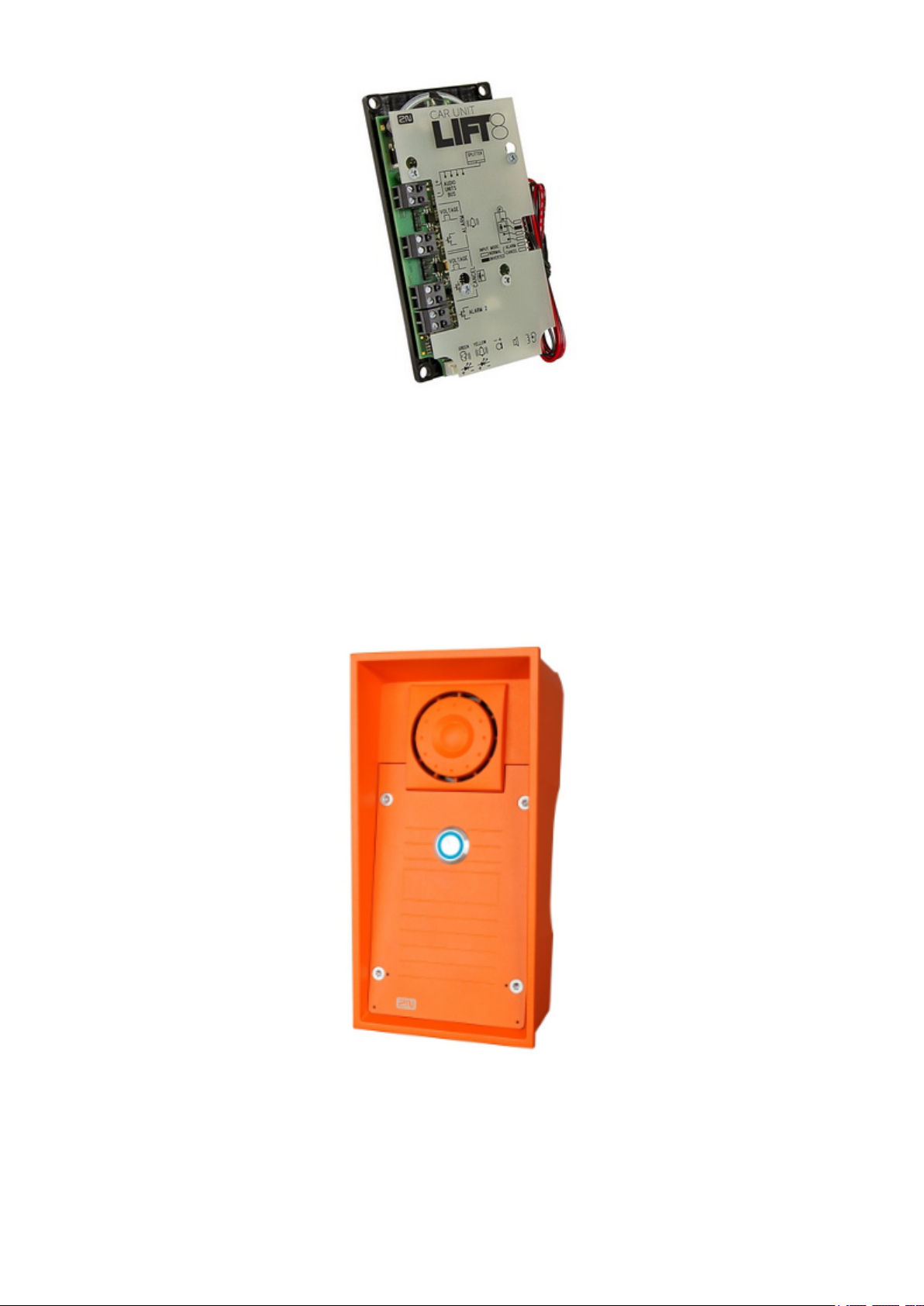

918620E 2N Lift8 Splitter

SplitterFigure: 2N Lift8

Notification

The components of the system cannot be used outside this system.2N®Lift8

The audio units cannot be connected to a telephone line without the !CU

When shared by multiple shafts, the audio units cannot be connected without the CU

and splitters.

For – lift audio unit interconnection.CU

918610E 2N Lift8 Audio Unit – COP

(Normal version)

Audio Unit – COPFigure: 2N Lift8

Audio unit electronics for lift cabin building in. Including speaker and microphone (HandsFree).

Connection terminals for all prescribed elements and door opening signal input (optional).

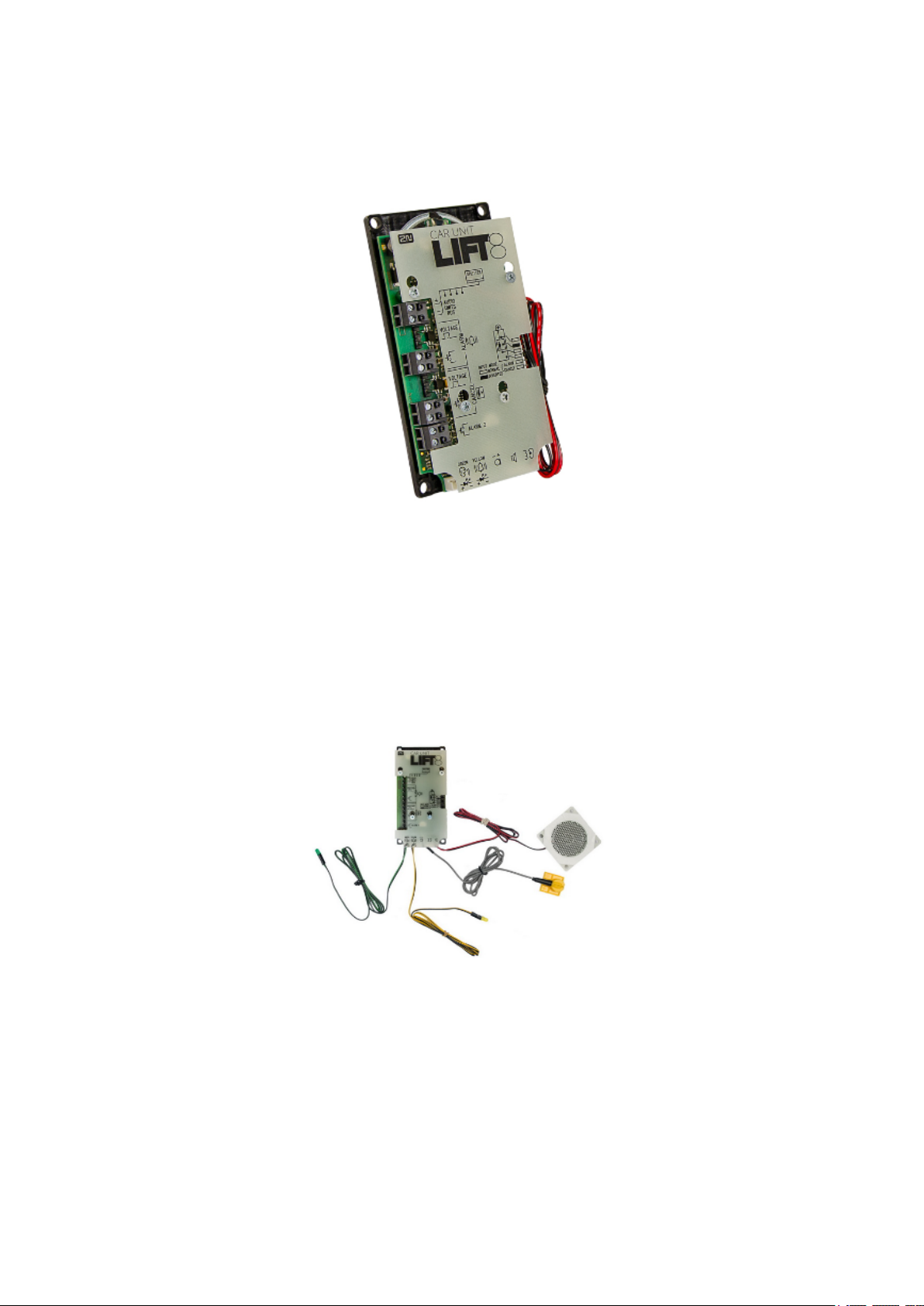

918610EX 2N Lift8 Audio Unit – COP – Cable Version

Contains LED, microphone and speaker connected to cables.

Audio Unit – COP – Cable VersionFigure: 2N Lift8

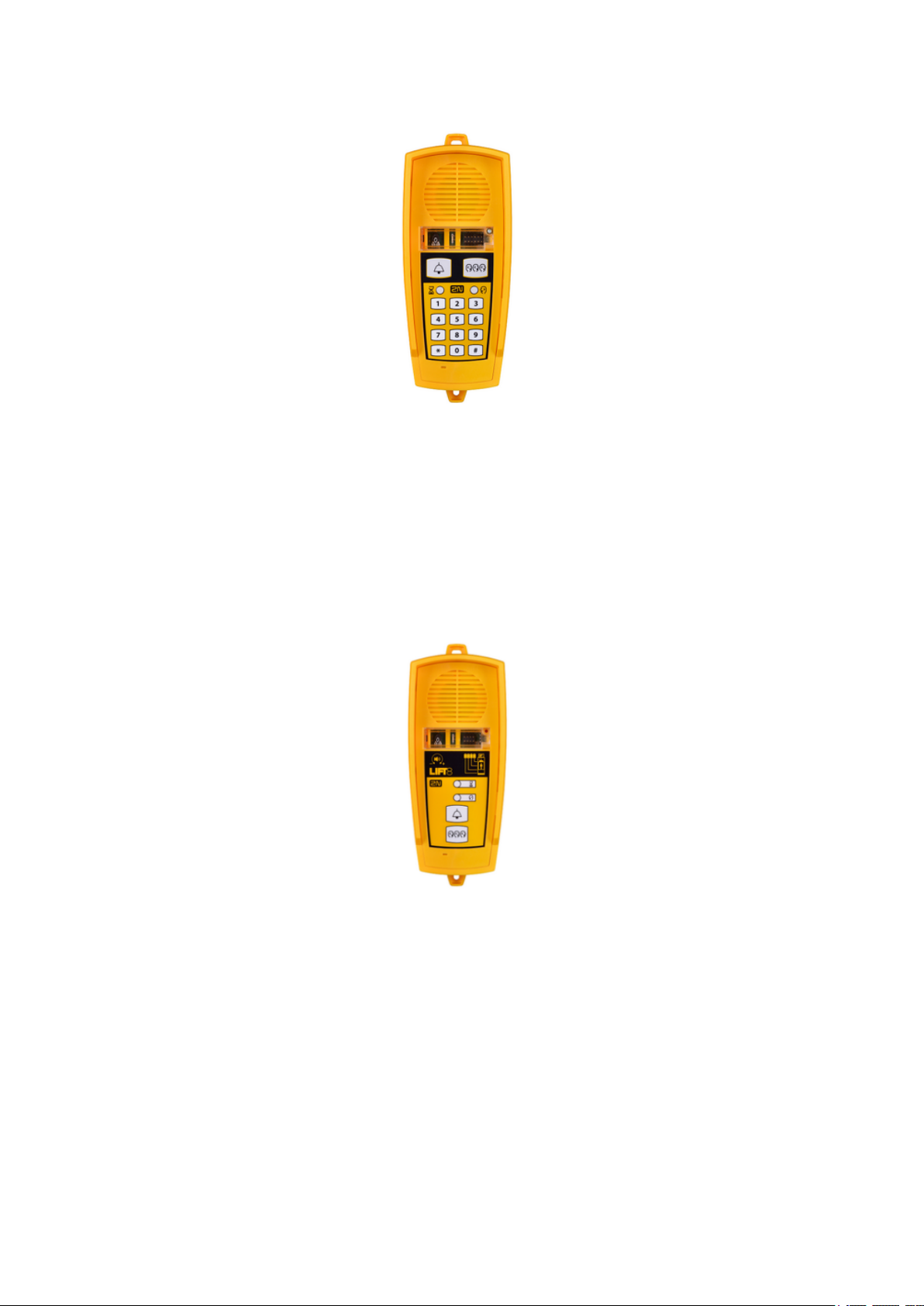

918611E 2N Lift8 Audio Unit – Machine Room/Control Centre

Audio Unit – Machine Room/Control CentreFigure: 2N Lift8

Audio unit for the machine room/control centre. Contains receiver (optional) and keypad for easy

control. Makes it possible to communicate with other system audio units and configure the withouCU

t a PC. Equipped with an external siren connector. Can be shared by multiple lifts (shafts). Robust

yellow cover.

918612E 2N Lift8 Audio Unit – Shaft

Audio Unit – ShaftFigure: 2N Lift8

Audio unit for cabin roof and shaft or cabin bottom. Robust yellow cover. HandsFree mode, ALARM

button and Triphony, LED indicators. Not intended for use in the cabin.

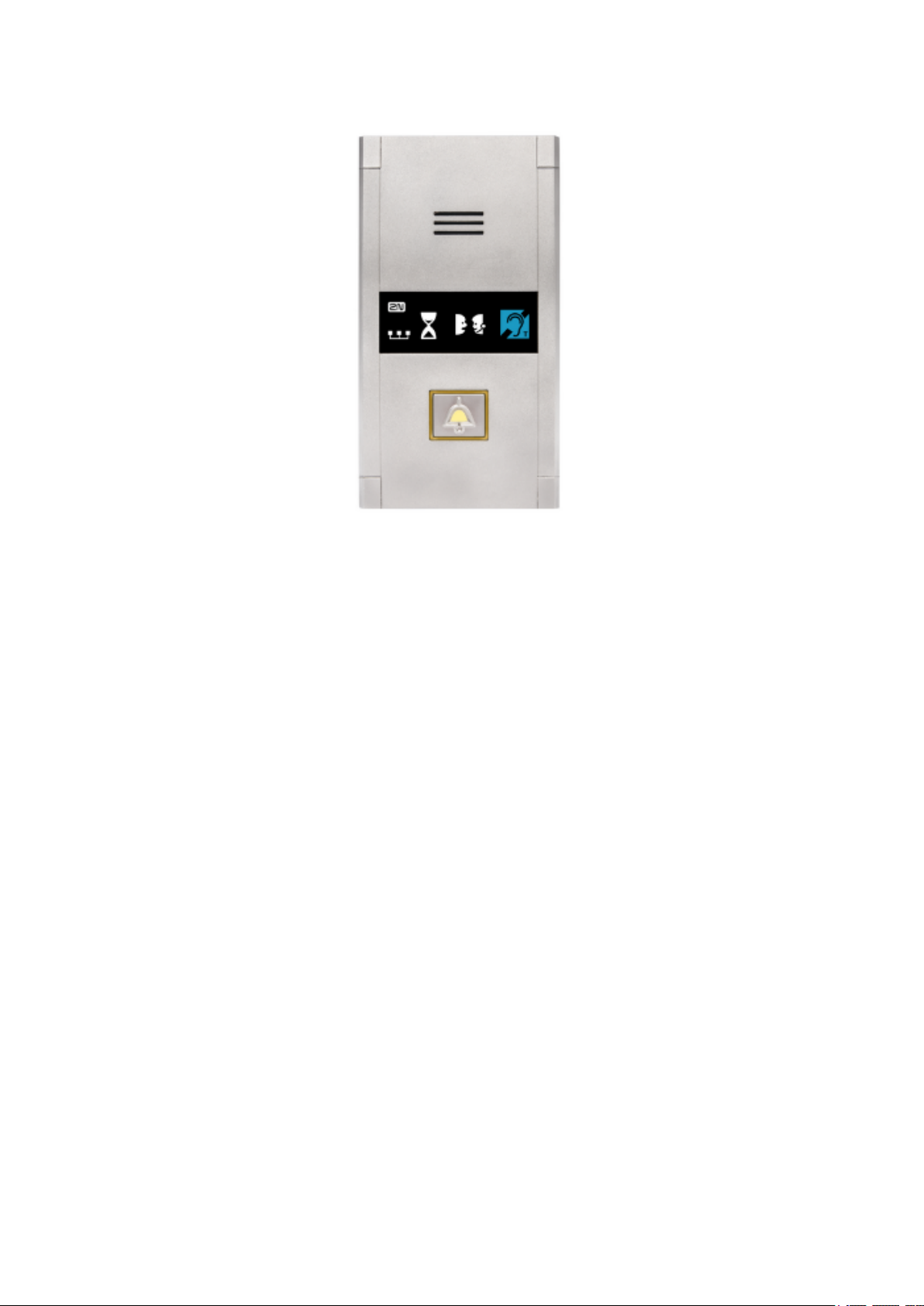

918613E 2N Lift8 Audio Unit – Compact

Audio Unit – CompactFigure: 2N Lift8

Robust, heavy-duty design. Standard-sized ALARM button including signage for the blind and backlit

pictograms (hardened glass). Easy cabin wall mounting. Easy 2-wire connection.

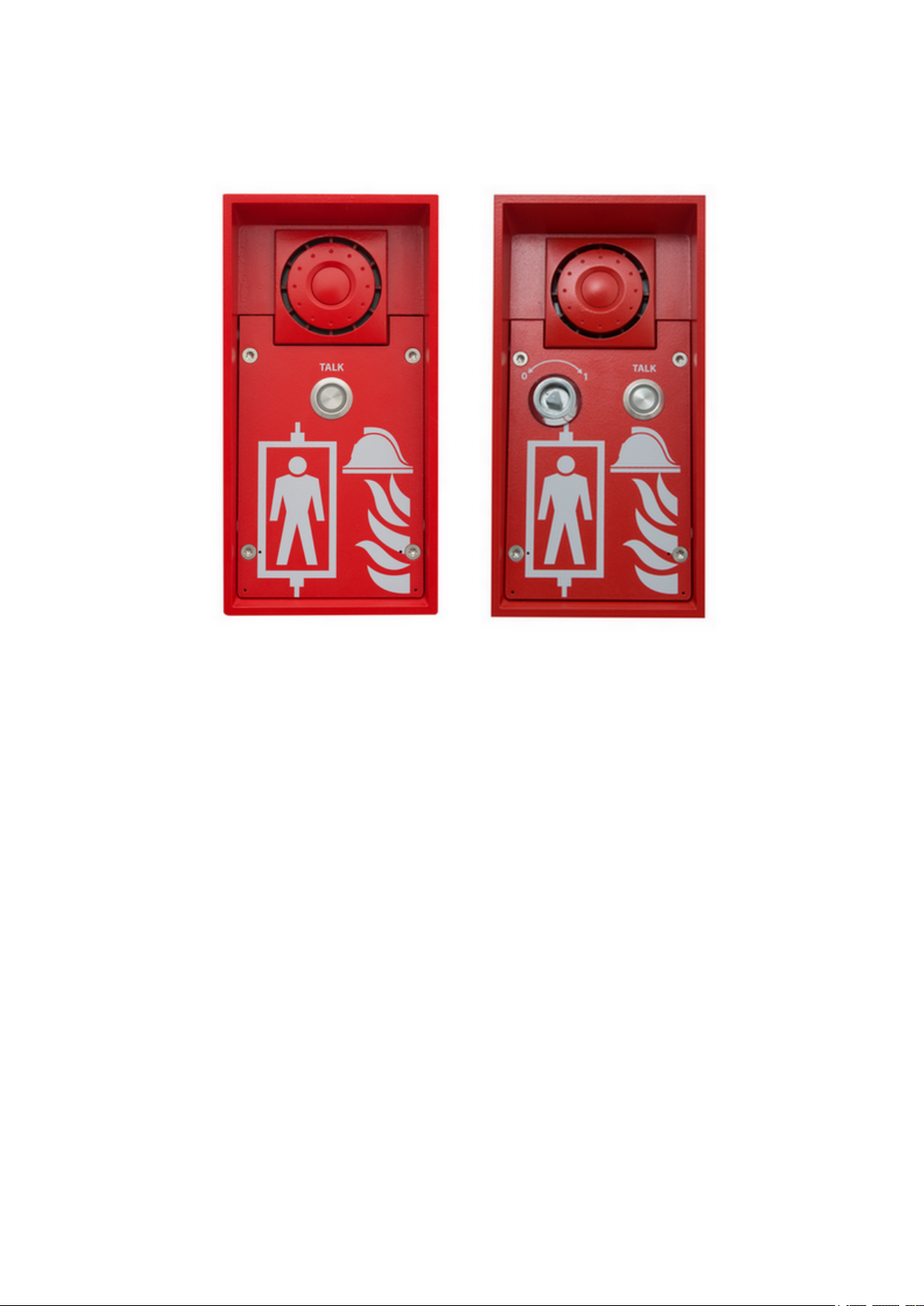

918615ZK 2N Lift8 Audio Unit – Fireman (1 button)

918615E 2N Lift8 Audio Unit – Fireman (knob + 1 push-to-talk button)

Audio Unit – FiremanFigure: 2N Lift8

Used for fire fighting operations. Activates top priority calls.

918610FZK 2N Lift8 Audio Unit – Fireman DPS (1 button)

918619E 2N Lift8 Audio Unit – Fireman DPS (knob + 1 push-to-talk button)

Audio Unit – Fireman DPSFigure: 2N Lift8

Used by fire fighting operations. Activates top priority calls.

918617E 2N® Audio Unit - Shaft Antivandal

Audio Unit - Shaft AntivandalObrázek: 2N® Lift8

A robust, highly resistant audio unit designed for installation on lift cabin roofs and shaft bottoms,

under cabin floors and/or any other places that require communication, e.g. for lift maintenance

purposes. This unit is designed for outdoor applications too.

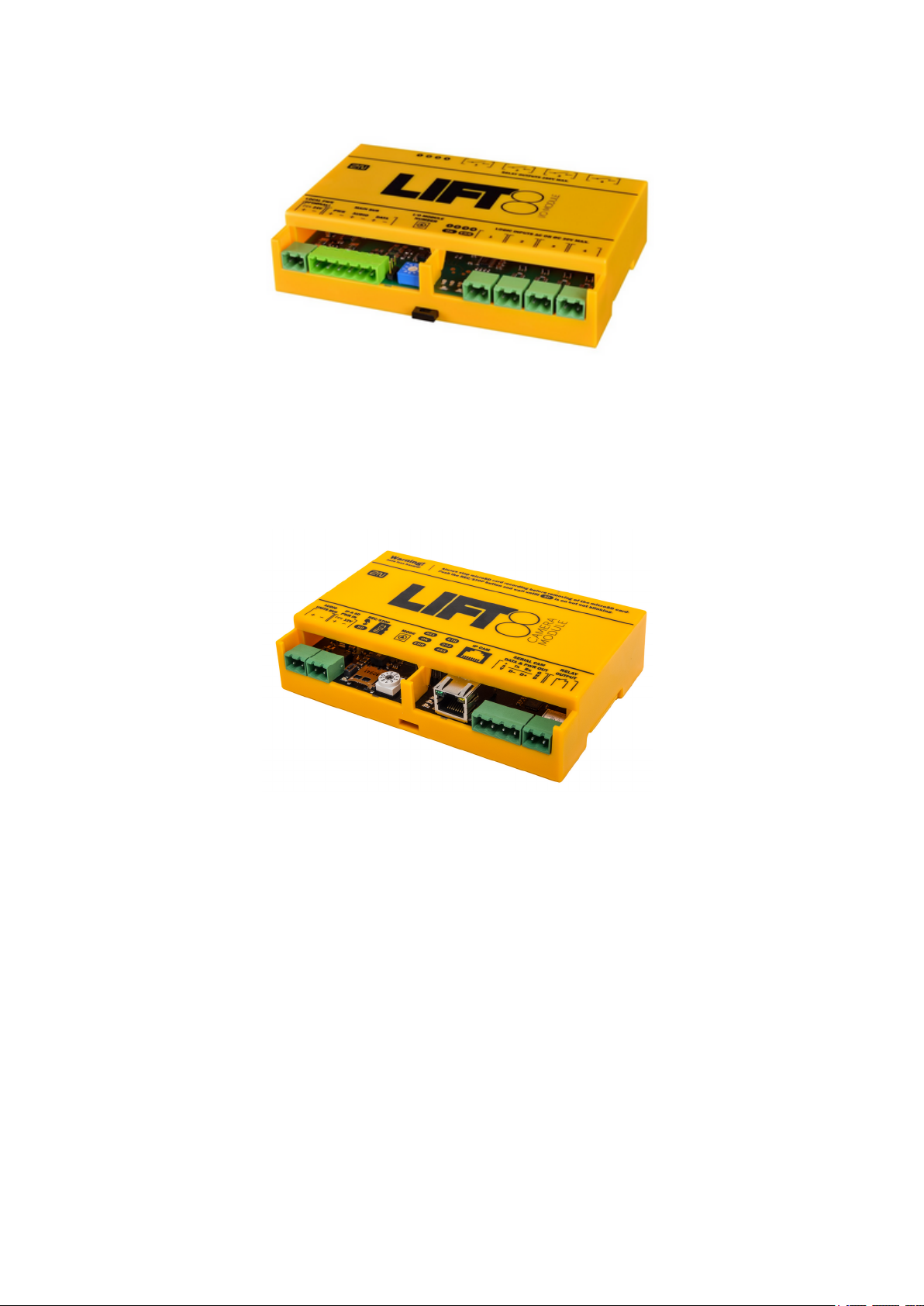

918621E 2N Lift8 I/O Module

I/O ModuleFigure: 2N Lift8

Contains logical inputs and switch relays.

918622 2N® Lift8 Camera Module

Camera ModuleFigure: 2N® Lift8

For camera connection (IP, RS232, RS485) to the lift cabin. Every cabin in each shaft can contain a

camera module (up to 8 camera modules in 2N® Lift8).

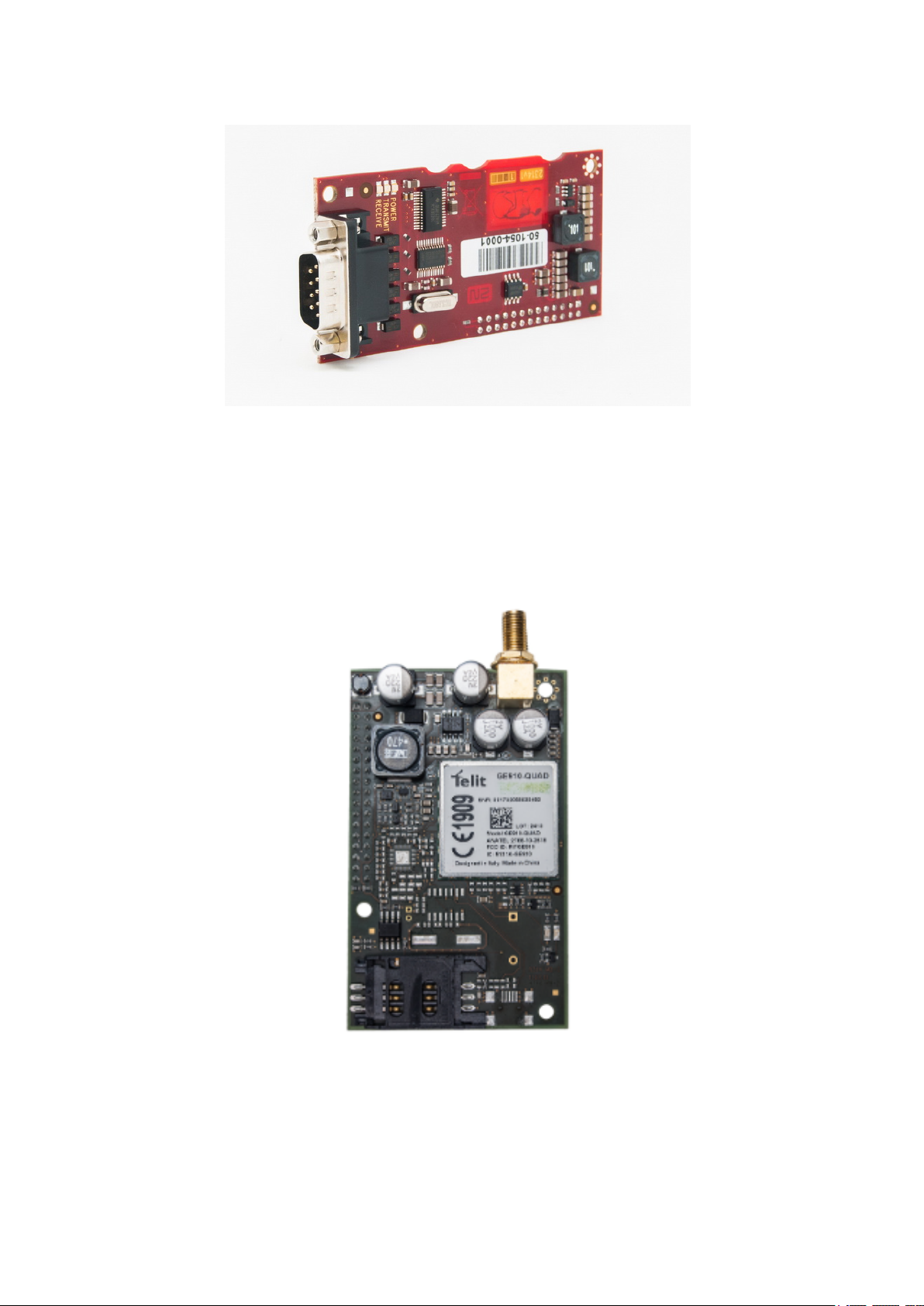

918654E 2N® Lift8 RS232 Module

Obrázek: RS232 Module2N® Lift8

The RS232 module connects the system with the lift control unit. The lift control unit2N® Lift8

transmits a command via RS232 to the Central Unit for processing and executing.

918650E 2N Lift8 GSM Module

GSM ModuleFigure: 2N Lift8

For Central Unit connection via a mobile network. Optional data connection for remote system

configuration.

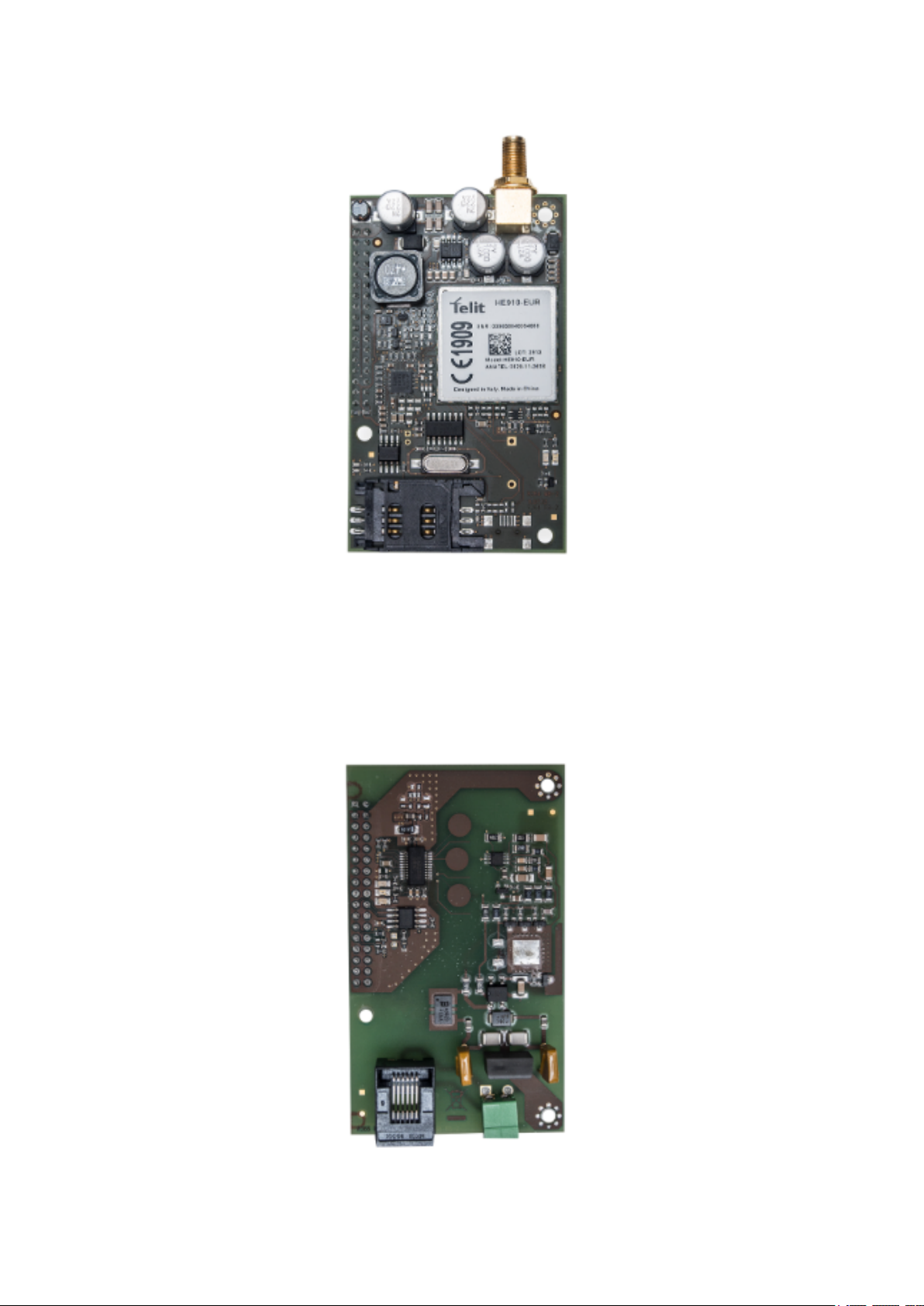

918651E 2N Lift8 UMTS Module

UMTS ModuleFigure: 2N Lift8

For Central Unit connection via a mobile network. Optional data connection for remote system

configuration.

918652E 2N Lift8 PSTN Module

PSTN ModuleFigure: 2N Lift8

For Central Unit connection via an analogue line.

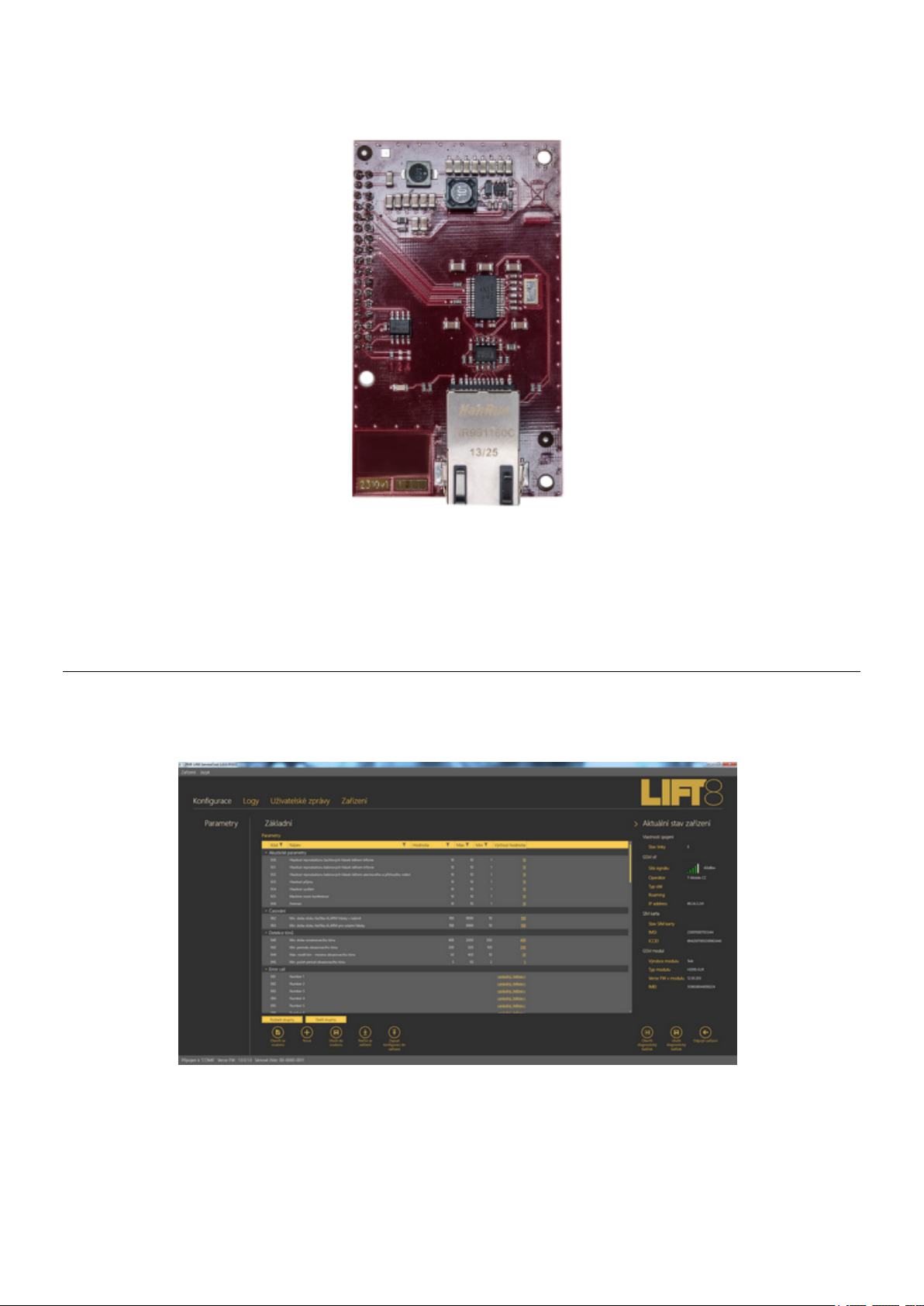

918653E 2N Lift8 VoIP Module

VoIP ModuleFigure: 2N Lift8

For Central Unit via a VoIP line.connection

Cooperating 2N Applications

918700E 2N Lift8 Service Tool

Figure: 2N Lift8

®Service Tool

The is intended for remote supervision and configuration of the 2N Lift8 Service Tool

® application

communicators.2N Lift8

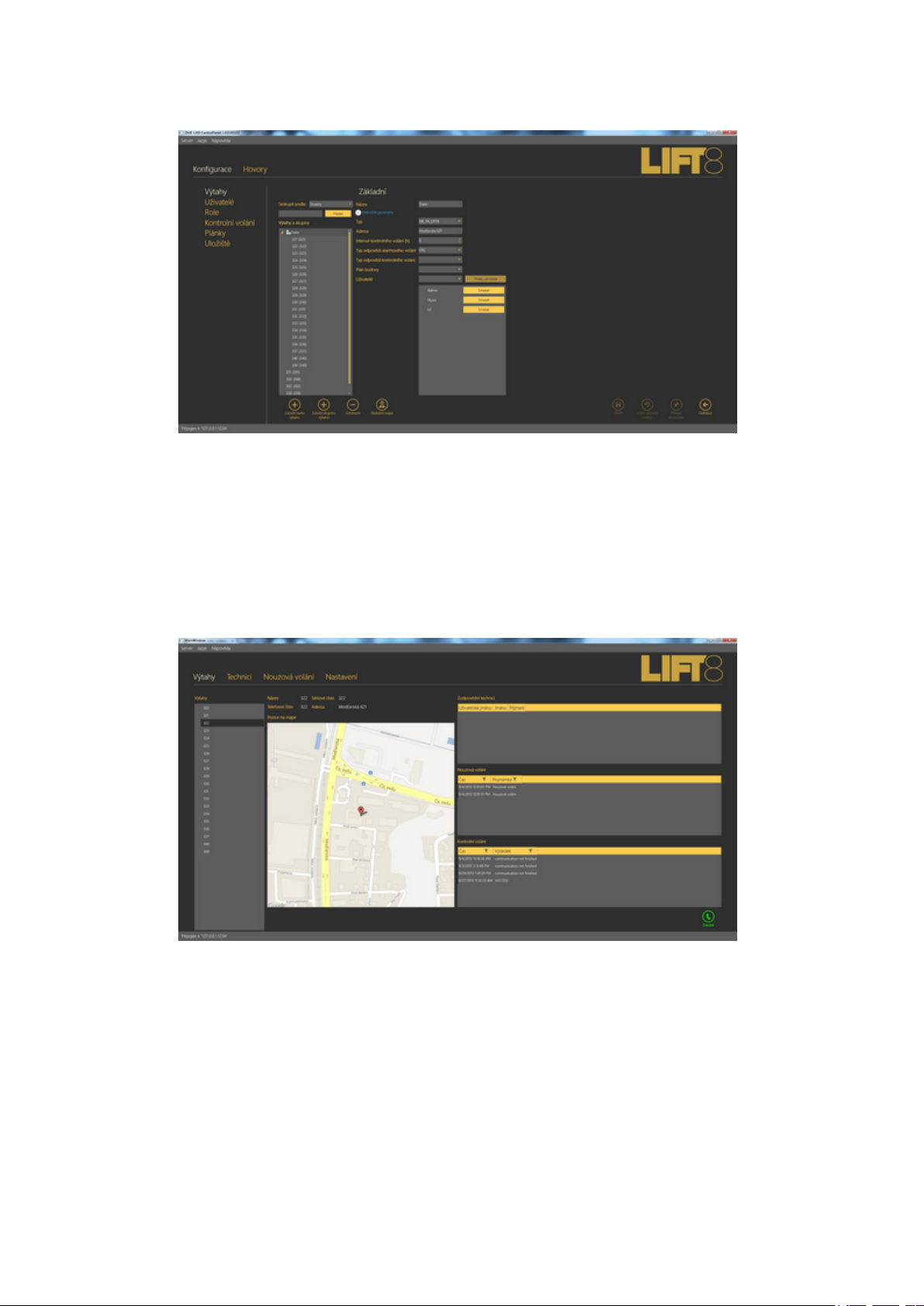

918700E 2N Lift8 Control Panel

Figure: 2N Lift8 Control Panel

The application is intended for administration of users, lifts and2N Lift8 Control Panel

authorisations.

918700E 2N Lift8 Communicator

Figure: 2N Lift8 Communicator

The is intended for receiving alarm calls by the dispatcher.2N Lift8 Communicator

®application

918700E 2N Lift8 Server

Figure: 2N Lift8 Server

The processes check calls and mediates communication between the 2N Lift8 Server

®application

s and PC applications.CU

Associated 2N Products

918655E – 2N Lift8 External Pictograms Driver

External Pictograms DriverFigure: 2N Lift8

Transforms the cabin into universal pilot lamps.2N Lift8

®LED outputs

1.3 Upgrade

The table below sums up the User Manual upgrade changes made so far.

Manual

version Description of changes

1.0.0 Firmware 1.0.0

Basic version

1.5.0

Firmware 1.5.0

VoIP parameters added

Internal splitter configuration optionfour-lift

(up to four cabin units can be connected to one internal splitter with lift 1-4

identification)

1.6.0

Firmware 1.6.0

Fireman

I/O modules (inputs only)

Configurable rechargeable battery capacity

New alarm call protocols added (shaft/audio unit identification)

Dial-in option (for PSTN modules with non-standard tones)

CZ, EN, RU language support

        Important warnings -Upgrade ServerDatabase from ver. 1.5.x to ver. 1.6.x

  PSurveillance mode intheControl anel

Improvements inapplications

1.7.0

Firmware 1.7.0

Camera module

New protocols: CPC Antenna/KONE 2N ext. and P100 2N ext. (shaft number

and audio unit type identification)

DE language support

Auto-delete of archive records

1.8.0

Firmware 1.8.0

Modified Groups menu in the Control Panel

PT language support

1.9.0

Firmware 1.9.0

RS232 module

SMS configuration

System completeness check

1.10.0

Firmware 1.10.0

Audio test of audio units

Service Tool for Android

TLS/SRTP support

MJPG player in Service Tool

Audio unit - Shaft Antivandal

Camera module web interface

2.1.0

Firmware 2.1.0

New processor type

Two-cabin lift extension (7 shaft/cabin audio unit location options)

Image downloading application (get-cam-image)

2.2.0

Firmware 2.2.0

Event reporting

New actions and script commands

Monitoring of statistic data and a new character set on the server

New installers

In-band DMTF

1.4 Terms and Symbols Used
Symbols Used
The following symbols and pictograms are used in the manual:
Future Functions, New Features
The  grey-marked  text  in  this  document  designates  the  functions  and  features  that  are  under
preparation or development at present.
The section is divided according to system components into the following subsections:
2.1 PSTN/GSM/UMTS/VoIP Central Unit
2.2 Splitter
2.3 Audio Unit – COP
2.4 Audio Unit – Machine Room
2.5 Audio Unit – Shaft
2.6 Audio Unit – Compact
2.7 PSTN Module
2.8 GSM/UMTS Module
2.9 VoIP Module
2.10 Audio Unit – Fireman
2.11 I/O Module
2.12 Camera Module
2.13 RS232 Module
2.14 Audio Unit – Shaft Antivandal
Each subsection includes:
Description of Components
Before You Start
Fitting
Electrical Wiring
Safety
by this information to prevent persons from injury.Always abide
Warning
 by this information to prevent damage to the device.Always abide
Caution
Important information for system functionality.
Tip
Useful information for quick and efficient functionality.
Note
Routines or advice for efficient use of the device.
