2N Lift8 User manual
The 2N TELEKOMUNIKACE joint-stock company is a Czech manufacturer and supplier of
telecommunications equipment.
The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways, private
branch exchanges (PBX), and door and lift communicators. 2N TELEKOMUNIKACE a.s. has
been ranked among the Czech top companies for years and represented a symbol of
stability and prosperity on the telecommunications market for almost two decades. At
present, we export our products into over 120 countries worldwide and have exclusive
distributors on all continents.
2N is a registered trademark of 2N TELEKOMUNIKACE a.s.. Any product and/or other
®
names mentioned herein are registered trademarks and/or trademarks or brands protected
by law.
2N TELEKOMUNIKACE administers the FAQ database to help you quickly find information
and to answer your questions about 2N products and services. On www.faq.2n.cz you can
find information regarding products adjustment and instructions for optimum use and
procedures „What to do if...“.
2N TELEKOMUNIKACE hereby declares that the 2N product complies with all basic
®Lift8
requirements and other relevant provisions of the 1999/5/EC directive. For the full wording
of the Declaration of Conformity see the CD-ROM enclosed and at www.2n.cz.
The 2N TELEKOMUNIKACE company is the holder of the ISO 9001:2009 certificate. All
development, production and distribution processes of the company are managed by this
standard and guarantee a high quality, technical level and professional aspect of all our.
Content
Content
1. Introduction of product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1Productdescription ...............................................6
1.2Componentsofsystem2N®Lift8andassociatedproducts ................8
1.3Changes .......................................................16
1.4Abbreviations,expressionsandpictogramsused .......................17
2. Description and installation . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.1CentralunitPSTN/GSM/UMTS .....................................20
2.2Splitter ........................................................31
2.3Announcer–cabinuniversal .......................................35
2.4Announcer–machineroom ........................................45
2.5Announcer–shaft ...............................................49
2.6PSTNmodule ...................................................52
2.7GSM/UMTSmodule ..............................................54
3. System configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.1ProgrammingtheL8 ..............................................57
3.2Tableofparameters(FW1.0.0) .....................................60
4. Functions and use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
4.1Userinstructions .................................................72
4.2Instructionsforcontrolcentre .......................................74
4.3Descriptionoffunction(foradvancedusers) ...........................77
5. Service Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
5.1InstallationandLogin .............................................83
5.2IntroductiontoApplication .........................................86
5.3Use ...........................................................92
6. Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
6.1Installation .....................................................103
6.2Use ...........................................................104
7. Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
7.1InstallationandLogin .............................................109
7.2IntroductiontoApplication .........................................112
7.3Use ...........................................................117
8. Communicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
8.1InstallationandLogin .............................................141
8.2IntroductiontoApplication .........................................143
8.3Use ...........................................................147
9. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
10. Technical Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
11. Supplementary Information . . . . . . . . . . . . . . . . . . . . . . . . . 158
11.1Troubleshooting ................................................159
11.2ListofAbbreviations .............................................160
11.3Regulations ....................................................161
11.4GeneralInstructionsandCautions ..................................162
52N TELEKOMUNIKACE a.s., www.2n.cz
®
1. Introduction of product
In this chapter we introduce the product , we illustrate its possibilities for use2N Lift8
®
and the advantages which its use gives.
Here is an overview of everything you will find in the chapter:
1.1 Product description
1.2 Components of system 2N® Lift8 and associated products
1.3 Changes
1.4 Abbreviations, expressions and pictograms used
62N TELEKOMUNIKACE a.s., www.2n.cz
®
1.1 Product description
Basic properties
Possibility of connecting up to 8 lifts
Announcers for cabin, shaft, machine room
Optimal acoustic properties
Built-in back rechargeable battery
Easy control and configuration – voice response system
“Check call” function
Possibility of blocking lift in case of connection fault
Internal communication – “triphony”
Configuration over the telephone or via PC (via USB or internet)
USB interface
Possibility of recording own announcement
Possibility of local control centre (InterCom)
Fireman function
Basic description
2N Lift8
®( ) is a communication system with a function similar to an intercom. TheL8
individual announcers are linked to a common bus (pair of wires), connected to a
splitter. The splitter is always connected to a central unit (CU) which controls the
activity of the system and provides connection with the control centre. It is possible to
connect up to 40 announcers to the bus.
Each splitter has unambiguous identification: lift number 1 to 8. For each lift we have
announcers connected to the splitter – located: bottom of shaft, bottom of cabin, cabin
roof of cabin and machine room. The announcer to the machine room can be
configured as common for several lifts.
The CU contains an easily replaced backup rechargeable battery (lead rechargeable
battery). ensures the charging of this battery and monitoring of its state. The CU The
uses five coloured lamps for indication: power state, signal strength, telephone lineCU
state, state of bus and state of core. It also has a USB interface which serves for the
comfortable configuration of parameters, for the recording of announcements and
program upgrade.
The CU can be connected via: GSM, UMTS, or PSTN.
82N TELEKOMUNIKACE a.s., www.2n.cz
®
1.2 Components of system 2N® Lift8 and associated
products
Components of system
918600 2N Lift8
®
Central unit
For connection of up to 8 lifts to GSM/UMTS/PSTN line. Including power EURO cable
and rechargeable battery. USB interface for configuration.
918620E 2N Lift8
®
Splitter
Notification
The components of the system Lift8 cannot be used outside this system.
Announcers cannot be connected to a telephone line without a central
unit!
When the system is connected into several shafts, it is not possible to
connect the announcers without a central unit and splitters.

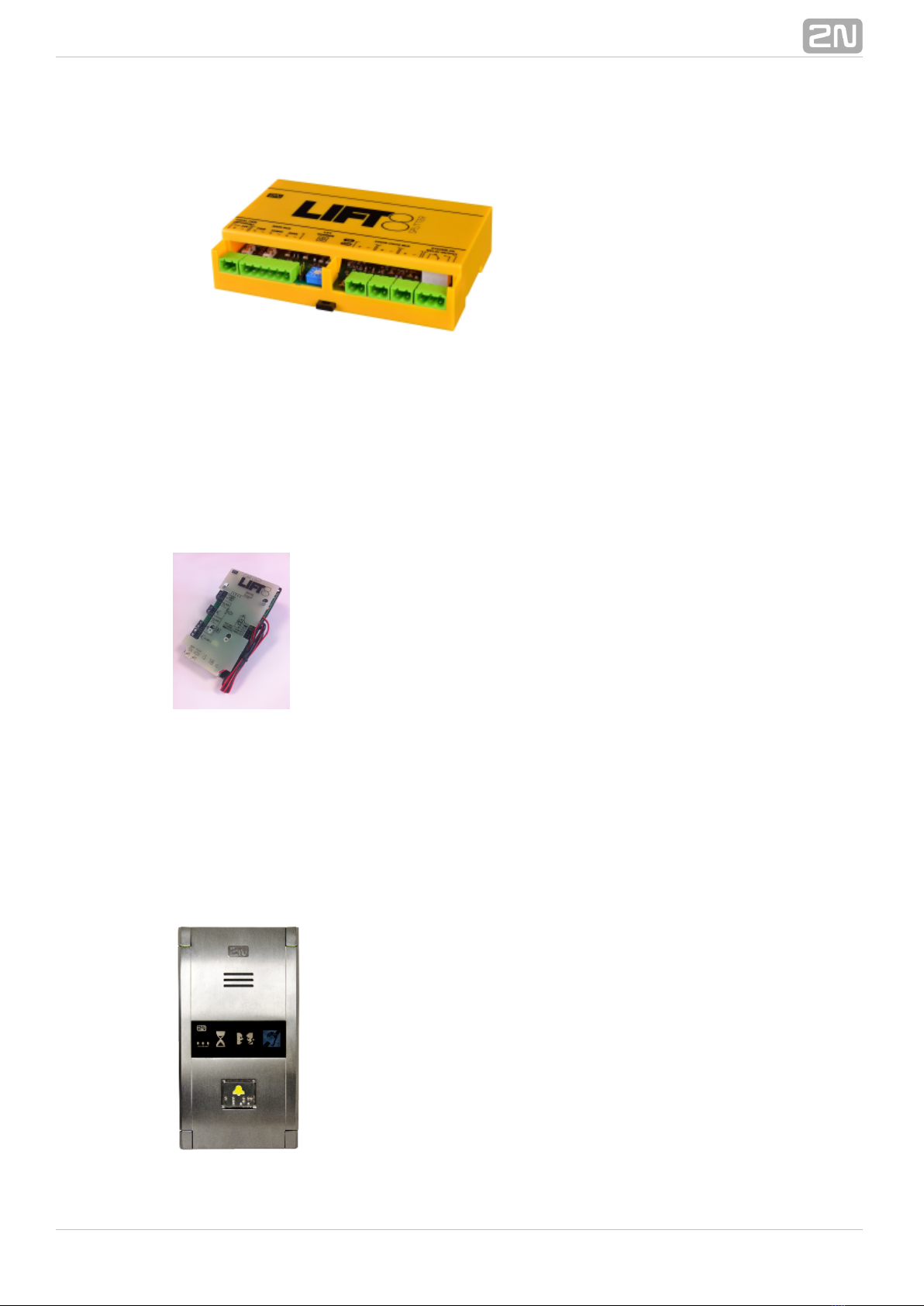

92N TELEKOMUNIKACE a.s., www.2n.cz
®
Serves for connection of central unit with announcers of given lift.
918610E, 918610EX 2N Lift8
®
Announcer – cabin universal (normal version, cable version - contains LED, microphone
and speaker connected to cables)
Electronics of announcer for building into lift cabin. Including speaker and microphone
(handsfree). Terminals for connecting all the prescribed elements and output of signal
for opening door (not mandatory).
918615E 2N Lift8
®
Announcer – cabin Compact
102N TELEKOMUNIKACE a.s., www.2n.cz
®
A resilient announcers in a robust version, equipped with ALARM button of prescribed
size, including markings for the blind and illuminated pictograms (tempered glass).
Easy fitting directly on the cabin wall, on the surface. Easy installation (you only have
to connect up two wires).
918611E 2N Lift8
®
Announcer – machine room/control centre
Announcer for location in machine room/control centre. Contains receiver (optional)
and keypad for easy control. Makes it possible to communicate with any other
announcer in the entire system and to program the configuration of the central unit
without PC. It is equipped with a contact for connection of an external siren. This
announcer can be configured as common for several lifts (shafts). Robust cover in
yellow.
918612E 2N Lift8
®
Announcer – shaft
112N TELEKOMUNIKACE a.s., www.2n.cz
®
Announcer for location on roof of cabin, bottom of cabin, or below cabin. It is
distinguished by a robust yellow cover. Handsfree mode, Alarm button and triphony,
indication elements, It is not intended for use in the cabin.
918620E 2N Lift8
®
I/O module
Contains logical inputs and switch relays.
918650E 2N Lift8
®
Module GSM
142N TELEKOMUNIKACE a.s., www.2n.cz
®
For connection of central unit via analogue line.
Cooperating 2N Lift8 applications
®
918700E 2N Lift8 Service tool
®
The application is intended for remote supervision and2N Lift8 Service Tool
®
configuration of .2N Lift8
® Communicators
918700E 2N Lift8 Control panel
®
The application is intended for the administration of users,2N Lift8 Control Panel
®
lifts and authorisations.
152N TELEKOMUNIKACE a.s., www.2n.cz
®
918700E 2N Lift8 Communicator
®
The application is intended for receiving emergency calls by2N Lift8 Communicator
®
dispatcher.
918700E 2N Lift8 Server
®
The application processes the control calls and mediates2N Lift8 Server
®
communication between the central units and PC applications.
172N TELEKOMUNIKACE a.s., www.2n.cz
®
1.4 Abbreviations, expressions and pictograms used
Expressions and abbreviations used:
L8 2N® Lift8
CU Central unit of system, usually common for several lifts in one building.
Splitter Connects announcers with CU. Each lift shaft has its splitter.
announcer Unit serving for voice communication with control centre or with other
unit of the system
system The central unit is connected with a splitter and group of announcers
main bus 6 wires (power, audio, data) connecting CU with splitters
bus double wire connecting splitter with announcers of given lift
incoming
call call from control centre to central unit
outgoing
call call from central unit to control centre
check call call from central unit on line for taking of control calls registered in 2N®
or other defined numberLift8 Server
triphony internal communication between announcers, usually between all
announcers of one lift, for example during repairs or rescuing of people
control
centre
Workplace which takes emergency calls. There can also be separate
workplaces for various types of call, and it may consist of the mobile
telephones of workers.
DISA automatic voice menu serving to route an incoming call to the required
announcer or for the activation of other functions, for example remote
programming
PBX Private branch exchange (equipped with connection to PSTN and
analogue local lines)
PSTN Public telephone network. For simplicity’s sake, in the text it is assumed
that the CU is connected to the PSTN but works the same as on the PBX
line.
GSM Global mobile communication system
UMTS Universal Mobile Telecommunication System
TCP Transmission Control Protocol is one of the basic protocols of the set of
internet protocols
ST The application is intended for remote2N Lift8 Service tool
®
supervision and configuration of 2N® Lift8 communicators.
CP The application is intended for the2N Control panel
®Lift8
administration of users, lifts and authorisations.
CM
(Comm) The application is intended for receiving 2N Communicator
®Lift8
emergency calls by dispatcher.
SRV The application processes the control calls and2N Server
®Lift8
mediates communication between the central units and PC applications
Validator Is a code which monitors the entered values in the applications, and in
the event of an error such as exceeding of length, forbidden character,
incorrect format etc., it warns the user of this problem
182N TELEKOMUNIKACE a.s., www.2n.cz
®
Symbols used
The following symbols and pictograms are used in the manual:
Prepared functions, new properties
The grey text in the manual indicates prepared functions or newly developed properties
.
Safety
abide by this information to prevent persons from injury.Always
Warning
abide by this information to prevent damage to the device.Always
Caution
Important information for system functionality.
Tip
Useful information for quick and efficient functionality.
Note
Routines or advice for efficient use of the device.
192N TELEKOMUNIKACE a.s., www.2n.cz
®
2. Description and installation
This chapter is divided up according to the individual system components:
2.1 Central unit PSTN/GSM/UMTS
2.2 Splitter
2.3 Announcer – cabin universal
2.4 Announcer – machine room
2.5 Announcer – shaft
2.6 PSTN module
2.7 GSM/UMTS module
Each sub-chapter contains:
Description of components
Before you start
Fitting
Electrical wiring
Other manuals for Lift8
11
This manual suits for next models
1
Table of contents
Other 2N Cell Phone manuals
