2N LiftNet User manual

2N®
LiftNet
Lift Communicator
User Manual
Version 1.9.3
Firmware version 1.9.1 www.2n.cz

The 2N TELEKOMUNIKACE a.s. joint-stock company is a Czech manufacturer and supplier
of telecommunications equipment.
The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways,
private branch exchanges (PBX), and door and lift communicators. 2N TELEKOMUNIKACE
a.s. has been ranked among the Czech top companies for years and represented a
symbol of stability and prosperity on the telecommunications market for almost two
decades. At present, we export our products into over 120 countries worldwide and have
exclusive distributors on all continents.
2N®is a registered trademark of 2N TELEKOMUNIKACE a.s.. Any product and/or other
names mentioned herein are registered trademarks and/or trademarks or brands
protected by law.
2N TELEKOMUNIKACE administers the FAQ database to help you quickly find information
and to answer your questions about 2N products and services. On faq.2n.cz you can find
information regarding products adjustment and instructions for optimum use and
procedures „What to do if...“.
Declaration of Conformity
2N TELEKOMUNIKACE a.s. hereby declares that the 2N®LiftNet product complies with all
basic requirements and other relevant provisions of the 1999/5/EC directive. For the full
wording of the Declaration of Conformity see the CD-ROM enclosed and at www.2n.cz.
2N TELEKOMUNIKACE company is the owner of the ISO 9001:2000 certificate. All
development, production and distribution processes of the company are managed by this
standard and guarantee high quality, technical level and professional aspect of all our
products.

2N®LiftNet product is the holder of the Type certificate of the TÜV SÜD Czech company.

Table of Contents
1. PRODUCT OVERVIEW.................................................................................... 7
1.1 PRODUCT DESCRIPTION........................................................................................................................... 8
Basic Features ............................................................................................................................................ 8
Basic Description........................................................................................................................................ 8
System Block Diagram............................................................................................................................... 9
1.2 2N®LIFTNET COMPONENTS AND ASSOCIATED PRODUCTS ................................................................. 12
System Components................................................................................................................................ 12
Associated Products................................................................................................................................. 14
1.3 UPGRADE AND INNOVATIONS ................................................................................................................. 15
1.4 TERMS AND SYMBOLS USED.................................................................................................................. 16
Symbols in Manual ................................................................................................................................... 17
Future functions ........................................................................................................................................ 17
2. DESCRIPTION AND INSTALLATION ................................................................ 19
2.1 PSTN CENTRAL UNIT ............................................................................................................................ 20
Description................................................................................................................................................. 20
Before You Start........................................................................................................................................ 21
CU Mounting.............................................................................................................................................. 22
CU Connection.......................................................................................................................................... 22
Interruption of Operation, Battery Maintenance ................................................................................... 26
2.2 LIFT CABIN AUDIO UNIT –UNIVERSAL................................................................................................... 27
Description................................................................................................................................................. 27
Before You Start........................................................................................................................................ 27
Mounting..................................................................................................................................................... 28
Electric Installation.................................................................................................................................... 30
2.3 LIFT CABIN AUDIO UNIT –COMPACT..................................................................................................... 36
Description................................................................................................................................................. 36
Before You Start........................................................................................................................................ 37
Mounting..................................................................................................................................................... 39
Mounting..................................................................................................................................................... 39
Electric Installation (Earlier HW)............................................................................................................. 40
Electric Installation (Later HW) ............................................................................................................... 40
CANCEL Input Connection (Door Contact, Optional).......................................................................... 44
Mounting Completion ............................................................................................................................... 45
2.4 AUDIO UNIT –MACHINE ROOM.............................................................................................................. 47
Description................................................................................................................................................. 47

Before You Start........................................................................................................................................ 48
Mounting..................................................................................................................................................... 48
Electric Installation.................................................................................................................................... 49
2.5 AUDIO UNIT –LIFT SHAFT /CABIN ROOF.............................................................................................. 51
Description................................................................................................................................................. 51
Before You Start........................................................................................................................................ 52
Mounting..................................................................................................................................................... 52
Electric Installation.................................................................................................................................... 52
3. CONFIGURATION........................................................................................ 55
3.1 LN PROGRAMMING................................................................................................................................. 56
PSTN Programming ................................................................................................................................. 56
3.2 PARAMETER CHART (FW V.1.9.1)........................................................................................................ 59
PC Configuration....................................................................................................................................... 64
How to Record User Messages and Numbers..................................................................................... 65
4. FUNCTION AND USE ................................................................................... 67
4.1 USER INSTRUCTIONS.............................................................................................................................. 68
Audio Unit - Lift Cabin.............................................................................................................................. 68
Audio Unit - Lift Shaft / Cabin Roof........................................................................................................ 68
Audio Unit - Machine Room .................................................................................................................... 69
4.2 DISPATCHING CENTRE INSTRUCTIONS .................................................................................................. 70
ALARM Call............................................................................................................................................... 70
Dispatching Centre –Lift Call ................................................................................................................. 70
ALARM Call - Intercom ............................................................................................................................ 71
Setting Machine Room Audio Unit Number.......................................................................................... 72
Tone Dialling Control during Call –Complete List of Commands..................................................... 73
4.3 FIREMAN FUNCTION................................................................................................................................ 74
Description................................................................................................................................................. 74
Use.............................................................................................................................................................. 74
Setting......................................................................................................................................................... 74
4.4 FUNCTION DESCRIPTION (FOR ADVANCED USERS).............................................................................. 75
Purpose of Section ................................................................................................................................... 75
Outgoing Call............................................................................................................................................. 75
Machine Room Call.................................................................................................................................. 75
Triphony ..................................................................................................................................................... 76
Checking Call ............................................................................................................................................ 76
Incoming Call............................................................................................................................................. 76
Call Sequencing........................................................................................................................................ 77
Automatic Dialling of Multiple Numbers with Confirmation................................................................. 78
Automatic Redialling of Multiple Numbers without Confirmation....................................................... 79

Automatic Call Receiving......................................................................................................................... 79
Survey of Messages................................................................................................................................. 80
Call End (Outgoing / Incoming Calls)..................................................................................................... 80
Use of Switches ........................................................................................................................................ 80
5. MAINTENANCE .......................................................................................... 83
5.1 BATTERY MAINTENANCE ........................................................................................................................ 84
Interruption of Operation.......................................................................................................................... 84
List of Battery Endangering Situations .................................................................................................. 84
Battery Pack Replacement...................................................................................................................... 85
5.2 FIRMWARE UPGRADE............................................................................................................................. 87
Procedure................................................................................................................................................... 87
6. TECHNICAL PARAMETERS........................................................................... 89
6.1 TECHNICAL PARAMETERS ...................................................................................................................... 90
Telephone Parameters ............................................................................................................................ 90
Other Parameters ..................................................................................................................................... 91
7. SUPPLEMENTARY INFORMATION.................................................................. 93
7.1 REGULATIONS......................................................................................................................................... 94
7.2 TROUBLESHOOTING................................................................................................................................ 95
FAQ............................................................................................................................................................. 95
7.3 LIST OF FIGURES.................................................................................................................................... 96
7.4 GENERAL INSTRUCTIONS AND CAUTIONS.............................................................................................. 97
Electric Waste and Used Battery Pack Handling................................................................................. 98

7
1
1. Product Overview
In this section, we introduce the 2N®LiftNet product, outline its application options
and highlight the advantages following from its use.
Here is what you can find in this section:
Product Description
2N®LiftNet Components and Associated Products
Changes
Terms and Symbols Used

Product Description
1.1
8
1.1 Product Description
Basic Features
Up to 8-lift connectivity
Lift cabin, shaft and machine room audio units
Minimisation of interconnecting wiring
Excellent acoustic features
In-built back-up battery pack
Easy control and programming –voice menu
Checking call function
Lift blocking option during connection failure
Internal communication –triphony
Telephone/PC-based programming
USB port
User message recording option
Local dispatching option (Intercom)
Fireman function
Basic Description
2N®LiftNet (LN) is a communication system similar to the intercom. The audio units
are connected (through a pair of conductors) to a common bus, to which one central
unit (CU) is connected. The CU controls the system operation and provides connection
to the dispatching office. Up to 32 audio units can be connected to the bus.
Each audio unit is uniquely identified: by lift number 1 to 8 and position: shaft bottom,
cabin interior, cabin roof and machine room. The machine room audio unit can be
shared by multiple lifts.

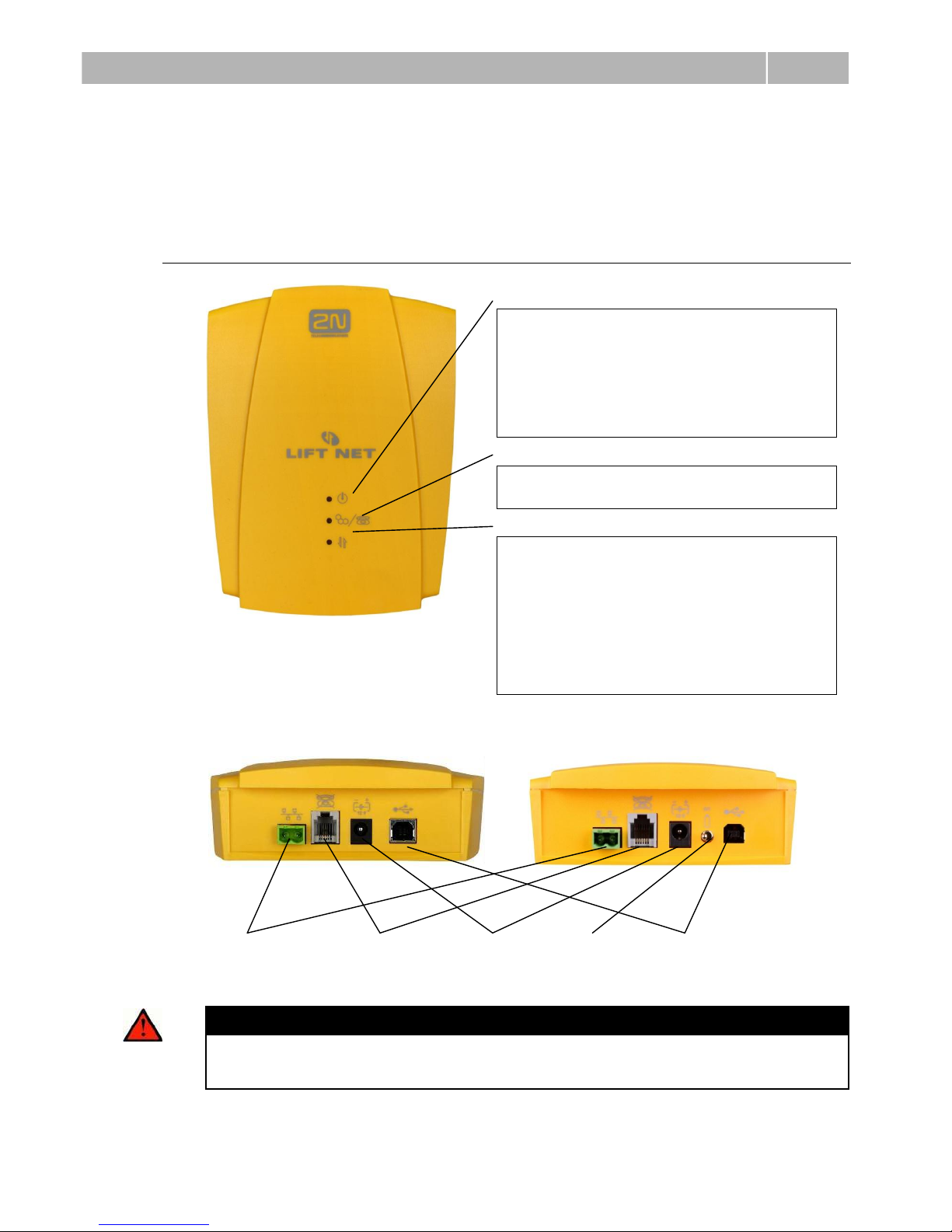

The CU is supplied with 12V DC. It contains an easily replaceable back-up accumulator
battery pack (4 AA Ni-MH cells in a holder). The CU is responsible for battery charging
and status monitoring. It indicates the charging status, telephone line status and
current communication by means of three colour LEDs. It is also equipped with a USB
port to provide comfortable parameter setting, voice message recording and software
upgrade.

Product Description
1.1
9
System Block Diagram

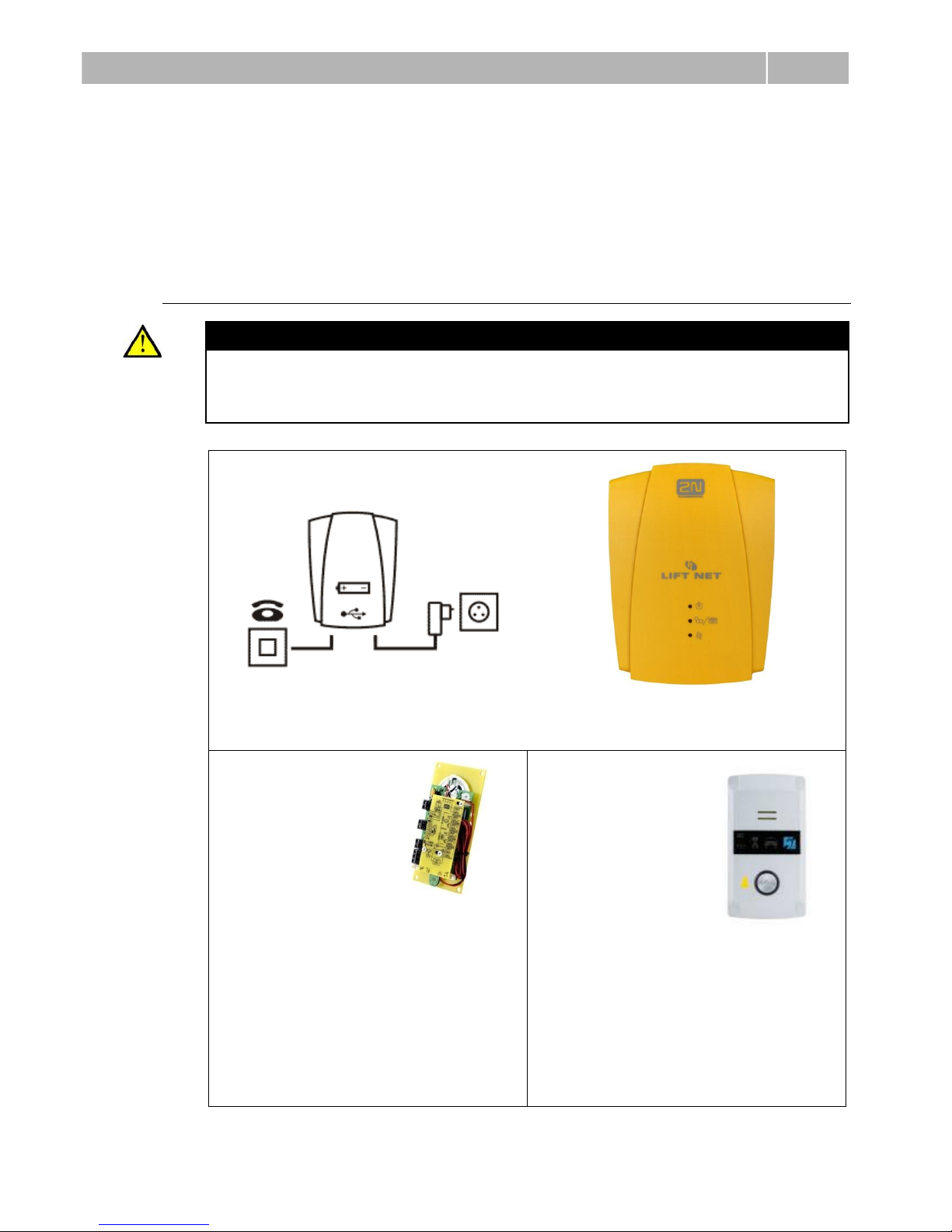

Figure 1.1 Example of Connection of PSTN CU and 3 2N®LiftNet Audio Units

Product Description
1.1
10
Figure 1.2 Example of CU and 2N®LiftNet Local Dispatching Audio Unit Connection
