2VV VENESSE Comfort VCV-B-25E User manual

EN
Full manual
OPERATION
AND MAINTENANCE
3
VENESSE Comfort
VCV-B-25E, VCV-B-25F,
VCV-B-25W, VCV-B-25S

1. BEFORE YOU BEGIN
Before installation, thoroughly read the section “Safe use of air curtains”.
It contains all instructions on the safe and correct use of the product.
23

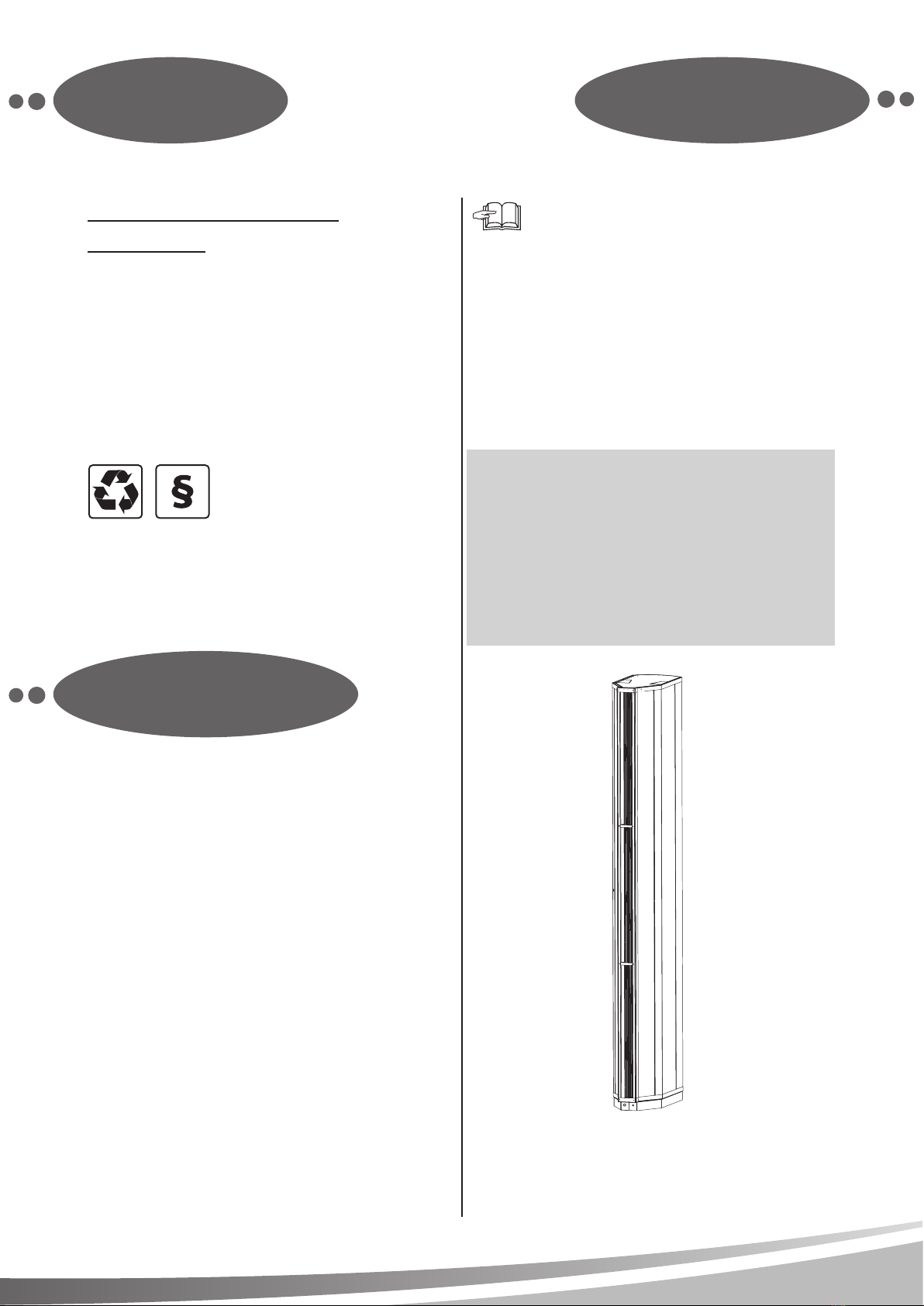

1.1 DESCRIPTION
OF THE AIR CURTAIN
The VENESSE Comfort air curtain is intended
for vertical placement next to the door ope-
ning. It is oered in a 2.5m length, for use with
an electric heater, with a water coil and without
a heater. Its controls allow selection of three fan
speeds and two levels of electric heat. The wa-
ter coil must be regulated separately.
All VENESSE
Comfort air curtains can be linked
together in chains of up to six air curtains, and
operated from the one control panel.
Two external switching elements can be con-
nected to the VENESSE
Comfort air cur-
tain. (door contact DK-1 and timer switch
SH-TM-848)
The VENESSE
Comfort air curtain comes with
an anchor stand that allows it to be fastened to
the oor.
The connections of VENESSE
Comfort air cur-
tain can be lead from the oor or ceiling. Spe-
cial ports have been prepared in the metal of
the upper cover and in the anchoring stand for
supply lines (electrical lines, heating medium
pipes and communication cable).
The standard colour of the VENESSE
Comfort
air curtain is white (RAL 9010) but custom co-
lours from the RAL sample book are available.
The VENESSE
Comfort air curtain is appropria-
te for installation in the foyers of hotels, restau-
rants, stores, schools, railroad stations, etc.
Symbol Meaning
ATTENTION! Warning/caution
DO NOT OVERLOOK! Important instructions
YOU WILL NEED Practical tips and information
TECHNICAL INFORMATION More detailed technical information
Refer to other parts/sections of the manual

123
ON
OFF
23

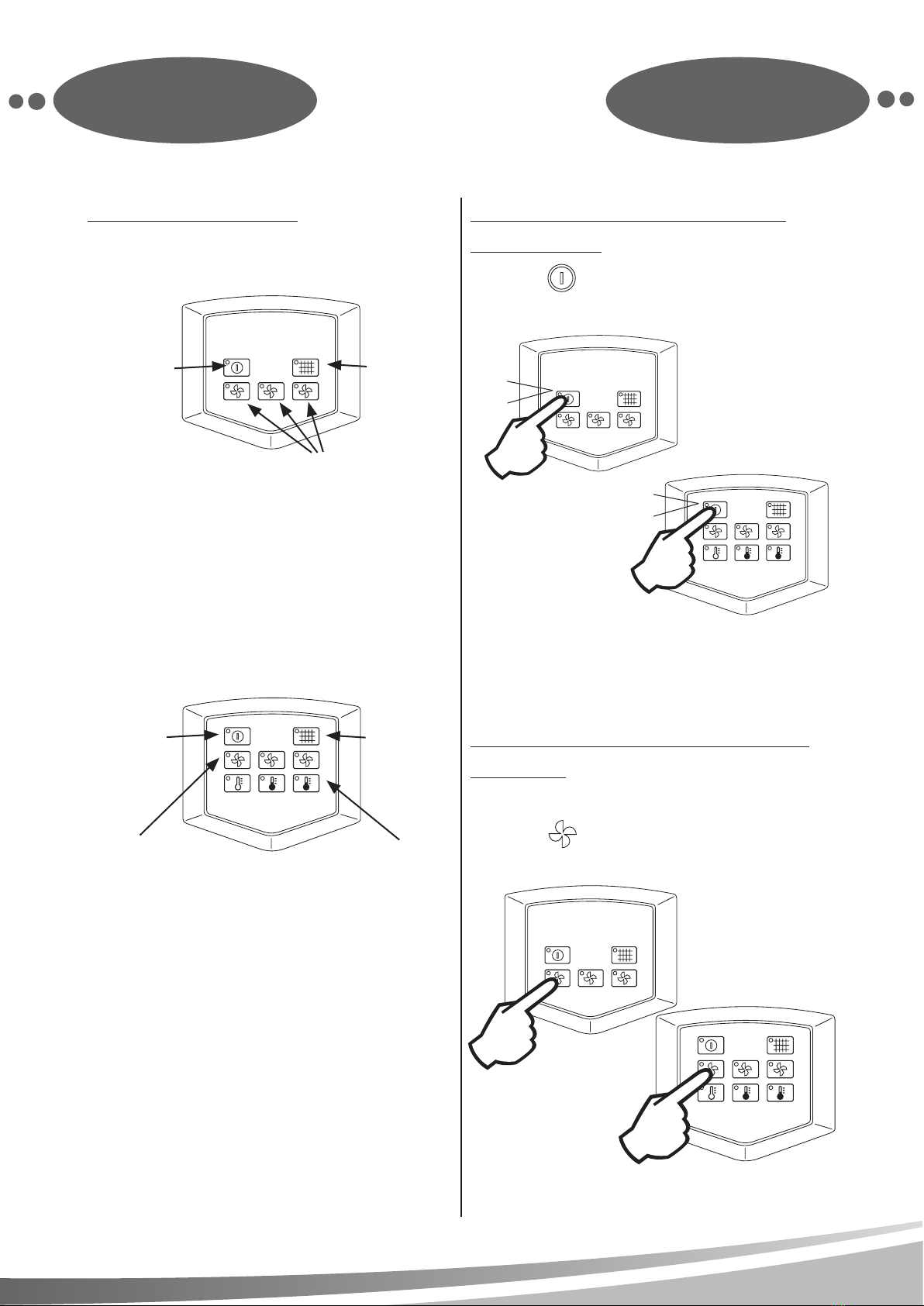

2. CONTROLS
2.1 CONTROL PANEL
VCV-B-25S-1-x-2
VCV-B-25E, VCV-B-25F, VCV-B-25W
2.2 TURNING THE AIR CURTAIN
ON AND OFF
Press the button to turn the air curtain on.
Press the same button to turn the air curtain
o.
Settings are indicated by an illuminated LED
above the button.
2.3 SELECTING THE AIR CURTAIN
OPTIONS
2.3-1 Setting the fan speed
Press the button to select one of three fan
speeds or to turn the fan o.
Settings are indicated by an illuminated LED
above the button
2. CONTROLS
Turning
the air curtain
on and o
Setting the fan speed
LED for CLEAN
Turning
the air curtain
on and o
LED for CLEAN
123
012
123
Setting the fan speed
012
123
ON
OFF
123
012
123
Setting electric
heater output

45
2. CONTROLS

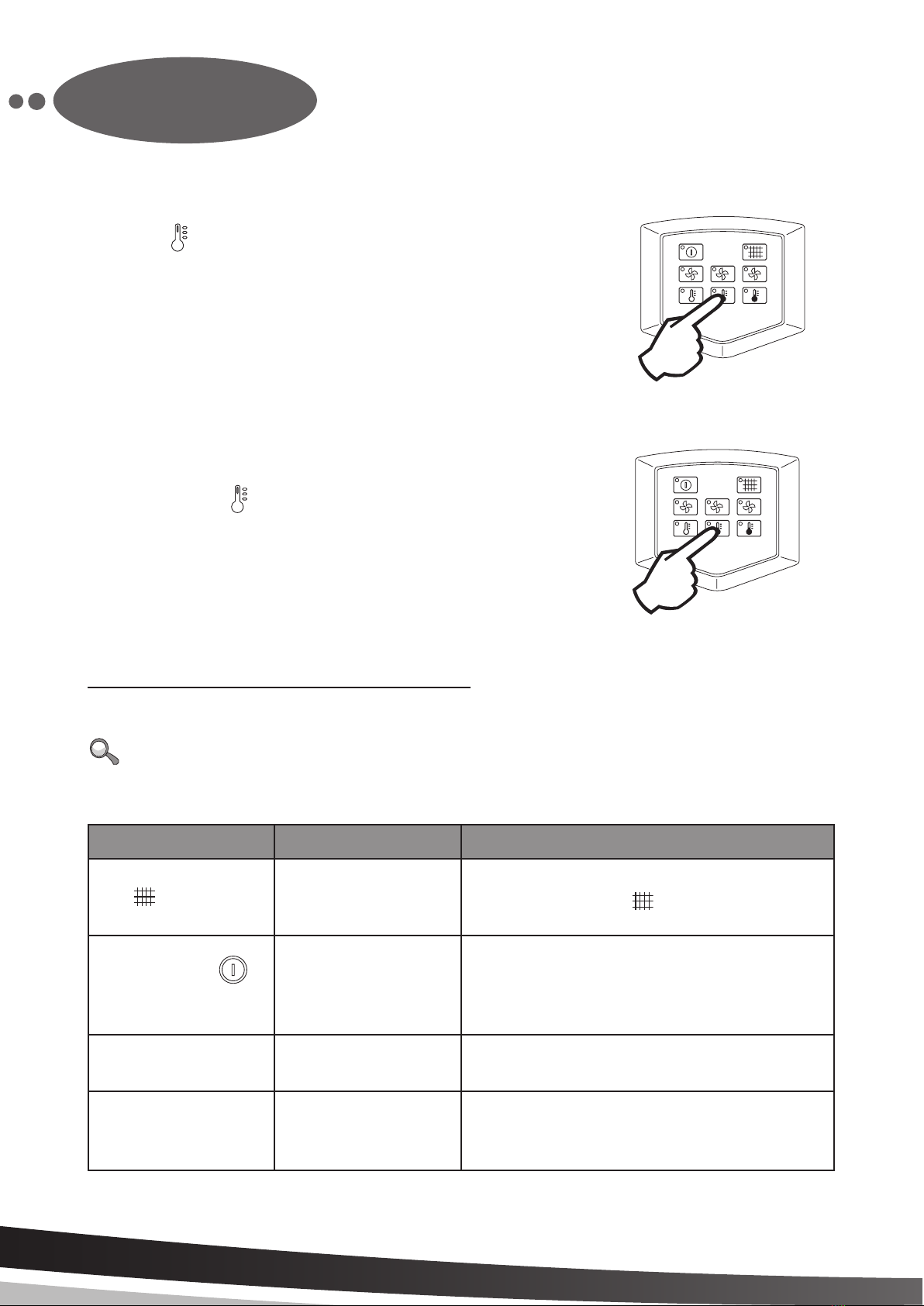

2.3-2 Setting the electric heater
Press the button to select one of two heat levels or to turn the
heater o.
Settings are indicated by an illuminated LED above the button.
2.3-3 Setting the water heater
By pressing the buttons it is possible to turn the water
heater on or o - only with version VCV-B-25W
For information on regulating the water heater, read the ma-
nual of used the water regulator and its accessories (e.g., ZV-3,
TER-P, SMU+OSMU)!
2.4 SIGNALS AND OTHER FUNCTIONS
(all types of air curtains)
All subsequently listed functions apply to an independent air curtain. Operation of linked
air curtains is explained in chapter 2.6 OPERATING LINKED AIR CURTAINS.
012
123
012
123
Indicator Meaning Function
LED is on
LED above
is blinking
(no symbol)
(no symbol)
Internal cleaning
External switch
Motor overheat prote-
ction
Electric heater overhe-
at protection (for air
curtains with electric
heaters)
Activates when the motor overheats• (operation suspended).
Deactivates after the motor has cooled.•
Activates when the heat shuts o due to• overheating.
Deactivates after cooling.•
Activates when preset operating hours have• been reached.
Resets when the buttons are pressed• simultaneously.
After an attempt to turn the air curtain on from• the control panel, the LED blinks to signal that
the external switch has been shut o
Turns the air curtain on or o when the exter-• nal switch opens or closes

123
45
2. CONTROLS

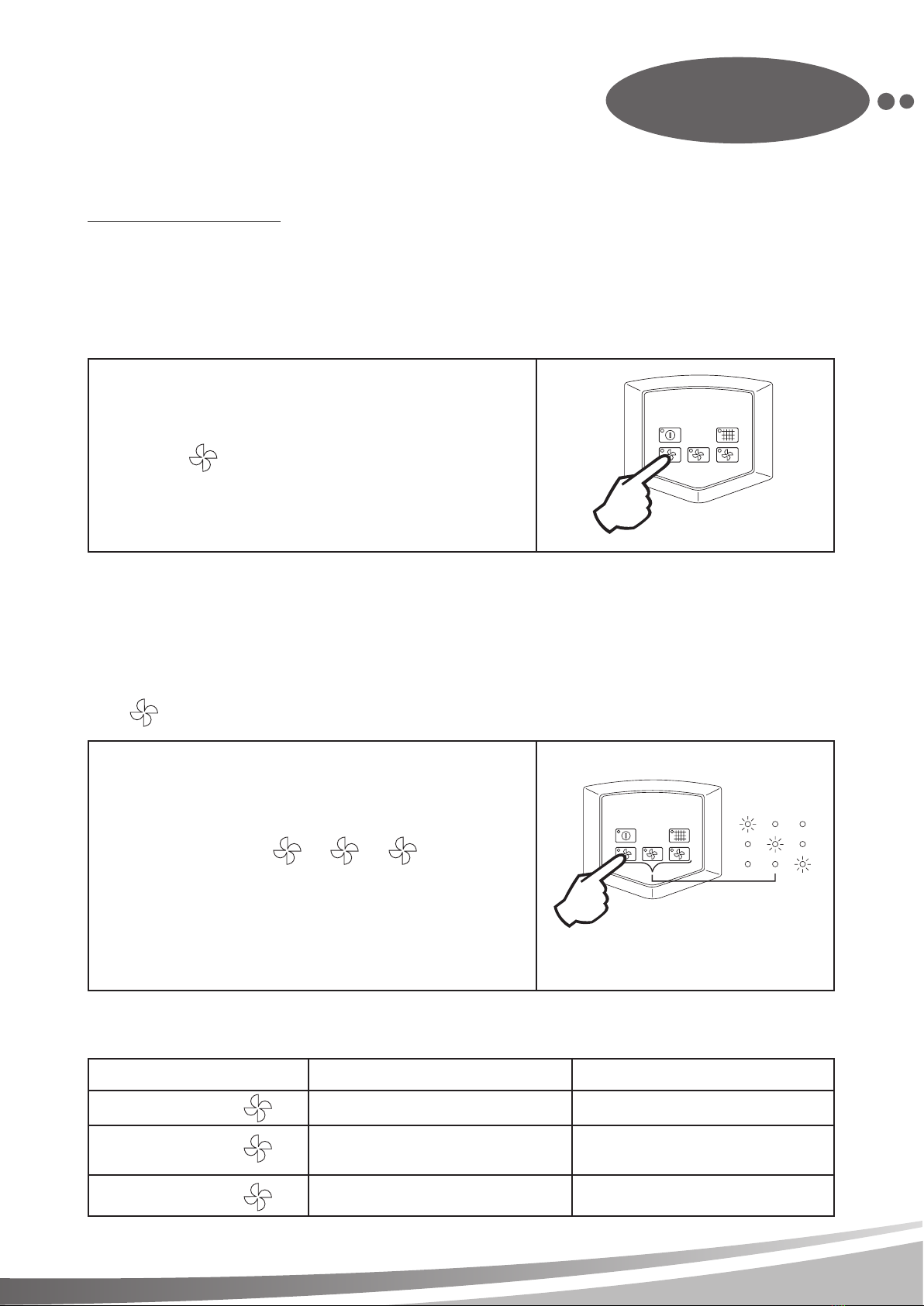

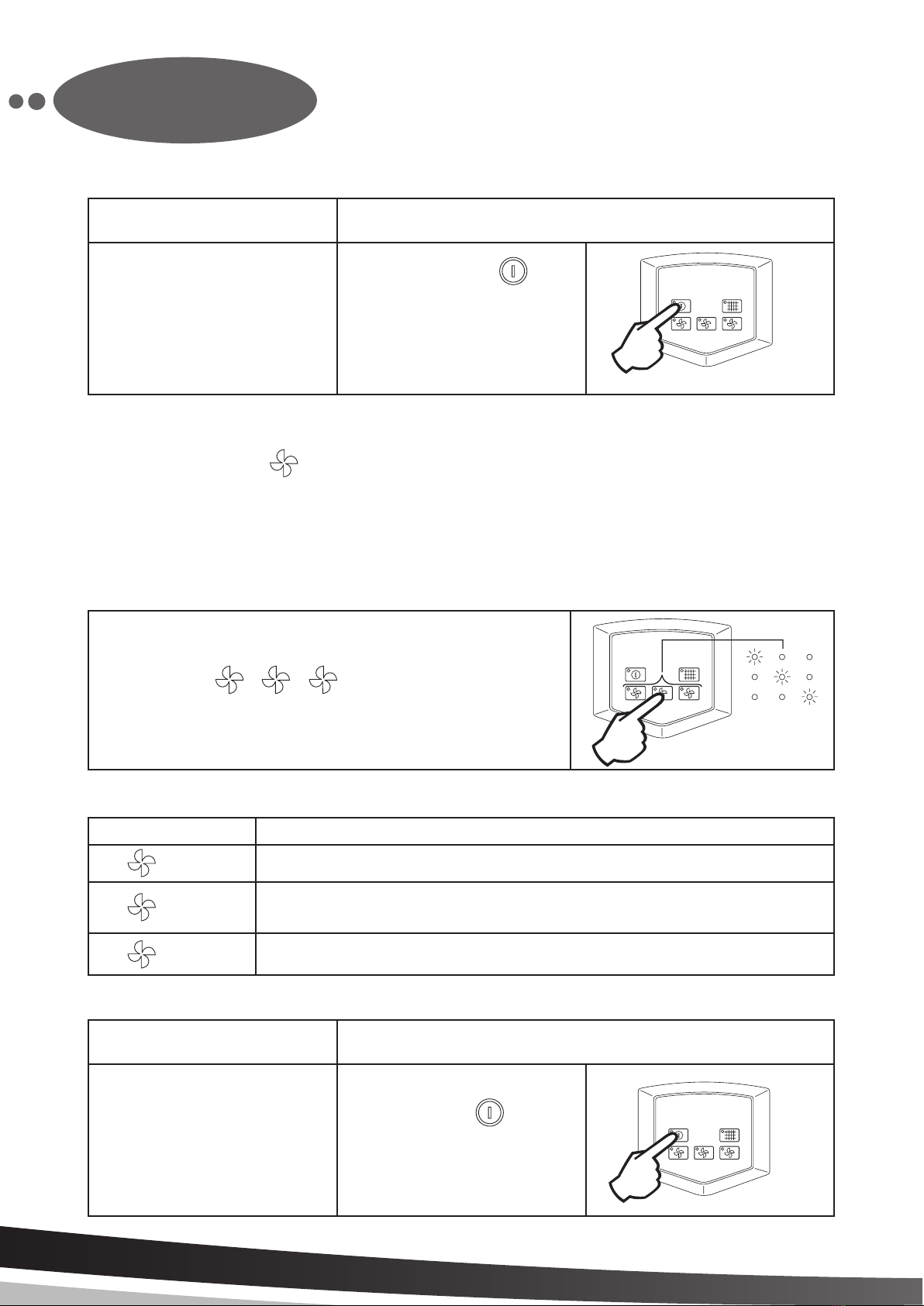

2.5 SERVICE MODE
The service mode is for setting cleaning interval signals, and for setting the air curtain‘s behaviour
when the door switch is used and the door is closed..
2.5-1 Activation of the service mode – CLEAN
2.5-2 Period of signalisation of the curtain cleaning interval CLEAN
(CLEAN function)
Set after the service mode is activated)
The LED will start blinking and zero to three LED above the fan button will be lit.
Press the button when the air curtain is o
Using the buttons you can
set up the following cleaning periods:
CLEAN
123
1
5 sec.
1
1
2 3
Indications
The diode is on
The diode is on
The diode is on
Long cleaning interval
Medium cleaning interval
Short cleaning interval
1000/1500 hours
600/900 hours
(factory preset)
350/500 hours
Meaning Time
1
2
3

2.5-3 Activation of the service mode – DOOR
Activation by pressing while the air curtain is o
2.5-4 Setting the air curtain for use with a door switch and closed door
(Function DOOR)
(Set after the service mode is activated)
67
2. CONTROLS
Saving the setup
cleaning intervals: a) automatically after 15 seconds of inactivity
b) by pressing
123
2
123
Storing the DOOR settings: a) automatically after 15 seconds of inactivity
b) by pressing
Indication
The diode is on The curtain will turn o when the doors are closed.
The diode is on When the doors are closed, the air curtain will go to fan level 1 (stan-
dard factory setting).
The diode is on When the doors are closed, the air curtain will go to fan level 2.
Meaning
123
The buttons can set the following
modes: 1
1
2
2
3
3

67
123

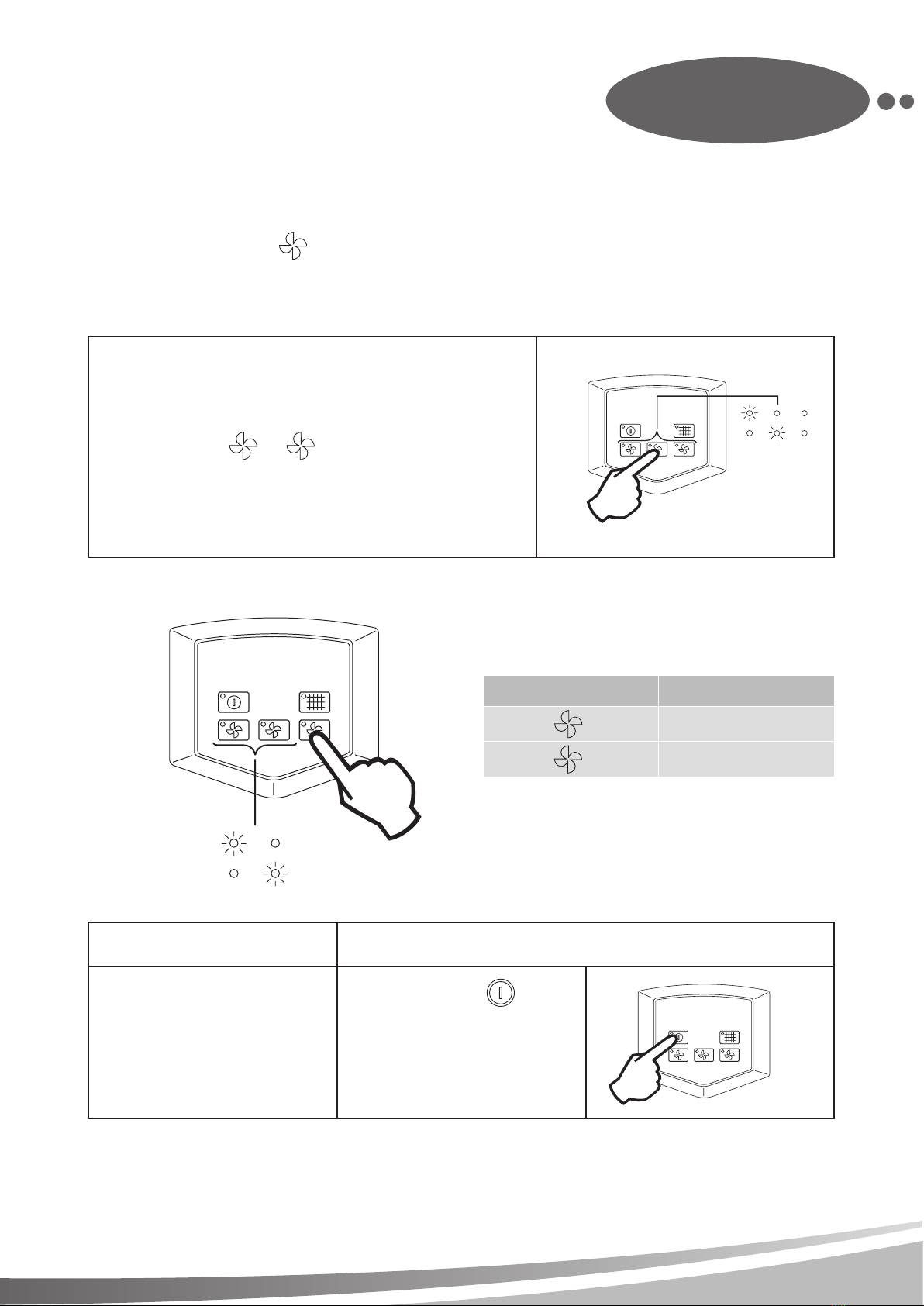

2.5-5 Activation of the service mode – AFTERCOOLING
Activation by pressing while the air curtain is o.
2.5-6 Setting the AFTERCOOLING for air curtain with electric heater
(Set after the service mode is activated)
Storing the settings: a) automatically after 15 seconds of inactivity
b) by pressing
3
123
Indication Meaning
60 s
30 s
1
2
2. CONTROLS
123
The buttons can set the following
modes:
1 2

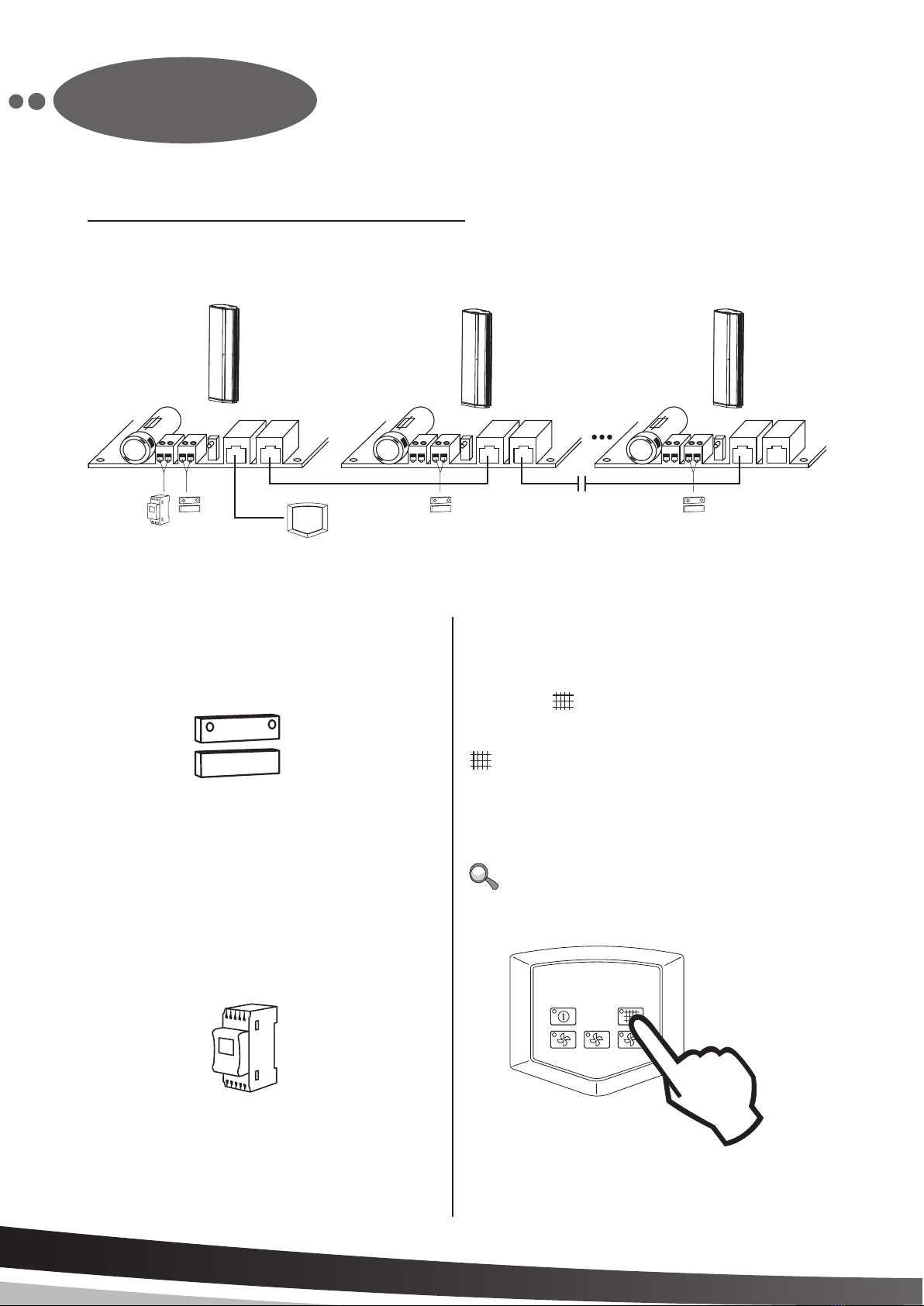

2.6 OPERATING LINKED AIR CURTAINS
When VENESSE Comfort air curtains are linked, they are operated from a one control panel that
is connected to the air curtain selected as “MASTER”. The other air curtains in the chain operate
in the mode set from that control panel as a“SLAVE”.
DK=Door Switch; SH=Time switch.
2. CONTROLS
2.6-1 External components of
chained air curtains
Door switch DK
Can be individually connected to each air cur-•
tain
Each air curtain responds to its own contact•
The• DOOR LED will light up on the control pa-
nel only when all doors are closed
If the user wants to change the fan speed or•
heater output, this will only be possible when
the doors are open.
Timer switch SH
The timer switch is connected to the master•
air curtain
Settings are made using the time switch.•
The time switch controls all chained air•
curtains.
2.6-2 Cleaning Interval - CLEAN
The CLEAN signal will be triggered by the
air curtain that reaches its cleaning deadline
rst. The LED goes on to signal the clea-
ning interval. The cleaning interval signal for
the air curtains can be reset by pressing the
buttons on the control panel at the same
time. It can also be reset before the cleaning
interval has been signalled, e.g., if the air curtain
is cleaned before its signal time.
Reset applies to all chained air curtains.
89
123
5s
KABEL-05M
KABEL-05M KABEL-05M
DK
SH
SLAV E
MASTER
15/16 17/18
8 A
SLAV E
MASTER
15/16 17/18
8 A
SLAV E
MASTER
15/16 17/18
8 A
DK DK
1. 2. . . . 6.

3. MAINTENANCE 4. TROUBLESHOOTING
89
Never reach inside the air curtain unless
the main electrical current has been turned
o! The air curtain must be allowed to cool!

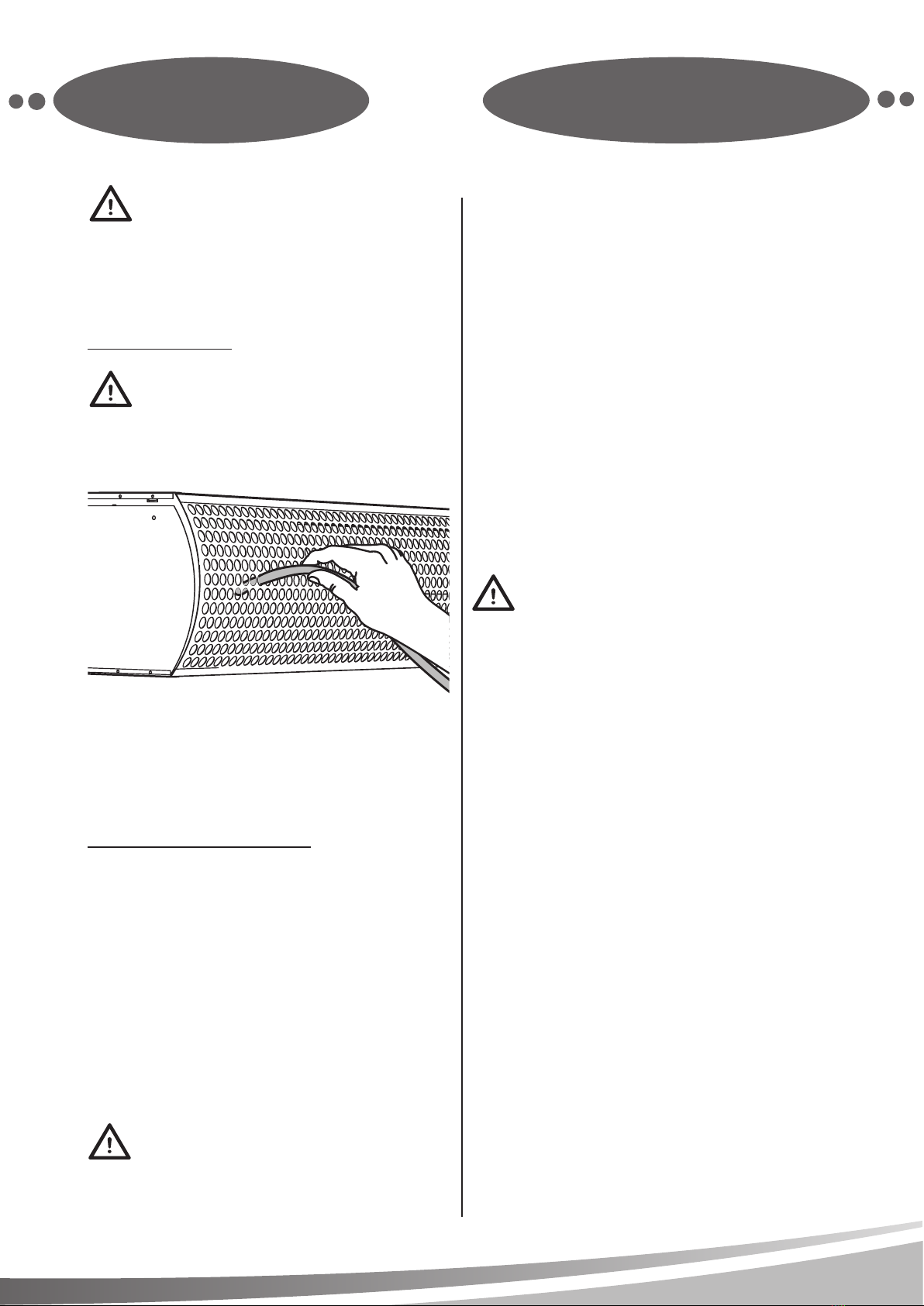

3.1 CLEANING
Use of compressed air, chemicals, solvents•
and water is strictly prohibited when cleaning
the air curtain.
Use a soft brush or vacuum cleaner to clean the
interior of the air curtain.
4.1 SAFETY ELEMENTS
4.1-1 Preventing the electric heater
from overheating
If the electric heater overheats, the safety ther-
mostat will shut it o. The electric heater will go
back on automatically after cooling.
If the safety thermostat fails or malfunctions,
the emergency thermostat will go on and turn
the heater o permanently. The heaters of all
other air curtains will remain in operation.
There is no signal when the thermostats are•
activated. A failure can be recognised by re-
duced heater output when the settings panel
indicates it should be working.
When the emergency thermostat activates,•
it is necessary to determine the cause of the
overheating!
Never reach inside the air curtain unless•
the main electrical supply has been turned
o!
4.1-2 Preventing the fan from
overheating
If any motor is overheated and the heat safe-
ty fuse shuts it o, the other motors remain in
operation. After cooling, the motor will auto-
matically go back on.
There is no signal when an overheated mo-•
tor shuts o. A failure can be recognised
by decreased air ow volume.
When a motor shuts o, it is necessary to•
determine the cause of the failure!
Never reach inside the air curtain unless•
the main electrical supply has been turned
o!

TROUBLE
THE AIR CURTAIN
CAN’T BE TURNED ON.
THE AIR CURTAIN IS CON-
NECTED TO THE POWER
SUPPLY BUT DOES NOT
WORK PROPERLY.
ELECTRIC HEATER OVERHE-
ATS (The air curtain doesn’t
heat even though it should,
according to the control
panel setting.)
Measure the input current and
voltage and compare them to
the values on the manufactu-
rer’s label located on the air
curtain housing
The current and voltage do not
correspond to the values on the
manufacturer’s label.
The air curtain is disconnected
from the electrical supply, e.g.,
due to a power outage or at the
main circuit breaker.
Check the circuit-breaker box
where the air curtain is instal-
led.
The air curtain’s electrical con-
nection does not correspond to
the schematic.
Find the schematic and check
the air curtain’s connection.
The schematic can be found ei-
ther in the Installation Manual,
or under the air curtain’s servi-
ce hood
The neutral conductor is not
connected. Connect it
A wire came loose from its connec-
tor when the air curtain was wired.
Unbolt the protection cover
and check the connectors.
The cable from the control pa-
nel to the air curtain is impro-
perly connected.
The fuse is blown.
Insucient space in front of the
intake louvers or limited curtain
suction (see installation manual).

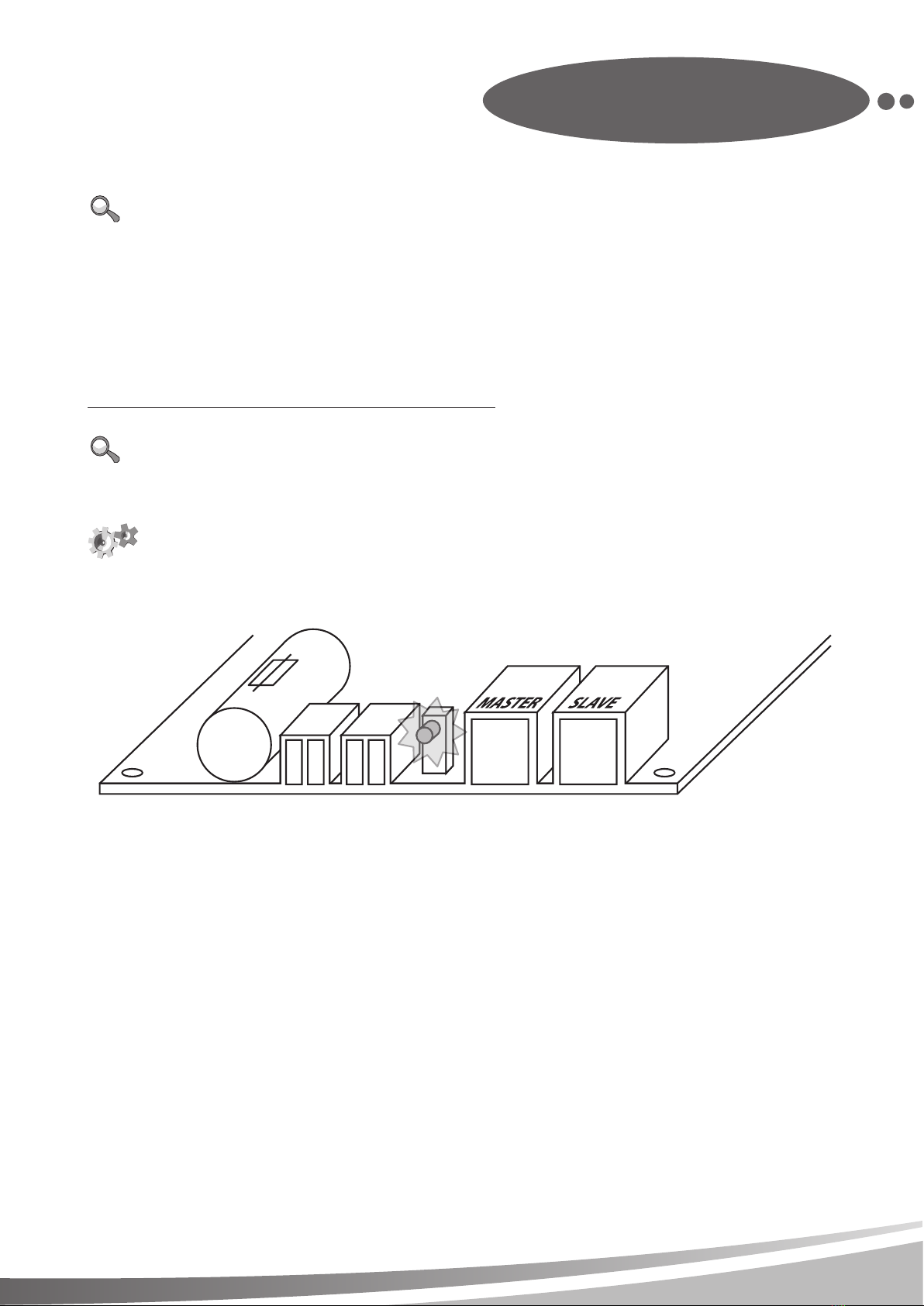

Check the air curtain’s fuse. The
fuse is located on the printed
circuit board. Check to make
sure it is not burnt. If it is blown,
then it must be replace with a
fuse of the same electrical va-
lue.
Ensure adequate space.
Clean the air curtainThe air curtain is dirty.
Contact the service center and
have the fan changed.
One or more of the air curtain’s
fans have failed.
Check the cable connection
between the control panel and
the control electronics of the
air curtain.
Pull the cable terminal from
the “MASTER” connector in the
electronics panel of the air cur-
tain and snap it back into pla-
ce. Open the control panel box,
pull the cable from the panel
connection and snap it back in.
Try using a dierent cable sup-
plied by the manufacturer and
retest the air curtain. If the air
curtain still does not work, re-
place the control panel with a
dierent one and try again.
POSSIBLE CAUSE SOLUTION
4.2 BEFORE YOU CALL FOR SERVICE…
10 11
4. TROUBLESHOOTING

4. TROUBLESHOOTING
Whenever an air curtain’s motor or heater overheats, it is necessary to detect and elimina-•
te the cause.
If the cause is any sort of internal failure in the air curtain, it is absolutely necessary•
to contact the appropriate authorised service centre.
4.3 ERRORS INDICATED BY BLINKING LED
The signal LED is located on the electronic panel next to the MASTER connector.
When air curtains are linked, a signal is given for a failure of any air curtain in the chain. To nd out
which air curtain has the problem, you must check the LEDs on all air curtains in the chain.
”OK” state – LED blinks once per second
10 11

If you have followed the troubleshooting charts and still cannot solve the problem and start
the air curtain, contact an authorised service center (see the next chapter, 5. SERVICE).
Never work on the air curtain unless it has been disconnected from the main power supply.•
If you are not sure how to proceed, do not attempt any repairs – bring in a professional!
5.1. IF YOU CAN’T FIX THE PROBLEM YOURSELF
If you are unable to solve the problem, contact the supplier or a company authorised by 2VV.
Warranty and post-warranty service is performed by the supplier or one of its authorised service
organisations, a list of which is available from the supplier.
Be ready to provide the following information to your supplier or service center:
- The air curtain’s type designation
- Accessories being used
- Place of installation
- Serial number
- Installation conditions (including electrical)
- Period of operation
- Detailed description of the problem
4. TROUBLESHOOTING
5. SERVICE
Number of LED
ashes
Stays
on
3 / 10 sec.
Signal on panel
-
Error
Signals air curtain
cleaning interval
Communication
error
Solution
Clean the air curtain and
reset it by pressing .
Make sure the cable is
properly connected to
the control panel and
the air curtain, and that it
is not broken.
12 13

5.2. END OF SERVICE LIFE
– DISPOSAL
Before disposing of the product, render it
unusable.
Even old products contain raw materials that
can be reused. Dispose of these at a raw mate-
rial collection site.
It is best to dispose of a product at a specialised
location that salvages recyclable materials for
reuse. Dispose of the product’s unusable parts
at a managed landll.
When disposing of materials, it is mandatory to
follow the applicable national regulations on
waste disposal.
The following air curtain accessories can be
purchased:
•DoorswitchDK
•TimerswitchSH.
•Flexiblehose
•Communicationcable
•Three-wayvalveZV3
•RoomthermostatTER-P
For further information, see the 2VV product ca-
talogue on the included CD or on the Internet
at www.2vv.cz.
To operate the air curtain properly, it is neces-
sary to read the Manual for safe use of air
curtain.
If you have any doubts or questions, do not
hesitate to contact our sales or technical sup-
port department.
CONTACT
Address
2VV, s.r.o.,
Poděbradská 289,
530 09 Pardubice,
Czech Republic
Internet
http://www.2vv.cz/contact.distribution.php
Copyright (c) 2008 2VV s.r.o. All rights reserved.
H01-0205-0110-00
12 13
5. SERVICE
6. ACCESSORIES
7. CONCLUSION
