3-form SimpleSpec 200.62-ILTUO User manual

For more information, please visit 3-form.com or call 800.726.0126
DECEMBER 2018 | MANRTG20062 | REV 002 © 2018 3form, Inc. All rights reserved.
Ready To Go
SimpleSpec 200.62ILTUOtm Installation Manual

Contents Overview
ILTUO Vertical Post, 2
Glazing Channels, 96"
--
(4)
ILTUO Vertical Post, 1
Glazing Channel, 96"
--
(2)
VERSA ½" Glazing
Channel
--
(22)
ILTUO Cantilever
Top Rail, 96"
--
(4)
Low Proile Glazing
Channel, 98"
--
(5)
ILTUO Z Proile Door
Attachment Extrusion, 98"
--
(1)
Slide05 Top
Roller Track
3151767
(1)
Slide05
Valance
3151111
(1)
⅜"Varia Panel
(7) (4)
⅜"Corner Curved
Varia Panel
Self-Tapping Screw
--
(48)
Slide 05 Door
with Varia Panel
(1)
(12) =
ILTUO Base Plate
Universal Anchoring KIT
3152119K
+
M8 x 105 Concrete
Lag Screw
3152309
(48)
5/16" x 3.5" Hex Head
Wood Lag Screw
3152310
(48)
VHB Tape
--
(1)
For more information, please visit 3-form.com or call 800.726.0126
DECEMBER 2018 | MANRTG20062 | REV 002 © 2018 3form, Inc. All rights reserved. 2
Ready To Go
SimpleSpec 200.62ILTUOtm Installation Manual

Contents Overview

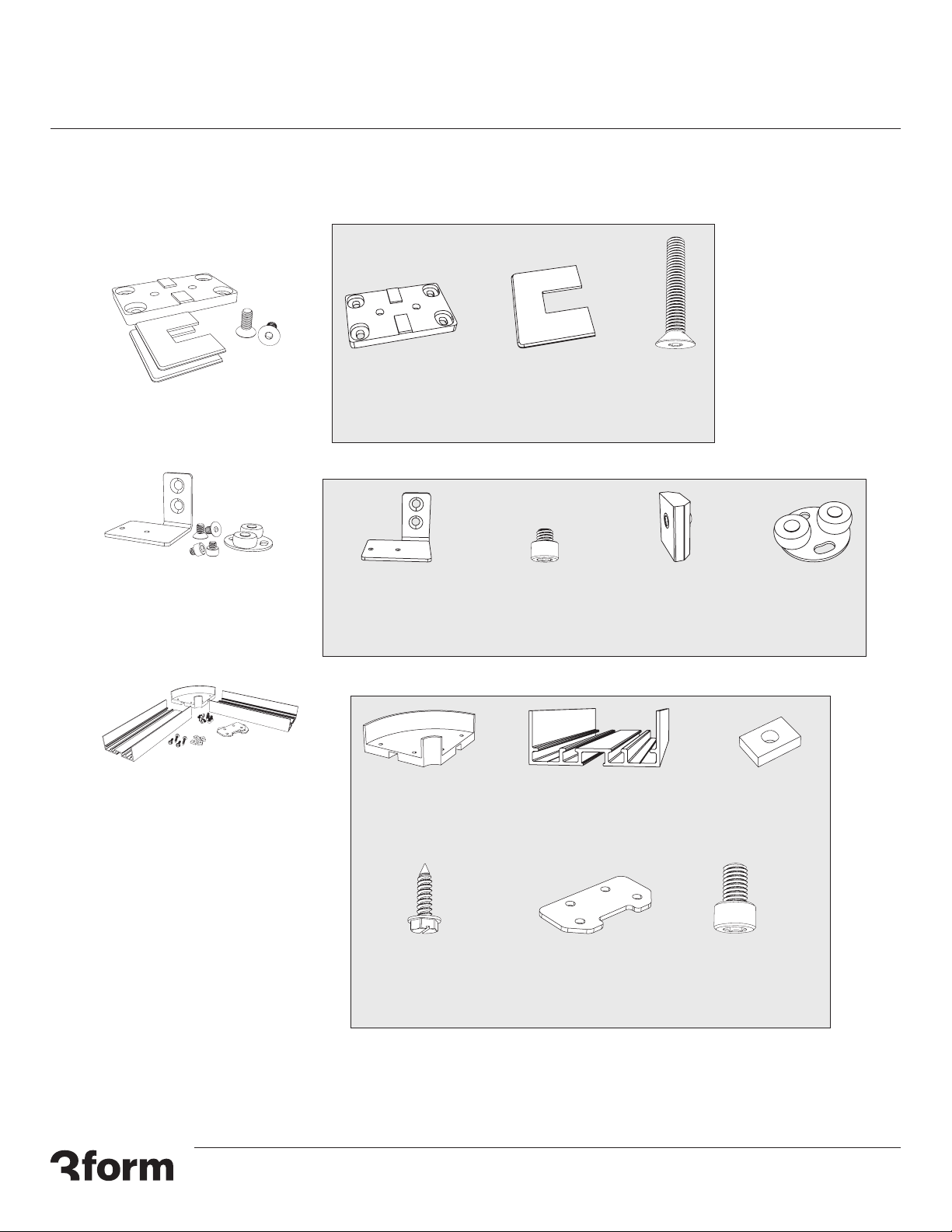

ILTUO Base Plate KIT
---K
(12) = + +
Screw
3152308
(24)
ILTUO Base Plate
3152110
(12)
ILTUO Base
Plate Cover
3152114
(24)
(4) =
ILTUO Cantilever Top
Rail Curved Corner KIT
3152115K
+ +
ILTUO Top Rail
Adapter Bracket
3152117
(8)
M6 x 10mm
STD SHCS
3152312
(32)
Flanged Hex Head Sheet
Metal Screw 10 x .75
3152311
(16)
+ +
ILTUO Top Rail
Corner Proile
3152115
(4)
ILTUO Top Rail Low
Proile M6 TNut
3152123
(16)
ILTUO Cantilever
Top Rail, 96"
0152103
(8)
(1) =
ILTUO Door Base
Attachment KIT - Left
3152129K
+ + +
ILTUO Door Base
Attachment Bracket, Left
3152129
(1)
ILTUO Glazing
Channel M6 TNut
3152305
(2)
1032  5/32"
STD SHCS
3152316
(2)
Slide05
Floor Guide
3151113
(1)
For more information, please visit 3-form.com or call 800.726.0126
DECEMBER 2018 | MANRTG20062 | REV 002 © 2018 3form, Inc. All rights reserved. 3
Ready To Go
SimpleSpec 200.62ILTUOtm Installation Manual

Required Tools
Drill Drill Bits Hammer Drill
(1) =
ILTUO Door
Attachment KIT
3152314K
+ +
Screw
3150865
(13)
Threaded Stud TNuts
3152363
(12)
Hex Nut
3152364
(12)
(2) =
Slide 04/05
Door Handle KIT
3150023K
+
Flat Undercut Head
#61/2" Screw
3156364
(4)
Slide 04/05
Door Handle
3150023
(2)
(1) =
ILTUO Slide05 Door
End Cap KIT
3152343K
+ +
ILTUO Door Track
End Cap, Right
3152342
(1)
ILTUO Door Track
End Cap, Left
3152343
(1)
Connector
for End Cap
3151764
(2)
Contents Overview
For more information, please visit 3-form.com or call 800.726.0126
DECEMBER 2018 | MANRTG20062 | REV 002 © 2018 3form, Inc. All rights reserved. 4
Ready To Go
SimpleSpec 200.62ILTUOtm Installation Manual

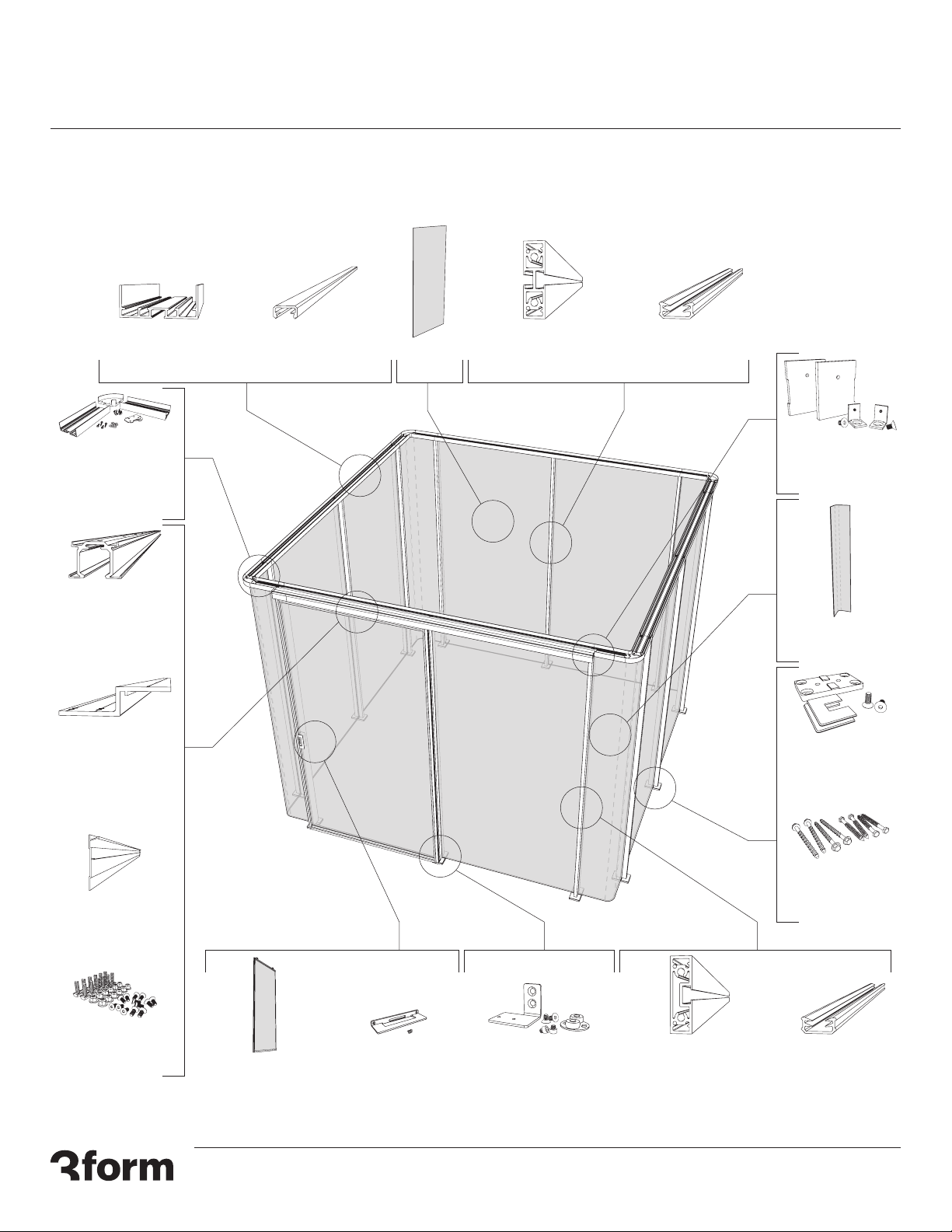

Overview
ILTUO Cantilever
Top Rail
0-15-2103
+ILTUO Low Profile
Glazing Channel, 96"
0-15-2369
ILTUO Vertical Post,
2 Glazing Channels, 96"
0-15-2181
½" Glazing
Channel
3-15-2009
+
⅜" Varia
Panel
ILTUO Door Base
Attachment KIT -Left
3-15-2129-K
½" Glazing
Channel
3-15-2009
+
ILTUO Vertical Post,
1 Glazing Channel, 96"
0-15-2183
⅜" Varia Curved
Corner Panel
Base Plate KIT
3-15-2110-K
Universal
Anchoring KIT
3-15-2119-K
+
ILTUO Slide05
Door End Cap KIT
3-15-2343-K
ILTUO Cantilever
Top Rail Curved
Corner KIT
3-15-2115-K
+
+
Slide05 Top
Roller Track, 96"
0-15-0201
ILTUO Z Profile
Door Attachment
Extrusion, 98"
0-15-2127
Slide05 Valance
3-15-1111
+
ILTUO Door
Attachment KIT
3-15-2314-K Slide 05 Door
with Varia Panel
Slide 04/05
Door Handle KIT
3-15-0023-K
+
For more information, please visit 3-form.com or call 800.726.0126
DECEMBER 2018 | MANRTG20062 | REV 002 © 2018 3form, Inc. All rights reserved. 5
Ready To Go
SimpleSpec 200.62ILTUOtm Installation Manual

Installation
1Drill Pilot Holes (48)
Two standard template parts will be provided;
a base plate template (3152160) and a corner
template (3152340). The base plate template
has hole locations for drilling. Spacers will also be
provided, unique to this coniguration; cut to size
based o post dimensions in the quoting phase.
Layout the whole loor plan
using the template.
a
Following the ILTUO Installation Template, drill pilot
holes. Use appropriate pilot hole diameter and depth for
the type of substrate you are fastening to.
*3form stocks the drill bits required for the concrete
and wood pilot holes. If you wish to purchase a drill bit,
please contact your 3form sales representative.
bØ Depth Anchors
Concrete mm min " --
Wood ⁄" min " --
Substrate Drill Bit
--
--
ILTUO Installation
Template - Base Plate
3-15-2160
ILTUO Installation
Template - Corner
3-15-2340
ILTUO Installation Template
- Template Spacer
3-15-2347
2Assemble Vertical Posts (12)
Glazing Channel
3-15-2009
Vertical Post,
1 Glazing Channel, 96"
(×2) Screw
3-15-2308
(×
2) Glazing Channel
3-15-2009
(×2) Screw
3-15-2308
ILTUO
Base Plate
3-15-2110
ILTUO Vertical Post,
2 Glazing Channels, 96
"
ILTUO
Base Plate
3-15-2110
For more information, please visit 3-form.com or call 800.726.0126
DECEMBER 2018 | MANRTG20062 | REV 002 © 2018 3form, Inc. All rights reserved. 6
Ready To Go
SimpleSpec 200.62ILTUOtm Installation Manual

Use hammer drill to secure post.
3Secure ILTUO Vertical Post with 1 Glazing Channel and 2 Rivet Nuts to Floor
4Install First Varia Panel
Installation
(×48) Pilot Holes
Dashed lines shown
for reference only
Door
*Flat side of post needs
to face the door opening
*Vertical Post with 2 rivet nuts
must be at the center position
of wall on the door side
(×4) 3-15-2309
or 3-15-2310
1
(×2)
3-15-2114
3-15-2171
2
Door
For more information, please visit 3-form.com or call 800.726.0126
DECEMBER 2018 | MANRTG20062 | REV 002 © 2018 3form, Inc. All rights reserved. 7
Ready To Go
SimpleSpec 200.62ILTUOtm Installation Manual

Installation
Secure ILTUO Vertical Post with 2 Glazing Channels to Floor
5
Door
(×4) 3-15-2309
or 3-15-2310
1
(×2)
3-15-2114
3-15-2171
2
6Install Corner Varia Panel
Door
For more information, please visit 3-form.com or call 800.726.0126
DECEMBER 2018 | MANRTG20062 | REV 002 © 2018 3form, Inc. All rights reserved. 8
Ready To Go
SimpleSpec 200.62ILTUOtm Installation Manual

Door
(×4) 3-15-2309
or 3-15-2310
1
(×2)
3-15-2114
3-15-2171
2
Installation
7Install Remaining Posts and Panels
8Assemble (4) ILTUO Cantilever Top Rail Curved Corner Kits (3-15-1115-K)
ILTUO Cantilever Top Rail
Curved Corner KIT
(3-15-2115-K)
a
(×2 per corner)
Low Profile Glazing Channel
0-15-2369
Cut (1) Low Profile Glazing
Channel (0-15-2369) into
(8) 9½" long pieces, then
insert into each end.
b
For more information, please visit 3-form.com or call 800.726.0126
DECEMBER 2018 | MANRTG20062 | REV 002 © 2018 3form, Inc. All rights reserved. 9
Ready To Go
SimpleSpec 200.62ILTUOtm Installation Manual

Installation

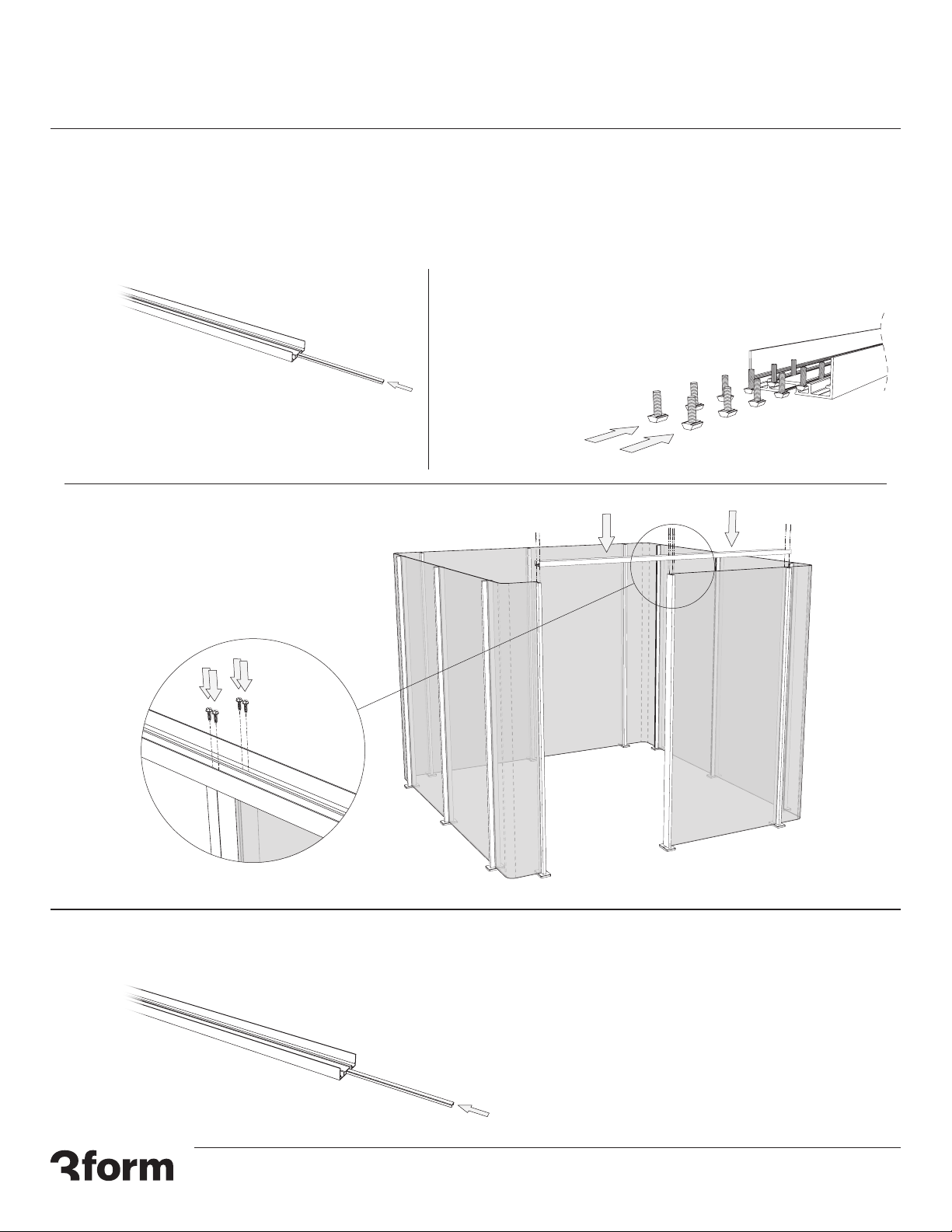

9Install Top Rail (1) Over Door Opening
(×6) Threaded Stud T-Nuts
(3-15-2363)
(×6) Threaded Stud T-Nuts
(3-15-2363)
Top Rail
b*Insert all 12 Threaded Stud TNuts (3152363) before installing
the Top Rail on the Vertical Posts.
Low Profile
Glazing Channel
--
ILTUO Cantilever Top Rail
0-15-2103
a
cSecure Top Rail prepared in Steps 9a-b over
section of ILTUO structure with door.
Self-Tapping
Screws
3-15-2311

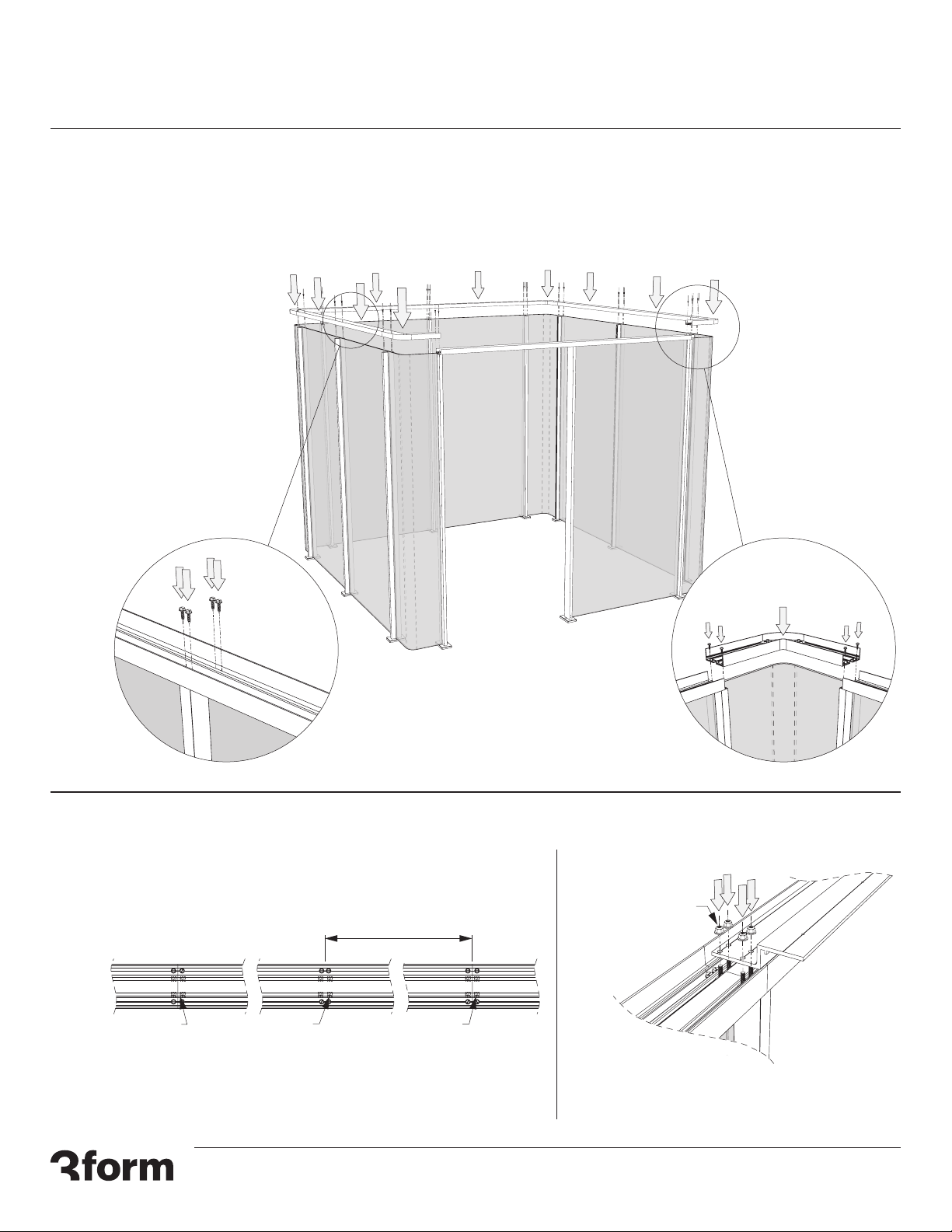

10 Install Remaining Top Rails (3) and Top Rail Curved Corners (4)
a
Low Profile
Glazing Channel
--
ILTUO Cantilever Top Rail
0-15-2103
�3
For more information, please visit 3-form.com or call 800.726.0126
DECEMBER 2018 | MANRTG20062 | REV 002 © 2018 3form, Inc. All rights reserved. 10
Ready To Go
SimpleSpec 200.62ILTUOtm Installation Manual

Installation
b
10 Install Remaining Top Rails (3) and Top Rail Curved Corners (4) cont...
Self-Tapping Screws
3-15-2311
×4
Self-Tapping
Screws
3-15-2311
×3
11 Attach ILTUO Z Proile Door Attachment Extrusion
Center of Vertical Post
to Center of Vertical Post
(×4) Threaded
Stud T-Nuts
(3-15-2363)
(×4) Threaded
Stud T-Nuts
(3-15-2363)
(
×4) Threaded
Stud T-Nuts
(3-15-2363)
aUse a pointed tool to slide the Threaded Stud T-Nuts along
the slots of the Top Rail to position them for the Z Profile. (×12) Hex Nut
(3-15-2364)
ILTUO Z Profile
(0-15-2127)
b
For more information, please visit 3-form.com or call 800.726.0126
DECEMBER 2018 | MANRTG20062 | REV 002 © 2018 3form, Inc. All rights reserved. 11
Ready To Go
SimpleSpec 200.62ILTUOtm Installation Manual

Installation
12 Attach Floor Guide
14 Attach Top Track
a b
ILTUO Door Base
Attachment Bracket, Left
3-15-2129
3-15-1113
(×2)
3-15-2316
(×2) Screw
3-15-2315
Top Roller
Track
0-15-0201
Z Profile
M4×.7,
10mm Screw
3-15-0865
Attach the Slide05 Top Roller Track
(0-15-0201) to the underside of the
ILTUO Z Profile Door
Attachment Extrusion.
13 Insert Bumpers, Stops and Top Rollers into Slide05 Top Roller Track
Both rollers should be next to one another in the track, with the bumpers or stops on the outside.
or
or Slide05 Top
Roller Track, 98"
0-15-0201
For more information, please visit 3-form.com or call 800.726.0126
DECEMBER 2018 | MANRTG20062 | REV 002 © 2018 3form, Inc. All rights reserved. 12
Ready To Go
SimpleSpec 200.62ILTUOtm Installation Manual

Installation
15 Install Slide05 Door
b
Once level, tighten nut.
c
Install the Slide05 Door to the
Slide05 Top Roller Track by placing
the bottom of the door over the
bottom guide irst, then sliding
the bolt in the Top Roller Assembly
into the opening in the Top Roller
Bracket.
Level the door by adjusting the top roller
hanging bolt with a wrench.
a
*For additional information regarding
the Slide 05 Door System, visit
3-form.com/hardware/slide/tech-details.com
Valance
3-15-1111
Attach Valance
b
Attach End Caps
a
ILTUO Slide05 Door End Cap KIT
---K
16 17
