3-form SimpleSpec 200.91-Divide User manual

Ready To Go
Installation Manual
For more information, please visit 3-form.com/Elements or call 800.726.0126
FEBRUARY 2021 | MANRTG20091 | REV 001 © 2021 3form, Inc. All rights reserved.
SimpleSpec 200.91Dividetm

Contents Overview
(2)
⅜"Corner
Mitered
Varia Panel
⅜" Varia Panel
(3)
Vertical Post, 2
Glazing Channels
--
(4)
Vertical Post, 1
Glazing Channel
--
(2)
(2)
Installation Template
Base Plate Guide
--
(3)
Installation Template
Spacer Guide
--
(2)
Installation Template
Corner Guide
--
Half Wall Aluminum
Top Rail Slot Cover
--
(6)
Half Wall Aluminum
Top Rail
--
(3)
Glazing
Channel Cover
--
(2)
U Channel
--
(3)
½" Glazing
Channel
--
(5)
Low Proile Glazing
Channel, 96"
--
(3)
Low Proile Glazing
Channel, 47"
--
(3)
2
Ready To Go
Installation Manual
For more information, please visit 3-form.com/Elements or call 800.726.0126
FEBRUARY 2021 | MANRTG20091 | REV 001 © 2021 3form, Inc. All rights reserved.
SimpleSpec 200.91Dividetm

Base Plate KIT
---K
(6) = + +
Screw
3152308
(12)
Base Plate
3152110
(6)
Base Plate Cover
3152114
(12) +
VHB Tape Strip
3152416
(24)
Contents Overview
(6) =
Base Plate Universal
Anchoring KIT
---K
+
Hex Head Wood
Lag Screw
3152310
(24)
M8x105 Concrete
Lag Screw
3-15-2309
(24)
(10) =
U Channel Attachment KIT
3152107K
+
Set Screw
632 x 3/8"
3152319
(20) +
Set Screw
632 x 1/8"
3152318
(10)
U Channel
TNut
3152107
(10)
(2) =
U Channel Mitered
Corner KIT
3152352K
+
U Mitered
Corner Bracket
3152170
(2)
+ +
Set Screw
632 x 1/8"
3152318
(8)
U Channel Corner
Miter A Length
3152352
(2) (2)
U Channel Corner
Miter B Length
3152353
3
Ready To Go
Installation Manual
For more information, please visit 3-form.com/Elements or call 800.726.0126
FEBRUARY 2021 | MANRTG20091 | REV 001 © 2021 3form, Inc. All rights reserved.
SimpleSpec 200.91Dividetm

(2) =
Half Wall Aluminum
End Cap KIT
3152386K
+
Half Wall Aluminum
End Cap
3152305
(2)
M5 TNut
3152391
(4) +
M5  12mm
Screw
3152392
(4)
(2) =
Half Wall Aluminum Top
Rail, End Adapter Plate KIT
3152380K
+
M5 TNut
3152391
(4) +
M5  12mm
Screw
3152392
(4)
Half Wall Aluminum
Top Rail, End
Adapter Plate
3152380
(2) +
Self Tapping
Screw
3152338
(4)
Contents Overview
(4) =
Half Wall Aluminum Top Rail,
Center Adapter Plate KIT
3152381K
+
M5 TNut
3152391
(16) +
M5  12mm
Screw
3152392
(16) +
Self Tapping
Screw
3152338
(16)
Half Wall Aluminum
Top Rail, Center
Adapter Plate
3152381
(4)
(2) =
Half Wall Aluminum
Mitered Corner KIT
3152384K
+
M5 TNut
3152391
(16) +
M5  12mm
Screw
3152392
(16)
Half Wall Aluminum
Mitered Corner
3152384
(4)
4
Ready To Go
Installation Manual
For more information, please visit 3-form.com/Elements or call 800.726.0126
FEBRUARY 2021 | MANRTG20091 | REV 001 © 2021 3form, Inc. All rights reserved.
SimpleSpec 200.91Dividetm

Overview - Divide Partition 6' Bay
Vertical Post,
2 Glazing Channels
0-15-2181
½" Glazing Channel
3-15-2009
+
Vertical Post,
1 Glazing Channel
0-15-2182
½" Glazing Channel
3-15-2009
+
Glazing
Channel
Cover
0-15-2105
Base Plate
KIT
3-15-2110-K
+Universal
Anchoring
KIT
3-15-2119-K
U Channel
0-15-2104
+
Low Profile
Glazing
Channel
0-15-2125
⅜" Varia Panel
U Channel
Attachment KIT
3-15-2107
Half Wall
Aluminum
End Cap KIT
3-15-2386-K
Half Wall
Aluminum Top Rail,
End Adapter
Plate KIT
3-15-2380-K
+
Half Wall Aluminum
Top Rail
3-15-2377
Low Profile
Glazing Channel
0-15-2125
Half Wall Aluminum
Top Rail Slot Cover
3-15-1732
+ +
Half Wall Aluminum Top Rail,
Center Adapter Plate KIT
3-15-2381-K
U Channel
Mitered
Corner KIT
3-15-2352-K
⅜" Varia Corner
Mitered Panel
Half Wall Aluminum
Mitered Corner KIT
3-15-2384-K
5
Ready To Go
Installation Manual
For more information, please visit 3-form.com/Elements or call 800.726.0126
FEBRUARY 2021 | MANRTG20091 | REV 001 © 2021 3form, Inc. All rights reserved.
SimpleSpec 200.91Dividetm

Divide Partition Systems also accommodate a number of accessory options to customize the use for your application.
Contact your 3form Elements Dealer for additional information.

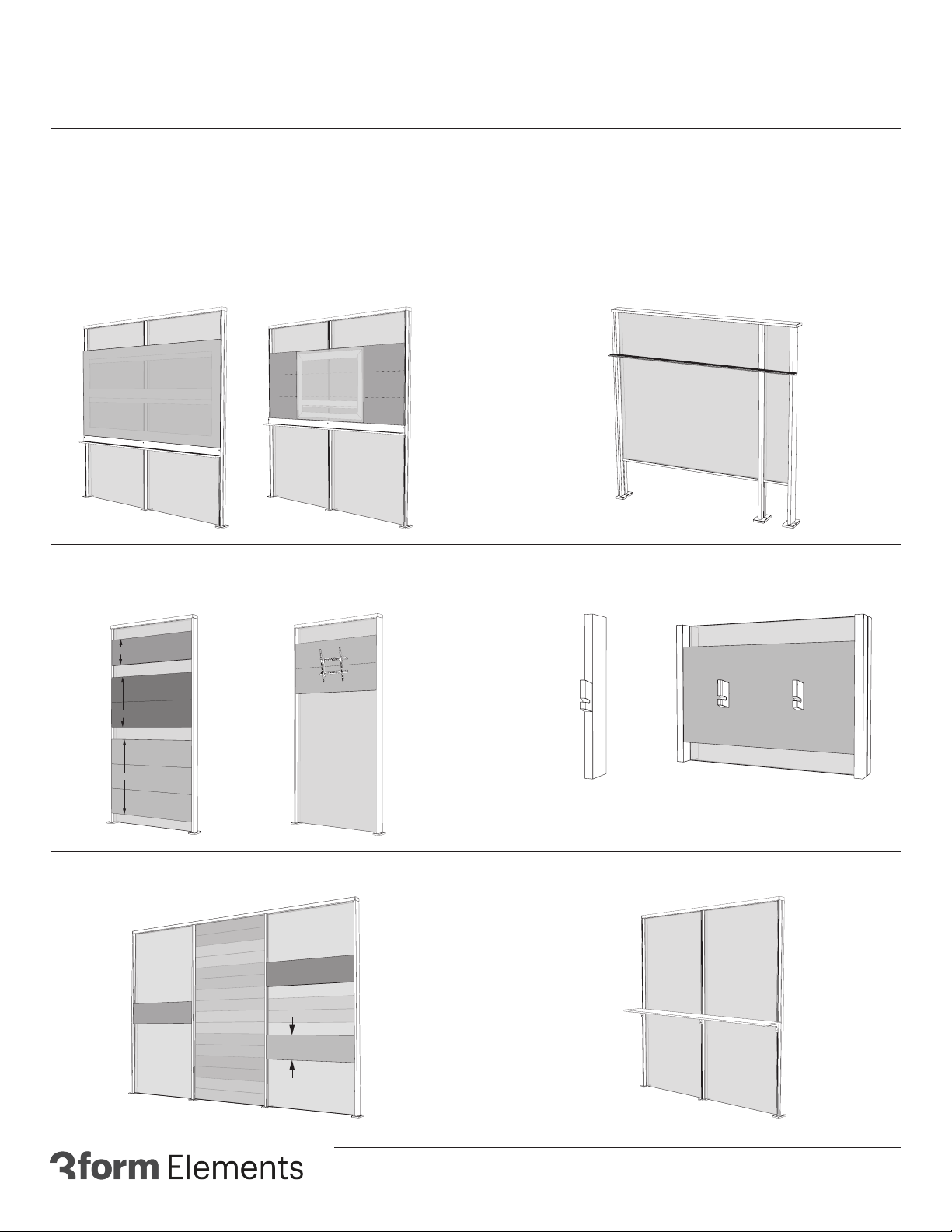

Overview - Accessory Options
Post to Post Inset on Hush Mount
Markerboard and Markerboard Shelf Accessory Shelf
5-13"
Hush Bar Shelves and Shelving Bracket
Post Attachment Hush Mount Attachment
Coat HookHush Mount
TV Mount
12" Small
24–1/16" Medium
36−1/8" Large
6
Ready To Go
Installation Manual
For more information, please visit 3-form.com/Elements or call 800.726.0126
FEBRUARY 2021 | MANRTG20091 | REV 001 © 2021 3form, Inc. All rights reserved.
SimpleSpec 200.91Dividetm

Installation
Base plate templates (3152160) and corner templates (3152340) will be provided. The
base plate template has hole locations for drilling. Spacers will also be provided, unique to
this coniguration; cut to size based o post dimensions in the quoting phase.
1Drill Pilot Holes (24)
a
Ø Depth Anchors
Concrete mm min " --
Wood ⁄" min " --
Substrate Drill Bit
--
--
Following the Installation Template, drill pilot holes. Use
appropriate pilot hole diameter and depth for the type of
substrate you are fastening to.
*3form stocks the drill bits required for the concrete
and wood pilot holes. If you wish to purchase a drill bit,
please contact your 3form sales representative.
b
Required Tools
Drill Drill Bits Hammer Drill Rubber Mallet
Installation Template
Base Plate Guide
3-15-2160
Installation Template
Spacer Guide
3-15-2347
Installation Template
Corner Guide
3-15-2340
Saw
7
Ready To Go
Installation Manual
For more information, please visit 3-form.com/Elements or call 800.726.0126
FEBRUARY 2021 | MANRTG20091 | REV 001 © 2021 3form, Inc. All rights reserved.
SimpleSpec 200.91Dividetm

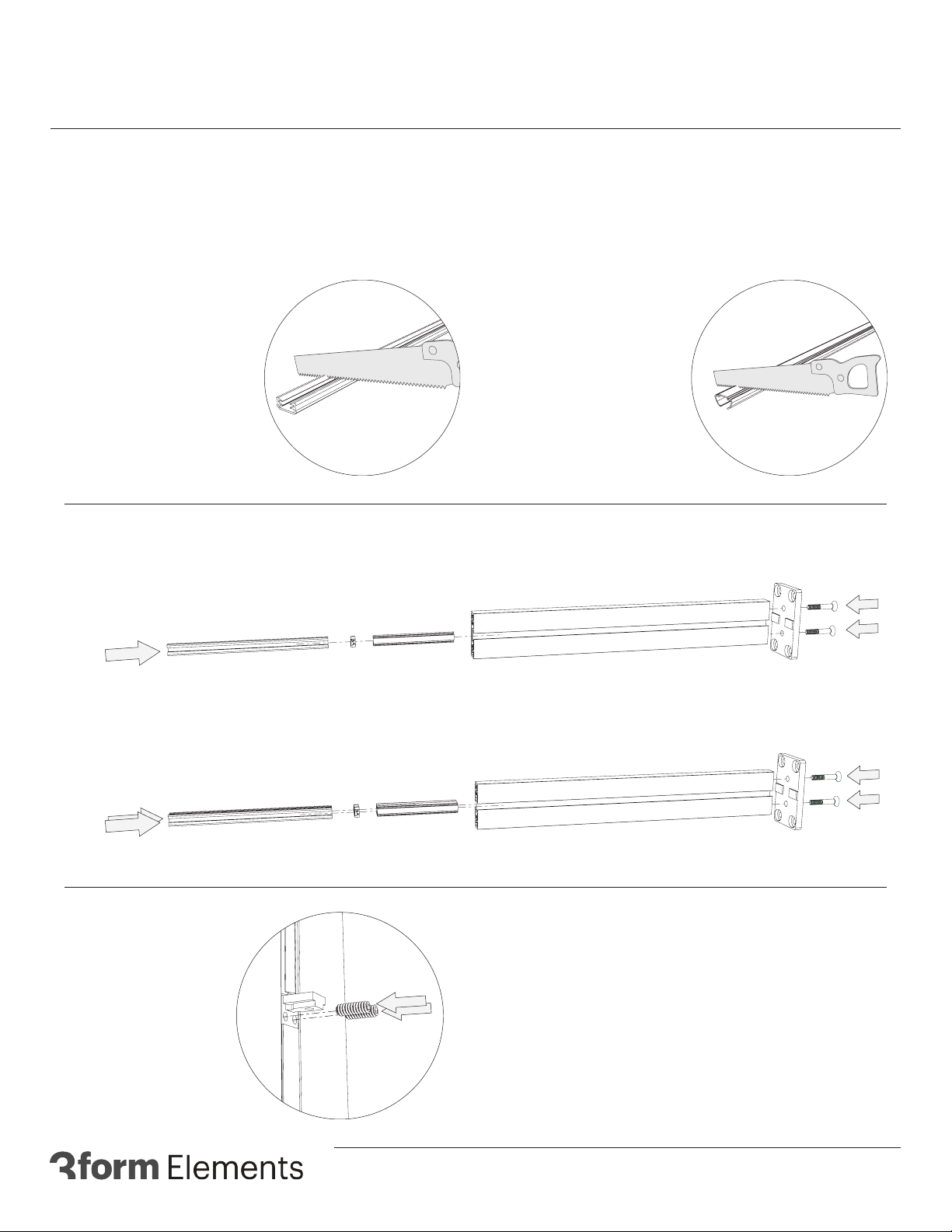

2Assemble Vertical Posts
Cut Glazing Channel
(3152009) to
3' 11.125" lengths. (10)
a
Installation
Cut Glazing Slot
Cover (0152105) to
11.375" lengths. (10)
b
(×2) Set Screws
3-15-2319
(×2) Screws
3-15-2308
Base Plate
3-15-2110
U Channel T-Nut
3-15-2107
Vertical Post, 1 Glazing Channel
0-15-2182
Glazing
Channel Cover
0-15-2105
½" Glazing
Channel
3-15-2009
Assemble Vertical Posts (0152182). (2)
(×2) Screws
3-15-2308
Base Plate
3-15-2110
(×2) U Channel T-Nuts
3-15-2107
Vertical Post, 2 Glazing Channels
0-15-2181
(×2) Glazing
Channel Covers
0-15-2105
(×2) ½" Glazing
Channels
3-15-2009
Assemble Vertical Post (0152181). (4)
cSecure U Channel
TNuts. (10)
8
Ready To Go
Installation Manual
For more information, please visit 3-form.com/Elements or call 800.726.0126
FEBRUARY 2021 | MANRTG20091 | REV 001 © 2021 3form, Inc. All rights reserved.
SimpleSpec 200.91Dividetm

Installation
--
or --
1

--

--
2
Use hammer drill to secure post.
Secure First Vertical Post to Floor
3
4Attach U Channel to First Vertical Post
U Channel
0-15-2104
Low Profile
Glazing Channel
0-15-2125
Cut Glazing Channel (0152125)
to 3'6.5" lengths (2) and
3'5.375" length (1).
a cb
Insert Glazing Channel
(0152125) into U Channel
(0152104).
Set Screw
3-15-2318
U Channel
Secure U Channel (0152104) to
Vertical Post.
9
Ready To Go
Installation Manual
For more information, please visit 3-form.com/Elements or call 800.726.0126
FEBRUARY 2021 | MANRTG20091 | REV 001 © 2021 3form, Inc. All rights reserved.
SimpleSpec 200.91Dividetm

5Install Varia Panel
Installation
6Install Second Vertical Post
--
or --
1

--
--
2
Set Screw
3-15-2318
U Channel
3
10
Ready To Go
Installation Manual
For more information, please visit 3-form.com/Elements or call 800.726.0126
FEBRUARY 2021 | MANRTG20091 | REV 001 © 2021 3form, Inc. All rights reserved.
SimpleSpec 200.91Dividetm

Assemble and Attach U Channel Mitered Corner
7
Installation
Miter Corner
U Channels
U Mitered
Corner Bracket
3-15-2170
(×4) Set Screws
3-15-2318
a
Low Profile
Glazing Channel
0-15-2125
U Channel
Miter
c
Assemble U Channel
Mitered Corner Kit
(3-15-2352).
Cut Glazing Channel
(0152125) to 9"
length. (4)
dSecure U Channel
(0152104) to
Vertical Post.
b
Set Screw
3-15-2318
U Channel
Install Varia Corner Panel
8
Follow Steps 48 for remaining Vertical Posts,
U Channels, Varia Panels and Mitered Corner.
9Install Remaining Posts, U Channels
and Panels
11
Ready To Go
Installation Manual
For more information, please visit 3-form.com/Elements or call 800.726.0126
FEBRUARY 2021 | MANRTG20091 | REV 001 © 2021 3form, Inc. All rights reserved.
SimpleSpec 200.91Dividetm

10 Install Adapter Plates on Posts
Install Adapter Plates on Vertical Posts
with 2 Glazing Channels. (4)
Adapter Plate
3-15-2381
(×4) Screws
3-15-2338
Adapter Plate
3-15-2380
(×2) Screws
3-15-2338
Install Adapter Plates on Vertical Posts
with 1 Glazing Channel. (2)
a b
Installation

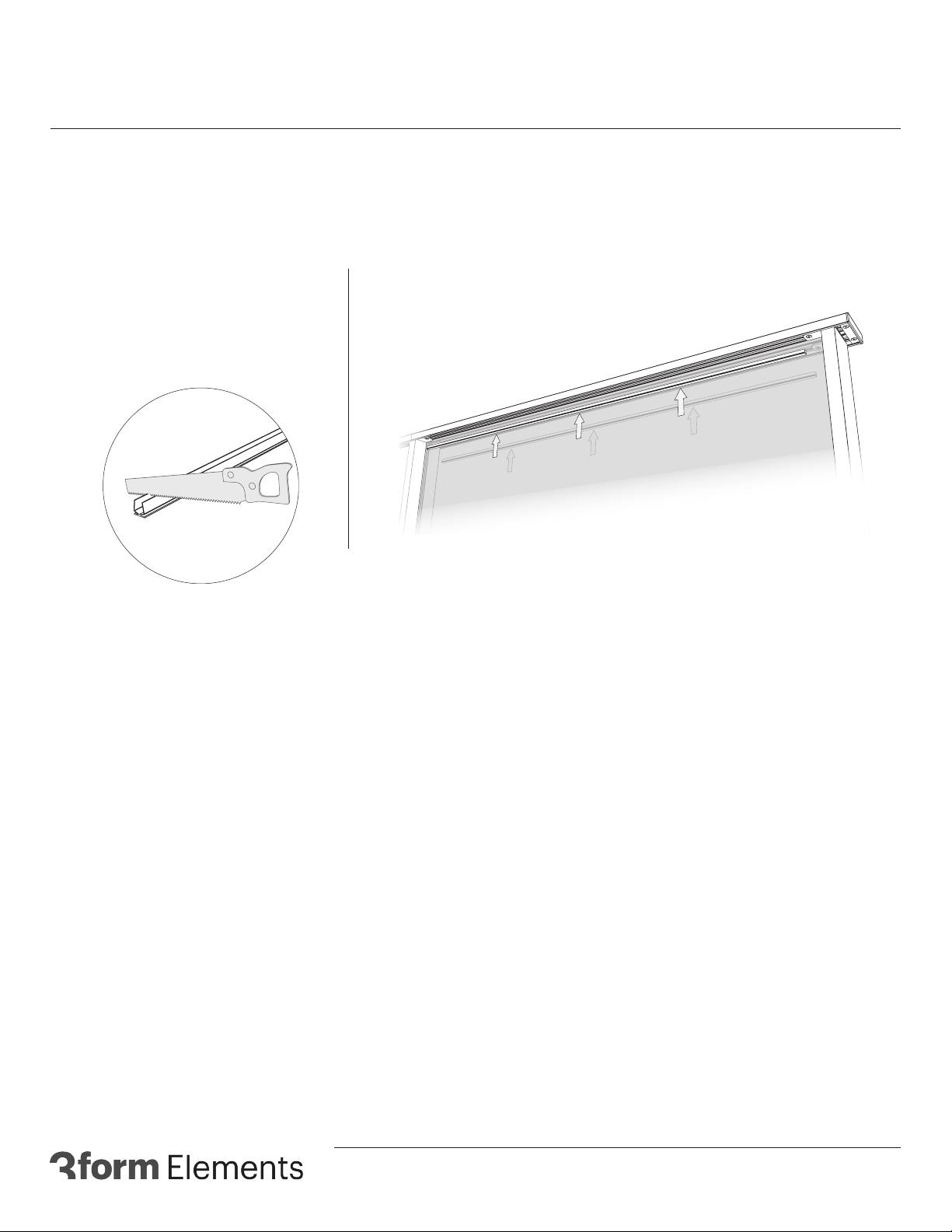

Cut Glazing Channel (0152369)
to the lengths of each Top Rail
(3152377).
a
11 Assemble Aluminum Top Rail Sections
12
Ready To Go
Installation Manual
For more information, please visit 3-form.com/Elements or call 800.726.0126
FEBRUARY 2021 | MANRTG20091 | REV 001 © 2021 3form, Inc. All rights reserved.
SimpleSpec 200.91Dividetm

Installation
11 Assemble Aluminum Top Rail Sections cont...
bAssemble 3 Mitered Top Rails (3-15-2377).
(×2) T-Nuts
3-15-2391
Glazing Channel
0-15-2125
Glazing Channel
0-15-2125
Glazing Channel
0-15-2125
(×8) T-Nuts
3-15-2391
(×2) T-Nuts
3-15-2391
(×8) T-Nuts
3-15-2391
(×8) T-Nuts
3-15-2391
(×8) T-Nuts
3-15-2391
Top Rail - 1 Mitered Corner
3-15-2377
Top Rail - 1 Mitered Corner
3-15-2377
Top Rail - 2 Mitered Corners
3-15-2377
(×8) Screws
3-15-2392
(×2) Adapter Plates
3-15-2384
×2
bConnect 3 Mitered Top Rails (3-15-2377).
13
Ready To Go
Installation Manual
For more information, please visit 3-form.com/Elements or call 800.726.0126
FEBRUARY 2021 | MANRTG20091 | REV 001 © 2021 3form, Inc. All rights reserved.
SimpleSpec 200.91Dividetm

(×2) Screw
3-15-2392
(×4) Screw
3-15-2392

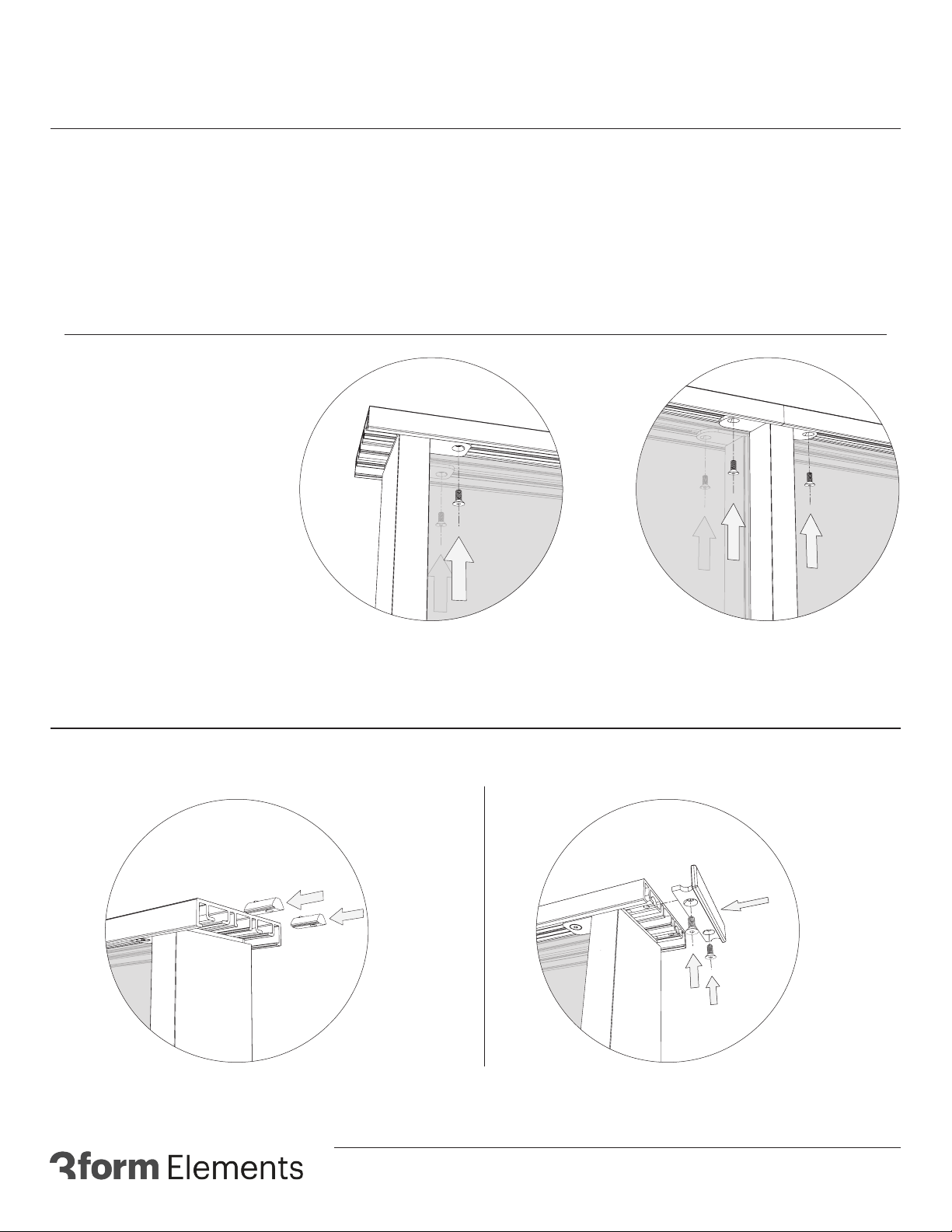

Connection at Vertical Post with 1
Glazing Channel (2)
Connection at Vertical Post with 2
Glazing Channels (4)
12 Attach Half Wall Top Rails
aLay out to ensure overhang at ends prior to install.
Attach Top Rails with
screws (3-15-2392).
b
(×2) T-Nut
3-15-2391
End Cap
3-15-2386
(×2) Screw
3-15-2392
a b
13 Attach End Caps (2)
Installation
14
Ready To Go
Installation Manual
For more information, please visit 3-form.com/Elements or call 800.726.0126
FEBRUARY 2021 | MANRTG20091 | REV 001 © 2021 3form, Inc. All rights reserved.
SimpleSpec 200.91Dividetm

Cut Top Rail Slot Covers (3-15-1732)
to 3'3.5" lengths (4),
3'2.375" lengths (2)
8.375" lengths (4),
6.125" lengths (4).
14 Insert Slot Covers (14)
a b Insert Slot Covers (3-15-1732) into slots on bottom side of Top Rails.
Installation
15
Ready To Go
Installation Manual
For more information, please visit 3-form.com/Elements or call 800.726.0126
FEBRUARY 2021 | MANRTG20091 | REV 001 © 2021 3form, Inc. All rights reserved.
SimpleSpec 200.91Dividetm
