At-A-Glance

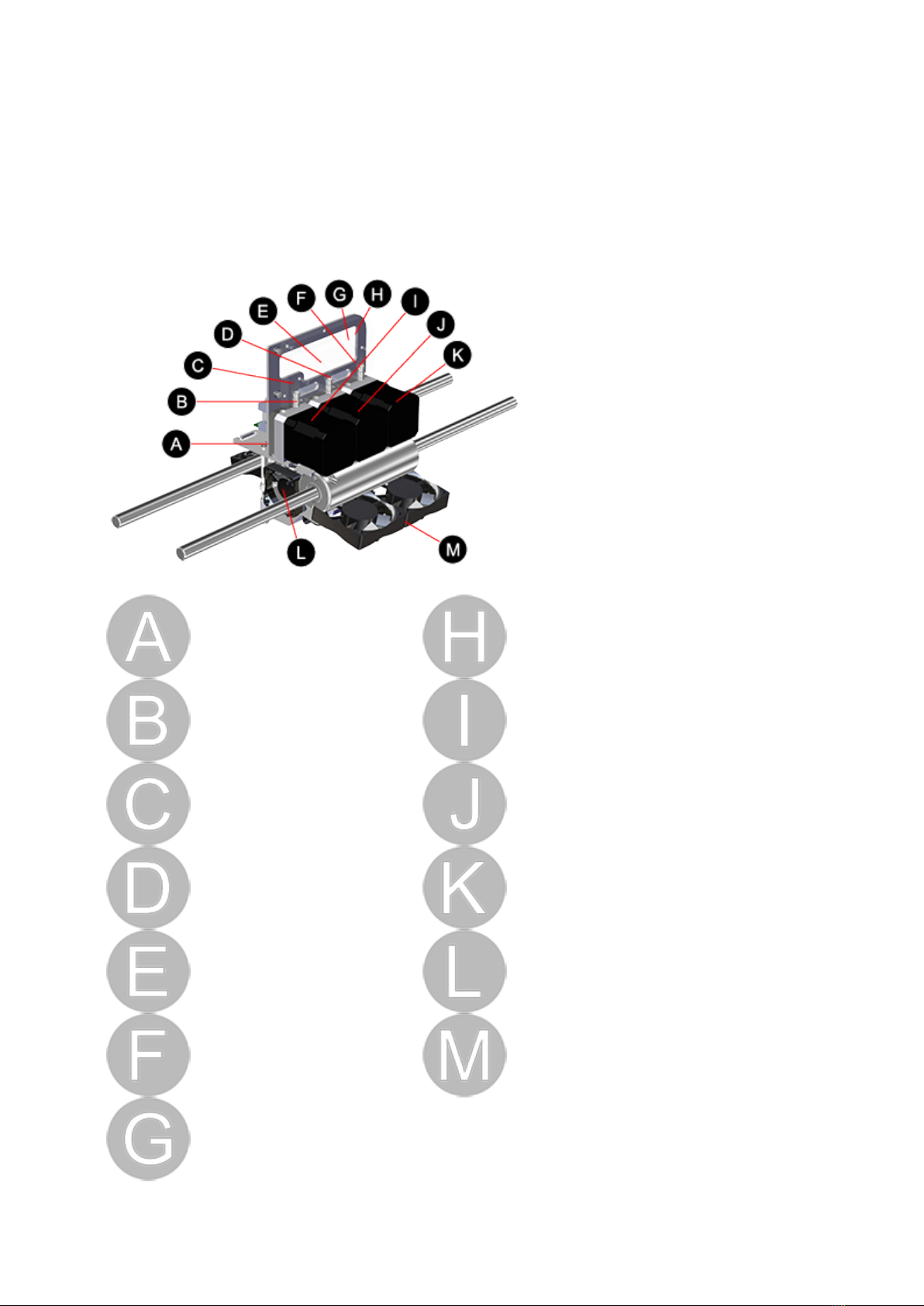

Extruder Carriage Assembly
Front
Delivery Tube Bracket Extruder Block
Delivery Tube Eyelet 1 Extruder 1
Delivery Tube 1 Extruder 2
Delivery Tube Eyelet 2 Extruder 3
Delivery Tube 2 Print Jet Cooling Fan
Delivery Tube Eyelet 3 Creation Cooling Fan
Delivery Tube 3

Back
Creation Cooling Fan Extruder 2 PCB
Carriage Plate Extruder 1 PCB
Main Extruder PCB Delivery Tube Bracket
Extruder 3 PCB
Bottom
Fan Harness Cable Clamp Print Jet 2
Print Jet LED Print Jet 3
Print Jet 1

Main Extruder PCB

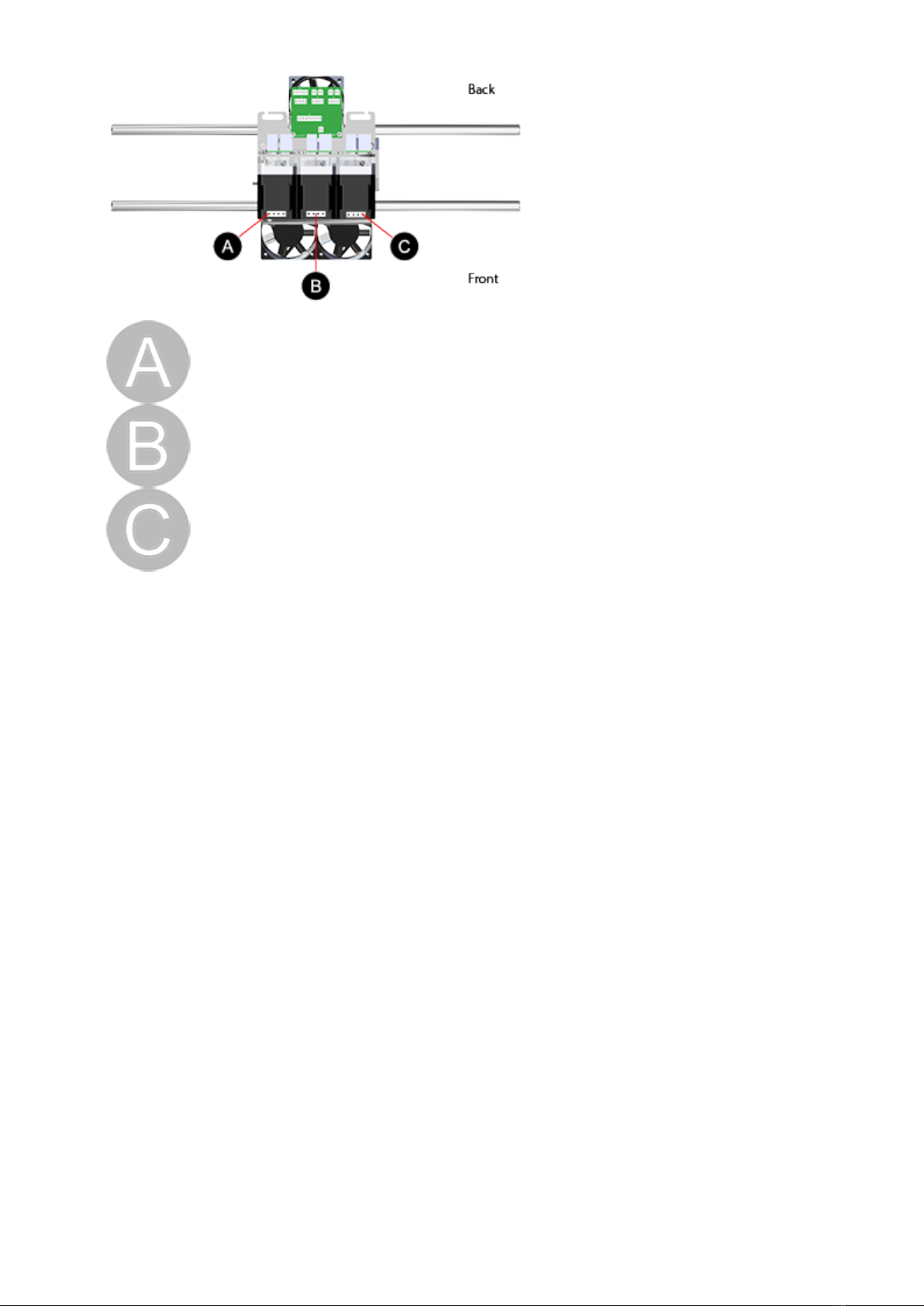

Extruders - View From Back
Extruder 1 Motor Print Jet 2
Print Jet 1 Extruder 3 Motor
Extruder 2 Motor Print Jet 3
View From Top

Extruder 1 Motor Connector
Extruder 2 Motor Connector
Extruder 3 Motor Connector

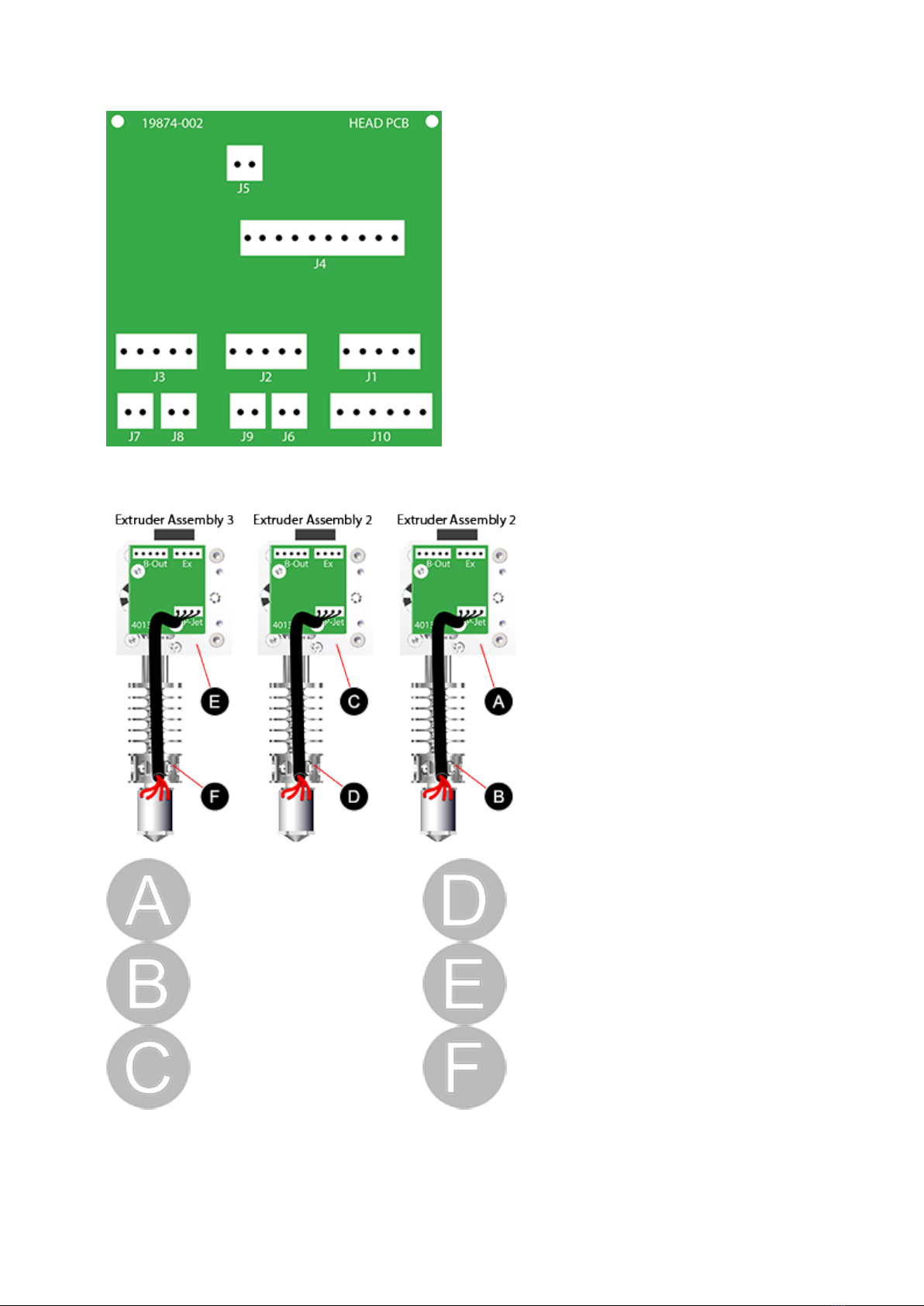

Electrical Connections
Main Extruder
PCB Cable Extruder PCB Connector Component
X1 (A) - 401889-00 Extruder 1
Motor: Junction
X2 (A) - 401889-00 Extruder 2
Motor: Junction
X3 (A) - 401889-00 Extruder 3
Motor: Junction
X1 (B) - 401889-00 Extruder 1 PCB: Junction Ex
X2 (B) - 401889-00 Extruder 2 PCB: Junction Ex
X3 (B) - 401889-00 Extruder 3 PCB: Junction Ex
J1 401888-00 Extruder 1 PCB: Junction B-Out
J2 401888-00 Extruder 2 PCB: Junction B-Out
J3 401888-00 Extruder 3 PCB: Junction B-Out
Print Jet 1 Extruder 1 PCB: Junction P-Jet
Extruder 1:
403022-00
(Print Jet 1)
Print Jet 2 Extruder 2 PCB: Junction P-Jet
Extruder 2:
403022-00
(Print Jet 2)
Print Jet 3 Extruder 3 PCB: Junction P-Jet
Extruder 3:
403022-00
(Print Jet 3)
J4 P3 - 401888-00

Main Extruder
PCB Cable Extruder PCB Connector Component
J6 401887-00 CubePro LED
Wire Harness 2
J7 401885-00
CubePro Fan
Wire Harness 2
(Right Fan)
J9 401885-00
CubePro Fan
Wire Harness 2
(Left Fan)
J10 401884-00 CubePro Fan
Wire Harness 3

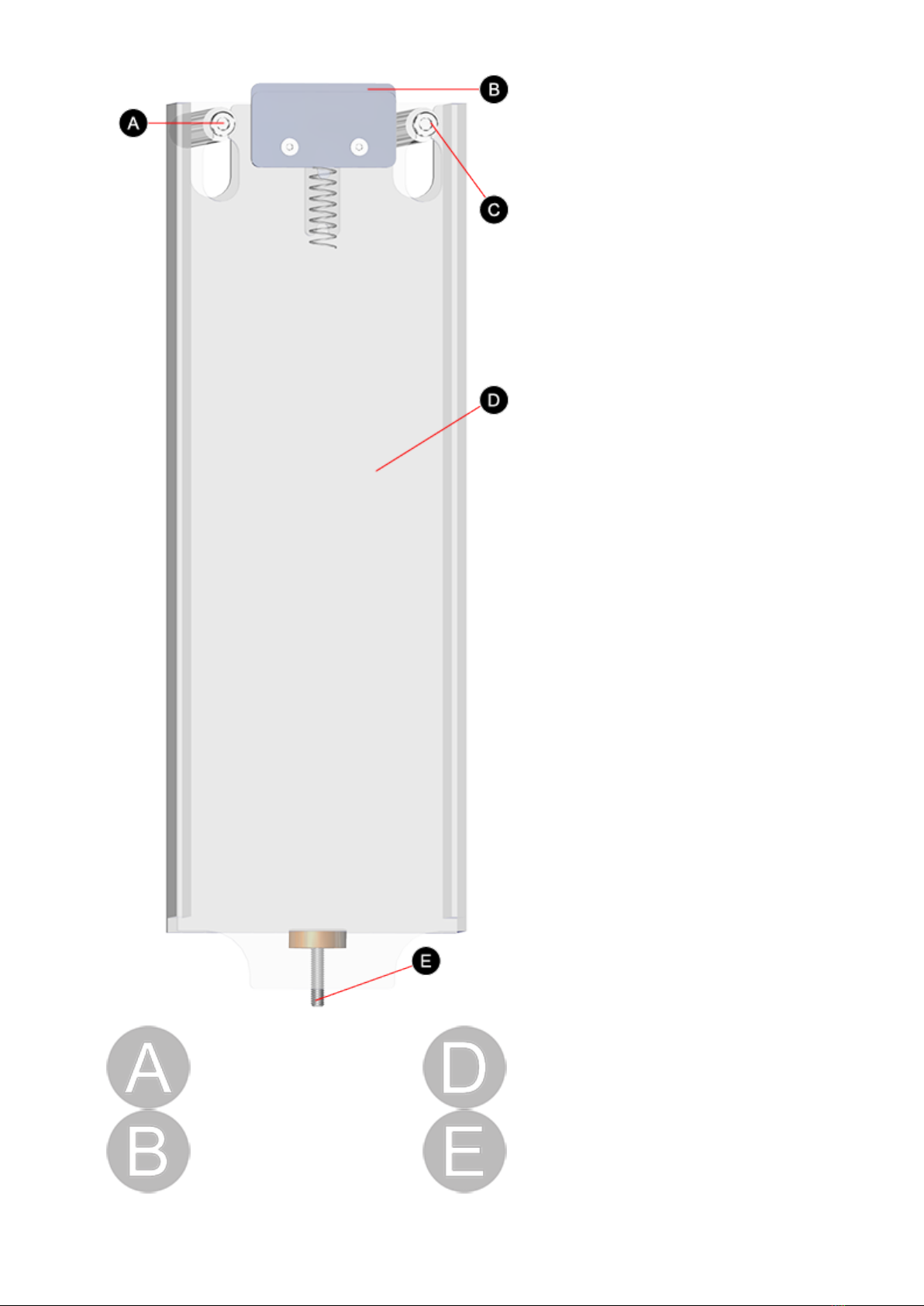

Jet Wiper Assembly

Left Mounting Post Jet Wiper Assembly
Jet Wiper Blade Adjustment Thumbscrew

Right Mounting Post

Replacing Extruder or Print Jet
The material upgrade kit includes a replacement print jet for extruder 2 which has a larger
diameter opening. For this upgrade, only print jet 2 should be replaced with the part
included in the kit.
WARNING: ONCE PRINT JET 2 HAS BEEN UPGRADED, ABS, PLA AND
NYLON SHOULD NEVER BE INSTALLED IN CARTRIDGE BAY 2. THIS BAY IS
RESERVED FOR UPGRADED MATERIALS. WHEN PRINTING WITH WOOD
MATERIAL, ANY ABS MATERIAL CURRENTLY INSTALLED MUST BE
PROPERLY REMOVED.
Tools Needed
2.5 mm Hex Head Driver
T10 Torx Driver
WARNING: BEFORE SERVICING THESE COMPONENTS, GROUND
YOURSELF TO THE SYSTEM BEFORE HANDLING ELECTRICAL
COMPONENTS. ESD PROTECTION IS REQUIRED.
WARNING: NEVER PULL WIRES TO DISCONNECT THE CONNECTORS. THIS
COULD DAMAGE THE WIRES AND THE CONNECTORS AND VOID THE
MANUFACTURER’S WARRANTY.
The following procedure is intended to provide instructions about how to replace print jet 2
for the material upgrade kit.

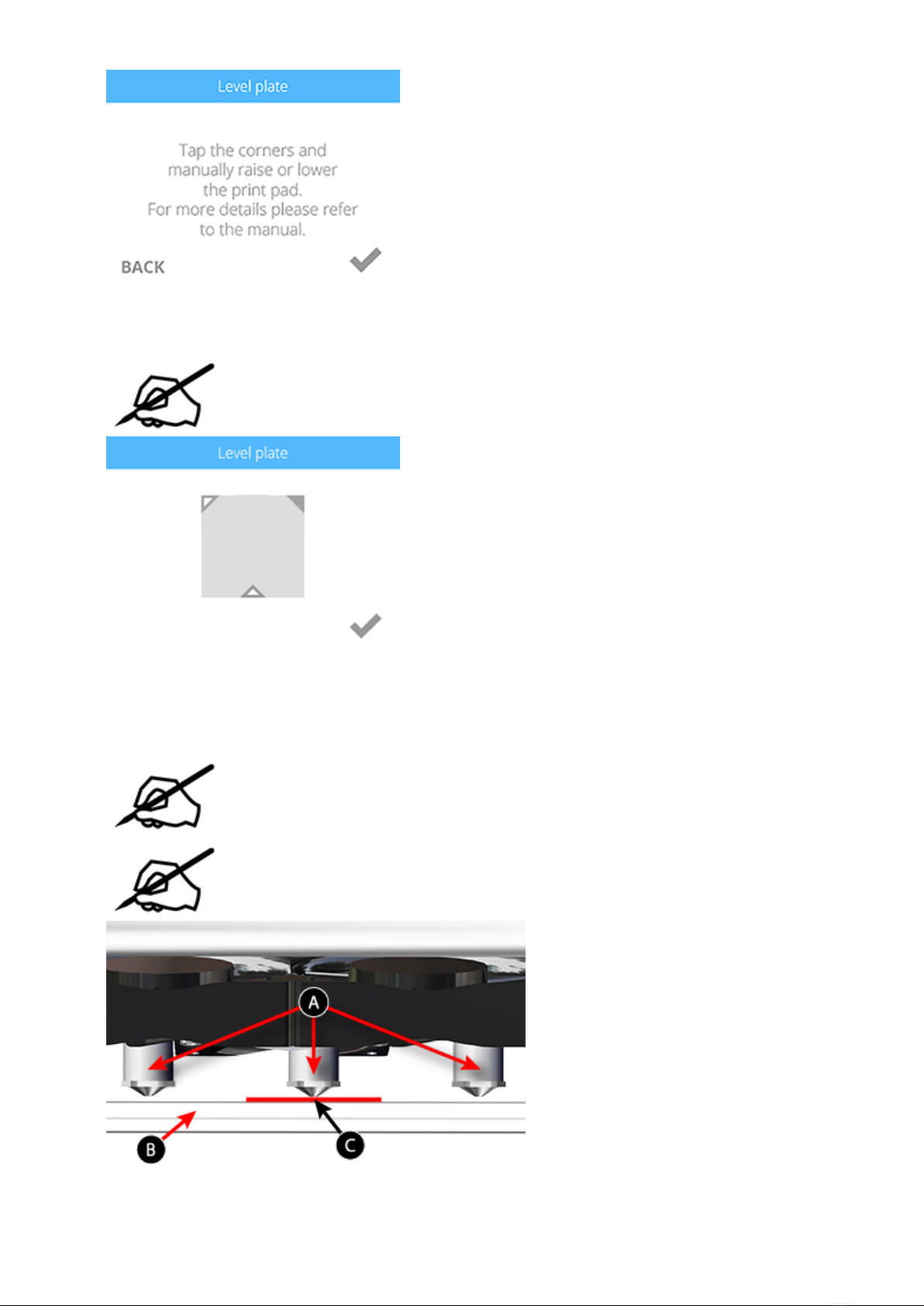

Navigate to the Print Plate Calibration screen and select LEVEL PLATE.1.
NOTE: The print pad will raise and the print jets will maneuver to the left rear
of the printer.

Select the upper right corner of the triangle on the touchscreen display.2.
NOTE: The printheads will move to the right rear corner of the print pad.
Using the designated page from the Setup/Repack instructions, slide the paper3.
between the print jets and the print pad.
NOTE: If there is a slight resistance, proceed to step 5.
NOTE: The red line (C) illustrates the gap between the print jets (A) and the
print pad (B).

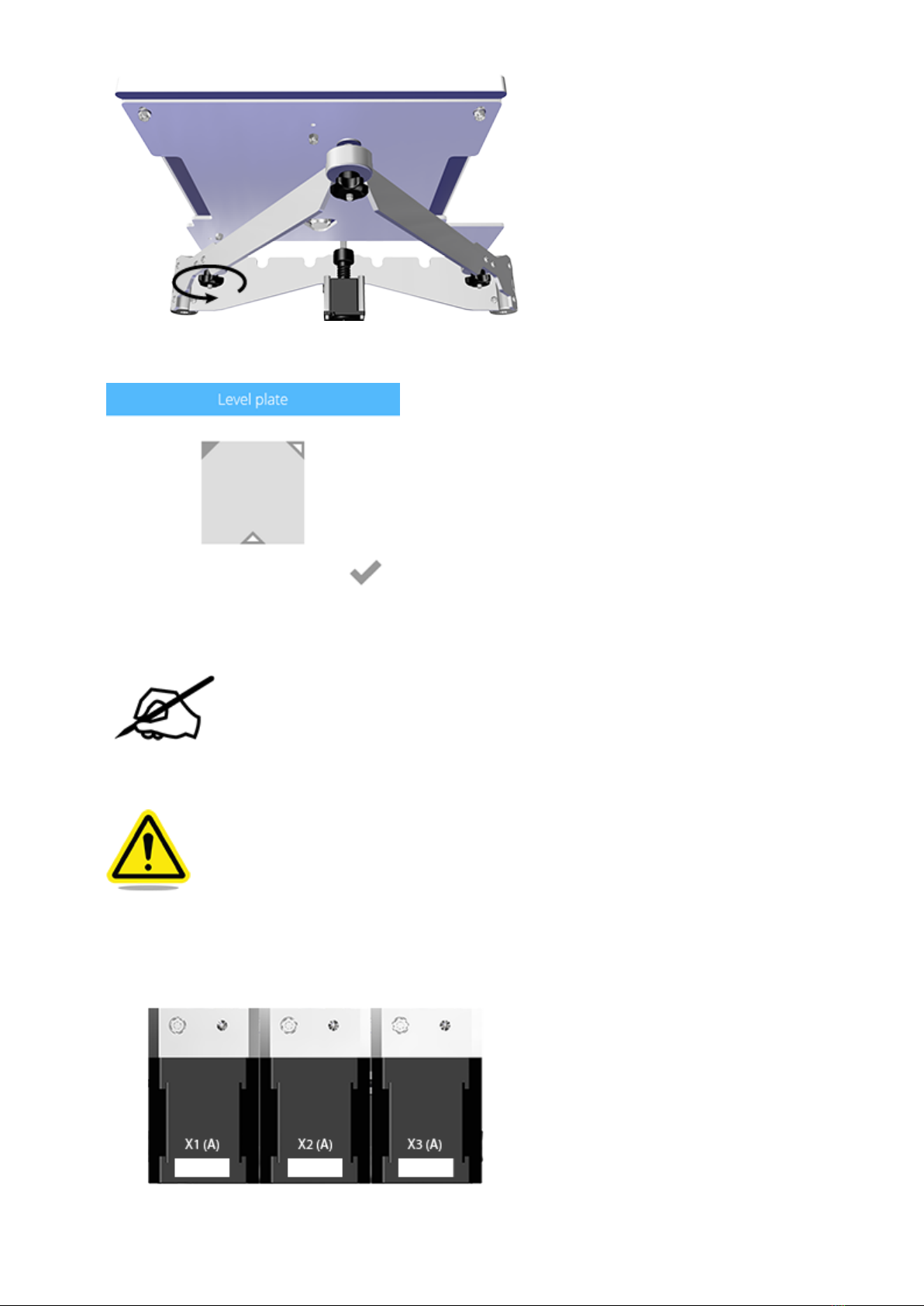

If the paper slides easily between the print jets and print pad, rotate the adjustment4.

knob counter-clockwise (from the bottom) until there is a slight resistance.
CAUTION: If the print pad is set too high, damage to the print pad or print
jets may occur.
NOTE: If the paper can not be inserted between the print jets and the print
pad, turn the adjustment knob clockwise (from the bottom) until there is a
slight resistance on the paper.
Select the lower middle triangle.5.
Once the print jets have moved to the front center of the print pad, slide the paper6.
between the print jets and the print pad.
NOTE: If there is a slight resistance, proceed to step 8.

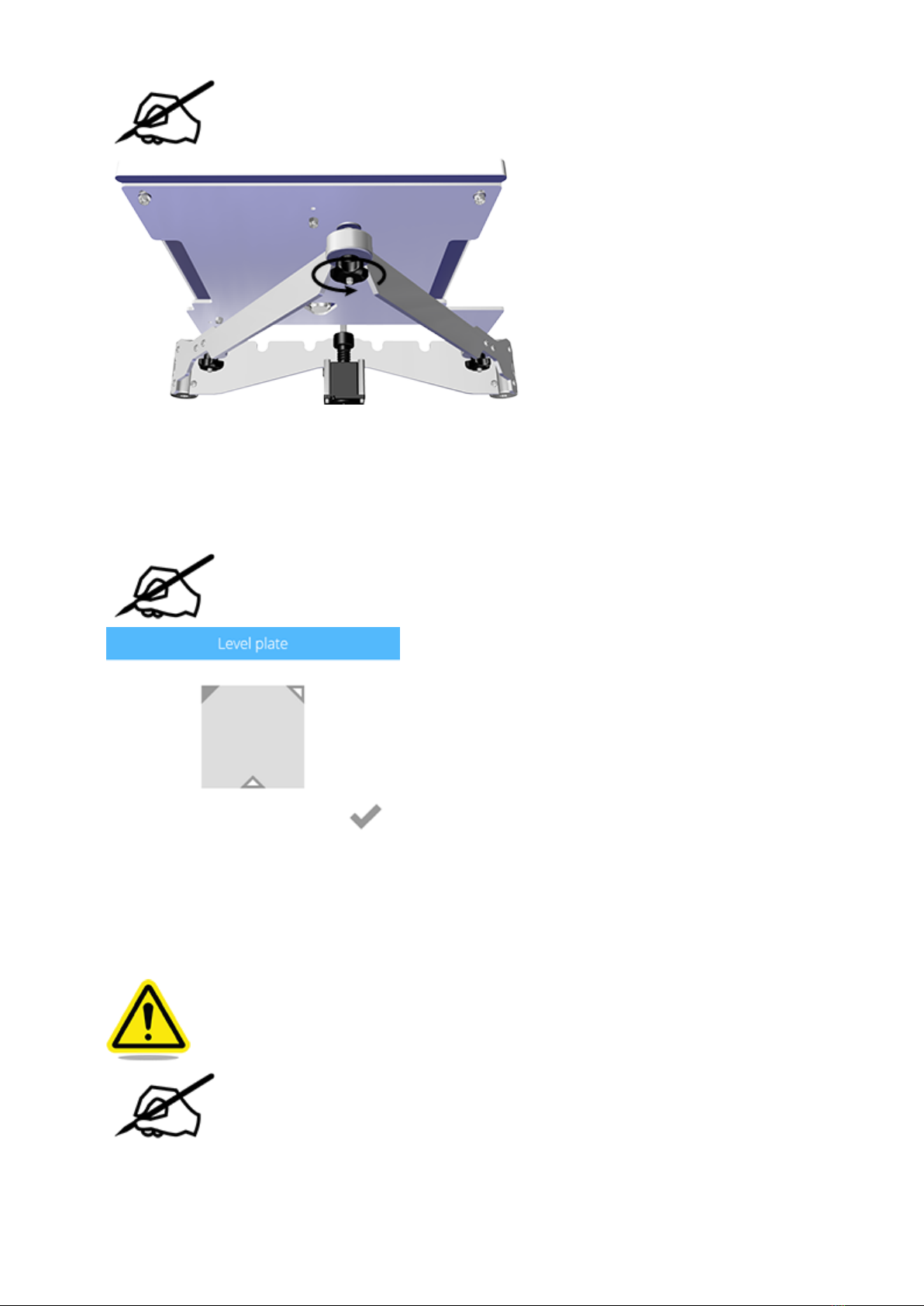

If there is no resistance on the paper when sliding it between the print jets and the7.
print pad, rotate the adjustment knob counter-clockwise (from the bottom) until there
is a slight resistance.
CAUTION: If the print pad is set too high, damage to the print pad or print
jets may occur.

NOTE: If the paper can not be inserted between the print jets and the print
pad, turn the adjustment knob clockwise (from the bottom) until there is a
slight resistance on the paper.
Select the upper left corner of the triangle.8.
Once the print jets have moved to the left rear of the print pad, slide the paper9.
between the print jets and the print pad.
NOTE: If there is a slight resistance, proceed to step 11.
If there is no resistance on the paper when sliding it between the print jets and the10.
print pad, rotate the adjustment knob counter-clockwise (from the bottom) until there
is a slight resistance.
CAUTION: If the print pad is set too high, damage to the print pad or print
jets may occur.
NOTE: If the paper can not be inserted between the print jets and the print
pad, turn the adjustment knob clockwise (from the bottom) until there is a
slight resistance on the paper.

Once completed, select the checkmark to exit the utility.11.
Properly remove the material cartridges.12.
NOTE: For more information, refer to the section titled Replacing a Material
Cartridge in the user guide.
Power off the printer and disconnect it from utility power.13.
CAUTION: The printer must be powered off and the power cord must be
disconnected from utility power.
Remove the lid from the top of the printer.14.
Disconnect the cables X1 (A), X2 (A) and X3 (A) from extruder motors.15.

Disconnect the 5-pin jumper cable from junction B-Out of the extruder 2 PCB.16.
Disconnect cable X (B) from junction Ex of the extruder 2 PCB.17.
Using a 2.5 mm hex head driver, loosen and remove the four 2.5 mm hex head bolts18.
securing the delivery tube bracket and block to the extruders.
NOTE: For printers with 2 extruders, the 2 right side bolts and the center bolt
will need to be removed. For printers with 3 extruders, the left bolt will also
need to be removed.
NOTE: For clarity, the main extruder PCB was removed from the illustration.
However, it does not need to be removed for this procedure.

Move the delivery tube bracket/block aside so that extruder 2 can be removed.19.
Using a 2.5 mm hex head driver, loosen the 2.5 mm hex head screw securing extruder20.
2 to the carriage plate.
NOTE: The screw will remain loose in the extruder housing.
NOTE: For clarity, the main extruder PCB was removed from the illustration.
It does not need to be removed for this procedure.

Carefully remove the affected extruder assembly from the carriage plate.21.
NOTE: Do not lose the screw that was loosened in the previous step.
CAUTION: Be careful not to damage the print jet cable connected to junction
P-Jet of the extruder PCBs.
NOTE: For clarity, the main extruder PCB was removed from the illustration.
However, it does not need to be removed for this procedure.
