Instruction Manual
HST 3-Inch Taping Head (Upper)
HST 3-Inch Taping Head (Lower)
Type 29100
Table of Content Page
Taping Head Contents ...................................................................................................................... 1
Equipment Warranty and Limited Remedy ....................................................................................... 2
Description ........................................................................................................................................ 3
Important Safeguards........................................................................................................................ 4
Specifications .................................................................................................................................... 5
Installation ......................................................................................................................................... 6 - 7
Special Use Set-Up
HST Upper Taping Head – Compression Spring................................................. 9
Set-Up ProcedureTape Loading ....................................................................................................... 10 - 11
Adjustments Tape Web Alignment ........................................................................................... 12
Friction Brake....................................................................................................... 12
Buffing Roller Spring Tension .............................................................................. 13
Tape Application Leg length ................................................................................ 14
One-Way Tension Roller Assembly ..................................................................... 15
Maintenance Cleaning Of The Taping Head ............................................................................. 17
Cut-Off Blade ....................................................................................................... 17
Blade Oiler Pad.................................................................................................... 17
Blade Replacement.............................................................................................. 18 -19
Lubrication ........................................................................................................... 20
Replacement Parts And Service Information
Spare Parts .......................................................................................................... 21
Replacement Parts and Service .......................................................................... 21
Replacement Parts Yellow Section
Illustration and Parts List..................................................................................... 23 - 35

1
Taping Head Contents
HST 3-Inch Taping Head (Upper)
Consists Of:
Qty. Part Name
1 Taping Head Assembly
1 Tape Drum and Bracket Assembly
1 Blade – 3.33 inch [77.5 mm] Lg. (Spare)
1 Compression Spring (Upper taping head for side mounting - see page 9)
4 Mounting Stud, Alternate (For use with optional HST mounting frame – see
parts drawing, page 26.)
HST 3-Inch Taping Head (Lower)
Consists Of:
Qty. Part Name
1 Taping Head Assembly
1 Tape Drum and Bracket Assembly
1 Blade – 3.33 inch [77.5 mm] Lg. (Spare)
4 Mounting Stud, Alternate (For use with optional HST mounting frame – see
parts drawing, page 26.)

2
Equipment Warranty and Limited Remedy: THE FOLLOWING WARRANTY IS MADE IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTY OF MERCHANTABILITY, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR
PURPOSE AND ANY IMPLIED WARRANTY ARISING OUT OF A COURSE OF DEALING, A CUSTOM OR
USAGE OF TRADE:
3M warrants that its AccuGlideTM HST 3-Inch Taping Heads, (Upper and Lower), Type 29100 will be free from
defects for ninety (90) days after delivery. If any part is proved to be defective within the warranty period, then the
exclusive remedy and 3M’s and seller’s sole obligation shall be, at 3M’s option, to repair or replace the part,
provided the defective parts is returned immediately to 3M’s factory or an authorized service station designated by
3M. A part will be presumed to have become defective after the warranty period unless the part is received or 3M
is notified of the problem no later than five (5) calendar days after the warranty period. If 3M is unable to repair or
replace the part within a reasonable time, then 3M, at its option, will replace the equipment or refund the purchase
price. 3M shall have no obligation to provide or pay for the labor required to install the repaired or replacement
part. 3M shall have no obligation to repair or replace (1) those parts failing due to operator misuse, carelessness,
or due to any accidental cause other than equipment failure, or (2) parts failing due to non-lubrication, inadequate
cleaning, improper operating environment, improper utilities or operator error.
Limitation of Liability: 3M and seller shall not be liable for direct, indirect, special, incidental or consequential
damages based upon breach of warranty, breach of contract, negligence, strict liability or any other legal theory.
The foregoing Equipment Warranty and Limited Remedy and Limitation of Liability may be changed only by a
written agreement signed by authorized officers of 3M and seller.
ScotchTM and AccuGlideTM are trademarks of 3M, St. Paul, Minnesota 55144-1000

3
The AccuGlideTM HST 3-Inch Taping Heads (Upper and Lower) were designed to replace taping, gluing, and
stapling heads in existing case sealing machines.
These high-speed heavy duty heads apply a “C” clip of ScotchTM brand pressure-sensitive film box sealing tape to
the top and/or bottom center seam of regular slotted containers at speeds up to 150 ft/min [45.7 m/min].

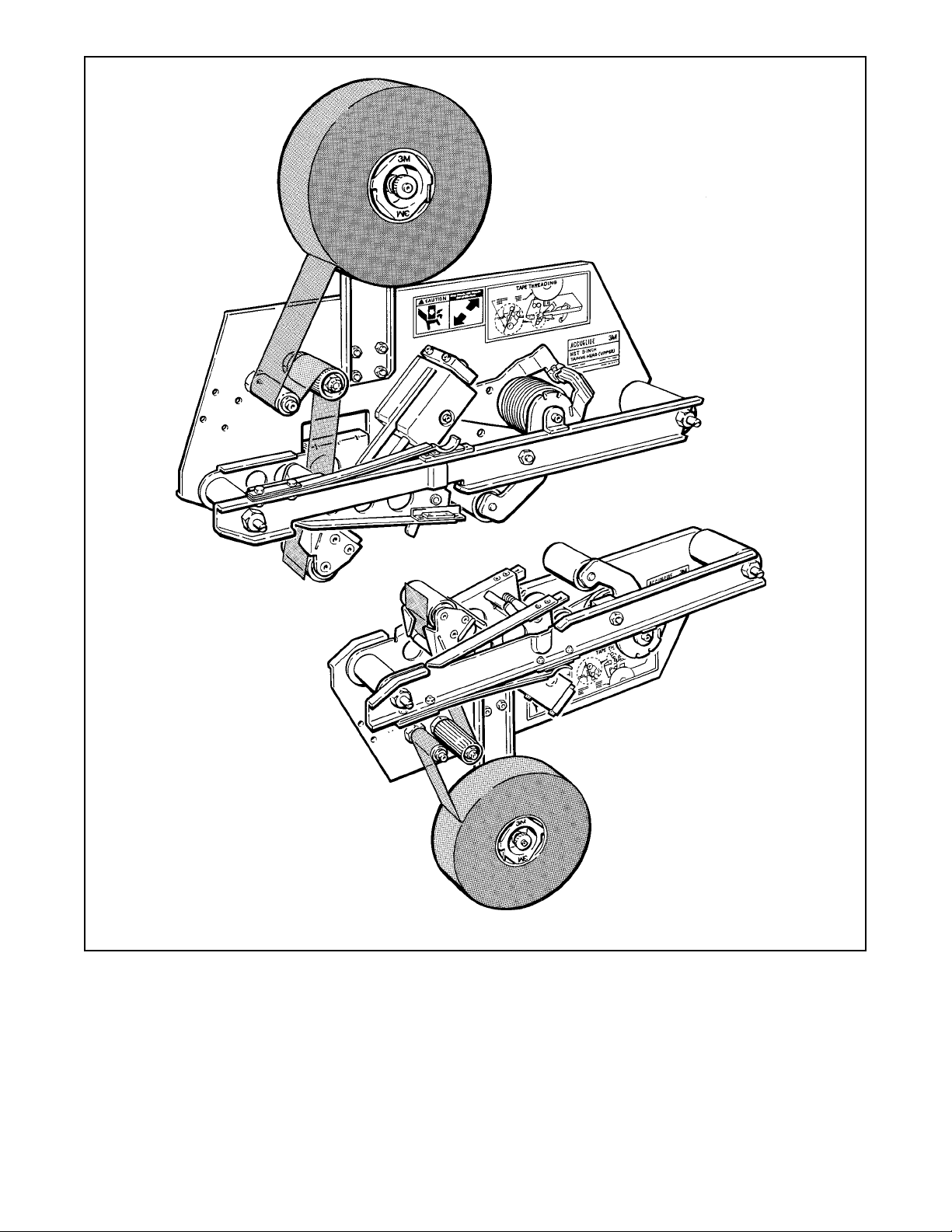

Description
AccuGlideTM HST 3-Inch Taping Heads (Upper and Lower), Type 29100

4
Important Safeguards
Both the upper and lower taping heads have important safeguards listed below, every person who operates
and/or maintains the heads should be familiar with these safeguards.

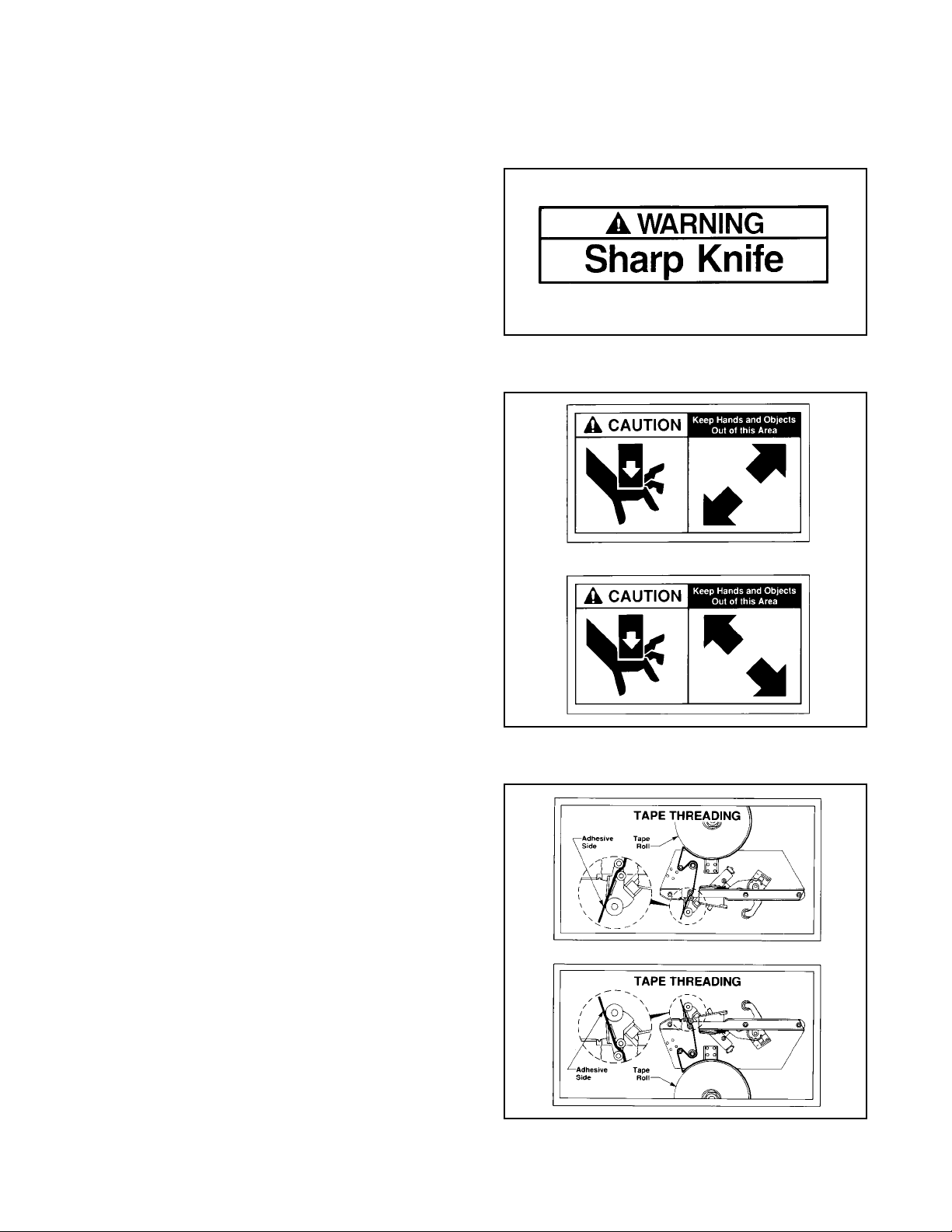

The “Warning - Sharp Knife” label is used
on each head to warn operators and service
personnel of the extremely sharp blades used
to cut the tape at the end of the box sealing
operation. The label shown in Figure 1-1 is
located on the blade guard assembly
between the applying roller assembly and the
buffing roller assembly. Before working with
the tape heads or attempting to load the tape,

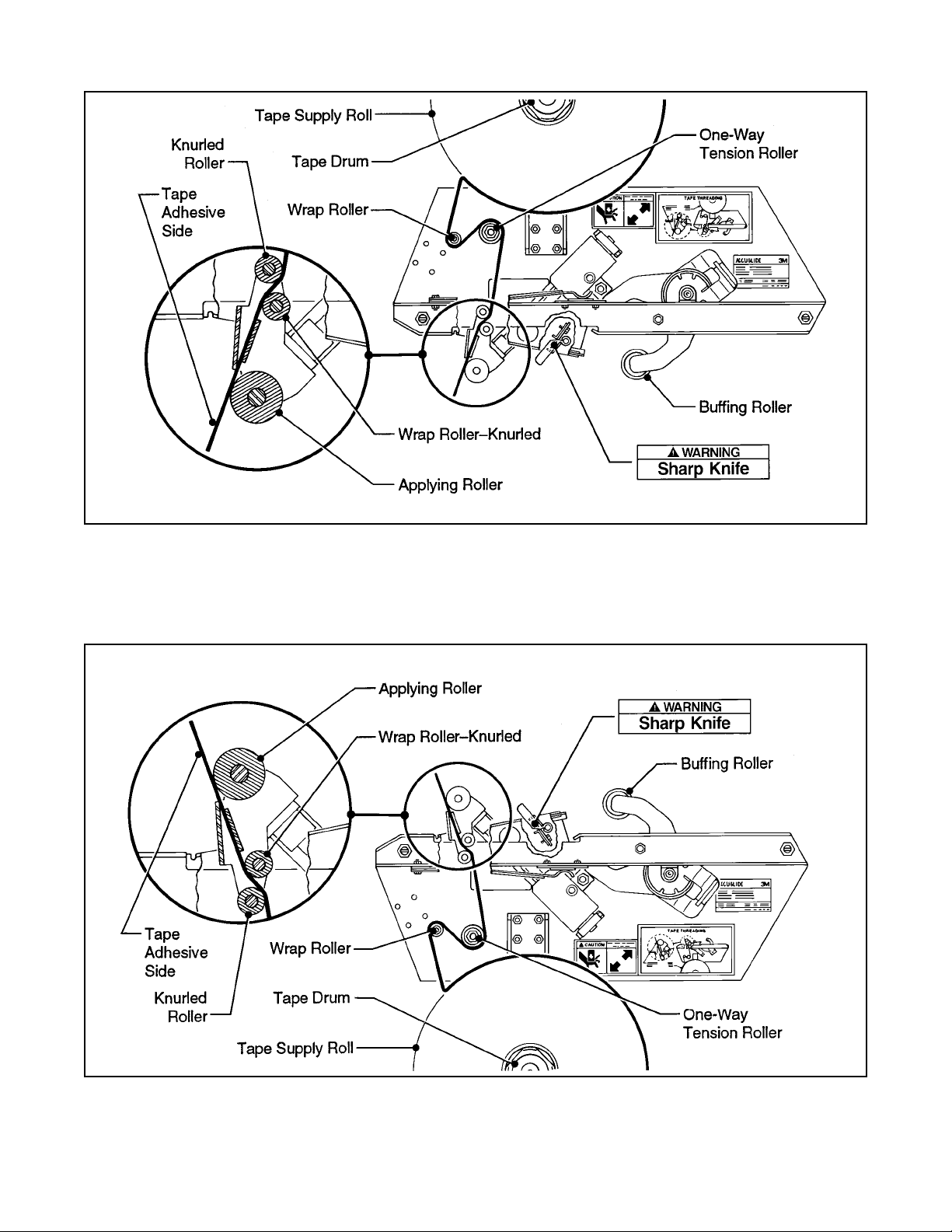

refer to Figures 4-1 and 4-2 and identify the
knife blade location. Keeps hands out of
these areas except as necessary to
service the taping heads.
The “Tape Threading" labels, shown in
Figure 1-3, are attached to the right side of the
frame on both the upper and lower taping
heads. The top label is for the upper head,
and the bottom label is for the lower head.
These labels provide a convenient tape
threading diagram. More detailed tape loading
and threading information is provided in this
manual in the set-up procedure section.
The “Caution - Keep Hands Out of This
Area” labels, shown in Figure 1-2 is
attached to the frame and located behind the
slide mechanism. The top label is for the
upper head, and the bottom label is for the
lower head. This warns operators to
keep hands and objects out of this area when
the taping head mechanism is in operation.
The taping heads are equipped with an orange
blade guard that covers the blade. The
taping head should never be operated with
the blade guard removed.
Turn air and electrical supplies off before
servicing the taping heads.
The taping heads should not be washed down
or subjected to conditions causing moisture
condensation on components.
Figure 1-1 - Knife Warning Label
Figure 1-2 - Hand Caution Label
Figure 1-3 - Tape Threading Label

5
Specifications
These specifications apply to all HST 3-Inch Upper and Lower taping heads except where noted.
1. Tape:
For use with ScotchTM brand pressure-sensitive film box sealing tapes.
2. Tape Width:
2 inches [50 mm] minimum to 3 inches [76.2 mm] maximum.
3. Tape Roll Diameter:
Position A (Figure 2-1) – 15 inches [380 mm] maximum on a 3 inch [76.2 mm] diameter core.
Position B (Figure 2-1) – 18 inches [460 mm] maximum on a 3 inch [76.2 mm] diameter core.
(Accommodates all system roll lengths of ScotchTM brand film tapes.)
NOTE: The tape roll diameter capacity may be less on some equipment installations due to space
limitations.
4. Tape Application Leg Length:
2 3/4 inches ±1/4 inch [70 mm ±6 mm]
5. Box Size Capacities:
For use with center seam regular slotted containers.
Minimum Maximum
Length – 6 inches [150 mm] Unlimited
Height – 4 inches [100 mm] Unlimited
Width – 5 inches [130 mm] Unlimited
6. Operating Conditions:
Use in dry, relatively clean environments at 40oto 105oF [5oto 40oC] with clean, dry boxes.
TAPING HEADS SHOULD NOT BE WASHED DOWN OR SUBJECTED TO CONDITIONS CAUSING
MOISTURE CONDENSATION ON COMPONENTS.
7. Taping Head Dimensions:
Length – 25.3 inches [645 mm]
Height – 20.8 inches [530 mm]
Width – 6.5 inches [165 mm]
Weight – Packaged: 35 lbs. [15.9 kg]
Unpackaged: 30 lbs. [13.6 kg]
IMPORTANT SAFEGUARD

6
Installation

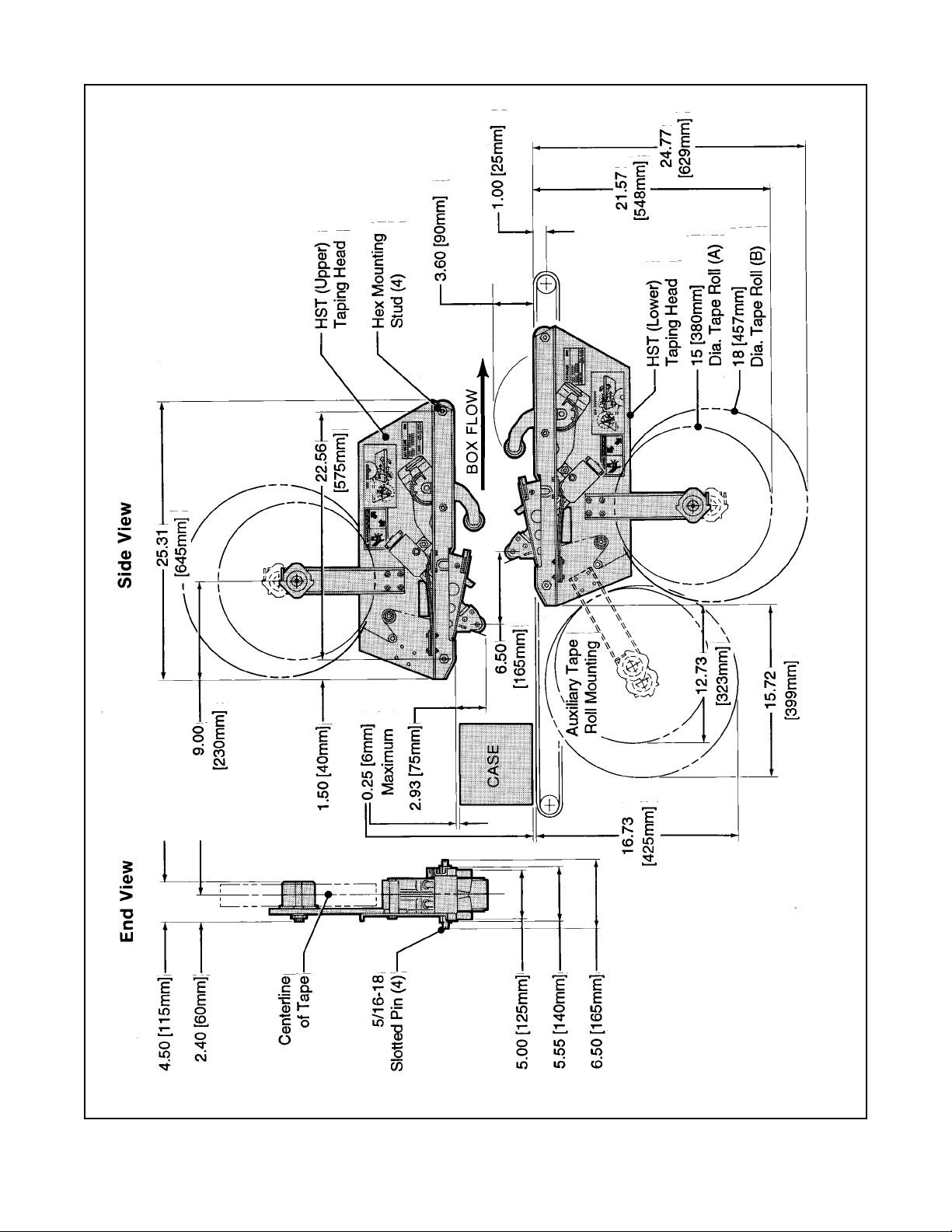

Figure 2-1 – Taping Head Assemblies – Typical Mounting Dimensions

7
Installation (Continued)
BOTH THE UPPER AND LOWER TAPING HEADS UTILIZE EXTREMELY SHARP KNIFE BLADES. THE
BLADES ARE LOCATED UNDER THE ORANGE BLADE GUARD WHICH HAS THE “WARNING – SHARP
KNIFE” LABEL. BEFORE WORKING WITH THE TAPING HEADS OR ATTEMPTING TO LOAD THE TAPE,
REFER TO FIGURES 4-1 AND 4-2 AND IDENTIFY THE BLADE LOCATION. KEEP HANDS OUT OF THESE
AREAS EXCEPT AS NECESSARY TO SERVICE THE TAPING HEADS.
After the taping head assembly has been unpackaged, examine the unit for damage that might have occurred
during transit. If damage is evident, file a damage claim immediately with the transportation company and also
your 3M Representative.
The taping heads can be used to replace existing or custom made machinery. It can be mounted for top taping or
bottom taping. Refer to box size specifications on page 5 and Figure 2-1 on page 6, for the following points in
making such installations:
1. The case conveying system must positively propel the case in a continuous motion, not exceeding 150
feet per minute [45.7 m/min.], past the taping head assembly since the case motion actuates the taping
mechanism.
2. If a pusher or cleated conveyor is being used, steps should be taken in the conveyor design to prevent the
pusher from contacting the applying or buffing roller arms which may result in damage to the taping
head. If this is not possible, contact 3M for assistance or suggested modifications that will provide
adequate operating clearance to the taping head assembly.
3. Figure 2-1 illustrates the typical mounting relationship for opposing taping head assemblies to allow taping
of case heights down to 5.4 inches [135 mm]. To tape case heights down to 4 inches [100 mm], the
taping head assemblies must be completely staggered so only one tape seal is being applied at one
time.
4. Four (4) mounting studs are provided on the taping head side plates but special installations may require
alternate means for mounting. Alternate mounting studs are provided for use with optional HST mounting
frame P/N 78-8062-4234-9. See parts drawing, page 26.
5. The taping head assembly is provided with mounting holes for mounting the tape drum bracket in two
different locations. Normal installation is in the center of the frame. For clearance problems, the front
mounting can be used.
IMPORTANT SAFEGUARDS
Upper Taping Head
Refer to Figure 2-1 for mounting dimensions.
1. Remove the (4) 5/16 – 18 slotted pins from the hex mounting studs.
2. Install and secure the taping head using the (4) 5/16 – 18 tapped holes available in the hex mounting studs.
Lower Taping Head
1. Install the taping head by lowering mounting pins into bed frame slots, or remove (4) 5/16 - 18 slotted pins
and use 5/16 – 18 tapped holes in the hex mounting studs.

8
THIS PAGE IS BLANK

9
Special Use Set-Up Instructions
HST 3-Inch Upper Taping Head - Compression Spring
Refer to Figure 3-1
WARNING – UPPER TAPING HEAD UTILIZES AN EXTREMELY SHARP KNIFE BLADE LOCATED
UNDER THE ORANGE BLADE GUARD WHICH HAS THE “WARNING – SHARP KNIFE” LABEL.
USE CARE WHEN WORKING NEAR BLADE. IF CARE IS NOT TAKEN, SEVERE INJURY TO
PERSONNEL COULD RESULT.
A compression spring is packed in with the HST 3-Inch Upper Taping Head for use if the head is to be side
mounted. Remove and retain stop block, bumper and fasteners. Remove applying roller assembly. Place
compression spring on shaft and reassemble applying roller assembly and stop block.

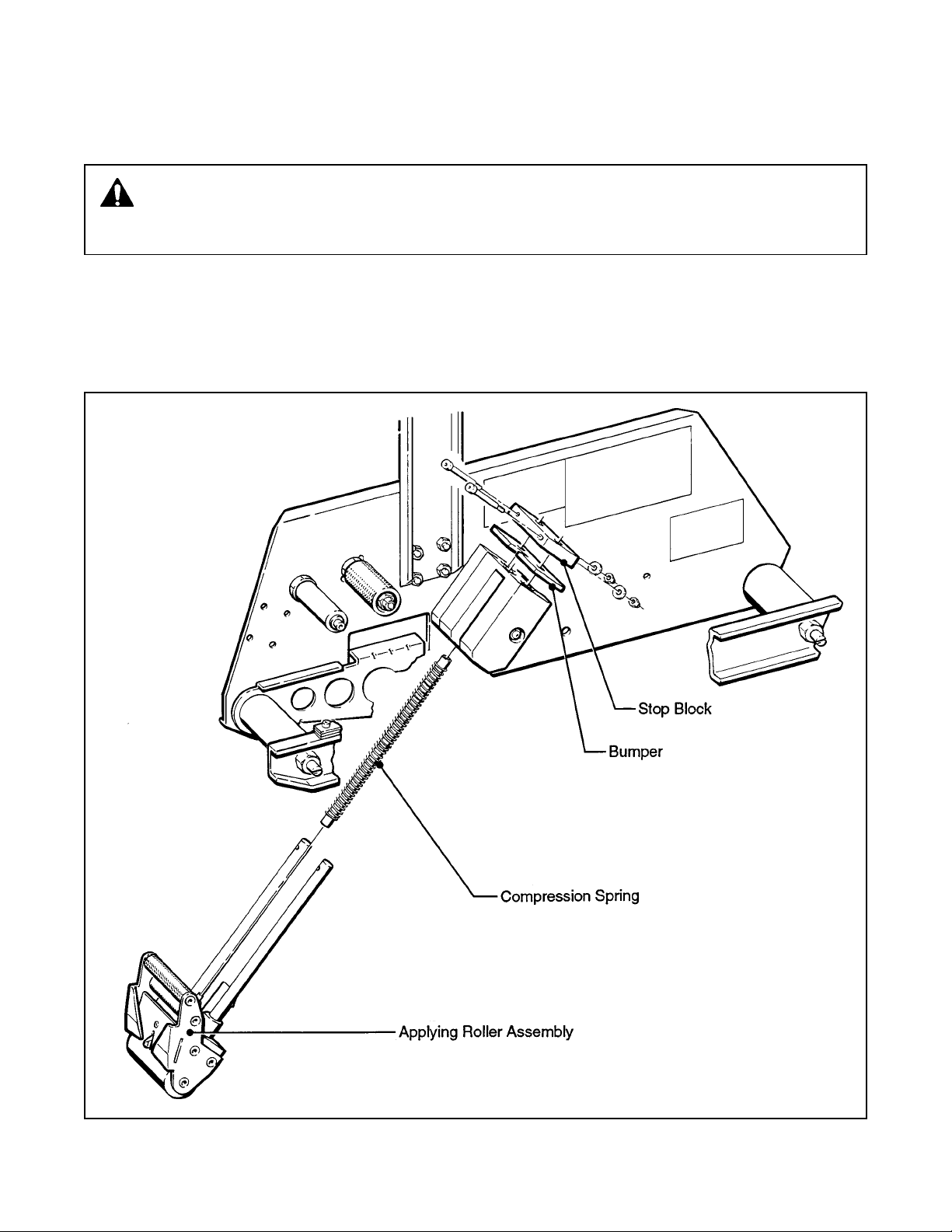

Figure 3-1 – Compression Spring Installation

10
Set-Up Procedure
Figure 4-1 – Tape Threading Diagram – Upper Taping Head
Figure 4-2 –Tape Threading Diagram – Lower Taping Head

11
Set-Up Procedure (Continued)
Tape Loading
The HST 3-Inch taping head accommodates up to 3 inch [72 mm] wide tape rolls. To apply 1-1/2 inch [36 mm],
1-3/4 inch [42 mm] or 2 inch [50 mm] wide tapes, refer to "Adjustments" section for set-up information.
WARNING
1. BOTH THE UPPER AND LOWER TAPING HEADS UTILIZE EXTREMELY SHARP KNIFE
BLADES WHICH ARE LOCATED UNDER THE ORANGE BLADE GUARD WITH THE
“WARNING – SHARP KNIFE” LABEL. REFER TO FIGURE 4-1 AND 4-2 AND IDENTIFY THE
BLADE LOCATIONS. KEEP HANDS OUT OF THIS AREA EXCEPT AS NECESSARY TO
SERVICE THE TAPING HEADS.
2. REFRAIN FROM MANUALLY PUSHING THE APPLYING ROLLER ARM INWARD AS THIS
WILL PUT YOUR HAND IN MOTION TOWARDS THE TEETH OF THE SHARP KNIFE BLADE.
WHEN NECESSARY TO MANUALLY ACTUATE THE TAPE APPLYING MECHANISM, TAKE
CARE TO MAKE SURE THE BLADE GUARD STAYS IN PLACE TO PROVIDE MAXIMUM
PROTECTION FOR YOUR HANDS FROM THE KNIFE BLADE TEETH.
3. NEVER ATTEMPT TO WORK ON THE TAPING HEADS OR LOAD TAPE WHEN THE
CONVEYING SYSTEM IS RUNNING. PERSONNEL INJURY OR EQUIPMENT DAMAGE CAN
POTENTIALLY RESULT.
Figure 4-3 – Upper Taping Head – Left Rear View
Lower Taping Head
Refer to Figures 4-2 and 4-3
The lower taping head is loaded in the same manner
as the upper taping head. Follow the upper taping
head tape loading procedure to complete the tape
threading.
Upper Taping Head
Refer to Figures 4-1 and 4-3
For tape loading operations, follow the loading
procedures to complete the tape threading.
1. Place tape roll on drum to dispense tape from
bottom of roll around one-way tension
roller with tape adhesive side forward. Seat
tape roll fully against back flange of drum.
2. Manually turn tape roll to create slack tape
while threading tape through applying
mechanism. Pull tape through until it is in
alignment with applying roller.
WARNING – USE CARE WHEN
WORKING NEAR BLADES AS
BLADES ARE EXTREMELY SHARP. IF
CARE IS NOT TAKEN, SEVERE INJURY
TO PERSONNEL COULD RESULT.

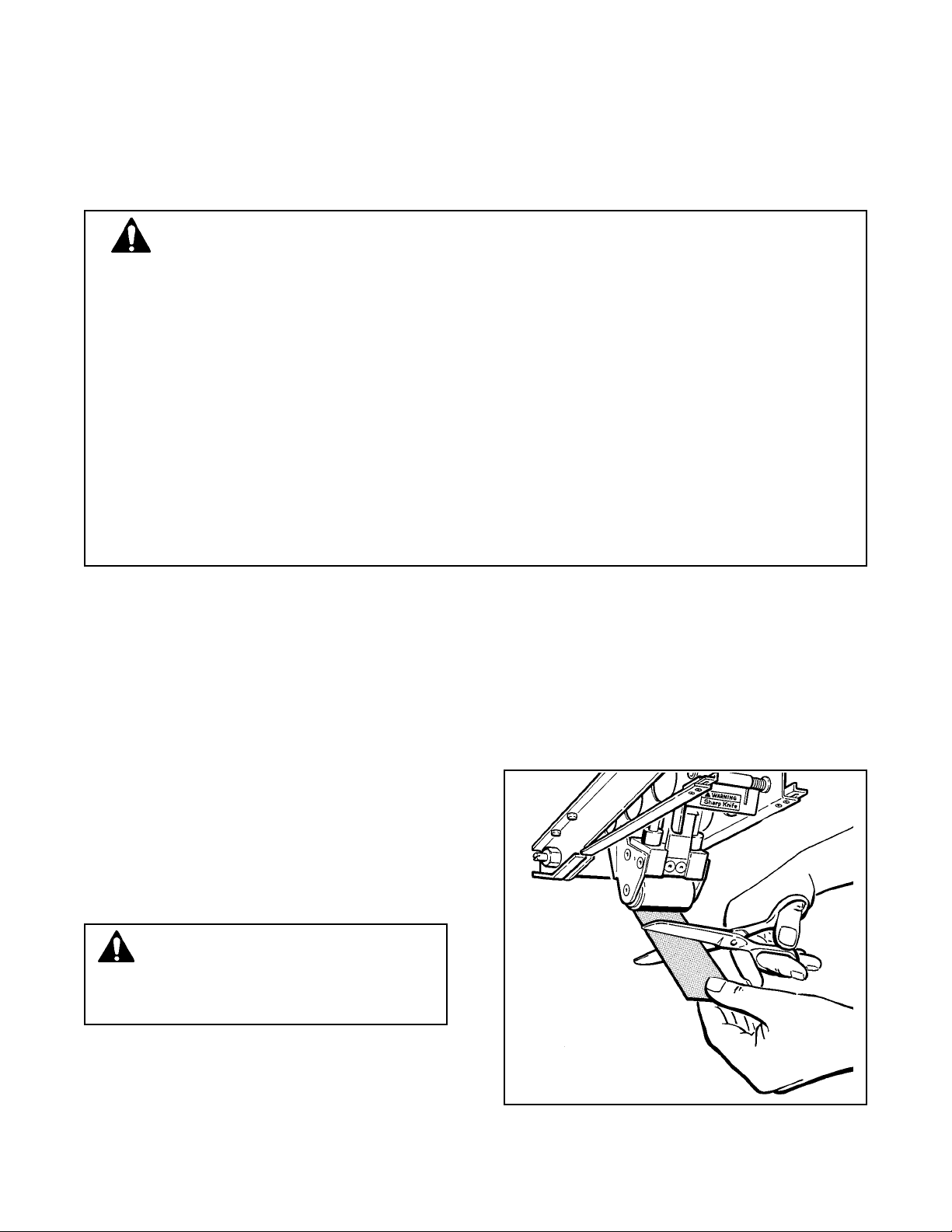

3. Excess tape can be cut with a scissors or
knife at applying roller.

12
Adjustments
WARNING – NEVER ATTEMPT TO
WORK ON THE TAPING HEADS WHEN
THE BOX DRIVE SYSTEM IS RUNNING.
INJURY TO PERSONNEL OR EQUIPMENT
DAMAGE CAN POTENTIALLY RESULT.

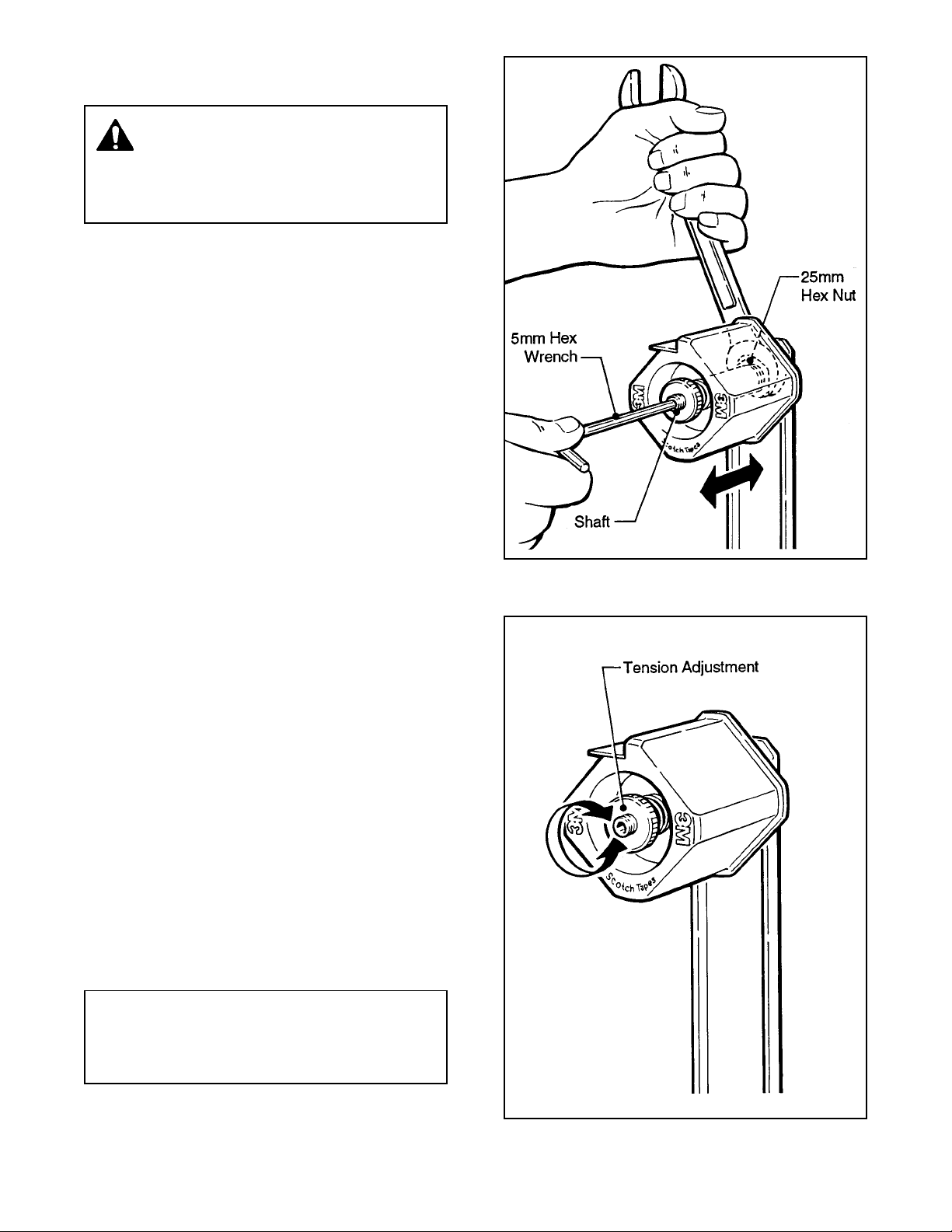

Tape Web Alignment
Refer to Figure 5-1
The HST 3-Inch tape drum assembly is pre-set to
accommodate 3 inch [72 mm] wide tape. The
tape drum assembly is adjustable to provide
alignment of narrower tapes. If adjustment is
necessary to center the tape width on the centerline
of the taping head, (and therefore box center seam),
make adjustment as follows:
1. Loosen the locking hex nut behind tape drum
bracket. Use an adjustable wrench or 25 mm
open end wrench.
2. Turn tape drum shaft in or out to center the
tape web (use 5 mm hex wrench).
3. Tighten locking hex nut to secure the
adjustment.
No other components require adjustment for tape
web alignment.
Friction Brake
Refer to Figure 5-2
The tape drum friction brake on each taping head is
pre-set for normal operation to prevent tape roll over
travel. Should tension adjustment be required, turn
the knurled nut on the shaft to vary compression
of the spring. Turn the nut clockwise to increase
the braking force, and counterclockwise to
decrease the braking force. Adjust to minimum
tension that prevents excessive tape roll over travel.
NOTICE
Excess braking force will cause poor tape
applications and lead to tape tabbing on the
trailing tape leg.
Figure 5-2 – Friction Brake
Figure 5-1 – Tape Drum Alignment

13
Adjustments (Continued)
Buffing Roller Spring Tension
Refer to Figures 5-3 and 5-4
WARNING – USE CARE WHEN
WORKING ON BUFFING ROLLER
ASSEMBLY AS SPRING IS UNDER TENSION.
IF CARE IS NOT TAKEN PERSONNEL
INJURY COULD RESULT.
The buffing roller spring controls the buffing roller
pressure on the box and returns the assembly to the
reset position. The spring tension is pre-set with the
spring end loop in slot “C” for normal operation but is
adjustable.
Should a tape loop appear on the trailing tape leg
application, buffing roller pressure can be increased.
With the buffing roller assembly in reset position,
remove the spring end loop from slot “C” and place
the loop in slot “B” or “A” to increase the spring
tension. (Slot "A" will provide the greatest buffing
roller pressure.)
Should lower buffing forces be required, remove the
spring end loop from slot “C” and place in hole “D”,
“E” or “F” to lower the spring tension. (Hole "F" will
provide the least buffing roller pressure.)
Figure 5-3 – Leading Buffing Roller
Figure 5-4 – Trailing Buffing Roller

14
Adjustments (Continued)
Tape Application Leg Length
Refer to Figure 5-5
The conveyor speed, at which the product moves
through the taping heads, affect the leading and
trailing tape application leg length.
For best tape application performance, the taping
heads should maintain tape leg lengths of
2 3/4 inch ±1/4 inch [70 mm ±6 mm].
The one-way tension roller position (Figure 4-1
and 4-2) is adjustable to control the leading tape
leg length and the “L” brackets adjustment control
the trailing tape leg length.
WARNING – USE CARE WHEN
WORKING ON BUFFING ROLLER
ASSEMBLY AS SPRING IS UNDER TENSION.
IF CARE IS NOT TAKEN PERSONNEL
INJURY COULD RESULT.

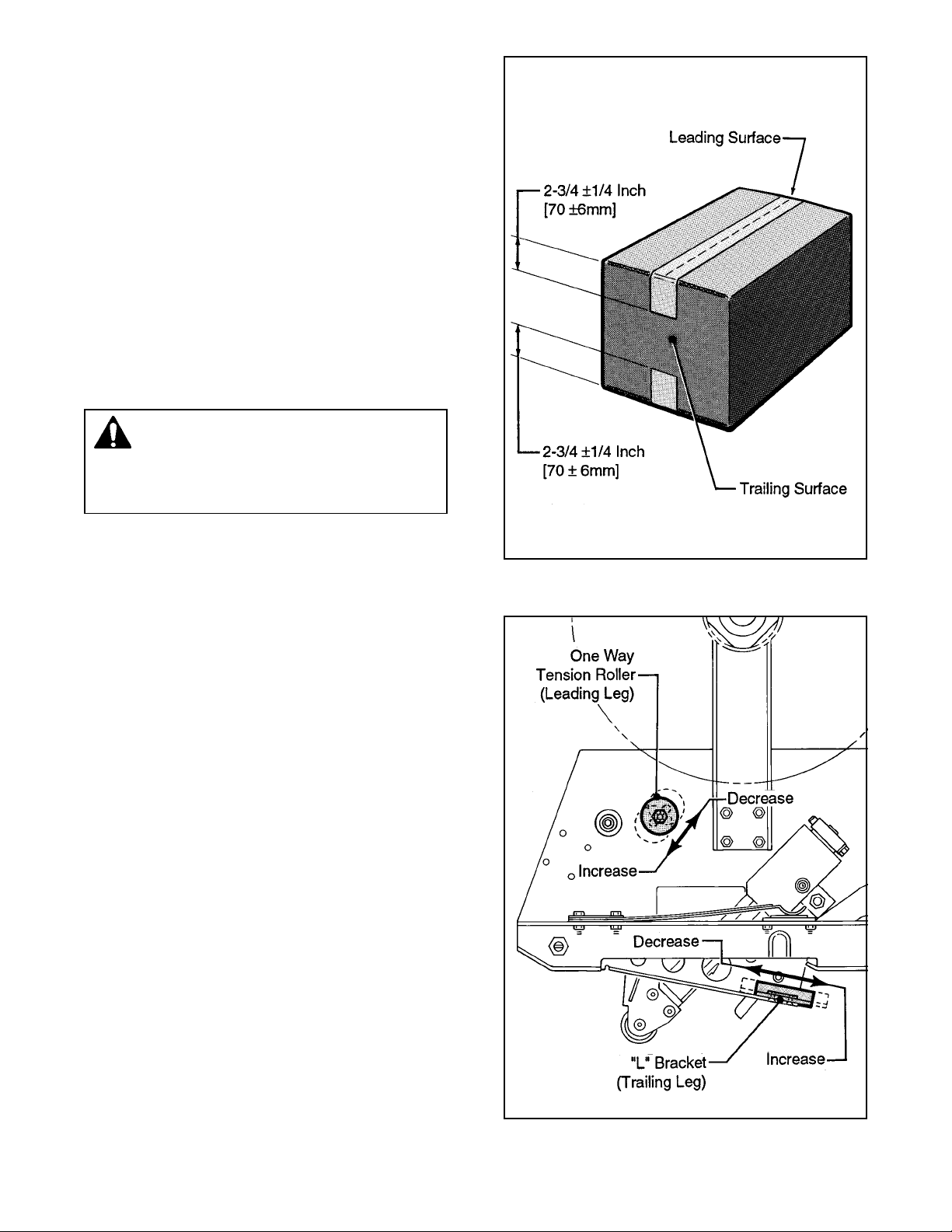

Figure 5-6 – Adjusting Tape Leg Length
Figure 5-5 – Tape Application Leg Length
Leading Tape Leg Length
Refer to Figure 5-6
Adjust the one-way tension roller as needed to
obtain the proper leading tape leg length.
Trailing Tape Leg Length
Refer to Figure 5-6
Adjust the “L” brackets as needed to obtain the
proper trailing tape leg length.
The lower taping head adjustments are the same as
the upper taping head adjustments.

15
Adjustments (Continued)
One-Way Tension Roller Assembly
Refer to Figure 5-7
The one-way tension roller is factory set. When
replacing this assembly, the roller must have
1 lb. [0.5 kg] tangential force when turning.
To Set Tension
1. Wrap a cord or small strap (non-adhesive) 4-6
turns around the tension roller.
2. Attach a spring scale to the end of the cord or
strap.
3. Turn the adjusting nut until a force of approxi-
mately 1 lb. [0.5 kg] is required to turn the
roller by pulling on the spring scale. Figure 5-7 – One-Way Tension Roller

16
THIS PAGE IS BLANK
