3M 3M-Matic Accuglide NPH 11200 Datasheet

™
Accuglide
NPH 2 Inch
Taping Heads
Type 11200
Instructions and Parts List Important Safety
Information
BEFORE INSTALLING
OR OPERATING THIS
EQUIPMENT
Read, understand, and
follow all safety and
operating instructions.
Spare Parts
It is recommended you
immediately order the
spare parts listed in the
"Spare Parts/Service
Information" section.
These parts are expected
to wear through normal
use, and should be kept
on hand to minimize
production delays.
3M Industrial Adhesives and Tapes
3M Center, Building 220-5E-06
St. Paul, MN 55144-1000
3M-Matic™
AccuGlide™is a Trademark of
3M, St. Paul, MN 55144-1000
Printed in U.S.A.
© 3M 2017 44-0009-2122-9 (C030817-NA)
Serial No._____________________________________
For reference, record taping head(s) serial number(s) here.

3M-Matic™and Scotch™
are Trademarks of
3M St. Paul, MN 55144-1000
Printed in U.S.A.
3M Industrial Adhesives and Tapes
3M Center, Building 220-5E-06
St. Paul, MN 55144-1000
To Our Customers:
This is the 3M-Matic™/Scotch®equipment you ordered. It has been set up and tested in the factory with
Scotch®tapes.
Included with each machine is an Instructions and Parts List manual.

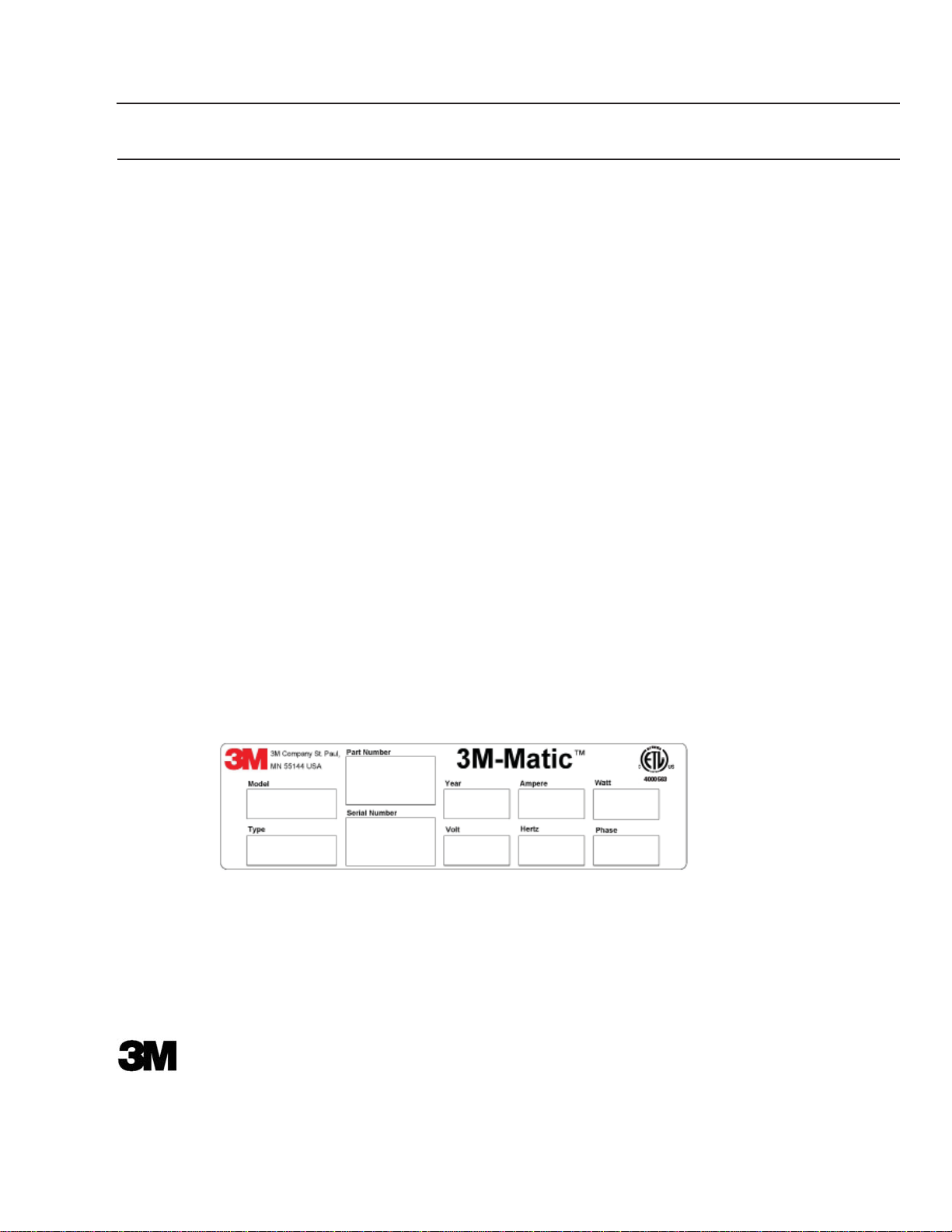

Identification Plate
Replacement Parts and Service Information
i
For Industrial Use Only
Technical Assistance / Replacement Parts and Additional Manuals:
For technical assistance, contact our help line at 1-800-328-1390. Provide the customer support coordinator
with the model/machine name, machine type, and serial number that are located on the identification plate
(For example: Model - Accuglide NPH (2 inch) - Type 11200 - Serial Number 13282).
To order replacement parts, contact us:
CSPD division of Combi Packaging Systems LLC.
5365 East Center Dr. N.E.
Canton, OH 44721 1-800-344-9883 e-mail: [email protected]
www.combi.com

Replacement Parts And Service Information
To Our Customers:
This is the 3M-Matic™/Scotch®equipment you ordered. It has been set up and tested in the factory with
Scotch®tapes. If any problems occur when operating this equipment and you desire a service call or
phone consultation, call, write, or fax the appropriate number listed below.
Included with each machine is an Instructions and Parts List manual.
SERVICE, REPLACEMENT PARTS, AND ADDITIONAL MANUALS
AVAILABLE DIRECT FROM:
Order parts by part number, part description, and quantity required. Also, when ordering parts
or additional manuals, include model/machine name, machine type, and serial number that are
located on the identification plate.
3M-Matic™and Scotch™
are Trademarks of
3M, St. Paul, MN 55144-1000
Printed in U.S.A.
3M Industrial Adhesives and Tapes
3M Center, Building 220-5E-06
St. Paul, MN 55144-1000
ii

THIS PAGE IS BLANK

7
Instruction Manual
NPH 2 Inch
Upper and Lower Taping Heads
Type 11200
Table of Contents Page
Replacement Parts and Service Information............................................................................................ i - ii
Table of Contents...................................................................................................................................... iii
Equipment Warranty and Limited Remedy............................................................................................... iv
Intended Use ............................................................................................................................................ 1
Taping Head Contents / How to Use Manual............................................................................................ 3
Important Safeguards............................................................................................................................... 4 - 5
Specifications ........................................................................................................................................... 6 - 7

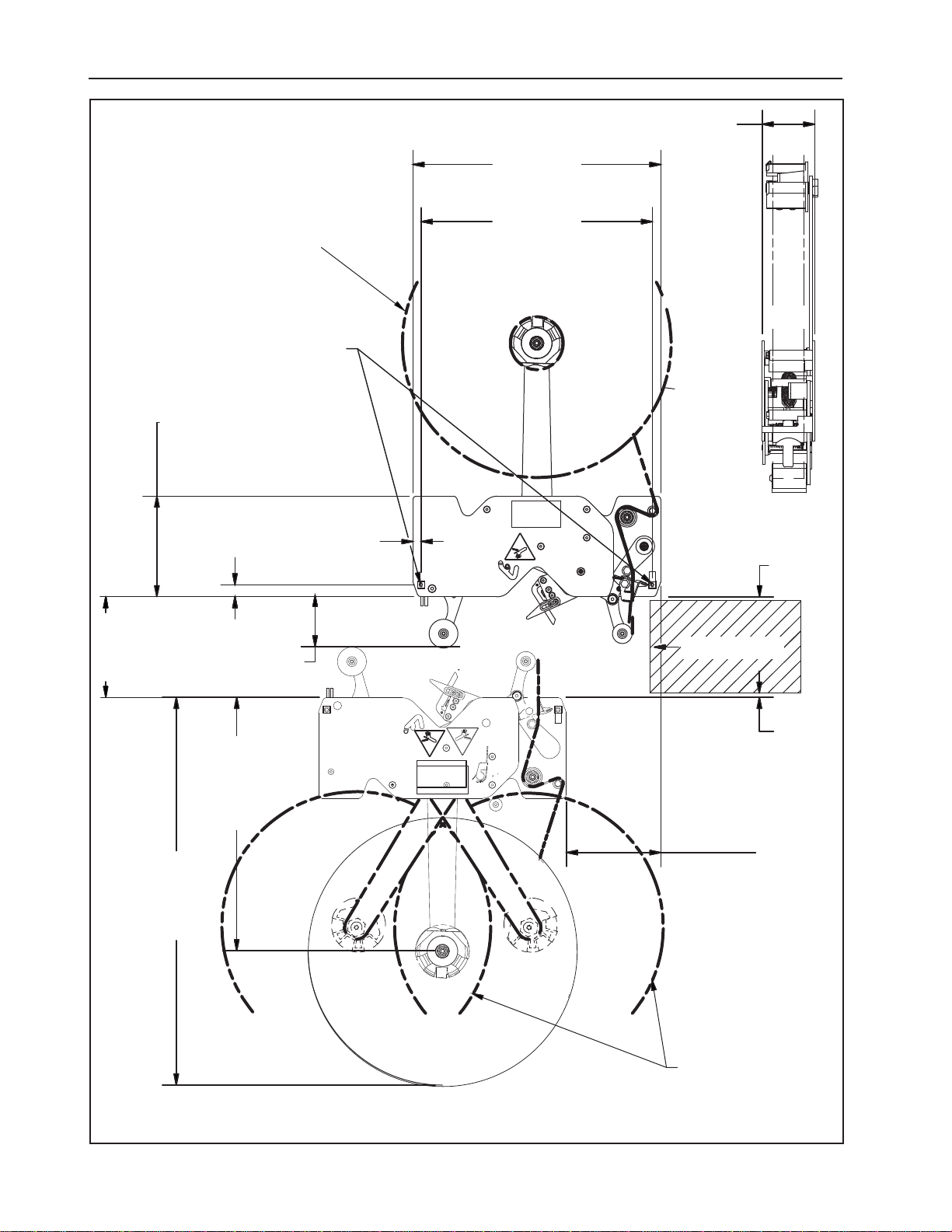

Dimensional Drawing .................................................................................................................... 7
Installation ................................................................................................................................................ 8
Receiving and Handling ................................................................................................................ 8
Installation Guidelines ................................................................................................................... 8
Tape Leg Length ........................................................................................................................... 8
Tape Width Adjustment ................................................................................................................. 8
Operation.................................................................................................................................................. 9 - 11

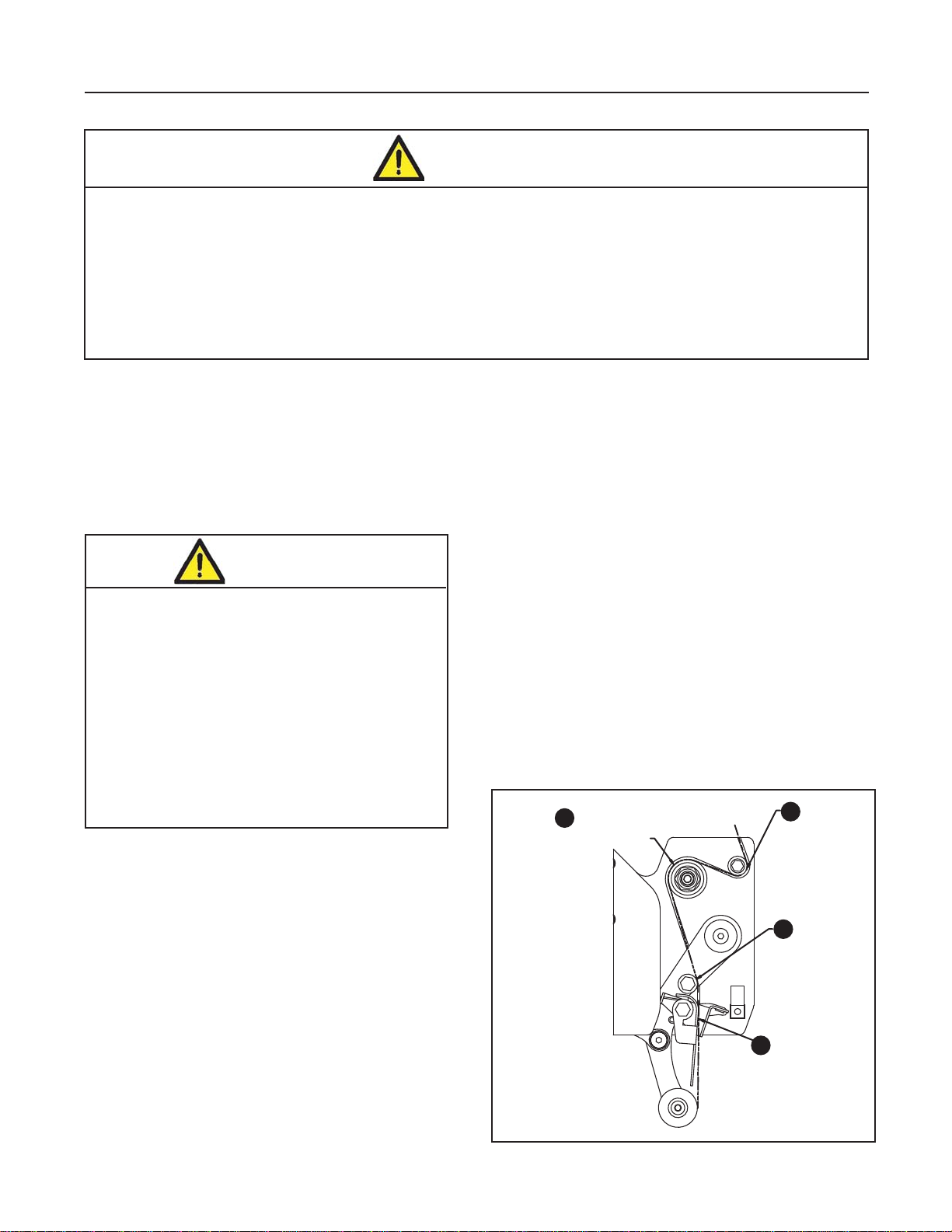

Tape Loading – Upper Taping Head.............................................................................................. 10
Tape Loading – Lower Taping Head.............................................................................................. 10 - 11
Maintenance............................................................................................................................................. 12 - 13

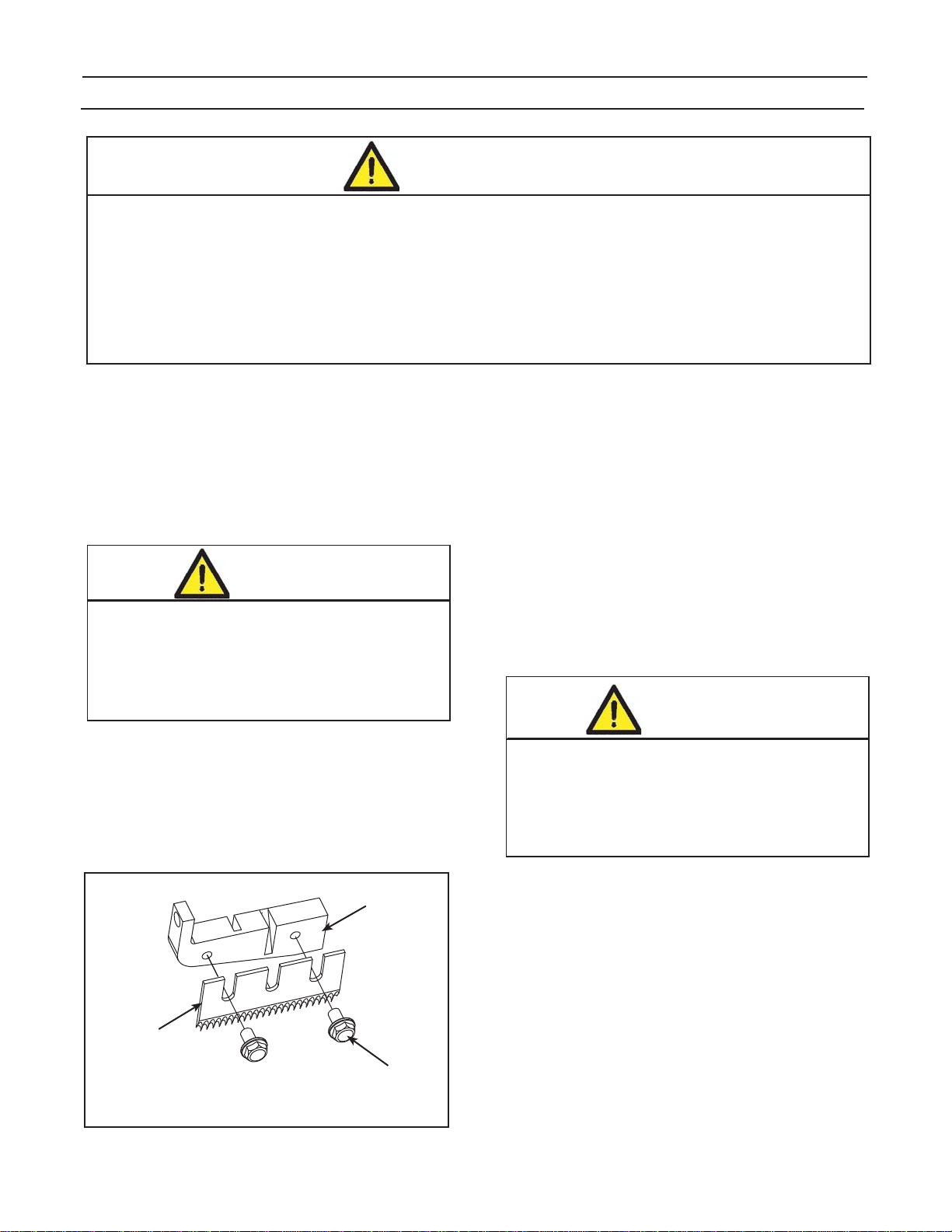

Blade Replacement....................................................................................................................... 12
Blade Guard .................................................................................................................................. 12
Blade Oiler Pad ............................................................................................................................. 12
Cleaning ........................................................................................................................................ 13
Applying/Buffing Roller Replacement............................................................................................ 13
Adjustments.............................................................................................................................................. 14 - 15
Tape Latch Alignment.................................................................................................................... 14
Tape Drum Friction Brake ............................................................................................................. 14
Applying Mechanism Spring.......................................................................................................... 15
One-Way Tension Roller ............................................................................................................... 15
Troubleshooting Guide ............................................................................................................................. 16 - 17
Spare Parts/Service Information............................................................................................................... 18 - 19
Recommended Spare Parts.......................................................................................................... 18
Replacement Parts and Service.................................................................................................... 19
Replacement Parts Illustrations and Parts List................................................................ Yellow Section 21 - 34
iii
NPH 2" - NA 2014 December

8
iv
NPH 2" - NA 2014 December
AccuGlide™, Scotch™, and 3M-Matic™are Trademarks of 3M, St. Paul, Minnesota 55144-1000
Equipment Warranty and Limited Remedy: THE FOLLOWING WARRANTY IS MADE IN LIEU OFALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND ANY IMPLIED WARRANTY ARISING
OUT OF A COURSE OF DEALING, CUSTOM OR USAGE OF TRADE:
Limitation of Liability: Except where prohibited by law, 3M and seller will not be liable for any loss or damage
arising from this 3M equipment, whether direct, indirect, special, incidental, or consequential, regardless of the legal
theory asserted, including breach of warranty, breach of contract, negligence, or strict liability.
Note: The foregoing Equipment Warranty and Limited Remedy and Limitation of Liability may be changed only by
a written agreement signed by authorized representatives of 3M and seller.
3M sells its AccuGlide™ NPH 2 Inch Upper and Lower Taping Heads, Type 11200 with the following warranty:
1. The Taping Head blade, springs and rollers will be free from defects in material and manufacture for
ninety (90) days after delivery.
2. All other Taping Head parts will be free from defects in material and manufacture for one (1) year
after delivery.
If any part is defective within this warranty period, your exclusive remedy and 3M’s and seller’s sole obligation
shall be, at 3M’s option, to repair or replace the part. 3M must receive actual notice of any alleged defect within
a reasonable time after it is discovered, but in no event shall 3M have any obligation under this warranty unless it
receives such notice within five (5) business days after the expiration of the warranty period. All notices required
hereunder shall be given to 3M solely through the 3M-Matic™ Help line (800-328-1390). To be entitled to repair
or replacement as provided under this warranty, the part must be returned as directed by 3M to its factory or other
authorized service station designated by 3M. If 3M is unable to repair or replace the part within a reasonable time
after receipt thereof, 3M, at its option, will replace the equipment or refund the purchase price. 3M shall have no
obligation to provide or pay for the labor required to remove any part or equipment or to install the repaired or
replacement part or equipment. 3M shall have no obligation to repair or replace those parts failing due to normal
wear, inadequate or improper maintenance, inadequate cleaning, non-lubrication, improper operating environ-
ment, improper utilities, operator error or misuse, alteration or modification, mishandling, lack of reasonable care,
or due to any accidental cause.
General Information - Warranty

1
Intended Use

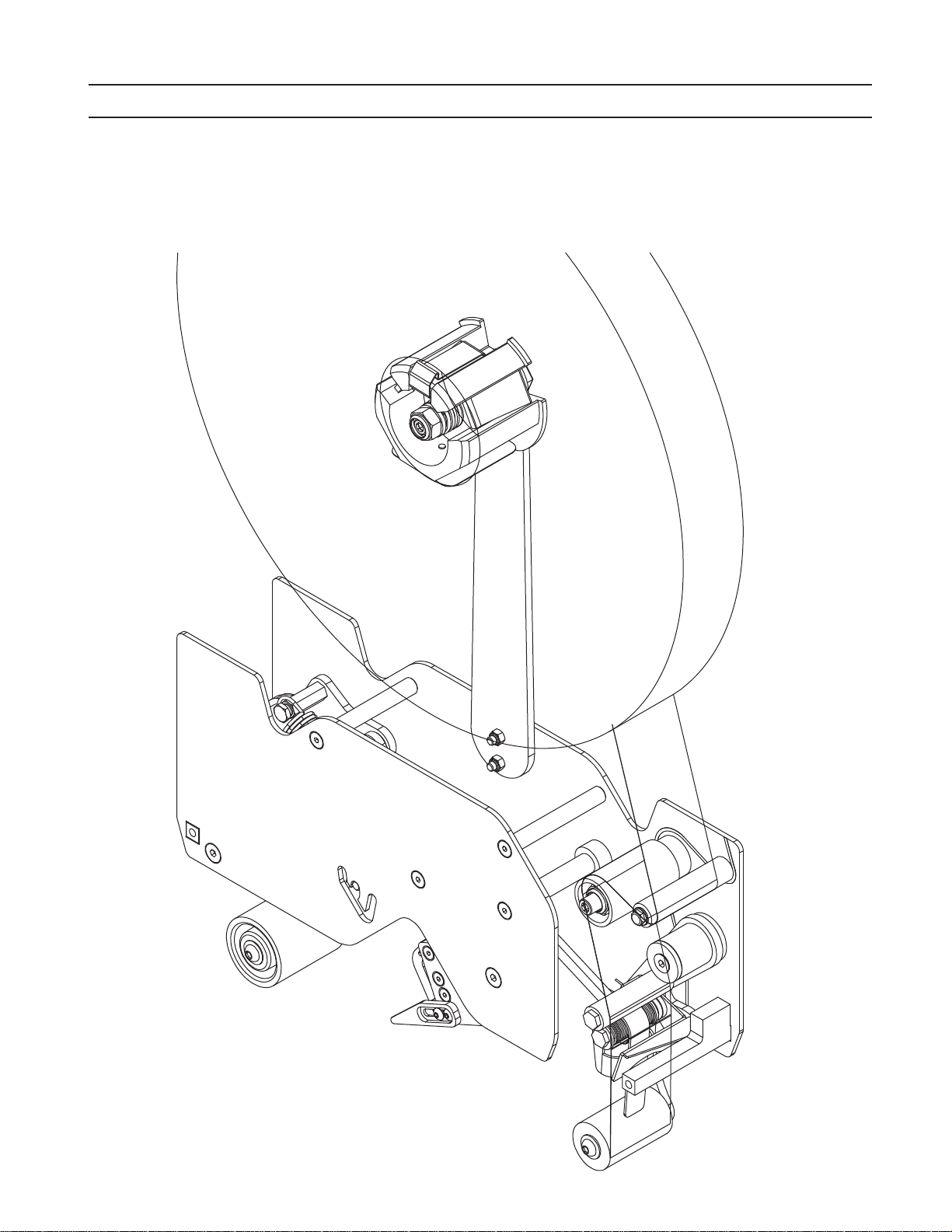

NPH 2 inch Upper Taping Head, Type 11200
NPH 2" - NA 2014 December
The intended use of the NPH 2 inch Upper and Lower Taping Heads is to apply a "C" clip of Scotch®pressure-
sensitive film box sealing tape to the top and/or bottom center seam of regular slotted containers. The compact
size and simplicity of the taping head makes it suitable for mounting in box conveying systems other than
3M-Matic™ case sealers. This includes replacement of other types of taping, gluing or stapling heads in existing
case sealing machines. The NPH 2 inch Upper and Lower Taping Heads have been designed and tested for
use with Scotch®pressure-sensitive film box sealing tape.

2
THIS PAGE IS BLANK

3
Taping Head Contents
NPH 2 Inch Upper and Lower Taping Heads consist of:
Qty. Part Name
1 Taping Head Assembly
1 Tape Drum and Bracket Assembly
1 Hardware and Spare Parts Kit
The manual is an important part of the machine; all information contained herein is intended to enable the equip-
ment to be maintained in perfect condition and operated safely. Ensure that the manual is available to all opera-
tors of this equipment and the manual is kept up to date with all subsequent amendments. Should the equipment
be sold or disposed of, please ensure that the manual is passed on with the machine.
Electrical and pneumatic diagrams are included in the manual. Equipment using PLC controls and/or electronic
components will include relevant schematics or programs in the enclosure (or will be delivered separately as
needed)
Keep the manual in a clean and dry place near the machine. Do not remove, tear or rewrite parts of the manual
for any reason. Use the manual without damaging it. However, if the manual has been lost or damaged, ask your
after sale service for a new copy (if it is possible, please have the manual name, part number, and revision infor-
mation and/or model/machine name, machine type, and serial number) that are located on the identification plate
(For example: NPH 2" - Type 11200 - Serial Number 13282).
Note:
All the important warning notes related to the operation of the machine are identified by the symbol:
Updating the Manual
Modifications to the machine are subject to manufacturer's internal procedures. The user may receive pages or
parts of the manual which contain amendment made after its first publication. The user must use them to update
this manual.
This instruction manual covers safety aspects, handling and transport, storage, unpacking, preparation,
installation, operation, set-up and adjustments, technical and manufacturing specifications, maintenance,
troubleshooting, repair work and servicing, electric diagrams, warranty information, disposal (ELV), a glossary
with a definition of symbols, plus a parts list of the 3M-Matic™NPH 2 inch 3M Industrial Adhesives and Tapes Di-
vision 3M Center, Bldg. 220-5E-06 St. Paul, MN 55144-1000 (USA) Edition December 2014 / Copyright 3M 2014.
All rights reserved. The manufacturer reserves the right to change the product at any time without notice.
How to Use this Manual
General Information
NPH 2" - NA 2014 December

4
Important Safeguards
• To reduce the risk associated with
mechanical hazards:
−Read, understand and follow all safety
and operating instructions before
operating or servicing the case sealer.
−Allow only properly trained and qualified
personnel to operate and/or service this
equipment.
• To reduce the risk associated with
shear, pinch, and entanglement
hazards:
−Turn air and electrical supplies off on
associated equipment before perform-
ing any adjustments, maintenance, or
servicing the taping heads.
−Never attempt to work on the taping
head or load tape while the box drive
system is running.
• To reduce the risk associated with
sharp blade hazards:
−Keep hands and fingers away from tape
cutoff blades under Yellow blade
guards. The blades are extremely sharp.
Explanation of Signal Word Consequences
Indicates a potentially hazardous
situation, which, if not avoided,
may result in minor or moderate
injury and/or property damage.
Caution:
Indicates a potentially hazardous
situation, which, if not avoided,
could result in death or serious
injury and/or property damage.
Warning:
• To reduce the risk associated with muscle
strain:
−Use proper body mechanics when
removing or installing taping heads that are
moderately heavy or may be considered
awkward to lift.
• To reduce the risk associated with impact
hazards:
−Place the taping head on a smooth level
surface when maintaining or servicing this
equipment.
CAUTION
(Important Safeguards continued on next page)
NPH 2" - NA 2014 December
WARNING
This safety alert symbol identifies
important safety messages in
this manual.
READ AND UNDERSTAND THEM BEFORE
INSTALLING OR OPERATING THIS EQUIPMENT.

5
NPH 2" - NA 2014 December
Important Safeguards (continued)
78-8070-1335-0

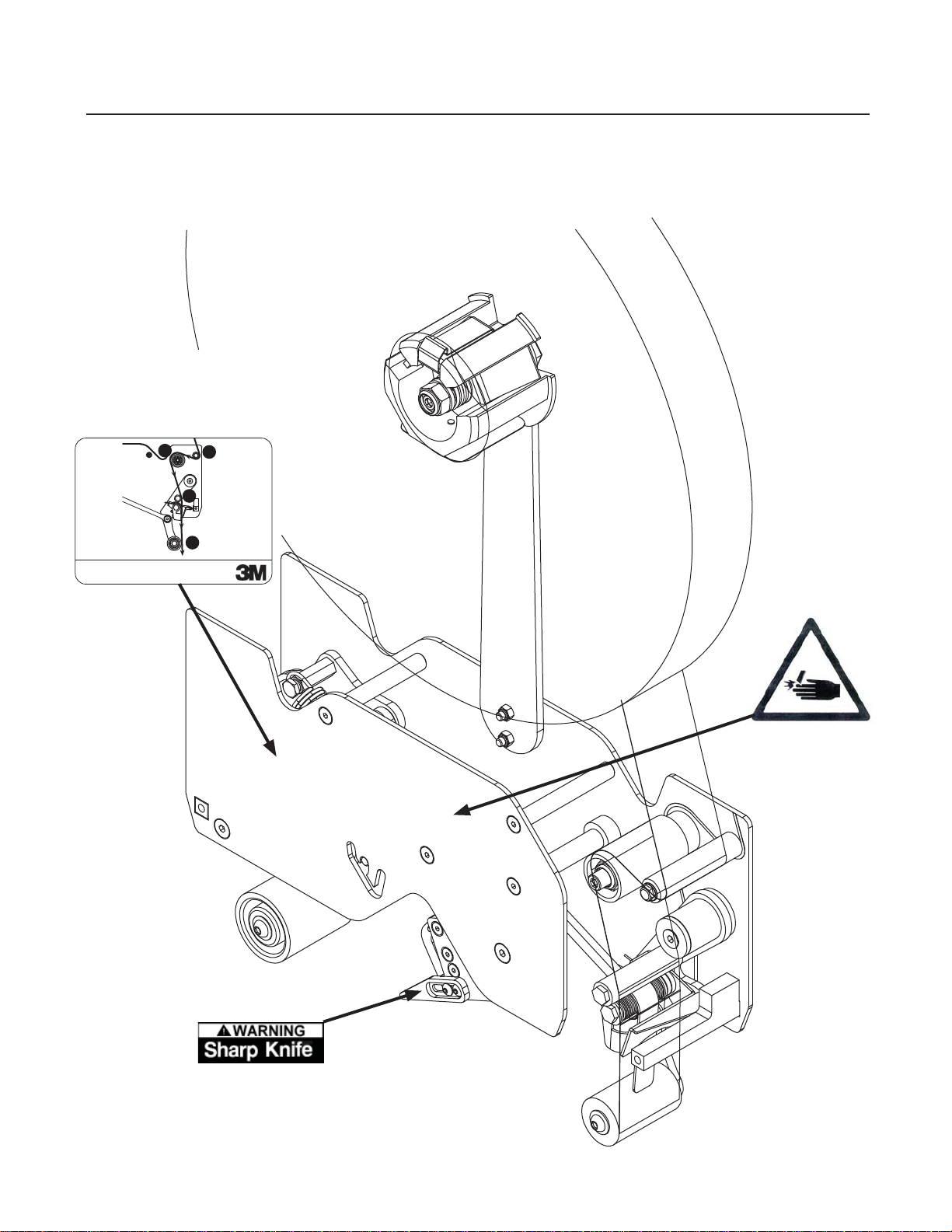

Figure 1-1 Replacement Labels/3M Part Numbers
Important - In the event the following safety labels are damaged or destroyed, they must be replaced to ensure
operator safety. See "Replacement Parts Illustrations and Parts Lists" for label part numbers.
1
2
4
3
1
2
3
4
NPH Taping Head
Type 11200 Made in Italy
78-8070-1336-8
78-8137-6723-9
Upper Taping Head
78-8137-7091-0
Lower Taping Head

6
NPH 2" - NA 2014 December
Specifications
1. Tape:
For use with Scotch®pressure-sensitive film box sealing tapes.
2. Tape Width:
36mm [1 1/2 inches] minimum to 48mm [2 inches] maximum.
3. Tape Roll Diameter:
Up to 405mm [16 inches] maximum on a 76.2mm [3 inch] diameter core.
(Accommodates all system roll lengths of Scotch®film tapes)
4. Tape Application Leg Length:
58mm ± 6mm [2 1/4 inches ± 1/4 inch]
5. Minimum Box Size Capacities:
For use with center seam regular slotted containers.
Length *– 150mm [6 inches] w/ Guard
Height * – 101mm [4 inches] w/ Guard
Width *– 150mm [6 inches]
* Note: Box size capacities may also be determined by the case conveying system used.
6. Operating Conditions:
Use in dry, relatively clean environments at 5° to 40°C [40° to 105°F] with clean dry boxes.
Important – Taping heads should not be washed down or subjected to conditions causing moisture
condensation on components.
7. Taping Head Dimensions:
Length – 375mm [14 3/4 inches]
Height – 502mm [19 3/4 inches] (with tape drum)
Width – 79.5mm [ 3 1/8 inches] (without mounting spacers)
Weight – Packaged: 5.9kg [13.0 lbs.] Unpackaged: 4.8kg [10.5 lbs.]
(Specifications continued on next page.)

7
NPH 2" - NA 2014 December
Specifications
Figure 2-1 Dimensional Drawing
79.50 mm
[3.13 in.]
375.0 mm
[14.76 in.]
152.0 mm
[5.98 in.]
18.0 mm
[.71 in.]
77.88 mm
[3.066 in.]
12.5 mm
[.49 in.]
350.0 mm
[13.78 in.]
406.4 mm
[16.00 in.]
Maximum
Roll Diameter
101 mm
[4 in.]
Minimum
Standard
Head Spacing
142.9 mm
[5.63 in.]
Optimal Low
Height Case
6.4 mm
[.25 in.]
Max.
6.4 mm
[.25 in.]
Max.
586.6 mm
[23.09 in.]
383.4 mm
[15.09 in.]
Box Direction
Alternate
Mounting
Positions
M6 Mounting Holes

8
Installation
1. The box conveying system must positively
propel the box in a continuous motion (see
specifications) past the taping head assembly
since the box motion actuates the taping
mechanism.
2. If a pusher or cleated conveyor is being used,
steps should be taken in the conveyor design to
prevent the pusher from contacting the applying
or buffing roller arms resulting in damage to the
taping head.
Receiving And Handling
After the taping head assembly has been
unpackaged, examine the unit for damage that
might have occurred during transit. If damage is
evident, file a damage claim immediately with the
transportation company and also notify your 3M
Representative.
Installation Guidelines
The taping head can be used for tape head
conversions and/or custom machines. It can be
mounted for top taping or bottom taping.
Refer to "Box Size Capacities," as well as Figure
2-1 in the Specifications section for installation and
conversion guidelines.
Tape Leg Length
Taping heads are factory set to apply
58mm [2 1/4 inches] tape legs.
Tape Width Adjustment
Taping heads are factory set to apply 48mm [2 inch]
wide tape. If it is necessary to align the tape or to
apply narrower tapes, refer to "Adjustments – Tape
Web Alignment" for set-up procedure.
3. Figure 2-1 illustrates the typical mounting
relationship for opposing taping head
assemblies to allow taping of box heights (see
specifications). The taping heads must be
completely staggered so only one tape seal is
being applied at one time.
4. Mounting studs are provided with the taping
head, but special installations may require
alternate means for mounting.
5. Box hold-down or guide skis should be provided
and the taping head mounted so that the side
plates are 6mm [1/4 inch] maximum away from
the ski surface on which the box rides.
• To reduce the risk associated with sharp blade hazards:
- Keep hands and fingers away from tape cutoff blades under Yellow blade guards.
The blades are extremely sharp.
Important – Always conduct a hazard review to
determine appropriate guarding
requirements when the installation is
in an application other than 3M-Matic™
equipment.
• To reduce risk associated with muscle
strain:
- Use proper body mechanics when
removing or installing taping heads
that are moderately heavy or may be
considered awkward to lift.
CAUTION
NPH 2" - NA 2014 December
WARNING

9
NPH 2" - NA 2014 December
Operation
Tape Supply Roll
Tape Drum
Tape Adhesive Side
Tension Wrap Roller
Wrap Roller
Mounting Block
Mounting Block
Mounting Block
Tape Support Assembly
Tape Support Assembly
Tape Cut Off Blade
Yellow Blade Guard
Apply Mechanism Spring
Apply Mechanism Spring
Cut Off Spring
Cut Off Spring
Shaft Spring Adjust
Shaft Spring Adjust
One-Way
Tension Roller
Buffing Arm
Buffing Arm
Link Arm
Link Arm
Tape Supply Roll
Tape Drum
Tape Adhesive Side
Tension Wrap Roller
Wrap Roller
Mounting Block
Tape Cut Off Blade
Yellow Blade Guard
One-Way
Tension Roller
Figure 3-2 Taping Head
Components/
Threading Diagram -
Lower Head
(Left Side View)
Figure 3-1 Taping Head
Components/
Threading Diagram -
Upper Head
(Left Side View)

10
It is recommended that the detailed instructions and
sketches in this manual be referred to the first few
times the taping head is loaded/threaded until the
operator becomes thoroughly familiar with the tape
loading operation.
Note – Remove tape roll before removing taping
head from machine to minimize weight.
Operation (continued)
Figure 3-3
Insert tape through rollers in direction indicated by
arrows.
5. Pull the tape down past the applying roller
(Position 4). When properly threaded the
adhesive side of the tape should be facing the
tension roller at position 2 and away from the
guide roller at position 3.
6. Cut away any excess tape.
Important – Do not cut against the apply roller -
roller damage could occur.
Tape Loading – Lower Taping Head
1. Remove the lower taping head from the conveyor
bed or associated equipment and place it a
convenient working position.
2. The lower taping head is loaded and threaded in
the same manner as the upper head. Follow the
upper taping head tape loading/threading procedure.
Tape Loading – Upper Taping Head
1. Place the upper taping head in a convenient
working position.
2. Use Figures 3-3 to 3-5 and tapel label. Position
the tape supply roll so the adhesive side of tape
is facing the front of the taping head as it is pulled
from the supply roll.
3. Guide the tape around the tension wrap roller
(Position 1) then back around the one-way ten-
sion roller (Position 2).
4. Continue pulling the tape down and past the wrap
roller (Position 3) and through the Tape Support
Assembly.
• To reduce the risk associated with shear, pinch, and entanglement hazards:
−Turn air and electrical supplies off on associated equipment before performing any adjustments,
maintenance, or servicing the machine or taping heads.
−Never attempt to work on the taping heads or load tape when the box drive system is running.
• To reduce the risk associated with sharp blade hazards:
−Keep hands and fingers away from tape cutoff blades under Yellow blade guards.
The blades are extremely sharp.
• To reduce the risk associated with
muscle strain:
−Use proper body mechanics when
removing or installing taping heads that
are moderately heavy or may be
considered awkward to lift.
• To reduce the risk associated with
impact hazards:
−Place the taping head on a smooth
level surface when maintaining or
servicing this equipment.
CAUTION
NPH 2" - NA 2014 December
4.Tape Support Finger
Figure 3-3
Tape Loading /
Threading
One-Way
Tension Roller
1
2
3
4
Wrap Roller
Tension
Wrap
Roller
Tape
Support
Assembly
WARNING

11
Operation (continued)

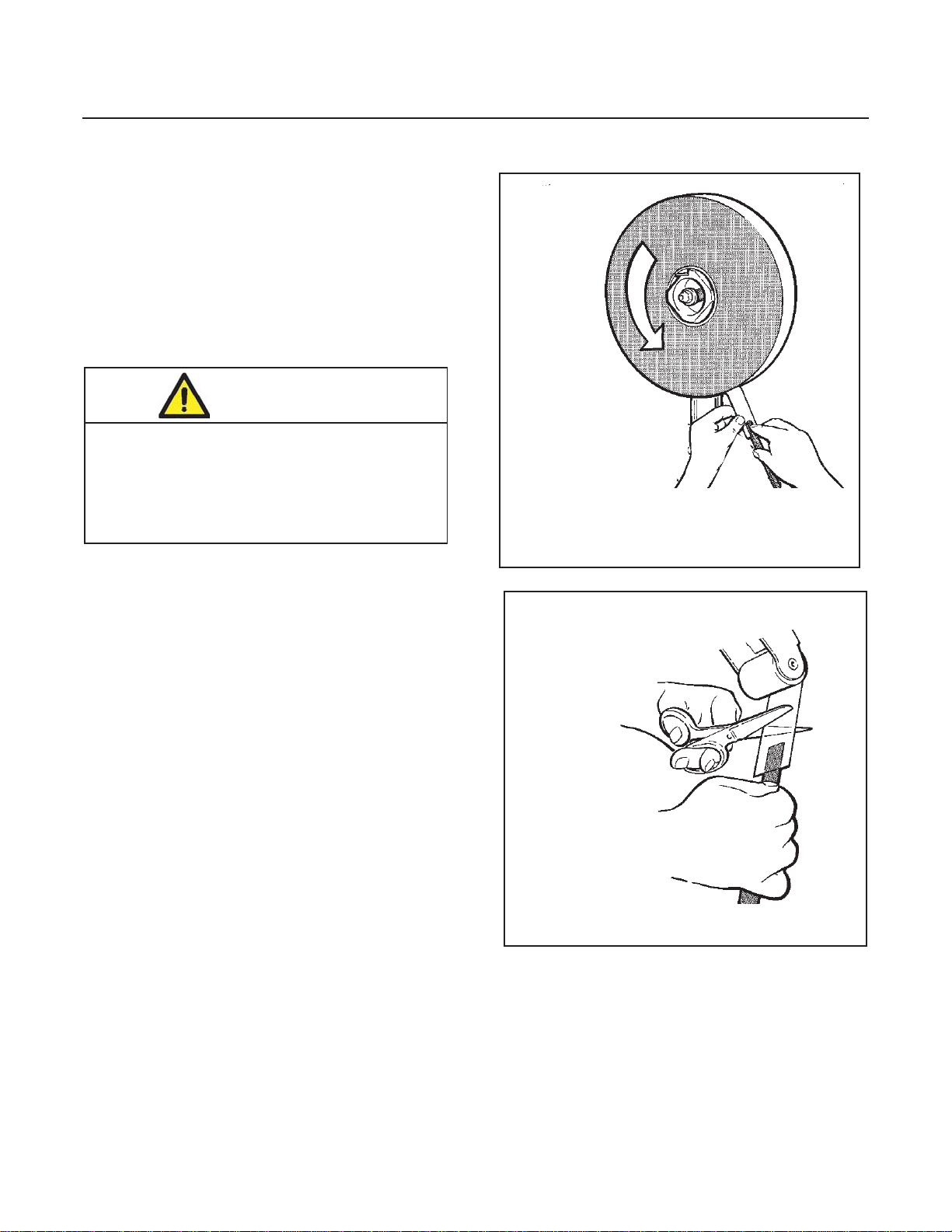

Manually turn tape roll to create slack tape while
pulling tape through tape applying mechanism until
needle is through and tape is in alignment with
applying roller.
Excess tape can be cut with a scissors at applying
roller.
Figure 3-4
Place tape roll on tape drum to dispense tape with
adhesive side forward. Seat tape roll fully against
back flange of drum. Adhere tape lead end to tape
as shown.
Figure 3-4 Tape Loading
Figure 3-5 Tape Loading
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and fingers away from tape
cutoff blades under Yellow blade guards.
The blades are extremely sharp.
NPH 2" - NA 2014 December
WARNING

12
Blade Guard
The blade guard covers the blade whenever a box
is not being taped. Periodically check to be sure the
blade guard is functioning properly and returning to
cover the blade. Replace any defective parts.
Blade Oiler Pad
To reduce adhesive build-up, the taping heads are
equipped with a factory pre-lubricated felt oiler pad
that provides a film of oil on the cutting edge of the
blade. Blade maintainance should include keeping
the felt oiler pad saturated with SAE #30 non-
detergent oil.
Should tape adhesive build-up occur on blade,
carefully wipe clean with an oily cloth.
The NPH 2 Inch Taping Head will perform best when
it receives routine maintenance and cleaning. Taping
head components that fail or wear excessively should
be promptly repaired or replaced to prevent damage to
other portions of the head or to the product.
Blade Replacement, Upper and Lower Taping Heads
(Figure 4-1).
1. Loosen, but do not remove, the blade screws (A).
Remove and discard old blade.
2. Mount the new blade (B) in the same position as the
blade that was removed.
3. Bottom the blade slots against the screws. (This will
position the blade at the correct angle.) Tighten the
blade screws to secure the blade.
Maintenance
Note – Check the blade position to insure proper
clearance between blade and guard by
slowly pivoting the blade guard back.
Figure 4-1 Blade Replacement
(Maintenance continued on next page.)
Blade
(B) Blade
Screws
(A)
Blade
Holder
NPH 2" - NA 2014 December
• To reduce the risk associated with shear, pinch, and entanglement hazards:
−Turn air and electrical supplies off on associated equipment before performing any adjustments,
maintenance, or servicing the taping heads
−Never attempt to work on the taping head or load tape while the box drive system is running
• To reduce the risk associated with sharp blade hazards:
−Keep hands and fingers away from tape cutoff blades under orange blade guards.
The blades are extremely sharp
WARNING
WARNING
WARNING
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and fingers away from tape
cutoff blades under orange blade guards.
The blades are extremely sharp
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and fingers away from tape
cutoff blades under orange blade guards.
The blades are extremely sharp
