3M™Dynatel™Advanced
Pipe/Cable Locator 2220M
Operator Manual
2220M with 3-Watt Transmitter
2220M with 12-Watt Transmitter
(U.S. and International versions)
November 2016
78-9000-0021-3-D

378-9000-0021-3-D November 2016
Contents
Safety Information.............................................4
Introduction ..................................................5
Standard Equipment Packages................................6
Optional 3M™Dynatel™Accessories ........................... 7
Quick Start ...................................................7
3-Watt Transmitter Battery Installation......................... 7
3-Watt Transmitter Overview................................. 7
12-Watt Transmitter Battery Installation ........................8
12-Watt Transmitter Overview ................................9
Receiver Battery Installation ................................. 10
Receiver Overview ..........................................12
Transmitter Operations ....................................... 13
Direct Connection ......................................... 14
3M™Dynatel™Dyna-Coupler Clamp .......................... 14
Induction Method ...........................................15
Receiver Operations .......................................... 16
Initial Settings ............................................. 16
Receiver Setup ............................................ 16
Line Locating Screen ....................................... 19
Pipe and Cable Locating ....................................20
Depth and Current ..........................................21
Sonde Locating .............................................21
Sonde Locating Screen .....................................22
Pin-Pointing the Sonde .....................................22
Specications................................................24
Rechargeable Battery Information............................26
Cleaning Instructions .......................................26
Locator Software Upgrades .................................27
Statement of Conformity....................................27

478-9000-0021-3-DNovember 2016
Safety Information
Please read, understand and follow all safety information contained in
these instructions prior to the use of the 3M™Dynatel™Advanced Pipe/
Cable Locator 2220M. Retain these instructions for future use.
Intended Use:
The Advanced Pipe/Cable Locator 2220M is used to identify the
placement of underground utility lines. The system must be installed
as specied in the Advanced Pipe/Cable Locator 2220M Operator
Manual. It has not been evaluated for other uses or locations. If this
equipment is used in a manner not specied by 3M, the protections
provided by the equipment may be impaired.
Explanation of Signal Word Consequences:
 Warning:
Indicates hazardous situation which, if not avoided, could result in
death or serious injury.
 Caution:
Indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury and/or property damage.
Notice: Indicates a situation which, if not avoided, could result in
property damage.
Explanation of Product Safety Label Symbols:
Do not throw away in normal trash
Do not apply around or remove from UNINSULATED HAZARDOUS
LIVE conductors, which may render electric shock, electric burn,
or arc ash

578-9000-0021-3-D November 2016
Introduction
Congratulations! You have just purchased one of the nest, most
advanced locating devices available today! When you choose a
quality 3M™Dynatel™Advanced Pipe/Cable Locator 2220M, you
get outstanding performance andreliability.
The 2220M locator with the 3-watt transmitter is an excellent
instrument for tracing underground utilities. The 2220M provides
one audio frequency for locating long sections of cable and one radio
frequency for tracing pipes that may have high resistance insulators
and rubber gaskets that are often found in water and gas distribution
systems. The 2220M also provides three sonde locating frequencies.
The 2220M locator with the 12-watt transmitter* option oers
additional power output levels for improved induction performance,
8K (low frequency) induction for shallow facilities, such as risers, and
an ohm-meter function for measuring path resistance.
* Output Power up to 12 Watts for the 12 Watt Transmitter is achieved using the supplied
external power source. 12 Watt Output Power varies by frequency, or is limited to 1 Watt
at 82 kHz on the U-Model using direct connection method.

678-9000-0021-3-DNovember 2016
Standard Equipment Packages
Model Number Included in Equipment Package
2220M-U3W 2220M Receiver
3 Watt Transmitter
Direct Connect Cable (Utility size clip 5/8" [15.8 mm])
Ground Rod
RS232 Serial Port Cable
RS232-to-USB Adapter Cable
Operator Manual
Carrying Bag
2220M-U3W-CPLR 2220M Receiver
3 Watt Transmitter
Direct Connect Cable (Utility size clip 5/8" [15.8 mm])
4.5" (114 mm) Dyna-Coupler clamp
Coupler Cable
Ground Rod
RS232 Serial Port Cable
RS232-to-USB Adapter Cable
Operator Manual
Carrying Bag
2220M-C3W-CPLR 2220M Receiver
3 Watt Transmitter
Direct Connect Cable (Telecom size clip 1/4" [6.4 mm])
3" (76 mm) Dyna-Coupler clamp
Coupler Cable
Ground Rod
RS232 Serial Port Cable
RS232-to-USB Adapter Cable
Operator Manual
Carrying Bag
2220M-UCU12W/RT 2220M Receiver
12 Watt Transmitter* (See asterisk, page 5)
Direct Connect Cable (Utility size clip 5/8" [15.8 mm])
Direct Connect Cable (Telecom size clip 1/4" [6.4 mm])
3" (76mm) Dyna-Coupler Clamp
Ground Rod
RS232 Serial Port Cable
RS232-to-USB Adapter Cable
2200RB Rechargeable Battery
Cigarette Lighter Adapter Cable
Operator Manual
Carrying Bag
2220M-ECU12W/RT 2220M Receiver (International Version)
12 Watt Transmitter
Direct Connect Cable (Utility size clip 5/8" [15.8 mm])
Direct Connect Cable (Telecom size clip 1/4" [6.4 mm])
3" (76mm) Dyna-Coupler Clamp
Coupler Cable
Ground Rod
RS232 Serial Port Cable
RS232-to-USB Adapter Cable
2200RB Rechargeable Battery
Cigarette Lighter Adapter Cable
Operator Manual
Carrying Bag

778-9000-0021-3-D November 2016
Optional 3M™Dynatel™Accessories
• 3" (76 mm) Dyna-Coupler Clamp 3001
• 4.5" (114 mm) Dyna-Coupler Clamp 4001
• 6" (150 mm) Dyna-Coupler Clamp 1196
• Coupler Cable 9011
• Direct Connect Leads (Small Telecom clips) 2892
• Ground Extension Cable 9043
• ADP 33kHz Sonde 3229
Quick Start

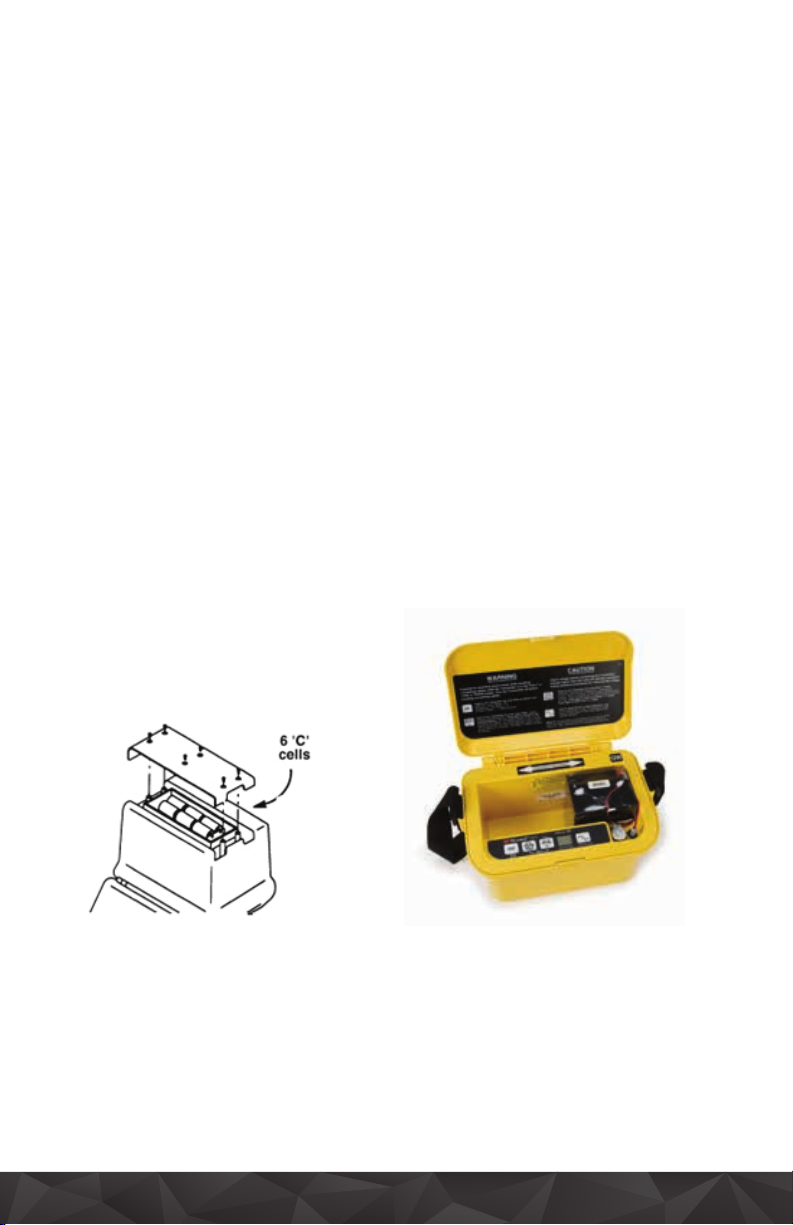

3-Watt Transmitter Battery Installation
Insert 6 "C" cell alkaline batteries (LR14)
3-Watt Transmitter Overview
3Dynatel™2220M
Off On
Frequency
Output Level
Hz
ƒ
Induction Direction
➊ ➋
➎
➌ ➍
1. Power OFF / Battery Level Indicator – Press and hold.
Display reads:
“OK” with solid tone = good
“LO” with pulsing tone = low
“- -” with no tone = replace

878-9000-0021-3-DNovember 2016
2. Power ON / Frequency Select – Powers on the unit. When
pressed repeatedly, it will cycle through the available frequency
modes:
a. Single audio frequency - 8 kHz
b. Single radio frequency - 82 kHz
c. Dual frequency – Both 8 kHz and 82 kHz are transmitted
simultaneously.
3. Output Level – Toggles the output power level between Normal
Output and High Output modes. Flag will ash over output icon
on the LCD display when in High Output mode. No ag is present
when in Normal Output mode.
4. Output Jack – Direct Connect and 3M™Dynatel™Dyna-Coupler
Clamp port.
5. Induction Direction Arrows – Indicates orientation of transmitter
in relationship to target path.
12-Watt Transmitter Battery Installation
Insert 6 "C" cell alkaline batteries (LR14) Additional rechargeable battery required
for 12-watt output

978-9000-0021-3-D November 2016
12-Watt Transmitter Overview
Induction Direction
off
+
-
o
Frequency
on
on
Output Level
Dynatel TM 2220M
➋➊ ➌
➐
➍ ➎ ➏
1. Power OFF / Battery Level Indicator – Press and hold.
Display reads:
“OK” with solid tone = good
“LO” with pulsing tone = low
“- -” with no tone = replace
2. Power ON / Ohm Meter Select – Powers on the unit. Places unit in
ohm-meter mode for measurement of the trace circuit resistance.
3. Power ON / Frequency Select – Powers on the unit. When
pressed repeatedly, it will cycle through the available frequency
modes:
a. Single audio frequency - 8 kHz
b. Single radio frequency - 82 kHz
c. Dual frequency – Both 8 kHz and 82 kHz are transmitted
simultaneously.
4. Output Level – Toggles the output power level between Normal,
High and Max Output modes. The ag will be solid over the output
icon on the LCD display when in High Output mode and will ash
when in Max Output mode. No ag is present when in Normal
Output mode.
NOTE: An external 12-volt power source is required to obtain the Max Output
mode. The 12-watt transmitter ships with a 12-volt rechargeable battery
and a cigarette lighter adapter cable to achieve this output level.
NOTE: 12 Watt Output Power varies by frequency, or is limited to 1 Watt at 82 kHz
on the U-Model using direct connection method.

10 78-9000-0021-3-DNovember 2016
5. Output Jack – Direct Connect and 3M™Dynatel™Dyna-Coupler
Clamp port.
6. External Jack - Port to connect cigarette lighter adapter cable or
rechargeable battery (2200 RB). Input voltage level: 9 - 18 VDC
7. Induction Direction Arrows – Indicates orientation of transmitter
in relationship to target path.
 Warning
To reduce the risk associated with hazardous voltage:
• Potential for electric shock exists when handling connection cables while the
transmitter is ON. Make all connections prior to powering on the unit. Turn
transmitter OFF before handling connection cables.
• Voltage greater than 240 volts will damage equipment and could cause personal
injury or death. Make all connections before turning on the transmitter. Follow
standard procedures for reducing the voltage.
• Do not modify this product in any way.
• Only use on insulated conductors or cables when dealing with energized lines.
Receiver Battery Installation

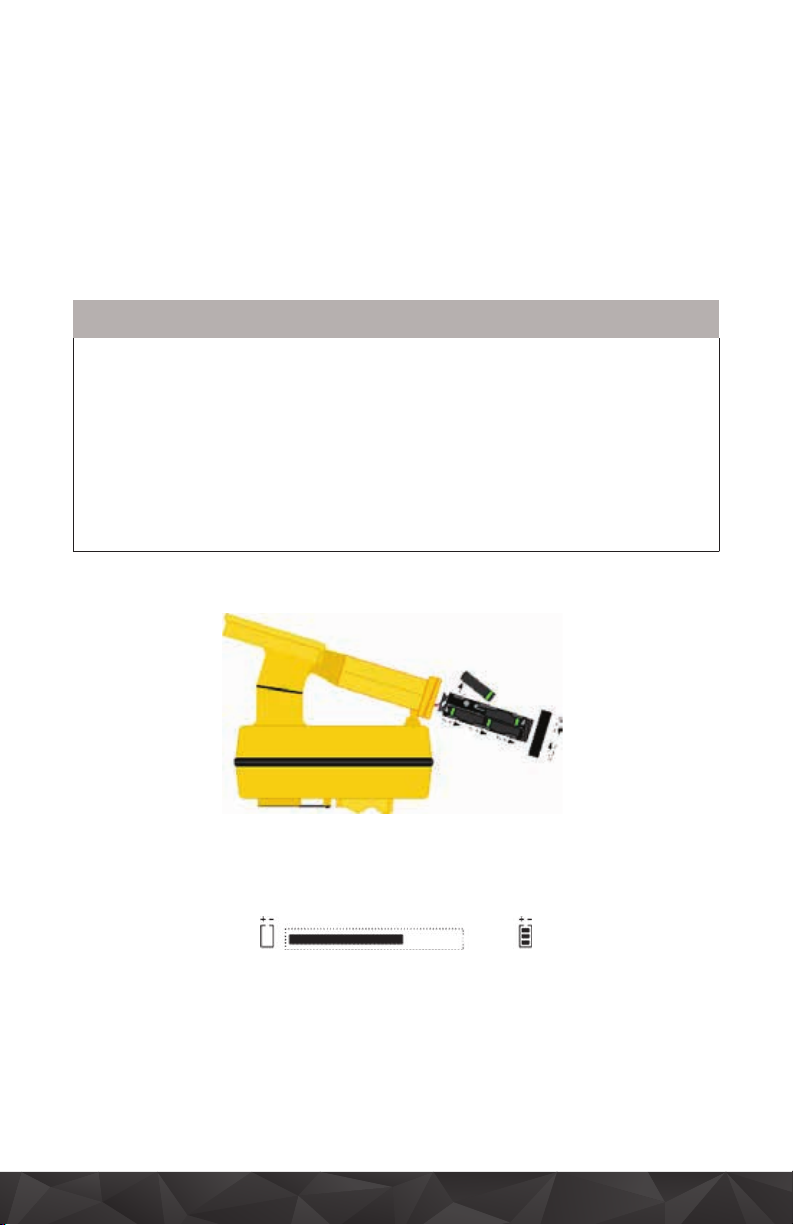

Install 8 "AA" Alkaline batteries (LR6)
The receiver displays the battery level across the bottom of the start up
screen when the unit is powered on.

1178-9000-0021-3-D November 2016
 Caution
To reduce the risks associated with re and explosion:
• Ensure batteries are installed with the correct polarity.
• Do not allow batteries to get wet.
• Only use the supplied charger or purchase a new charger from 3M.
• Only charge batteries in an indoor environment, with a temperature range
of 0°C to 45°C (32°F to 113°F).
• Do not charge Alkaline batteries.
• Use only Alkaline AA (LR 6) with the included holder and adapter.
• Use only Alkaline C (LR 14) sized batteries in the device transmitter.
To reduce the risk associated with hazardous voltage:
• Do not attempt to modify, disassemble, or service the device.
• Voltage greater than 240 volts will damage equipment and could cause personal
injury or death. Make all connections before turning on the transmitter. Follow
standard procedures for reducing the voltage.
• Potential for electric shock exists when handling connection cables while the
transmitter is ON. Make all connections prior to powering on the unit. Turn
transmitter OFF before handling connection cables.
To reduce the risk associated with exposure to chemicals and re:
• Do not open, modify, disassemble, pierce, crack, crush, incinerate, or expose to heat
batteries above 55oC/130oF.

12 78-9000-0021-3-DNovember 2016
Receiver Overview
➊
➋
➌
➍ ➎
➏ ➐
➑
➒

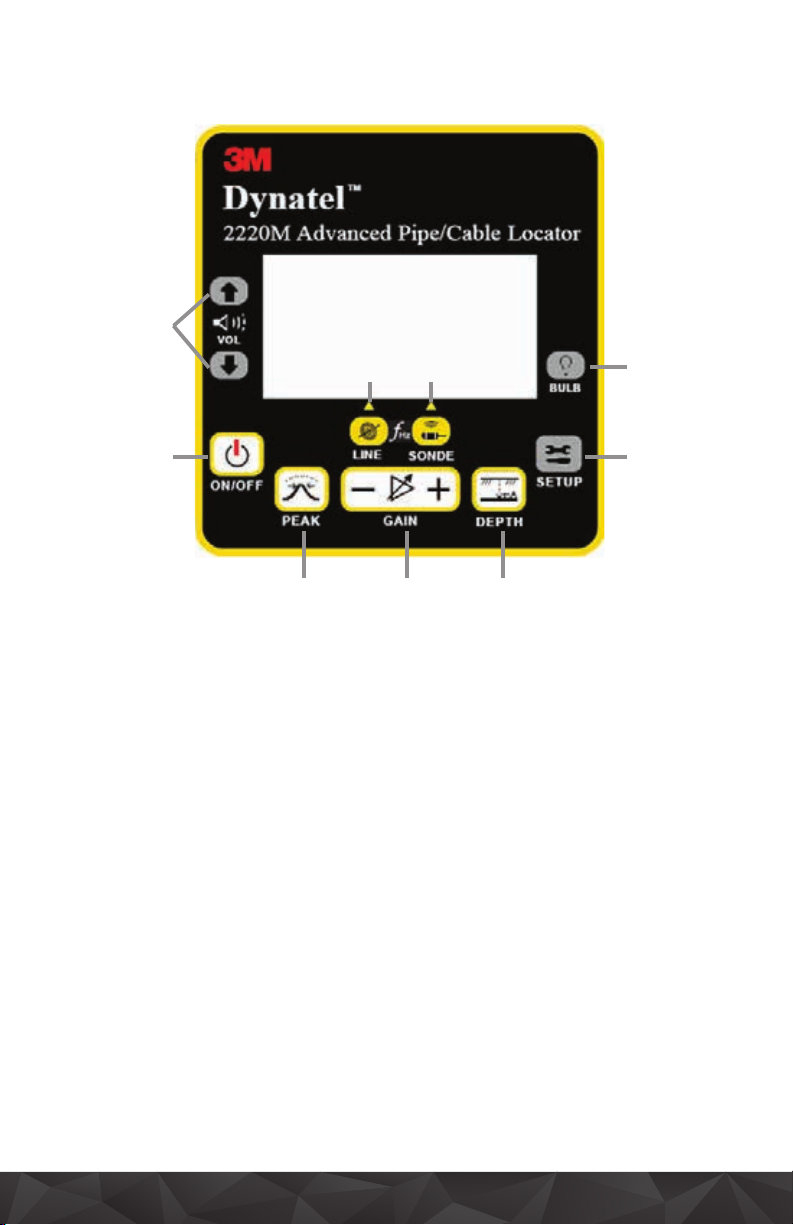

1. Volume Control – Adjusts the volume of the receiver through three
levels of audio and o.
2. Power Key – Powers the receiver on and o.
3. Peak Key – Toggles between Directional Peak, Induction Peak and
Special (Single) Peak antenna conguration.
4. Line Locate Key – Places the Receiver in Pipe/Cable locating
mode and selects frequency. When toggled, it will cycle between
8 kHz, 82 kHz, and 60 Hz (Power Mode). (More frequencies are
available in setup mode).
5. Sonde Locate Key – Places the receiver in sonde locate mode and
selects sonde frequency. When toggled, it will cycle between 512
Hz and 33 kHz. More frequencies are available in setup mode.
6. Gain Adjust – Adjusts the sensitivity of the receiver either up (+) or
down (-) to maintain a satisfactory audio and bar graph response.
7. Depth Key – Displays depth to target pipe/cable/sonde.
8. Setup Key – Congure receiver depth units, enable/disable line
and sonde frequencies, select 50/60 Hz power frequencies.
9. Bulb Key – Turns the display backlight on and o.

1378-9000-0021-3-D November 2016
Transmitter Operations
There are three dierent methods of applying the transmitter’s locating
signal to the target conductor: Direct Connection, 3M™Dynatel™ Dyna-
Coupler Clamp, and Induction.
Direct Connection
This is the preferred mode of operation because the transmitter
is connected directly to a metallic portion of the target conductor
(hydrant, meter, riser, valve, sheath, or tracer wire).
1. While the transmitter is o, plug the direct connect cable into the
output jack of the transmitter.
2. Attach the red lead of the direct connect cable to the target
conductor.
3. Extend the black lead as far as possible from the target conductor
at a right angle (90 degrees) to the suspected path of the target.
4. Insert the external ground rod and attach the black lead of the
transmitter.
5. Turn the transmitter ON by pressing the frequency button. Select 8
kHz, 82 kHz, or both (the word ALL will be displayed).
6. An audible tone, indicating the continuity of the signal path will
sound for 10 seconds and the output current will display in mA.
a. Solid tone = Good signal
b. Fast Beep = Moderate signal
c. Slow Beep = Minimal signal
d. No tone = Poor signal
7. The frequency will ash alternately with the current of the target
conductor on the display.
8. Trace the signal path with the receiver.

14 78-9000-0021-3-DNovember 2016
3M™Dynatel™Dyna-Coupler Clamp
If a direct connection to the target facility is not possible, use the
Dyna-Coupler clamp to apply the locating frequency on the metallic
target conductor. In order to trace a target using this method, both
ends of the target must be well grounded.
1. While the transmitter is o, attach the coupler cable to the
Dyna-Coupler clamp and plug it into the output jack of the
transmitter.
2. Clamp the Dyna-coupler around the metallic target. The jaws of the
coupler must be fully closed.
3. Select 8 kHz or 82 kHz on the transmitter by pressing the
frequency key.
4. Select High Output level when using a 3-watt transmitter, or High
Output or Max Output level when using a 12-watt transmitter, for
the best signal-to-noise ratio.
5. Trace the signal path with the receiver.

1578-9000-0021-3-D November 2016
Induction Method
If you cannot make a direct connection, or use the 3M™Dynatel™
Dyna-Coupler clamp to apply a locating signal on the target, use the
induction method. This method uses the internal coil of the transmitter
to generate a magnetic eld. This is the least preferred method of
applying a signal on a target conductor because it can easily be picked
up by other non-target conductors in the area. However, it is the
preferred method of applying a signal to multiple cables/pipes in the
same trench.
1. Verify battery level of transmitter and remove any cables from the
output jack.
2. Position the transmitter over the target facility, with the hinge of
the transmitter over and in line with the cable/pipe path.
3. Align the Induction Direction arrows on the transmitter with the
target conductor.
4. Turn on the transmitter by pressing the frequency key.
5. Select high output level when using a 3-watt transmitter, or high
output or max output level when using a 12-watt transmitter, for the
best signal-to-noise ratio.
6. Trace the signal path with the receiver using the Induction Peak
mode.
The Induction Peak mode of the receiver is a mode in which the
upper antenna of the receiver is tuned to minimize distortion from the
magnetic eld of the transmitter.
This mode is indicated by the induction icon in the bottom left-hand
corner of the receiver's locate screen.
Note: If nothing is plugged into the output jack of the transmitter, the transmitter
will automatically turn on the internal antennae, and 82 kHz will broadcast
in induction mode. For best results, the receiver should be at least 25 feet
(7.6 m) away from the transmitter to begin tracing the target path. Attempt-
ing to trace the target close to the transmitter may lead to false indications
due to the receiver detecting the large magnetic eld radiating from
the transmitter.

16 78-9000-0021-3-DNovember 2016
Receiver Operations
Initial Settings
From the manufacturing facility, the receiver is congured as follows:
Line Locate Frequencies Selection Default
8 kHz Always Enabled Enabled
82 kHz Always Enabled Enabled
Power Always Enabled Enabled
Radio Enable/Disable Disabled
CATV Enable/Disable Disabled
CPS Enable/Disable Disabled
Sonde Locate Frequencies
512 Hz Enable/Disable Enabled
640 Hz Enable/Disable Disabled
33 kHz Enable/Disable Enabled
Units inch or cm Inch
Power Frequency 50 Hz or 60 Hz 60 Hz
Contrast Up or Down Middle
Depth Measurement Live or One-Shot One-Shot
The setup function will allow you to enable or disable additional
locating and sonde frequencies.
Receiver Setup
Any of the available frequencies of the 3M™Dynatel™Advanced
Pipe/Cable Locator 2220M can be activated or deactivated. When a
frequency is activated, a check mark will appear beside the frequency
in the middle of the setup screen. All frequencies that are activated in
the setup menu, will be available in the locate screens.
When the Setup key is pressed, the receiver will cycle through the
following screens.
Select the left/right arrow keys (← →) to cycle through the setup
screens.

1778-9000-0021-3-D November 2016

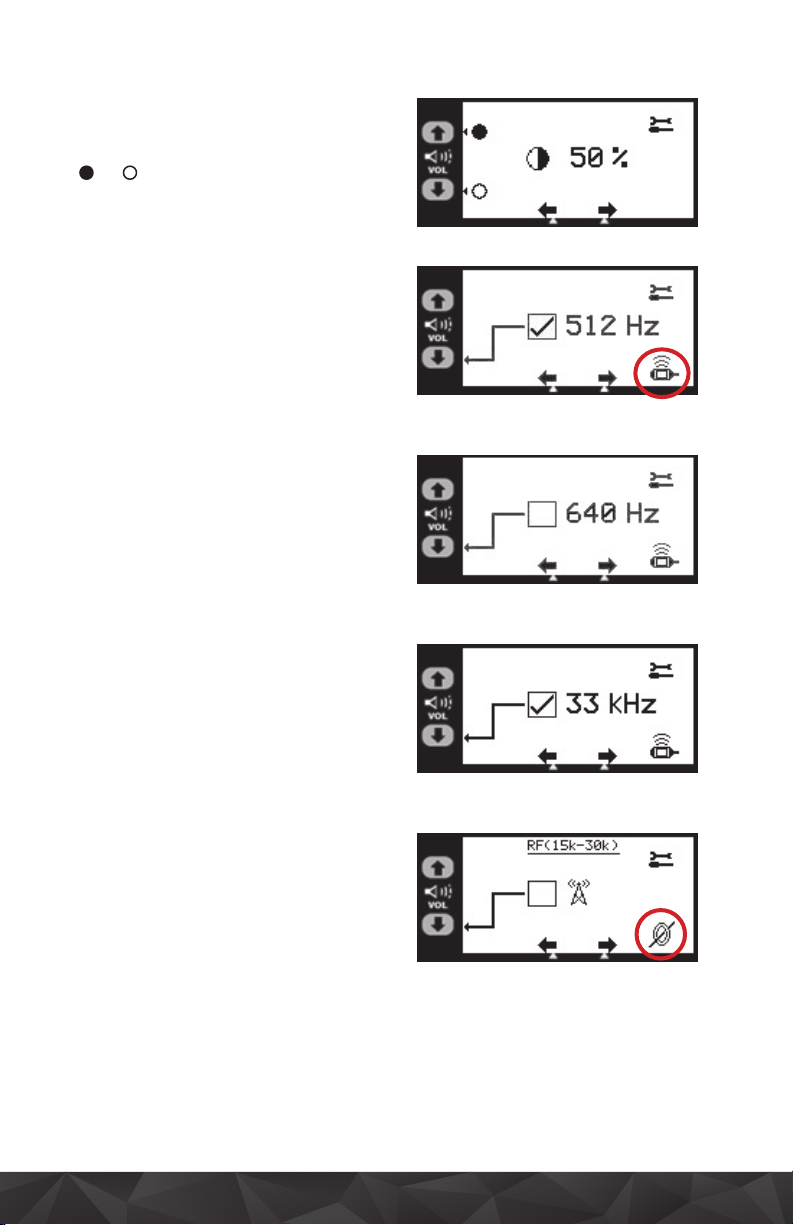

Contrast Adjust
Press the up or down arrows
( or ) toadjust the screen
contrast.
512 Hz – Sonde frequency
indicated by sonde icon.
Press the down key to enable/
disable the frequency. A check
mark will appear in the box when
the frequency is enabled.
640 Hz - Sonde frequency
indicated by sonde icon.
Press the down key to enable/
disable the frequency. A check
mark will appear in the box when
the frequency is enabled.
33 kHz - Sonde frequency
indicated by sonde icon.
Press the down key to enable/
disable the frequency. A check
mark will appear in the box when
the frequency is enabled.
Radio or LF - Low Frequency Band
(15 Khz–30 kHz) indicated by line
locate icon.
Press the down key to enable/
disable the frequency. A check
mark will appear in the box when
the frequency is enabled.

18 78-9000-0021-3-DNovember 2016
CATV – 31.5 kHz indicated by line
locate icon.
Press the down key to enable/
disable the frequency. A check
mark will appear in the box when
the frequency is enabled.
CPS – Cathodic Protection
System– 120 Hz or 100 Hz (based
on 60/50 Hz selection) indicated
by line locate icon.
Press the down key to enable/
disable the frequency. A check
mark will appear in the box when
the frequency is enabled.
50 Hz / 60 Hz - indicated by line
locateicon.
To change the power frequency
selection, press the up (60) or
down (50) key. The selected
frequency will appear in the box at
the center of thescreen.
Snapshot/Continuous Depth
Modes - indicated by Depth icon.
Continuous depth measurements
can be displayed on the screen
in live mode or the depth can be
frozen in snapshotmode.
Press the down key to enable/
disable snapshot depth mode. A
check mark will appear in the box
when snapshot isenabled.

1978-9000-0021-3-D November 2016

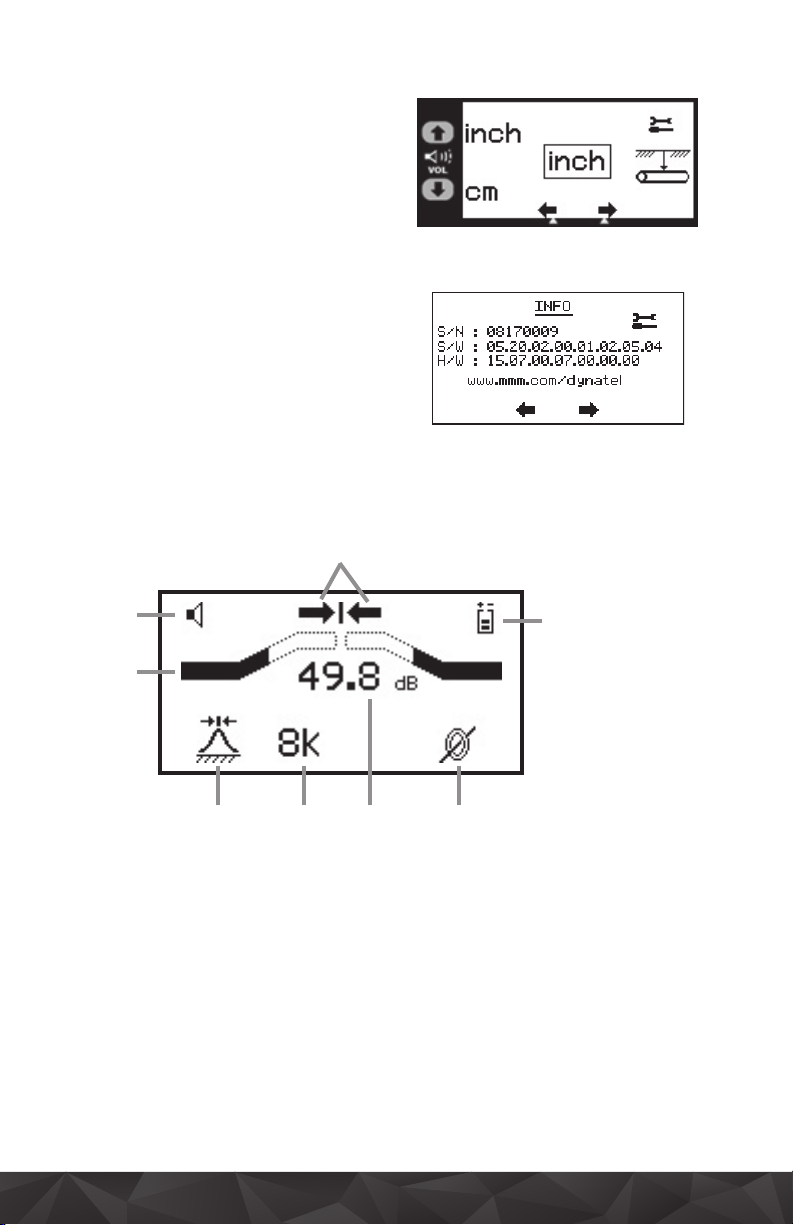

Depth Units
Select the up (inch) or down (cm)
key to select the preferred units of
measure. The selection will appear
in the box at the center of the
screen.
Information
This screen provides important
information including the product
serial number, as well as the
software and hardware versions
of the unit.
Line Locating Screen
➊
➋
➌
➐
➍ ➎
➏
➑
1. Speaker Icon – Indicates audio level
2. Bar graph – Graphical representation of received signal
3. Peak Mode Indicator – Indicates Directional, Induction, or Special
(Single) Peak mode

20 78-9000-0021-3-DNovember 2016

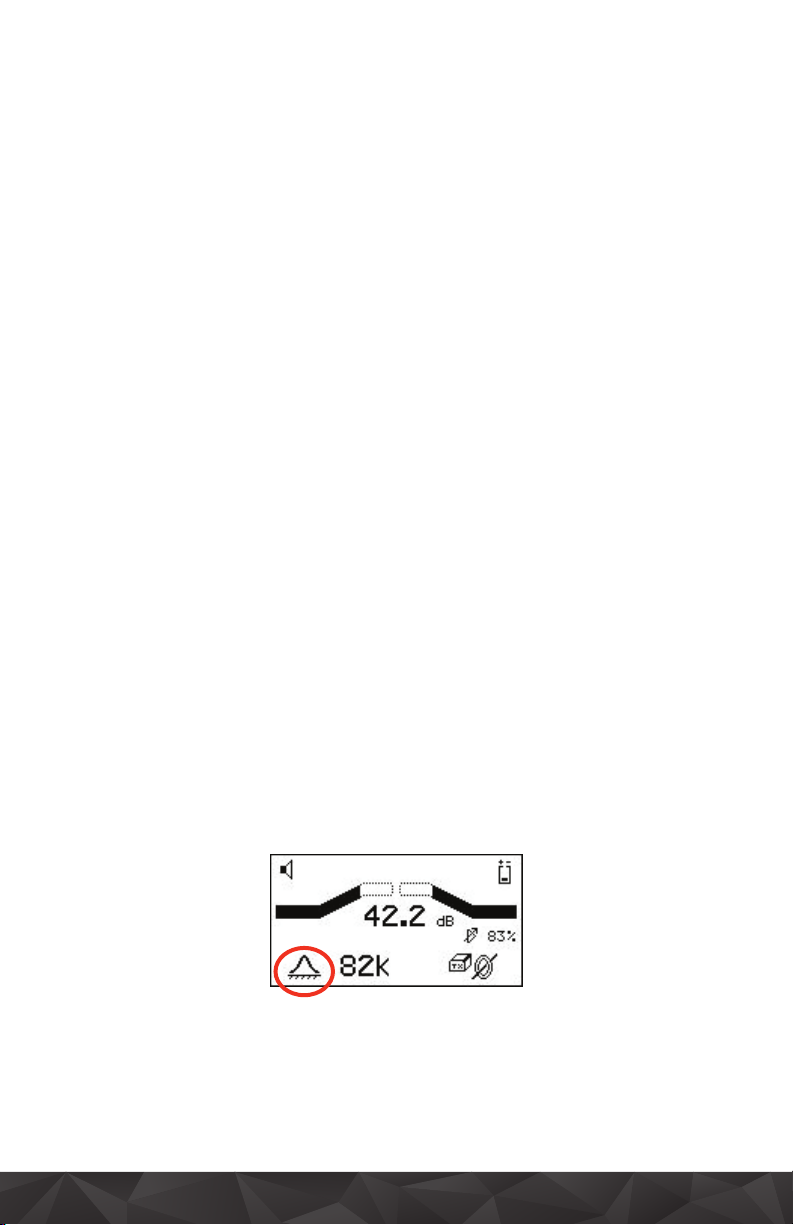

Directional Peak icon Induction Peak icon Special (Single) Peak icon
4. Selected Line Locating Frequency – Displays the frequency the
receiver will detect
5. Line Locating Icon – Indicates line locating mode vs. sonde mode
6. Battery Icon – Indicates battery level of receiver
7. Directional Arrows – Left/right indicators for path tracing in
Directional Peak
8. Signal Level – Numerical reading of received signal (dB)
Pipe and Cable Locating
1. Press the ON/OFF key.
2. Press the LINE key to match the frequency that the transmitter
is sending.
3. Sweep the receiver across the area in a left right motion, while
watching the bar graph, directional arrows, and signal strength.
4. When a magnetic eld is detected, the bar graph will close, the
signal strength and the audio will increase.
5. Adjust the gain so that the bar graph opens when the receiver is
not on target and closes when directly over it by pressing the + or
– gain key.
6. Pinpoint the target by moving the receiver left and right over the
magnetic eld until both arrows appear.
7. Place the tip of the receiver on the ground over the target path and
measure depth of the conductor by pressing the DEPTH key.
8. Verify the depth of the target is as expected, and the current is
comparable with the current displayed on the transmitter.
