3One data CAN232 User manual

CAN232 Interface Converter
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website:
www.3onedata.com
Tel:
[phone]
Fax:
[phone]
【Package Checklist】
Please check the integrity of package and accessories while
first using the CAN interface converter.
1.
CAN interface converter
X 1
2.
Quick installation
guide
3.
CD
4
Warranty card
5.
Certification
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
The product is the interface converter for the data exchange
between CAN-bus profibus and RS-232 bus. The model is
CAN232 (1 RS-232 serial port + 1 CAN port).
【Panel Design】
Top view
Front view
Rear view
Left view and right view
1. DC IN power supply input (2-pin terminal blocks)
2. CAN port running status indicator
3. RS-232 serial port running status indicator
4. Power supply (POWER) indicator
5. Wall-mounting
6. CAN port (5-pin terminal blocks)
7. DIP switch
8. RS-232 serial port
【Mounting Dimension】
Unit: mm

Note:
Don't place or install the device in area near water or moist,
keep the relative humidity of the device surrounding between
5%~95% without condensation.
Before power on, first confirm the supported power supply
specification to avoid over-voltage damaging the device.
The device surface temperature is high after running; please
don't directly contact to avoid scalding.

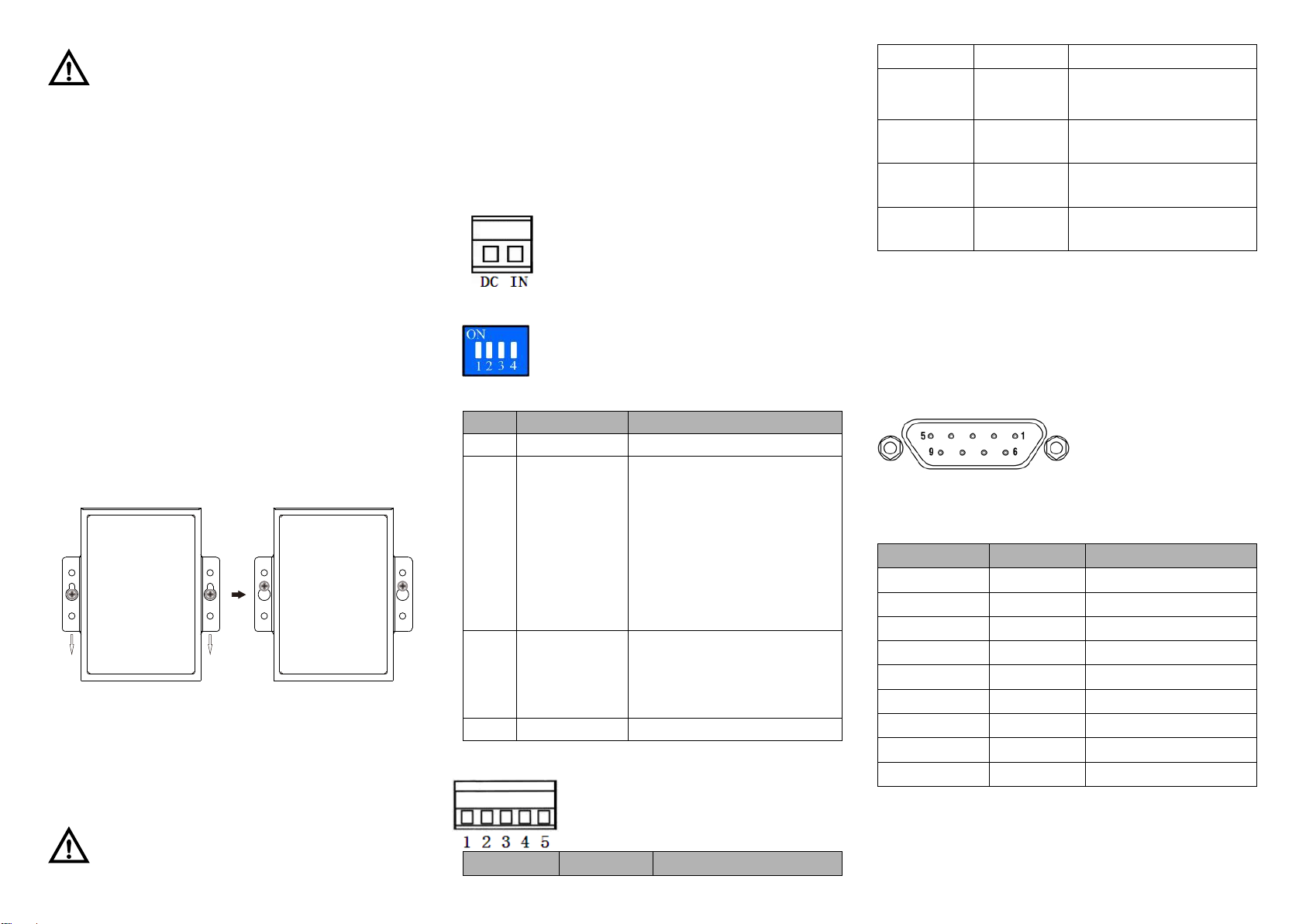

【Wall-mounting】
Step 1 Place the device on the wall of device mounting as
reference or refer to the installation dimension to
mark the position of the two screws.
Step 2 Fix the M4 screw in the wall and reserve 2mm
interspace
Step 3 Hang the device on the two screws and slide
downward, and then tighten the screws, mounting
ends.
【Disassembling Wall-mounting Device】
Power off the device.Step 1
Unscrew the screws in the wall about 2mm.Step 2
Lift upward the device lightly to remove the device,Step 3 disassembling ends.
Note:
Power ON operation: First insert the power supply terminal
block into the device power supply interface, and then plug the
power supply socket and power on.
Power OFF operation: First, unpin the power supply plug. And
then remove the connector of the terminal block. Please notice
the operation order above.
【Power Supply Connection】
The top panel of CAN232 interface converter
provides 2-pin industrial terminal blocks (DC IN),
thereinto, DC IN is 9~48VDC power supply
input. Power supply supports nonpolarity.
【DIP Switch Settings】
4-pin DIP switches are provided for function
settings, among which “ON”is enabling valid
end.
DIP switches definition as follows:
DIP
Definition
Operation
1
Reserved
-
2
Configuration
mode settings
Dial the DIP to ON, the
converter enters into
“configuration”mode after being
powered on;
Dial down the DIP, the
converter enters into “normal
operation”mode after being
powered on.
3
Restore factory
defaults
Dial the DIP to ON, the device
will automatically reboot and
restore factory defaults, dial
back the DIP.
4
Reserved
-
【CAN Port】CAN port of CAN232 adopts 5-pin 5.08mm
pitch terminal blocks.
Pin NO.
Pin Name
Pin Definition
1
GND
Ground wire
2
CANL
Connecting end of CANL
signal line
3
CANH
Connecting end of CANH
signal line
4
RES+
CAN network matching
resistor end 1
5
RES-
CAN network matching
resistor end 2
Pin 4 is marked with “Res+”and pin 5 is marked with “Res-”,
which are connected to the terminal resistance of CAN
network. When CAN232 converter serves as CAN-bus
network terminal, two pins are connected by 120 ohms
resistor; otherwise it’s useless to install 120 ohms resistor.
【RS-232 Serial Port】As for the CAN232, RS-232
ports adopt standard DB9
socket, pin definition
conforms to RS-232 norm.
Here three-wire connection
is adopted.
RS-232 serial port DB9F
Pin NO.
Pin Name
Pin Definition
1
—
Without connection
2
TxD
Data sending end
3
RxD
Data receiving end
4
—
Without connection
5
GND
Ground wire
6
—
Without connection
7
—
Without connection
8
—
Without connection
9
—
Without connection
【Checking LED Indicator】
CAN232 interface converter provides LED indicators to
monitor the device working status with a comprehensive
simplified troubleshooting; the function of each LED is

described in the table as below:
LED
Status
Description
POWER
ON
Power supply is connected or
running normally
OFF
Power supply is disconnected or
running abnormally
RS-232
ON
Serial port is connected
normally
Blinking
Serial port is connected
normally and is
receiving/sending data
OFF
Serial port is receiving/sending
data abnormally or the device
isn’t powered on
CAN
ON
CAN port is connected normally
Blinking
CAN port is connected normally
and is receiving/sending data
OFF
CAN port is receiving/sending
data abnormally or the device
isn’t powered on
【Specification】
Panel
Serial port
1 RS-232 serial port, the
interface adopts DB9 Female
CAN port
1 CAN port, it adopts 5-pin
5.08mm pitch terminal blocks
Indicator
Serial port indicator, power
supply indicator, CAN indicator
Power supply
Input power supply
9~48VDC
Access terminal block
2-pin 5.08mm pitch terminal
blocks
Support nonpolarity connection
Power consumption
No-load consumption
0.86W@24VDC
Full-load consumption
0.84W@24VDC
Working environment
Working temperature
-40℃～75℃
Storage temperature
-40℃～85℃
Working humidity
5%～95% (no condensation)
Protection grade
IP40 (metal shell)
