3One data SW485GI User manual

SW485GI Industrial RS-232/485/422
Interface Converter
or RS-485/422 Relay (2-in-1)
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road
, Nanshan
District, Shenzhen, 518108, China
Website:
www.3onedata.com
Te l :
[phone]
Fax:
[phone]
【Package Checklist】
Please check whether the package and accessories are intact
while using the device for the first time.
1. Interface converter
2.DB9M to DB9F conversion line
3. Certification
4. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
The product is a 2-in-1 device with the model of SW 485GI. As
a RS-232/485/422 converter, it uses 1 RS-232 serial port + 1
RS-485/422 serial port. As a RS-485/422 relay, it uses 2
RS-485/422 serial ports.
【Panel Design】
Front View
Side view
Top view
Bottom view
1. Lugs
2. Power input indicator
3. RS-485/422 receiving data indicators
4. RS-485/422 transmission data indicators
5. RS-232 DB9F interface
6. RS-485/422 5-pin terminal block 1
7. Power interface 3-pin terminal block
8. RS-485/422 5-pin terminal block 2
【
Dimension
】
Unit (mm)
Notice before mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;
please don't directly contact to avoid scalding.
【
Wall-mounted Device Mounting
】
Step 1 On the wall of device mounting, place the device on
the wall for reference or refer to the mounting
dimension to mark two screw positions.
Step 2 Nail M4 screws on the wall and keep 2mm
interspace reserved.
Step 3 Hang the device on two screws and slide
downward, then tighten the screw to enhance

stability, mounting ends.

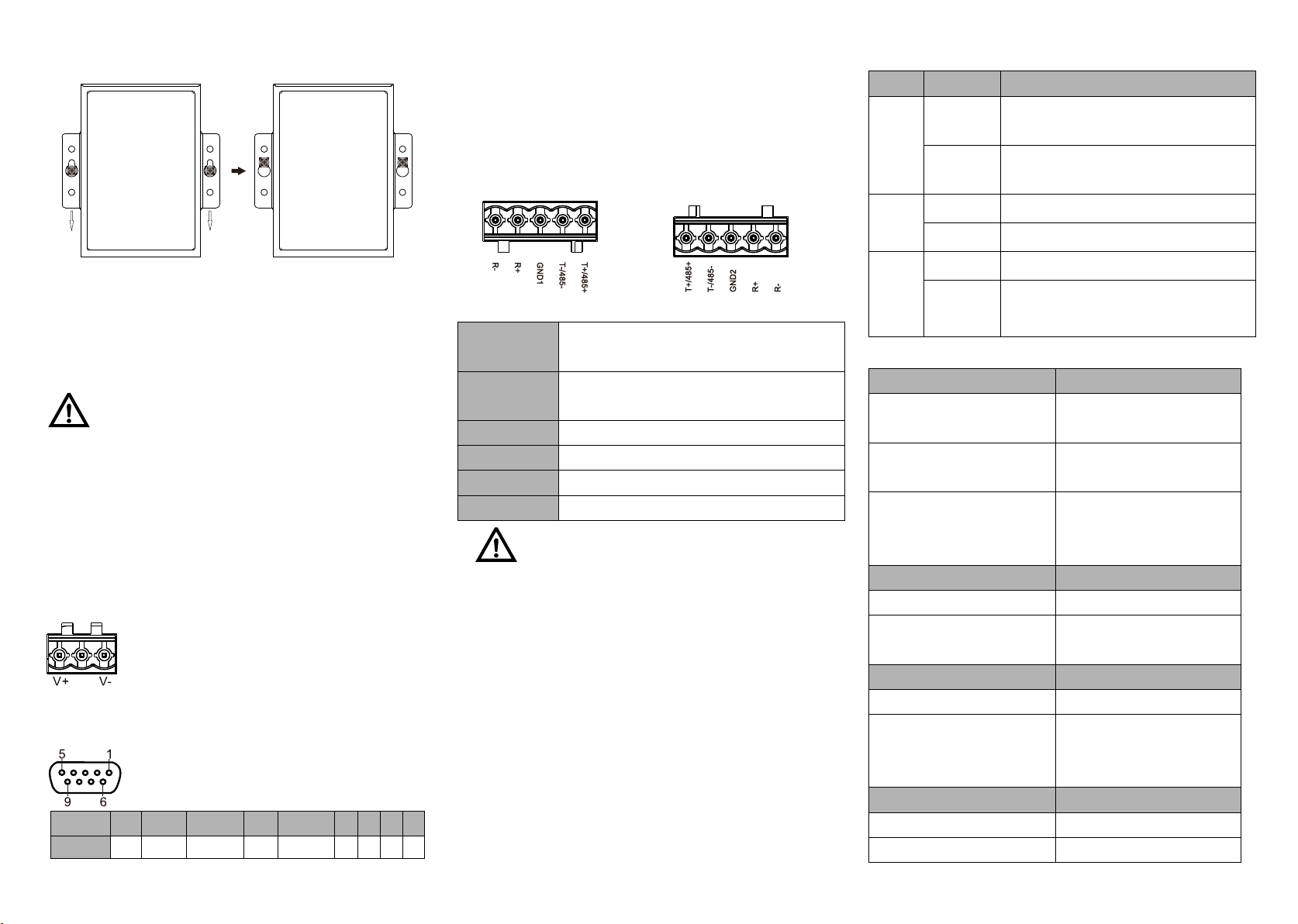

【Wall-mounted Device Disassembling】
Step 1 Device power off.
Step 2 Unscrew the screw on the wall about 2mm.
Step 3 Lift the device upward slightly; take out the device,
disassembling ends.
Notice before powering on:
Power ON operation: First insert the power supply
adapter into the device power supply interface, and then
plug the power supply plug and power on.
Power OFF operation: first, remove the power plug, and
then remove the wiring section of the adapter. Please
pay attention to the above operation sequence.
【Power Supply Connection】
DC power supply
Power interface adopts 3-pin 5.08mm pitch
terminal block. Input voltage: 12~36VDC.
【Serial Port Connection】
RS-232 DB9 interface
This product provides an RS232 DB9 interface,
interface type is RS232 DB9. The pin
definitions as shown in the following table:
PIN 1 2 3 4 5 6 7 8 9
RS-232
-
TXD
RXD
-
GND
-
-
-
-
RS-485/422 5-pin terminal block
The product provides 2 RS-485/422 interfaces with 5-pin
5.08mm pitch terminal block. When the device is used as the
RS-485/422 relay, one interface is the proximal interface and
the other is the remote interface.
The pin definitions as shown in the following table:
T+/485+ RS-422 sends positive, or RS-485 sends
positive
T-/485- Rs-422 sends negative, or RS-485 sends
negative
GND1 Signal ground 1 (proximal end )
GND2 Signal ground 2 (remote end)
R+ RS-422 receive positive
R- RS-422 receive negative
Note:
The device cannot be used as a signal converter and relay at the
same time, users have to choose between the two.
When used as a RS-485/422 relay, the local device is
connected to RS-485/422 terminal 1 (corresponding to
GND1), and the remote device is connected to
RS-485/422 terminal 2 (corresponding to GND2).
When used as an RS-232/485/422 interface converter,
use the RS-485/422 terminal 2 (the corresponding
ground is GND2).
【Checking LED Indicator】
The device provides LED indicators to monitor the device
working status with a comprehensive simplified
troubleshooting; the function of each LED is described in the
table as below:
LED Indicate Description
PWR
ON PWR is connected and running
normally
OFF PWR is disconnected and running
abnormally
RXD
ON RS-485/422 is receiving data.
OFF RS-485/422 has no received data
TXD
ON RS-485/422 is transmitting data
OFF
RS-485/422 is not transmitting data or
transmitting data abnormally
【Specification】
Panel
RS-232 DB9 interface, female hole
type
RS-485/422 5-pin terminal block, with
5.08mm pitch
Indicator Power indicator, serial port
transmission and receiving
data indicator
Power Supply
Input power supply 12~36VDC
Access terminal block 3-pin terminal block, with
5.08mm pitch
Power Consumption
Static power consumption ≤150mA
Dynamic power
consumption (average
value)
≤30mA
Working Environment
Working temperature -10~75℃
Storage temperature -40~75℃

Working humidity 5%～95% (no
condensation)
Physical Characteristics
Protection grade IP30(metal shell)
Size (L×W×H) 100mm×69mm×22mm
Weight 170g
Mounting Wall Mounting
